BHOOP MUHO BH0510 User manual

MUHO BH0510/11/12
car seat, seggiolino auto,
Autositz, siège auto
User manual
Manuale utente
Benetzerhandbuch
Manuel utilisateur

3
UK- Instructions for use
Contents
Contents 3
Warning 4
Know your infant carrier 5-6
1. Certification 7
2. Use in the vehicle 8
2.1 With the vehicle’s 3-point seatbelt 9
3. Securing you baby 10
3.1 Securing your baby using the baby insert 10
3.2 Adjusting the handle 11
3.3 Adjusting the headrest 12
3.4 Loosening the shoulder straps 12
3.5 Securing your baby using the harness 13
3.6 Tightening the harness 14
3.7 Checklist to ensure that your baby is buckle up correctly 14
4.Installation in the vehicle 15
4.1 Securing infant carrier in your vehicle 16
4.2 Checklist for the correct installation of the infant carrier in your car 17
5. Fitting the sunshade 18
6.Care instructions 19
6.1 Care for the harness buckle 19-20
6.2 Cleaning 21
6.3 Removing the harness 22
6.4 Removing the cover 23
6.5 Re-fitting the cover 23

4
Warning
PLEASE READ THOROUGHLY BEFORE COMMENCING IN-
STALLATION AS AN INCORRECT INSTALLATION COULD BE
DANGEROUS.
DO NOT USE THIS CHILD SEAT IN PASSENGER SEATS EQUIP-
PED WITH AIRBAGS.
This child seat must only be installed in a forward facing position in
passenger seats.Do not use on side facing or rear facing seats .
Never use this child seat without fastening the child’S harness correctly,
and never attempt to use it without fastening it into the car as described
in these instructions.
DO NOT modify the seat in any way.
In the event of an emergency it is important that the child can be
released quickly, this means that the buckle is not fully tamperproof and
so your child must be taught never to play with the buckle .
DO NOT leave your child unattended in the seat at any time.
It is recommended that this car seat should be changed when it has been
subjected to violent stresses in an accident or has become badly worn,
periodically inspect the harness for wear, paying particular attention to
the attachment points, stitching and adjusting devices.
Ensure that no part of the seat is trapped in a door or folding seat, if your
car has a folding rear seat, ensure that it is correctly latched in the
upright position.
Car interiors can become very hot when in direct sunlight, it is therefore
recommended that the child seat is covered when not in use this
prevents components ,particularly those attached to the child seat
,becoming hot and burning the child.
Luggage and other heavy or sharp objects should be secured in the car,
loose objects are liable to cause injury in the event of an accident.
The safest seating position for a child car seat is on the rear seat of a
vehicle.The child restraint must not be used without cover.The seat
cover should not be replaced with any other than the one recommended
by the manufacturer, because the cover constitutes an integral part of
the restraint performance.

5

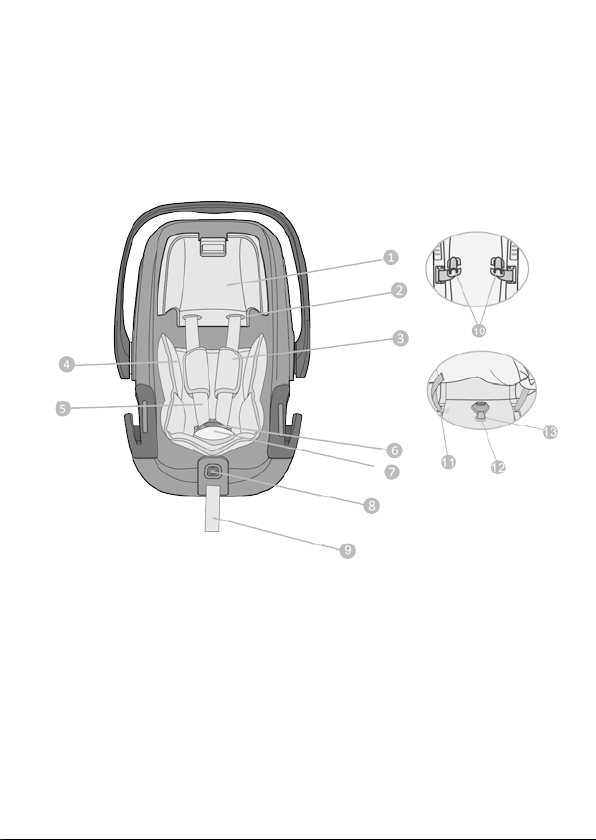

Know your infant carrier
1. Handle 2. Shoulder straps hole
3. Shoulder pad 4. Shoulder straps
5. Cuddle me 6. Buckle
7. Buckle pad 8. Center adjuster
9. Adjuster strap 10. Crotch straps sun-piece(X2)
11.Crotch straps holes 12. Lap straps sun-piece
13.Lap straps hole

6

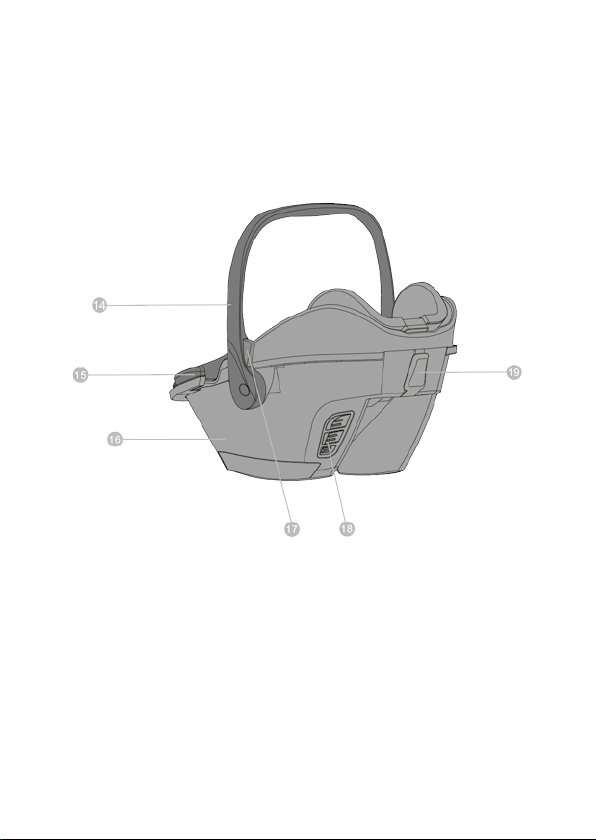

Know your infant carrier
14. Handle 15. Lap strap guide
16. Seat shell 17. Handle adjuster
18. Decorate board 19. Diagonal belt guide

7
Certification
1. Certification
... as a child safety seat installed in a
vehicle
*ECE = European Standard for Safety Equipment
The child safety seat has been designed, tested and certified according to
the requirements of the European Standard for Child Safety Equipment (ECE
R 44/04).
The seal of approval E (in a circle) and the approval number are located on
the approval label (sticker on the child safety seat).
This approval will be invalidated if you make any modifications to the child
safety seat. Only the manufacturer is permitted to make modifications to the
child safety seat.
Child Safety Seat
IG 02
Tested and certified
according to ECE* R 44/04
Group Body Weight
0+ Up to 13kg

8
Use in the vehicle
2. Use in the vehicle
Danger! An airbag hitting the infant carrier can cause serious injuries to your
child, possibly resulting in death.
Please observe the instructions in your vehicle manual for the use of child seats.
Please observe the regulations applicable to your particular country.
Do not use with 2-point belt.
The safety belt must be approved to ECE R 16 or a comparable standard.
Do not use on passenger seats with a front airbag!
Can be used if the vehicle seat is equipped with a 3-point belt.
DO NOT use on a passenger seat
with a front airbag!
DO NOT use with 2-point belt.
With the vehicle’s 3-point seatbelt

9
Use in the vehicle
2.1 With the vehicle’s 3-point seatbelt
You can use your child car seat as follows:
in the direction of vehicle seat direction no
against the direction of vehicle seat direction yes
with 2-point belt no 1)
with 3-point belt yes 2)
on front passenger seat yes 3)
on outer rear seat yes
on centre rear seat no 4)
(Please observe the regulations applicable to your particular country).
1) The use of a 2-point belt substantially increases the risk
of injury to your child in the event of an accident.
2) The safety belt must be approved to ECE R 16 or a comparable
standard (see test label on belt with an “E” or “e” in a circle).
3) Do not use on passenger seats with a front airbag!
4) Can be used if the vehicle seat is equipped with a 3-point belt.

10
Securing you baby
3. Securing you baby
3.1 Securing your baby using the baby insert
For the protection of your baby
• Always secure your baby in the infant carrier using the harness.
• Never leave your baby unattended in the infant carrier when placing it on
elevated surfaces (e.g. a table, nappy changing unit, etc.).
• Never allow the strap end to become caught in moving parts (e.g. automa-
tic doors, escalators, etc.).
• Caution! The plastic parts of the infant carrier heat up in the sun, so that
your baby may get burnt. Protect your baby and the infant carrier against
intensive solar radiation (e.g. by putting a light cloth over the seat).
• The infant carrier requires only one seating position in the car. This advantage
means, however, that your baby must be in a semi-reclined position.
• Take your baby out of the infant carrier as oen as possible to relieve its spine.
We recommend frequent breaks during long journeys. Even outside of the
car, please avoid leaving your baby in the infant carrier for too long.
The baby insert gives your baby the necessary support while
he or she is still small.
The baby insert is used to provide extra comfort for very small
babies.
Caution! Please use the baby insert attached to this infant
carrier when your baby ‘s weight is less than 9kg.

11
Securing you baby

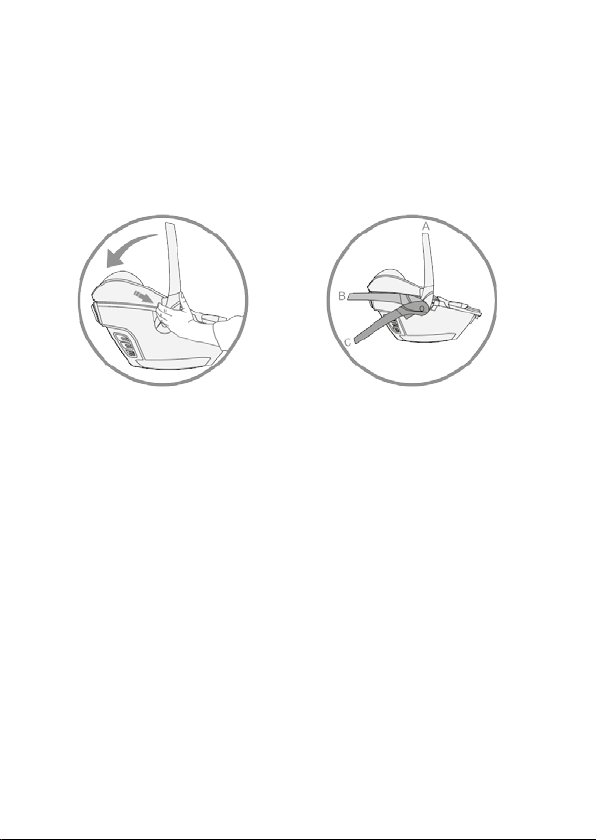

3.2 Adjusting the handle
You can engage the adjustor in three positions:
simultaneously press both buttons on the handle.
Then whilst holding the adjustor pressed turn the handle backwards until it en-
gages in the desired position.
A: For carrying and for transport in the car.
Caution! Ensure that the handle is securely engaged before you pick up
the infant carrier.
B: For placing your baby into the infant carrier.
Tip! You can swivel the handle from position to position without pressing
the buttons.
C: For setting the infant carrier down safety outside the car.

12
Securing you baby
3.3 Adjusting the headrest
A correctly adjusted headrest ensures your baby’s optimal
posture in the infant carrier.
The headrest must be adjusted so that the shoulder straps are at the
same level as your baby’s shoulders or slightly above.
To adjust the height of the headrest to fit your baby:
Tilt the headrest adjuster until it disengages.
Slide the headrest adjuster until the shoulder straps are at the correct height
and re-engage.
3.4 Loosening the shoulder straps
Press the harness release button and at
the same time pull both shoulder straps
forward.

13
Securing you baby
3.5 Securing your baby using the harness
• Open the harness buckle (press the red release button).
• Place your baby into the infant carrier.
• Put the shoulder straps over the shoulders of your baby , then put the buckle
tongues together and engage in the harness buckle with an audible “click”.
Caution! Do not twist or interchange the shoulder straps.

14
Securing you baby
3.6 Tightening the harness
3.7 Checklist to ensure that your baby is buckle up
correctly.
For the safety of your baby ,please check that...
Pull the strap end
Caution! Pull the strap end straight towards
you, not upwards or downwards.
Please pay attention to the strap end.
Whilst travelling (especially outside the car) it
should always be attached to the cover.
• The shoulder straps of the infant carrier are
comfortable but FIRM fit around your child.
• The shoulder straps are adjusted correctly.
• The shoulder straps are not twisted.
• The buckle tongues are engaged in the har-
ness buckle.

15
Installation in the vehicle
4. Installation in the vehicle
In the case of an emergency stop or an accident unsecured persons or objects
may cause injury to other vehicle occupants. Please always check that...
• The backrests of the vehicle seats are locked (i.e.that a foldable rear seat
bench latch is engaged).
• All heavy or sharp-edged objects in the vehicle(e.g. on the parcel shelf) are
secured.
• All persons in the vehicle have their seat belts fastened.
• The child safety seat is always secured when it is in the vehicle, even if no
child is being transported.
To protect your vehicle
Some vehicle seat covers of sensitive materials(e.g. velour, leather, etc.) may
develop wear marks when child seats are used. This can be avoided by pla-
cing a blanket or towel under the child seat.
IMPORTANT
DO NOT USE FORWARD FACING BEFORE THE CHILD’S WEI-
GHT EXCEEDS 9KG.
Please do not leave your child unattended in the child safety seat in
the vehicle.
For the protection of all vehicle occupants
Do not use a child safety seat if
the vehicle seat is equipped with
a front airbags.

16
Installation in the vehicle

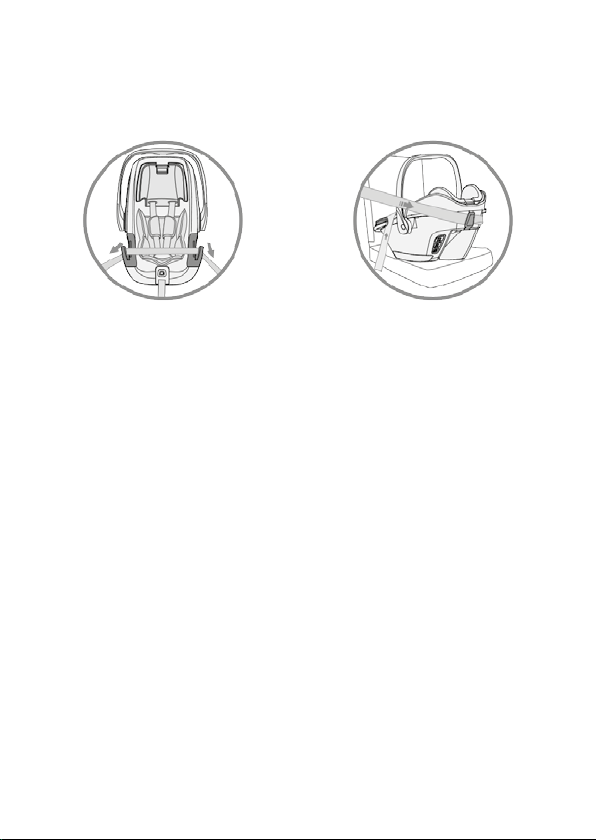

4-1 Securing the infant carrier in your vehicle
To securing the infant carrier using the 3-point belt of your
vehicle proceed as follows:
Place the infant carrier rearward-facing on the vehicle seat (baby is facing
backwards).
Tip! In certain cases it is possible that the infant carrier dose not rest securely
or is inclined too steeply on the vehicle seat.
This can be remedied by placing a blanket under the child seat or choosing
another seating position.
Ensure that the handle is in its upper position A.
Pull out the vehicle seat belt and place it across the infant carrier.
Engage the buckle tongue in the vehicle seat buckle.
Place the lap belt section in the blue belt guides on both sides of the infant
carrier.
Caution! Do not twist the belt.
Tighten the lap belt section by pulling the diagonal belt section.
Caution! The buckle of the vehicle seat belt must not be positioned in or
front of the blue shell (in the direction of travel).
Pull the diagonal seat belt section behind the top end of the infant carrier.
Push the diagonal belt section between the blue shell and the infant carrier
until the belt engages.
Caution! Do not twist the belt.

17
Installation in the vehicle
4-2 Checklist for the correct installation of the infant
carrier in your car
• The infant carrier is installed rearward-facing.
• The infant carrier is only installed on the front passenger seat if no front airbag
can strike the infant carrier.
• The infant carrier is only secured using a 3-point belt.
• The lap belt section runs through both light blue belt guides on the infant
carrier.
• The diagonal belt section runs through the blue belt holder and the infant
carrier.
• The vehicle seat buckle is not positioned in or in front of the light blue belt
guide.
• The vehicle seat belt is tightened up and not twisted.
For the safety of your baby ,please check that...

18
Fitting the sunshade
5. Fitting the sunshade
• Hook the elastic loops of the sunshade from underneath into the hooks on
the handle.
• Pull the elastic seam over the upper edge of the infant carrier.
• Hang the elastic loops in the hooks under the edge of the infant carrier.
• Tighten the sunshade by pulling the edge of the sunshade over the handle.

19
Care instructions
6. Care instructions
• In an accident at a collision speed above 10 km/h the child safety seat could
suer damage which is not necessarily obvious.
• In such cases it is extremely important that you replace the child seat.
• Please dispose of it properly.
• Regularly check all important parts for damage.
• Ensure the correct operation of all mechanical components.
• To prevent damage or breakage, ensure that the child seat does not beco-
me jammed in the car door, seat runners, etc.
• Should the child seat be damaged (for example aer dropping it) it must be
inspected by the manufacturer.
6.1 Care for the harness buckle
The function of the harness buckle is important for the safety of your child.
Malfunctions of the harness buckle are mostly attributable to accumulations
of dirt and dust.
To retain the protective eect

20
Care instructions
Malfunction
The buckle tongues are ejected only slowly when the red release button is
pressed.
The buckle tongues will no longer lock home (are ejected again).
The buckle tongues engage without an audible “click”.
The buckle tongues are dicult to insert (you feel resistance).
The buckle only opens if extreme force is applied.
Remedy
Wash out the harness buckle so that it functions properly once again:
1. Removing the harness buckle
Open the harness buckle (press the red release button).
Loosen the harness straps.
Tilt the infant carrier backwards and open the user instructions compartment.
Push the metal plate , with which the harness buckle is fixed to the seat shell, on
its side upwards through the belt slot .
2. Cleaning the harness buckle
Soak the buckle in warm water with dishwashing liquid for at least an hour.
Rinse and dry thoroughly.
3. Re-fitting the harness buckle
Push the metal plate on its side downwards through the belt slot in the cover
and through the seat shell. Check for correct fitting by pulling firmly on the
harness buckle.
Malfunction
The buckle tongues can no longer be inserted into the buckle housing.
Remedy
Unlock the buckle by pressing the red release button.
