Biddle CITY Series User manual

Manual
Comfort air curtain
Model CITY - CYV - CYQ
a
Version of Guide: 5.0 R
Original manual

COMFORT AIR CURTAIN
2
. . . Table of contents
1 Introduction 4
1.1 About this manual 4
1.2 How to read this manual 4
1.3 About the unit 5
1.4 Safety instructions 10
2 Installation 12
2.1 Safety instructions 12
2.2 Delivery check 12
2.3 General working method 12
2.4 Fixing the unit 14
2.5 Connecting the unit to the central heating installation 16
2.6 Connecting the unit to the Daikin system (CYQ and CYV) 17
2.7 Connecting the unit to the power supply 20
2.8 Installing control panel and external controls (CITY and CYV) 22
2.9 Control system without touch pad controller (CITY and CYV) 27
2.10 Finishing the unit 29
2.11 Switching on and checking function 33
3 Operation CITY and CYV 35
3.1 Switching the unit ON and OFF 35
3.2 Setting the fan speed 35
3.3 Setting the heating (CITY E and CYV) 36
4 Operation CYQ 37
4.1 Switching the unit ON and OFF 37
4.2 Controlling the air curtain 38
5 Maintenance 39
5.1 Replacing or cleaning the filter 39
5.2 Cleaning the unit 40
5.3 Scheduled maintenance 40
6 Faults 41
6.1 Safety instructions 41
6.2 Checking for faults 41
6.3 Resolving simple problems 42
6.4 Remedying faults 43
7Service 45
7.1 Safety instructions 45

Versie: 5.0 (04-06-2012) 3
7.2 Access to the interior of the unit 45
7.3 Electronics module 47
7.4 Daikin electronics module (CYQ and CYV) 47
7.5 Fuses 48
7.6 Venting the heat exchanger (CITY W) 49
7.7 Bleeding the heat exchanger (CITY W) 49
7.8 Resetting the maximum thermostat (CITY E) 49
7.9 Configuration of the Biddle control cable 50
8 Dismantling 51

Versie: 5.0 (04-06-2012) 4
1. . Introduction
1.1 About this manual

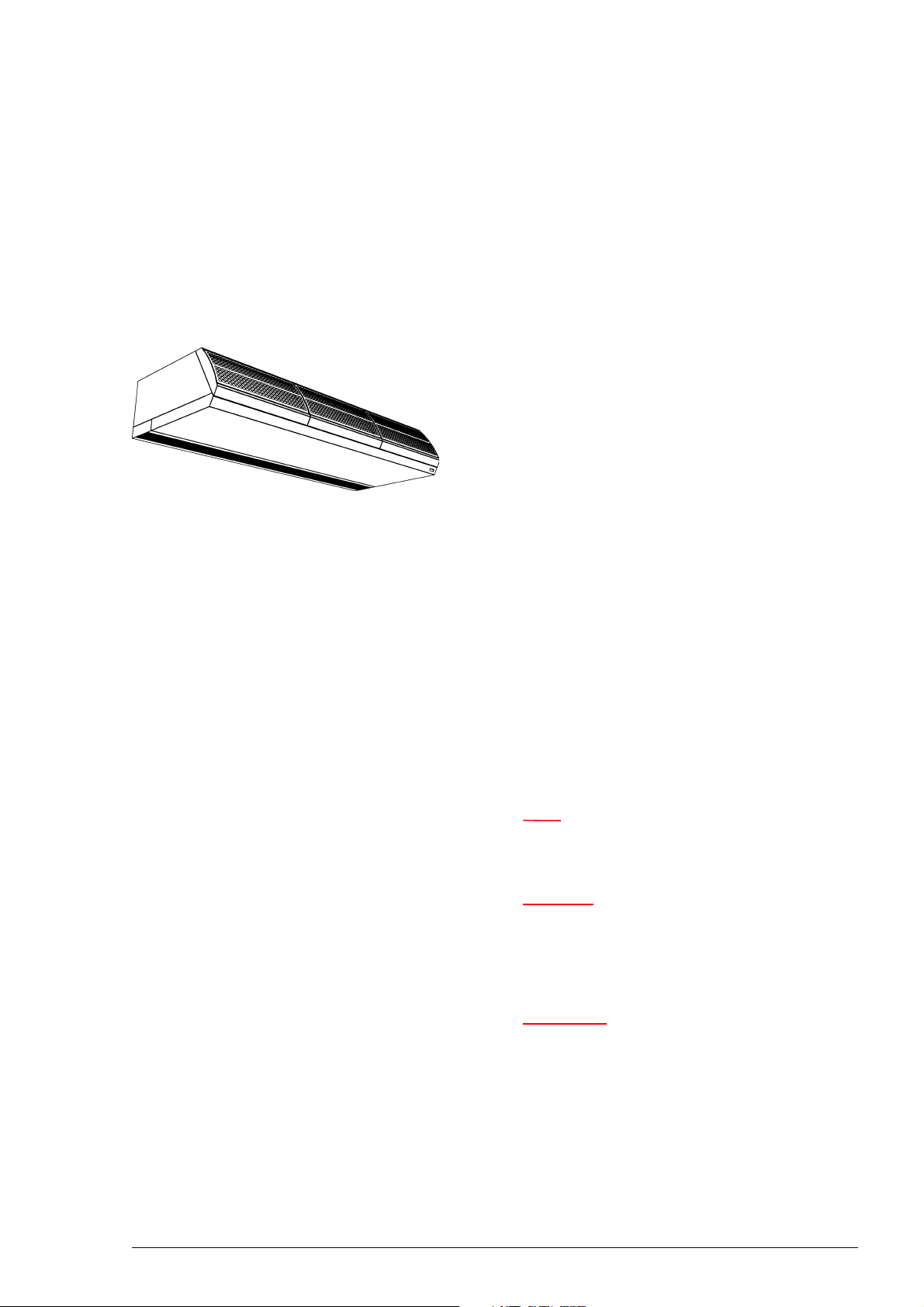

This manual describes the installation, operation and mainte-
nance of the comfort air curtain model CITY, CYQ, CYV. The
manual also provides instructions and information on service
operations.
1.2 How to read this manual
1.2.1 For CYQ and CYV only:
This manual makes cross-reference to the manuals of the Dai-
kin components (outdoor unit, indoor unit, control panel,
etc.).
1.2.2 Marginal symbols used in the manual
The following symbols are used in this manual:
Note:
nDraws your attention to an important part of the
text.
Caution:
cIf you do not perform this procedure or action
correctly, you may damage the unit.
Follow the instructions strictly.
Warning:
wIf you do not perform this procedure or
action correctly, you may cause damage and/
or bodily injury.
Follow the instructions strictly.

CITY MANUAL INTRODUCTION
Versie: 5.0 (04-06-2012) 5
Danger:
dThis indicates actions which are not
permitted.
Ignoring this warning may lead to serious
damage or accidents which may involve bod-
ily injury.

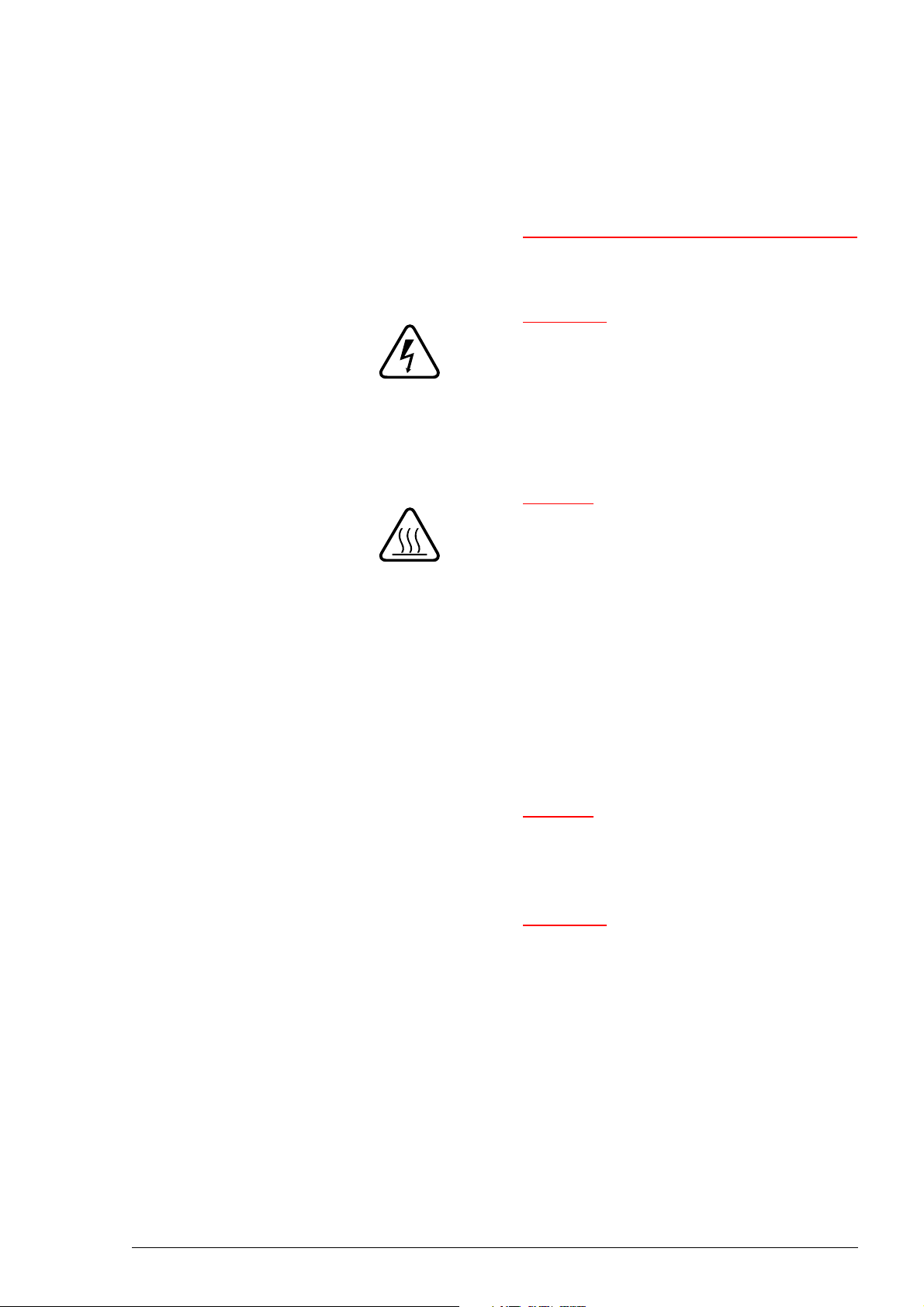

1.2.3 Pictograms used on the unit and in the manual
The following pictograms indicate potential risks or hazards.
The same pictograms will also be found on the unit.
Pictograms
1.2.4 Related documentation
In addition to this manual, the following document has been
supplied with the unit:
• Wiring diagram for installation and service
1.3 About the unit
1.3.1 Applications
The comfort air curtain is intended for the separation of cli-
mates between two rooms, and for heating and filtering (filter
class EN779-G2) of air. The unit is installed above the door-
way, across its full width.
PICTOGRAM DESCRIPTION
wYou are entering an area of the unit containing live components.
Accessible to qualified maintenance staff only.
Exercise caution.
wThis surface or part can be hot. There is a risk of burns on contact.

INTRODUCTION COMFORT AIR CURTAIN
6

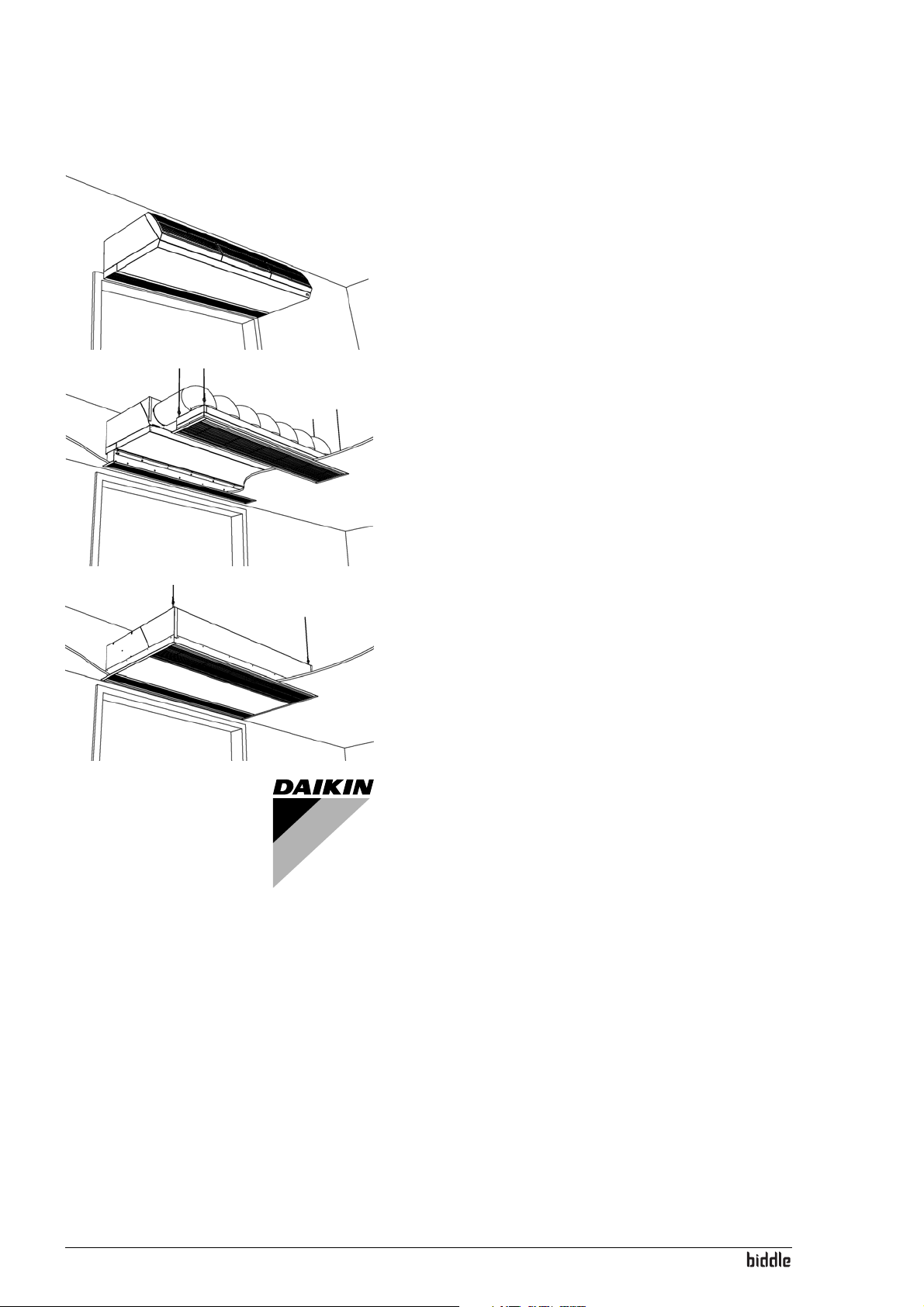

The free-hanging model is designed for free, visible installation
above the door.
The recessed model is designed for integration into a false
ceiling or into a cove, with the inlet opening possibly at some
distance from the unit.
The cassette model is designed for installation above a false
ceiling, with the inlet opening close to the unit and with easy
access to the unit.
CYQ and CYV
The CYQ/CYV air curtain is connected to a Daikin direct
expansion system. The air blown through the unit is heated by
the cooling medium. The air curtain is controlled and oper-
ated partly by the Daikin system and partly by the Biddle sys-
tem.
The system has a number of limitations:
• The unit is only suitable for use in Daikin direct expansion
systems.
• The unit is not suitable for cooling.
• The Daikin system has to be active at all times.
Other versions and intended use.
On request, versions can be supplied for other applications.

CITY MANUAL INTRODUCTION
Versie: 5.0 (04-06-2012) 7
Warning:
wApplications other than those described
above are not considered to be an intended
use. Biddle assumes no responsibility for
damage or injury resulting from applications
other than the intended use. The intended
use also implies observance of and
compliance with the instructions in this
manual.
1.3.2 Function
The air curtain blows out a warm air stream straight down,
thus achieving the following:
• The exchange of air between two rooms due to tempera-
ture differences (convection) is stopped.
• The cold air entering across the floor due to draught is
heated.
1.3.3 Type designation
The table below gives an overview of available models of the
comfort air curtain and the corresponding type designations.
Combined, the type designations constitute the type code, for
instance: CITY S-100-W-F.
If some part of the manual applies to certain models only,
these will be indicated using the corresponding type designa-
tion, for example:
• CITY S: Models with capacity S
• CITY 100: Models with discharge width 100
• CITY W: Water-heated models
• CITY E: Electrically-heated models
• CITY F: Free-hanging models
Note:
nFor the illustrations in this manual, the following unit
type is used as a general example: CITY M-150-W-F.
The appearance of your unit may be different but its
function is the same, unless stated otherwise.

INTRODUCTION COMFORT AIR CURTAIN
8

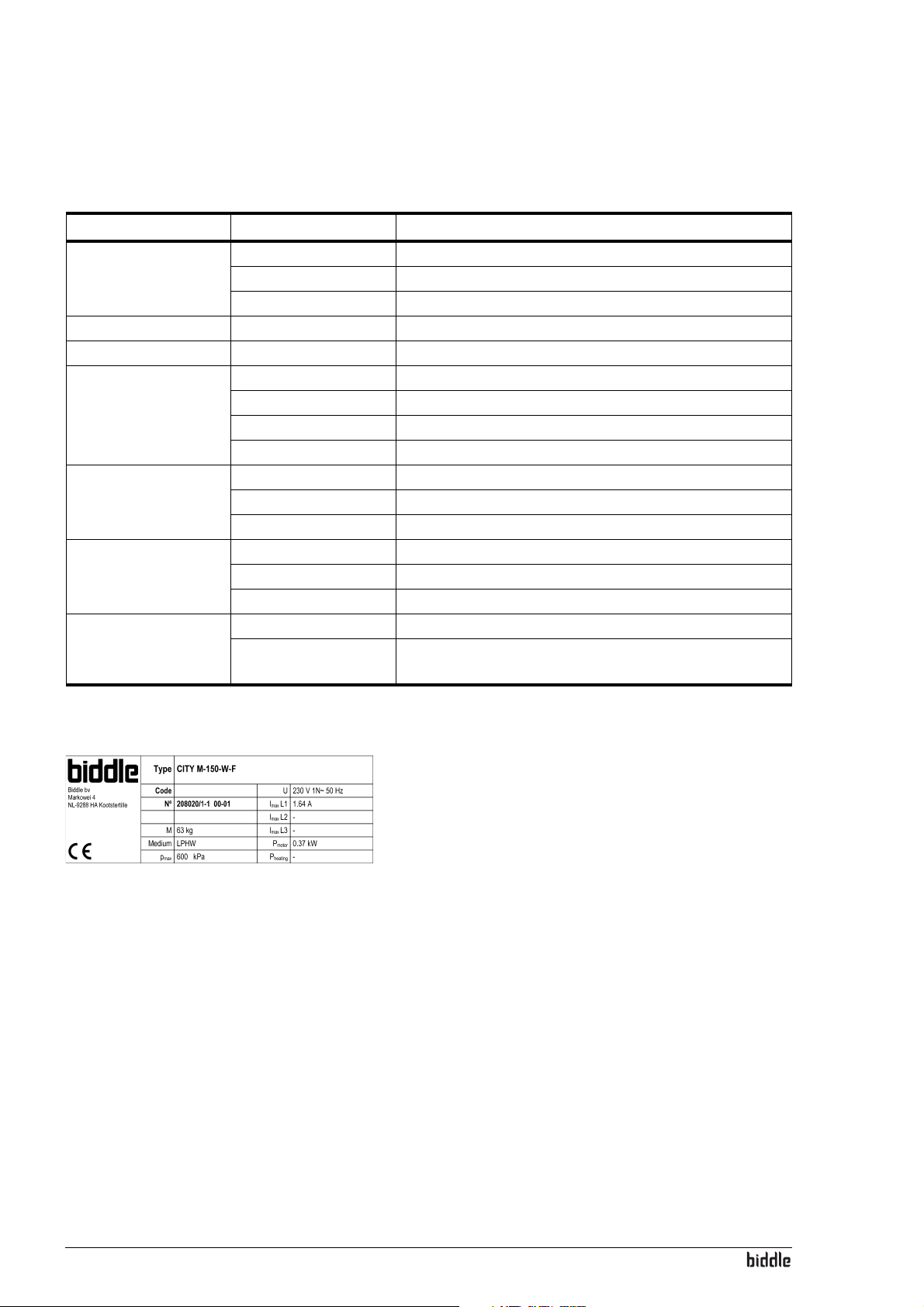

Explanation of the type code
1.3.4 Type plate
The type plate is located on the front left of the unit.
This manual refers to the following data on the type plate:
•Type: Complete type code of the unit
•M: Weight of the unit
•Medium: Heating medium
•Capacity index: Daikin capacity index
•P max:Maximum permissible working pressure of the hot
water circuit (at 230ºF / 110 °C).
•U, Imax, Pmotor and Pheating: Maximum load on the electrical
system by the unit
1.3.5 Field of application
The comfort air curtain is predominantly used in commercial
premises at an ambient temperature of max. 40°C. The fol-
lowing limits must thereby be observed:
PART TYPE CODE DESIGNATION MEANING
Product series CITY, CYQ, CYV General designation for the series
CYV For connection to Daikin VRV system (‘multi’)
CYQ For connection to Daikin ERQ system (‘pair’)
Capacity S, M or L Small, medium or large range
Discharge width 100, 150, 200 or 250 Discharge width in cm
Heating W Water heating
E Electric heating
A Without heating
DK Heating with Daikin direct expansion system
Mounting method F Free-hanging model
R Recessed model
C Cassette model
Colour (CYQ and CYV
only)
BWhite
SAluminium
XNon-standardcolour
Control panel (CYQ
and CYV only)
C Touch pad controller included
N Not included (if several units are connected in one installa-
tion)

CITY MANUAL INTRODUCTION
Versie: 5.0 (04-06-2012) 9
Application limits
Warning:
wThe air curtain must not be employed in
potentially explosive atmospheres, wet
environments, outdoors or in very dusty or
aggressive air.
Biddle assumes no responsibility for damage
or injury resulting from use in these situa-
tions.
1.3.6 CE declaration
The unit satisfies the applicable CE standards. The complete
CE Declaration of Conformity can be found at: www.bid-
dle.info.
Class A product
Note:
nCYV only: This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be required
to take adequate measures.
1.3.7 Modifications and changes
No modifications or changes may be made to the unit which
could influence its safety without the approval of Biddle.
Changes or modifications will void the CE declaration.
1.3.8 Components and accessories
The following accessories are available as options:
• Control panel (able to control a maximum of 10 units)
(CITY, standard with CYV, not with CYQ)
Ambient temperature 5°C to 40°C
System voltage see type plate
Power see type plate
Maximum discharge temperature 50°C
Heating medium CITY W water with max. 20% glycol
Maximum working pressure and tempera-
ture CITY W
6 bar at 110°C

INTRODUCTION COMFORT AIR CURTAIN
10
• Biddle control cable, available in various lengths
• Discharge temperature control unit (CITY W only)
• Door contact switch
• Set of wall brackets
Note:
nThe unit can also be operated without control panel.
For CYQ and CYV only: Daikin components
The following Daikin components are required for an installa-
tion:
• Outdoor unit
•Optional: One or more indoor units
• Daikin control panel (optional for CYV)
• Connection materials, such as cooling lines, wiring, etc.:
See the installation manual for the outdoor unit.
Caution:
cThe control system and the capacity index of the
Daikin outdoor unit must correspond to those of
the Biddle air curtain.
1.4 Safety instructions
1.4.1 Operation
Warning:
wDo not put any objects in the inlets and
outlets.
Warning:
wDo not block the inlets and outlets.
Warning:
wThe upper surface of the unit becomes hot
during operation.
Caution:
cIn exceptional situations, water may run out of the
unit. Therefore do not place anything under the unit
that could be damaged as a result.

CITY MANUAL INTRODUCTION
Versie: 5.0 (04-06-2012) 11
1.4.2 Installation, maintenance and service
Danger:
dThe unit may be opened by qualified technical
staff only.
Warning:
wPerform the following actions before opening
the unit:
1. Switch OFF the unit using the control panel.
2. Wait until the fans have stopped.
3. Allow the unit to cool down.
Caution:
cThe heat exchanger and/or the heating elements can
get very hot. Moreover, the fans may continue to
rotate for a while.
4. For models for connection to a Daikin direct expan-
sion system:
Switch OFF the Daikin system and disconnect the mains
power supply from the Daikin outdoor unit.
5. Disconnect the power supply (remove plug from power
point or move isolation switch to OFF).
6. For water-heated models:
Close the central heating supply (if possible).
Caution:
cFor CYQ and CYV: If the system is operating in
defrost mode or has been in operation recently,
there may be water in the inspection panel.
Warning:
wThe fins of the heat exchanger are sharp.

Versie: 5.0 (04-06-2012) 12
2. . Installation
2.1 Safety instructions
Warning:
wInstallation work on the unit may only be
performed by qualified technical staff.
Warning:
wBefore you begin: read the safety instructions.
See also:
1.4 Safety instructions 10
2.2 Delivery check
• Check the unit and its packaging for correct delivery.
Immediately report to the driver and to the supplier any
damage caused in transit.
• Make sure that all components and accompanying parts
have been supplied. Immediately report any defects to the
supplier.
2.3 General working method
2.3.1 Sequence of operations
Biddle recommends the following working method for install-
ing the Comfort Air Curtain:
1. Suspend the unit.
2. For water-heated models:
Connect the unit to the central heating system.
For models for connection to a Daikin direct expan-
sion system:
Install the Daikin components as described in the respec-
tive installation manuals.
- Outdoor unit;
- If installed in your system: Indoor unit(s);

CITY MANUAL INSTALLATION
Versie: 5.0 (04-06-2012) 13
- Control panel.
3. Connect the unit to the mains power supply.
4. Install the control panel and (any optional) connections to
external controls.
5. Finish the unit.
6. For models for connection to a Daikin direct expan-
sion system:
Connect the air curtain unit to the Daikin system.
7. Turn on the power supply and check the working of the
unit.
General instructions
Some parts of this section are applicable only to certain mod-
els. Where this is the case, it will be indicated. If no specific
model is referred to, the description applies to all models.
Note:
nMake sure you perform all installation operations
that are required for your unit.
Check the type plate and consult the manual if you
are not sure about the model or type of your unit.
Note:
nProtect the unit from damage and ingress of dust,
cement, etc. throughout the installation. You can, for
instance, use the packaging for protection.
See also:
2.4 Fixing the unit 14
2.5 Connecting the unit to the central heating installation 16
2.6 Connecting the unit to the Daikin system (CYQ and CYV) 17
2.7 Connecting the unit to the power supply 20
2.8 Installing control panel and external controls (CITY and CYV) 22
2.9 Control system without touch pad controller (CITY and CYV) 27
2.10 Finishing the unit 29
2.11 Switching on and checking function 33

INSTALLATION COMFORT AIR CURTAIN
14
2.4 Fixing the unit
2.4.1 Determining the location of the unit
Danger:
dDo not install the unit in a vertical position.
• Make sure that the structure from which the unit is about
to be suspended can bear the weight of the unit. The
weight is specified on the type plate.
• Note the following dimensions:
- The unit must be at least as wide as the doorway
(dimension b).
- Position the unit as near to the doorway as possible.
- The maximum mounting height of the unit (dimension
h, measured from the floor to the discharge grille)
depends on the unit type.
Installation height of unit
TYPE MAXIMUM INSTALLATION
HEIGHT
CITY S 2.3 m
CITY M 2.5 m
CITY L 3.0 m
These heights apply only under normal circumstances. If in
doubt, ask Biddle for advice on the correct height.
Warning:
wThe minimum mounting height (dimension h)
is 1.8 m.
Warning:
wThe top of the unit may get hot. Mount the
unit with a minimum clearance of 25 mm
from the ceiling (dimension x).
See also:
1.3.4 Type plate 8

CITY MANUAL INSTALLATION
Versie: 5.0 (04-06-2012) 15

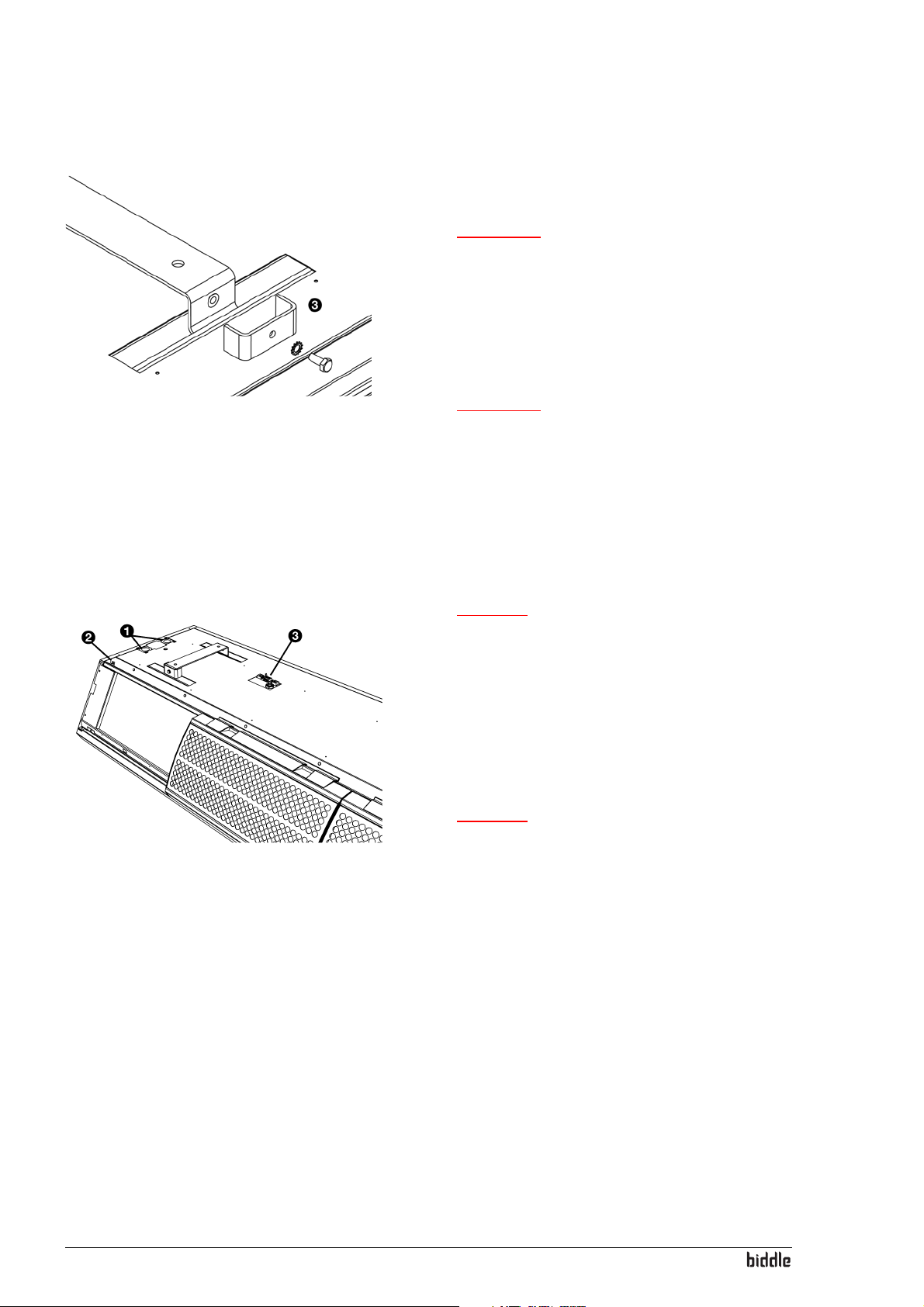

2.4.2 Fixing the suspension brackets
1. Fix four threaded rods M8 according to the dimensions in
the table. Make sure the threaded rods are perpendicular.
Note:
nUnits of type CITY 250 have three suspension
brackets. Fix six threaded rods for that type.
2. Apply a lock nut 1to each threaded rod.
3. Apply the suspension brackets 2onto the threaded rods,
and apply the nuts 3.
4. Make sure the suspension brackets are suspended horizon-
tally and flush.
5. Secure each suspension bracket by tightening the lock
nut1.
Dimensions for suspending unit
2.4.3 Suspending and securing the unit
1. Lift the unit up and hook it into the suspension brackets.
Caution:
cDepending on the weight specified on the type plate,
either use a lifting device or lift the unit with at least
2 persons.
SIZE TYPE DIMENSIONS
a all models as needed
b CITY S 119 mm
CITY M 119 mm
CITY L 200 mm
c all models 200 mm
d CITY 100 500 mm
CITY 150 1000 mm
CITY 200 1500 mm
CITY 250 (six threaded
rods)
2 x 1000 mm

INSTALLATION COMFORT AIR CURTAIN
16
2. Fit a lock plate 3to each suspension bracket.
Warning:
wThe unit may fall down if you do not secure
the suspension.
3. Check whether the unit is suspended firmly:
- Try to push the unit from its suspension.
- Shake the unit for a few seconds.
Warning:
wEnsure you do not run any risk, should the
unit drop down.
2.5 Connecting the unit to the central heating installation
2.5.1 Particulars
Caution:
cThe supply and return pipes of the central heating
system must be connected to the correct
corresponding connections 1. The directions are
indicated on the unit using arrows.
• The maximum permissible operating pressure of the hot
water circuit is specified on the type plate. It is based on a
water temperature of 110°C.
Caution:
cBiddle recommends the inclusion of a valve in each
pipe.
• The bleed valve 2of the heat exchanger is located at the
left in the top of the unit.
2.5.2 Frost protection
Take the following precautions if you install the unit in a room
where frost may occur:
• Provide for constant circulation of the water at the right
temperature;
• Add up to 20% glycol to the water when the unit is not in
operation during the wintertime;
• Or drain the system and the unit.

CITY MANUAL INSTALLATION
Versie: 5.0 (04-06-2012) 17
2.5.3 Connect the unit
1. Connect the unit to the central heating system.
2. Vent the heat exchanger.
3. Check the connections for leaks.

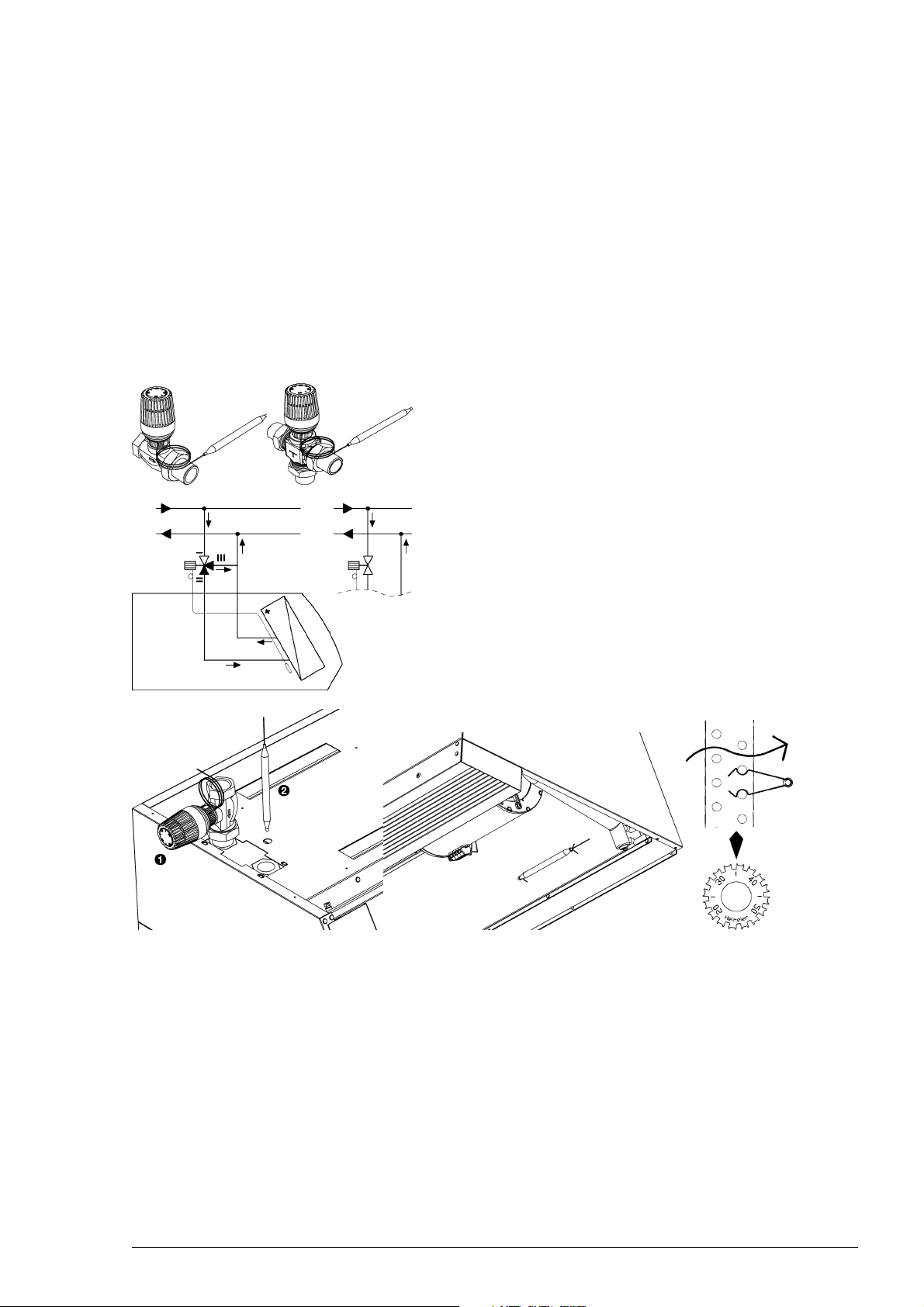

2.5.4 Connecting the discharge temperature control
(accessory)
The unit can be equipped with an optional discharge tempera-
ture control.
1. Remove the inspection panel.
2. Connect valve 1to the unit.
3. Install capillary sensor 2in the unit.
4. Fasten the sensor to the heating element using the clips
supplied.
5. Replace the inspection panel.
6. Set the discharge air temperature to 35°C.
2.6 Connecting the unit to the Daikin system (CYQ and CYV)
2.6.1 Preconditions for connection to a Daikin system
• The Daikin system must always be active when the Biddle
air curtain is active.
• A control system must be connected to the Daikin sys-
tem. This can also be a Daikin control panel that is con-
nected to the Biddle air curtain.

INSTALLATION COMFORT AIR CURTAIN
18
Warning:
wUnits of type CYV may only be connected to
a Daikin VRV system.
Units of type CYQ may only be connected to
a Daikin ERQ system.
These units are not interchangeable.
2.6.2 Connection of the control system
All models
Caution:
cUse cable with a cross-section of min. 0.75 mm².
Models with discharge width 150, 200 or 250

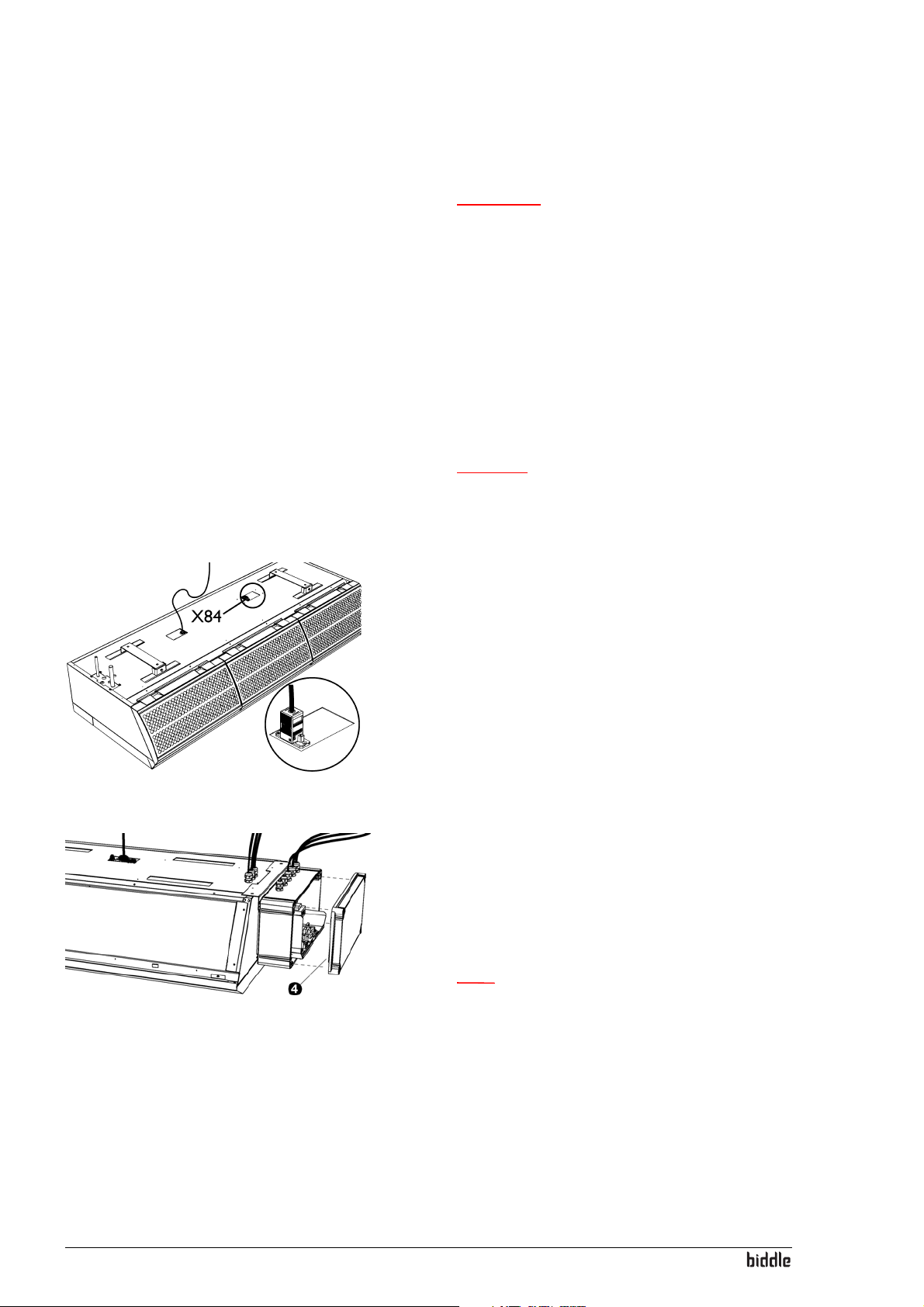

1. Connect the system control to terminal X84 on the upper
side of the air curtain:
- Connect the control cable of the outdoor unit to F1/
F2.
-If installed on your unit: Connect the Daikin con-
trol panel to P1/P2.
2. Install the cable sheath (supplied) on the terminal.
Models with discharge width 100
1. Remove the cover of the box on the side of the unit.
2. Optional: Remove the box from the unit:
- Remove the bracket from the unit and the box.
- Install the box on the wall at an appropriate point.
Note:
nDo not disconnect the wiring between the box and
the unit.

CITY MANUAL INSTALLATION
Versie: 5.0 (04-06-2012) 19

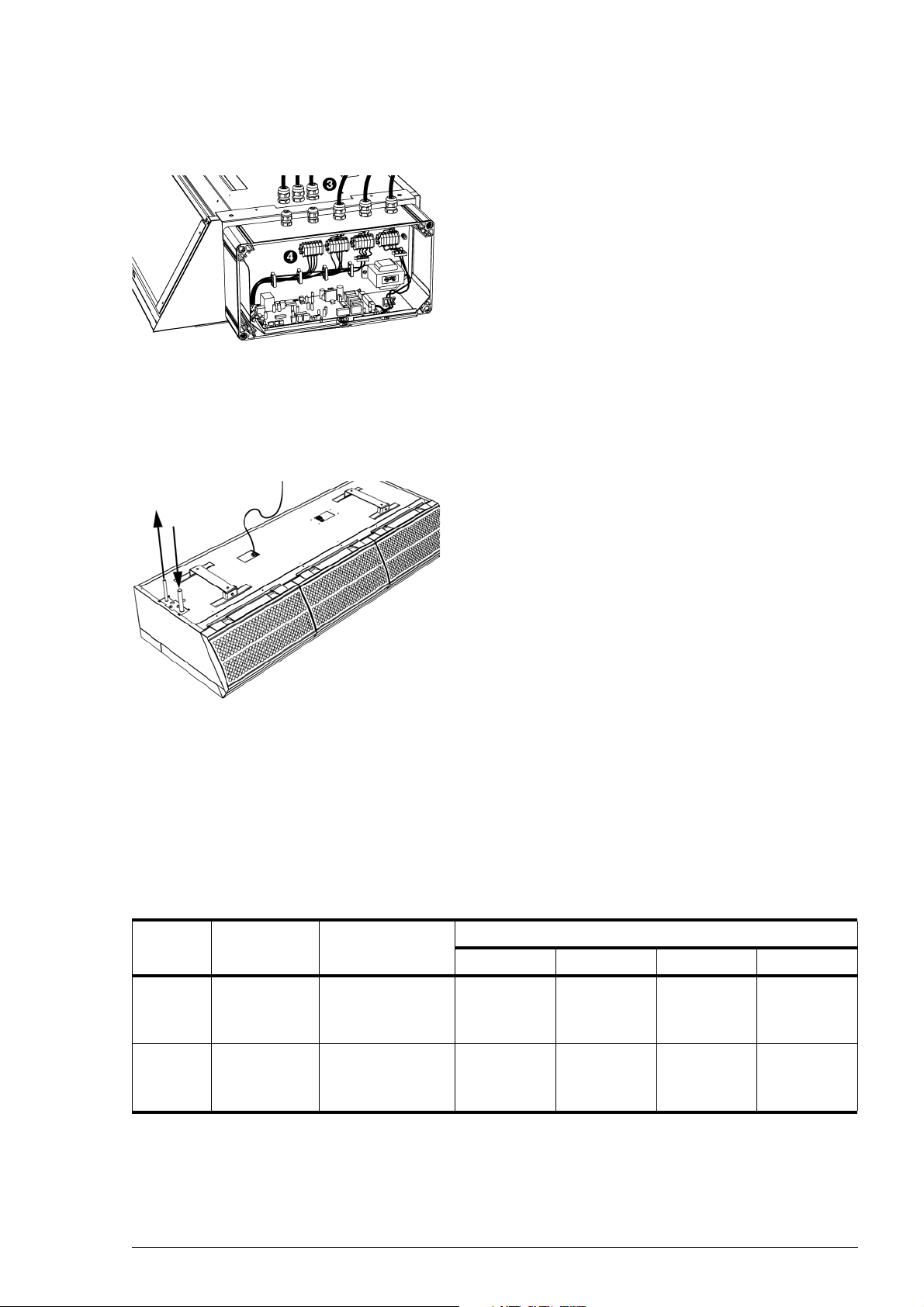

3. Lay the control cable(s) into the box, through the free
cable gland(s) 3.
4. Connect the controller of the system to the free terminal
block 4:
- Connect the control cable of the outdoor unit to F1/
F2.
-If installed on your unit: Connect the Daikin con-
trol panel to P1/P2.
5. Tighten the cable gland(s).
2.6.3 Connecting the cooling medium
• Install the lines according to the installation manual of the
Daikin outdoor unit.
• Solder the lines to the pipes protruding out of the upper
side of the unit.
2.6.4 Settings on the Daikin control panel
You can make local settings on the Daikin control panel as
described in the corresponding installation manual.
The units described in this manual have a few additional set-
ting possibilities:
MODE
NUMBER
FIRST CODE
NUMBER
DESCRIPTION OF
THE SETTING
SECOND CODE NUMBER
(22) 3Function of air
curtain when not
heating
unheated
(standard
setting)
unheated at standstill
(if 23-8 is set
to 01)
--
(23) 8Function of air
curtain in defrost
mode
at standstill unheated
(standard
setting)
unheated --
01 02 03 04

INSTALLATION COMFORT AIR CURTAIN
20
2.7 Connecting the unit to the power supply
2.7.1 All models
Warning:
wDo not turn on the unit from the power
supply. Use the control panel.
Warning:
wThe unit must be earthed (grounded).
Warning:
wConnect the unit in accordance with the
applicable local requirements.
2.7.2 Fuse ratings
Warning:
wEvery unit must be separately fused in
accordance with the table below.
Fuse ratings
MAXIMUM AMPERAGE ON
TYPE PLATE L1, L2 OR L3 MAXIMUM FUSE RATING A
<= 10 A 16 A
<= 15 A 20 A
<= 20 A 25 A
<= 25 A 35 A
<= 35 A 50 A
<= 50 A 63 A
<= 65 A 80 A
<= 80 A 100 A
<= 102 A 125 A
Note:
nMultiple units may only be served by a common fuse
if their total current consumption is less than 10 A.
See also:
1.3.4 Type plate 8
