Billi Quadra 420 User manual

1
Installation guide
Billi Quadra Firewall
Tower dispenser

2
Installation guide
Billi Quadra – Firewall Tower
Contents
Installation Requirements
Quadra …………….....….……………….…………………………………………………………..3-4
Installing the Dispenser
Firewall Tower ………………………………………………………………………………………….5
Installing the Underbench Module
Quadra …………………..........................................................................................................6-7
Commissioning
Quadra ……………………………………………………………………………………………....8-9

3
Installation guide
Billi Quadra –Firewall Tower
Installation Requirements –Quadra
Components for Billi Quadra Compact, 420, 440, 460, 4100 & 4180 Models
Before commencing installation, ensure you have the following:
1. Underbench module
2. Dispenser with tubing
3. Tube spring clamps x 3
4. 600mm flexible braided hose
5. ½ inch drill bit (not included)
6. Drain fittings including John Guest fittings
7. 3/8 tube connected with adapter to 3/16 black tube
8. Filter Cartridge (installed)
9. User guide
10. Warranty Registration Card
11. Warning label

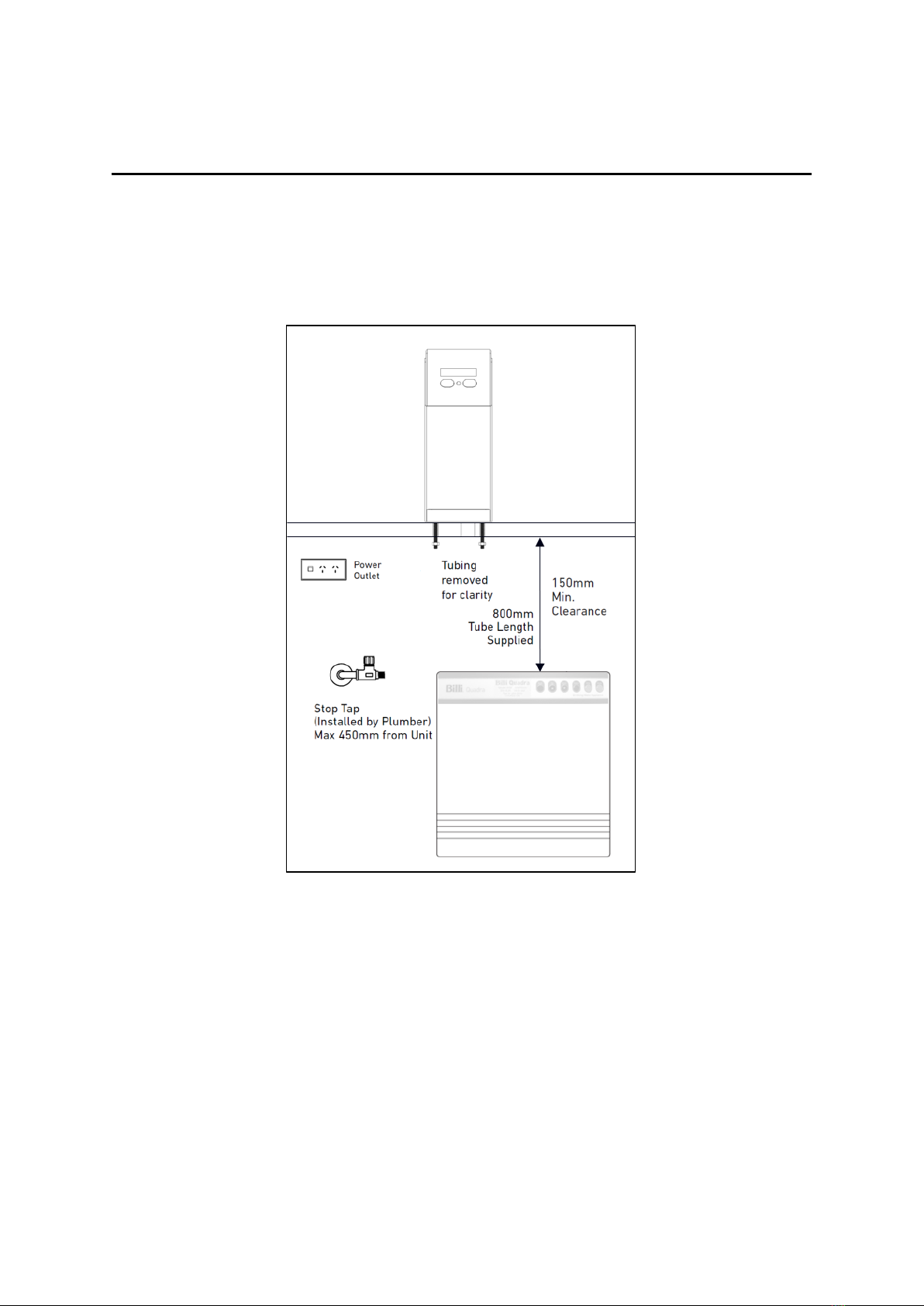

Determine Unit Location
Plan the installation. Dispenser tube lengths, position of power and water outlets, required air space
around the under bench module and access for service must be considered before cutting tube lengths.
Refer to Diagrams 3 and 4 for clearances around the dispenser and unit.
Unit must be installed horizontally with plastic vent panel facing the front of cupboard. The Quadra is
designed for internal installation only.
Model
Height
Width
Depth
Quadra Compact
340mm
315mm
365mm
Quadra 400 Models
340mm
315mm
465mm
Water Supply
The Quadra must only be connected to a cold water supply. A ½” BSP stop tap (not supplied) is to be
installedinan easily accessible position within600mm from the Quadra water supply inlet. The Quadra
incorporates a certified pressure limiting andbackflow prevention device. Do not fitan additional
pressure limitingvalve.
Dynamic inlet supply pressure: Min. 250 kPa, max. 500 kPa*
Supply Temperature: min. 5°C max. 30°C.
*Where supply pressure is greater then 500kPa a PLV mustbe fitted. Billi recommends PLVs withanti-
hammer properties.
Do not install with water that is microbiologically unsafe or with water of unknown quality
without adequate disinfection before or after the system.
Systems certified for cyst reduction may be used on disinfected water that may contain
filterable cysts.
Power Requirements
[ 3 pin GPOVDUH required. A dedicated circuit should be provided and must be fitted with an earth
leakage protection device (RCD). An externally fitted RCD device is acceptable.
Quadra Compact, 420, 440, and 460 require a 10 amp rating.
Quadra 4100 requires a 15 amp rating.
Quadra 4180 requires a 20 amp rating.
All Quadra models are supplied with a 1 metre flex cord and plug.
7KH)LUHZDOO7RZHU'LVSHQVHUUHTXLUHVDDPSUDWLQJ

4
Installation guide
Billi Quadra –Firewall Tower
Drainage
Water-cooled Quadra models require a drainage point such as a dishwasher nipple. Use the nipple
adaptor fitting supplied or the clamp-on drain adaptor (both supplied with system). Clamp-on drain
adaptor must be installed above the water seal on the sink side of the water trap.
Diagram 4

5
Installation guide
Billi Quadra – Firewall Tower
Installing the Dispenser
IMPORTANT: This Billi appliance is to be installed by a licensed trades person in accordance
with AS/NZS 3500.1 and AS/NZ 3500.2 and in compliance with applicable state regulatory
requirements. For correct operation of this appliance, it is essential to observe the
manufacturer’s instructions.

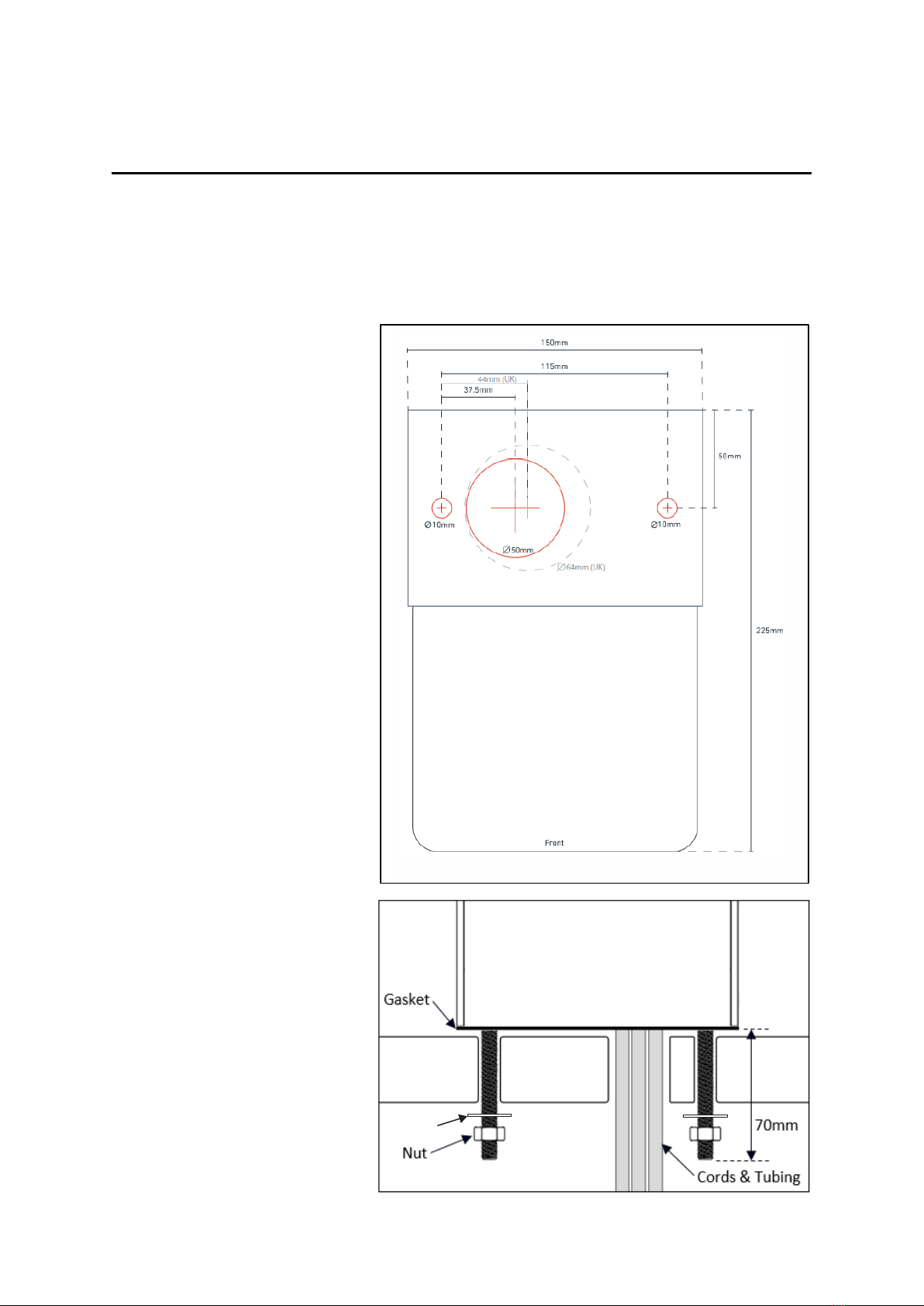

1. Benchtop Preparation
Two 10mm holes, and one 50mm
hole will need to be drilled into the
benchtop as shown in the template
shown in Diagram 5.
When drilling into timber/laminate it is
recommended to drill a small pilot
hole first. Then partially drill from
underneath before completely drilling
from above. This will help to prevent
chipping the benchtop.
For granite or marble benchtops we
recommend you use a certified stone
mason to pre-drill the holes.
Important: Remove all burrs
around the holes and check
internal bores are completely
smooth.
2. Cords and Tubing
Pull power cord through the 50mm
hole first. Then pull the remaining
silicone tubing and dispenser power
cord through the 50mm hole.
3. Securing
Align the bolts with the two 10mm
holes and lower the dispenser into
position.
Ensure the gasket is correctly
aligned, then tighten the nuts on the
underside of the benchtop to secure
the dispenser.
Diagram 5
Diagram 6
&XWRXWWHPSODWHRQ3DJH
Note: UK will require a 64mm hole.
Washer

6
Installation guide
Billi Quadra –Firewall Tower
Installing the Underbench Module –Quadra
1. Flush Water Supply
Flush water supply pipework before installing the
underbench unit by connecting 600mm flexible braided
hose to the supply tap and running water into a bucket.
Blockages/unit malfunction caused by debris are not
covered under warranty.
2. Install Underbench Unit
Take care to observe minimum clearances.
Ensure there is adequate access to service the unit,
taking into account the tube lengths and space
available Refer Diagram 4, page 6.
3. Connect Dispenser Tubing and Electrical Plug
Connect all tubing and electrical plugs as shown in
Diagrams 9, 10 &11.
Ensure correct orientation of dispenser power plug
before insertion. Trim tubes to correct lengths using
plastic tube cutter. Do not leave excess tubing which
will sag, trapping water. Fit spring clamps supplied to
retain silicone rubber tubing to barbed fittings.
IMPORTANT: Boiling outlet (red), vent tube (grey)
must not be kinked and must be installed with a
continual fall and no sag.
4. Connect Dispenser Drain Kit
a. Drill ½ inch hole (using drill bit not provided)
into drainage point (pipe).
b. Clip white john guest fitting into sliver hose
clamp.
c. Fit hose clamp to drainage pipe, ensuring the
while john guest fitting surrounds the hole
drilled.
d. Take the drain hose connection provided and
connect the 3/8 hose into the drain clamp.
e. Connect the 3/16 hose into the condenser
outlet on the unit and tighten the nut. (Nut to
be finger tightened only).
Diagram 9

7
Installation guide
Billi Quadra –Firewall Tower
Diagram 11
Diagram
10
Diagram 12
Diagram
10
Diagram 10
Diagram
10

Press SELECT. ‘0500 mm’flashes.
Press or buttons to enter the correct
tube length.
Press SELECT.
Press BACK twice to return to normal
display.
8
Installation guide
Billi Quadra –Firewall Tower
Commissioning –Quadra
Turn On the Water Supply
Turn on the water supply tap and ensure that
there are no leaks. Remove front panel of unit
and remove packing foam from under filter
canister. Ensure filter canister is securely
locked back into place. Replace front panel.
Turn On Electricity
Turn on power switch. Check normal time
display is showing. Status line should display
‘INITIAL FILL’. Boiling and chilled water tanks
are now filling. Dispenser icons flash orange
slowly.
Cold Water
During the initial fill, cold water valve
automatically opens to fill the cold tank. After
approximately 1 minute, cold water will begin to
flow from the dispenser outlet. Water will
continue to run for a further minute to flush and
condition the filters.
IMPORTANT: Container should be placed
under the dispenser outlet to collect any
water being dispensed during the filter
flush.
Hot Water (Auto Boiling Calibration)
Auto Boiling Point Calibration: The hot tank will
first fill to the height of the low level sensor. The
water is then heated until it reaches boiling
point. The unit will continue to boil for up to 30
seconds while the temperature sensor
calibrates.
WARNING: Steam and small amountsof hot
water may be discharged from the outlet
and vent during this period. While
calibration is underway the hot water
indicator will flash yellow. The hot water set
point is calibrated 1.5°C below the boiling
point. Once calibrated, the unit will resume
normal operation and the calibration data
will be saved. The unit will not re-calibrate
under normal circumstances.
Setting the Programs
The Quadra operational settings have been
factory set for a typical installation. Clock is set
to Eastern Standard Time (EST). Refer to
Quadra User Guide for setting instructions. In
some installations, boiling water delivery
settings may need to be changed as outlined
below.
Tube length setting
The Quadra’s boiling water flow rate slows
briefly as water first enters the cup to prevent
splashing. Correct timing of the moment of
reduced flow is dependent on the length of the
tube between the Quadra module and the
dispenser. The standard timing is set for a tube
length of 500mm but this setting can be simply
altered to suit the installation. After installation,
measure the length of the red tube from the
underside of the dispenser to the boiling water
outlet fitting. If the measured length is less than
450mm or greater than 550mm, the correct
value should be set in as follows:
1. Press SELECT. Display changes to
menu selection mode.
2. Press DOWN 4 times. Shaded curser
shows ‘INITIAL SETUP’.
3. Press SELECT. Display shows:
4.
5.
6.
7.

described above in Steps 1, 2 and 3.
Press SELECT. Shaded curser shows
‘Pump Speed 015’.
Press SELECT. ‘015’flashes.
Press or buttons to increase or
decrease. Range is between 1 and 20.
Press SELECT.
9
Installation guide
Billi Quadra –Firewall Tower
Boiling water flow rate
The boiling water flow rate can be adjusted to
suit the installation or user preference.
Extended tube lengths will require the pump
speed to be increased.
1. To adjust, use the selection procedure as
2.
3.
4.
5.
6. Press BACK twice to return to
normal display.
Calibrating boiling water temperature
(Manually)
The boiling water temperature has been factory
calibrated. Because water boils at a slightly
lower temperature at elevated altitudes, the
factory-set temperature may be too high for
units installed at certain inland locations. If the
local altitude is greater than 500 metres above
sea level, a calibration cycle should be
performed.
The procedure is as follows:
1. Use the selection procedure as described
above, in Steps 1, 2 and 3.
2. Press SELECT twice to select ‘Calibrate
Boiling Water’.
3. Press SELECT twice to begin cycle.
4. The unit will fill and heat (if not yet up to
operating temperature before cycle
begins).
CAUTION: Steam will discharge from the
vent outlet. Once correct boiling
temperature is established, the Quadra
recalibrates its internal settings and the
display panel returns to normal.
WARNINGS.
For continued safety of this appliance it
must be installed, operated and maintained
in accordance with the manufacturer’s
instructions.
-Your appliance should be installed by a
suitably qualified tradesperson.
-For correct operation of this appliance it is
essential to observe the instructions as
outlined in this booklet.
- Do not use this appliance with water that is
microbiologically unsafe or with water of
unknown quality without adequate
disinfection before or after the system.
Systems certified for cyst reduction may be
used on disinfected water that may contain
filterable cysts.
-Filter replacement must be performed at
intervals of not more than 12 months.
-Use this appliance only as directed in these
instructions and only for its designed
purpose.
-This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
-Children should be supervised to ensure
that they do not play with the appliance.
-DANGER: The operation of the thermal
cut-out indicates a possibly dangerous
situation. Do not reset the thermal cut-out
until the water heater has been services by
a qualified person.
-WARNING: Do not connect any restrictor
or pressure relief device to the vent pipe of
this water heater if installed.
-If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
-New hose-sets supplied with the appliance
are to be used and old hose-sets should not
be used.

10

1ϰ
64mm (UK)
44mm (UK)
50mm

Billi $XVWUDOLDPty Ltd
42 Lucknow Crescent, Thomastown
Victoria 3074 Australia
Telephone [phone]
Facsimile [phone]
www.billi.com.au
As Billi $XVWUDOLDPty Ltd has a policy of
continual improvement, all details are
subject to change without notice. All
goods are sold subject to our published
terms and conditions. Billi is a
registered trademark. 1120
