San Jamar Venue User manual

Thank you for choosing the Venue™ napkin dispenser from San Jamar.We appreciate your business
and are condent that Venue™ will improve the image and efciency of your operation. Enjoy!
Venue™ Stand Napkin Dispenser

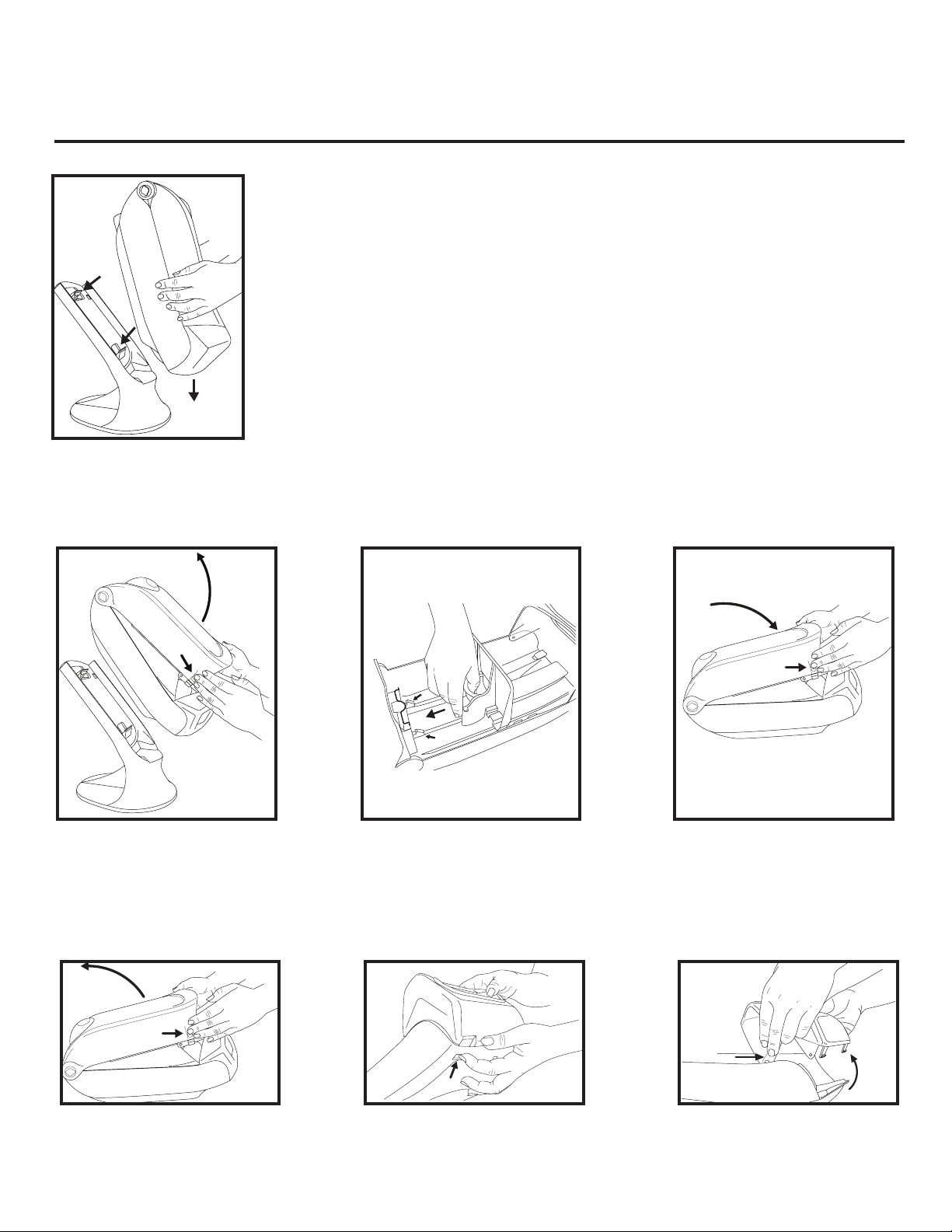

To Mount Dispenser on Stand
1. Position closed napkin dispenser above the stand with the face oriented downward.
2. Locate lower mounting hook on stand and mate to slot in bottom of dispenser.
3. Once lower front hook of stand is secure in base of dispenser, insert dispenser into top hook on stand and lift
the stand’s tab to snap rmly into place. When positioned and locked correctly, dispenser will not separate from
base unless rear locking tab is released.
To Remove Dispenser from Stand
1. Release top locking tab on stand by inserting nger into opening on back of stand and applying pressure
upward until latch releases dispenser from stand.
To Mount Dispenser on Wall
1. Determine position on wall/surface with unit open. Through the holes at back of unit, use pencil to mark spots
where drilling will be necessary. Try to mark spots as close as possible to the outer edges.
2. Drill marked spots on wall/surface with drill bit recommended by anchor manufacturer and wall type.
3. Complete installation using appropriate fasteners (screws, bolts, anchors, washers, etc.) for mounting. The
installation should be done with a at washer between the head of the fastener and the inside back of the
dispenser. Four fasteners are recommended.
To Load Dispenser
1. Open cover by pressing in on
both sides of cover and swing
cover up and back.
2. Using thumb, hold and move
pressure plate to back of unit
until locking tabs engage.
3. Load dispenser with desired
napkins.
4. Close cover.
NOTE: Pressure plate will
automatically release when cover
is closed.
1
2
3
To Remove Face
1. Open cover by pressing in on
both sides of cover and swing
cover up and back.
2. Locate 2 tabs under front of face
and depress upward into base
one at a time.
3. Rotate face up and back (a).
Press in on both sides of face at
pivot points until clear of posts
and remove faceplate (b).
a
b

San Jamar
Chef Revival
555 Koopman Lane
Elkhorn,Wisconsin 53121
USA
T: +1.262.723.6133
F: +1.262.723.4204
[e-mail]
SJCR Europe
Schoorstraat 26A, Bus-1
B-2220 Heist op-den Berg
BELGIUM
T: [phone]
F: [phone]
[e-mail]
SJCR México
Av. Universidad #1377-701
Colonia Axotla CP 01030
Del. Álvaro Obregón
MÉXICO, DF
T: [phone]
F: [phone]
[e-mail]
SJCR Canada
3300 Bloor Street West
CenterTower, 11th Floor,
Suite 3140
Toronto, ON M8X 2X3
CANADA
T: +1.416.760.7367
F: +1.416.207.2071
[e-mail]
102042
IS1013
To Install Face
1. With cover of dispenser open, locate 2 pivot posts on inside front of base. Press in on face to
secure face to posts.
2. Rotate front of face down, locking tabs on bottom inside of base.
1
2
To Remove Monorail (athead screwdriver needed)
1. Follow “How to Remove Dispenser from Stand” instructions
from previous page.
2. Follow “Remove Face Plate” instructions from previous page.
3. a) Remove monorail latch cover with spring from
back of dispenser.
b) Remove monorail latch spring assembly.
c) Using a athead screwdriver, remove monorail
from the dispenser by pushing up on latch in unit
until it releases.
d) Remove the monorail.
4. Reassemble face plate.
a) Secure hinge posts into face plate cover.
b) Pivot face plate down to latch face plate tabs.
5. Install onto stand.
To Remove Plate Riser
1. On the push plate, locate the plate riser.
2. Depress tabs from the back.
3a.
3c.
4a.
1. 2.
3b.
3d.
4b.
