Billy Goat MV650H PUSH User manual

Part No 840244 1 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual
BILLY GOAT ®MV650H PUSH Vacuum
Owner’s Manual

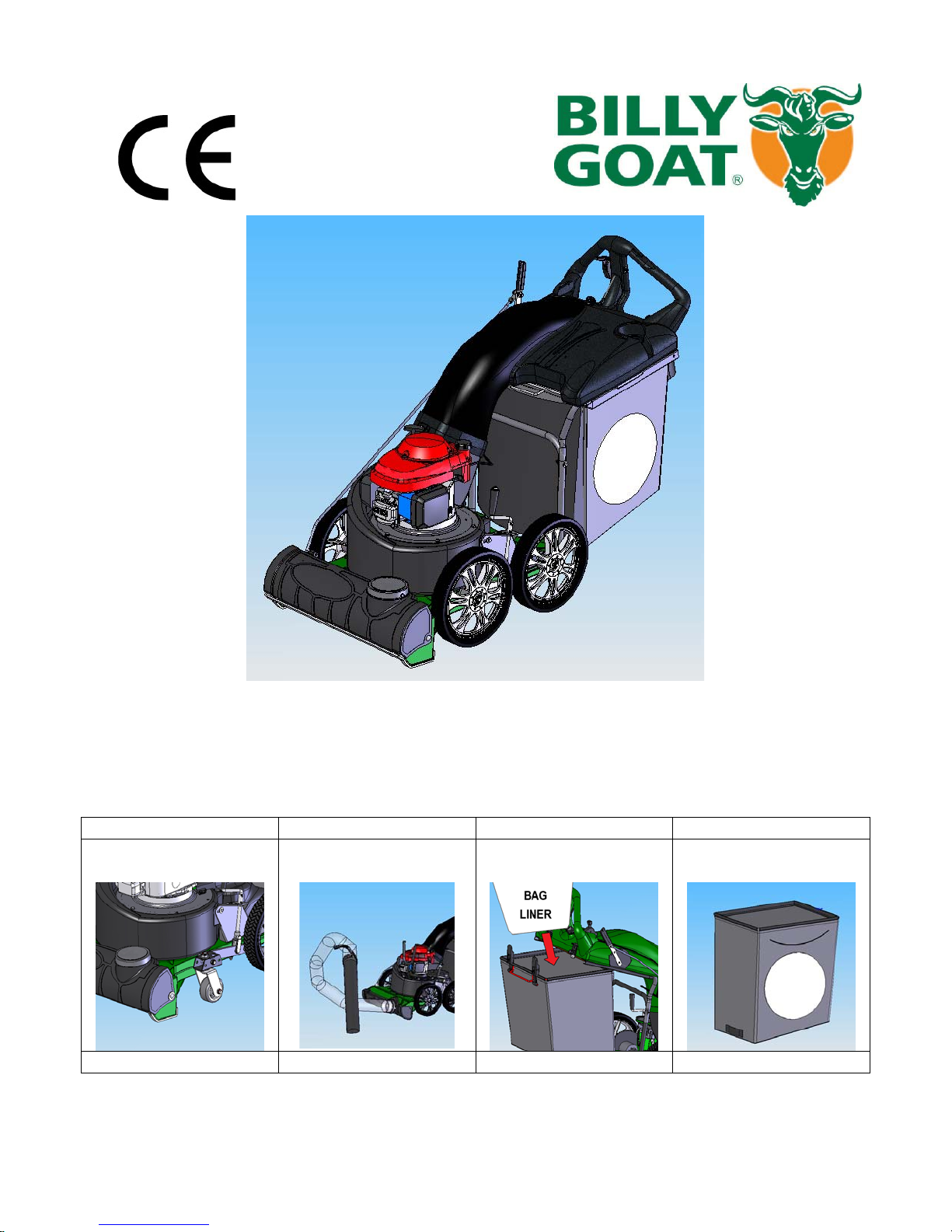

Accessories
Caster Kit Hose Kit Bag Liner Kit Felt Bag Kit
Use on hard surface
for maneuverability.
For vacuuming hard
to reach areas. To collect leaves,
thatch, and grass. Use on all dusty conditions.
P/N 840129 P/N 840116 P/N 840134 P/N 840194

Part No 840244 2 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual
CONTENTS
Specifications and Sound/Vibration .................................................................................................................. 3
Instruction Labels .............................................................................................................................................. 4
Assembly Instructions ....................................................................................................................................... 5-8
Operation ...........................................................................................................................................................9-12
Maintenance and Troubleshooting.....................................................................................................................13-14
Illustrated Parts List ........................................................................................................................................... 15-21
Go to http://www.billygoat.com for French-Canadian translations of the product manuals.
Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits

Form No F072111B 3 Part No 840244
MV650H PUSH Vacuum Owner’s Manual
MV 650 SERIES SPECIFICATIONS
MV650
Engine Type Honda GSV190AA1A
Horsepower 6.5 (4.85 kW)
Fuel Capacity 1.6 qt (1.5 L)
Oil Capacity 0.69 qt (0.65L)
Engine Weight 28 lbs (12.7 kg)
Unit Weight 157 lbs (71.2 kg)
Shipping Weight 180 lbs (81.7 kg)
Overall Dimensions 28” Wide x 62.5” Long x 45.5” High
Maximum Operating Slope 20°
In accordance with 2000/14/EEC
standards 103 dB(a) at 3320 rpm
Sound at Operators ear 83 dB(a) at 3320 rpm
SOUND DATA
SOUND LEVEL 103 Dba at Operator Position
Sound tests were conducted in accordance with 2000/14/EC, as well as ISO 11094, and were performed on 5-
17-2005 under the conditions listed below.
Sound power level listed is the highest value for any model covered in this manual. Please refer to
serial plate on the unit for the sound power level for your model.
General Conditions: Sunny
Temperature: 66.2oF (19oC)
Wind Speed: 8.5 mph (13.7kph)
Wind Direction: South Southwest
Humidity: 59%
Barometric Pressure: 29.9” Hg (101.35kPa)
VIBRATION DATA
VIBRATION LEVEL 1.43g(14.00m/s2)
Vibration levels at the operator’s handles were measured in the vertical, lateral and longitudinal directions using
calibrated vibration test equipment. Tests were performed on 5-24-2006 under the conditions listed below.
General Conditions: Sunny
Temperature: 73.7oF (23.2oC)
Wind Speed: 8.05 mph (3.6m/s)
Wind Direction: South
Humidity: 83.5%
Barometric Pressure: 29.91” Hg (101.31 kPa)

Part No 840244 4 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual
INSTRUCTION LABELS
The labels shown below were installed on your BILLY GOAT ®MV Vacuum. If any labels are damaged or
missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part
numbers are provided for convenience in ordering replacement labels. The correct position for each label may
be determined by referring to the Figure and Item numbers shown.
PN 400268
(See Figure 3 Item 55) PN 890254 (See Figure 4 Item 162) PN 840054 (See Figure 1 Item 34)
PN 400424
(See Figure 1 Item 11) PN 810736 (See Figure 4 Item 174) PN 890301 (See Figure 4 Item 163)
PN 840080
(See Figure 4 Item 175)
ENGINE LABELS CONTROLS
PN 840045
(See Figure 3 Item 57)

Form No F072111B 5 Part No 840244
MV650H PUSH Vacuum Owner’s Manual

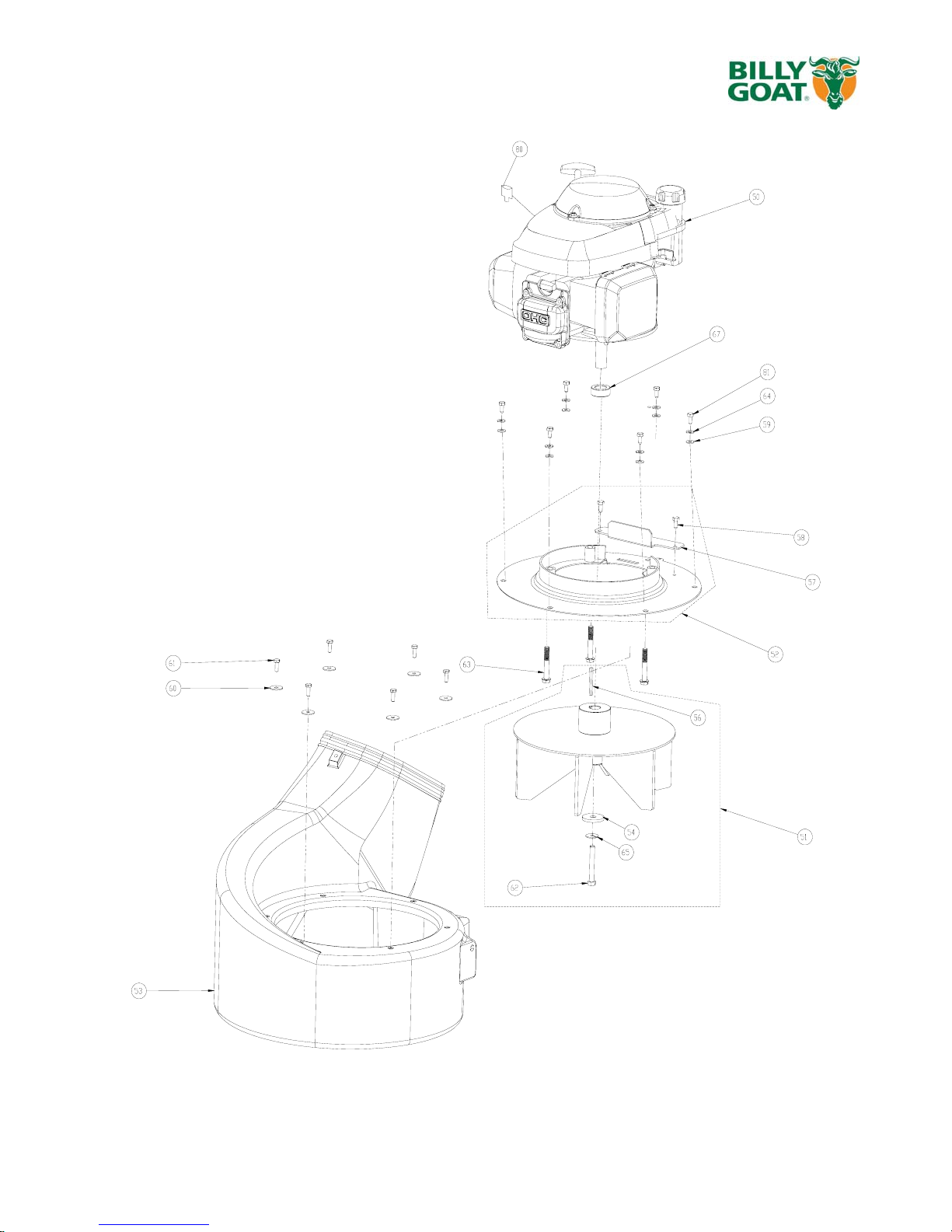

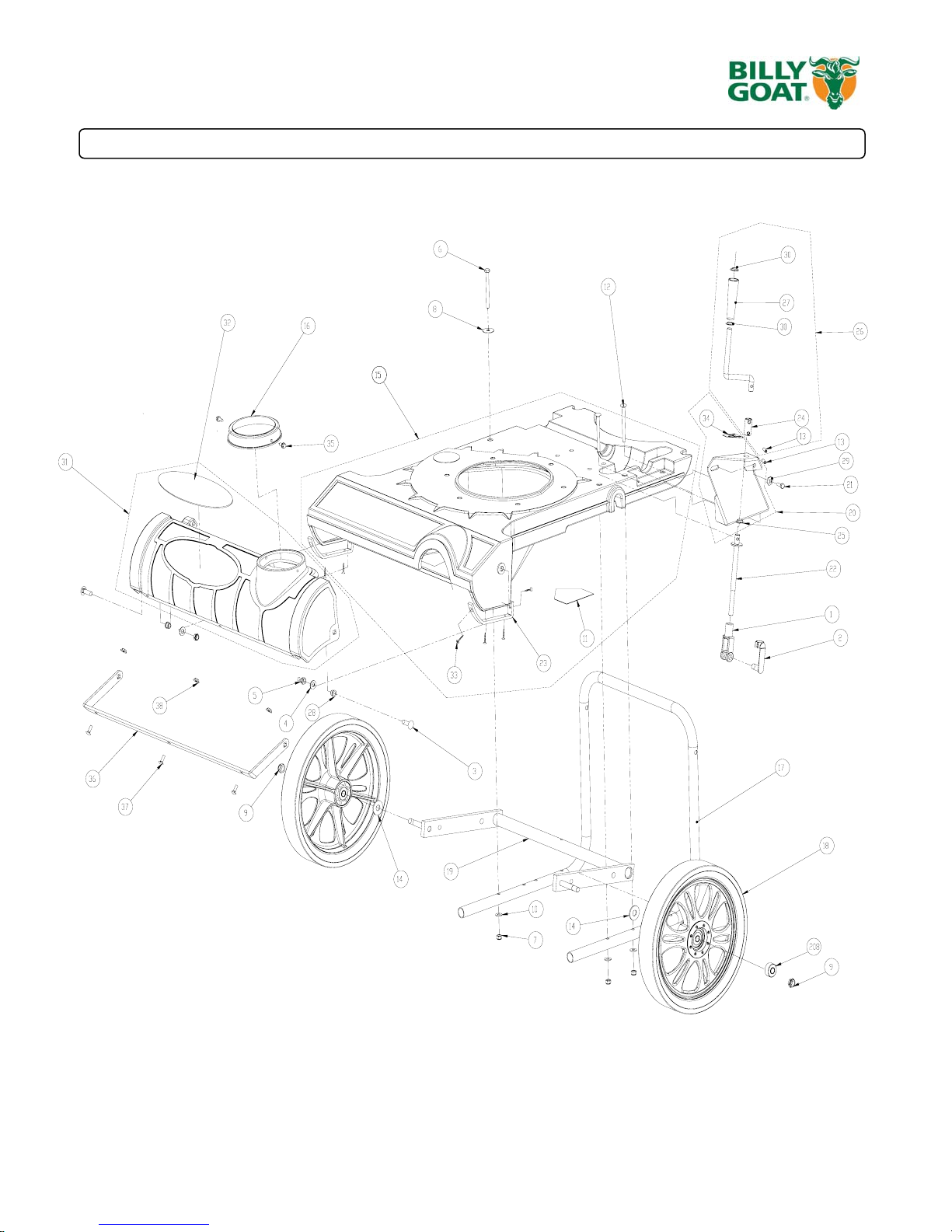

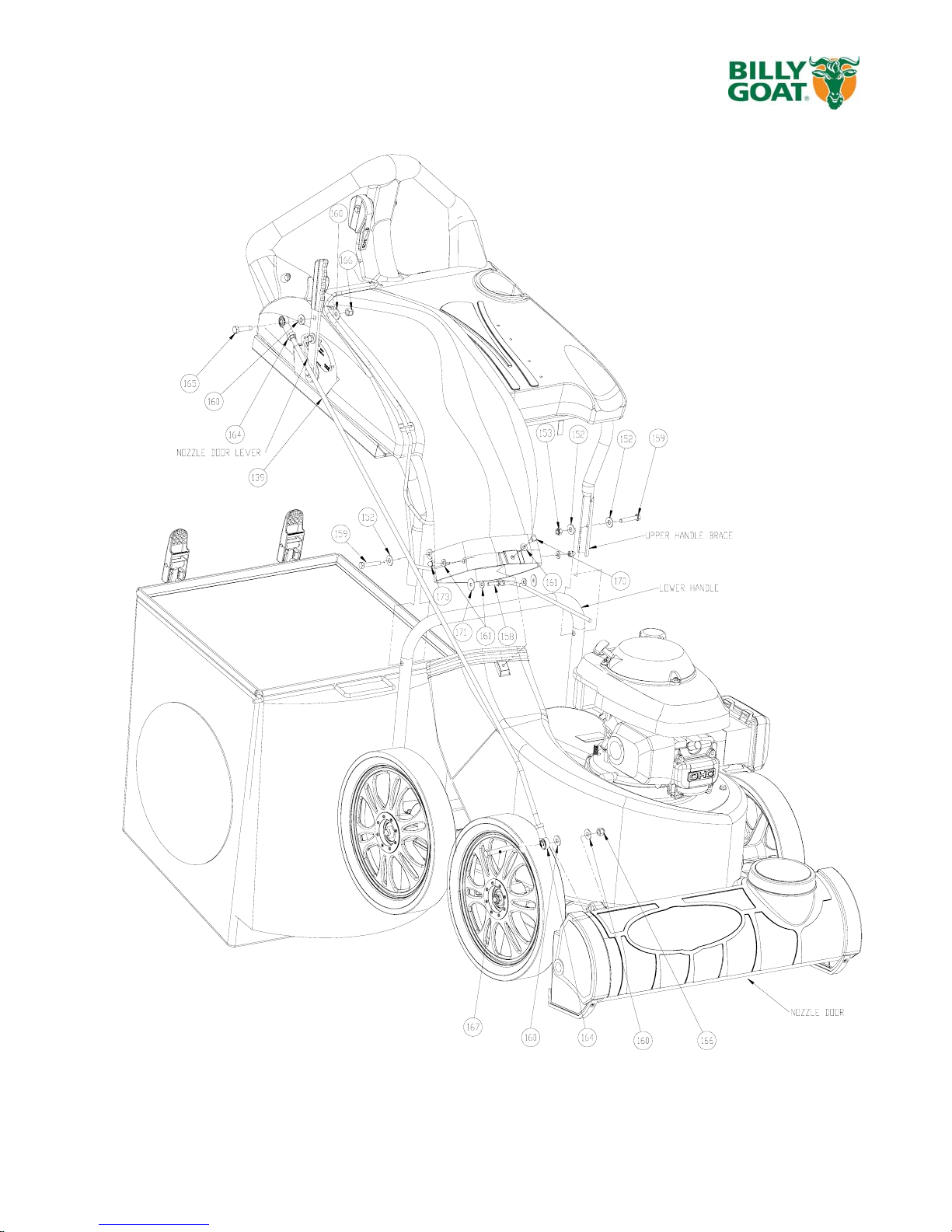

MV Vacuum Assembly Drawing

Part No 840244 6 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual

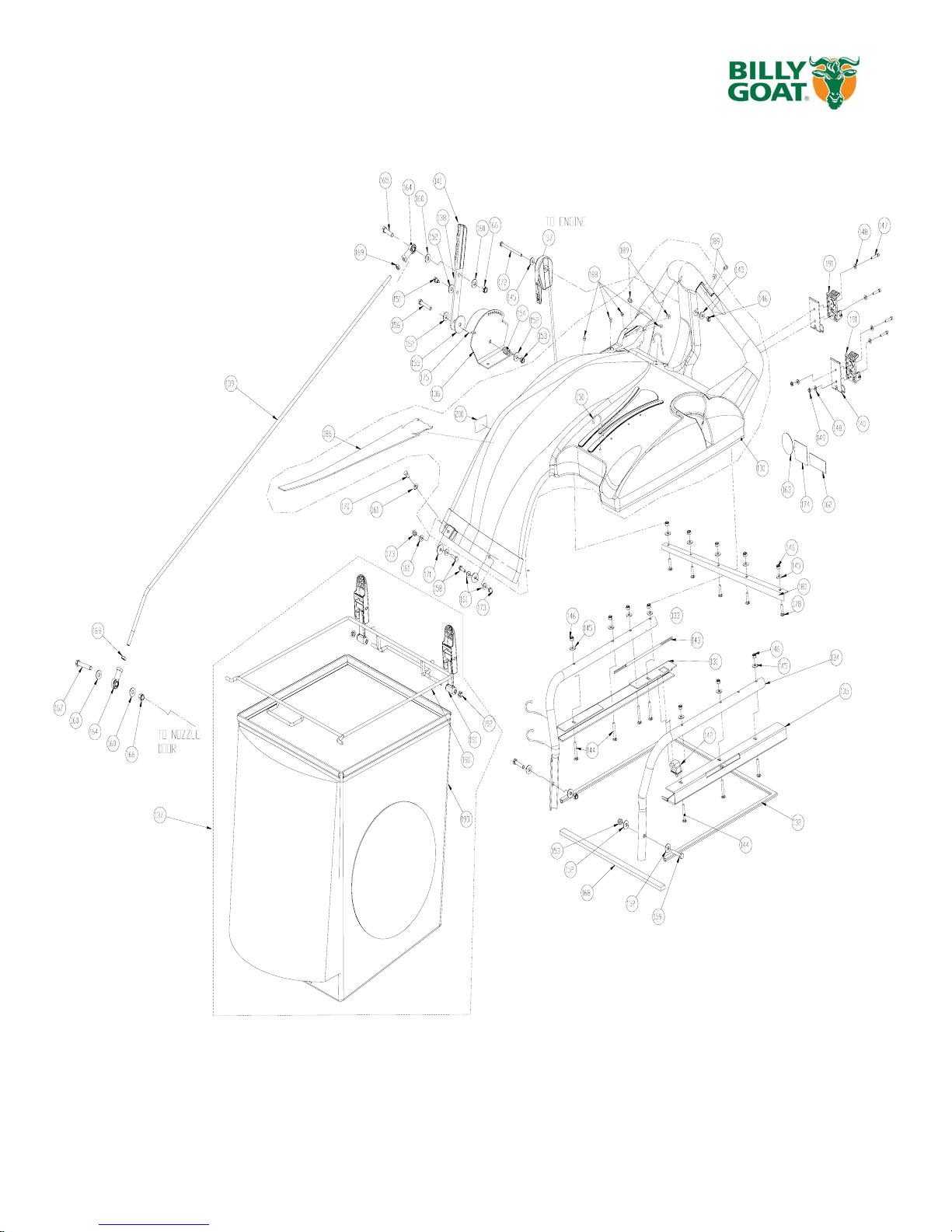

PARTS LIST

Form No F072111B 7 Part No 840244
MV650H PUSH Vacuum Owner’s Manual

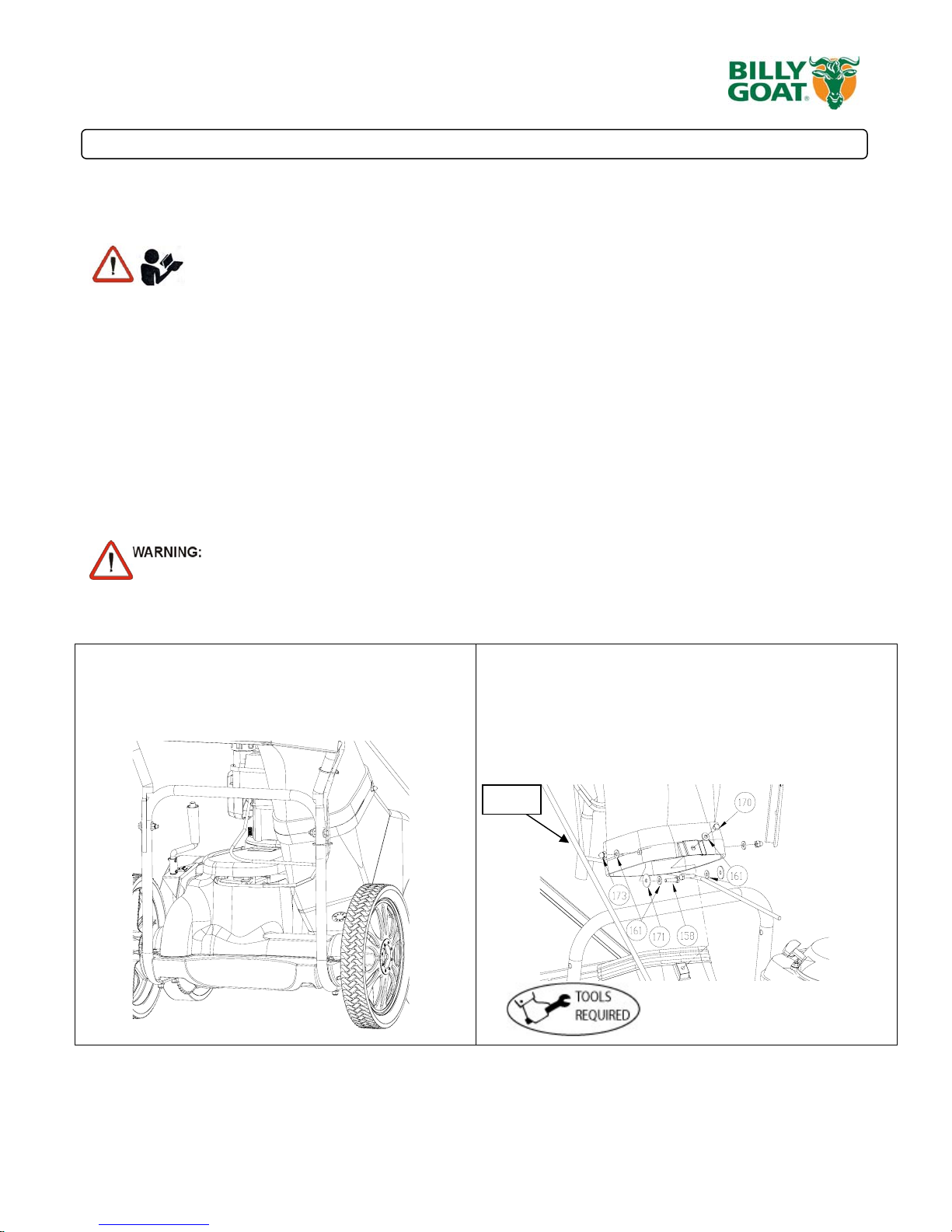

ASSEMBLY INSTRUCTIONS
Your BILLY GOAT ®MV Vacuum was shipped in one carton, completely assembled except for the Hood/Upper
Handle Assembly. Mounting hardware for the Hood/Upper Handle Assembly is temporarily installed on the lower
handle and the Housing assembly.
READ all safety instructions before assembling unit.
TAKE CAUTION when removing the unit from the box the Hood/Upper Handle Assembly is
attached to the unit by cables.
Remove unit from carton. Make sure the following items that have been packed with unit:
Parts bag P/N 840190
Owner’s Manual, P/N 840244
General Safety and Warnings Manual, P/N 100294
Declaration of Conformity, P/N 840204
Honda Engine Manual
Warranty Card, P/N 400972
Ty-Wraps (2 ea)
Hardware Bag P/N 840190
DISCONNECT spark plug wire before assembling unit.
1. Attach hood assembly to the housing then hold in
place during the step 2.
NOTE: BE SURE ALL CABLES ARE ROUTED ON
THE UNDERSIDE OF THE HOOD AND HOUSING.
2. Install item #170 center bolt first when aligned with a nut
on the housing.
3. Attach rest of hood assembly to the housing using
corresponding hardware.
NOTE: You will have to insert the bolt/washer from the
inside by reaching through the hood.
- Two 7/16” wrenches.
1st

Part No 840244 8 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual
4. Attach upper handle brace to lower handle using
corresponding hardware. Then repeat this step on the
other side.
- Two 1/2” wrenches.
5. Attach rod end (164) to the nozzle door rod then
secure in place by tightening jam nut.
6. Attach nozzle door rod to the nozzle door using
corresponding hardware.
NOTE: It is easier to do this with nozzle door closed.
- Two 9/16” wrenches.
7. Attach rod end to rod (as in step 5).
8. Attach nozzle door rod to the lever with
nozzle door closed and lever in hose kit
position.
NOTE: Check to see nozzle door open and
close all the way (see page 15). Tighten or
loosen the rod end (164) for any
adjustments.
Two 9/16”
wrenches.
9. Install cable ty wraps. 10. Reconnect spark plug wire.
11. Attach the bag.
HERE
HERE

Form No F072111B 9 Part No 840244
MV650H PUSH Vacuum Owner’s Manual
OPERATION
OPERATOR CONTROLS
The operator’s position is at the rear of the machine between the handlebars. The operator should STAND in a position to
allow both handlebars to be grasped firmly, which allows sufficient leverage to steer the machine. Operator’s controls are
shown below.
Operator Control Locations
1 Nozzle Door Adjuster 4 Throttle Control
2 Bag Latch
3 Pull Starter
STARTING
CHECK engine oil level before operating machine.
1. Place equipment on a level, firm surface that is free of rocks or other debris.
2. Place throttle in CHOKE position.
Throttle
DO NOT START equipment without the debris bag in place.
2
3
4
1

Part No 840244 10 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual
3. Secure the unit with left hand at the handle then pull starter rope with right hand to start engine.
PULL STARTER CORD slowly until resistance is felt. Then pull cord rapidly to avoid kickback.
4. Move throttle control back to RUN position and allow engine to reach correct operating speed.
VACUUM NOZZLE HEIGHT ADJUSTMENT
FOR MAXIMUM PICKUP: Adjust nozzle height as close to debris as possible, but without blocking airflow into the nozzle.
NOTE: Never bury nozzle into debris. The vacuum nozzle is raised and lowered by turning the crank handle clockwise and
counter-clockwise.
SECURE UNIT AT
THE HANDLE
WITH LEFT HAND
DURING START
PULL ROPE
STARTER WITH
RIGHT HAND

Form No F072111B 11 Part No 840244
MV650H PUSH Vacuum Owner’s Manual
VACUUM NOZZLE DOOR ADJUSTMENT
The vacuum nozzle door adjusts for the maximum performance under various applications.
Nozzle fully opened. This is ideal for turf application
Nozzle half way opened. This is ideal for hard surface application
Nozzle closed for OPTIONAL hose kit. This is ideal TO USE WITH THE HOSE KIT.

Part No 840244 12 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual
VACUUMING OPERATION
This machine is designed for vacuuming leaves, grass clippings, and other types of organic litter.
Debris mixed with cans, bottles, and small amounts of sand can be vacuumed; however, it is not this machine's primary
purpose. Vacuuming cans, bottles, and sand will affect the longevity of your machine. In dusty conditions it maybe
necessary to purchase Felt Bag Kit (P/N 840022).
Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine off immediately and check for
damaged or worn impeller, loose impeller bolt, loose impeller key, loose engine or lodged foreign objects. Note: See
parts list for proper impeller bolt torque specifications. (See trouble shooting section on page 22).
SHUT DOWN
1. Pull Throttle Control all the way back to the STOP position.
CLEARING A CLOGGED NOZZLE
DISCONNECT spark plug wire before servicing unit.
1. Shut engine off and wait for impeller to stop completely.
2. Disconnect spark plug wire.
3. Wearing durable gloves, remove clog.
WEAR durable gloves. Clog may contain sharp materials.
4. Reconnect spark plug wire.
DEBRIS BAG
Debris bags are normal replaceable wear items.
Frequently empty debris to prevent bag overloading with more weight than you can lift.
Bag liners are available for use in various conditions where debris will be vacuumed. (see Bag Liner Options shown on
page 1).
DO NOT place bag on or near hot surface, such as engine.
Be sure engine has come to a complete stop before removing or emptying bag!!.
Many vacuums are used where dust is mixed with trash. Your unit can intermittently vacuum in dusty areas. However,
following these rules will help maintain your machine's ability to vacuum in dusty conditions:
•Run machine at idle to quarter throttle.
•Machine or pressure-wash debris bag if normal cleaning does not fully clean bag. Bag should be thoroughly dry before
use.
Having one or more spare bags (840189) is a good way to reduce down time while dirty bags are being cleaned.
Felt Bag (840194) accessory is great when used in dusty conditions.
Hint!

Form No F072111B 13 Part No 840244
MV650H PUSH Vacuum Owner’s Manual
MAINTENANCE
PERIODIC MAINTENANCE
Periodic maintenance should be performed at the following intervals:
Maintenance Operation Every Use Daily or Every 5
Hours Every 25 Hours Every 50 Hours Every 100-150 Hours
Inspect for worn or damaged parts. z
Check for excessive vibration z
Inspect for loose parts. z
Clean Debris Bag z
Lubricate throttle control cable and linkage.
NOTE: Use white lithium grease or equivalent z
IMPELLER REMOVAL
READ all safety instructions before servicing unit.
DISCONNECT spark plug wire before servicing unit.
Tools required:
-1/2” socket, 3/8” drive and 3/8” ratchet
-drive extension, 3/8” drive
-universal joint, 3/8” drive
-pry bar or long screwdriver
-jack stands or similar device adequate to support weight of machine.
1. Wait for engine to cool and disconnect spark plug.
2. Drain fuel and oil from the engine.
3. Remove engine, impeller and mounting plate by removing bolts around outside of housing.
4. Leaving engine fastened to plate, remove impeller bolt and lock washer and slide impeller off crankshaft (A puller
may be required). CAUTION: Do not drop impeller.
5. If impeller does not slide off crankshaft, place two crowbars between impeller and housing on opposite sides. Pry
impeller away from engine until it loosens. Using a penetrating oil can help loosen a stuck impeller.
6. If the impeller cannot be loosened, obtain a 3/8-24x3 ¾” longer bolt of the same diameter and thread type as the
impeller bolt. Invert engine and impeller and support engine above ground to prevent recoil damage. Thread longer
bolt by hand into the crankshaft until bolt bottoms. Using a suitable gear or wheel puller against the bolt head and the
impeller back-plate (near the blades), remove impeller from shaft.
7. To reinstall impeller, use a new impeller bolt and lockwasher
8. Tighten impeller bolt. Torque impeller bolt to 33-38 Ft. Lbs. (45-51 N.m).
9. Reinstall engine, impeller, and mounting plate onto housing in reverse order of removal.
10. Before connecting spark plug wire, slowly pull engine starting rope to insure that impeller rotates freely.
11. Reconnect spark plug wire.
COMMON REPLACEMENT PARTS
•Bag. P/N 840189. Original equipment replacement bag.
•Skid. P/N 840041. Nozzle wear guard skid.

Part No 840244 14 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual
WIRING DIAGRAMS

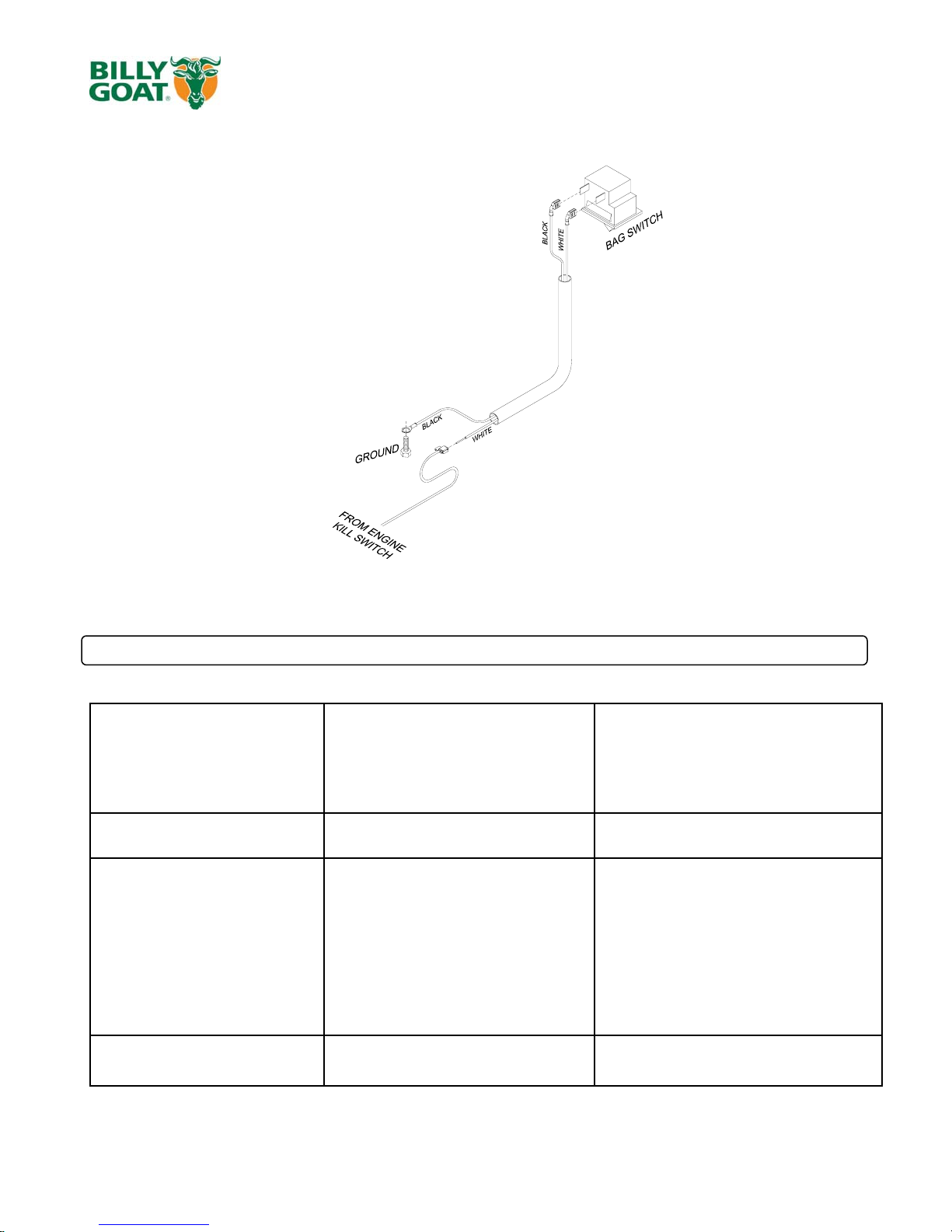

Bag Switch Circuit Schematic Diagram
TROUBLESHOOTING
Problem Possible Cause Solution
Will not vacuum or has poor vacuum
performance. · Dirty or full debris bag or filter. · Clean debris bag and filter. Shake bag clean or wash.
· Nozzle height set too high or too low. · Adjust nozzle height (see page 14).
· Hose kit cap missing. · Check for hose kit cap.
· Clogged nozzle or exhaust. · Unclog nozzle or exhaust (see page 16)
· Excessive quantity of debris. · Allow air to feed with debris.
Abnormal vibration. · Loose or out of balance impeller. · Check impeller and replace if required.
· Loose engine. · Check engine (see page 24 ).
Engine will not start. · Throttle in off position. · Check throttle control (see page 13).
· Engine not in full choke position. · Check throttle, choke position (see page 13).
· Out of gasoline or bad, old gasoline. · Check gasoline.
· Spark Plug wire disconnected. · Connect spark plug wire.
· Gas valve off. · Turn on gas valve.
· Dirty air cleaner. · Clean or replace air cleaner. Contact a qualified
service person.
· Safety Interlock disengaged on bag plate. · Latch the bag properly or check thr bag rod to see
if it's bent.
Engine is locked, will not pull over. · Impeller plugged or clogged. · Remove debris (see page 16).
· Engine problem. · Contact an engine servicing dealer for engine
problems.

Form No F072111B 15 Part No 840244
MV650H PUSH Vacuum Owner’s Manual
ILLUSTRATED PARTS LIST
Nozzle Assembly
Figure 1

Part No 840244 16 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual
Nozzle Assembly Parts List
ITEM NO. PART NUMBER DESCRIPTION MV650H QTY.
1 350127 YOKE 1/2 - 20 1
2 350128 PIN YOKE 1/2" 1
3 840243 SCREWCAP BUTTON HEAD 3/8"-16 X1 1/4" PL 2
4 8172009 WASHER 3/8" SAE ZP 2
5 8161042 NUT LOCK 3/8-16 LT WT THIN ZP 2
6 8041038 SCREWCAP 5/16 -18 x 3 1/2 1
7 8160002 NYLON INSERT LOCKNUT 5/16-18 UNC 3
8 8172020 WASHER FLAT FENDER 5/16 1
9 8161044 NYLON INSERT LOCKNUT 1/2-13 UNC THIN 2
10 8171002 WASHER 1/4" FC ZP 3
11 400424 LABEL WARNING OPEI 1
12 8024050 BOLTCARRIAGE 5\16-18X3 1\2 2
13 520156 ROLL PIN 1/4 X 1 LONG 2
14 8172011 WASHER 1/2" SAE ZP 2
15 840118 NOZZLE MV VAC ASSEMBLY 1
16 840019 CAP 5 IN HOSE VAC 1
17 840024 HANDLE LOWER MV VAC 1
18 840101 WHEEL 14" ASSEMBLY WITH BEARING AND TIRE 2
19 840104 AXLE FRONT WA MV VAC 1
20 840155 HGT ADJ WA W/LABEL MV VAC 1
21 8041004 SCREWCAP 1/4 - 20 x 0.75 HWH 1
22 840034 LINK HGT ADJ MV VAC 1
23 840041 BRACKETNOZZLE WEAR GUARD MV VAC 2
24 840029 ROD CONNECT HGT ADJ 1
25 840073 BUSHING 0.5" ID 0.625 OD XX 0.250 1
26 840119 ROD HANDLE CRANK ASSEMBLY 1
27 840057 HANDLE CRANK 0.5 ID X3.72 LONG 1
28 840078 BUSHING 3/8" ID 1/2" OD X3/8" LONG 2
29 840158 WASHER LOCK 1/4" TWISTED TOOTH 1
30 840207 NUT PAL 0.5" ID X0.75 OD 2
31 840135 NOZZLE COVER MV VAC 1
32 840055 LABEL PRODUCT DECAL MV 1
33 840035 SCREW PLASTIC 8
34 840054 LABEL HGT ADJ MV VAC 1
35 8122082 SCREW SELF-TAP 5/16 NC X3/4 HEX 2
36 840088 BRACKETNOZZLE COVER REINFORMENTMV 1
37 8024021 BOLT CARRIAGE 1/4-20X0.75 3
38 900455 NUT FLANGE 1/4-20 3
208 840017 MV WHEEL BEARING 2

Form No F072111B 17 Part No 840244
MV650H PUSH Vacuum Owner’s Manual
Engine Assembly
Figure 3

Part No 840244 18 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual
Engine Assembly Parts List
ITEM
NO. PART NUMBER DESCRIPTION MV650H QTY.
50 840069 ENGINE HONDA 6.5 VERTICAL GSV190 1
51 840137 IMPELLER ASSEMBLY PUSH MV VAC 1
52 840111 TOP PLATE ASSEMBLY PUSH MV VAC 1
53 840205 HOUSING PLASTIC VAC 1
54 440153 WASHER 1.5 OD X .453 ID X .25 THK 1
55
56 9201087 SQ KEY 2.125 X .187 1
57 840220 BRACKET COVER TOP PLATE VAC 1
58 890359 SCREW 1/4"-20 X 5/8" HWH 2
59 8172007 WASHER 1/4" SAE ZP 6
60 8172019 WASHER FENDER 1/4 ZP 6
61 8041004 SCREWCAP 1/4 - 20 x 0.75 HWH 6
62 790167 SCREWCAP 3/8-24X2 3/4" W/PATCH LOCK 1
63 900564 SCREWCAP 3/8"-16X2 1/2" TAPTITE 3
64 8177010 WASHER SPLIT LOCK 1/4" 6
65 8177012 WASHER LOCK 3/8" ST MED 1
66
67 840083 SPACER 1.50OD X .875ID X .5 THK 1
80 840215 TERMINAL 18-14 BLUE T-TAP 1
81 840213 SCREWCAP 1/4-20X5/8 GR. 5 6

Form No F072111B 19 Part No 840244
MV650H PUSH Vacuum Owner’s Manual
Hood Assembly
Figure 4

Part No 840244 20 Form No F072111B
MV650H PUSH Vacuum Owner’s Manual
Hood Assembly
ITEM
NO. PART NUMBER DESCRIPTION MV650H QTY.
57 840045 CONTROL THROTTLE MV VAC 1
130 840141 HOOD ASSY W/ LABEL MV VAC 1
131 840153 BRACKETBAG CHANNEL RH W/SEAL MV VAC 1
132 840196 SEAL BAG MV VAC 1
133 840037 TUBE HANDLE BRACE RH MV VAC 1
134 840038 TUBE HANDLE BRACE LH MV VAC 1
135 840154 BRACKETBAG CHANNEL RH W/SEAL MV VAC 1
136 840152 BRACKET NOZZLE DOOR ADJ W/LABEL MV VAC 1
137 840195 BAG ASSEMBLY MV VAC 1
138 840138 BAR LIFT NOZZLE DOOR W/ GRIP MV VAC 1
139 840061 ROD LIFT NOZZLE DOOR SP VAC 1
140 840062 PLATE BAG LATCH MV VAC 2
141 840191 GRIP LEVER LIFT 1
142 840058 SWITCH INTERLOCK VAC 1
143 840077 HARNESS WIRE ASSY MV VAC 1
144 8024025 BOLT CARRIAGE 1/4-20 X1.75 7
145 8171002 WASHER 1/4" FC ZP 14
146 8160001 NYLON INSERT LOCKNUT 1/4-20 UNC 13
147 520018 SCREW HEX HEAD #10-24 X1" 4
148 8172005 WASHER #10 SAE ZP 8
149 8164005 NYLON INSERT LOCKNUT 10-24 UNC 4
150 900407 TY WRAP 1
151 610347 PIN SCREW 1/4-28 1
152 8171003 WASHER 5/16 FLATWASHER Z/P 7
153 8160002 NYLON INSERT LOCKNUT 5/16-18 UNC 3
154 610429 SPRING LEVER GZ 1
155 610348 FIBRE WASHER 1
156 8041032 SCREWCAP 5/16"-18 X2 ZP 1
157
158 8041006 SCREWCAP 1/4-20X1" ZP 2
159 8041031 SCREWCAP 5/16-18 X1.75 ZP 2
160 8171004 WASHER 3/8" FC 4
161 8172007 WASHER 1/4" SAE ZP 6
162 890254 LABEL EAR EYE BREATHING 1
163 890301 LABEL READ 1
164 400886 ROD END BALL JOINT 3/8 NF 2
165 8041052 SCREW CAP 3/8-16X1 1/2 ZP 1
166 8160003 NYLON INSERT LOCKNUT 3/8-16 UNC 2
167 8041056 SCREWCAP 3/8"-16X2 1/2" ZP 1
168 840197 SEAL BAG FRONT HOOD 20.5 LONG 1
169 8149003 NUT REG 3/8-24 NF 2
170 8041004 SCREWCAP 1/4"-20X3/4" HCS ZP 1
171 8172019 WASHER FENDER 1/4 ZP 7
172 8041018 SCREWCAP 1/4"-20X4" HCS ZP 1
173 840071 NUT ACORN 1/4-20 2
174 810736 LABEL DANGER FLYING DEBRIS 1
175 840080 LABEL NOZZLE DOOR MV VAC 1
178 8024021 BOLT CARRIAGE 1/4-20 X3/4" 5
180 840214 BRACKET HOOD FRONT STRAIGHTENER 1
188 840113 PLUG SNAP RIVET 0.166 DIA 8
189 840114 PLUG SNAP RIVET 0.232 DIA 4
190 840040 ROD BAG WA MV VAC 1
191 840139 LATCH RUBBER ASSEMBLY MV VAC 2
192 360203 PAL NUT 0.312 2
193 840189 BAG DEBRIS MV VAC 1
200 520116 LABEL MADE IN U.S.A. 1
