Billy Goat SC18OH User manual

SC18OH Owner’s Manual
Part No 371508 1 Form No F102215A

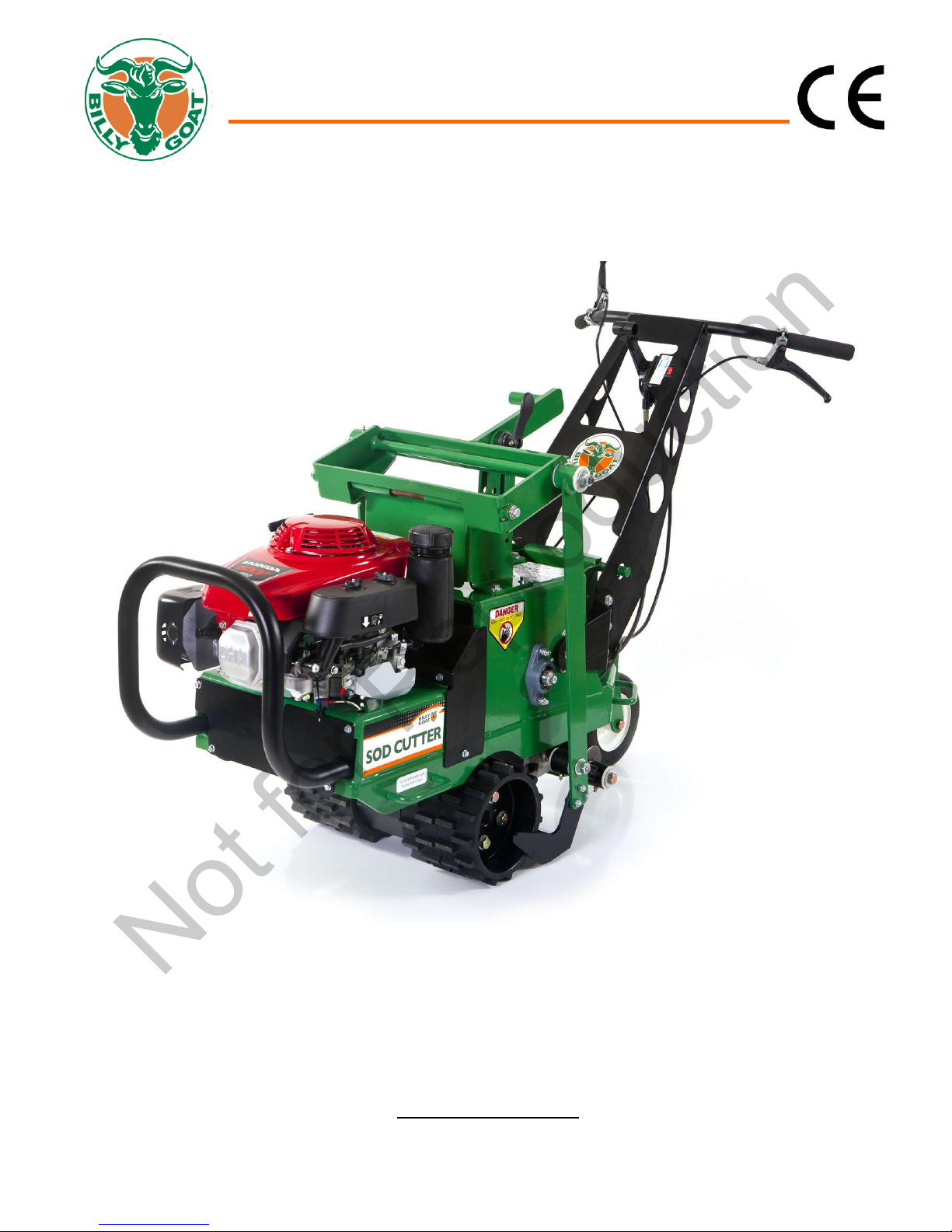

SOD CUTTER Owner's Manual
SC180H
Beginning Serial #: 102215001
Original Instructions
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
2
ABOUT THIS MANUAL
THANK YOU for purchasing a BILLY GOAT®Sod Cutter. Your new machine has been carefully designed and manufactured to
provide years of reliable and productive service. This manual provides complete operating and maintenance instructions that will
help to maintain your machine in top running order. Read this manual carefully before assembling, operating, or servicing your
equipment.
CONTENTS
SPECIFICATIONS AND SOUND AND VIBRATION 3
INTENDED USE & INSTRUCTION LABELS 4
PACKING CHECKLIST & ASSEMBLY 5
OPERATION CONTROLS/OPERATION 6-7
MAINTENANCE 8-9
TROUBLESHOOTING AND WARRANTY PROCEDURE 10
MAINTENANCE RECORD 11
ILLUSTRATED PARTS & PART LISTS 12-20
Go to http://www.billygoat.com for French-Canadian translations of the product manuals.
Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
3
SPECIFICATIONS
SC180H
Engine: HP
5.5 HP (4.1 kw)
Engine: Model
GXV160UH2N1AH
Engine: Type
Honda
Engine: Fuel Capacity
1.6 qt. (1.5 L)
Engine: Oil Capacity
0.69 qt. (0.65 L)
Total Unit Weight:
348# (158 Kg)
Max. operating slope
20o
Overall length
54” (1371mm)
Overall width
26.5” (660mm)
Overall height
36.5” (927mm)
In accordance with 2000/14/EEC
104dBa
Sound at operators position
84dBa
Vibration at operator position
2.5g (24.8m/s2)
SOUND
SOUND LEVEL 84 dB(a) at Operator Position
104 dB(a)
Sound tests were conducted in accordance with 2000/14/EEC, and were performed on 7-11-13 under the conditions listed
below.
Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on the unit for
the sound power level for your model.
VIBRATION DATA
VIBRATION LEVEL 2.5 g (24.8 m/s2)
Vibration levels at the operator’s handles were measured in the vertical, lateral and longitudinal directions using calibrated
vibration test equipment. Tests were performed on 7-11-13 under the conditions listed below.
General Conditions: Sunny
Temperature: 84oF (28.9oC)
Wind Speed: 10 mph (16.1 kmh)
Wind Direction: East Southeast
Humidity: 37%
Barometric Pressure: 30.04 Hg (101.7 kpa)
General Conditions: Sunny
Temperature: 84oF (28.9oC)
Wind Speed: 10 mph (16.1 kmh)
Wind Direction: East Southeast
Humidity: 37%
Barometric Pressure: 30.04 Hg (101.7 kpa)
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
4
INTENDED USE
INTENDED USE
This machine may only be utilized for the purpose for which it was designed, i.e. to cut 18in (45.7 cm) wide strips of turf. Make
sure that all operators of this equipment are trained in general machine use and safety.
WARNING:During operation the lawn and turf are cut into strips. Should the cutter’s wheels skid during use it is advisable to
adjust the cutting depth. If this operation does not prevent this occurrence check the state of the terrain. If it is too dry it should
be wetted so that the blade encounters a slight resistance, thus making cutting operations easier.
INSTRUCTION LABELS

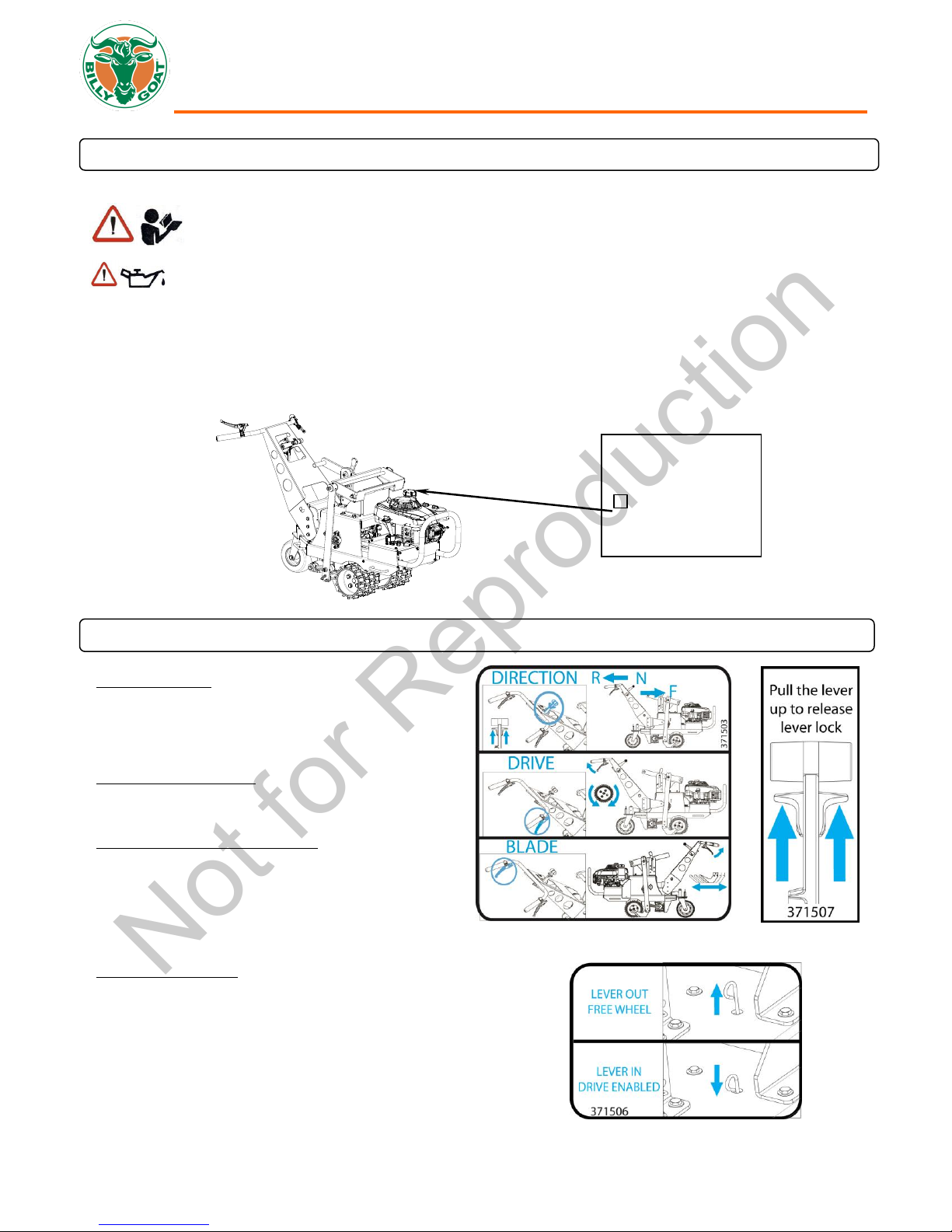

The labels shown below were installed on your BILLY GOAT®Sod Cutter. If any labels are damaged or missing, replace them
before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in
ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers
shown.
LABEL DANGER KEEP HANDS LABEL TIE DOWN LABEL WARNING GUARDS
AND FEET AWAY P/N 371505 P/N 900327
P/N 400424
LABEL INSTRUCTION DRIVE LABEL INSTRUCTION DEPTH LABEL GREASE POINT LABEL TORQUE
P/N 371503 P/N 371500 P/N 371502 P/N 371524
LABEL SHIFTER CONTROL LABEL DRIVE RELEASE LABELS CASTER LOCK
P/N 371507 P/N 371506 P/N 371501 & 371504
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
5
PACKING CHECKLIST
Your Billy Goat Sod Cutter is shipped from the factory in one crate, completely assembled.
PUT OIL IN ENGINE BEFORE STARTING
CHECK GREASE IN BEARING PER SERVICE LABEL ON UNIT. ADD GREASE AS REQUIRED. USE NLGI GRADE 2
MULTIPURPOSE LITHIUM BASE GREASE
OPERATOR CONTROLS
READ all safety instructions before assembling unit.
TAKE CAUTION when removing the unit from the box.
Boxing Parts
Checklist
Honda 5.5 HP
engine
PARTS BAG & LITERATURE ASSY
Warranty card P/N- 400972, Owner’s Manual P/N-371500, Declaration of conformity P/N- 371509, General Safety and
Warranty manual P/N- 100295
DRIVE CONTROL: Located on the right hand side of
the handle bars. When engaging the drive lever, pull it
till it comes into contact with the handle bar. Do not
halfway engage the drive as this will cause premature
failure of the transmission. (See Fig. 1)
BLADE ENGAGE LEVER: Located on the left hand side
of the handle bar. As with the drive lever, it must be fully
engaged when in use.
SPEED AND DIRECTON SHIFTER: Lift the levers
located on either side of the shifter control then move
the shifter control forward or backward to select the
desired direction and speed then release the levers. DO
NOT push the shifter control without releasing the levers
as this will cause damage to the shifter control. (See
Fig. 2)
FREE WHEEL LEVER: Located on top of machine next
to the height adjust. Pull the lever out to free wheel and
push it in to allow the drive to be engaged. (See Fig. 3)
Fig. 1
Fig. 2
Fig. 3
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
6
OPERATION
Note: Item numbers in ( ) will be referenced in the Parts Illustration and Parts List on pages 11-20
Like all mechanical tools, reasonable care must be used when operating machine.
Inspect machine work area and machine before operating. Make sure that all operators of this equipment
are trained in general machine use and safety.
PUT OIL IN ENGINE BEFORE STARTING
STARTING ENGINE
See engine manufacturer’s instructions for type and amount of oil and gasoline used. Engine must be level when checking and
filling oil and gasoline.
ENGINE SPEED: Engine speed is fixed.
FUEL VALVE: Move fuel valve to "ON" position.
CHOKE: Found on engine above fuel on switch.
PULL: Pull the starting rope to start engine.
FORWARD CONTROL AND BLADE MOVEMENT LEVERS: See page 8 Operator’s Controls.
Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine off immediately and check for
damaged or worn blade, loose blade bolts, loose engine or lodged foreign objects.
HANDLING & TRANSPORTING
Use loading ramps to move unit into truck or trailer for transport. DO NOT operate the blade when loading.
Never load this machine by hand.
CUTTING OPERATION
The unit performs best when the ground is wet. If possible sprinkle the work area several hours before starting.
CAUTION: Shut off the blades when crossing gravel drives, walks or roads and under all conditions where thrown objects
might be a hazard.
CLEARING DEBRIS FROM UNDERSIDE OF MACHINE: Turn engine off and wait for blade to stop completely.
Disconnect spark plug wire and place the unit in gear to prevent the unit from rolling.
Wearing durable gloves, remove debris. Danger, the debris may contain sharp materials. Reconnect spark plug wire.
CAUTION: Use extreme care when operating the blade. Inspect the work area for foreign objects that could cause damage
to the unit or injure the operator if struck by the blade. Never operate the blade with bystanders in the work area.
GENERAL OPERATION
Position the turf cutter outdoors on sufficiently firm, flat soil. Read the instructions provided by the engine manufacturer in the
relative manual and follow them carefully to prevent situations arising which may endanger either persons or the machine.
WARNING: When using the machine for the first time it is advisable to get the feel of it by executing maneuvers on flat
ground free of foreign objects.
After switching on the engine following the instructions given in the previous paragraph:
WARNING: DO NOT adjust cutting depth while machine is in motion. Choose a cutting depth suitable for the type of
terrain the machine is to be used on. Cutting height is set using the removable pin and placing it into the desired slot for
depth. Then loosening the locking lever to allow the arm to be raised or lowered. The arm should be resting against the pin for
the desired cutting height. Make sure to engage the locking lever before blade operation.
Operation continued next page.
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
7
1. Choose a depth of cut. See instruction label on the unit (see fig 4). Note: Sod should be cut leaving a minimum amount of
dirt (1/4”-3/8”) attached to the roots. This minimizes its weight for removal and encourages faster growth when reused.
2. Holding both handles, fully engage the blade clutch lever on the operator’s left hand side. Rocking back on the handles,
allow the blade to cut into the sod to your chosen depth. Keep the blade clutch lever fully engaged at all times when
cutting (see fig 5).
3. Using the ground speed and direction adjustment lever in the middle of the handle, set forward ground speed to a slow
forward speed to begin.
4. Fully engage the ground drive clutch lever on the operator’s right hand side. The unit will begin to move forward and cut a
strip of sod.
5. As ground conditions allow, increase the ground speed using the speed control lever, in small increments until you attain
the maximum speed of cut for your application. If the engine RPM drops significantly lower the forward speed until the
engine comes back up to speed.
6. When you reach the end of the strip you are cutting, release both clutch levers and the unit will come to a stop. Using the
blade depth adjustment handle raise the blade to the maximum height possible and lock it in place.
7. Fully engage both blade drive and ground drive clutch levers and the unit will drive forward and complete the cut of the
strip.
8.Release the blade clutch lever and continue to drive the unit forward into position for the next cut, repeat the process
above as required.
*****TIPS*****
Before commencing cutting operations, read the safety instructions given in the previous sections.
At first the setting of a relatively shallow cutting depth is recommended and then lowering it gradually according to working
conditions.
Engage the blade clutch only after having carried out the machine switch on and gear engagement operations.
Fig. 4
Fig. 5
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
8
MAINTENANCE
Note: Item numbers in ( ) will be referenced in the Parts Illustration and Parts List on pages 11-20.
PERIODIC MAINTENANCE
Periodic maintenance should be performed at the following intervals (disconnect spark plug during maintenance):
Maintenance Operation
Every Use
(daily)
Every 5 hrs
or (daily)
Every 25 Hrs
Every 50 Hrs
(Yearly)
Every 150
Hrs
Inspect for loose, worn or damaged parts

Check for excessive vibration

Inspect belt for wear

Engine (See Engine Manual)
Grease pivot points
*Use NLGI grade 2 multipurpose lithium based
grease

Sharpen Blade

Replace blade and traction belts

Note: Blade, and drive belts and chains are normal wear items. See Fig. 4 for Chain configuration. These should be inspected
on a regular basis and replaced if worn. Also see your Billy Goat Dealer for servicing your machine.
BELT REPLACEMENT
Note: See Fig. 3 for belt configuration
Switch off the engine and disconnect the spark plug wire before carrying out any
maintenance or repair work on the machine.
If a belt is worn or breaks it should be replaced as follows:
Remove all of the metal guards (items 15, 16, 21 and 17) to allow easier access to
the pulleys and belts.
Note: see pages 11, 13, 15, 17 and 19 for part illustrations
BLADE BELT
1. Disconnect the spark plug, and then remove the guards.
2. Remove the master link on the drive chain (Item 133) to allow the belt (item
132) to be slipped past.
3. Loosen the tension on the pulley (item 35) by loosening the nut and bolt
holding it to the base. Do not completely remove the nut and bolt, as loosening
it will allow the pulley to shift.
4. Walk the old belt off of the clutch (item 18) if necessary.
5. Replace with the new belt and reapply tension to it on the pulley loosened in
step 3 then tighten it. Do not put too much tension on the belt as this will lead
to premature wear.
6. Reinstall the chain onto the wheel drive by reinserting the master link.
7. Reinstall the guards.
8. Check for proper operation.
133
131
132
130
ON UPPER GROOVE
OF CLUTCH
ON LOWER GROOVE
OF CLUTCH
See page 19 for parts illustration
Fig. 3
Fig. 4
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
9
CHECKING AND REPLACING THE BLADE
Always check the state of the blade (item 44) before commencing work. Do not forget to switch the engine off!
Remove the sparkplug wire.
During work operations if the blade strikes stones or stumps stop straightaway and make sure that it has not become
bent or broken. A damaged blade must be replaced.
If the blade is very worn, cracked or bent, it may snap and project objects outwards, risking serious accident.
Use heavy-duty work gloves to check or replace the blade to avoid risk of injury to hands.
The blade fixing screws (item 81) and relative nuts (item 75) are also subject to wear. Always replace them at the same
time as the blade, using bolts and screws of the same strength and type. Torque the bolts to 30 ft. lbs. (40.6 N.m)
The blade wears more quickly on dry, sandy ground. In these conditions it should be replaced more frequently.
To remove the blade, proceed as follows:
1. Switch off the engine and disconnect the spark plug wire
2. Adjust the cutting height to maximum
3. Check the state of the blade. Check that the blade is not cracked, bent, excessively worn or broken
4. When repair or check of blade is completed reattach spark plug
CHECKS
Adjust the belt and cable control tension after the first few working hours to account for initial break-in.
Briefly operate all the machine's components to detect any abnormal noises or overheating.
During the initial running in period avoid heavy-duty usage to encourage proper settling of the mechanical parts.
Never neglect maintenance operations after work and carry out all pre-scribed checks regularly.
CABLE CONTROL ADJUSTMENT
To adjust the cables place the machine on flat ground, switch off the engine and disconnect
the wire from the spark plug.
BLADE AND DRIVE CONTROL CABLES
Adjustments to the tension on the cables are made by adjusting the barrel length located on
the handle. By extending the barrel more tension will be put on the cable. Make sure that you
do not apply too much tension as this will cause premature failure or cause the lever to
engage when it is not wanted.
Note: Apply lithium grease to the slots on the drive levers where the cable sits to help
extend cable life.
SHIFTER CONTROL CABLE
Position on the Shifter control cable (item 22) can be made by removing the rear cover and
adjusting the barrel in or out depending on the desired Position.
DRIVE BELT
1. Follow steps 1-4 in the blade belt removal section. The blade belt will need to be removed in order to remove the drive belt.
2. Loosen the belt finger (119) on the idler arm (20) and remove the belt from the idler arm by lifting it over the idler pulley (39)
and arm.
3. The belt will be loose enough now to walk it off of the transmission pulley (32). Remove the belt from the transmission pulley.
4. Disconnect the clutch cable (110) and then remove the bolt (114) holding the clutch (18) to the engine shaft.
5. Lower the clutch (18) enough and slide the belt off of the clutch groove and replace the old worn belt with a new one. Make
sure it is sitting in the groove that the old one was removed from.
6. Reconnect the clutch back to the engine shaft. Make sure the anti-rotation bolt is in the small tube before reattaching. See
page 15 for proper torque for the clutch bolt.
7. Reinstall all removed parts in the reverse order that they were removed.
8. Check for proper operation.
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
10
TROUBLESHOOTING
When servicing engine refer to specific manufacturer’s engine owner's manual. All engine warranty is covered by the specific
engine manufacturer. If your engine requires warranty or other repair work contact your local servicing engine dealer. When
contacting a dealer for service it is a good idea to have your engine model number available for reference (See table page 15). If
you cannot locate a servicing dealer in your area you can contact the manufacturer’s national service organization:
American Honda- 800-426-7701
WARRANTY CLAIM PROCEDURE
Should a BILLY GOAT®machine fail due to a defect in material and/or workmanship, the owner should make a warranty claim
as follows:
The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY GOAT
Dealer.
The owner must present the remaining half of the Warranty Registration Card, or, if this is not available, the invoice or
receipt.
The Warranty Claim will be completed by the authorized BILLY GOAT Dealer and submitted to their respective BILLY
GOAT Distributor for their territory Attention: Service Manager. Any parts replaced under warranty must be tagged and
retained for 90 days. The model number and serial number of the unit must be stated in the Warranty Claim.
The distributor service manager will sign off on the claim and submit it to BILLY GOAT for consideration.
The Technical Service Department at BILLY GOAT will study the claim and may request parts to be returned for
examination. BILLY GOAT will notify their conclusions to the distributor service manager from whom the claim was
received.
The decision by the Technical Service Department at BILLY GOAT to approve or reject a Warranty Claim is final and
binding.
For online product registration go to www.billygoat.com
Problem Possible Cause Solution
Engine will not start
Choke not on. Out of gasoline, bad or old gas. Spark plug wire
disconnected. Dirtyair cleaner. Blade clutch is engaged
Check Gasoline. Check for spark with an approved tester.
Clean or replace air cleaner. Disengage the Blade clutch
lever.
Engine runs poorly
Spark plug wire loose. Carburetor out of adjustment. Water or dirt in
fuel system. Spark plug fouled, faultyor wrong gap
Sharpen or replace blade. Adjust carburetor (refer to engine
manual). Reset gap or replace spark plug (refer to engine
manual).
Belt slips
Belt tension inadequate. Too deep of a working depth. Belt worn. Replace belt. Replace blade
Abnormal vibration · Loose or out of balance blade. Bent blade. Loose engine bolts
Stop work immediately. Check blade mount and balance.
Replace damaged or bent blade if required. Check engine
mount.
Will not cut or has poor cutting performance
Dull or bent Blade. Debris locked against blade. Engine running at
too low RPM. Sod is too dry.
Sharpen or replace blade. Remove debris. Check engine
RPM (refer to engine manual). Apply more water to cutting
area to loosen sod
Drive will not engage
Shifter in neutral. Out of adjustment drive cable. Broken drive cable.
Worn or broken belt.
Shift lever to desired direction and speed. Adjust drive
cable. Replace with new cable. Replace belt.
Drive will not release Drive cable out of adjustment. Damaged drive lever. Adjust drive cable. Replace drive cable.
Engine is locked, will not pull over Debris locked against blade. Damaged engine.
Remove debris. Refer to engine owner's manual. Replace
control cable.
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
11
MAINTENANCE RECORD
Date
Service Performed
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
12
SC18 ENGINE ASSEMBLY PARTS DRAWING
142
76
95
117
64
116
114
112
113
61
46
85
75
63
72
76
76
75 87
63
58
59 53
57
76
60
83
102
19
11
10
18
35
2
1
123
126
121
127
124
122
128
129
120
125
110
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
13
SC18 ENGINE ASSEMBLY PARTS LIST
Item no. Part no. Description Qty
1371100 FRAME WA SC 1
2900615 ENGINE GXV 160 1
10 371400 TUBE BUMPER SC 1
11 371101 CASTER MOUNT WA 1
18 371264 CLUTCH SC 1
19 371102 CASTER RIG WA 1
35 520061 PULLEY IDLER 5L INSIDE 4" 1
46 371267 BELT FINGER 1
53 371206 WHEEL 8" X 3" HEAVY DUTY 1
57 8160005 NUT LOCK 1/2"-13 HEX 1
58 8041108 SCREWCAP 1/2"-13 X 4 3/4" HCS ZP 1
59 8172011 WASHER 1/2" SAE 1
60 520184 BUSHING FLANGE 1" OD X 3/4" ID 2
61 440153 WASHER 1.5" OD X .453 ID X .25 THK 1
63 8160003 NUT LOCK 3/8"-16 6
64 610363 GREASE ZERK 1
72 8041033 SCREWCAP 5/16"-18 X 2 1/4 GR 5 HCS ZP 4
75 8160002 NUT LOCK 5/16"-18 5
76 8171003 WASHER 5/16" FLAT 22
83 8041051 SCREWCAP 3/8"-16 X 1 1/4" HC ZP 2
85 8177012 LOCK WASHER 3/8" S/T MED 1
87 8024062 CARRIAGE BOLT 3/8"-16 X 2" ZP 1
95 8041031 SCREWCAP 5/16"-18 X 1 3/4" GR. 5 HCS ZP 1
102 520176 SNAP RING 1
110 371232-S CABLE SPEED CONTROL LEFT SERVICE 1
112 900455 NUT WHIZ 1/4-20 WASH FACE 2
113 8041008 SCREWCAP 1/4"-20 X 1 1/2" HCS ZP 1
114 900344 SCREWCAP 3/8"-24 X 1 1/2" GR. 8 40-45 FT-LBS (54-61 N.m) 1
116 900162 KEY HI PRO 5/32 X 5/8" 1
117 400164 SCREWCAP 5/16"-24 X 1 " GR. 8 ZP W/PATCH 3
120 371510 LABEL BADGING SC 2
121 371503 LABEL INSTRUCTION DRIVE 1
122 371505 LABEL TIE DOWN 4
123 371501 LABEL CASTER LOCK LEFT 1
124 371506 LABEL DRIVE RELEASE SC 1
125 371502 LABEL GREASE POINTS SC 1
126 371504 LABEL CASTER LOCK RIGHT 1
127 371500 LABEL INSTRUCTION DEPTH 1
128 400424 LABEL DANGER 2
129 900327 LABEL WARNING GUARDS 4
142 371281 BELT FINGER TIGHT SIDE 1
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
14
SC18 BLADE ASSEMBLY PARTS DRAWING
54
51
55
153
NOTE: When
installing seals,
make sure spring
side of seal is away
from bearing
71
71
56
71
108
76
63
107
75
88 76
85
52
83
76
64
57
56 56
71
81
70
56
105
77
69
56
57
80
71
68
71
85 88
101
100
89 57
56
64
56 76
83
63
61
44 38
30
14
33
32
42
24
13
31
5
4
6
194
137
6
148
148
154
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
15
SC18 BLADE ASSEMBLY PARTS LIST
Item no. Part no. Description Qty
1371100 FRAME WA 1
4371107 PIVOT DEPTH WA 1
5371106 BLADE DEPTH WA 1
6 371108-S BLADE ARM 2
13 371289 HEIGHT DEPTH BRACKET LH 1
14 371205 GEAR BOX "T" 2:1 REDUCTION 1
24 371219 LEVER CAM LOCK 1
30 371202-S ECCENTRIC BLADE DRIVE SERVICE W/ITEM 80 2
31 371259 SHAFT PIVOT DEPTH 1
32 371215 PULLEY 5" X 3/4" BORE 1
33 371208 TAB MOUNT SHIFT CABLE 1
38 371216-S ARM BLADE DRIVE SERVICE 2
42 371284 PIN WIRE LOCK DIA. 1/2" X 3" LG ZP 1
44 371203-S KIT SC REPLACEMENT BLADE 1
51 371247 BEARING SC 6
52 371260 ROD BEARING 1
54 371252 SEAL GREASE 12
55 371257 BUSHING BEARING SC 6
56 371237 WASHER PLASTIC 14
57 8160005 NUT LOCK 1/2"-13 HEX 4
61 440153 WASHER 1.5 OD X .453 ID X .25 2
63 8160003 NUT LOCK 3/8"-16 9
64 610363 GREASE ZERK 8
68 8041110
SCREWCAP 1/2"-13 X 2 3/4" GR 8 ZP W/RED PATCH
(TORQUE TO 115 FT. LBS.)
2
69 9201113 KEY 1/4" SQ X 1" 2
70 8041111 SCREWCAP 1/2"-13 X 3" GR 8 ZP (TORQUE TO 115 FT. LBS) 2
71 8171006 WASHER 1/2" USS 8
75 8160002 NUT LOCK 5/16"-18 2
76 8171003 WASHER 5/16" FLAT 32
77 9201072 KEY 3/16" SQ X 5/8" 1
80 362289 SHCS 5/16"-18 X 1.25 BLK OX W/RED PATCH 4
81 8041043 SCREWCAP 5/16"-18 X 1" GR. 8 ZP 6
83 8041051 SCREWCAP 3/8"-16 X 1 1/4" HC ZP 8
85 8177012 LOCK WASHER 3/8" S/T MED 6
88 8041050 SCREWCAP 3/8"-16 X 1" HCS ZP W/PATCH 6
89 8024040 CARRIAGE BOLT 5/16"-18 X 1" GR. 5 HCS ZP 2
94 8177011 LOCK WASHER 5/16" S/T MED 1
100 8171004 WASHER 3/8" FC 2
101 8041026 SCREWCAP 5/16"-18 X 3/4" GR 5 HCS ZP 1
105 371222 CABLE CLAMP 4
107 371288 HEIGHT DEPTH BRACKET RH 1
108 371283 LANYARD 12" COATED STEEL 1
137 790179 GRIP 1" X 4" 1
148 371286 NUT LOCK 5/16"-18 HEX GR 8 (TORQUE 28 FT. LBS.) 6
153 8172008 WASHER 5/16" SAE 6
154 371524 LABEL TORQUE SC 2
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
16
SC18 HANDLE ASSEMBLY PARTS DRAWING
156
144
75
146145
147
141
138
57
59
115
98
92
109
110
66
66
43 96
88
59
91
85
88
76
88
85
63 104
103
48
17
15
16 21
22
27
28
23
7
73
1
134
135
50
TO CLUTCH
TO IDLER ARM
TO TRANS
TO ENGINE
139
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
17
SC18 HANDLE ASSEMBLY PARTS LIST
Item no. Part no. Description Qty
1371100 FRAME WA 1
3371613 HANDLE SC WA W/LABELS 1
7371209 HANDLE BRACKET MOUNT 2
15 371207 GUARD FRONT 1
16 371242 GUARD MID RIGHT 1
17 371103 GUARD REAR WA 1
21 371233 GUARD MID LEFT 1
22 371204 SPEED CONTROL SC 1
23 351209 CONTROL LEVER DRIVE 2
27 371210 RUBBER HANDLE MOUNT 2
28 500267 GRIP 1" X 5.5" 2
43 891025 1/2" PRESSED STEEL HOUSING 2
48 500281 SWITCH TOGGLE 1
50 890132 PLUG TUBE 1" 2
57 8160005 NUT LOCK 1/2"-13 HEX 2
59 8172011 WASHER 1/2" SAE 2
63 8160003 NUT LOCK 3/8"-16 4
66 371276 SCREW SELF TAP 1/4"-20 X 3/4" TYPE 23 12
75 8160002 NUT LOCK 5/16"-18 X 1 3/4" HCS ZP 1
76 8171003 WASHER 5/16" FLAT 8
85 8177012 LOCK WASHER 3/8" S/T MED 4
88 8041050 SCREWCAP 3/8"-16 X 1" HCS ZP 8
91 8041097 SCREWCAP 1/2"-13 X 1 3/4 HCS ZP 2
92 8160001 NUT LOCK 1/4"-20 4
96 8041006 SCREWCAP 1/4"-20 X 1" HCS ZP 4
98 8171002 WASHER 1/4" FLAT 4
103 8059136 SCREW MACH #10-24 X 3/4 WF ZP 4
104 8155007 NUT LOCK #10-24 HEX 4
109 831227 CABLE CONTROL DRIVE QV 1
110 371232-S CABLE SPEED CONTROL LEFT SERVICE 1
115 360316 WIRE HARNESS 1
134 430303 LABEL PRODUCT LOGO CIRCLE LG 1
135 371507 LABEL SHIFTER CONTROL 1
138 371513 LABEL NEUTRAL SC18 2
139 371514 LABEL HANDLE DRIVE SC18 1
141 371279 HANDLE SPEED CONTROL SC18 1
144 440124 PIN CLEVIS 0.25 X 0.50 1
145 440193 PIN CLIP HITCH 0.51 X 3/4" 1
146 440277 ARM CONTROL WA 1
147 831115 CONTROL MOUNT HANDLE WA 1
156 371282 LABEL CONSOLE SC 1
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
18
SC18 TRANSMISSION ASSEMBLY PARTS DRAWING
155
74
118
22
63 100
111
76 73
93
94
63
68
47
76
95
67
45
49
76
75
93 75
86
76
63
62
79
78
75
89
73
73
7663
69
66
59
57
61 8583
58
12
36
34
25
37
40
41
29
26
39
20
9
8
1
119
136 136
109
140
143
152 151
150
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
19
SC18 TRANSMISSION ASSEMBLY PARTS LIST
Item no. Part no. Description Qty
1371100 FRAME WA SC 1
8371201 TRANSMISSION RT310 1
9371200 WHEEL DRIVE SOD CUTTER 4
12 371211 GUARD AXLE 1
20 371105 IDLER ARM WA 1
22 371204 SPEED CONTROL SC 1
25 810700 PILLOW BLOCK 1" 2
26 371213 SHIFT ARM EXTENSION 1
29 371234 TAB MOUNT WHEEL CLUTCH CABLE 1
34 371277 AXLE LONG SC 1
36 371223 SPROCKET 40C25 1" BORE 1
37 350209 BEARING 3/4" CAST FLANGE W/ZERK 2
39 510137 IDLER PULLEY 1
40 371292 SPROCKET 40B25 1" BORE 1
41 371290 JACKSHAFT 1.00 X 17.06 LG 4140HT PLATED 1
45 371245 ROD TRANSMISSION BYPASS 1
47 371291 SPROCKET 40B10 1" BORE 1
49 371212 SPROCKET 40B10 5/8" BORE 1
57 8160005 NUT LOCK 1/2"-13 HEX 8
58 8041108 SCREWCAP 1/2"-13 X 4 3/4" HCS ZP 8
59 8172011 WASHER 1/2" SAE 16
61 440153 WASHER 1.5 OD X .453 ID X .25 2
62 800242 SPRING EXTENSION 1
63 8160003 NUT LOCK 3/8"-16 9
66 371276 SCREW SELF TAP 1/4"-20 X 3/4" TYPE 23 8
67 371275 PIN 1/4" RUE RING 1
69 9201113 KEY 1/4" SQ X 1" 3
73 8041052 SCREWCAP 3/8"-16 X 1 1/2" HC ZP 4
74 9201078 KEY 3/16" SQ X 1" 1
75 8160002 NUT LOCK 5/16"-18 5
76 8171003 WASHER 5/16" FLAT 14
78 8041054 SCREWCAP 3/8"-16 X 2" HCS ZP 1
79 520031 SHOULDER BOLT 1/2" X 2" 1
83 371278 SCREWCAP 3/8" - 16 X 1 1/4" GR 5 ZP W/RED PATCH 2
84 850233 SNAP RING TRUARC 5/8" 1
85 400502 WASHER LOCK 3/8" TWISTED TOOTH 2
86 8161042 NUT LOCK 3/8"-16 LT WT TH ZP 1
89 8041004 SCREWCAP 1/4"-20 X 3/4" HCS ZP 2
93 8041028 SCREWCAP 5/16"-18 X 1" GR 5 HCS ZP 3
94 8177011 LOCK WASHER 5/16" S/T MED 2
95 8041032 SCREWCAP 5/16"-18 X 2" GR 5 HCS ZP 2
98 8171002 WASHER 1/4" FLAT 4
100 8171004 WASHER 3/8"FC 2
109 831227 CABLE CONTROL DRIVE QV 1
111 8172017 WASHER 1" SAE 2
118 8149001 NUT 1/4" - 28 HEX ZP 1
119 371269 BELT FINGER DRIVE IDLER PULLEY 1
136 8083122 SCREWSET 1/4"-20 X .375 CUP PT W/NYLOK 4
140 9201131 KEY 1/4" X 4.00" 2
143 371602 PULLEY AND FAN KIT RT310 1
150 371293 SPACER 1.25 X .109 WALL 3.35 LG 1
151 371294 SPACER 1.25 X .109 WALL X 2.787 LG 1
152 371295 SPACER 1.25 X .109 WALL X 6.578 LG 1
155 430226 RETAINING RING 5/8" 1
Not for Reproduction

SC180H Owner’s Manual
Part No 371508 Form No F102215A
20
SC18 BELT AND CHAIN ASSEMBLY PARTS DRAWING
SC18 BELT AND CHAIN ASSEMBLY PARTS LIST
133
131
132
130
ON UPPER GROOVE
OF CLUTCH
ON LOWER GROOVE
OF CLUTCH
Item no. Part no. Description Qty
130 371270 BELT GATES 6732 1
131 371296 CHAIN #40 X 44 PITCHES 1
132 371246 BELT GATES 6958 1
133 371297 CHAIN #40 X 61 PITCHES 1
Not for Reproduction
