Bin Master BMRX Series User manual

925-0292 Rev C
BMRX Series
ROTARY LEVEL CONTROL
OPERATING INSTRUCTIONS
PLEASE READ CAREFULLY

925-0292 Rev C 2
TABLE OF CONTENTS
GENERAL SPECIFICATIONS .................................................................................................... 3
SAFETY SUMMARY......................................................................................................... 4
1.0 INTRODUCTION............................................................................................................... 5
2.0 INSTALLATION ................................................................................................................. 5
2.1 Location and Mounting ............................................................................................ 5
2.2 Input Power and Field Wiring .................................................................................. 6
2.3 Grounding................................................................................................................ 6
3.0 DPDT RELAY.................................................................................................................... 7
3.1 Fail-Safe High.......................................................................................................... 7
3.2 Fail-Safe Low .......................................................................................................... 7
4.0 WARRANTY AND CUSTOMER SERVICE ...................................................................... 8
5.0 DISPOSAL ........................................................................................................................ 8
6.0 REPAIR ............................................................................................................................. 8
DECLARATION OF CONFORMITY.................................................................................. 9

925-0292 Rev C 3
BMRX
GENERAL SPECIFICATIONS
Supply: AC MODELS 24 VAC, 115 VAC, or 230 VAC 50/60 Hz
DC MODELS 12 VDC to 24 VDC
Supply Tolerance: -15% +10%
Load: AC Model = 5.5 VA; DC Models = 1 VA
External over current protection: 10A max.
Ambient Temperature: (Electronics) -40°F to +158°F (-40°C to +70°C)
ATEX: -4°F to +185°F (-20°C to +85°C)
Enclosure: Type 4X, 5, & 12; IP66
Die cast Aluminum with 6% magnesium max
USDA approved powder coat finish
Pressure: 5 PSI above ambient
Altitude: Up to 2000 m
Hazardous Location Rating: CSA / C-USA Class I Group C & D / Class II Group E, F, & G
ATEX Suitable for: II 2G 1/2D c
Ex d IIB T4 Gb
Ex tb IIIC T130°C Db (Ta = -20°C to +85°C)
DPDT Relay Output: 10 Amps 250 VAC
Fail-Safe: Switch selectable "High" or "Low" level modes.
Mounting: 1 1/4 inch NPT thread
Conduit Entries: 3/4 inch NPT thread NOTE: For hazardous locations an
appropriate conduit seal off as per the installation class or zone is
required within 18” of the enclosure.
Shaft Seal: 1/2 micron, 30 PSI NOTE: The fluorocarbon seal is extremely
durable and typical lifespan in normal operation is 8 to 10 years,
but should be inspected every three years for wear and replaced
as necessary. See Customer Service section for factory contact
details.

925-0292 Rev C 4
SAFETY SUMMARY
Review the following safety precautions to avoid injury, prevent damage to the equipment and maintain protection
methods for hazardous locations.
The product should be installed, commissioned, and maintained by qualified and authorized personnel only. Install
according to installation instructions and comply with all national and local electrical codes.
If this product is used in a manner not specified by the manufacturer, the safety and hazardous location protection
could be compromised.
Use electrical wire that is sized and rated for the maximum voltage and current of the application.
An external overcurrent protection device or switch must be included in the installation and rated for the voltage
and current of the device and load. It should be installed near the equipment and identified as for that equipment.
Do not install this product in a manner which makes is difficult to operate the disconnecting device.
Properly ground the enclosure to an adequate earth ground. Observe all switch contact ratings as called out on
the nameplate and in the operating instructions. Insure that the enclosure cover is in place and secured tightly
after installation.
Before servicing, disconnect power from all circuits entering enclosure before removing cover. After any inspection
or servicing, insure the enclosure cover is in plate and tightly secured.
In potentially wet environments thoroughly seal all conduit entries.
Safety Terms and Symbols
WARNING: Warning statements identify conditions or practices that could result in injury or loss of life and the
operating instructions must be consulted. Risk of electrical shock.
CAUTION: Caution statements identify conditions or practices that could result in damage to this product or other
property.
Safety Precaution
CAUTION: Before removing the enclosure cover, open all circuits entering the enclosure. Be aware that there
may be more than one live circuit.

925-0292 Rev C 5
1.0 INTRODUCTION
The Bin-Master BMRX is a rotating paddle style level sensor which provides reliable point level detection for bulk
solids, including powder, pellet, and granular materials. The unit has a switch selectable fail-safe relay that will fall
to a "safe" condition in the event of a power failure.
The BMRX motor rotates the drive shaft and paddle at 1 RPM. When the vessel material fills to the level of the
indicator paddle, the material causes the paddle to stop rotating indicating a covered condition. When the material
falls away, the paddle starts rotating again to indicate an uncovered condition.
2.0 INSTALLATION
2.1 Location and Mounting
TOP MOUNT (For mounting plate options see figure 4 on page 6) Figure1
SIDE MOUNT (For mounting plate options see figure 5 on page 6) Figure 2
1. Locate and cut hole in top of bin to fit outside diameter of 1 1/4”
pipe coupling (1.950”).
2. Position coupling halfway into bin and weld.
3. Turn unit so conduit opening is in desired location.
4. Add 1/4” extension pipe to desired length with standard 1/4” cou-
pling on bottom end.
5. Cut 1 1 /4” support pipe approximately 4” shorter than overall
length of 1/4” pipe shaft when used with flexible coupling.
6. Insert 1 1/4” pipe into coupling and tighten.
7. Insert paddle into 1/4” coupling and drill holes for lock pins.
1. Locate and cut hole in side of bin to fit outside diameter of 1 1/4”
pipe coupling.
2. Weld on half of standard 1 1/4” pipe coupling to bin wall flush with
inside of bin.
3. Insert hub into coupling and turn to desired conduit position.
4. Screw paddle into place and replace lock pin.
5. Shaft and paddle should be shielded in low level mounting when
subjected to material flow.
6. For side mount, a solid coupler is recommended.

925-0292 Rev C 6

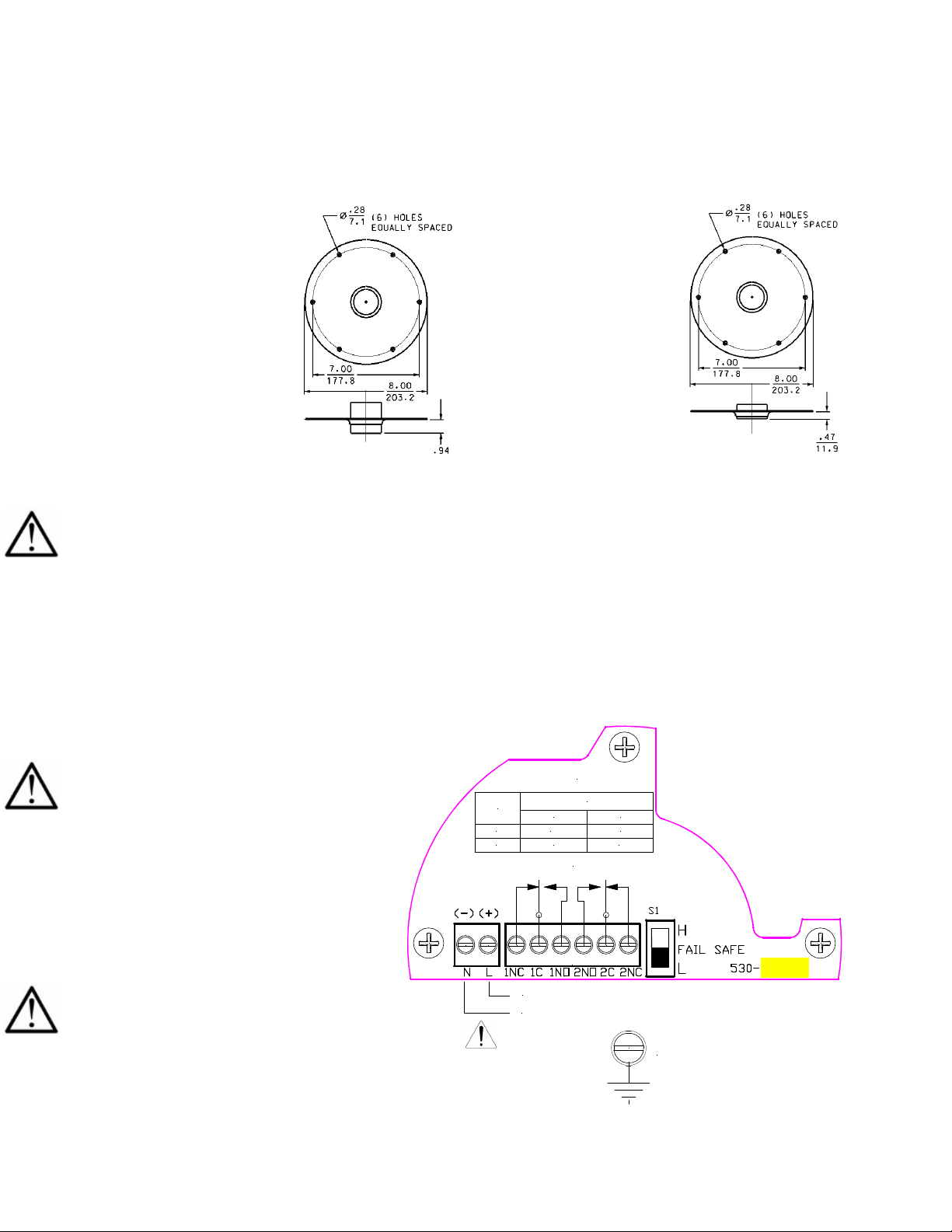

MOUNTING PLATES
2.2 Input Power and Field Wiring
The BMRX is available in AC and a DC Model. The AC Models are available to be powered from 24VAC, 115 VAC,
or 230 VAC 50/60 Hz supply voltages. The DC Models are to be powered from 12 VDC to 24 VDC supply voltages.
See the voltage rating on the nameplate for the appropriate supply voltage. Field wiring should conform to all
national and local electrical codes and any other agency or authority having jurisdiction over the installation. For
power input, use wire that is sized and rated for the maximum voltage and current as per equipment ratings and
has a temperature rating of at least 90°C and suitable for 25°C above the surrounding ambient temperature. For
relay output, use wire that is sized and rated for the maximum voltage and current as per application, up to 250VAC
10A, and has a temperature rating of at least 90°C and suitable for 25°C above the surrounding ambient
temperature. Installation shall be done by qualified personnel.
BMRX Wiring Figure 6
Mounting plates are necessary when a completely assembled unit is to be mounted on the bin wall from the out-
side. A 5 1/2” hole is cut in the bin. Six bolt holes are drilled around the hole to match the mounting plate. The
plate, with the unit attached, is then bolted in place. All mounting plates are available in carbon and stainless steel.
Full Coupling
For use with all Rotary level
controls. This model is used
for top of bin installations
where shaft extensions and
shaft guards are required.
Half Coupling
For use with all Rotary level
controls. This model is
used primarily for side of bin
installations.
Figure 5
Figure 4
CONTACT POSITION WHEN
RELAY IS DE-ENERGIZED
ENERGIZED DE-ENERGIZED
FAIL SAFE
SWITCH
POSITION
HIGH
PADDLE CONDITION
LOW
UNCOVERED COVERED
DE-ENERGIZED ENERGIZED
RELAY CONDITION
POWER IN -- LINE or (+) on DC Model
POWER IN -- NEUTRAL / LINE or (-) on DC Model
GROUND
Input Power
Power input to the BMRX is connected to the
LINE terminals labelled L and N.
AC Models
On AC models if one of the conductors is
grounded, it should be connected to the N
terminals. The ungrounded conductor should
be connected to the L terminal. If neither
conductor is grounded then one of them is
connect to the N terminal and the other to the L
terminal.
DC Models
On DC models the negative conductor should
be connected to the N terminal and the positive
conductor should be connected to the L
terminal.

925-0292 Rev C 7
2.3 Grounding
An equipment grounding connection (earth ground) must be supplied to the unit for safety. Connect the ground
conductor to the green equipment grounding screw identified in the enclosure.
3.0 DPDT RELAY
The DPDT relay utilizes a Fail Safe selector switch. There are 2 positions for this switch, High (H) and Low (L). A
Fail-Safe condition means that the DPDT relay contact positions are set up so that in the event of a power failure
the relay will be de-energized and the contacts will indicate a condition that is deemed safe for the application.
3.1 Fail-Safe High
Fail-Safe High means that the relay will be energized when the paddle is rotating (uncovered) and will de-energize
when the probe is covered. In this mode, a power failure will cause the relay contacts to indicate that the paddle is
covered, whether it is or not.
Figure 7
3.2 Fail-Safe Low
Fail-Safe Low means that the relay will be de-energized when the paddle is rotating (uncovered) and will energize
when the paddle is covered. In this mode, a power failure will cause the relay contacts to indicate that the paddle
is uncovered whether it is or not.
Figure 8
NC C NO NO C NC
1 1 1 2 2 2
NC C NO NO C NC
111222
UNCOVERED COVERED
FAIL SAFE "HIGH" RELAY CONTACT POSITION
NC C NO NO C NC
1 1 1 2 2 2
NC C NO NO C NC
111222
UNCOVERED COVERED
FAIL SAFE "LOW" RELAY CONTACT POSITION

925-0292 Rev C 8
4.0 WARRANTY AND CUSTOMER SERVICE
4.1 Limited Warranty
BinMaster warrants this product against defects in material and workmanship for two (2) years according to the fol-
lowing terms:
1.) This warranty extends to the original purchaser only and commences on the date of original purchase.
2.) BinMaster’s sole obligation under said warranty is to repair, or at its option replace the defective parts.
The buyer shall have no other remedy. All special, incidental and consequential damages are
excluded. The buyer must deliver the product under warranty prepaid to the factory. BinMaster’s obli-
gation is limited to the cost of material and labor to repair or replace, and does not include transporta-
tion expenses.
3.) This warranty shall be voided, in our sole judgement, by alterations of equipment except by BinMaster,
or tampering with, improper installation or maintenance, accident or misuse, or act of God. This
warranty expressly excludes all damage to the product resulting from careless or neglectful packaging
or transportation. This warranty does not extend to repairs made necessary by normal wear.
4.) This warranty is in lieu of all other warranties, expressed or implied including any implied warranties or
merchantability or fitness for particular purpose. No employee, agent franchise dealer or other person
is authorized to give any warranties of nature on behalf of BinMaster.
5.) BinMaster shall in no event be responsible for any warranty work done without first obtaining BinMas-
ter’s written consent.
6.) Except as provided herein, BinMaster shall have no liability, lose or damage caused or alleged to be
caused directly or indirectly by this equipment.
7.) This warranty gives the buyer specific legal rights, and you may also have other rights which vary from
state to state.
8.) For service, please call 402 434 9102.
4.2 Customer Service
BinMaster offers a toll-free Customer Service phone number 1-800-278-4241. You may call the Customer
Service Department for technical, application and service assistance Monday through Friday from 8:00AM
to 5:00 PM Central Time. International customers call us at [phone] or reach us via fax at (402)
434-9133.
5.0 Disposal
This product consists of materials that can be recycled by specialized recycling companies. It uses recy-
clable materials and the electronics is designed to be easily separated. Consult local authorities for proper
disposal locations.
6.0 Repair
This product contains no user serviceable parts. For repair please consult factory.

925-0292 Rev C
Declaration of Conformity
BinMaster Level Controls
A Division of Garner Industries
7201 North 98th Street
Lincoln, NE 68507-9741
Phone: [phone], Fax: [phone]
BinMaster declares under our sole responsibility that all models of the BMRX level control devices listed below
comply with the following directives and harmonized standards. This product if installed, operated and main-
tained as described in this manual will provide a safe and reliable point level control device for bulk solid materi-
als.
Product: Rotary point level control device
Models: BMRX AC Models 24VAC, 115VAC, and 230VAC; DC Models 12VDC to 24VDC
Manufacturing Location: Lincoln, Nebraska, USA
ATEX Directive 94/9/EC
II 2G 1/2D c Ex d IIB T4 Ex Gb Ex tb IIIC T130°C Db (Ta = -20°C to +85°C)
EC-type examination certificate:
Sira 09ATEX1213X
Notified Body for EC-type examination certificate:
Sira 0518 Chester UK
Harmonised standards used:
EN 60079-0:2012
EN 60079-1:2007
EN 60079-31:2014
EN 13463-1:2009
EN 13463-5:2011
All test reports and documentation are held and can be obtained from BinMaster.
President
9/15/2015

925-0292 Rev C
Mounting Instructions
Always Mount Unit With
Conduit opening down
Conduit Seal
For hazardous locations an appropriate conduit seal off as per the installation class or
zone is required within 18” of the enclosure.
