Dometic CT*4 series User manual

CT 4050/4110, CTLP 4050/4110, CTS 4050/4110, CTW 4050/4110
Cassette toilet
Operating manual . . . . . . . . . . . . . . . . . . . . 16
Kassettentoilette
Bedienungsanleitung . . . . . . . . . . . . . . . . .33
Toilettes à cassette
Notice d’utilisation . . . . . . . . . . . . . . . . . . . 51
Toilette a cassetta
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . .69
Cassettetoilet
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . .86
EN
DE
FR
IT
NL
SANITATION
TOILETS
CT4000-O-WEST.book Seite 1 Donnerstag, 20. April 2017 11:53 11

CT4000-O-WEST.book Seite 2 Donnerstag, 20. April 2017 11:53 11

CT4000
3
6 7
1011
9
4
5
3
2
1
8
1
1
2
3
5
4
2
CT4000-O-WEST.book Seite 3 Donnerstag, 20. April 2017 11:53 11

CT4000
4
1.
2.
3
90°
> 90°
4
CT4000-O-WEST.book Seite 4 Donnerstag, 20. April 2017 11:53 11

CT4000
5
5
6
CT4000-O-WEST.book Seite 5 Donnerstag, 20. April 2017 11:53 11

CT4000
6
1.
3.
2.
7
2.
1.
8
CT4000-O-WEST.book Seite 6 Donnerstag, 20. April 2017 11:53 11

CT4000
7
2. 1.
9
12
3
0
CT4000-O-WEST.book Seite 7 Donnerstag, 20. April 2017 11:53 11

CT4000
8
a
b
CT4000-O-WEST.book Seite 8 Donnerstag, 20. April 2017 11:53 11

CT4000
9
c
d
1.
2.
e
CT4000-O-WEST.book Seite 9 Donnerstag, 20. April 2017 11:53 11

CT4000
10
f
1.
3.
2.
g
h
CT4000-O-WEST.book Seite 10 Donnerstag, 20. April 2017 11:53 11

CT4000
11
i
j
k
CT4000-O-WEST.book Seite 11 Donnerstag, 20. April 2017 11:53 11

CT4000
12
l
12
m
1.
2.
1
2
CT4000-O-WEST.book Seite 12 Donnerstag, 20. April 2017 11:53 11

CT4000
13
6x
1.
2.
1
n
o
CT4000-O-WEST.book Seite 13 Donnerstag, 20. April 2017 11:53 11

CT4000
14
CLICK
p
7.5
X2X4X3
X0 X1
2.
1. 1
q
CT4000-O-WEST.book Seite 14 Donnerstag, 20. April 2017 11:53 11

CT4000
15
2.
1.
1.
2.
AB
CD
CLICK
r
CT4000-O-WEST.book Seite 15 Donnerstag, 20. April 2017 11:53 11

EN
CT4000
16
Please read this instruction manual carefully before first use, and store it in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2.1 General safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
2.2 Use of sanitary additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4 Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
5.1 Description of the components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2 Control and display elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6 Using the toilet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
6.1 Sanitary accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
6.2 Preparing the cassette tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.3 Filling the freshwater tank (integrated tank) . . . . . . . . . . . . . . . . . . . 23
6.4 Using the toilet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5 Draining the cassette tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.6 Positioning the toilet seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.7 Winter operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.8 Shutting down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.1 Greasing the slider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.2 Releasing the slider from the cassette . . . . . . . . . . . . . . . . . . . . . . . 27
7.3 Greasing the cassette seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.4 Cleaning the bayonet fitting and greasing the bayonet seal. . . . . . 27
7.5 Greasing the O-ring of the cassette vent . . . . . . . . . . . . . . . . . . . . . 28
8Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.1 Spare parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.2 Removing and replacing the lid and seat. . . . . . . . . . . . . . . . . . . . . 28
8.3 Replacing the cassette seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.4 Replacing the bayonet seal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
CT4000-O-WEST.book Seite 16 Donnerstag, 20. April 2017 11:53 11

EN
CT4000 Explanation of symbols
17
8.5 Replacing the fuse in the operating unit. . . . . . . . . . . . . . . . . . . . . . 30
8.6 Replacing the wheels on the cassette tank . . . . . . . . . . . . . . . . . . . 30
9 What to do in case of problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
The declaration of conformity can be requested from the manufacturer (contact
information on the back).
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CT4000-O-WEST.book Seite 17 Donnerstag, 20. April 2017 11:53 11

EN
Safety instructions CT4000
18
2.1 General safety
!WARNING!
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not carried out by unsupervised
children.
•Children must be supervised to ensure that they do not play with the
device.
ANOTICE!
•Do not shake the cassette tank vigorously.
•Do not hang the cassette tank on a bicycle or other vehicle for trans-
portation.
•Do not use antifreeze. These agents may damage the cassette toilet.
•The toilet is designed for a person weighing no more than 130 kg.
2.2 Use of sanitary additives
!CAUTION!
•Store the sanitary accessories so that children cannot access them.
ANOTICE!
•When using sanitary additives for use and cleaning of the toilet, pay
attention to the instructions for use on the packaging.
CT4000-O-WEST.book Seite 18 Donnerstag, 20. April 2017 11:53 11

EN
CT4000 Accessories
19
3Accessories
Available as accessories (not included in the scope of delivery):
On the Dometic website (see back page) you can find information about sanitary
accessories.
4 Intended use
The toilet is designed for installation and use in recreational vehicles such as camper
vans or motor caravans.
5 Technical description

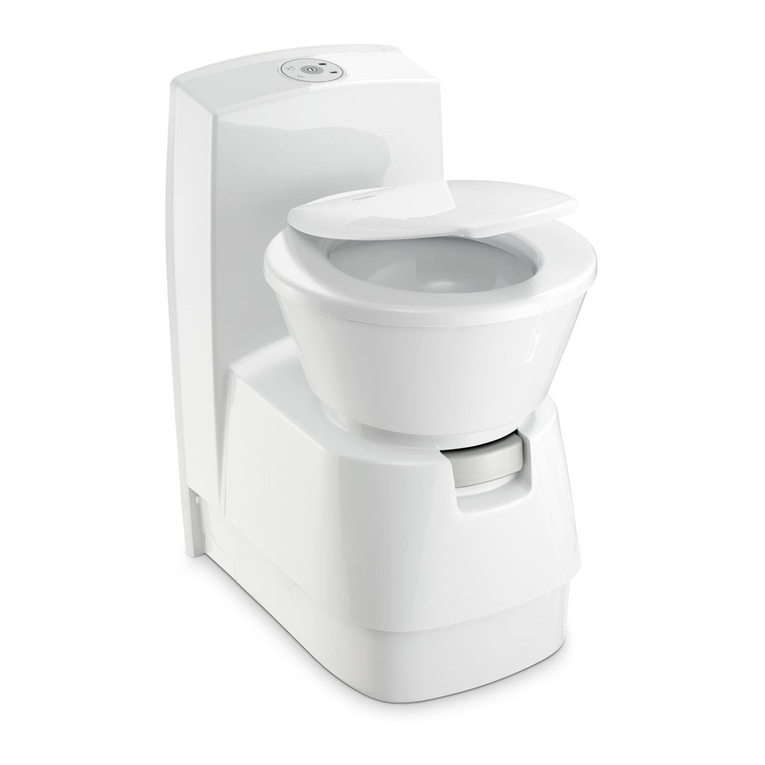

The cassette toilet CTx4xxx consists of a toilet permanently installed in the vehicle
and a removable, mobile cassette as a holding tank. The cassette is externally acces-
sible through a door. Depending on the model, the toilet is supplied with rinse water
from the vehicle-side freshwater tank or a tank integrated in the housing.
The following model versions of the toilet are available:
•CT4050, CT4110: detached, without water tank, without console
•CTLP4050, CTLP4110: detached, without water tank, low console
•CTS 4050, CTS4110: detached, without water tank, with console
•CTW4050, CTW4110: detached, with water tank in the console
The 4050 models can be installed in a wet room.
Description
Freshwater tank
Service door
Tank flap
CT4000-O-WEST.book Seite 19 Donnerstag, 20. April 2017 11:53 11

EN
Technical description CT4000
20
5.1 Description of the components
5.2 Control and display elements
No. in
fig. 1, page 3 Label
1 Housing for cassette tank
2 Draining slider for toilet bowl
3 Toilet bowl, ceramic
4 Lid and seat, rotatable
5Console
6 Control and operating panel
7 Freshwater tank (optional)
8 CTLP, CTS, CTW only: Wall bracket
9 Cassette tank (capacity 19 l)
10 Service door (accessory)
11 CTW only: Tank flap (lockable tank flap optional)
No. in
fig. 2, page 3 Label
1 Flush button
2 “Cassette tank full” indicator
3 “Cassette tank 3/4 full” indicator
4 “Fill freshwater tank” indicator
(Not always connected when using the on-board tanks)
5 “Cassette tank removed” indicator
CT4000-O-WEST.book Seite 20 Donnerstag, 20. April 2017 11:53 11
