Dometic SeaLand MasterFlush 8900 Series User manual

1
8900/8600
Series
MasterFlush®
Toilets
INSTALLATION
Macerator Toilet
Installation
EN
Elektrische Toilette
Installation.................... 13
DE
WC dilacérateur
Installation .................... 23
FR
Inodoro triturador
Instalación .................... 32
ES
Toilet met versnijdingspomp
Installatie ..................... 41
NL
WC di macerazione
Installazione ................... 50
IT
Silppuripumppu-wc
Asennus...................... 59
FI
Macerator-toalett
Installation .................... 68
SV
Findelingstoilet
Installation .................... 77
DA
Macerator-toalett
Montering..................... 86
NO
8900 series
8600 series

2
A
B C
D
E
F
A
B C
1
3
2
12
43
A
C
B
4
SeaLand MasterFlush Toilet
A
B
D
E
F
G
K
L
HIJ
C

3
2.1 Warnings – marine applications
The following statements must be read and understood before installing, servicing and/or
operating this product on a boat. Modification of this product may result in property damage.
Dometic recommends that a qualied marine technician or electrician install or service this product.
Equipment damage, injury to personnel or death could result from improper installation. DOMETIC
ACCEPTS NO RESPONSIBILITY OR LIABILITY FOR DAMAGE TO EQUIPMENT, OR INJURY OR DEATH
TO PERSONNEL THAT MAY RESULT FROM IMPROPER INSTALLATION, SERVICE OR OPERATION
OF THIS PRODUCT.
1 Notes on using the manual .................................................3
2 General safety instructions ..............................................3 - 4
3 Components ............................................................5
4 Specications ........................................................6 - 7
5 Installation ..........................................................8 - 11
6 Customer service........................................................12
1 Notes on using the manual
Note
Supplementary information for operating the device.
fig. 1A, page 2 : This refers to an element in an illustration. In this example, item A in
gure 1 on page 2.
Caution!
Safety Instruction: Failure to observe this instruction can cause material damage and
impair the function of the device.
Caution! Hazard of Flooding
If the toilet is connected to ANY through-the-hull ttings, properly installed seacocks MUST
be installed in all piping connected to through-the-hull ttings. Seacocks MUST be easily
accessible to all users of the toilet or secondary valves tted in hoses where they are easily
accessible. All valves MUST be full bore valves and of marine quality. Screw-to-close gate
valves are not recommended. Failure to do so can result in ooding which can cause loss
of property and life.
EN
Table of contents
2 General safety instructions
The manufacturer will not be held liable for claims for damage resulting from the following:
• Faulty assembly or connection
• Damage to the unit from mechanical inuences, misuse or abuse
• Alterations to the unit without express written permission from the manufacturer
• Use for purposes other than those described in the operating manual
SeaLand MasterFlush Toilet Notes on using the manual

4
Caution! Hazard of Flooding
If toilet uses raw water for ushing at ANY time, a raw water pump controlled by an auto-
matically operating demand switch MUST NOT be installed. If the onboard water valve or
any plumbing connections were to leak, the automatically operated pump would start and
could ood the boat. Failure to comply can cause loss of property and life.
Caution! Hazard of Flooding
Before beginning any work on this product, be sure that all electrical power to the unit has
been turned off and that seacocks are in the CLOSED or OFF position. Failure to do so can
result in ooding which can cause loss of property and life.
Caution! Hazard of Shock or Fire
Always use recommended fuse, circuit breaker and wire size. Failure to do so can result in
re that can cause the loss of property and life.
Caution!
Overlling the holding tank can create serious damage to the sanitation system, such as
rupturing the holding tank and releasing tank contents into the bilge. To prevent this pos-
sibility, Dometic recommends using the “full” tank shut-down relay in the toilet’s electronic
control module. The “full” signal from the holding tank can be generated by an optional
Dometic DTM01C tank monitor or DTM04 four-level tank monitor system.
Caution! Hazard of Flooding
If toilet rim is below the waterline at ANY time (during any conditions of heel, load or trim)
and is connected to ANY through-the-hull ttings, properly positioned ventilated (vented)
loops MUST be installed in intake* or discharge piping to prevent potential back siphonage
of seawater into the boat. Failure to do so can result in ooding which can cause loss of
property and life.
* if connected to raw water
Caution! Hazard of Flooding
If toilet is connected to ANY through-the-hull ttings, ALL exible hoses must be of marine
sanitation quality and must be secured to ANY ttings (such as those at seacock, vented
loop or toilet) with two stainless steel, worm-drive hose band clamps at each connection.
Connections MUST be checked frequently for integrity. Failure to comply can result in
ooding which can cause loss of property and life.
General safety instructions SeaLand MasterFlush Toilet

5
3 Components
Toilet system (g. 1, page 2)
Toilets (g. 5, 6, 7, page 5)
5
6
7
1
2
7
3
8
9
4
5
6
8900 series – all models
8600 series – low-profile models only
8600 series – standard-height models only
SeaLand MasterFlush Toilet Components
Ref. Description
A Macerator toilet
B Dometic DFT ush switch
C Control module
D 4-wire cable to toilet macerator
pump and water valve
E Dometic DFT touchpad, DFS or DFP
ush switch cable
F Cable for previous ush switch
connections (discontinued models)
G Incoming electrical power wires
H Power wires to raw water pump (opt.)
I Wire for “3/4-full tank” signal
J Wire for “full tank” signal
K Floor mounting hardware kit
L Floor mounting template
Ref. Description
1 Anti-siphon valve
2 Check valve
3 Discharge loop outlet
4 Discharge adapter tting
5 Discharge hose tting
6 Macerator pump
7 Water valve
8 Water line - 0.5 in. NPT tting
9 4-pin cable connector
Refer to complete parts list (packed separately)
for additional information.
1
1
2
2
7
7
3
3
8
8
9
9
4
4
5
5
6
6

6
4.2 Minimum System Requirements
4.3 Dimensions (g. 2
, page 2)
Ref. Dimension
A 18.125 in. / 460 mm
B 14.75 in. / 375 mm
C18.625 in. / 473 mm
D 17 in. / 432 mm - seat height
E 15.75 in. / 400 mm
F 33.5 in. / 851 mm - seat lid up
Ref. Dimension
A 14.75 in. / 375 mm
B 14.75 in. / 375 mm
C18.25 in. / 464 mm
D 13.625 in. / 346 mm - seat height
E 14.875 in. / 378 mm
F 30.25 in. / 768 mm - seat lid up
Models 8970, 8979, 8980, 8989
(standard height)
Models 8930, 8939, 8940, 8949
(low-profile height)
4 Specifications
4.1 Materials
Toilet: vitreous ceramic
Macerator pump body: glass-lled polypropylene
Control module housing: ABS
Dometic DFT switch panel frame: ABS
Dometic DFT switch panel: polycarbonate resin
Electrical Circuit breaker 20 amps/12 V DC; 15 amps/24 V DC
Wiring 12 ga. (up to 20 ft./6.1 m from breaker)
Water
Supply
Fitting 0.5 in. NPT
Flow rate 2.0 gpm/7.6 lpm minimum
Discharge
Inside diameter 1.5 in./38 mm or 1 in./25 mm
Horizontal run 98 ft./30 m maximum
Vertical run 9.8 ft./3 m maximum
Horizontal and vertical distances are not cumulative. Check for adequate discharge ow if installation
nears one of these limits.
Specications are subject to change without notice.
Specifications SeaLand MasterFlush Toilet

7
Ref. Dimension
A 2 in. / 51 mm
B 3.25 in. / 83 mm
C 0.4375 in. / 11 mm
Ref. Dimension
A 4.25 in. / 108 mm
B 5.375 in. / 137 mm
C2.125 in. / 54 mm
Dometic flush switch/status panel
(g. 3
, page 2) Control module (g. 4
, page 2)
Ref. Dimension
A 18 in. / 457 mm
B 14.75 in. / 375 mm
C 19.75 in. / 502 mm
D 17 in. / 432 mm - seat height
E 16 in. / 406 mm
F 33.5 in. / 851 mm - seat lid up
Ref. Dimension
A 15 in. / 381 mm
B 14.75 in. / 375 mm
C 19.75 in. / 502 mm
D 14 in. / 356 mm - seat height
E 15.375 in. / 391 mm
F 30.5 in. / 775 mm - seat lid up
Models 8670, 8679, 8680, 8689
(standard height)
Models 8630, 8639, 8640, 8649
(low-profile height)
SeaLand MasterFlush Toilet Specifications

8
5 Installation

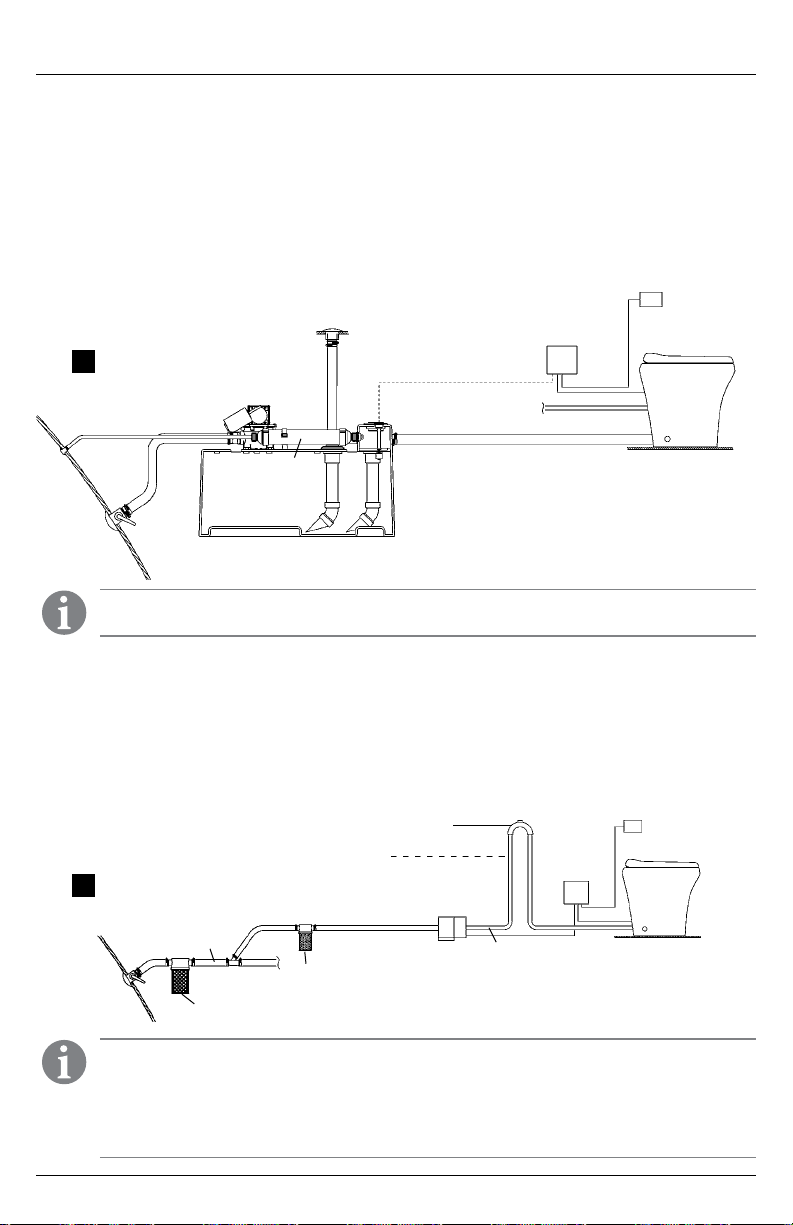

5.1 Fresh water system layout
5.2 Raw water system layout
Note
Use cold water only. Include shut-off valve in water line for maintenance purposes.
Notes
Use cold water only. Include shut-off valve in water line for maintenance purposes.
Use primary and secondary raw water lters.
Raw water pump MUST NOT be demand-type. Pump is controlled by control module.
Install vented loop as shown. It must be equipped with integral check valve that permits air into line to
prevent siphoning.
SeaLand macerator toilets can operate with an
onboard pressurized freshwater system with a
minimum ow rate of 2.0 gpm (7.6 lpm) at the
toilet. Onboard fresh-water demand systems
include a water pump that automatically draws
water from a water storage tank when a valve
SeaLand macerator toilets can ush on seawater but require a separate pump for this purpose. The
pump is activated by the signal from the toilet’s electronic control module that would operate the
integral water valve in a fresh water system. If the raw water pump draws more than 18 amps of
current, a 12 or 24 V DC electrical relay must be installed.
anywhere in the piping system is opened.
SeaLand toilets are equipped with an electrically
operated water valve and an in-line check valve
to prevent contamination of onboard potable
supplies.
8
9
VENT
FITTING
SEACOCK
VENT
FILTER
DISCHARGE
PUMP
DECK
DISCHARGE
“FULL” LEVEL
PROBE (opt.)
CONTROL
MODULE
CONTROL
MODULE
MACERATOR
TOILET
MACERATOR
TOILET
FLUSH
SWITCH
0.5 in./13 mm
FRESH WATER
HOSE
0.5 in./13 mm
WATER HOSE
0.625 in./16 mm HOSE
1 in./25 mm HOSE
SEACOCK
TO SUCTION SIDE OF
RAW WATER PUMP
FINE WATER FILTER
(100 MESH)
SMALL ENGINE INTAKE STRAINER (COARSE)
RAW WATER
PUMP
WATER LINE
HOLDING TANK
(cut-away view)
VENTED LOOP/CHECK VALVE
Must be 8 in./203 mm above water
line during all conditions of heel,
trim or load
Installation SeaLand MasterFlush Toilet
FLUSH
SWITCH

9
5. Plan ush switch panel and electronic control module loca-
tions so that electrical connections can be made with cables
provided with toilet. Be sure module and wires cannot get wet.
Note
Several ush switch options are available from Dometic.
Instructions for installing the Dometic ush touchpad (DFT)
follow. Other available types t either Vimar or Gewiss ush
switch/status panel components. Instructions for these are
included with each ush switch assembly.

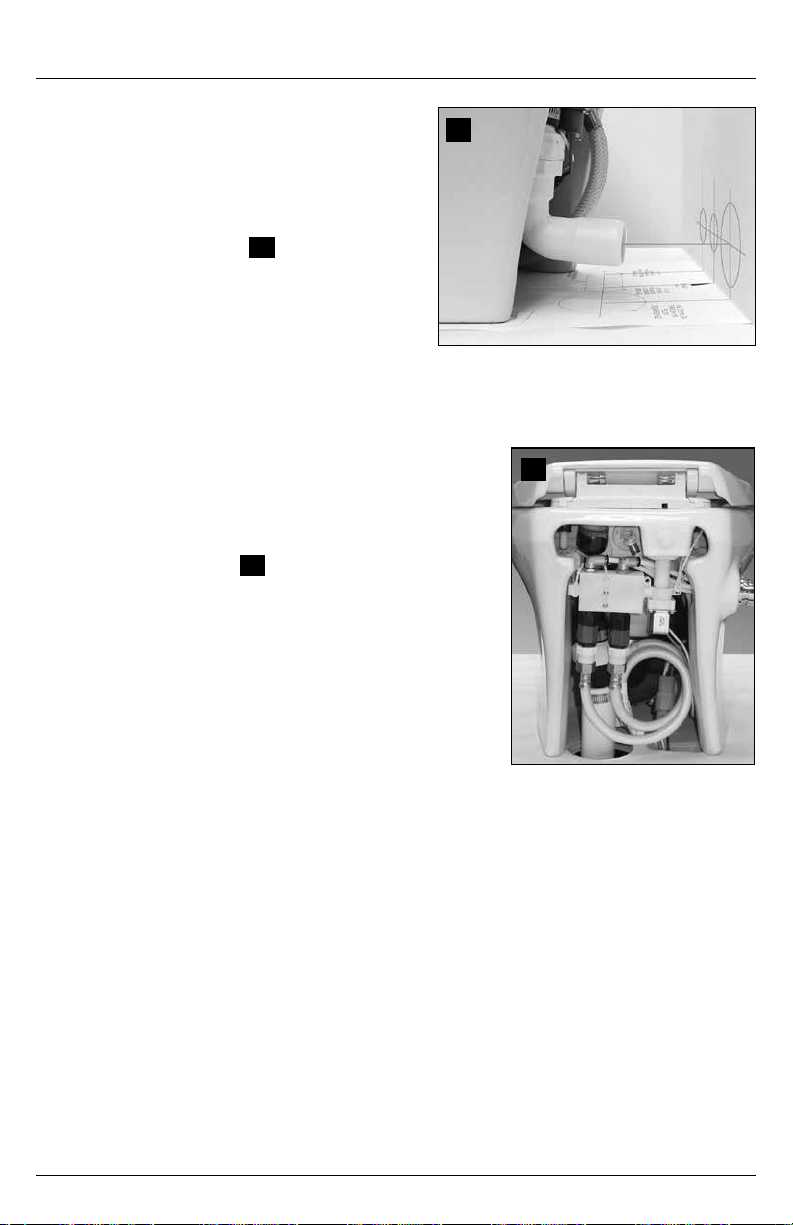

6. Use Dometic DFT touchpad template to mark location of
fastener and access holes. Drill 1 in. (25 mm) hole, then
fasten panel bracket to wall (g. 12 ).
7. Route Dometic touchpad cable (g. 1E,
p. 2) from ethernet connector on control module
to access hole at touchpad panel location. Attach
cable to touchpad panel, then snap the panel
cover onto the panel bracket (g. 12 ).
8. Install control module in cool, dry location
and attach Dometic touchpad cable to ethernet
connector on control module (g. 13 , p. 10).
9. With electrical power off, complete wiring con-
nections to control module. Refer to wiring dia-
gram printed with parts list (packed separately).
10. Route 4-wire control module cable (g. 1D,
p. 2) to toilet through access hole in oor.
Caution! Hazard of Flooding
If toilet uses raw water for ushing at ANY time, a raw water pump controlled by an automatically operat-
ing demand switch MUST NOT be installed. If the onboard water valve or any plumbing connections
were to leak, the automatically operated pump would start and could ood the boat. Failure to comply
with this warning can cause loss of property and life.
5.3 Toilet system with through-the-floor connections
1. Place oor mounting template in desired location (g. 10 ).
For optimal user comfort, make sure walls or other interior
xtures are at least 11 in. (279 mm) away from centerline of
template.
2. Center punch all holes and mounting bracket corners
through template.
3. Remove template from oor. Drill all access and fastener
holes as indicated on template. DO NOT drill mounting
bracket corners.
4. With long hex-head screws from toilet oor bracket kit,
fasten oor brackets with 3/8 in. (10 mm) socket wrench,
using corner marks as guides (g. 11 ).
12
10
11
Note
Do not completely tighten hex-head screws to oor – allow
brackets to slightly slide. Brackets will tighten when fastening
toilet to brackets.
SeaLand MasterFlush Toilet Installation

10
15. Position toilet over oor
brackets and tilt toilet up
from back. Push discharge
assembly tting and hose up
into discharge loop outlet,
and tighten band clamp
(g. 17 ).
16. Lower toilet down so that
oor brackets show through
fastener holes (g. 18 ).
17. Turn on water supply and
electrical power to toilet,
and check for leaks. Press
“Flush” switch (g. 32,
page 2). If leak occurs,
tighten connection.
18. Insert plastic adapters from
Floor Bracket Kit into fas-
tener holes. Fasten toilet to
brackets with short screws
provided in kit.
19. Cover oor bracket screws
with plastic covers (g. 19 ).
11. Route water supply and discharge plumbing to toilet according to system requirements (Section
4.2). Make sure to provide extra discharge hose length to assure easy connection to toilet
(g. 14 ).
12. Loosen band clamp on discharge loop outlet and remove discharge adapter tting/hose
tting assembly (g. 15 ).
13. Lubricate discharge tting assembly and inside end of discharge hose with liquid dishwashing
soap. Push discharge tting assembly into discharge hose and connect with two hose clamps.
Be sure to position hose clamp screws 180° apart from each other (g. 16 ). Place toilet near
access holes and oor brackets.
14. Connect toilet water line to water supply line and 4-pin connector to control module cable.
13 14
17
18 19
16
15
Installation SeaLand MasterFlush Toilet

11
5.4 Toilet system with through-the-wall
connections
5.5 Toilet/bidet combination
1. To route wiring and plumbing connections
through the wall, use oor template to locate the
vertical centerline of each hole.
2. Place toilet in proper position and mark
horizontal centerlines (g. 20 ).
3. Drill holes sizes as indicated on template.
4. Route wiring and plumbing through holes
according to system requirements (Section
4.2). Make sure to provide extra discharge hose
length to assure easy connection to toilet.
5. Follow toilet installation instructions beginning
at Section 5.3, step 12.
1. In Section 5.3, step 3, cut out oblong access hole as
marked on oor template to accommodate two water line
connections and wiring.
2. Route cold water supply line to toilet/bidet mixer valve water
line (with blue band) (g. 21 ).
3. Route hot water supply line to bidet faucet hot water line
(with red band).
4. Route wiring and discharge plumbing through holes
according to system requirements (Section 4.2). Make
sure to provide extra discharge hose length to assure easy
connection to toilet.
5. Follow toilet installation instructions beginning at Section
5. 3, step 12.
20
21
SeaLand MasterFlush Toilet Installation

12
6 Customer service
There is a strong, worldwide network to assist in servicing and maintaining your toilet system.
For the Authorized Service Center near you, please call from 8:00 a.m. to 5:00 p.m. (ET)
Monday through Friday.
You may also contact or have your local dealer contact the Parts Distributor nearest you for
quick response to your replacement parts needs. They carry a complete inventory for the SeaLand
product line.
Telephone: [phone] U.S.A. and Canada
330-439-5550 International
Fax: [phone] U.S.A. and Canada
330-439-5567 International
Web site: http://www.Dometic.com
http://www.DometicSanitation.com
Installation SeaLand MasterFlush Toilet
DOMETIC CORPORATION
SANITATION DIVISION
13128 SR 226 | PO BOX 38
BIG PRAIRIE, OHIO 44611 USA
www.Dometic.com
© Dometic Corporation
600346545 03 07/14
Dometic Group is a customer-driven, world-leading
provider of leisure products for the RV, automotive,
truck and marine markets. We supply the industry and
aftermarket with a complete range of air conditioners,
refrigerators, awnings, cookers, sanitation systems,
lighting, mobile power equipment, comfort and safety
solutions, windows, doors and other equipment that
make life more comfortable away from home.
Dometic Group supplies a wide range of workshop
equipment for service and maintenance of built-in air
conditioners. Dometic Group also provides specially
designed refrigerators for hotel rooms, ofces,
wine storage and transport and storage of medical
products.
Our products are sold in almost 100 countries and are
produced mainly in wholly-owned production facilities
around the world.
