Important! This is especially useful information on
a given subject.
Warning! These are especially safety-relevant
instructions. Follow the directions in the manual!
1. Introduction
Dear user,
By purchasing a B+B Rotego rollator, you are now the owner of a top-
quality German product that is setting new standards in terms of its
variability. This instruction manual is intended to help you become
more familiar with the operation and use of the rollator.
Please read and follow the instruction manual carefully before using
your new rollator for the first time. The instruction manual is an integral
and necessary component of the product. Keep the instruction manual
where you can refer to it, and if you transfer the rollator to another user,
please provide the manual to the new owner.
For visually impaired users, this document is available as a PDF file at
our website www.bischoff-bischoff.com.
Any repairs and adjustments require special technical training and may
therefore only be carried out by authorized B+B dealers.
1.1. Signs and symbols
2. Important safety Instructions
2.1. General safety instructions
• Max. load of Rotego: 130kg!
• Pinch risk! Be careful when folding up and unfolding the rollator.
Make sure that clothing and body parts are not pinched between
the folding parts of the rollator.
• Observe the minimum insertion depth of the handholds.
• Each brake affects only one wheel.
• The basket can carry a weight of max. 5 kg.
• Do not use aggressive or caustic detergents to clean the rollator!
• Check that the rollator is fully intact each time before using it.
Check that the brake is working.
• Have your mobility dealer check the brakes every six months!
• The surfaces of the rollator can heat up when exposed to direct
sunlight. There is a risk of injury.
2.2. Indications / Contraindications
• The rollator supports mobility-impaired users to walk, e.g. at home,
for shopping or walking outdoors.
• The seat allows the user to rest during longer periods of use.
• Only use the rollator on a level and firm surface.
• The rollator may not be used as an aid for climbing or for
transportation of heavy loads.

Bischoff & Bischoff GmbH | 25.04.2016
EN
76
Rotego | Rollator Rollator | Rotego
2.3. Purpose
The rollator is intended to support mobility of persons with an impaired
ability to walk, in accordance with the above-mentioned indications.
Please note:
We are only able to issue a guarantee if the product is used in
accordance with the specified conditions and for the specified purpose.
2.4. Declaration of conformity
B+B, as manufacturer and solely responsible party, hereby declares that
the rollator Rotego complies with the requirements of the EC Directive
93/42.
2.5. Resposibility
We are only able to provide a warranty if the product is used in
accordance with the specified conditions and for the intended purposes.
If modifications, repairs or maintenance works are made, please make
sure only authorised persons perform these works in accordance to the
instructions of B+B.
2.6. Service life
If used as intended, and the safety, care and maintenance instructions
are observed, the expected service life is up to 5 years. Beyond this time
the rollator can be used continuously, provided it is in a safe condition.
3. Description of product and
contents
3.1. Inspection on delivery
All B+B rollators are subject to a proper final inspection in our house
and receive the CE mark.
The rollator is supplied in a special box. After unpacking save the box
if possible. You may need it later for storage or to return the product.
Assembly, adjustment to your body size and first instructions are taken
care of by your qualified mobility dealer.
If delivered by rail or a forwarding agent, the product is to be checked
with regard to transportation damage at once in the presence of the
shipper.
Check the contents for completeness and make sure nothing is
damaged. Should you find any irregularities or damage, please contact
our customer service (Tel.: [phone]).

Bischoff & Bischoff GmbH | 25.04.2016
EN
98
Rotego | Rollator Rollator | Rotego

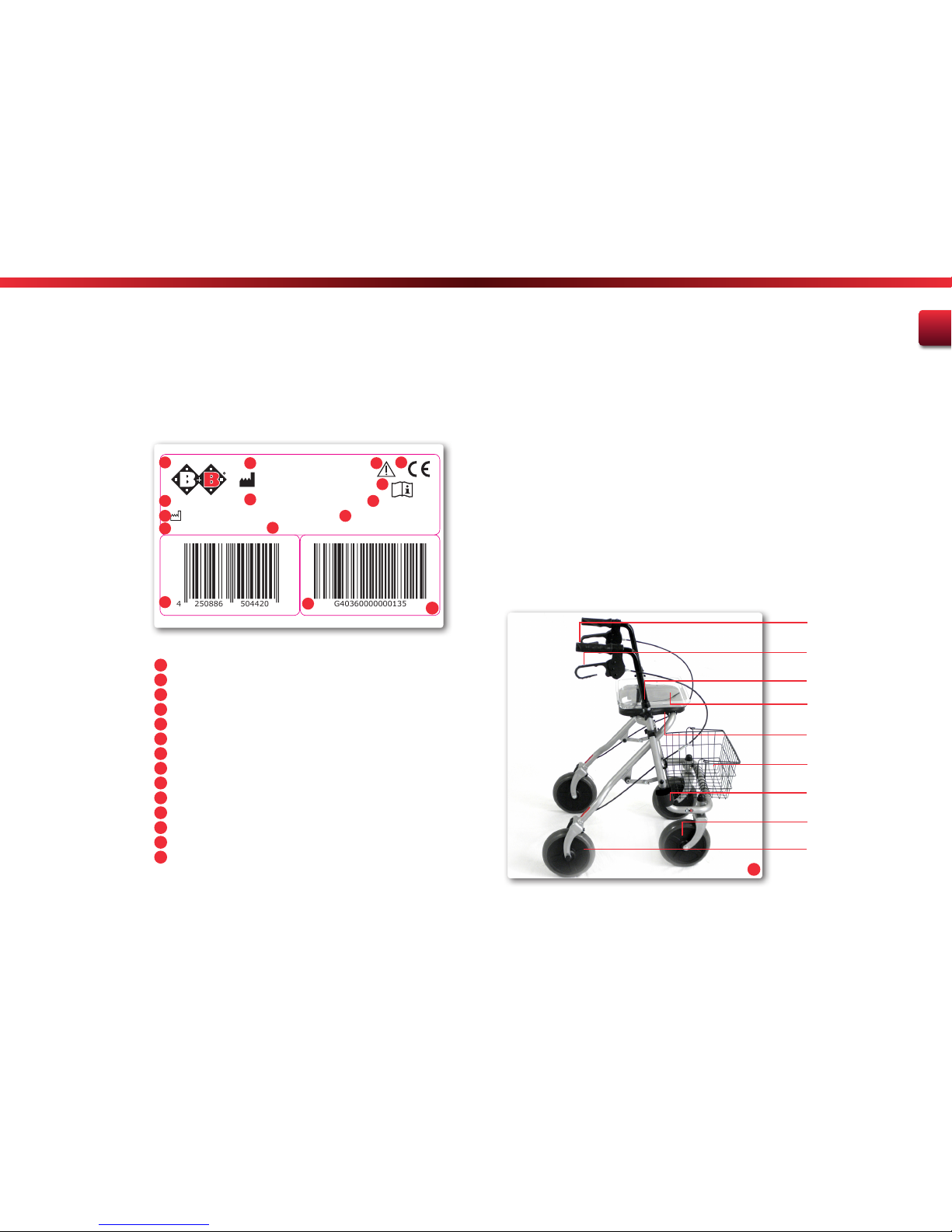

3.2.Type plate and serial number
The type plate (Fig. 1) and serial number are located on the bottom of
the frame.
Manufacturer‘s logo
Manufacturer‘s information
Caution! - Follow instructions for use
CE mark
Important! - Follow instructions for use
Model designation
Application class
Model number
Date of manufacture
Carrying capacity of the basket
Maximum load capacity
Required dimensions
EAN 13 item number
Serial number
A
B
C
D
E
F
G
H
I
J
Bischoff & Bischoff GmbH
Becker-Göring-Straße 13
D - 76307 Karlsbad
Telefon 0700 - 60007070
GB
CE Sticker & EAN Codes (Size 80 mm x 23 mm)
Rollator
EAN 13 SN
Payload of the basket: 5kg
Max. user weight: 130kg
Angle of push handles max.: 0°
Max. height of push handles: 950mm
Max. width: 580mm
Model: Rotego Indoor and Outdoor Rollator
2016-01
Model no.: 4036
AB C
F
I
J
G
1
E
K
3.3.Contents
After receiving the goods, please check the contents for completeness
right away. The content consists of:
• Outer package
• Rollator pre-assembled
• Instruction manual
• Basket
• Tray
3.4.Summary
Product overview Rotego (Fig. 2):
2
Handles
Brakes
Handhold
Tray
Seat
Basket
Cane holder
Steered wheel
Fixed wheel
K
L
MN
L
M
N
D
H

Bischoff & Bischoff GmbH | 25.04.2016
EN
1110
Rotego | Rollator Rollator | Rotego
4. Assembly/adjustments
4.1. Unfolding
• Position the rollator in the travel direction.
• Release the locking brakes (see sec. 4.5.).
• Tip the B+B rollator towards yourself until the load is taken off the
steered wheels and press the handles downwards at the same time
with a gentle jolt.
• To lock the folding mechanism, now fold the seat plate tight to
your seat (Fig. 3). This locks the rollator.
4.2.Folding
• Position the rollator in the travel direction.
• Activate the locking brakes.
• Hold the rollator firmly with one hand on the handle (Fig. 4).
• Now grasp the slot provided in the seat plate and simply pull it
upwards. Ensure that neither body parts nor pieces of clothing
become pinched during the folding process.

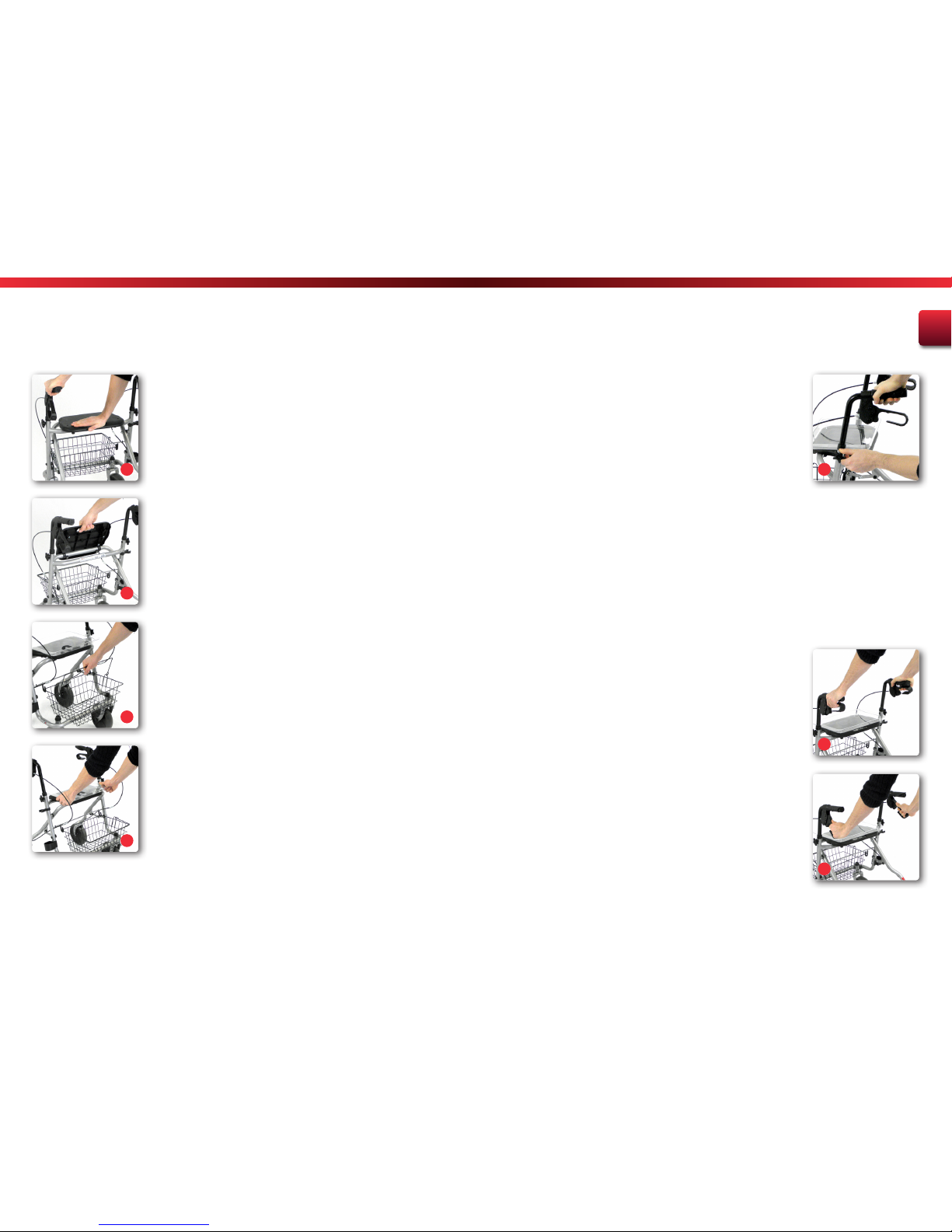

4.3.Attach basket
• The rollator is unfolded. Activate the locking brakes.
• Position yourself against the travel direction in front of the rollator.
• The basket can be hung on the hooks on the left and right of the
rollator (Fig. 5) and sits on the frame.
• To remove the basket, simply grasp the carrying handle and pull it
up and off.
• Place the tray onto the seat from above in such a way that the four
plastic pins of the tray fit into the holes of the seat (Fig. 6).
4.4.Adjusting the push handles
• The rollator is unfolded. Activate the locking brakes.
• Turn the plastic screws on the handholds until the handles move
freely (Fig. 7).
• Position yourself behind the B+B rollator and allow your arms to
hang loosely downwards.
• Now adjust the push handles so that they are located at the height
of your wrists. Select the nearest hole in the push tube.
• Retighten the plastic screws after the adjustment procedure.
Observe the minimum insertion depth.
• Repeat this procedure on the other side.
• Check to make sure that both the push handles are at the same
height.
4.5.Adjusting / activating the brakes
Service brake
To activate the service brake, pull both handbrake levers upward on
the push handles upward (Fig. 8). Service and locking brake act on the
fixed wheels.
Locking brake
• Press down on both brake levers to activate the locking device
(Fig. 9).
• To release the locking brake pull both brake levers back into middle
position.
3
4
5
7
9
6
8

Bischoff & Bischoff GmbH | 25.04.2016
EN
1312
Rotego | Rollator Rollator | Rotego
Adjusting the brakes
We recommend adjusting the brakes together with your mobility
dealer. If you have the necessary technical knowledge, you can do this
yourself as well.
The brake is set properly, if the brake pins do not touch the wheel and
the locking brake can be activated easily.
• Loosen the locknut (Fig. 11, arrow) so the adjustment nut can turn.
• Now turn the wide adjustment nut further inwards or outwards to
increase or decrease the braking effect.
• Retighten the locknut.
• Repeat the procedure on the other brake if necessary.
4.6.Wheels and tyres
Your rollator is equipped with flat-proof PU wheels 200 x 50 mm.
5. Use
Walking
Make your first attempts to walk with the rollator on a level, firm
surface. Familiarise yourself with the function of the brakes. Let
someone accompany you during this initial period.
For an anatomically correct gait, the push handles must be set at
proper height (see sec. 4.4.).
• Place yourself in the rollator so that your ankles are at the height of
the rear wheels.
• Stand with good posture.
• Grasp the push handles with both hands and your arms bent at a
slight angle.
When walking with the rollator try to stay as close as possible with
the body to the push handles. This increases the stability and safety
against tipping over; in addition, avoid a crooked back. Try to generally
walk in the rollator and not behind it. Take small steps and do not push
the rollator too far ahead.
You can determine the change of direction and speed by pushing
the rollator. Always use the brakes to slow down your movement. The
rollator could otherwise turn with the unbraked wheel and the braked
wheel, and could fall over.
Go around obstacles whenever possible. Try to use ramps or take lifts. If
this is not possible, the rollator must be carried over the obstacle. Find
a second person to help you do this, if possible.
The seat
The rollator is also designed to be used as a seat by the user for short
breaks. It is therefore equipped with a seating area. You must absolutely
activate the locking brakes before sitting down. The rollator could roll
away and you could fall.
Lifting points
You can lift the rollator on the grips or frame sections, in order to carry
it over obstacles or steps.
11

Bischoff & Bischoff GmbH | 25.04.2016
EN
1514
Rotego | Rollator Rollator | Rotego
6. Technical data
Dimensions and weights
Type: Rollator
Colour: Silver
Model: 4036
Height (push handle height): 800 mm - 950 mm
Length: 600 mm
Folded: 340 mm
Width: 580 mm
Width between handles: 450 mm
Width of handles: 30 mm (support surface 50 mm)
Angle of push handles max.: 0°
Seat height: 605 mm
Seat width: 350 mm
Effective seat width: 450 mm
Turning radius: 735 mm
Weight: 8,8 kg including basket and tray
Max. load: 130 kg
Max. load of bag: 5 kg
Tyres
Rear wheels: 200 x 50mm
Steered wheels: 200 x 50mm
Material
Frame: steel, corrosion-resistant coating
Handles: PP
Seat: PP
Flammability: flame-retardant
Operating conditions
Temperature: 0 to 50 °C
Air humidity: 20 to 80 %
Storage conditions
Temperature: -20 to + 60 °C
Air humidity: 45 to 60 %
• Including basket, tray and cane holder
• Anatomically shaped handles
• Combined operating and locking brake
• Stable steel design, corrosion-resistant coating
• Non-rotating handholds
7. Maintenance tips for users
7.1. Cleaning and disinfection
• The frame and the paneling of the wheelchair can be cleaned with
a moist cloth. You can use a mild detergent for more stubborn dirt.
• The wheels can be cleaned with a wet synthetic fiber brush (do not
use a wire brush!)
• Push handles, arm pads and seat pads can be washed off. Use a
mild detergent.
• Use a disinfectant listed by VAH for disinfection.

Bischoff & Bischoff GmbH | 25.04.2016
EN
1716
Rotego | Rollator Rollator | Rotego
7.2.Rollator check by the user
7.2.1.Brake Inspection
Make sure your brakes are operating properly before each use.
It should not be possible to push the rollator away while the brakes
are activated.
The rollator should be easy to drive without grinding noises and with
good direction stability when the brakes are released.
If you notice unusual behaviour when braking, inform your qualified
mobility dealer immediately and do not use the rollator.
7.2.2.Checking the tyres
Check whether the tyres are intact every time before driving.
If the tyre is damage, it must be repaired by an authorised dealer.
8. Maintenance tips for retailers
We recommend that the brakes of the rollator be inspected by the
mobility dealer every six months.
If faults or defects at the rollator are found, it must be returned to the
dealer for repair immediately.
The dealer can receive the required information and documentation for
repair and service on request. A training program is also available for
dealers.
B+B customer service is available at +49 (0)700/60007070.
9. Storage/shipping
If the rollator is to be stored or shipped,it is advisable to retain the
original packaging.
Your rollator will have an optimum protection against environmental
influences during storage and transport.
The rollator must be inspected in accordance to the
service plan and must be in good condition.

Bischoff & Bischoff GmbH | 25.04.2016
EN
1918
Rotego | Rollator Rollator | Rotego
12. Warranty
The warranty covers all defects of the rollator that are demonstrably
due to material or manufacturing defects.
Any claim must be accompanied by the completely filled-out warranty
certificate.
Our products come with a statutory guarantee of 2 years. For
replacement devices and repairs, a warranty period of 1 year applies.
Please also observe the B+B care, warranty, hygiene and maintenance
instructions. Your qualified mobility dealer will be happy to provide
these to you.
If you wish to dispose the rollator yourself, please
contact a local recycling company for the disposal
regulations of your local jurisdiction.
10. Transfering the rollator
The Rotego rollator is suitable for re-use. For further use, the rollator
must first be thoroughly cleaned and disinfected in accordance with
the attached care and maintenance instructions. Subsequently the
product has to be inspected to establish its general condition and any
wear or damage by an authorised dealer and repaired if necessary.
Please also observe the B+B care, warranty, hygiene and maintenance
instructions. Your qualified mobility dealer will be happy to provide
these to you.
11. Disposal
If the rollator is no longer used and you wish to dispose it, please
contact your dealer.
Warning! Non-observance of the instruction
manual, improper maintenance and in particular
any technical changes and supplements (added
fittings) without the approval of B+B will generally
lead to forfeiture of warranty and product liability
claims.

Bischoff & Bischoff GmbH | 25.04.2016
EN
2120
Rotego | Rollator Rollator | Rotego
Warranty-Certificate
Product: Rotego
Serial number:*
* (to be filled in by authorized dealer)
Dealer:
Date and stamp
(Please note our general business terms and conditions)
*The serial number is located on the side frame.
Notes

Bischoff & Bischoff GmbH | 25.04.2016
EN
2322
Rotego | Rollator Rollator | Rotego
Notes
Note:
No liability is accepted for printing errors, product and colour
modifications, or changes to technical specifications. The colours of
the product shown may vary slightly in reality.

Bischoff & Bischoff GmbH
Becker-Göring-Straße 13
D-76307 Karlsbad
www.bischoff-bischoff.com
