Bischoff & Bischoff Scooter Agil User manual

Enjoy mobility.
Bischoff & Bischoff
Instru tion manual
B+B Scooter Agil

2
1| Important instructions, inspection on delivery 3
2| Delivery 4
3| Overview 4
4| ow do I start my scooter 5
5| The seat 6
6| The steering column 7
7| The arm rests 7
8| The seat back 7
9| The accessories 7
10| Action in emergency situations 8
11| The battery 9
12| Manual handling 10
13| Charging 10
14| Transport 11
15| Maintenance and care 12
16| Technical data 13
17| Warranty 14
Dear customer,
You are now the owner of a Bischoff & Bischoff Agil Scooter,
a high-quality German product, thousands of which are
already in professional use. This instruction manual is
designed to familiarise you with the operation and use of
your scooter.
We hope you enjoy your new product.

Agil
Bis hoff & Bis hoff GmbH • 04.05.2011 3
English
Important instructions
Please note that any repair work that is not described in
this operating manual in more detail must be done by the
authorised dealer or by Bischoff & Bischoff (referred to
below as B+B) only.
It is also important to note that the scooter is designed
for a maximum load of 100 kg and this must not be
exceeded.
Checking the delivery
All B+B scooters are given a final inspection before they
leave our factory and the CE mark is attached. The Agil
scooter is delivered in 2 cartons.
If the scooter is delivered by rail or road transport it must
be inspected immediately for transport damage in the pre-
sence of the delivery person.
If any damage is found, please note the following:
• record the facts
• prepare a declaration of assignment; all demands
resulting from the damage are assigned to the delivery
company
• send the statement of facts, the waybill and the
declaration of assignment to Bischoff & Bischoff Gmb .

4

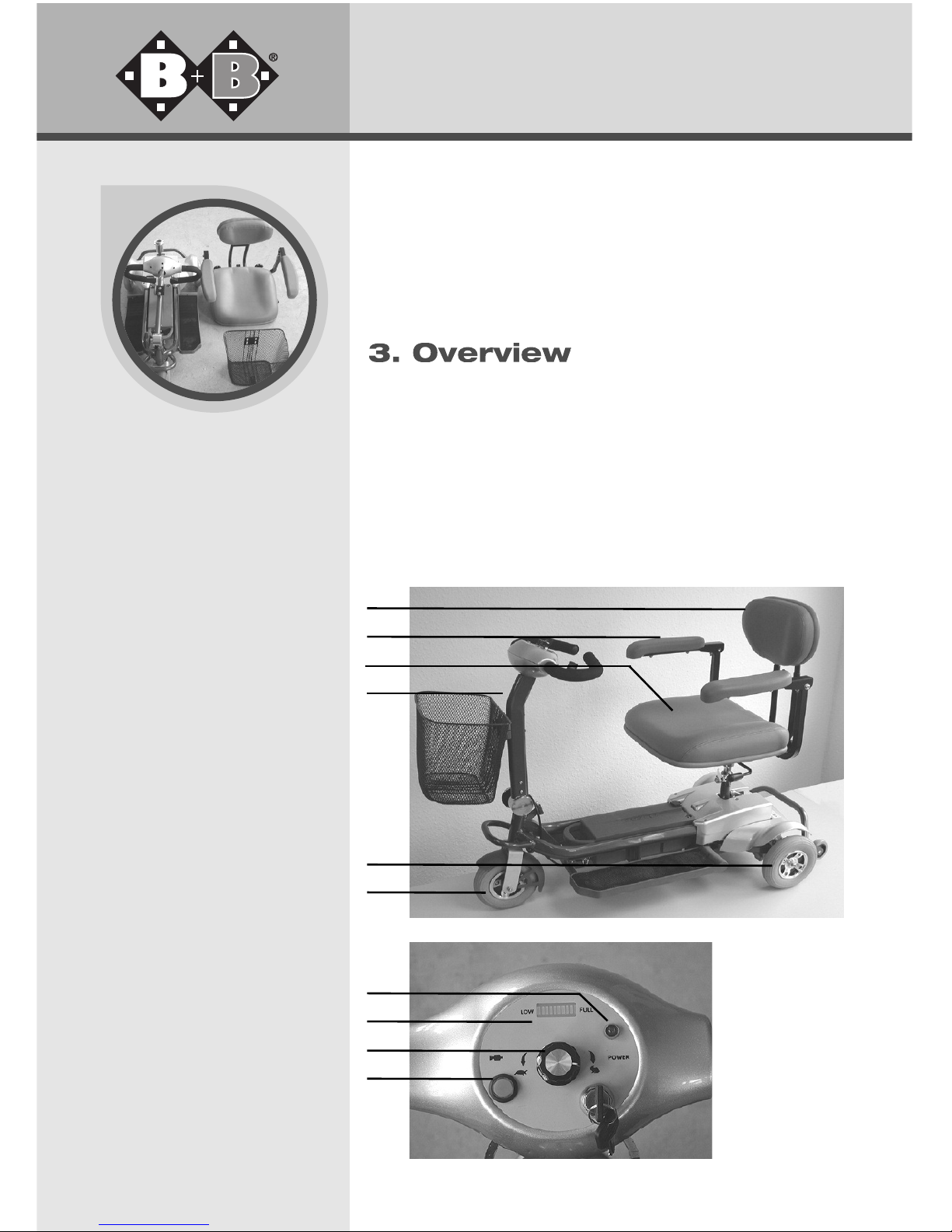

2. Delivery
Your B+B Agil scooter is delivered in two cartons
(chassis and seat).
To make it as easy as possible for you to handle your
scooter, we have included detailed instructions in writing
and also detailed illustrations. You can find the names of
the various modules and how they fit together in the
picture below.
Fig. 1
Back unit
Arm rest
Seat
Steering column
Drive wheels
Steering wheel
Power status display
Battery status display
Speed control
orn

English
Agil
Bis hoff & Bis hoff GmbH • 04.05.2011 5
1. Turn the key clockwise.
2. When the function LED lights, this means that your
scooter is ready for use.
3. When the battery status display is in the green area, the
battery has sufficient charge. If it is in the yellow area,
the battery must be charged. If it is in the red area, the
scooter must not be used and the battery must be charged.
4. You can control the speed by rotating the speed control
clockwise to go faster and rotating the same control
anticlockwise to go more slowly.
5. Press the left-hand lever forward to move forwards.
Press the right-hand lever forward to move backwards.
6. A warning signal automatically sounds when you
move backwards.
7. Press the horn to sound it.

6
5. The seat
Adjusting the height of the seat
The seat can be set to one of four heights.To adjust the
height open the clamp under the seat and pull the locking
pin out.
.
Rotation
Place your left hand under the seat. old the lever and
pull it up as far as it will go. You can now rotate the seat
45° in either direction until it locks. Release the lever and
make sure that the seat has been correctly and securely
positioned.
Adjusting the height of the back
• Loosen the two thumb screws
• Adjust the back section to the desired position
and hold it in place
• Tighten the two thumb screws again.
Seat width adjustment
• Loosen the thumb screw.
• Move the armrest to the desired position
• Tighten the thumb screw.
Fig. 4
Fig. 5
Fig. 6
Caution! When pulling the locking pin hold
the seat until it reaches the desired position.
Do not jam your fingers.
Abb. 7

English
Agil
Bis hoff & Bis hoff GmbH • 04.05.2011 7
6. The steering column
Positioning the steering column
• old the steering column with one hand and the
thumb screw with the other hand.
• Loosen the screw and move the steering column to
the desired position.
• Tighten the thumb screw and move the steering column
to make sure that it is tight.
The arm rests can be folded back to make it easier
for the user to sit on and leave the seat.
8. The back rest
The back rest of your Orbis scooter can be folded
forward a maximum of 75°.
A basket is included as standard equipment with
your scooter.
Fig. 8
Fig. 9
Fig. 10

8

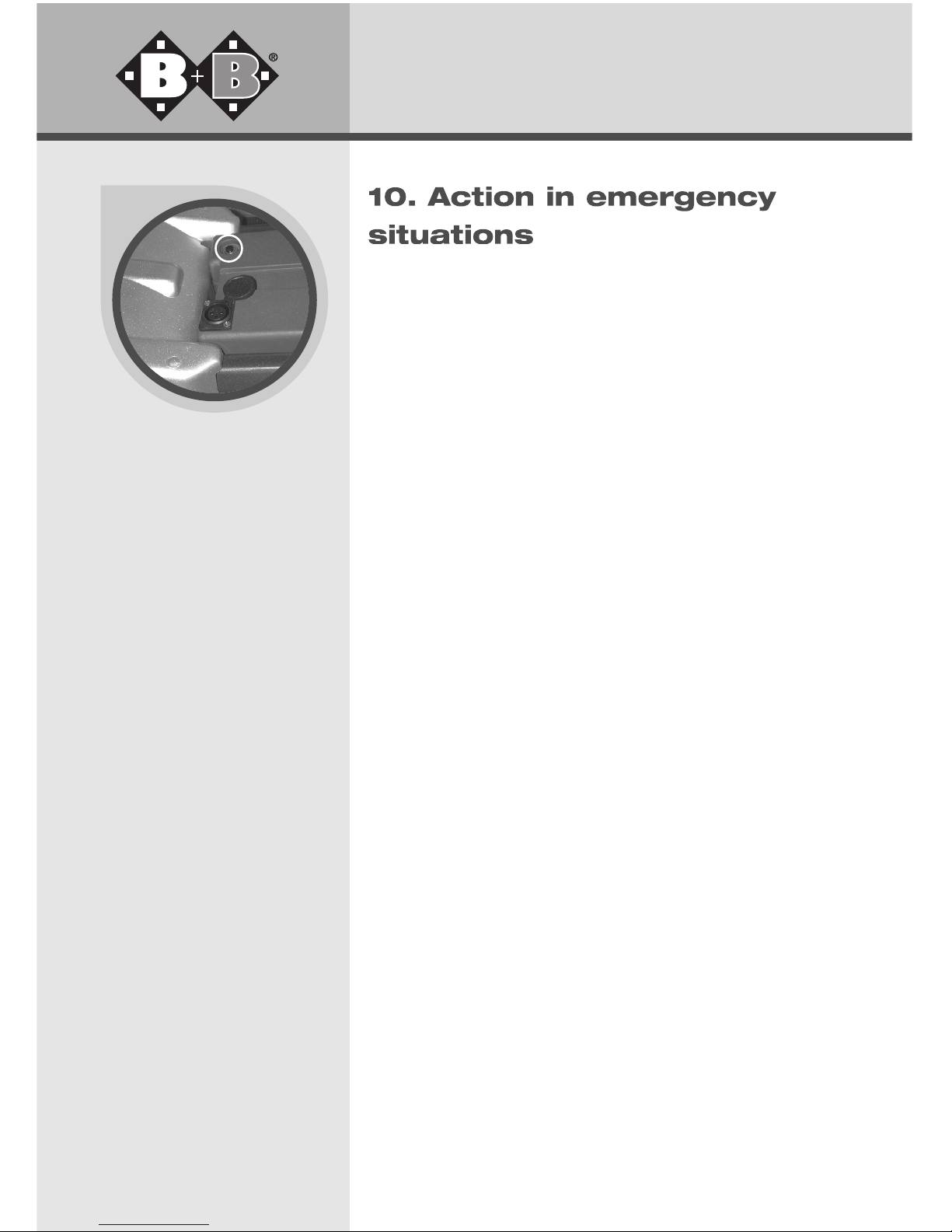

Scooter stops suddenly
• Check the battery; if it is flat, it should be recharged
immediately.
• If you are climbing a long and steep incline
(greater than 12%), your scooter may stop suddenly.
(Cause: electrical current and overload protection).
Wait 2 minutes and then press the power feed button,
which is at the back under the battery cover.
• If a surface is rough or uneven, check the battery
and other connections.
Problem when driving the scooter
• Check that the battery is charged.
• Check that the clutch switch is in the correct position.
• Check the electrical connections.
• In serious cases you should inform your dealer.
Fig. 11

English
Agil
Bis hoff & Bis hoff GmbH • 04.05.2011 9
Everything you should know about
the battery and charging it.
Our product is an electronic replaceable charging module.
It has been developed for electric vehicles that are
powered by non-lead-acid batteries. Please follow the
above directions and instructions and be careful when
riding your scooter on public roads.
Features
• The connection to the battery is automatically checked.
• The lead-free battery is charged automatically and is
maintenance-free.
• As soon as the battery is charged, this is displayed by
the monitor.
• To avoid overloading the batteries, you should start
slowly and gradually accelerate until you have reached
the normal voltage.
• It is compact, portable and light-weight.
• After the charging phase the battery is automatically
tested.
• The battery is charged via a low voltage until it reaches
its normal voltage and continues with a fast charging
process to protect the battery.

10
To be able to push the scooter manually, pull the clutch
switch upwards. This is necessary if the battery is flat.
Please follow the steps below:
• Before switching on the battery charger check that the
power supply is 115V or 230V.
• Please set the AC power switch to "0" before charging
the battery.
• Once you have done this, switch the AC switch to “I”.
The fan will switch on and the LED display will show
the red and yellow light (see Fig. 14), and the normal
charging process starts. If you see irregular signals,
switch the device off and repeat steps 1-4 and start
charging again.
• Charging takes approx. 5 to 6.5 hours. When charging
is complete, a green light will appear.
Please note the following items
• Please make sure that you charge your scooter
on dry ground only.
• Incorrect voltage and batteries are hazardous
and may damage the battery.
• Switch the charger module to “O” before connecting
the charger cable to the battery.
• Do not expose charger to from rain, water or steam.
• Please contact your dealer if the charger module still
shows "yellow" after charging for more than 12 hours.
Fig. 12
Fig. 13

English
Agil
Bis hoff & Bis hoff GmbH • 04.05.2011 11

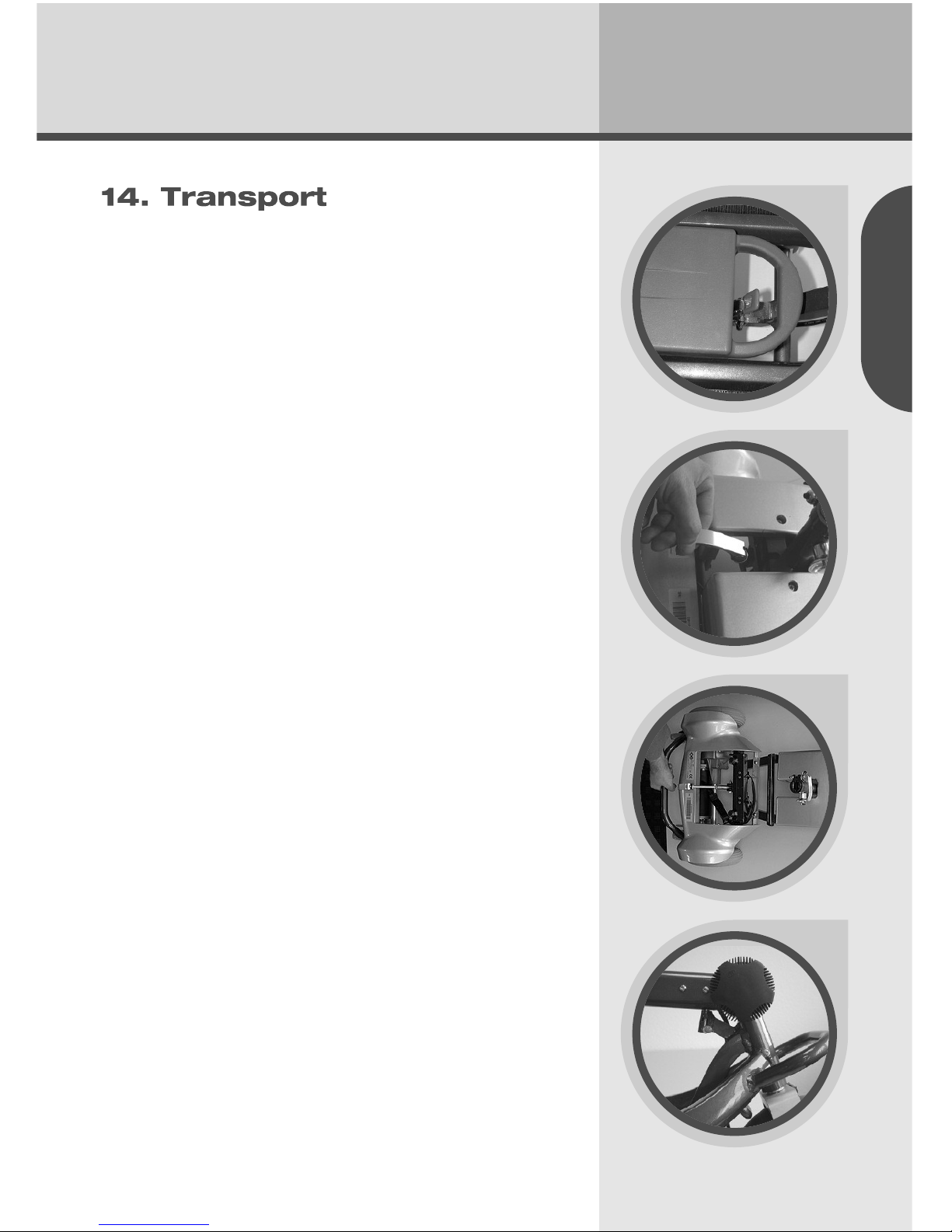

For easy transport the chassis can be disassembled into
two main sections
• Remove the seat as described in section 5
(height adjustment)
• Remove the battery - press the red locking lever forward
and pull the battery upwards out of the chassis at the
same time.
• Remove basket
• To detach the front section of the chassis from the rear
section, release the clamping lever and pull it back.
Pull the front section and the drive section apart.
• To move the steering column back, release the thumb
screw as shown in section 6 until the steering lock is
positioned in the steering column. Tighten the thumb
screw again.
Fig. 14
Fig. 15
Fig. 16
Fig. 17

12
We recommend the following instructions for care to
ensure that you can enjoy your scooter for a long time:
Before and after using it
• Check the battery charge. If the display is in
the red section, the battery must be charged.
• Check the tyre pressure.
• After travelling in the rain, wipe the scooter dry
to prevent corrosion.
Maintenance checks at least
every six weeks:
• Check that the steering moves smoothly.
• Check the plug connectors to make sure that
they are tightly seated.
• Check that all accessible screws are tightly fastened.
If the scooter is not being used, the battery must be char-
ged at least every three months to maintain the batteries.
Other instructions
• Check the tyre tread.
• If it is necessary to replace the battery (water-free),
please contact your health care dealer.
• The scooter transmission is maintenance-free. owever,
if any problems are encountered (such as oil leaks etc.),
please contact our customer service or your health care
dealer.

English
Agil
Bis hoff & Bis hoff GmbH • 04.05.2011 13
16. Technical data
Overall length: 1130 mm
Overall width: 500 mm
Ground clearance: 75 mm
Obstacle height: 100 mm
Wheels: 200 x 50 mm
Brakes: electro-magnetic
Overall weight: 42 kg
Load capacity: 100 kg
Range: about 12 km
Speed: up to 6,4 km/h
Slope climbing: 12°
Turning circle: 2000 mm
Battery: 1x 12V/12Ah
Seat: removable, rotating
Colour: blue metallic
Motor: 330W 4800 RPM
Battery charger: DC24V, 2A
Speed control: x
Battery charge display x
orn: x
Steering column: adjustable
Drive: electric
Controller: P&G SDRIVE 70A

14
The warranty covers all defects of the scooter that can be
confirmed to be the result of material or manufacturing
defects.
If you make a claim under the warranty, please submit the
completed warranty certificate with the claim.
The warranty will only apply if the vehicle is used for stan-
dard travel. The warranty does not cover damage resulting
from accident or problems that can be attributed to lack
of care and careless driving.
Warranty: 2 years
B+B customer service is available to answer questions at
+49 (0)700/6000 7070.
Caution!
Non-observance of the operating manual and
incorrectly performed maintenance work and
particularly technical modifications and additions
(attachments) done without the approval of
Bischoff & Bischoff will result in the cancellation
of the warranty and any general product liability.

English
Agil
Bis hoff & Bis hoff GmbH • 04.05.2011 15
Model: Scooter Agil
Serial number:*
(to be entered by dealer)
Dealer:
Date and stamp
* See the side frame for information stickers
arranty - certificate
(Please note our general business terms and onditions)

Bischoff & Bischoff GmbH
Be ker-Goering-Strasse 13 • D-76307 Karlsbad
Tel.: [phone] • Fax: [phone]
www.bis hoff-bis hoff. om
