INSTRUCTION MANUAL

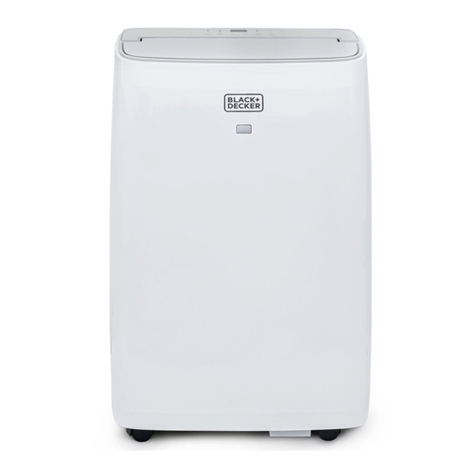

PORTABLE AIR CONDITIONER
Thank you for choosing BLACK+DECKER!
PLEASE READ BEFORE RETURNING THIS PRODUCT FOR
ANY REASON.
If you have a question or experience a problem with your BLACK+DECKER
purchase, go to www.blackanddecker.com/instantanswers
If you can’t find the answer or do not have access to the Internet, call
844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an
agent. Please have the catalog number available when you call.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
CATALOG NUMBER
BPP05WTB
BPP06WTB
BPP08WTB
BPP08HWTB
BPP10WTB
BPP10HWTB

Page 2
Thank you for purchasing our
BLACK+DECKER product. This
easy-to-use manual will guide you
in getting the best use of your air
conditioner.
Remember to record the model
and serial numbers. They are on a
label on the rear.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
PRODUCT REGISTRATION
CONTENTS
SAFETY INFORMATION
Important Safety Instructions..........................................................................................................................................3-4
Grounding Instructions......................................................................................................................................................... 5
LCDI Power Cord and Plug................................................................................................................................................6
Safety Guidelines .................................................................................................................................................... 8
SET UP & USE
Parts & Features .......................................................................................................................................................................9
Specications ......................................................................................................................................................... 10
Installation Guide .................................................................................................................................................. 10
Window Slider Kit Installation............................................................................................................................11
Exhaust Hose Installation....................................................................................................................................12
Control Panel...........................................................................................................................................................13
Operating from the Control Panel............................................................................................................. 13-15
Operating from the Remote Control.......................................................................................................16-20
Water Drainage ............................................................................................................................................... 21-22
CLEANING & CARE.............................................................................................................................................23
TROUBLE SHOOTING & WARRANTY
Before You Call For Service..............................................................................................................................24
Customer Service..................................................................................................................................................24
Troubleshooting ....................................................................................................................................................25
Limited Warranty.................................................................................................................................................................. 26
ENGLISH

Page 3
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. To reduce risk of injury, read this guide before using the appliance.
2. Air conditioner must be connected to proper electrical outlet with
the correct electrical outlet with the correct electrical supply.
3. Proper grounding must be ensured to reduce the risk of shock and
re. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do
not have a three-prong electric receptacle outlet in the wall, have a
certied electrician install the proper receptacle. The wall receptacle
MUST be properly grounded.
4. Do not operate air conditioner if power cord is frayed or otherwise
damaged. Avoid using it if there are any cracks or abrasion damage
along the length, plug connector or if the unit malfunctions or is
damaged in any manner. Contact an authorized service technician
for examination, repairs or adjustments.
5. DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
6. Do not block airow around the air conditioner. The exhaust hose
should be free of any obstructions.
7. Always unplug the air conditioner before servicing it or moving it.
8. Do not install or use the air conditioner in any area where the
atmosphere contains combustible gases or where the atmosphere is
oily or sulphurous. Avoid any chemical coming in contact with your
air conditioner.
9. Do not place any object on the top of the unit.
10. Never operate the air conditioner without lters in place.
11. Do not use the air conditioner near a bathtub, shower or wash basin.
12. This appliance is not intended for use by persons (including children)
with reduced physical sensory or mental capabilities or lack of
experience & knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety.
13. Children should be supervised to ensure that they do not play with
the appliance.
14. If the SUPPLY CORD is damaged, it must
be replaced by the manufacturer, a service
agent or similarly qualied persons in order
to avoid a hazard.
15. The air conditioner shall be installed in
accordance with national wiring regulations.
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
When using electrical appliances, basic safety precautions
should be followed, including the following
ENGLISH

Page 4
HANDLING ALKALINE BATTERIES
1. Should uid from the battery accidentally get into your eyes, there is a threat
of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap
water and then consult a physician immediately.
2. Do not put the battery in a re, expose it to heat, dismantle or modify it. If the
insulation or safety valve is damaged, the battery may leak uid, overheat or
explode.
3. Do not insert the battery with the poles reversed. Doing so may cause some
abnormality or a short and the battery may leak uid, overheat or explode.
4. Keep the battery out of the reach of children. If the battery is swallowed, contact
a physician immediately.
5. If the alkali uid gets in your mouth, rinse your mouth with water and contact a
physician immediately.
6. If the alkali uid gets on your skin or clothes, it may burn your skin, thoroughly
rinse the affected area with tap water.
7. Do not mix new and old batteries or other makes of batteries. The different
attributes may cause the battery to leak uid, overheat or explode.
8. This battery was not made to be recharged. Recharging this battery may damage
the insulation or internal structure and may cause the battery to leak uid,
overheat or explode.
9. Do not damage or remove the label on the exterior of the battery. Doing so may
cause the battery to short, leak uid, overheat or explode.
10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause
the battery to leak uid, overheat or explode.
11. Do not alter the shape of the battery. If the insulation or safety valve is damaged,
the battery may leak uid, overheat or explode.
12. Immediately remove batteries when they have lost all power. Leaving the
batteries in the unit for a long time may cause the batteries to leak uid, overheat
or explode due to gas that is generated by the batteries.
13. Remove the batteries from the unit when not using the unit for an extended
period of time. The batteries may leak uid, overheat or explode due to gas that is
generated by the batteries.
14. Do not apply solder directly to the batteries. The heat may cause the batteries to
leak uid, overheat or explode.
15. Do not get the batteries wet. Doing so may cause the batteries to overheat
16. Store batteries someplace out of direct sunlight where the temperature and
humidity are not high. Not doing so may cause the batteries to leak uid,
overheat or explode. Also, it may cause the life and performance of the batteries
to decline.
17. Follow the regulations of the local government when disposing of these batteries.
18. NEVER mix alkaline, standard (carbon-zinc), rechargeable (nickel-cadmium)
batteries with this product.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
WARNING
When handling alkaline batteries, basic safety precautions
should be followed, including the following
SAFETY INFORMATION
ENGLISH

Page 5
GROUNDING INSTRUCTIONS
ELECTRICAL REQUIREMENTS
In the event of malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock.
The appliance must be connected to a cord having an equipment-
grounding conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment grounding conductor
can result in a risk of electric shock. The conductor with insulation
having an outer surface that is green with or without yellow stripes is
the equipment grounding conductor. If repair or replacement of the
cord or plug is necessary, do not connect the equipment-grounding
conductor to a live terminal. Check with a qualied electrician or service
person if the grounding instructions are not completely understood, or
if in doubt as to whether the appliance is properly grounded. Do not
modify the plug connected to the appliance – if it will not t the outlet,
have a proper outlet installed by a qualied electrician.
FOR GROUNDED, CORD-CONNECTED APPLIANCE RATED LESS THAN
15A AND INTENDED FOR USE ON A NOMINAL 120V SUPPLY CIRCUIT
The appliance is for use on a nominal 120V circuit and should be
connected to a grounding outlet that looks like the one illustrated
below. The use of a temporary adaptor is not recommended.
SAFETY INFORMATION
ENGLISH

Page 6
SAFETY INFORMATION
LCDI POWER CORD AND PLUG
This air conditioner is equipped with an LCDI (Leakage Current
Detection and Interruption) power cord that is required by UL. This
power supply cord contains state-of-the-art electronics that sense
leakage current. If the cord is damaged and leakage occurs, power will
be disconnected from the unit.
The test and reset buttons on the LCDI Plug are used to check if the
plug is functioning properly.
WARNING: Test LCDI before each use.
To test the plug:
1. Plug power cord into a grounded 3 prong outlet.
2. Press RESET (on some units a green light will turn on).
3. Press the TEST button, the circuit should trip and cut all power to the air
conditioner(on some units green light may turn off).
4. Press the RESET button for use. You will hear a click and the A/C is ready
for use.
5. The power supply cord must be replaced if it fails to trip when the TEST
button is pressed and the unit fails to reset.
NOTES:
• Do not use this device to turn the unit on or off.
• Always make sure the reset button is pushed in for correct operation
• WARNING:
• The power supply cord must be replaced if it
fails to reset when either the test button is
pushed, or it cannot be reset.
• If power supply cord is damaged, it cannot
be repaired.
• It must be replaced by one obtained from
the product manufacturer.
WARNING – RISK OF FIRE
It is important the plug ts tightly into the wall outlet.
If the plug does not t securely and appears loose, it should not be used.
Have a licensed electrician replace the receptacle.
ENGLISH

Page 7
SAFETY INFORMATION
SAFETY GUIDELINES
To prevent injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions
may cause harm or damage.
ALWAYS DO THIS NEVER DO THIS ENERGY SAVE
• Your air conditioner
should be used in such a
way that it is protected
from moisture. e.g.
condensation, splashed
water, etc. Do not place or
store your air conditioner
where it can fall or be
pulled into water or any
other liquid. Unplug
immediately.
• Always transport your air
conditioner in a vertical
position and stand on a
stable, level surface during
use.
• Turn o the product when
not in use.
• Always use the switch on
the control panel to start or
shut off the unit.
• Always contact a qualied
person to carry out
repairs. If the supply cord
is damaged it must be
repaired by a qualied
technician.
• Keep an air path of at least
12 inches. all around the
unit from walls, furniture
and curtains.
• If the air conditioner is
knocked over during use,
turn off the unit and unplug
from the power supply
immediately.
• Do not operate your air
conditioner in a wet room
such as a bathroom or
laundry room.
• Do not touch the unit with
wet or damp hands or when
barefoot.
• Do not press the buttons
on the control panel with
anything other than your
ngers.
• Do not remove any xed
covers. Never use this
appliance if it is not working
properly, or if it has been
dropped or damaged.
• Never use the plug to start
and stop the unit.
• Do not cover or obstruct the
inlet or outlet grilles.
• Do not use hazardous
chemicals to clean or come
into contact with the unit.
Do not use the unit in the
presence of inammable
substances or vapour such as
alcohol, insecticides, gasoline,
etc.
• Do not allow children
to operate the unit
unsupervised.
• Do not use this product for
functions other than those
described in this instruction
manual.
• Use the unit in the
recommended room size.
5,000 BTU
up to 150 sq. ft.
6,000 BTU
up to 250 sq. ft.
8,000 BTU
up to 350 sq. ft.
10,000 BTU
up to 450 sq. ft.
• Locate the unit where
furniture cannot obstruct
the air ow.
• Keep blinds / curtains
drawn.
• Keep the lters clean.
• Keep doors and windows
closed to keep cool air in
and warm air out.
ENGLISH

SAFETY INFORMATION
Page 8
OPERATING CONDITION
The air conditioner must be operated within the temperature range indicated below:
NOTE: · Unit performance may be affected when in use outside of these operating temperatures.
MODE ROOM TEMPERATURE
COOL 64˚F (18˚C) ~ 95˚F (35˚C)
DEHUMIDIFY 64˚F (18˚C) ~ 95˚F (35˚C)
HEAT (ELECTRICAL HEAT TYPE) 45˚F (7°C) ~ 81˚F (27˚C)
ENGLISH

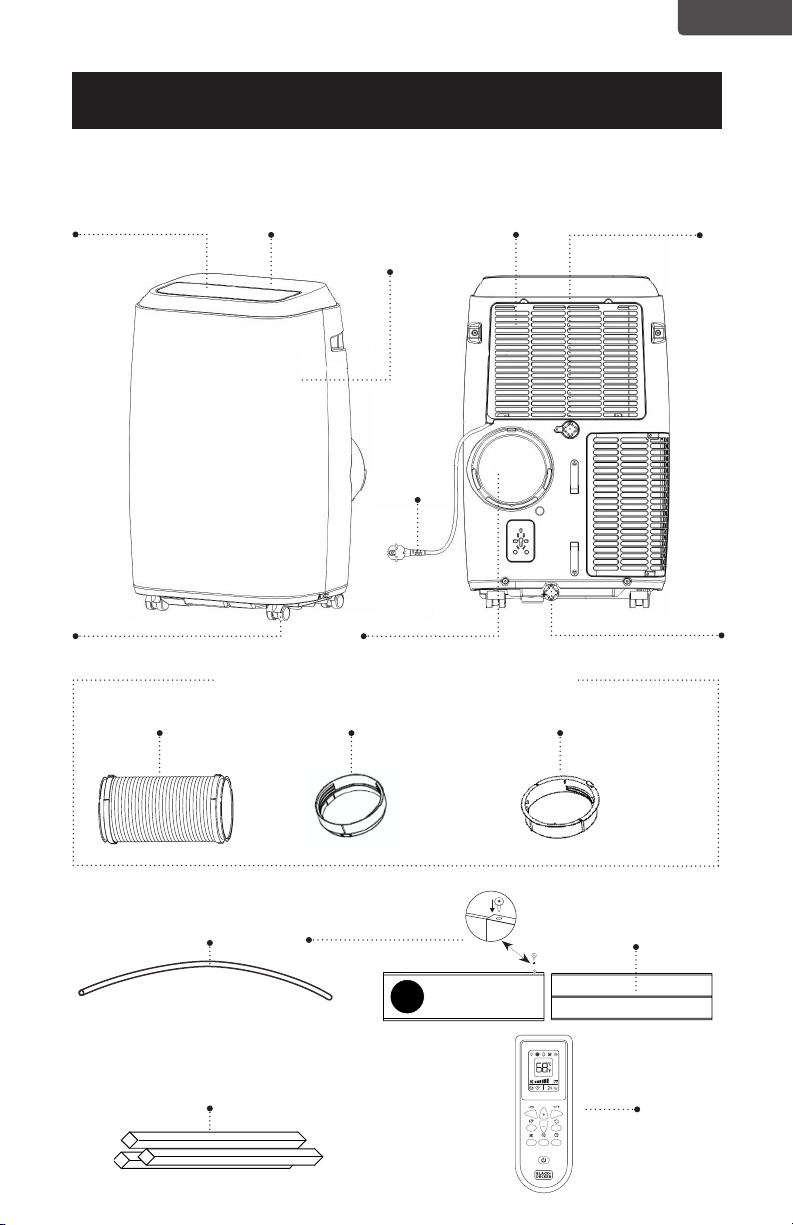

PARTS & FEATURES
Air Exhaust Hose Hose Outlet Hose Inlet
Remote
Control
Window Bracket
SET UP & USE
2 Locking Screws
Drain Hose
3.3 feet long
0.6 inch diameter
Page 9
Foam Seal (3 pieces)
Louver Control Panel
Front Panel
Filter Dehumidication
Drain
Condensation Drain
Castors (4)
Power
Cord
Air Exhaust
Hose Housing
Connects to
window slider
Connects to
air conditioner
air outlet
Hose outlet and inlet are pre-assembled to the hose
ENGLISH

Page 10
SPECIFICATIONS
BPP05WTB
Unit dimensions (W x D x H): 17.32” x 14.05” x 27.16” Unit Weight approx. 51.1 lbs.
BPP06WTB
Unit dimensions (W x D x H): 17.32” x 14.05” x 27.16” Unit Weight approx. 54.8 lbs.
BPP08WTB
Unit dimensions (W x D x H): 17.32” x 14.05” x 27.16” Unit Weight approx. 63.1 lbs.
BPP08HWTB
Unit dimensions (W x D x H): 17.32” x 14.05” x 27.16” Unit Weight approx. 64.5 lbs.
BPP10WTB
Unit dimensions (W x D x H): 17.32” x 14.05” x 27.16” Unit Weight approx. 65.1 lbs.
BPP10HWTB
Unit dimensions (W x D x H): 17.32” x 14.05” x 27.16” Unit Weight approx. 66.6 lbs.
Electric Requirements: 115V ~ 60Hz
INSTALLATION GUIDE
LOCATION
• The air conditioner should be placed on a rm oor to minimize noise and
vibration. For safe and secure positioning, place the unit on a smooth, level
oor strong enough to support the unit.
• The unit has casters to aid placement, but it should be rolled on smooth, at
surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll
the unit over objects.
• The unit must be placed within reach of a properly rated grounded socket.
• Never place any obstacles around the air inlet or outlet of the unit.
• Allow 12 inches to 36 inches of space from the wall with window for efcient
air-conditioning.
SUGGESTED TOOLS FOR WINDOW KIT INSTALLATION
• Screwdrivers (medium size Phillips)
• Tape measure or ruler
• Knife or scissors
• Saw (In the event that the window kit needs to be cutdown in size because the
window is too narrow for direct installation)
SET UP & USE
ENGLISH

Page 11
WINDOW SLIDER KIT INSTALLATION
Your window slider kit has been designed to t most standard “Vertical” and
“Horizontal” window applications; however, it may be necessary for you to
improvise/modify some aspect of the installation procedures for certain types of
window. Minimum and maximum window openings:
MAXIMUM : 47.2” (120 cm) MINIMUM : 27.5” (70 cm)
NOTE: · Adjust the length of the window slider kit according to the window width or height,
and secure it with the provided locking screws.
NOTE: · If the window opening is less than 27.5” the minimum length of the window slider kit,
cut the one with a hole in it short to t for the window opening. Never cut out the
hole in window slider kit.
DOUBLE-HUNG SASH/SLIDING CASEMENT
WINDOW INSTALLATION
1. Cut the foam seal (adhesive type) to the proper length and attach it to the
window sash.
2. Attach the window slider kit to the
window sash. Adjust the length of
the window slider kit according to
the width of window. Shorten the
adjustable window kit if the width
of window is less than 27.5”.
3. Cut the foam seal (adhesive type)
to the proper length and attach it
on the top of the window.
4. Close the window securely
against the window slider kit.
5. Secure the window slider kit
to the window sash.
6. Cut the foam seal to an
appropriate length and seal the
open gap between the top window
frame and outer window frame.
Horizontal Window Vertical Window Window Slider Kit
SET UP & USE
Foam
Seal Foam Seal
Foam
Seal
Window
Slider Kit
Window
Slider Kit
27.5”– 47.2”
Foam
Seal
Window
Slider Kit
Window
Slider Kit
27.5”– 47.2”
Window Sash
Locking
screw
Cut on opposite
side of hole.
Window slider kit can be secured
by inserting the locking screw
ENGLISH

Page 12

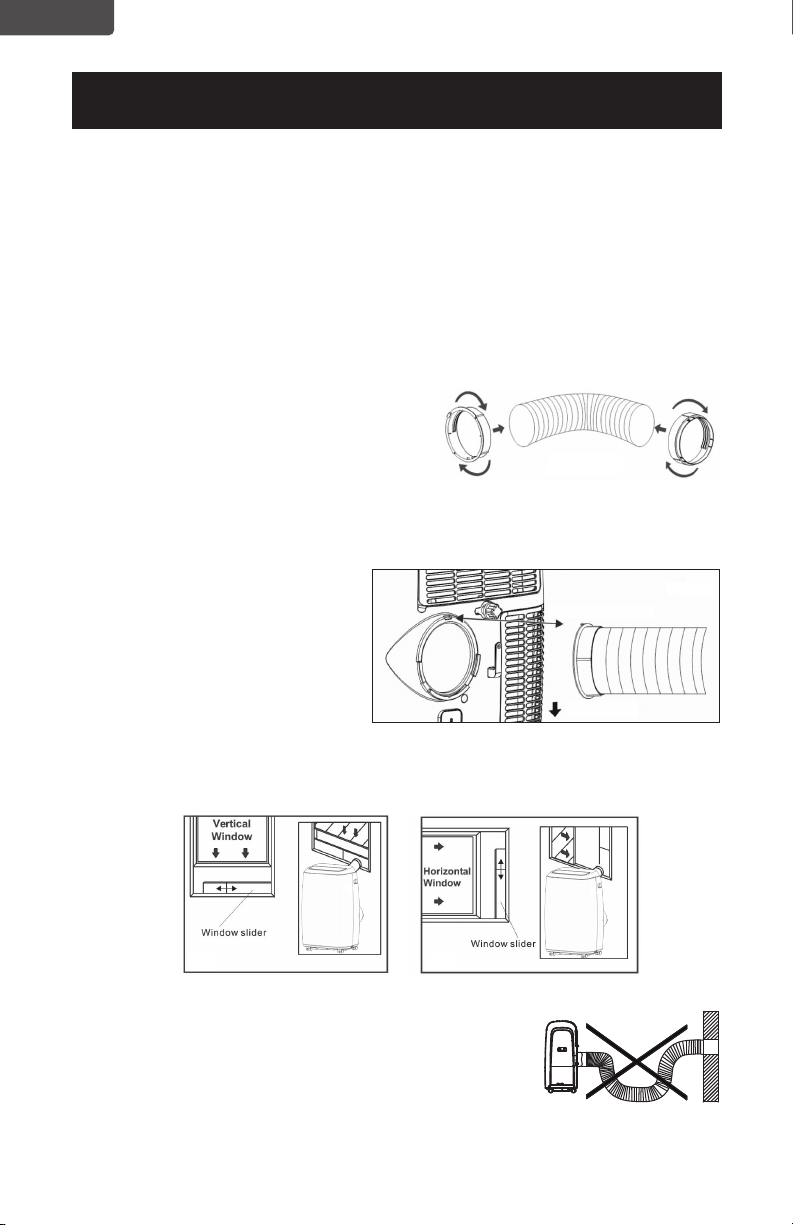

EXHAUST HOSE INSTALLATION
The air exhaust hose and hose inlet must be installed or removed from the portable
air conditioner in accordance with the way it is being used:
COOL, DEHUMIDIFY, HEAT (Heat models BPP08HWTB and BPP10HWTB only:
Air exhaust hose and hose inlet should be connected to the portable air
conditioner.
FAN: Air exhaust hose and hose inlet should be disconnected from the portable air
conditioner.
1. Connect hose inlet to one end of air
exhaust hose. Push hose inlet over the
end of the hose, push in slightly and then
start threading it on in a clockwise
direction. (see Fig. 1)
2. Connect hose outlet to other end of air exhaust hose. Push hose outlet over the
end of the hose, push in slightly and then start threading it on in a clockwise
direction. (see Fig. 2)
3. Align the tabs on the hose
inlet into the slots over the
air outlet, insert and push
down. (see Fig. 3)
4. Insert the hose outlet into
the window panel.
5. Afx the hose outlet into the
window slider kit and seal.
(Fig. 4 & 5)
.
NOTE: The exhaust hose can be compressed or extended
moderately, but it is desirable to keep the length to a
minimum. Also make sure that the hose does not
have any sharp bends.
Hook
SET UP & USE
Fig. 4 Fig. 5
Fig. 1 Fig. 2
Clockwise
Fig. 3
ENGLISH

Page 13
Pictures are for illustration purpose only. Your model may or may not have all the features.
CONTROL PANEL
OPERATING FROM THE CONTROL PANEL
The Control Panel enables you to manage all the main functions of the appliance,
but to fully exploit its potential, you must use the remote control.
TURNING THE APPLIANCE ON
• Plug into the dedicated electrical outlet.
• Press the button until the appliance comes on. The last function active when
it was turned off will appear.
* Never turn the air conditioner off by unplugging from the outlet. Always press
the button , then wait for a few minutes before unplugging. This allows the
appliance to perform a cycle of checks to verify operation.
Note: Before pressing Power On button make sure the condensate drain plug in
the rear of the unit is securely in place to avoid any leaking.
•Press the MODE button until the light corresponding to the required Mode
lights up.
SET UP & USE
Sleep
Indicator light
Timer
Button
Mode
Selection
Button
Decrease
Temperature
Button
Increase
Temperature
Button
Fan Speed
Selection
Button
Power
Button
FULL Tank
Indicator
Light
Display
Area
Fan Speed
Indicator
Lights
Select Mode Indicator Lights
Heat models BPP08HWTB
and BPP10HWTB only
COOL FANDEHUMIDIFY HEAT
Heat models
BPP08HWTB and
BPP10HWTB only
Swing Indicator Light
Timer Indicator
Light
ENGLISH

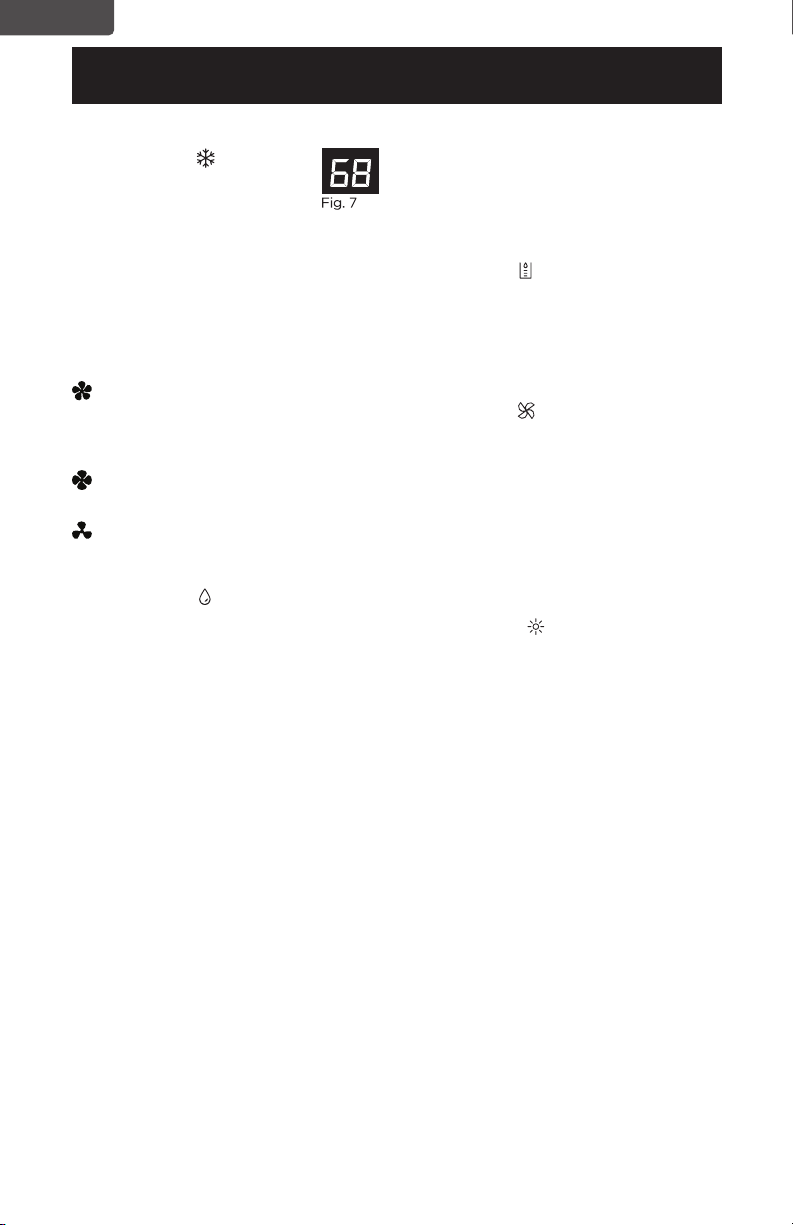

Page 14
COOL MODE
Ideal for hot weather when
you need to cool the room.
To set operation of the appliance
correctly, press the +or –buttons until
the desired temperature is displayed.
(See Fig. 7)
Then select the fan speed by pressing
the Fan Speed Button until the light
corresponding to the required fan
speed lights up:
HIGH: The Fan operates at
maximum to reach the
required temperature as
rapidly as possible.
MED: Reduces Fan noise level but
still maintains cooling.
LOW: For quiet operation.
DEHUMIDIFY
Press the “MODE” button until the
“DEHUMIDIFY” indicator light comes
on.
• Under this mode, you cannot select a
fan speed or adjust the temperature.
The fan motor operates at LOW
speed.
• Keep window and door closed for
the best dehumidifying effect.
• Exhaust hose attachment is not
required to reduce humidity,
however it is recommended in very
humid rooms so the warm air can be
exhausted outside.
DRAINING IN
DEHUMIDIFICATION MODE
• It is recommended that the
dehumidication drain and drain
hose can be used for continuous
drainage.
• FULL TANK - When the water level
reaches a predetermined level, the
“full tank” indicator light goes on.
The unit will have to be drained.
NOTE: Refer to Water Drainage
section.
FAN MODE
• Press the “MODE” button until the
“FAN” indicator light comes on.
• Press the speed button to select
HIGH, MEDIUM or LOW fan speed.
The temperature cannot be adjusted.
• Exhaust hose attachment is not
required in this mode.
HEAT MODE (Heat models
BPP08HWTB and BPP10HWTB only)
Press the “MODE” button until the
“HEAT” indicator light comes on.
• Press the +or –buttons to select
your desired room temperature.
The temperature can be set within a
range of 61°F-88°F.
• Press the speed button to select
HIGH, MEDIUM or LOW fan speed.
NOTE: At the beginning of this mode,
you may have to wait a few
seconds before the appliance
starts to give out hot air.
SET UP & USE
ENGLISH

Page 15Page 15
SET UP & USE
TIMER
• To set the AUTO STOP timer. When
the unit is ON, press the TIMER
button.
• Press the +or –button to select the
AUTO TIME by 1 hour increments,
up to 24 hours. The LED Display will
indicate the remaining time. Press
the TIMER button again. The TIMER
indicator light illuminates to show
that the AUTO STOP program is
initiated.
• To set the AUTO START timer. When
the unit is OFF, press the TIMER
button.
• Press the +or –button to select the
AUTO TIME by 1 hour increments,
up to 24 hours. The LED Display will
indicate the remaining time. Press
the TIMER button again. The TIMER
indicator light illuminates to show
that the AUTO START program is
initiated.
• Pressing the POWER button or the
TIMER button will cancel the AUTO
START/STOP timed program and
the timer indicator light will not be
illuminated
SWING INDICATOR LIGHT
When this light is illuminated, it
indicates that the air swing is activated
from the remote and the louvers will
move up and down.
SLEEP INDICATOR LIGHT
When this light is illuminated, it
indicates that SLEEP has been
activated from the remote control and
that the temperature will gradually
adjust.
ENGLISH

Page 16Page 16
SET UP & USE
OPERATING FROM THE REMOTE CONTROL
BATTERY INSTALLATION (BATTERIES NOT INCLUDED)
(1) Slide open the battery compartment cover.
(2) Insert 2 × “AAA”batteries as shown.
(3) Slide back the battery cover.
CAUTION: Use only AAA or IEC R03 1.5V alkaline batteries. Remove the batteries
if the remote is not used for a month or longer. Do not attempt to
recharge the batteries. Both batteries should be replaced at the same
time. Do not dispose of the batteries in a re as they man explode.
Point the remote control at the receiver on the appliance. The remote control
must be no more than 7 meters away from the appliance (without obstacle
between the remote control and the receiver).
The remote control must be handled with extreme care. Do not drop it or expose
it to direct sun light or sources of heat.
23 Feet
ENGLISH

Page 17
SET UP & USE
REMOTE CONTROL
POWER BUTTON: Press to Turn ON or OFF
TIMER BUTTON: Used to set a delay start or shut down time.
MODE BUTTON: Each time you press the button COOL, DEHUMIDIFY, FAN, HEAT
(models BPP08HWTB and BPP10HWTB is selected)
˚C / ˚F SELECTOR BUTTON: Select Fahrenheit or Celsius.
INCREASE: Increase the temperature setting.
DECREASE: Decrease the temperature setting.
LED BUTTON: Illuminates the LED screen on the unit.
SWING BUTTON: Activates the air swing of the louvers.
FAN SPEED BUTTON: Used to select the HIGH, MED or LOW Fan speed.
SLEEP BUTTON: Gradually adjusts the temperature.
Fan
Fan Speed
LED Button °F /°C Selector
Button
Swing Button Mode Button
Swing
Heat
Time
Timer Button
Power Button
Fan Speed
Button
Sleep
Dehumidify
Cool
Remote Signal
Time ON / OFF
Increase Button
Decrease Button
Sleep Button
ENGLISH

Page 18
SET UP & USE
POWER BUTTON
• Press to Turn Air Conditioner ON or OFF. Press LED button to illuminate the
LED screen on the unit.
• Will show on the remote LED screen when buttons are pressed to show that
the remote control is sending a signal to the air conditioner.
MODE BUTTON
• Press the mode button to scroll through COOL , DEHUMIDIFY ,
FAN , HEAT (Heat models BPP08HWTB and BPP10HWTB only)
• The corresponding symbol will illuminate on the LED display to indicate which
mode is selected.
COOL
• Select the target temperature 61˚F – 88˚F (16˚C – 31˚C) by pressing the
+or –buttons until the desired temperature is displayed on the LED screen.
• Press the Fan Speed Button to select Low, Medium, or High Speed.
LED Display Indicators
Cooling mode Fan speed
Dehumidify mode Swing
Fan mode Timer on
Heat mode
Heat models
BPP08HWTB and
BPP10HWTB only
Time
Sleep
Display temp. or
hours
Fahrenheit or
Celsius.
ENGLISH

Page 19
DEHUMIDIFY
Ideal for reducing humidity.
• Keep window and door closed for the best dehumidifying effect.
• Exhaust hose attachment is not required to reduce humidity, however it is
recommended in very humid rooms so the warm air can be exhausted outside.
Draining in Dehumidify mode
• It is recommended that the dehumidification drain and drain hose be used for
continuous drainage.
• FULL TANK - When the water level reaches a predetermined level, the “full
tank” indicator light goes on. The unit will have to be drained.
NOTE: Refer to Water Drainage section.
• In this mode, fan speed is selected automatically by the appliance and can not
be set manually.
FAN
• Press the Fan Speed Button to
select Low, Medium or High Speed.
HEAT
• Select the target temperature 61˚F – 88˚F (16˚C – 31˚C) by pressing the +or –
buttons until the desired temperature is displayed on the LED screen.
• Press the speed button to select HIGH, MEDIUM or LOW fan speed.
NOTE: At the beginning of this mode, you may have to wait a few seconds
before the appliance starts to give out hot air.
SWING
• Press this button to activate the air swing of the louvers. Press it again to
deactivate.
SET UP & USE
ENGLISH

Page 20
TIMER
• To set the AUTO STOP timer. When the unit is ON, press the TIMER button. The
TIME ON/OFF symbol on the remote LCD display will blink.
• Press the +or – button to select the AUTO TIME by 1 hour increments, up to
24 hours. The Remote LCD Display will indicate the selected time. Press the
TIMER button again to set the selected time. There will be a steady TIME ON/
OFF symbol on the remote LCD display and the TIMER indicator light will
be illuminated on the control panel of the unit to show that the AUTO STOP
program is initiated.
• To set the AUTO START timer. When the unit is OFF, press the TIMER button.
The TIME ON/OFF symbol on the remote LCD display will blink.
• Press the +or – button to select the AUTO TIME by 1 hour increments, up to
24 hours. The Remote LCD Display will indicate the selected time. Press the
TIMER button again to set the selected time. There will be a steady TIME ON/
OFF symbol on the remote LCD display and the TIMER indicator light will be
illuminated on the control panel of the unit to show that the AUTO START
program is initiated.
• Pressing the POWER button or the TIMER button will cancel the AUTO START/
STOP timed program and the timer indicator light will not be illuminated
SLEEP
• The SLEEP function gradually adjusts the temperature of the rooms to provide
a comfortable environment. Press the SLEEP button to activate.
• In COOL mode, the temperature will increase 1°F after an hour and 2°F after 2
hours.
• In HEAT mode, the temperature will decrease 1°F after an hour and 2°F after 2
hours.
•To cancel this setting press the SLEEP button again.
°C / °F SELECTOR BUTTON
• When the appliance is powered on, press the °C / °F button, then you can
select the unit of temperature from Fahrenheit or Celsius.
SET UP & USE
ENGLISH
