Black & Decker BWAC08WTB User manual

Thank you for purchasing our
BLACK+DECKER product. This
easy-to-use manual will guide you
in getting the best use of your air
conditioner.
Remember to record the model and
serial numbers. They are on a label
on the rear.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
PRODUCT REGISTRATION
CONTENTS
SAFETY INFORMATION
Introduction To Refrigerants R32 .......................................................................................................................4
Handling Alkaline Batteries.................................................................................................................................6
Grounding Instructions .........................................................................................................................................7
Power Supply Cord................................................................................................................................................ 7
Safety Guidelines.................................................................................................................................................... 8
SET UP & USE

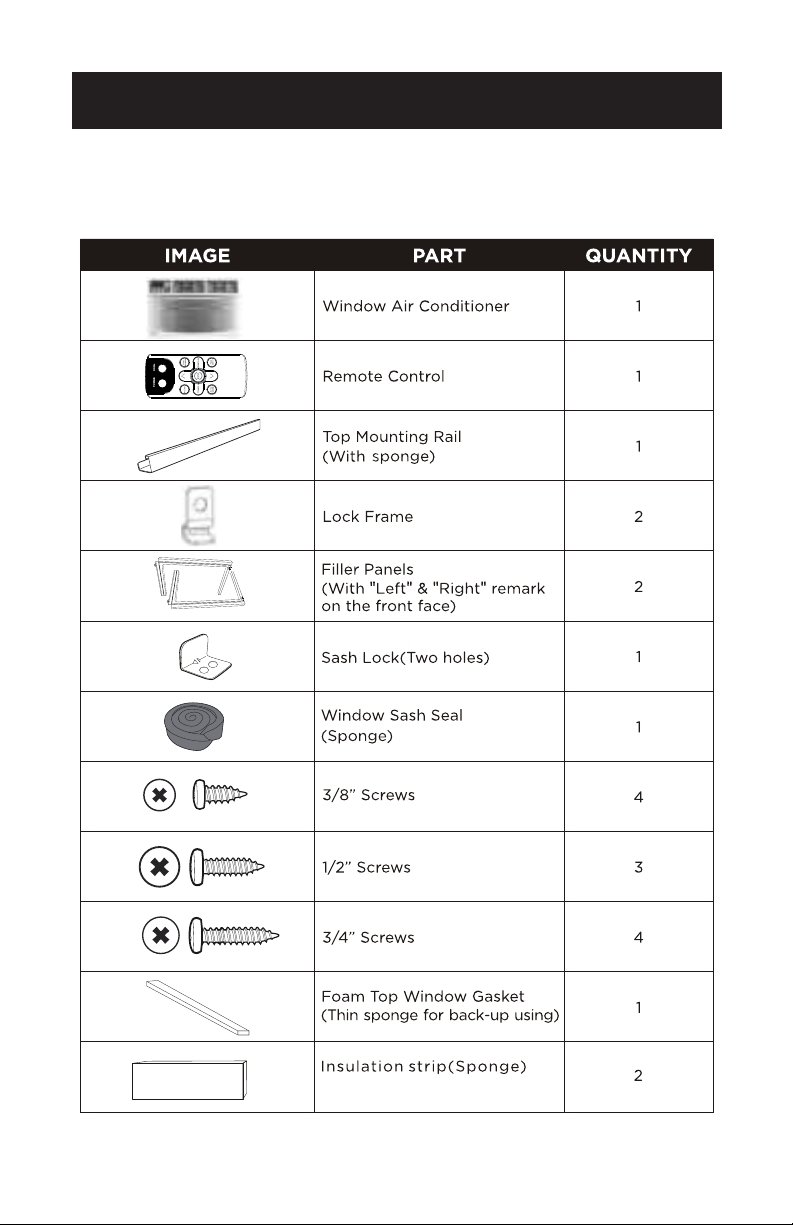

Parts Included ..........................................................................................................................................................................10

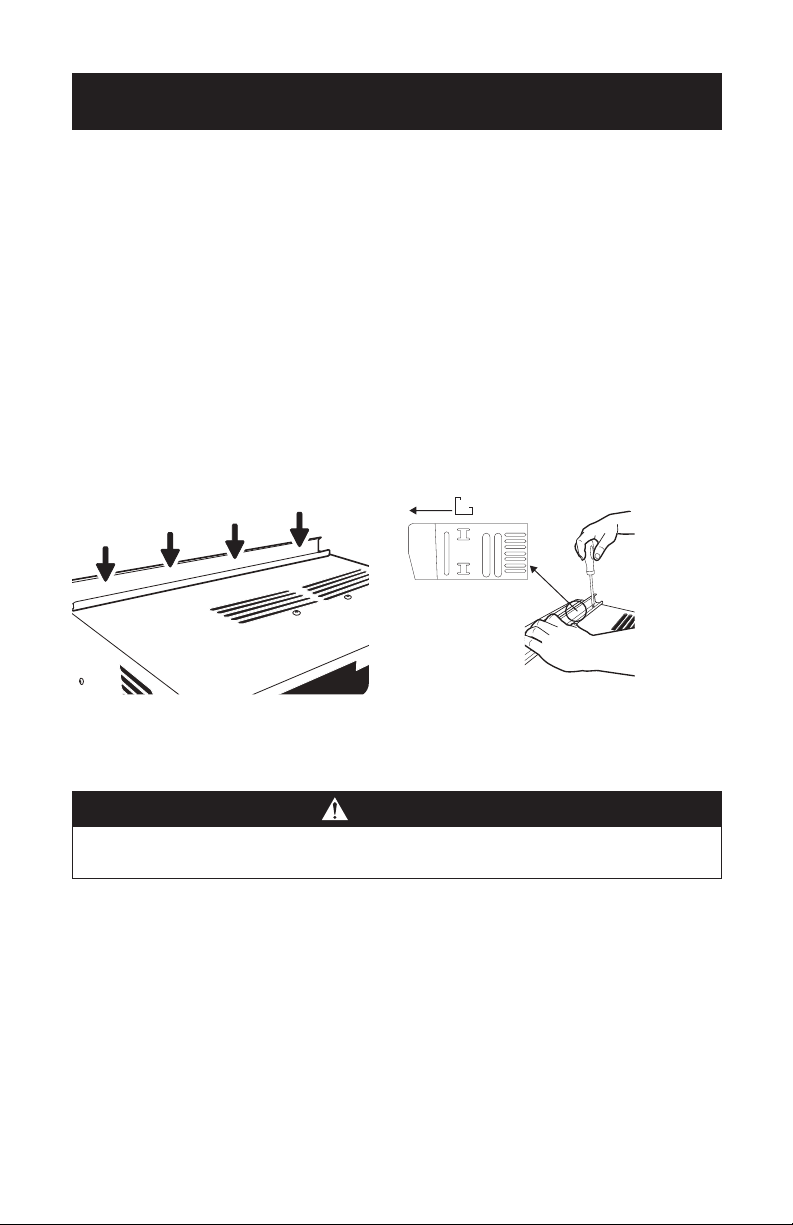

Installation & Assembly...................................................................................................................................11-18
Control Panel ...................................................................................................................................................19-20
Remote Control ...............................................................................................................................................21-22
CLEANING & CARE............................................................................................................................................23
TROUBLE SHOOTING & WARRANTY
Before You Call For Service ............................................................................................................................. 24
Customer Service................................................................................................................................................. 24
Troubleshooting.............................................................................................................................................. 25-26
Limited Warranty ...................................................................................................................................................................27
Important Safety Instructions............................................................................................................................................. 5
LCDI Power Cord And Plug.................................................................................................................................9
Page 3

≤9K
≤12K
≤18K
≤24K
Warnings
R32
Refrigerant Capacity(Btu) Room Area
Above 4m2
Above 4m2
Above 15m2
Above 25m2
Page 4
INTRODUCTION TO REFRIGERANTS R32
The refrigerants used for air conditioners are environmentally friendly
hydrocarbons R32. This kind of erant is combustible and odorless. Moreover, it can
burn and explode under certain condition. However, there will be no risk of burning
and explosion if you comply with the following table to install your air conditioner
in a room with an appropriate area and use it correctly.
Compared with ordinary refrigerants, Refrigerant R32 is environmentally friendly
and does not destroy the ozone sphere and its value of greenhouse effect is also
very low.
•Please read the manual before installation, using, maintenance.
•Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
•Do not pierce or burn the appliance.
•The appliance shall be stored in a room without continuously operating sources
(for example: open flames, an operating ignition gas appliance or an operating
electric heater.)
•Please contact the nearest after-sale service center when maintenance is
necessary. At the time of maintenance, the maintenance personnel must strictly
comply with the Operation Manual provided by the corresponding manufacturer
and any non-professional is prohibited to maintain the air conditioner.
•The handling, installation, storage, servicing and disposal must comply with the
provisions of gas-related national laws and regulations, and also national wiring
regulation.
•It is necessary to clear away the refrigerant in the system when maintaining or
scrapping an air conditioner. Be aware that refrigerants may not contain an odor.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or supervision or instruction concerning
use of the appliance by a person responsible fortheir safety.
Children should be supervised to ensure that they do not play with the appliance.
Unit operation limits: Outdoor side 61~110°F, 80%RH; indoor side 61~90°F, 80%RH.
Room area requests for air conditioner with Refrigerant R32
SAFETY INFORMATION

SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. Air conditioner must be connected to proper electrical outlet with
the correct electrical outlet with the correct electrical supply.
2. Proper grounding must be ensured to reduce the risk of shock and
fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do
not have a three-prong electric receptacle outlet in the wall, have a
certified electrician install the proper receptacle. The wall receptacle
MUST be properly grounded.
3. Do not operate air conditioner if power cord is frayed or otherwise
damaged. Avoid using it if there are any cracks or abrasion damage
along the length, plug connector or if the unit malfunctions or is
damaged in any manner. Contact an authorized service technician
for examination, repairs or adjustments.
4. DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5. Do not block airflow around the air conditioner.
6. Always unplug the air conditioner before servicing it or moving it.
7. Do not install or use the air conditioner in any area where the
atmosphere contains combustible gases or where the atmosphere is
oily or sulphurous. Avoid any chemical coming in contact with your
air conditioner.
8. Do not place any object on the top of the unit.
9. Do not use the air conditioner near a bathtub, shower or wash basin.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
When using electrical appliances, basic safety precautions
should be followed, including the following
Page 5

HANDLING ALKALINE BATTERIES
1. Should fluid from the battery accidentally get into your eyes, there is a threat
of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap
water and then consult a physician immediately.
2. Do not put the battery in a fire, expose it to heat, dismantle or modify it. If the
insulation or safety valve is damaged, the battery may leak fluid, overheat or
explode.
3. Do not insert the battery with the poles reversed. Doing so may cause some
abnormality or a short and the battery may leak fluid, overheat or explode.
4. Keep the battery out of the reach of children. If the battery is swallowed, contact a
physician immediately.
5. If the alkali fluid gets in your mouth, rinse your mouth with water and contact a
physician immediately.
6. If the alkali fluid gets on your skin or clothes, it may burn your skin, thoroughly
rinse the aected area with tap water.
7. Do not mix new and old batteries or other makes of batteries. The dierent
attributes may cause the battery to leak fluid, overheat or explode.
8. This battery was not made to be recharged. Recharging this battery may damage
the insulation or internal structure and may cause the battery to leak fluid,
overheat or explode.
9. Do not damage or remove the label on the exterior of the battery. Doing so may
cause the battery to short, leak fluid, overheat or explode.
10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause
the battery to leak fluid, overheat or explode.
11. Do not alter the shape of the battery. If the insulation or safety valve is damaged,
the battery may leak fluid, overheat or explode.
12. Immediately remove batteries when they have lost all power. Leaving the batteries
in the unit for a long time may cause the batteries to leak fluid, overheat or
explode due to gas that is generated by the batteries.
13. Remove the batteries from the unit when not using the unit for an extended
period of time. The batteries may leak fluid, overheat or explode due to gas that is
generated by the batteries.
14. Do not apply solder directly to the batteries. The heat may cause the batteries to
leak fluid, overheat or explode.
15. Do not get the batteries wet. Doing so may cause the batteries to overheat
16. Store batteries someplace out of direct sunlight where the temperature and
humidity are not high. Not doing so may cause the batteries to leak fluid, overheat
or explode. Also, it may cause the life and performance of the batteries to decline.
17. Follow the regulations of the local government when disposing of these batteries.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
WARNING
When handling alkaline batteries, basic safety precautions
should be followed, including the following
SAFETY INFORMATION
Page 6

GROUNDING INSTRUCTIONS
ELECTRICAL REQUIREMENTS
The electrical requirements are a 115 volt 60 Hz, AC only, 15 amp. It is
recommended that a separate circuit serving only the product be provided. The
product is equipped with a 3-wire cord having a 3-prong grounding plug. It must
be plugged into a wall receptacle that is properly installed and grounded.
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an escape wire for the
electric current. The cord provided with this appliance is equipped with a
grounding wire and a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded.
Avoid the use of three prong adapters or cutting o the third grounding prong
in order to accommodate a two prong outlet. This is a dangerous practice since
it provides no eective grounding for the air conditioner and may result in shock
hazard.
Consult a qualified electrician or serviceman if:
1) The grounding instructions are not completely understood.
2) You are unsure that the appliance is properly grounded.
3) You have any questions about the grounding or electrical instructions.
POWER SUPPLY CORD
1. Avoid the use of an extension cord because of potential safety hazards under
certain conditions. Have a qualified electrician or serviceman to install an
outlet near the appliance.
2. If it is absolutely necessary to use longer cord sets or an extension cord,
extreme care must be exercised.
a) Use only a grounding type 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will accept the plug on the
appliance.
b) The marked electrical rating of the cord set or extension cord must equal
to or greater than the electrical rating of the appliance. The longer cord
should be arranged so that it will not drape over the counter top or table
top where it can be pulled on by children or tripped over unintentionally.
NOTE: Neither BLACK+DECKER nor the dealer can accept any liability for damage to the
product or personal injury resulting from failure to observe the electrical connection
procedures.
SAFETY INFORMATION
WARNING
Improper use of the grounding plug can result in a risk
of electric shock.
Page 7

SAFETY GUIDELINES
To prevent injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions
may cause harm or damage.
ALWAYS DO THIS NEVER DO THIS ENERGY SAVE
• Your air conditioner should
be used in such a way
that it is protected from
moisture. e.g. condensation,
splashed water, etc. Do
not place or store your air
conditioner where it can
fall or be pulled into water
or any other liquid. Unplug
immediately.
• Always transport your air
conditioner in a vertical
position and stand on a
stable, level surface during
use.
• Turn o the product when
not in use.
• Always contact a qualified
person to carry out
repairs. If the supply cord
is damaged it must be
repaired by a qualified
technician.
•Keep an air path of at least
12 inches all around the unit
from walls, furniture and
curtains.
• If the air conditioner is
knocked over during use,
turn o the unit and unplug
from the power supply
immediately.
• Do not operate your air
conditioner in a wet room
such as a bathroom or
laundry room.
• Do not touch the unit with
wet or damp hands or when
barefoot.
• Do not press the buttons
on the control panel with
anything other than your
fingers.
• Do not remove any fixed
covers. Never use this
appliance if it is not working
properly, or if it has been
dropped or damaged.
• Never use the plug to start
and stop the unit.
• Always use the switch on the
control panel to start or shut
o the unit.
• Do not cover or obstruct the
inlet or outlet grilles.
• Do not use hazardous
chemicals to clean or come
into contact with the unit.
Do not use the unit in the
presence of inflammable
substances or vapour such
as alcohol, insecticides,
petrol,etc.
• Do not allow children to
operate the unit unsupervised.
• Do not use this product for
functions other than those
described in this instruction
manual.
• Use the unit in the
recommended room size.
• Locate the unit where
furniture cannot obstruct
the air flow.
• Keep blinds/curtains
drawn.
• Keep the filters clean.
• Keep doors and windows
closed to keep cool air in
and warm air out.
SAFETY INFORMATION
Page 8

LCDI POWER CORD AND PLUG
This air conditioner is equipped with an LCDI (Leakage Current Detection and
Interruption) power cord that is required by UL. This power supply cord contains
state-of-the-art electronics that sense leakage current. If the cord is damaged and
leakage occurs, power will be disconnected from the unit.
The test and reset buttons on the LCDI Plug are used to check if the plug is
functioning properly.
To test the plug:
1. Plug power cord into a grounded 3 prong outlet.
2. Press RESET (on some units a green light will turn on).
3. Press the TEST button, the circuit should trip and cut all power to the air
conditioner (on some units a green light may turn o).
4. Press the RESET button for use. You will hear a click and the A/C is not ready for
use.
NOTES:
• The RESET button must be engaged for proper use.
• The power supply cord must be replaced if it fails to trip when the TEST button is
pressed and the unit fails to reset.
• Do not use the power supply cord as an ON/OFF switch. The power supply cord
is designed as a protective device.
• A damaged power supply cord must be replaced with a new power supply cord.
• The power supply cord contains no user serviceable parts. Opening the
tamper-resistant case voids all warranty and performance claims.
NOTE: Your units power cord and plug may dier from the one shown.
SAFETY INFORMATION
WARNING – RISK OF FIRE
It is important the plug fits tightly into the wall outlet.
If the plug does not fit securely and appears loose, it should not be used.
Have a licensed electrician replace the receptacle. Page 9

PARTS INCLUDED
(appearance may vary)
SET UP & USE
Page 10
(Only for E-star model)

Page 11
INSTALLATION & ASSEMBLY FOR 6K & 8K
Some assembly is required for your new air conditioner. Please read and follow
these instructions carefully.
1. This air conditioner is designed
to be installed in a standard
double-hung window with a
window width between 23”
and 36” (584mm - 914mm).
2. The air conditioner can be
installed without the accordion
panels to fit in a narrow
window opening. See the
window dimensions.
3. The lower sash (the lower part of the window that moves up and down) must allow
for 14.5” of vertical clearance when open. (See Fig. 1)
4. All supporting parts must be secured to firm wood, masonry or metal.
5. The electrical outlet must be within reach of the power cord.
INSTALLATION & ASSEMBLY FOR 10K & 12K
Some assembly is required for your new air conditioner. Please read and follow
these instructions carefully.
1. This air conditioner is designed
to be installed in a standard
double-hung window with a
window width between 26”
and 36” (660mm - 914mm).
2. The air conditioner can be
installed without the accordion
panels to fit in a narrow
window opening. See the
window dimensions.
3. The lower sash (the lower part of the window that moves up and down) must allow
for 16” of vertical clearance when open. (See Fig. 2)
4. All supporting parts must be secured to firm wood, masonry or metal.
5. The electrical outlet must be within reach of the power cord.
NOTE: Save the product packaging and installation instructions for future reference.
Store the air conditioner in the product box when not in use for an extended
amount of time.
SET UP & USE
Fig. 2
Fig. 1
14.5”
(368mm)
16”
(406mm)
23” to 36”
584mm to 914mm
26” to 36”
660mm to 914mm

Room Side
SET UP & USE
TOP RAIL ASSEMBLY (ONLY FOR 6K & 8K)
The top rail must be assembled prior to installing the air conditioner in the window.
Tools Needed: Phillips screwdriver
1. Remove the air conditioner from the box and place on a hard flat surface.
2. Remove top rail from the bottom of the packaging material.
3. Align the hole in the top rail with those in the top of the unit. (See Fig. 3)
4. Secure the top rail to the unit with the 3/8” screws. (See Fig. 4)
NOTE: For safety reasons, all 4 screws must be used to attach top rail.
CAUTION
When handling the unit, be careful to avoid cuts from the sharp metal edges and
aluminum fins on the front and rear coils
Fig. 3
Fig. 4
Page 12

SET UP & USE
HOW TO INSTALL
NOTE: Top rail and sliding panels at each side are oset to provide the proper pitch to
the rear of 5/16”. This is necessary for proper condensed water utilization and
drainage. If you are not using the side panels for any reason, this pitch to the
rear must still be maintained.
1. Place unit on floor, a bench or a table. There is a left and right window filler panel -
be sure to use the proper panel for each side. When installed, the flange for securing
the panel in place to the window sill will be facing into the room.
A. Hold the accordion panel in one hand and gently pull back the center to
free the open end.
B. Slide the free end of the panel into the cabinet. Slide the panel down. Be
sure to leave enough space to slip the top and bottom of the frame
into the rails on the cabinet. (See Fig. 5)
C. Once the panel has been installed on the side of the cabinet, make sure it
sits securely inside the frame channel by making slight adjustments.
Slide the top and bottom ends of the frame into the top and bottom rails
of the cabinet. (See Fig. 6)
D. Slide the panel all the way in and repeat on the other side.
NOTE: Once installed, the accordian panel cannot be removed without detaching the
frame from the air conditioner.
2. Keep a firm grip on the air conditioner. Carefully place the unit into the window
opening so the bottom of the air conditioner frame is against the window sill.
Carefully close the window behind the top rail of the unit.
CLICK
Fig. 5 Fig. 6
Page 13

SET UP & USE
3. Extend the side panels out against the window frame. (See Fig. 7)
4. Drive three 1/2” locking screws through filler panel holes into window sash on both
left and right sides. (See Fig. 8 & 9)
5. Place the frame lock between the frame extensions and the window sill. Drive 3/4”
locking screws through the frame lock and into the sill on both left and right sides.
(See Fig. 10)
NOTE: To prevent window sill from splitting, drill 1/8” pilot holes before driving
screws.
6. To secure lower sash in place, attach right angle sash lock with two 3/4” screws.
(See Fig. 11)
7. Cut foam seal strip and insert in the window space between the upper and lower
sashes.
(See Fig. 12)
Fig. 7
Fig. 10
Fig. 9
Fig. 11 Fig. 12
Fig. 8
Page 14

SET UP & USE
IF A/C IS BLOCKED BY STORM WINDOW
Add wood or remove storm window
before air conditioner is installed.
(See Fig. 13)
If storm window frame must remain,
be sure the drain holes or slots are not
caulked or painted shut. Accumulated
rain water or condensation must be
allowed to drain out.
REMOVING A/C FROM WINDOW
• Turn A/C o and disconnect power cord.
• Remove sash seal from between windows and unscrew safety lock.
• Remove screws installed through frame and frame lock.
• Close (slide) side panels into frame.
• Keeping a firm grip on air conditioner, raise sash and carefully “rock” air
conditioner backward to drain any condensate water in base of unit. Be careful
not to spill any remaining water while lifting unit from window. Store parts WITH
air conditioner.
WINTER STORAGE – BEFORE REMOVING AIR
CONDITIONER FROM WINDOW
To store the air conditioner when it is not in use for an extended period of time,
remove the black rubber drain plug found on the lower left hand corner of the back
of the air conditioner. (see fig. 14) This will allow you to remove any water that has
collected inside the bottom of the unit while it is still outdoors. To make access easier
to the drain plug, collapse the side filler panels toward the AC unit.
CAUTION: Be sure to maintain support of the air conditioning unit as you reach to
remove the drain plug.
Once water has been removed, replace drain plug by aligning inside of plug with
cutout in wall of unit and push firmly until plug is completely sealed to the opening.
Store air conditioner in dry environment and cover with plastic or place it back in the
original box.
Fig. 13
Fig. 14
Page 15

SET UP & USE
AIR CONDITIONER USE
Operating your air conditioner properly helps you obtain the best possible results.
This section explains proper air conditioner operation.
IMPORTANT:
• If you turn o the air conditioner, wait at least 3 minutes before turning it back on.
This prevents the air conditioner from blowing a fuse or tripping a circuit breaker.
• Do not try to operate your air conditioner in the cooling mode when outside
temperature is below 65˚F (18˚C). The inside evaporator coil will freeze up and the
air conditioner will not operate properly.
NOTE: In the event of a power failure, your air conditioner will operate at the previous
settings when the power is restored.
Page 16

Table GG.1 Maximum charge (kg)
Category
R32 0.306
0.6
1
1.8
2.2
4
0.68
1.14
2.05
2.5
7
0.9
1.51
2.71
3.31
10
1.08
1.8
3.24
3.96
15
1.32
2.2
3.97
4.85
20
1.53
2.54
4.58
5.6
30
1.87
3.12
5.61
6.86
50
2.41
4.02
7.254
8.85
LFL
(kg/m3)
h0
(m)
Floor area(m2)
Category
R32 0.306
0.6
1
1.8
2.2
1.224kg
/
/
/
/
1.836kg
29
10
3
2
2.448kg
51
19
6
4
3.672kg
116
42
13
9
4.896kg
206
74
23
15
6.12kg
321
116
36
24
7.956kg
543
196
60
40
LFL
(kg/m3)
h0
(m) Minimum room area(m2)
Charge amount(M)(kg)
Table GG.2 Minimum room area (m2)
INTRODUCTION TO REFRIGERANTS R32
The maximum charge and the required minimum floor area
•Before installing the appliance, you must read the manual carefully
to get the safety information and notes.
•When filling the combustible refrigerant, any of your rude
operations may cause serious injury or injuries to human body or
bodies and object or objects.
•A leak test must be done after the installation is completed.
•It is a must to do the safety inspection before maintaining or repairing an
air conditioner using combustible refrigerant in order to ensure that the fire risk
is reduced to minimum.
•It is necessary to operate the machine under a controlled procedure in order to
ensure that any risk arising from the combustible gas or vapor during the
operation is reduced to minimum.
•Requirements for the total weight of filled refrigerant and the area of a room to
be equipped with an air conditioner.
m1= (4 m3) x LFL, m2= (26 m3) x LFL, m3= (130 m3) x LFL
Where LFL is the lower flammable limit in kg/m3, R32 LFL is 0.306 kg/m3.
For the appliances with a charge amount m1< M≤m2:The maximum charge in a room shall be in accordance with the following:
mmax= 2.5 x (LFL)(5/4) x h0x (A)1/2
The required minimum floor area Amin to install an appliance with refrigerant
charge M(kg) shall be in accordance with following: Amin= (M/ (2.5 x (LFL)(5/4) xh0))2
Where:
mmax is the allowable maximum charge in a room, in kg;
M is the refrigerant charge amount in appliance, in kg;
Amin is the required minimum room area, in m2;
A is the room area, in m3;
LFL is the lower flammable limit, in kg/m ;
h0is the installation height of the appliance, in meters for calculating mmax or Amin,
1.8 m for wall mounted;
SET UP & USE
Page 17

2.Operation Safety
Open Flames Prohibited Ventilation Necessary
Open Flames Prohibited
Mind Static Electricity Must Wear Protective Clothing
and anti-static gloves
Don't use mobile phone
3.Installation Safety
Please note that:
1. The installation site should be in a well-ventilated location.
2. The sites for installing and maintaining an air conditioner using Refrigerant R32
should be free from open fire or welding, smoking, drying oven or any other heat
source higher than 548°C which easily produces open fire.
3. When installing an air conditioner, it is necessary to take appropriate anti-static
measures such as wearing anti-static clothing and/or gloves.
4. It is necessary to choose a site convenient for installation or maintenance wherein
the air inlets and outlets of the indoor and outdoor units should be not surrounded
by obstacles or close to any heat source or combustible and/or explosive
environment.
5. If the indoor unit incurs a refrigerant leak during the installation, all the personnel
should go out till the refrigerant leaks completely for 15 minutes. If the product is
damaged, you must return the damaged product back to the manufacturer; it is
prohibited to weld the refrigerant pipe or conduct other changes to the product.
6. It is necessary to choose a place where the inlets and outlets air of the indoor unit
is even.
7. It is necessary to avoid using in places where there are other electrical products,
power switch plugs and sockets, kitchen cabinets, beds, sofas and other valuables
that are placed right under the indoor unit, as this prevents mechanical damage
from occurring.
•Refrigerant Leak Detector
•Appropriate Installation
Location The left picture is the schematic diagram
of a refrigerant leak detector.
INTRODUCTION TO REFRIGERANTS R32
1.Site Safety
SET UP & USE
Page 18

SET UP & USE
CONTROL PANEL
NOTE: This display always shows the room temperature in Fan Mode except when
setting the Set temperature or the Timer.
NORMAL OPERATING SOUNDS
• You may hear a pinging noise caused by water hitting the condenser, or rainy
days, or when the humidity is high. This design feature helps remove moisture and
improve eciency.
• You may hear the thermostat click when the compressor cycles on and o.
• Water will collect in the base pan during rain or days of high humidity. The water
may overflow and drip from the outside part of the unit.
• The fan may run even when the compressor is not on.
1. DIGITAL DISPLAY: When in operation mode (Cool, Dry, Fan and Auto) the set
temperature will be displayed. Time will be displayed when using the timer button.
2. AND BUTTON:Use these buttons on the control panel and remote to increase
or decrease the set temperature or timer. Temperature range: 61˚F~88˚F or
16˚C~31˚C.
3. POWER BUTTON:Turns the air conditioner on and o.
SPEED MODE
1
2
3
456789
Page 19

SET UP & USE
4. MODE BUTTON: Press the mode button to cycle through the various modes: Cool,
Dry, Fan and Auto.
Cool Mode: The cooling function allows the air conditioner to cool the room and at
the same time reduces air humidify. Press the MODE button to activate the COOL
mode. To optimize the function of the air conditioner, adjust the temperature and
the speed by pressing the button indicated.
Dry Mode: This function reduces the humidity of the air to make the room more
comfortable. Press MODE button to set the DRY mode. An automatic function of
alternating cooling cycles and fan will be activated.
Fan Mode: Allows the air conditioner to help with room ventilation. Press MODE
button to set the FAN mode. With pressing FAN SPEED button, the speed changes
in the following sequence: Hi, Med and Lo in FAN mode. The remote control also
stores the speed that was set in the previous mode of operation. In AUTO mode,
the unit automatically chooses the fan speed and the mode of operation (COOL,
DRY or FAN).
5. TIMER BUTTON: Use these buttons on the control panel and remote to set the
timer.
Timer O: The timed stop is programmed by pressing TIMER button. Set the stop
time by pressing the button “ “ or “ “ until the stop time displayed is to your
choosing. Then press TIMER button again.
Timer On: When the unit is o, press TIMER button once and set the desired
temperature by pressing the button “ ” or “ ”. Press TIMER button a second time
and set the stop time by pressing the button “ ” or “ ”. Press TIMER button a third
time to confirm the setting.
NOTE: Timer can be set to automatically turn o or on from 30 minutes to 24
hours. Each press of the “ ” or “ ” buttons will increase or decrease the
timer. The timer can be set in 30 minute increments below 10 hours and
1 hour increments for 10 hours of above. The SET light will turn on while
setting. To cancel the set function, press the TIMER button again.
6. ECO BUTTON: When the unit is in ECO mode, the indicator light on the display will
turn on. In ECO mode, the compressor will turn o once the room is cooled to the
set temperature but fan will continue to run in 10 minute segments. The compressor
will turn back on when the room temperature rises above the user set temperature.
7. SLEEP BUTTON: Press the SLEEP button and the sleep light will illuminate after 10
seconds and all other indicator lights will be o. In SLEEP mode, the air conditioner
will automatically adjust the temperature and fan speed to make the room more
comfortable during the night. The set temperature will automatically raise by 1˚C
(1.8˚F) every 30-60 minutes and at most change six times or reaches a maximum
temperature of 28˚C (82˚F).
8. FAN SPEED BUTTON: Press the FAN SPEED button to choose the fan speed
options. You can choose Hi, Med, Low in FAN mode.
9. FILTER BUTTON: After the compressor works for 500 total hours, the filter check
light will turn on to remind the user to clean the filter. When the filter check light is
o, it is useless to press the filter check button. When the filter check light is on, it
can be turned o by pressing the filter check button.
Page 20
