INSTRUCTION MANUAL
52 IN. CEILING FAN
Thank you for choosing BLACK+DECKER!
PLEASE READ BEFORE RETURNING THIS PRODUCT FOR
ANY REASON.
If you have a question or experience a problem with your BLACK+DECKER
purchase, go to www.blackanddecker.com/instantanswers
If you can’t find the answer or do not have access to the Internet, call
844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an
agent. Please have the catalog number available when you call.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
CATALOG NUMBER
BCF5252
BCF5252R

Page 2
Thank you for purchasing our
BLACK+DECKER product. This
easy-to-use manual will guide you
in getting the best use of your fan.
Remember to record the model and
serial numbers. They are on a label
on the rear.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
PRODUCT REGISTRATION
CONTENTS
SAFETY INFORMATION
Important Safety Instructions..........................................................................................................................................3-4
Handling Alkaline Batteries................................................................................................................................................... 5
SET UP & USE
Parts.............................................................................................................................................................................................6-7
Features.........................................................................................................................................................................................8
Preparing for Installation ........................................................................................................................................9
Mounting Bracket Installation .........................................................................................................................10-11
Installing Fan to Ceiling.................................................................................................................................... 12-13
Blade Installation......................................................................................................................................................14
Mounting Fan Assembly........................................................................................................................................15
Wiring Options ................................................................................................................................................... 16-17
Securing Fan to Ceiling..........................................................................................................................................18
Light Fixture Installation........................................................................................................................................19
Remote Control Operation ............................................................................................................................20-21
Operation..................................................................................................................................................................22
Cleaning + Maintenance........................................................................................................................................23
TROUBLE SHOOTING & WARRANTY
Before You Call For Service ..............................................................................................................................24
Customer Service..................................................................................................................................................24
Troubleshooting.....................................................................................................................................................25
Limited Warranty .................................................................................................................................................................. 26

Page 3
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. READ ALL INSTRUCTIONS BEFORE USE
2. Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
3. Use this unit only in the manner intended by the manufacturer. If you
have any questions contact the manufacturer.
4. After making the wire connections, gently push connections into
outlet box with wire nuts pointing up. The wires should be spread
apart with the grounded conductor and the equipment grounding
conductor on one side of the outlet box and ungrounded conductor
on the other side of the outlet box.
5. Before you begin installing the fan, Switch power o at Service panel
and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
6. Be cautious! Read all instructions and safety information before
installing your new fan. Review the accompanying assembly
diagrams.
7. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
8. Make sure the installation site you choose allows the fan blades to
rotate without any obstructions. Allow a minimum clearance of 7 feet
(2.1 meters) from the floor to the trailing edge of the blade.
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9
KG) OR LESS” AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET
BOX AND/OR SUPPORT DIRECTLY FROM BUILDING STRUCTURE. MOST OUTLET
BOXES COMMONLY USED FOR THE SUPPORT OF LUMINARIES
ARE NOT ACCEPTABLE FOR FAN SUPPORT AND MAY NEED TO BE REPLACED.
CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.

Page 4
SAFETY INFORMATION
9. To reduce the risk of fire, electric shock, or personal injury, this fan
must be mounted to an outlet box marked suitable for fan support.
And use mounting screws provided with the outlet box. (Mounting
must support at least 35 lbs. (15.9 kg)
10. WARNING: TO REDUCE THE RISK OF PERSONAL INJURY Do not
bend blade holders during installation to motor, balancing or during
cleaning. Do not insert foreign object between rotating blades.
11. Attach the mounting bracket using only the hardware supplied with
the outlet box. Fan is only to be mounted to an outlet box marked
“Acceptable for Fan Support”.
12. Do not install within a zone measured 3 feet horizontally and 8 feet
vertically from the top of the bathtub rim or shower stall threshold.
13. Before servicing or cleaning unit, Switch power o at Service panel
and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
14. All set screws must be checked and re-tightened where necessary
before installation.
15. Installation work and electrical wiring must be done by qualified
person(s) in accordance with applicable codes and standards,
including fire-rated construction.
READ AND SAVE THESE
INSTRUCTIONS
HOUSEHOLD USE ONLY
WARNING
To reduce the risk of fire or electric shock, do not use this fan with any solid-state
speed control device.
WARNING
To reduce the risk of personal injury, do not bend the blade brackets when installing
the brackets, balancing the blades, or cleaning the fan. Do not insert forgeign objects
in between rotating fan blades. Use only with light kits marked suitable for use in
damp locations.

Page 5
SAFETY INFORMATION
HANDLING ALKALINE BATTERIES
1. Should fluid from the battery accidentally get into your eyes, there is a threat
of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap
water and then consult a physician immediately.
2. Do not put the battery in a fire, expose it to heat, dismantle or modify it. If the
insulation or safety valve is damaged, the battery may leak fluid, overheat or
explode.
3. Do not insert the battery with the poles reversed. Doing so may cause some
abnormality or a short and the battery may leak fluid, overheat or explode.
4. Keep the battery out of the reach of children. If the battery is swallowed, contact a
physician immediately.
5. If the alkali fluid gets in your mouth, rinse your mouth with water and contact a
physician immediately.
6. If the alkali fluid gets on your skin or clothes, it may burn your skin, thoroughly
rinse the aected area with tap water.
7. Do not mix new and old batteries or other makes of batteries. The dierent
attributes may cause the battery to leak fluid, overheat or explode.
8. This battery was not made to be recharged. Recharging this battery may damage
the insulation or internal structure and may cause the battery to leak fluid,
overheat or explode.
9. Do not damage or remove the label on the exterior of the battery. Doing so may
cause the battery to short, leak fluid, overheat or explode.
10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause
the battery to leak fluid, overheat or explode.
11. Do not alter the shape of the battery. If the insulation or safety valve is damaged,
the battery may leak fluid, overheat or explode.
12. Immediately remove batteries when they have lost all power. Leaving the batteries
in the unit for a long time may cause the batteries to leak fluid, overheat or
explode due to gas that is generated by the batteries.
Contact your local government for disposal practices in your area.
WARNING
When handling alkaline batteries, basic safety precautions
should be followed, including the following

Page 6
SET UP & USE
PARTS
Mounting Bracket
Blade (4)
*Light Fixture
*Remote Control
and holder
Hardware Pack
* Batteries not included with remote. Use (2) size “AA” alkaline batteries.
* Bulbs not included with light fixture (2) type A-19, 60W bulbs required.
* Not all models contain a remote control, remote receiver and remote control holder.
Only model BCF5252R.
* Not all models contain pull chains and extensions. Only model BCF5252
Canopy
Screws
Screws for fan blade
Wire Connectors
Washers for fan blade
0
12 3
Motor Housing
Slide Switch
6” Downrod
Pull Chains (2)
Pull Chain Extentions (2)
*Remote Receiver

Page 7
SET UP & USE
Ladder
Screwdrivers
Pliers
Wire Strippers
Electrical Tape
(optional) Power drill and drill bit
A. Mounting Bracket
B. Canopy
C. 6” Downrod assembly
D. Yoke Cover
E. Fan Motor Assembly
F. Motor Cover
G. Glass Cover (Light Fixture)
H. Fan Blades (4)
BCF5252R
Remote Control
Remote Receiver
Remote Control Holder
2 Screws for Remote Control Holder
BCF5252
Pull Chain (2)
Pull Chain Extensions (2)
A
B E
F
G
C
D
H
RECOMMENDED TOOLS
PARTS INCLUDED

Page 8
SET UP & USE
FEATURES
Downrod
Installation
For normal ceilings
Vaulted Ceiling
Installation
May require a
longer downrod
(sold separately)
CAUTION
To reduce the risk of injury to persons, the fan must be installed so that the blades are
at a height greater than 7 feet (2.1 meters) above the floor.
This fan is designed for indoor use only.
Flush
Installation
For normal ceilings

SET UP & USE
Page 9
PREPARING FOR INSTALLATION
1. Unpack and inspect fan carefully to be certain all contents are included.
WARNING: Turn o power at the breaker box or fuse panel to avoid possible
electrical shock.
2. Use a listed metal outlet box suitable for fan support (rated for 35 lbs (15.9 kg)).
Before attaching fan to outlet box, ensure the outlet box is securely fastened by at
least two points to a structural ceiling member (a loose box will cause the fan to
wobble).

Page 10
MOUNTING BRACKET INSTALLATION
3. Remove the screws from the two mating holes (2) on the canopy. Loosen (do not
remove) the screws in the mating slots (1) on the canopy. Rotate the mounting
bracket and remove from the canopy.
2
1
1
2
2
1
1
2
SET UP & USE

Page 11
SET UP & USE
4. Install mounting bracket to outlet box in ceiling using the screws and washers
provided with the outlet box.

Page 12
SET UP & USE
BLADE INSTALLATION

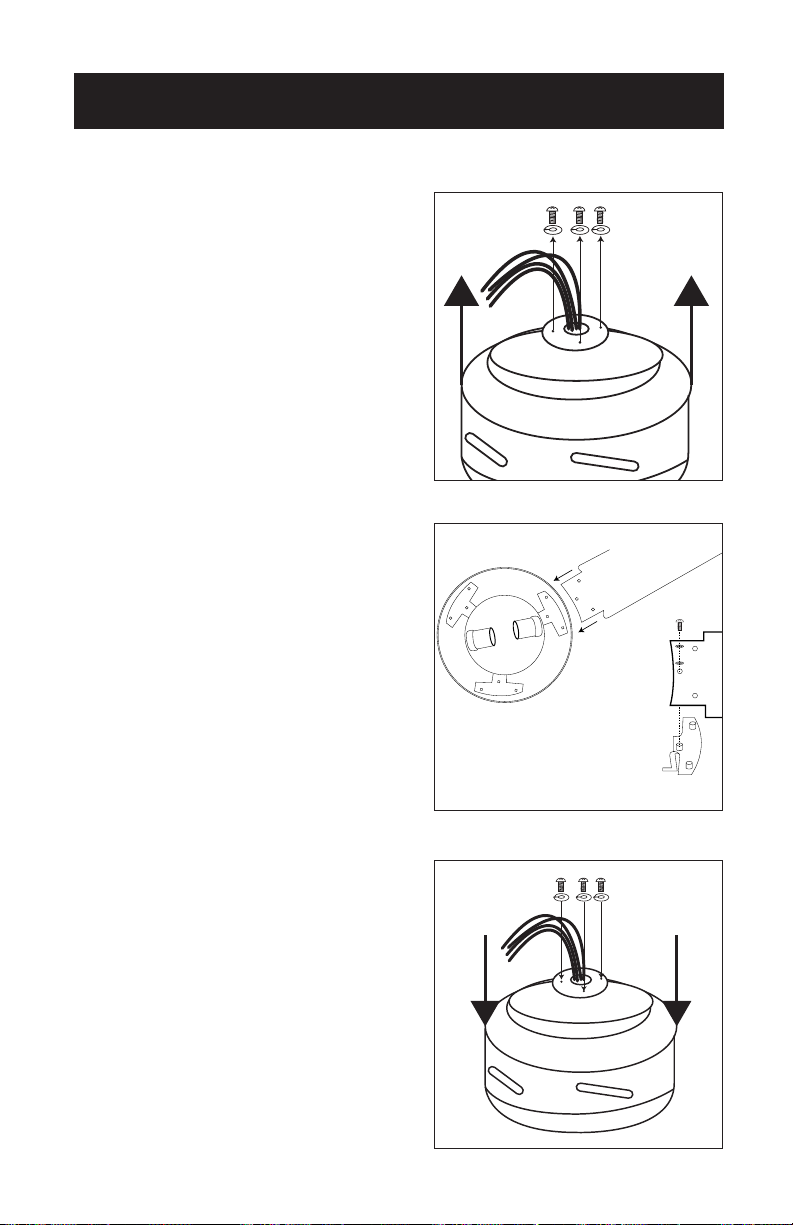

5. A. Remove the 3 screws and lock washers
on the top housing cover of the fan motor
assembly. Lift o the housing cover.
B. Insert the blade into the slots in the
housing. Secure each blade to the blade
bracket with the provided 3 screws and 3
washers. Secure each blade to the blade
bracket with the provided 3 screws and 3
washers.
C. Once all the blades are installed,
reattach the top housing cover using
the previously removed screws and
lock washers.
Blade Screws
with Washers
Slot
Blade
Blade Screws
with Washers
Slot
Blade

Page 13
SET UP & USE
6. Choose a MOUNTING OPTION (Shown on page 8):
FLUSH INSTALLATION OPTION
If installing flush, remove the screws from the canopy and reinstall 3 screws to attach
the canopy to the motor housing as shown.
Complete the wiring options as shown on page 16. It will require two people to
complete this installation. Someone will need to hold the canopy and motor housing,
while the wires are being connected.
If you are installing a ceiling fan with a remote receiver, proceed to page 16, step 11. If
you do not need to include a remote receiver, proceed to secure the fan to the ceiling
as shown on page 18, step 14.
NORMAL DOWNROD OPTION
7. Remove clamp pin (1) and cross pin (2) from
downrod (3). Proceed to DOWNROD
INSTALLATION page 14, step 8.
1
2
3
Screws Motor
Housing
Canopy

Page 14
SET UP & USE
DOWNROD INSTALLATION

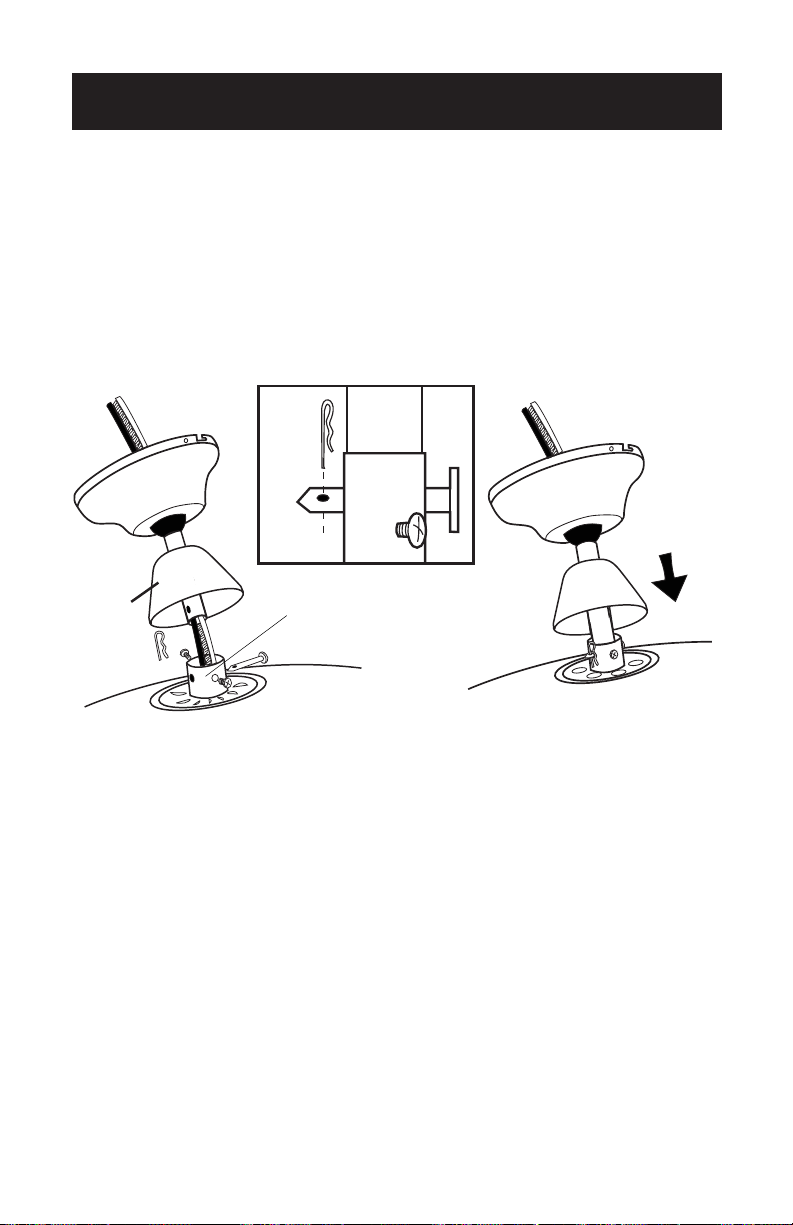

8. Insert motor wires through the selected downrod and insert the downrod into
the downrod coupling. Make sure to align the hole in the downrod with the hole
in the downrod coupling. Install cross pin (1) removed in step 6 through coupling
and downrod. Insert clamp pin (2) into cross pin until it snaps into place. Tighten
set screws (3) in coupling. Slide coupling cover (4) and canopy onto the downrod
above the coupling cover. PROCEED TO PAGE 15, STEP 9.
1
4
3
2
Downrod Coupling
1
4
3
2
Downrod Coupling

Page 15
SET UP & USE
MOUNTING
9. Carefully lift fan assembly onto mounting bracket. Rotate fan until notch on
downrod ball (1) engages the ridge on the mounting bracket (2). This will allow for
hands free wiring for downrod fan installation.
NOTE: If you are installing the fan flush, you will need assistance holding the fan while
doing the wiring.

Page 16
SET UP & USE
WIRING OPTIONS FOR BCF5252 WITH PULL
CHAIN
10. In order to make sure no bare wires are exposed
after making connections it is recommended to
wrap electrical tape around each wire connector
to secure wire from being disconnected.
Use supplied wire connectors to connect the wires.
WIRING OPTIONS FOR BCF5252R WITH
REMOTE
11. The frequency switches on your receiver and transmitter have been preset at the
factory. Please recheck to make sure the switches on transmitter and receiver are
set to the same position, any combination of settings will operate the fan as long as
the transmitter and receiver are set to the same position.
Use supplied wire connectors to connect the wires.
BLK BLK
BLUE
Fan
Light
GREEN
WHITE
REMOTE
RECEIVER
Live
Neutral
Ground
FANCEILING
Live
Neutral
Ground
BLK BLK
BLUE
Fan
Light
GREEN
WHITE
FANCEILING

Page 17
SET UP & USE
12. Make wiring connections from the ceiling and the fan motor to the remote receiver
as shown above. Connect using wire connectors (provided).
13. Once wiring has been completed insert the remote receiver at the top of the
mounting bracket as shown. For downrod fans this will be at the top of the
downrod ball.
Ceiling Fan
Ceiling Fan

Page 18
SET UP & USE
SECURE TO CEILING
14. The canopy has two mating slots (1) and two mating holes (2). Position both slots
on canopy directly under and in line with two screws in the mounting bracket (3).
Lift the canopy, allowing the two screws to slide into the mating slots. Rotate the
canopy until both screws from the mounting bracket drop into the slot recesses.
Tighten screws securely. Install two screws into the mating holes of the canopy and
tighten to secure the canopy to the mounting bracket.
NOTE: For downrod fans, slide the canopy up to the mounting bracket.
2
3
1
2
3
1

Page 19
LIGHT FIXTURE INSTALLATION
15. Install 2 light bulbs Type A-19, 60W max (not included).
16. Locate the indentations on the neck of the glass (2) and align with the protrusions
from the light kit (1). Lift the glass up allowing the protrusions to engage the
indentations on the glass, and twist the glass clockwise to lock into place.
If your model has pull chains you can attach the pull chain extensions using the fobs.
SET UP & USE
1
2
1
2

Page 20
SET UP & USE
17. Model BCF5252R comes with a holder in order to store your remote.
Mount the remote control holder onto the wall using the screws provided. If you
do not wish to screw the remote holder into the wall, you may purchase some
adhesive at your local hardware store.
0
12 3
