Black & Decker BFSR16B User manual

INSTRUCTION MANUAL
MANUEL D’INSTRUCTIONS
MANUAL DE INSTRUCCIONES
16” STAND FAN
18” STAND FAN
VENTILATEUR SUR PIED DE 16” (41 CM)
VENTILATEUR SUR PIED 18”(46 CM)
VENTILADOR DE PIE DE 16” (41CM)
VENTILADOR DE PIE DE 18” (46CM)
Thank you for choosing BLACK+DECKER!
Merci d’avoir choisi BLACK+DECKER!
¡Gracias por elegir BLACK+DECKER!
PLEASE READ BEFORE RETURNING THIS
PRODUCT FOR ANY REASON.
VEUILLEZ LIRE AVANT DE RETOURNER CE
PRODUIT POUR QUELQUE RAISON.
POR FAVOR, LEA ESTE MANUAL ANTES DE
DEVOLVER EL PRODUCTO POR CUALQUIER
RAZÓN.
If you have a question or experience a problem with your BLACK+DECKER purchase, go to www.blackanddecker.com/
instantanswers If you can’t find the answer or do not have access to the Internet, call 844-299-0879 from 10:30 a.m. to 6:30
p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call.
Si vous avez une question ou rencontrez un problème avec votre achat Black+Decker, allez sur
www.blackanddecker.com/instantanswers Si vous ne trouvez pas la réponse ou n’avez pas accès à l’Internet, appelez au 844-
299-0879 de 10h30 à 18h30 HNE du lun. au ven. pour parler avec un agent. Veuillez avoir le numéro de catalogue disponible
lorsque vous appelez.
Si tiene una pregunta o experimenta un problema con tu compra de BLACK+DECKER, vaya a
www.blackanddecker.com/instantanswers Si no puede encontrar las respuestas que necesita o no tiene acceso a Internet, llame
al 844-299-0879 desde las 10:30 a.m. a las 6:30 p.m. EST de lunes a viernes para hablar con un agente. Por favor, tenga el
número de catálogo a mano cuando llame.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
CONSERVEZ CE MANUEL POUR TOUTE CONSULTATION ULTÉRIEURE.
GUARDE ESTE MANUAL PARA SU REFERENCIA FUTURA.
CATALOG NUMBERS
NUMÉRO DE CATALOGUE
NÚMEROS DE CATÁLOGO
BFSR16B
BFSR16W
BFSR18B
BFSR18W

Page 2
ENGLISH
Page 2

Page 3
ENGLISH
Thank you for purchasing our
BLACK+DECKER product. This
easy-to-use manual will guide you
in getting the best use of your fan.
Remember to record the model
and serial numbers. They are on a
label on the rear.
Staple your receipt to your manual.
You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
PRODUCT REGISTRATION
CONTENTS ENGLISH
SAFETY INFORMATION
Important Safety Instructions......................................................................................................................................... 4-6
Electrical Requirements....................................................................................................................................................... 5
SET UP & USE
Parts & Features ....................................................................................................................................................................... 7
Operation & Use ..................................................................................................................................................8-11

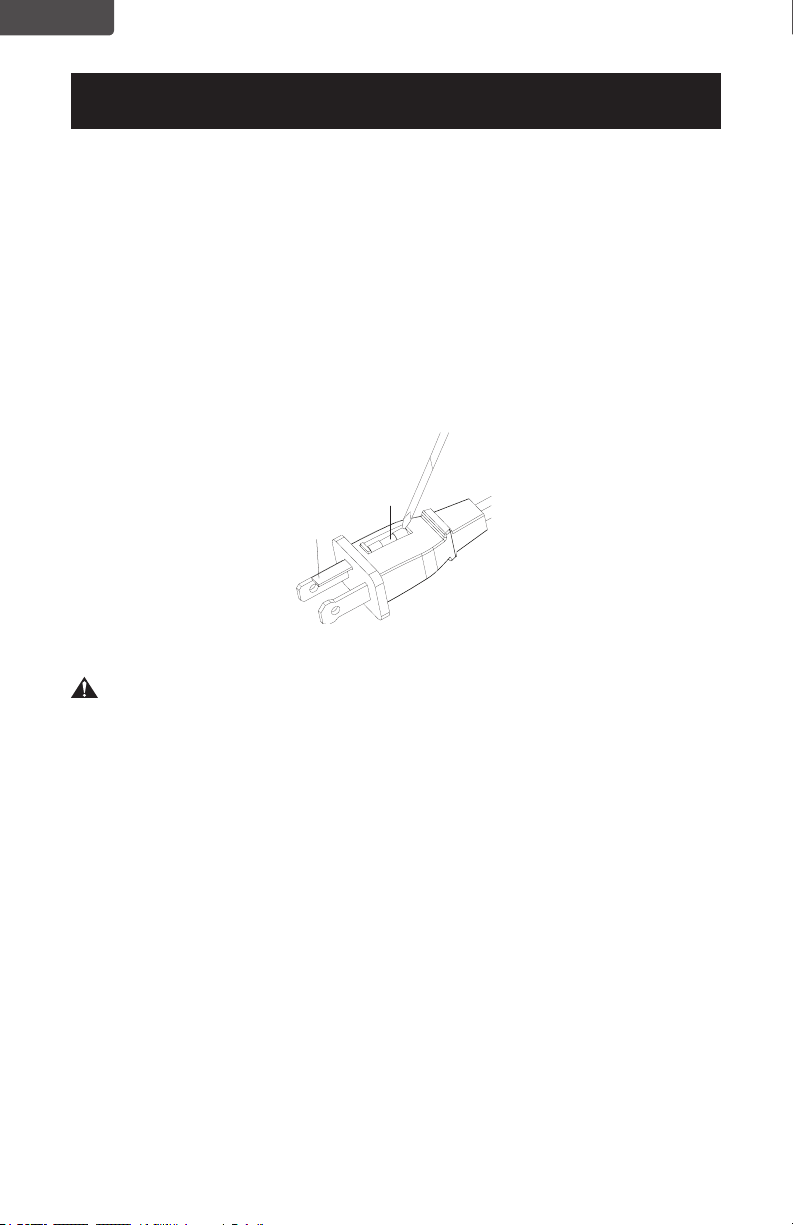

Replacing the Fuse................................................................................................................................................12
CLEANING & CARE..............................................................................................................................................12
TROUBLE SHOOTING & WARRANTY
Before You Call For Service...............................................................................................................................13
Customer Service...................................................................................................................................................13
Troubleshooting .....................................................................................................................................................13
Limited Warranty................................................................................................................................................................... 14
Page 3

Page 4
ENGLISH
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. READ ALL INSTRUCTIONS BEFORE USE
2. Never insert ngers, pencils, or any other object through the grill
when fan is running
3. Disconnect fan when moving from one location to another.
4. Disconnect fan when not in use and before cleaning.
5. To protect against risk of electrical shock, do not immerse fan in
water or any other liquid.
6. Do not let cord hang over edge of table or counter.
7. Be sure fan is on a stable surface when operating to avoid
overturning.
8. Do not use fan in window. Rain may create electrical hazard.
9. Close supervision is necessary when any appliance is used by or near
children.
10. This product employs overload protection (fuse). A blown fuse
indicates an overload or short-circuit situation. If the fuse blows,
unplug the product from the outlet. Replace the fuse as per the user
manual (follow product marking for proper fuse rating) and check
the product. If the replacement fuse blows, a short-circuit may be
present and the product should be discarded or returned to an
authorized service facility for examination and/or repair.
11. Do not operate any fan with a damaged cord or plug. Discard fan or
return to an authorized service facility for examination and/or repair.
12. Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Do not route cord under furniture or
appliances. Arrange cord away from trafc area and where it will not
be tripped over.
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
When using electrical appliances, basic safety precautions
should be followed, including the following

Page 5
ENGLISH
SAFETY INFORMATION
13. To reduce the risk of re or electric shock, DO NOT use this fan with
any solid state speed control devices.
14. Do not use outdoors.
15. Ensure that the fan is switched off from the supply mains before
removing the grille.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
ELECTRICAL REQUIREMENTS
This appliance has a polarized plug (one blade is wider than the other). To reduce the
risk of electric shock, this plug is intended to t into a polarized outlet only one way.
If the plug does not t into the outlet, reverse the plug. If it still does not t, contact a
qualied electrician. Do not attempt to modify the plug in any way.
POWER SUPPLY CORD
1. If the power supply cord is too short, do not use an extension cord. Have a qualied
electrician or serviceman to install an outlet near the appliance.
2. If it is absolutely necessary to use longer cord sets or an extension cord, extreme
care must be exercised.
a) The marked electrical rating of the cord set or extension cord must equal to or
be greater than the electrical rating of the appliance. The longer cord should be
arranged so that it will not drape over the counter top or table top where it can be
pulled on by children or tripped over unintentionally.
NOTE: Neither BLACK+DECKER nor the dealer can accept any liability for damage
to the product or personal injury resulting from failure to observe the
electrical connection procedures.

Page 6
ENGLISH
Page 6
SAFETY INFORMATION
HANDLING ALKALINE BATTERIES
1. Should uid from the battery accidentally get into your eyes, there is a threat
of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap
water and then consult a physician immediately.
2. Do not put the battery in a re, expose it to heat, dismantle or modify it. If the
insulation or safety valve is damaged, the battery may leak uid, overheat or
explode.
3. Do not insert the battery with the poles reversed. Doing so may cause some
abnormality or a short and the battery may leak uid, overheat or explode.
4. Keep the battery out of the reach of children. If the battery is swallowed, contact
a physician immediately.
5. If the alkali uid gets in your mouth, rinse your mouth with water and contact a
physician immediately.
6. If the alkali uid gets on your skin or clothes, it may burn your skin, thoroughly
rinse the affected area with tap water.
7. Do not mix new and old batteries or other makes of batteries. The different
attributes may cause the battery to leak uid, overheat or explode.
8. This battery was not made to be recharged. Recharging this battery may damage
the insulation or internal structure and may cause the battery to leak uid,
overheat or explode.
9. Do not damage or remove the label on the exterior of the battery. Doing so may
cause the battery to short, leak uid, overheat or explode.
10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause
the battery to leak uid, overheat or explode.
11. Do not alter the shape of the battery. If the insulation or safety valve is damaged,
the battery may leak uid, overheat or explode.
12. Immediately remove batteries when they have lost all power. Leaving the
batteries in the unit for a long time may cause the batteries to leak uid, overheat
or explode due to gas that is generated by the batteries.
Contact your local government for disposal practices in your area.
WARNING
When handling alkaline batteries, basic safety precautions
should be followed, including the following

Page 7
ENGLISH
Page 7
PARTS & FEATURES
SET UP & USE
Base
7-shape Bolt
Remote
Blade
Front grill Plastic nut Motor shaft
Oscillation Control Knob
Motorhousing
Rear grill
Head Unit
Thumb
screw
Internal
pole
Control
Panel
Tighten
Spinner
Loosen
Fasten
Height
adjustment
ring
Extension
pole
Remote
Control
Reciever

Page 8
ENGLISH
Page 8
SET UP & USE
ASSEMBLY OF BASE & COLUMN UNIT
1. Unscrew the 7-shape Bolt from the Extension Pole. (see Fig. 1)
2. Insert the extension pole in the base and tighten the 7-shape Bolt. (see Fig. 2)
3. From the extension pole, loosen the height adjustment ring and adjust the
internal pipe to the desired height.
NOTE: If you can’t nd the internal pole, it has slid inside the extension pole. You
will need to retrieve it by pulling it out from the extension pole ( see Fig. 3).
4. To attach the upper portion of the fan to the extension pole, loosen the thumb
screw slightly on the bottom of the head unit. Place the head unit on the extension
pole and tighten the thumb screw in alignment with the groove on the internal
pole. (see Fig. 4).
CAUTION: Height adjustment ring must be fully fastened before the assembly of
the motor housing to the extension pole.
Fig. 1 Fig. 2
Fig. 3 Fig. 4
Loosen
Mounting Hole
Thumb Screw
Annular Groove

Page 9
ENGLISH
Page 9
GRILL & FAN BLADE ASSEMBLY
WARNING: Never attempt to run the fan without the grill in place and properly
secured. Failure to have the grill in place can result in serious injury.
1. Unscrew the spinner clockwise and the plastic nut counterclockwise to remove
both of them. Fix the rear grill so it sits perfectly ush to the motor then tighten the
plastic nut clockwise. (see Fig. 5)
2. Insert the blade into shaft, and make sure the rotor shaft pin is tted into groove of
the blade. Turn the spinner counterclockwise to tighten the blade. (see Fig. 6)
3. Fasten the front grill and the rear grill to each other by using the grill clips.
(see Fig. 7)
Spinner
Tight
Loose
Plastic Nut
Spinner Tight
Blade Retaining
Pin
Slot
Clip
Fig. 5 Fig. 6 Fig. 7
SET UP & USE
REMOTE CONTROL BATTERY INSTALLATION
1. Press down on the battery compartment cover and slide it out.
2. Insert 2 “AAA” batteries (not included) making sure that the positive terminals are
facing the proper way.
3. Replace the cover.
NOTE: Use size “AAA” alkaline batteries. Do not use rechargeable batteries.
Remote Control
Battery Battery Cover
Fig. 10

Page 10
ENGLISH
SET UP & USE
OPERATION INSTRUCTIONS
REMOTE CONTROL (Fig. 8)
Point the remote control at the receiver on body of the fan and press the desired
button. The remote control will work at distances of up to roughly ve meters
(16 feet) and an angle of 30 degrees left and right of the control panel.
1. POWER KEY - The key is for switching the fan ON and OFF. Press and the fan
will be started at low speed. Press again, it will be switched off.
2. TIMER KEY - When this button is pressed the auto shut-off timer can be set up
to 7.5 hours. Continuing to press will allow you to scroll though the different time
selections of .5, 1, 2 & 4. indicated on the control panel by illuminated LED lights. If
no lights are illuminated the fan will run continuously.
3. FAN SPEED KEY - After the fan has started, this key serves as a speed selector
in the sequence order “LOW-MEDIUM-HIGH-LOW, etc” when this key is pushed
repeatedly or held down.
Page 10
Base
7-shape Bolt
Remote
Blade
Front grill Plastic nut Motor shaft
Oscillation Control Knob
Motorhousing
Rear grill
Head Unit
Thumb
screw
Internal
pole
Control
Panel
Tighten
Spinner
Loosen
Fasten
Height
adjustment
ring
Extension
pole
Remote
Control
Reciever
Fig. 8
Power
Timer
Fan Speed
