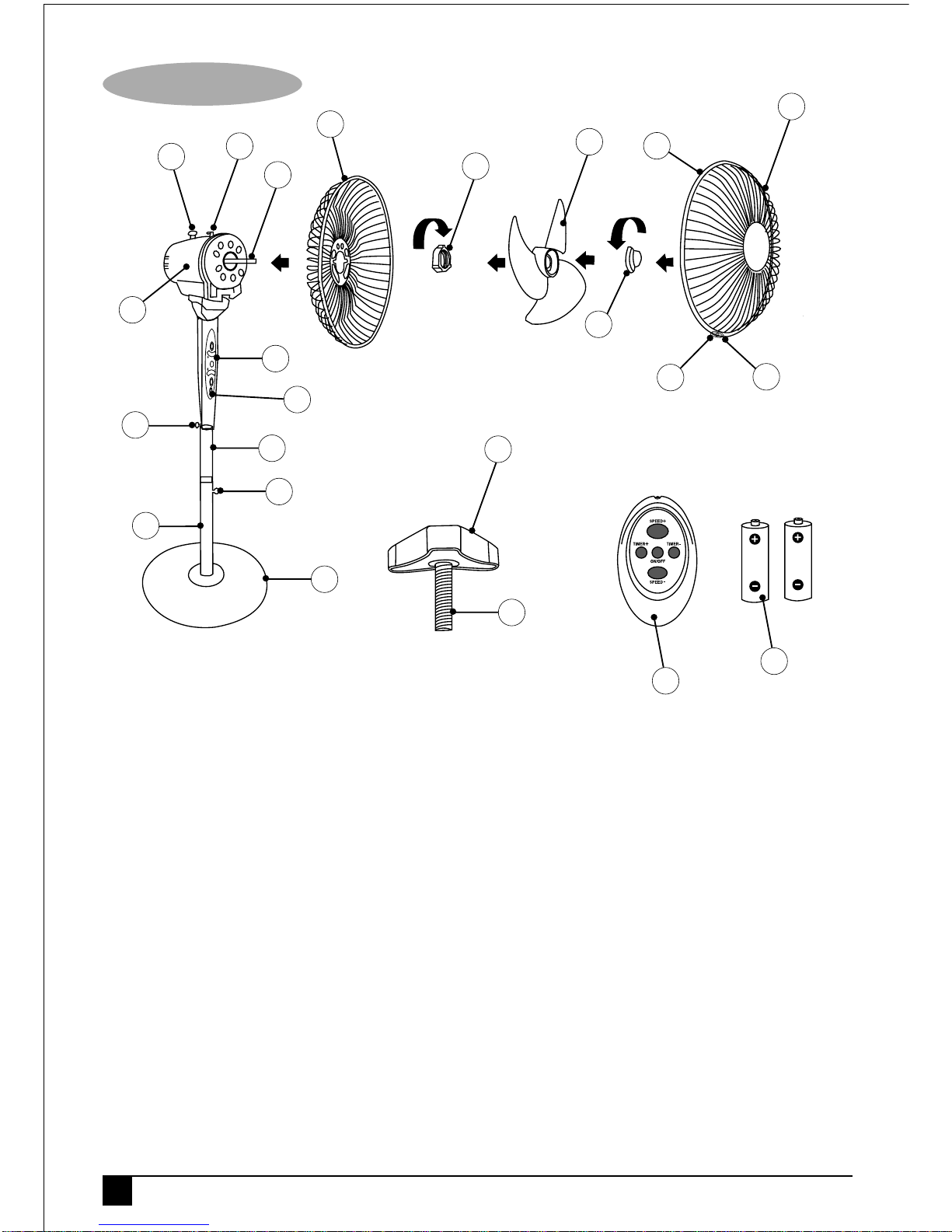

Parts Identification
1. Front guard
2. Locking screw
3. Guard securing clip
4. Guard ring
5. Blade cap
6. Fan blade
7. Guard lock nut
8. Rear guard
9. Motor shaft
10. Main unit
11. Oscillation control knob
12. Control panel
13. Securing screw
14. Switch housing
15. Adjusting tube
16. Tighten/ loosen screw
17. Support tube
18. Base plate
19 Screw
20. Base plate screw
21. Handle
22. Remote control
23. TwoAAAsizeAlkaline batteries

Intended use
Your Black & Decker fan has been designed for
indoor household use only. Remove all the parts
from the packaging material and keep them
aside . Ensure that you have all the parts as
identified in the part identification list else get in
touch with your nearest Black & Decker service
agent assistance.
Read this entire manual carefully
before using the appliance.
Safety instructions
•Warning! When using mains-powered
appliances, basic safety precautions,
including the following, should always be
followed to reduce the risk of fire, electric
shock and personal injury.
•The intended use is described in this manual.
The use of any accessory or attachment or
the performance of any operation with this
appliance other than those recommended in
this instruction manual may present a risk of
personal injury.
•Retain this manual for future reference.
Using your appliance
•Always take care when using the appliance.
•Do not use the appliance outdoors.
•Do not operate the appliance if your hands
are wet. Do not operate the appliance if you
are barefoot.
•Guide the power supply cord neatly so it
does not hang over the edge of a worktop
and cannot be caught accidentally or tripped
over.
•Never pull the power supply cord to
disconnect the plug from the socket. Keep the
power supply cord away from heat, oil and
sharp edges.
•If the power supply cord is damaged during
use, disconnect the appliance from the power
supply immediately. Do not touch the power
supply cord before disconnecting from the
power supply.
•Disconnect the appliance from the power
supply when not in use and before cleaning.
Safety of others
•This appliance is not intended for use by
persons (including children) with reduced
physical sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety.
•Children should be supervised to ensure that
they do not play with the appliance.
After use
•Switch off, remove the plug from the socket
and let the appliance cool down before
leaving it unattended and before changing,
cleaning or inspecting any parts of the
appliance.
•When not in use, the appliance should be
stored in a dry place. Children should not
have access to stored appliances.
3
ENGLISH

4
ENGLISH
Inspection and repairs
•Switch off the appliance before cleaning,
changing accessories or approaching parts
which move in use
•Before use, check the appliance for
damaged or defective parts. Check for
breakage of parts, damage to switches and
any other conditions that may affect its
operation.
•Do not use the appliance if any part is
damaged or defective.
•Have any damaged or defective parts
repaired or replaced by an authorised repair
agent.
•Before use, check the power supply cord for
signs of damage, ageing and wear.
•Do not use the appliance if the power supply
cord or mains plug is damaged or defective.
•If the power supply cord or mains plug is
damaged or defective it must be repaired by
an authorised repair agent in order to avoid a
hazard. Do not cut the power supply cord
and do not attempt to repair it yourself.
•Never attempt to remove or replace any
parts other than those specified in this
manual.
Electrical safety
Before use, check that the mains voltage
corresponds to the voltage on the rating plate.
This appliance is double insulated in
accordance with EN 60335-2-14;
therefore no earth wire is required.
•To avoid the risk of electric shock, do not
immerse the cord, plug or motor unit in water
or other liquid.
•Check that the supply voltage shown on the
rating plate of the appliance matches that of
your electrical system.Any connection error
will invalidate the guarantee.
Mains Plug Replacement
If a new mains plug needs to be fitted:
•Safely dispose of the old plug.
•Connect the brown lead to the live terminal of
the new plug.
•Connect the blue lead to the neutral terminal.
•If the product is class l (earthed), connect the
green / yellow lead to the earth terminal.
Warning! If your product is class ll double
insulated (only 2 wires in the cord set), no
connection is to be made to the earth terminal.
Follow the fitting instructions supplied with good
quality plugs
Any replacement fuse must be of the same rating
as the original fuse supplied with the product.
•If the supply cord is damaged, it must be
replaced by the manufacturer or an
authorised Black & Decker Service Centre in
order to avoid a hazard.
•Allow the appliance to cool before fitting or
removing any parts and before cleaning.
•Do not immerse the appliance in liquid.
Fitting andAssembling
Make sure your fan is switched off before
connecting to or disconnecting from power
supply. Ensure that the voltage rating on the
base plate corresponds to the main voltage at
your home.

5
ENGLISH
Assembling of base and stand
1. Rotate the screw in the anti-clockwise
direction and remove it from the support
tube.
2. Place the support tube onto the base and
then tighten the screw in the clockwise
direction.
3. To assemble the main unit, release a few
inches of the adjustable tube by operating
the screw.
4. Fit the main unit on the adjustable tube and
secure it in place by tightening the screw.
Assembly of the fan
1. To install the rear guard,
remove the blade cap and
guard nut from the motor
shaft. Then attach the rear
guard by positioning it on
the location pins on the
main unit. Secure the guard on to the motor
body by fastening the guard nut, turning it
clockwise until the guard is locked into
position.
2. Mount the fan blade onto the motor shaft.
Fasten the blade cap by rotating it in the
anti-clockwise direction until the blade is
fixed firmly into place.
3. Open the securing clip at the bottom of the
front guard and loosen the clip screw.
Position the top clip on the uppermost part of
the rear guard. Push the top clip down and
press rim of the front guard onto the rear
guard. Close the bottom clip and tighten the
screw.
Operations
Your Fan has three speed control to keep the
desired air flow through your room
0 - Off
1 - Low
2 - Medium
3 - High
You can press the oscillating control knob down
to make the fan oscillate to position the fan in
specific direction pull the knob up.
Motor Rear guard Fan blade Front guard
Finish
3
2
1
0

6
ENGLISH

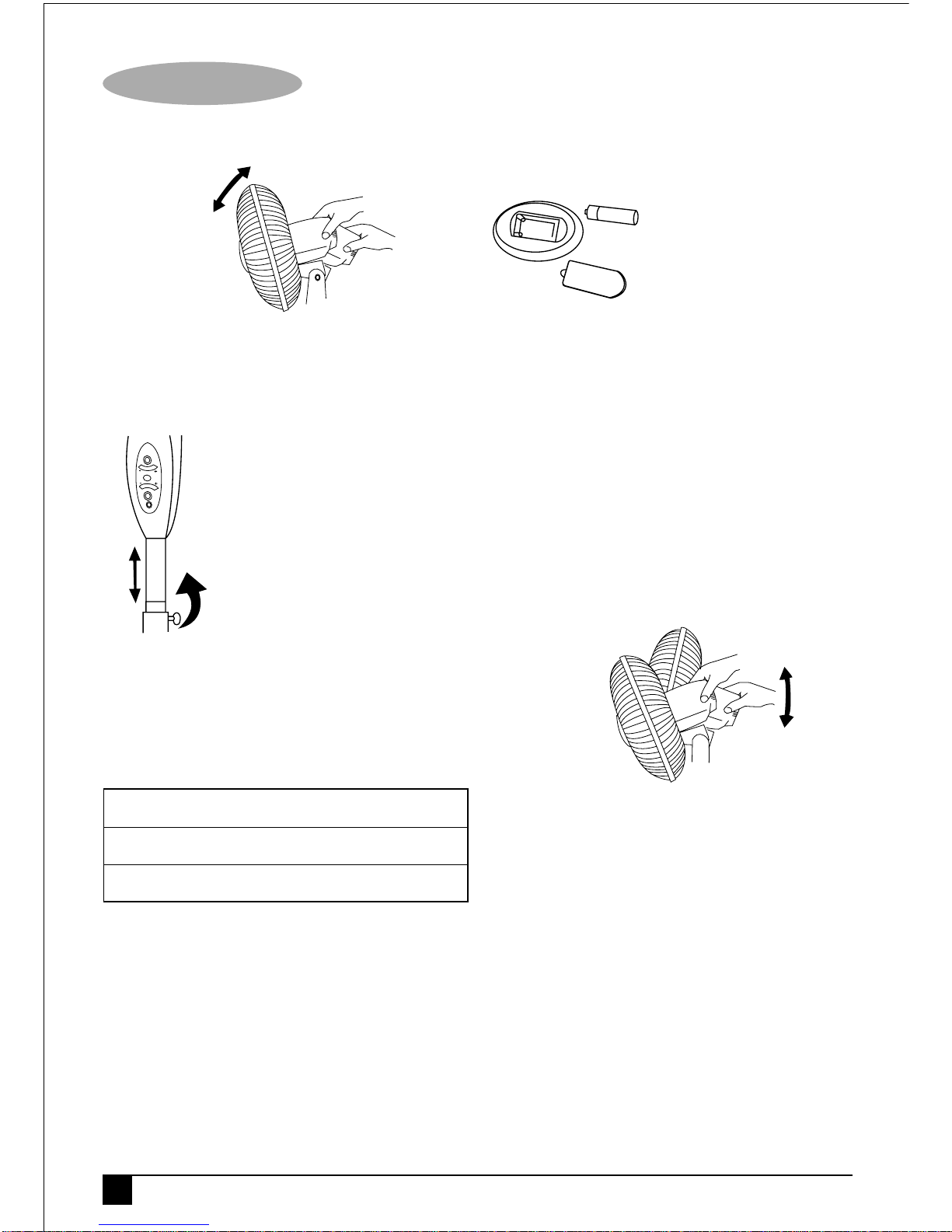

The Fan guard can also be positioned vertically
depending upon the direction of flow desired.
For this switch OFF the fan first, let the fan
come to halt, then with one hand hold the stand
and with the other hand, move the guard
assembly up or down depending upon the
desired angle required. To make the fan
oscillate pin down. To make it stop oscillation,
pull it up.

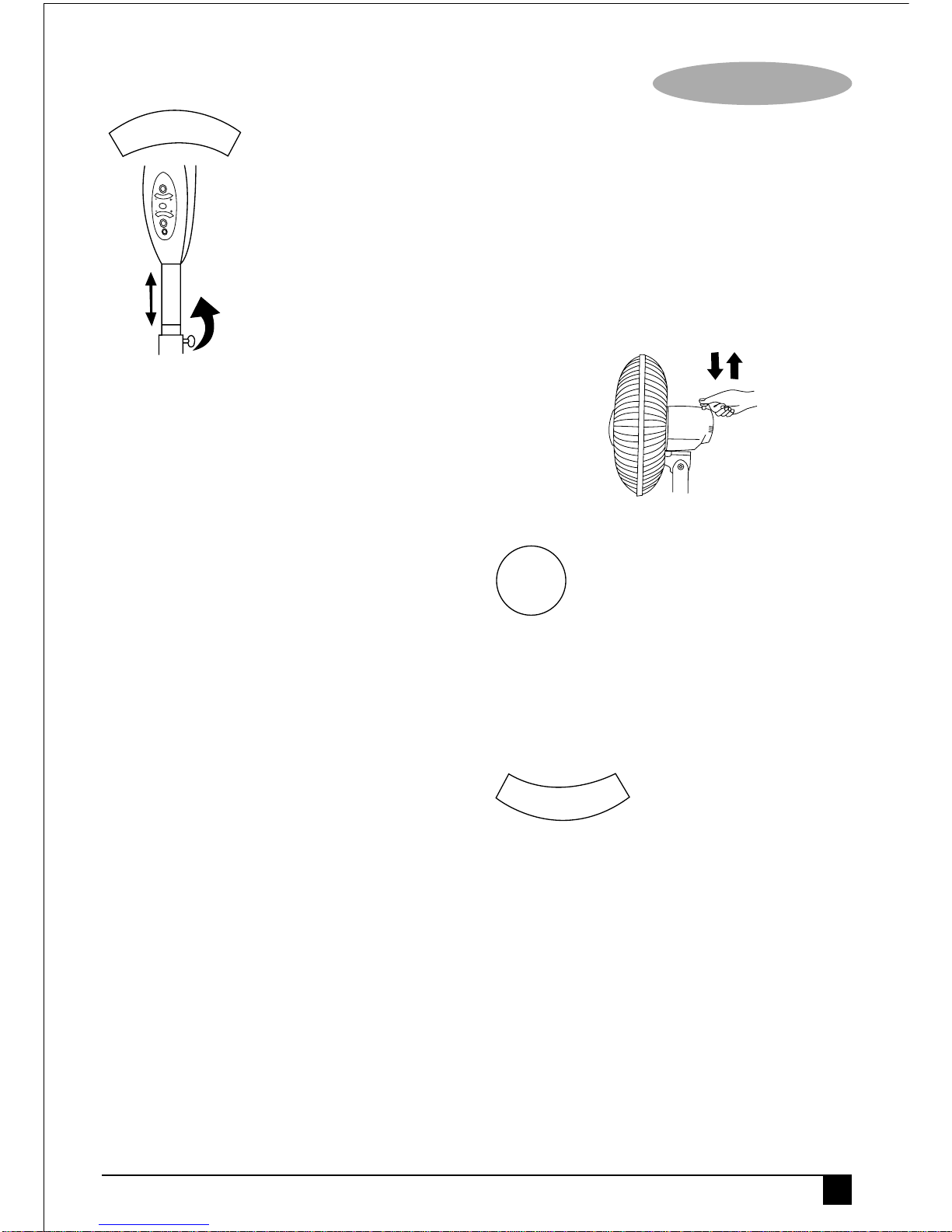

ON/OFF button
Your fan can be controlled by pushing
the buttons, which can be set on the
Control panel or on the Remote
Control.
Press the On/Off button once to operate the fan
and once again to make the fan stop running.
Speed button
Your Fan has a speed control
button to keep the desired air
flow through your room. The
speed of the fan can be adjusted by pressing
the button. The speed will be displayed on the
LCD. To increase the speed press the ” + “
button continually until it reaches the maximum
of 4.To decrease the speed press the “ _ ”
button continually until the running speed
reaches the minimum of 1. The can be operated
by remote control as well fan.
Timer
The timer can be used to set the running time of
the fan, which can vary from 1 to 8 hrs. The
number of times the timer button is pressed will
set the running time which
will be displayed on the LCD.
For example: If the timer is
pressed once, the operating
time will be set at 1hr and if
the timer is pressed 4 times,
the operating time will be set
at 4 hours. The can be
operated by remote control
as well fan.
The Fan guard can also be positioned vertically
depending upon the direction of flow desired.
For this switch OFF the fan first, let the fan come
to a halt, then with one hand hold the stand and
with the other hand, move the guard assembly
up or down depending upon the desired angle
required.
To make the fan oscillate, press the oscillation
pin down. To make it stop oscillation, pull it up.
Remote control
Please inset 2’AAA’size batteries into the
remote as per making in the remote cavity.
Always face the LED on your remote towards
the fan when you are operating the fan with
remote.
To increase the speed, press the increase speed
button once with every press of button the speed
increases by onestep.Your fan is a four speed
fan.To run the fan at maxmimum speed , press
the “speed+” button four times. In similar
fashion, to reduce speed press the “speed_”
button.
Your remote also has timer control functions.As
explained under “Times” functioning, the “time+”
& ”time_” buttons can be operated to set the
running time of fan.
The On/Off button operates and switches off the
fan from your remote.
ON/OFF
-
+TIMER
-
+SPEED

7
ENGLISH

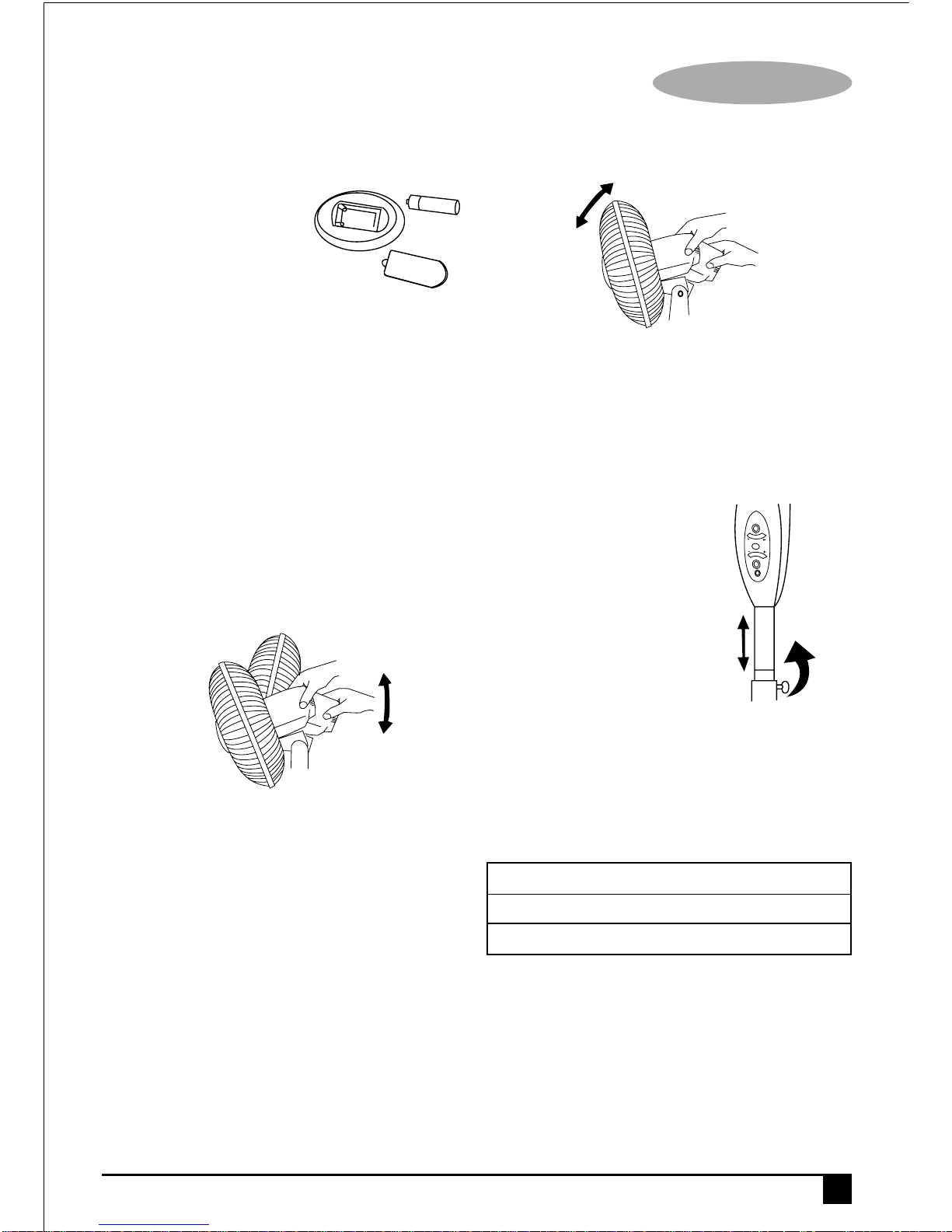

Replacing battery
With normal use, the
batteries should last for
about six months, when the
remote no longer operates
the fan, replace the
batteries with new ones.
Always check your batteries inside the remote
periodically to check for corrosion or leakage.
Warning !
•Never use the fan without the guard in place
or if the guard is damaged.
•Do not touch moving parts
•Always allow motor to stop before
approaching the blades or changing an
accessory.
•Keep your fingers, long hair, loose clothes
and supply cord away from moving parts.
•Never pull the power cord to disconnect the
plug from the socket.
•Keep the power supply cord away from
heat, oil and sharp edges.
•Do not place the appliance on or near heat
source or in a heated oven
•Do not use the appliance outdoors.Always
protect the motor unit from water or
excessive humidity
•Operate the appliance only with dry hands.
•If the power supply cord is damaged during
use, disconnect the appliance from the
power supply immediately . Do not touch the
power supply cord before disconnecting
from the power supply.
•When not in use, the
appliance should be
stored in a dry place.
Children should not
have access to stored
appliance.
•Do not cover the rear
housing of the fan with
any cloth or curtain.
•Do not operate this unit in tropical climate or
in areas where the temperature exceeds
40ºC.
Technical Data
Voltage 220 – 240V ~ 50Hz
Power input 60W
Weight 8.75kg

Guarantee
Black & Decker is confident of the quality of its
products and offers an outstanding guarantee.
This guarantee statement is in addition to and in
no way prejudices your statutory rights.
The guarantee is valid within the territories of the
Member States of the European Union and the
European Free TradeArea.
If a Black & Decker product becomes defective
due to faulty materials, workmanship or lack of
conformity, within 24 months from the date of
purchase, Black & Decker guarantees to replace
defective parts, repair products subjected to fair
wear and tear or replace such products to ensure
minimum inconvenience to the customer unless:
The product has been used for trade,
professional or hire purposes;
The product has been subjected to misuse
or neglect;
The product has sustained damage
through foreign objects, substances or
accidents;
Repairs have been attempted by persons
other than authorised repair agents or
Black & Decker service staff.
To claim on the guarantee, you will need to
submit proof of purchase to the seller or an
authorised repair agent. You can check the
location of your nearest authorised repair agent
by contacting your local Black & Decker office at
the address indicated in this manual.
Alternatively, a list of authorised Black & Decker
repair agents and full details of our after-sales
service and contacts are available on the Internet
at: www.2helpU.com.
Protecting the environment
Separate collection. This product must not
be disposed of with normal household
waste.
Should you find one day that your Black &
Decker product needs replacement, or if it is of
no further use to you, do not dispose of it with
other household waste. Make this product
available for separate collection.
•Black & Decker provides a facility for
recycling Black & Decker products once they
have reached the end of their working life.
This service is provided free of charge. To
take advantage of this service please return
your product to any authorised repair agent
who will collect them on our behalf.
•You can check the location of your nearest
authorised repair agent by contacting your
local Black & Decker office at the address
indicated in this manual.Alternatively, a list of
authorized Black & Decker repair agents and
full details of our after-sales service and
contact are available on the Internet at:
www.2helpU.com.
8
ENGLISH

9
ARABIC
17
13
10
11
84
3
5
2
20
22 23
15
14
12
16
18
21
976
1
19
AGõLC’ÉH ∞jô©àdG
á«eÉeC’G á«bGƒdG áµÑ°ûdG .1
∫ÉØbE’G »ZôH .2
á«bGƒdG áµÑ°ûdG ¿ÉeCG ∂Ñ°ûe .3
á«bGƒdG áµÑ°ûdG á≤∏M .4
áMhôŸG ¢ûjQ AÉ£Z .5
áMhôŸG ¢ûjQ .6
á«bGƒdG áµÑ°ûdG â«ÑãJ ádƒeÉ°U .7
á«Ø∏ÿG á«bGƒdG áµÑ°ûdG .8
∑ôëŸG OƒªY .9
á«°ù«FôdG IóMƒdG .10
ácô◊G ‘ ºµëàdG ´GQP .11
ºµëàdG áMƒd .12
¿ÉeC’G »ZôH .13
ìÉàØŸG â«Ñe .14
§Ñ°†dG ´GQP .15
∂ØdG /§HôdG »ZôH .16
ºYódG ´GQP .17
IóYÉ≤dG áMƒd .18
»ZôH .19
IóYÉ≤dG áMƒd »ZôH .20
¢†Ñ≤e .21
ó©H øY ºµëàdG RÉ¡L .22
AAA ¢SÉ≤e ¿ÉàaÉL ¿ÉàjQÉ£H .23

10
ARABIC
ΩGóîà°S’G ¢VôZ
ºb .§≤a ‹õæŸG ΩGóîà°SÓd ôµjO ófBG ∑ÓH áMhôe ⪪ o °U
.kÉÑfÉL É¡©°Vh ∞«∏¨àdG OGƒe øe AGõLC’G ™«ªL êGôNEÉH
áªFÉb ‘ IOóëŸG AGõLC’G ™«ªL OƒLh øe ócCÉJh
≈Lôj ,™£b …CG ¢ü≤f ádÉM ‘h ,AGõLC’ÉH ∞jô©àdG
ôµjO ófBG ∑ÓÑd ™HÉJ áeóN π«ch ÜôbCÉH ∫É°üJ’G
.IóYÉ°ùŸG ≈∏Y ∫ƒ°üë∏d
ΩGóîà°SG πÑb ájÉæ©H π«dódG Gòg IAGôb »¨Ñæj
.áMhôŸG
áeÓ°ùdG äɪ«∏©J
QÉ«àdG Qó°üà á∏°üàŸG Iõ¡LC’G ΩGóîà°SG óæY !ôjò– •
áeÓ°ùdG äÉWÉ«àMG IÉYGôe kɪFGO Ú©àj ,»°ù«FôdG
√ÉfOCG IQƒcòŸG äÉWÉ«àM’G ∂dP ‘ Éà ᫰SÉ°SC’G
áeó°üd ¢Vô©àdGh ≥jô◊G ´’ófG ôWÉfl øe óë∏d
.á«°üî°T äÉHÉ°UE’Gh á«FÉHô¡c
áMhôŸG √òg ΩGóîà°SG øe ¢Vô¨dG π«dódG Gòg Oóëj
•
á≤aôe äGóMh hCG äÉ≤ë∏e ájCG ΩGóîà°SG ¿CG IÉYGôe ™e
∂∏J ÒZ áMhôŸG √òg ΩGóîà°SÉH á«∏ªY ájCG ò«ØæJ hCG
IQƒ£N ≈∏Y …ƒ£æJ ób π«dódG Gòg ‘ É¡H ≈°UƒŸG
.á«fóH áHÉ°UE’ ¢Vô©àdG
.kÓÑ≤à°ùe ¬«dEG ´ƒLô∏d π«dódG Gò¡H ®ÉØàM’G ≈Lôj
•
áMhôŸG ΩGóîà°SG
.áMhôŸG ΩGóîà°SG óæY kɪFGO Qò◊G ñƒJ •
.∫õæŸG êQÉN áMhôŸG Ωóîà°ùJ ’ •
¿ƒµJ ÉeóæY ’h ,Úà∏àÑe ∑Gójh áMhôŸG π¨°ûJ ’ •
.Úeó≤dG ‘ÉM
¥ƒa ≥∏©àj ’ å«ëH ábóH »FÉHô¡µdG QÉ«àdG ∂∏°S OôaG
•
hCG Ì©àdG ºàj ’ å«ëHh Ió°†æŸG hCG πª©dG í£°S ±GƒM
.ICÉéa ¬H πbô©àdG
π°üØd »FÉHô¡µdG QÉ«àdG ∂∏°S ó°T kÉ≤∏£e ∫hÉ– ’
•
»FÉHô¡µdG QÉ«àdG ∂∏°ùH ßØàMG .¢ùÑ≤ŸG øY ¢ùHÉ≤dG
.IOÉ◊G ±Gƒ◊Gh âjõdGh IQGô◊G øY kGó«©H
,ΩGóîà°S’G AÉæKCG »FÉHô¡µdG QÉ«àdG ∂∏°S ∞∏J ádÉM ‘
•
.»FÉHô¡µdG QÉ«àdG Qó°üe øY QƒØdG ≈∏Y áMhôŸG π°üaG
¬∏°üa πÑb »FÉHô¡µdG QÉ«àdG ∂∏°S ¢ùŸ ÖæŒ »¨Ñæjh
.»FÉHô¡µdG QÉ«àdG Qó°üe øY
ΩóY AÉæKCG »FÉHô¡µdG QÉ«àdG Qó°üe øY RÉ¡÷G π°üaG
•
.∞«¶æàdG πÑbh ΩGóîà°S’G
øjôNB’G áeÓ°S
hhP ¢UÉî°TC’G É¡eóîà°ù«d ᪪°üe ÒZ áMhôŸG √òg •
IÈÿG hCG IOhóëŸG á«∏≤©dG hCG á«°ù◊G ájó°ù÷G äGQó≤dG
πX ‘ ’EG (∫ÉØWC’G ∂dP ‘ ÉÃ) Úà∏«∏≤dG áaô©ŸGh
á≤∏©àŸG äɪ«∏©àdG º¡FÉ£YEG hCG º¡«∏Y ±GöTE’G
øY ∫hDƒ°ùŸG ¢üî°ûdG πÑb øe áMhôŸG ΩGóîà°SÉH
.º¡àeÓ°S
º¡ãÑY ΩóY ¿Éª°†d ∫ÉØWC’G ≈∏Y ±GöTE’G Ωõ∏j
•
.áMhôŸÉH
ΩGóîà°S’G ó©H
¢ùÑ≤ŸG øe ¢ùHÉ≤dG ´õfGh áMhôŸG 𫨰ûJ ±É≤jEÉH ºb •
πÑbh áÑbGôe ¿hO É¡côJ πÑb OÈJ ≈àM áMhôŸG ∑ôJGh
.É¡°üëa hCG É¡Ø«¶æJ hCG É¡FGõLCG øe …CG Ò«¨J
‘ É¡æjõîJ Öéj ,áMhôŸG ΩGóîà°SG ΩóY ádÉM ‘ •
¤EG ∫ƒ°UƒdÉH ∫ÉØWCÓd ìɪ°ùdG ΩóY Öéjh .±ÉL ¿Éµe
.áfõîŸG Iõ¡LC’G
