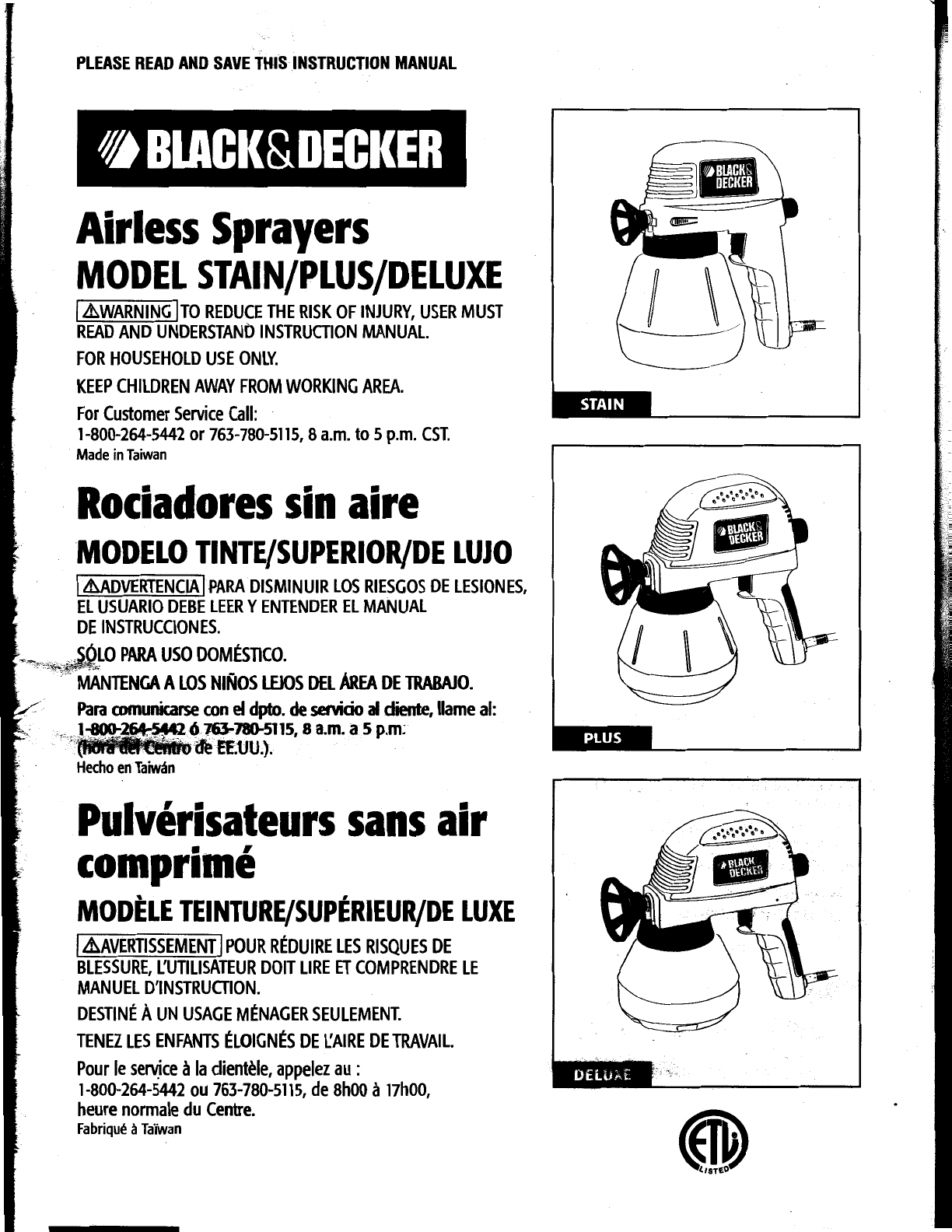

Black & Decker STAIN User manual

PLEASE READ AND SAVE THIS INSTRUCTION MANUAL
e BLACK&DECKER
Airless Sprayers
MODEL STAIN/PLUS/DELUXE
I ~WARNING ITO REDUCE THE RISK OF INJURY, USER MUST
READ AND UNDERSTAND INSTRUGION MANUAL.
FOR HOUSEHOlD USE ONlY.
KEEP CHilDREN AWAY FROM WORKING AREA.
For Customer Service Call:
1-800-264-5442 or 763-780-5115, 8 a.m. to 5 p.m. CST.
Made in Taiwan
Rociadores sin aire
MODELO TINTE/SUPERIOR/DE LUJO
I ~DVERTENCIA I PARA DISMINUIR lOS RIESGOS DE lESIONES,
El USUARIO DEBE lEER Y ENTENDER El MANUAl
DE INSTRUCCIONES.
~-...,,.~~~~, ....... PARA USO DOMESTICO.
- . MANTENGA A LOS NINOS LEJOS DEL AREA DE TRABAJO.
Para comunicarse con el dpto. de senricio al diente, llame al:
,C.-J :264:§f42o 763-780-5115,8 a.m. a5 p.m;
'·· - - -··c, ire !E.UU.).
Hecho en Taiwan
Pulverisateurs sans air
. ,
compr1me
MODELE TEINTURE/SUPERIEUR/DE LUXE
I ~AVERTISSEMENT I POUR REDUIRE lES RISQUES DE
BlESSURE, L:'UTIUSATEUR DOlT liRE ET COMPRENDRE lE
MANUEl D'INSTRUGION.
DESTINE A UN USAGE MENAGER SEUlEMENT.
TENEZ lES ENFANTS ELOIGNES DE l'AIRE DE TRAVAIL
Pour le servjce a Ia clientele, appelez au :
1-800-264-5442 ou 763-780-5115, de ShOO a 17hOO,
heure normale du Centre.
Fabrique a Taiwan
Z!!!Z.l&i!!-
STAIN
PLUS
DHl.l;,.E

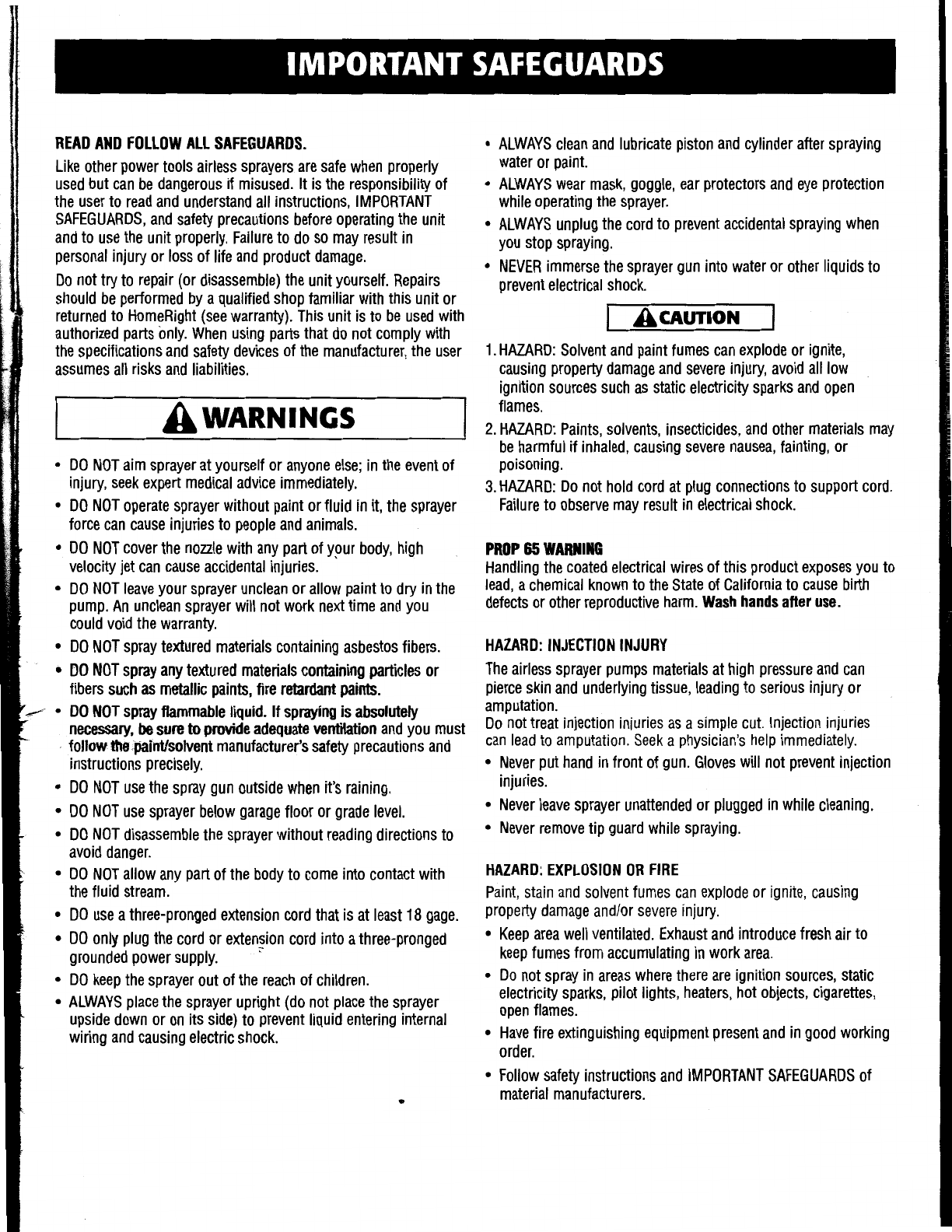

IMPORTANT SAFEGUARDS
READ AND FOLLOW All SAFEGUARDS.
Like other power tools airless sprayers are safe when properly
used but can be dangerous if misused. It is the responsibility of
the user to read and understand all instructions, IMPORTANT
SAFEGUARDS, and safety precautions before operating the unit
and to use the unit properly. Failure to do so may result in
personal injury or loss of life and product damage.
Do not try to repair (or disassemble) the unit yourself. Repairs
should be performed by a qualified shop familiar with this unit or
returned to HomeRight (see warranty). This unit is to be used with
authorized parts only. When using parts that do not comply with
the specifications and safety devices of the manufacturer, the user
assumes all risks and liabilities.
A WARNINGS
• DO NOT aim sprayer at yourself or anyone else; in the event of
injury, seek expert medical advice immediately.
• DO NOT operate sprayer without paint or fluid in it, the sprayer
force can cause injuries to people and animals.
• DO NOT cover the nozzle with any part of your body, high
velocity jet can cause accidental injuries. ·
•
DO NOT leave your sprayer unclean or allow paint to dry in the
pump. An unclean sprayer will not work next time and you
could void the warranty.
• DO NOT spray textured materials containing asbestos fibers.
• DO NOT spray any textured materials containing particles or
fibers such as metallic paints, fire retardant paints.
• DO NOT spray flammable liquid. If spraying is absolutely
necessary, be sure to provide adequate ventilation and you must
follow the paint/solvent manufacturer's safety precautions and
instructions precisely.
• DO NOT use the spray gun outside when it's raining.
• DO NOT use sprayer below garage floor or grade level.
• DO NOT disassemble the sprayer without reading directions to
avoid danger.
• DO NOT allow any part of the body to come into contact with
the fluid stream.
• DO use a three-pronged extension cord that is at least 18 gage.
• DO only plug the cord or extension cord into a three-pronged
grounded power supply. '"
• DO keep the sprayer out of the reach of children.
• ALWAYS place the sprayer upright (do not place the sprayer
upside down or on its side) to prevent liquid entering internal
wiring and causing electric shock.
• ALWAYS clean and lubricate piston and cylinder after spraying
water or paint.
• ALWAYS wear mask, goggle, ear protectors and eye protection
while operating the sprayer.
• ALWAYS unplug the cord to prevent accidental spraying when
you stop spraying.
• NEVER immerse the sprayer gun into water or other liquids to
prevent electrical shock.
A CAUTION
1. HAZARD: Solvent and paint fumes can explode or ignite,
causing property damage and severe injury, avoid all low
ignition sources such as static electricity sparks and open
flames.
2. HAZARD: Paints, solvents, insecticides, and other materials may
be harmful if inhaled, causing severe nausea, fainting, or
poisoning.
3. HAZARD: Do not hold cord at plug connections to support cord.
Failure to observe may result in electrical shock.
PROP 65 WARNING
Handling the coated electrical wires of this product exposes you to
lead, a chemical known to the State of California to cause birth
defects or other reproductive harm. Wash hands after use.
HAZARD: INJECTION INJURY
The airless sprayer pumps materials at high pressure and can
pierce skin and underlying tissue, leading to serious injury or
amputation.
Do not treat injection injuries as a simple cut. Injection injuries
can lead to amputation. Seek a physician's help immediately.
• Never put hand in front of gun. Gloves will not prevent injection
injuries.
• Never leave sprayer unattended or plugged in while cleaning.
• Never remove tip guard while spraying.
HAZARD: EXPLOSION OR FIRE
Paint, stain and solvent fumes can explode or ignite, causing
property damage and/or severe injury.
• Keep area well ventilated. Exhaust and introduce fresh air to
keep fumes from accumulating in work area.
• Do not spray in areas where there are ignition sources, static
electricity sparks, pilot lights, heaters, hot objects, cigarettes,
open flames.
• Have fire extinguishing equipment present and in good working
order.
• Follow safety instructions and IMPORTANT SAFEGUARDS of
material manufacturers.

r .
IMPORTANT SAFEGUARDS
HAZARD; HAZARDOUS VAPORS
Paint, stain and solvents, insecticides, varnishes, and other
materials may be harmful if inhaled, causing severe nausea,
fainting, or poisoning.
• Use a mask or respirator when spraying when there is a chance
of inhaling vapors.
• Use protective eyewear.
GROUNDING INSTRUCTIONS
The product must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electrical shock by providing
an escape wire for the electric current. This product is equipped
with a cord having a grounding wire with an appropriate
grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with
all local codes and ordinances.
A WARNING
DANGER- Improper use of the grounding plug can result in a risk
of electric shock.
If repair or replacement of the cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal. The
grounding wire has green insulation, with or without yellow
stripes.
Check with a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if in doubt as to
whether the product is properly grounded. Do not modify the plug
provided; if it will not fit the outlet, have the proper outlet installed
by a qualified electrician.
This product is for use on a nominal120 volt circuit and has a
grounding plug that looks like the plug illustrated in Figure A.
Make sure the product is connected to an outlet having the same
configuration as the plug. A temporary adapter which looks like
the adapter illustrated in Figures B& C, may be used to connect
the plug to a 2-pole receptacle as shown in Figure Bif a properly
grounded outlet is not available. The temporary adapter should
only be used until a properly grounded outlet (Figure A) can be
installed by a qualified electrician. The green colored rigid ear lug
or the like extending from the adapter must be connected to
a permanent ground such as a properly grounded outlet box
cover. Whenever the adapter is used, it must be held in place by
a metal screw.
EXTENSION CORDS
Use only a three-pronged extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will accept the plug on
the product. Make sure your extension cord is UUETUCSA listed
and is in good condition. When using an extension cord, be sure
to use one heavy enough for the current - for lengths less than
18 feet use a No. 18 AWG. or heavier, for more than 18 feet use
No. 16 AWG. If in doubt use a heavier gauge. An undersized cord
will cause a drop in line voltage resulting in loss of power and
overheating.
STORAGE
Make sure unit is clean and dry before storing. Store in a dry
location. The electrical cord should not be crimped during storage
to prevent damage.
GROUNDED OUTLET ADAPTER
(B)
'GROUNDED,
OUTtETBOX
Grounding Method
Attention: The temporary adapter shown in sketch B and C is not for use in
Canada. Use only a grounded outlet with this unit.

FAST START QUICK REFERENCE GUIDE
This is only a quick reference for the Black & Decker MODEL STAIN/PLUS/DELUXE Sprayers.
Read the entire model how-to use prior to product use.
Spraying lnstrudions
SKIN INJECTION HAZARD
RISK OF EXPLOSION OR FIRE
HAZARDOUS VAPORS
Read all warnings and safety
instructions in the owner's manual
before use.
Thin material as necessary. Remove Attach pick-up tube to sprayer.
and fill container with material. Use
a filter to strain material if it is old.
•
~
£== ..........
Set flow to high power.
Plug sprayer into outlet.
Cleaning Instructions
£ See warnings in manual
Unplug sprayer; remove container Fill sprayer with cleaning solution
and empty contents. and trigger until solution comes
through nozzle.
£ INJECTION HAZARD
Adjust spray pattern by turning
knob.
Remove parts, clean and dry
thoroughly.
Attach container to sprayer.
Lh HAZARDOUS VAPORS
Spray surface keeping sprayer
level and 1 0"-12" from surface.
Use a sweeping and overlapping
motion.
Lubricate sprayer before storing.

MODEL DELUXE HOW TO USE
Model DELUXE Parts List
Item Part No. Description Qty.
1 C816694 Spray Tip, 0.6mm (Stain) 1
2
C816713 Atomizer Valve 3
3
C816698 Cylinder Housing 1
4
C816550 Piston Spring 1
5
C816551 Piston 1
6
Electric Drive Unit 1
7
Housing 1
8
Armature 1
9
Plate Spring 1
10 Volume Control Nut 1
11 Spring 1
12 C816723 Volume Control Knob 1
13 C816552 Pick-Up Tube 1
14 C816559 Container -1.5 qt 1
15 Switch 1
16 Cord 1
17 C816737 Petroleum Oil 1
18 C816695 Cylinder Locking Knob 1
19 C816545 Cleaning Brush 1
20 C816557 Flexible Extension 1
21 C816558 Suction Tube and Clamp 1
22 C816697 Spray Tip, Ceramic, 0.8mm (Paint) 1
C805917 Powerhead {Complete Unit) 1
If you cannot obtain parts and accessories at your local retail
dealer, then call or write: HomeRight, 1661 94th Lane N.E.,
Minneapolis, Minnesota 55449-4324, Phone [phone] or
1-800-264-5442, 8:00a.m. to 5:00p.m. CST.
22 2 3 4 5 6 7
17
I
13--
14-cm
8 9 10
11
12
1,-j
- -IQ1---N-- .Ui\\l\\6
1
I
~

MODEL DELUXE HOW TO USE
MODEL DELUXE PRACTICE FIRST
Practice spraying water on newspaper or cardboard. This will give you the feel of the
MODEL DELUXE Sprayer and all of its features. Follow the instructions for adjusting to the
proper spray pattern.
1. Check the following: See Figure A.
• Spray Tip is screwed on tightly.
• Remove Container from Cylinder Housing.
• Pick-Up Tube inserted tightly into the long port of the Cylinder Housing port located in
the Cylinder Housing.
2. Fill Container with water, refasten Container to Cylinder Housing.
3. Plug in MODEL DELUXE.
4. Press Switch. Allow a few seconds for the MODEL DELUXE to spray water.
5. As you spray, notice the difference in spray volume and spray pattern while adjusting
the Volume Control Knob. Adjust the Volume Control Knob until you get the best
possible spray pattern.
NOTE: The best distance for spraying is 1 0" -12". Too far away may cause excessive
over spraying and too close may cause excessive stain build-up. See Figure B.
6. Keep a stiff wrist. Do not arch your wrist at the beginning or the end of the stroke. Do
not stop the motion of the unit while spraying. The path of the MODEL DELUXE must
pass beyond the area being stained and the Switch must be triggered on and off as the
MODEL DELUXE passes into and out of the spraying area. See Figure C.
NOTE: Stopping the motion of the MODEL DELUXE or swinging into a new stroke
pattern while water is being delivered will result in heavy water build-up at the edges of
the stroke.
MODEL DELUXE THINNING MATERIALS
In order for your MODEL DELUXE Sprayer to operate properly it is important to make sure
the stain or paint material is thin enough to be sprayed. Thinning should be followed per
the stain or paint manufacturer's guidelines. Because materials differ from brand to brand,
this guide can only be a place to start. The final guide to correctly thinned stain or paint is
achieving the proper spray pattern shown in Figure D. Always follow the coverage rate
recommended by the manufacturer regardless of the thinning required. Because there is
a variance in viscosity between paint and stain brands, it might be necessary to thin
5 to 15 percent to achieve optimum spray pattern.
MODEL DELUXE Spray Tip
Choose the corr,ect Spray Tip for the material you are using. When using thin materials
(stains and sealers) use the smaller sized Spray Tip®. For latex paints and other heavy-
bodied materials use the Ceramic Spray Tip @. The numbers are located in the center of
the nozzle. In order for the MODEL DELUXE to work properly, make sure the Spray Tip
you use is cleaned and not plugged.
NOTES:
• Use the correct Spray Tip for the material being used.
• Be sure Pick-Up Tube is tightly inserted in correct intake port.
• Thin material to proper viscosity, per manufacturer's requirements.
• Before each use, check Spray Tip and Atomizer Valve for wear.
• Always clean and oil sprayer thoroughly after each use.
• When a low humming sound is heard, immediately stop pressing on the trigger, see
MODEL STAIN/PLUS/DELUXE TROUBLESHOOTING.
• Old stain or paint should be strained before using.
• Stir stain or paint slowly, do not shake stain or paint to prevent air bubbles.
Correct Incorrect
Start Trigger Release End
A
..
c

MODEL DELUXE HOW TO USE
MODEL DELUXE SPRAYING INSTRUCTIONS
Caution: Do not twist electrical cord, make sure heavy objects are not placed on electrical
cord. Keep electrical cord away from heat and sharp objects. Make sure cord is not in a
traffic area to avoid tripping of persons. Do not use if cord is damaged.
Appropriate breathing protection, eye protection, gloves and clothing should be used.
1. Empty Container thoroughly and ensure the Container is dry.
2. Deposit the stain or paint material into Container.
3. Begin spraying by pressing the Switch, adjust the Volume Control Knob to get the best
spray pattern. A pattern with heavy spray in center, Figure E1, means the pressure is
too low. Adjust the Volume Control Knob by turning counterclockwise to increase
pressure. A correct spray pattern looks like Figure E2. The stain or paint should be
evenly spread over the surface.
4. If the spray pattern is still not correct, please refer to MODEL STAIN/PLUS/DELUXE
TROUBLESHOOTING.
5. Hold the MODEL DELUXE 10-12 inches from the surface to be stained or painted. Keep
the MODEL DELUXE parallel to the ground without pointing it up or down. See Figure F.
NOTE: TILTING THE MODEL DELUXE IS NOT RECOMMENDED.
NOTE: TO AVOID RUNS AND SAGS DO NOT SPEED UP OR SLOW DOWN WHILE
MOVING THE SPRAYER.
6. Overlap each stroke about 1/3 of the spray pattern.
7. To spray inside corners, spray the adjoining walls or surface first. The over spray will
stain or paint the corner.
8. When you spray an outside corner, point the Spray Tip of the MODEL DELUXE in
towards the surface. This will prevent stain or paint from being sprayed past the corner
and onto surfaces you do not want stained or painted.
IMPORTANT
Should a low humming sound and/or irregular spray pattern occur while spraying,
immediately remove plug from electrical source and thoroughly clean. This will prevent the
motor from overheating and causing damage to the MODEL DELUXE. See MODEL
STAIN/PLUS/DELUXE CLEAN UP INSTRUCTIONS.
NOTE: If you stop spraying for 30 minutes or longer, retest the spray pattern by spraying
on newspaper or cardboard. If you are unable to adjust the spray pattern properly, there
is a possibility that the stain or paint material has started to dry. If this happens, it is time
to clean the MODEL DELUXE. See MODEL STAIN/PLUS/DELUXE CLEAN UP
INSTRUCTIONS.
NOTE: The small vent hole on the top of the Cylinder Housing must be kept clean. If the
stain or paint material should dry and clog the hole in the Cylinder Housing, your
MODEL DELUXE will not function properly. See MODEL STAIN/PLUS/DELUXE CLEAN UP
INSTRUCTIONS.
NOTE: If the spray pattern is still not correct, a thorough cleaning of the Spray Tip,
Atomizer Valve assembly, and Pick-Up Tube may be required. Cleaning after every
5-9 gallons of stain or paint may be necessary for correct spraying. After cleaning,
reassemble the parts.
Correct
E1
E2
F

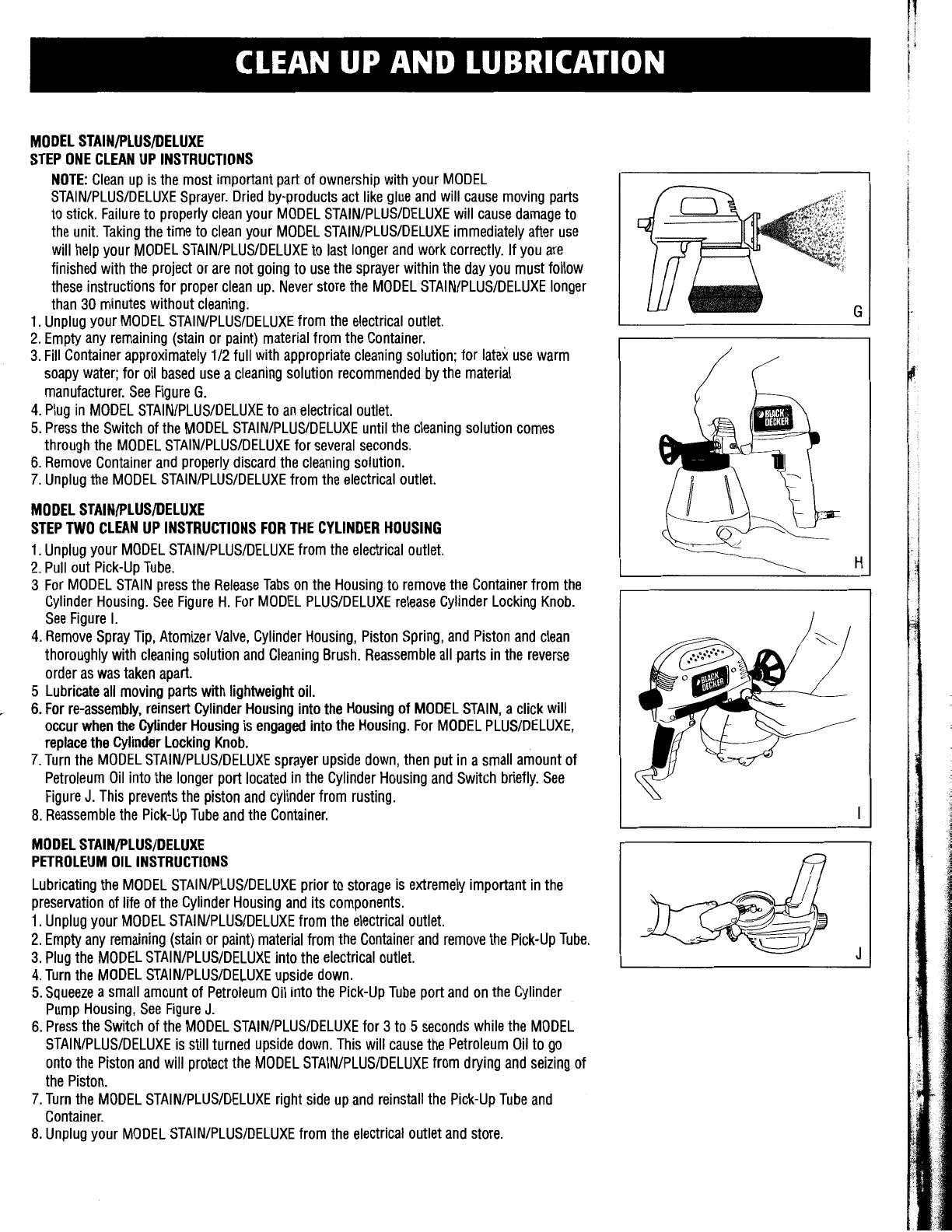

CLEAN UP AND LUBRICATION
MODEL STAIN/PLUS/DELUXE
STEP ONE CLEAN UP INSTRUCTIONS
NOTE: Clean up is the most important part of ownership with your MODEL
STAIN/PLUS/DELUXE Sprayer. Dried by-products act like glue and will cause moving parts
to stick. Failure to properly clean your MODEL STAIN/PLUS/DELUXE will cause damage to
the unit. Taking the time to clean your MODEL STAIN/PLUS/DELUXE immediately after use
will help your MODEL STAIN/PLUS/DELUXE to last longer and work correctly. If you are
finished with the project or are not going to use the sprayer within the day you must follow
these instructions for proper clean up. Never store the MODEL STAIN/PLUS/DELUXE longer
than 30 minutes without cleaning.
1. Unplug your MODEL STAIN/PLUS/DELUXE from the electrical outlet.
2. Empty any remaining (stain or paint) material from the Container.
3. Fill Container approximately 1/2 full with appropriate cleaning solution; for latex use warm
soapy water; for oil based use a cleaning solution recommended by the material
manufacturer. See Figure G.
4. Plug in MODEL STAIN/PLUS/DELUXE to an electrical outlet.
5. Press the Switch of the MODEL STAIN/PLUS/DELUXE until the cleaning solution comes
through the MODEL STAIN/PLUS/DELUXE for several seconds.
6. Remove Container and properly discard the cleaning solution.
7. Unplug the MODEL STAIN/PLUS/DELUXE from the electrical outlet.
MODEL STAIN/PLUS/DELUXE
STEP TWO CLEAN UP INSTRUCTIONS FOR THE CYLINDER HOUSING
1. Unplug your MODEL STAIN/PLUS/DELUXE from the electrical outlet.
2. Pull out Pick-Up Tube.
3 For MODEL STAIN press the Release Tabs on the Housing to remove the Container from the
Cylinder Housing. See Figure H. For MODEL PLUS/DELUXE release Cylinder Locking Knob.
See Figure I.
4. Remove Spray Tip, Atomizer Valve, Cylinder Housing, Piston Spring, and Piston and clean
thoroughly with cleaning solution and Cleaning Brush. Reassemble all parts in the reverse
order as was taken apart.
5 Lubricate all moving parts with lightweight oil.
6. For re-assembly, reinsert Cylinder Housing into the Housing of MODEL STAIN, a click will
occur when the Cylinder Housing is engaged into the Housing. For MODEL PLUS/DELUXE,
replace the Cylinder Locking Knob.
7. Turn the MODEL STAIN/PLUS/DELUXE sprayer upside down, then put in a small amount of
Petroleum Oil into the longer port located in the Cylinder Housing and Switch briefly. See
Figure J. This prevents the piston and cylinder from rusting.
8. Reassemble the Pick-Up Tube and the Container.
MODEL STAIN/PLUS/DELUXE
PETROLEUM OIL INSTRUCTIONS
Lubricating the MODEL STAIN/PLUS/DELUXE prior to storage is extremely important in the
preservation of life of the Cylinder Housing and its components.
1. Unplug your MODEL STAIN/PLUS/DELUXE from the electrical outlet.
2. Empty any remaining (stain or paint) material from the Container and remove the Pick-Up Tube.
3. Plug the MODEL STAIN/PLUS/DELUXE into the electrical outlet.
4. Turn the MODEL STAIN/PLUS/DELUXE upside down.
5. Squeeze a small amount of Petroleum Oil into the Pick-Up Tube port and on the Cylinder
Pump Housing, See Figure J.
6. Press the Switch of the MODEL STAIN/PLUS/DELUXE for 3 to 5 seconds while the MODEL
STAIN/PLUS/DELUXE is still turned upside down. This will cause the Petroleum Oil to go
onto the Piston and will protect the MODEL STAIN/PLUS/DELUXE from drying and seizing of
the Piston.
7. Turn the MODEL STAIN/PLUS/DELUXE right side up and reinstall the Pick-Up Tube and
Container.
8. Unplug your MODEL STAIN/PLUS/DELUXE from the electrical outlet and store.
G
H

FLEXIBLE EXTENSION AND SUCTION TUBE KIT
MODEL STAIN/DELUXE
USING THE FLEXIBLE EXTENSION (Optional Accessory for Model PLUS)
The Flexible Extension can be bent at any angle to make spraying floors, ceilings, overhangs, or
hard to reach areas easier. Using the Flexible Extension will prevent tilting of the MODEL
STAIN/DELUXE Sprayer.
NOTE: Tilting of the sprayer is not recommended as it may cause leakage.
1. Remove the Spray Tip by turning it counterclockwise. Remove the Atomizer Valve from
sprayer and check for wear, if previously used.
2. Remove the guard on the end of the Flexible Extension; ensure that the Atomizer Valve
remains in the Flexible Extension housing.
3. Reinstall Atomizer Valve into the Cylinder Housing.
4. Attach Flexible Extension end onto the Cylinder Housing.
5. Insert Atomizer Valve into Flexible Extension.
6. Screw the Spray Tip onto the Flexible Extension. See Figure K.
7. Bend the Flexible Extension to the position which is required for staining; this can be up,
down, or sideways. See Figure L.
NOTE: When using the Flexible Extension, 2 Atomizer Valves must be used. The longer
Atomizer Valve must be between the Cylinder Housing and Flexible Extension and the shorter
Atomizer Valve must be between the Flexible Extension and Spray Tip.
MODEL STAIN/DELUXE
CLEANING THE FLEXIBLE EXTENSION (Optional Accessory for Model PLUS)
1. To clean the Flexible Extension, spray water or solvent through the MODEL STAIN/DELUXE
until the Flexible Extension is clean.
2. Follow MODEL STAIN/PLUS/DELUXE CLEAN UP INSTRUCTIONS.
3. Replace the guard on to the end of the Flexible Extension for storage.
NOTE: If returning to project with the Spray Tip, practice with the Spray Tip first on
newspaper or cardboard and then adjust the spray pattern.
MODEL DELUXE
USING THE SUCTION TUBE KIT (Optional accessory for Model PLUS)
1. Remove the Container and Pick-Up Tube from the MODEL DELUXE.
2. Turn the MODEL DELUXE upside down.
3. Slide the Suction Tube and Clamp dual tubing onto the two open cylinder ports on the
Cylinder Housing. See Figure M.
4. Turn the MODEL DELUXE right side up.
5. Follow tubing down from the tallest Cylinder Housing port, insert Pick-Up Tube into that end
of the Suction Tube and Clamp plastic tubing.
6. Immerse Suction Tube into paint or stain and secure Clamp to side of the paint or stain
container.
NOTE: To reduce the time the MODEL DELUXE runs without paint or stain, hold the MODEL
DELUXE below the fluid level when priming. This will speed up the time the paint or stain is
drawn through the tube. The paint/stain may need additional thinning if the sprayer will not prime.
NOTE: Normal priming time is 1 minute for the stain or paint to travel from Container to
MODEL DELUXE. If it takes longer than 2 minutes stop. The MODEL DELUXE may need to be
lubricated or the material maybe too thick. See MODEL STAIN/PLUS/DELUXE CLEAN UP
INSTRUCTIONS.
MODEL DELUXE
CLEANING THE SUCTION TUBE KIT (Optional accessory for Model PLUS)
1. To clean your MODEL DELUXE Suction Tube Kit run water or cleaning solution through the
Suction Tube until clear.
2. Disassemble the fittings at both ends of the Suction Tube before any remaining material can dry.
3. Thoroughly clean the adapter fitting, Pick-Up Tube and filter.
Atomizer
Valve
Atomizer ~
Va~·~
~
K
L
M

TROUBLESHOOTING
PROBLEM ·CAUSE REMEDY
Motor does not run •No power to motor. •Check wall outlet and extension cord.
•Loose electrical connection. •Discontinue use, call Customer Service.
•Defective motor or switch.
•Call Customer Service.
Motor makes muffled •The Volume Control Knob is screwed •Adjust the Volume Control Knob.
humming sound in all the way.
•Seized piston. •Remove Piston and Cylinder Housing and clean
then add Petroleum Oil.
•Plugged Atomizer Valve or Spray Tip. •Replace Atomizer Valve and clean holes in
Spray Tip.
•Atomizer Valve assembly is not seated properly. •Replace Atomizer Valve.
Stain or Paint is spitting •Container volume is low.
•Refill Container.
•Improper adjustment.
•Adjust Volume Control Knob.
•Stain or Paint material is too thick. •Thin according to manufacturer's requirements.
•Pick-Up Tube is not tight to Cylinder Housing. •Reattach Pick-Up Tube to Cylinder Housing.
•Loose Spray Tip.
•Tighten Spray Tip.
•Stain material has impurities.
•Pour stain material through strainer.
•Paint material pas impurities.
•Pour paint through paint strainer.
•Worn Atomizer Valve.
•Replace Atomizer Valve.
Excessive over spray (fogging)
•MODEL STAIN/PLUS/DELUXE too far
•Move MODEL STAIN/PLUS/DELUXE closer to
from surface. to surface.
•Pressure too high.
•Adjust Volume Control Knob.
•Worn Spray Tip. •Replace Spray Tip.
•Stain or Paint material is too thick. •Thin according to manufacturer's requirements.
I
Uneven spray P!!Hern •One or more holes in the Atomizer Valve •Clean Atomizer Valve.
are clogged.
I
•Partial blockage in Spray Tip. -Glean Spray Tip.
I
Material leaks into head -operating MODEL STAIN/PLUS/DELUXE
•Keep MODEL STAIN/PLUS/DELUXE level.
of cylinder housing with an upward tilt. I
I
•Piston or Cylinder Housing scored. •Replace Piston or Cylinder Housing.
Material dripping •Spray Tip loose. •Tighten Spray Tip.
•Operating MODEL STAIN/PLUS/DELUXE •Keep MODEL STAIN/PLUS/DELUXE upright.
at more than a 40° angle.
Motor overheats •Operating MODEL STAIN/PLUS/DELUXE •Let MODEL STAIN/PLUS/DELUXE cool.
for a prolonged period of time.
~
•Extension cord too long.
•Replace with proper size.
i
Stain or Paint will not •MODEL STAIN/PLUS/DELUXE not lubricated. •Lubricate MODEL STAIN/PLUS/DELUXE parts.
I
draw up into the Model
•Hole between inlet and Cylinder Housing plugged. •Make sure Pick-Up Tube is in the correct port
;!
STAIN/PLUS/DELUXE (longer one) and then tighten the Nozzle.
Model STAIN/PLUS/DELUXE •Atomizer Valve plugged. •Ensure that Atomizer Valve is clean and free
will not spray
from debris.
•Atomizer Valve not properly seated. •Within Cylinder Housing ensure that the
Atomizer Valve is properly seated, also check
to make sure the Atomizer Valve is inserted
correctly.
•Stain or Paint material is too thick. • Thin according to manufacturer's requirements.
•Pick-Up Tube is not tight to Cylinder Housing.
• Reattach Pick-Up Tube to Cylinder Housing.
