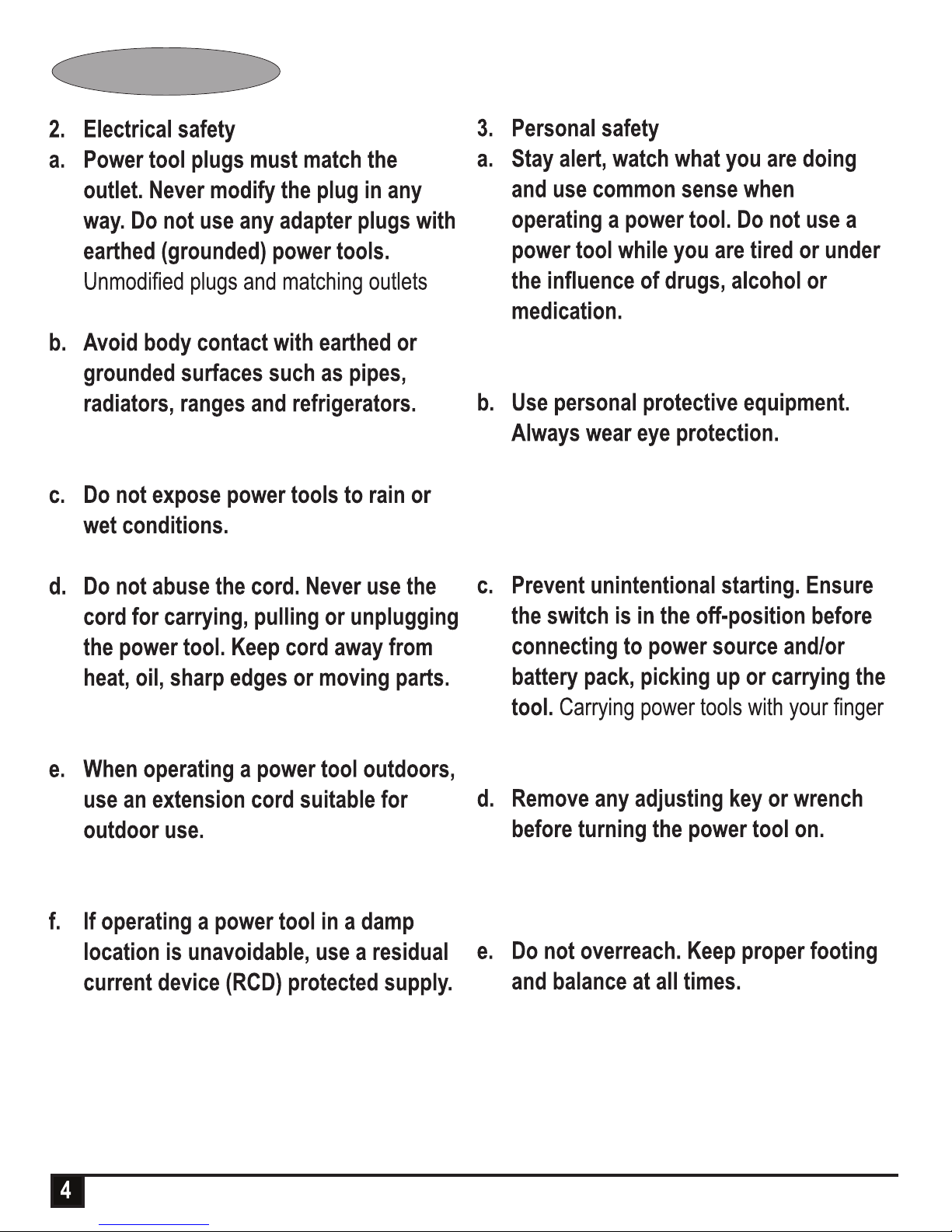

will reduce risk of electric shock.
There is an increased risk of electric
shock if your body is earthed or grounded.
Water entering a power
tool will increase the risk of electric shock.
Damaged or entangled cords increase the
risk of electric shock.
Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
Use of an RCD reduces the risk of electric
shock.
ENGLISH (Original instructions)
A moment of inattention
while operating power tools may result in
serious personal injury.
Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
on the switch or energising power tools
that have the switch on invites accidents.
A
wrench or a key left attached to a rotating
part of the power tool may result in
personal injury.
This enables
better control of the power tool in
unexpected situations.

ENGLISH
(Original instructions)
Many
accidents are caused by poorly
maintained power tools.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
Use of the power tool for
operations different from those intended
could result in a hazardous situation.
A
charger that is suitable for one type of
used with another battery pack.
Use of any
other battery packs may create a risk of
Loose clothes, jewellery or long
hair can be caught in moving parts.
Use of
dust collection can reduce dust-related
hazards.
The correct power tool will do the job
better and safer at the rate for which it
was designed.
Any power
tool that cannot be controlled with the
switch is dangerous and must be repaired.
Such preventive
safety measures reduce the risk of
starting the power tool accidentally.
Power tools are dangerous in the hands of
untrained users.

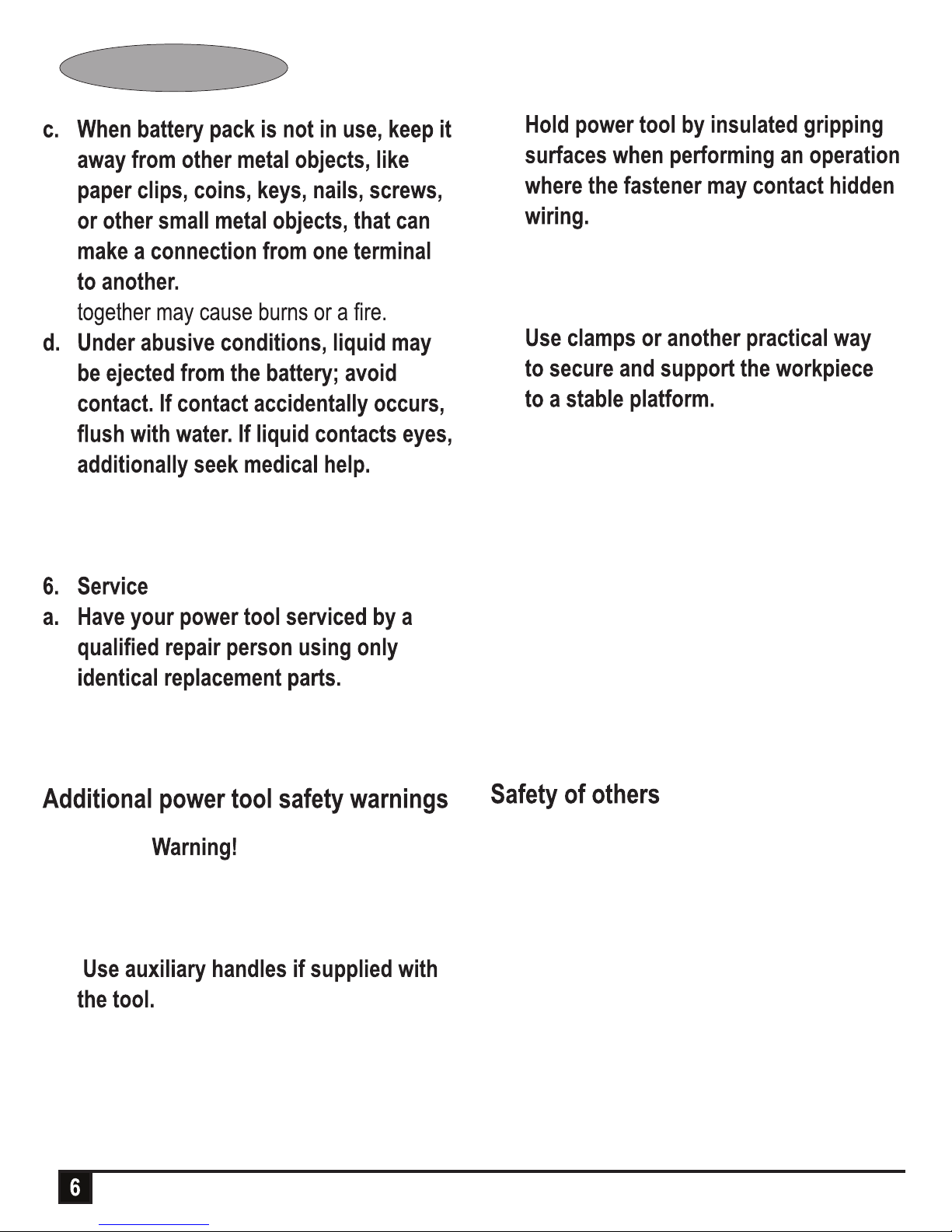

Shorting the battery terminals
Liquid
ejected from the battery may cause
irritation or burns.
This will
ensure that the safety of the power tool is
maintained.
@Additional safety
warnings for screwdrivers and
impact wrenches

Loss of control can cause
personal injury.
ENGLISH (Original instructions)

Fasteners contacting a "live" wire
may make exposed metal parts of the
power tool "live" and could give the opera-
tor an electric shock.

Holding the work
by hand or against your body leaves it
unstable and may lead to loss of control.
This tool is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or in-
struction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or in-
struction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.

Additional residual risks may arise when using
the tool which may not be included in the
enclosed safety warnings. These risks can
arise from misuse, prolonged use etc.
Even with the application of the relevant
safety regulations and the implementation of
safety devices, certain residual risks can not
be avoided. These include:
Injuries caused by touching any rotating/
moving parts.
Injuries caused when changing any parts,
blades or accessories.
Injuries caused by prolonged use of a tool.
When using any tool for prolonged periods
ensure you take regular breaks.
Impairment of hearing.
Health hazards caused by breathing dust
developed when using your tool (exam-
ple:- working with wood, especially oak,
beech and MDF.)
ENGLISH
(Original instructions)
The following symbols are shown on the tool:
:
To reduce the risk of
injury, the user must read the
instruction manual.
Never attempt to open for any reason.
Do not expose the battery to water.
Do not store in locations where the
temperature may exceed 40 °C.
Charge only at ambient temperatures
between 10 °C and 40 °C.
Charge only using the charger provided
with the tool.
When disposing of batteries, follow the
instructions given in the section "Protect-
ing the environment".
p
Do not attempt to charge dam-
aged batteries.
Use your Black & Decker charger only to
charge the battery in the tool with which it
was supplied. Other batteries could burst,
causing personal injury and damage.
Never attempt to charge non-rechargea-
ble batteries.
Have defective cords replaced immedi-
ately.
Do not expose the charger to water.
Do not open the charger.
Do not probe the charger.

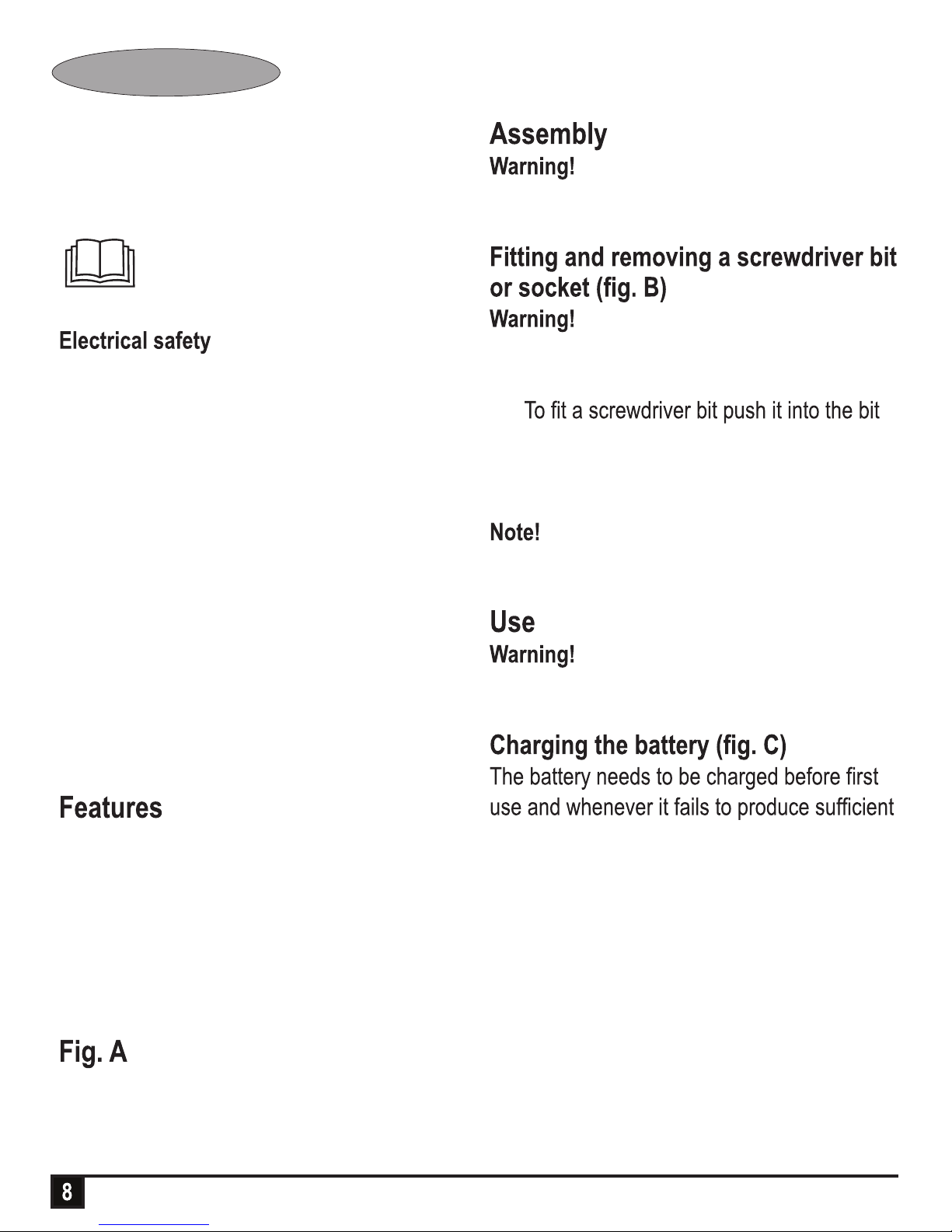

$The charger is intended for
indoor use only.
Read the instruction manual
before use.
ENGLISH (Original instructions)
#Your charger is double insu-
lated; therefore no earth wire
is required. Always check that
the mains voltage corresponds
to the voltage on the rating
plate. Never attempt to replace
the charger unit with a regular
mains plug.
If the supply cord is damaged, it must
be replaced by the manufacturer or an
authorised Black & Decker Service Centre
in order to avoid a hazard.
This tool includes some or all of the following
features.

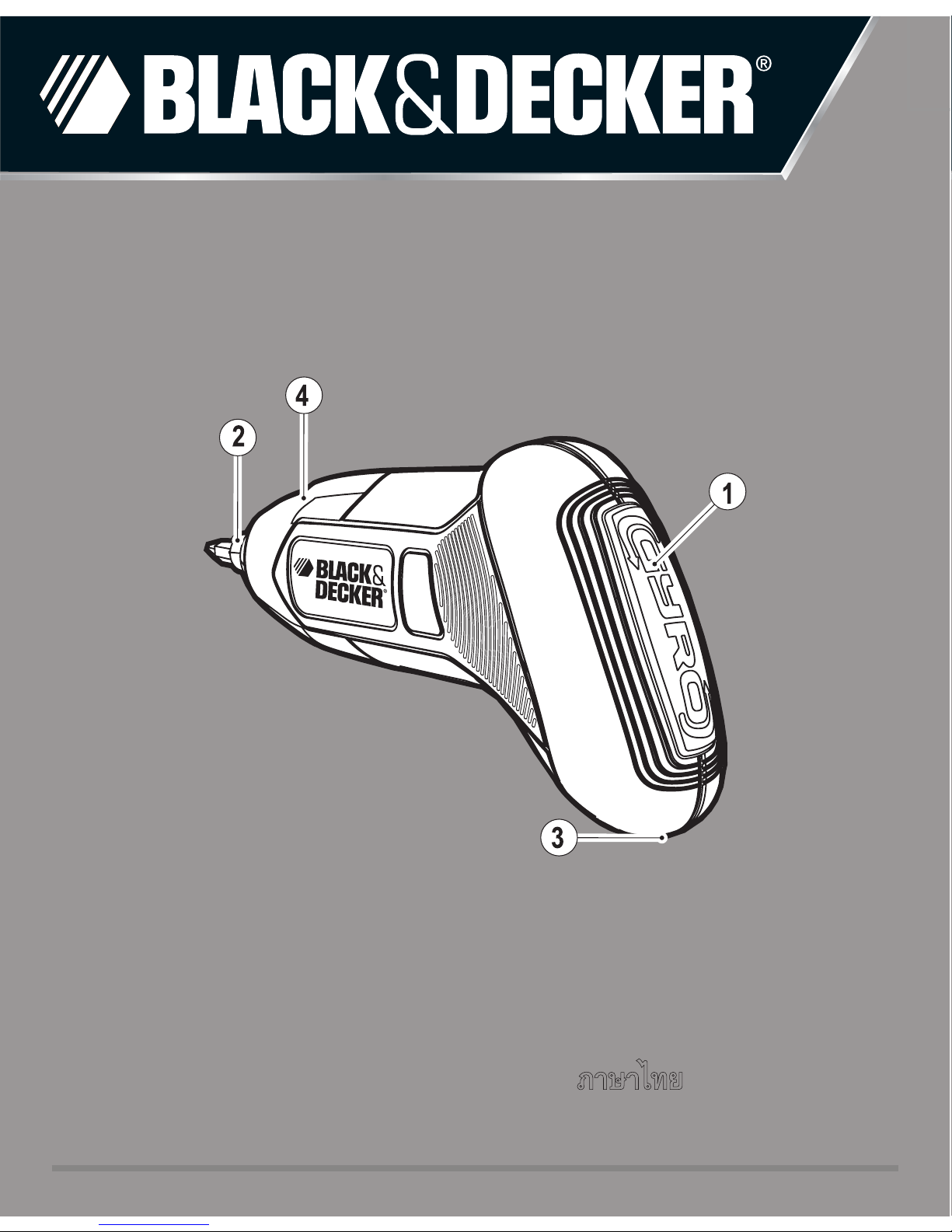

1. Motion control activator
2. Bit holder
3. Charger connector
4. LED work light
5. Charger
Before assembly, remove the bat-
tery from the tool.
Make certain the tool is locked to
prevent switch actuation before installing or
removing accessories.

holder (2) until it locates.
To remove a screwdriver bit, pull it straight
from the bit holder.
To remove the bit/socket repeat the
above steps.
Let the tool work at its own pace.
Do not overload.
power on jobs that were easily done before.
The battery may become warm while charg-
ing; this is normal and does not indicate a
problem.
To charge the battery, insert the charger
plug (5) into the charger connector (3).
Plug in the charger.
Leave the tool connected to the charger
for 16 hours.

ENGLISH
(Original instructions)
The charger may hum and become warm
while charging; this is normal and does not
indicate a problem.
Do not charge the battery at ambi-
ent temperatures below 10 °C or above 40
°C. Recommended charging temperature:
approx. 24 °C.
When the battery charge becomes low the
The LED Flash will last 5 seconds during
Low voltage - - - - - at this pattern..
Do not continue using the product
with its batteries in a depleted condition.
Recharge discharged batteries promptly..
When the circuit operating temperature be-
comes too high the LED work light will begin
The LED Flash will last 5 seconds during
circuit high temperature - . - . - . - . at this
pattern. Allow the unit to cool down to an
optimal operating temperature of approxi-
mately 24°C.

D.
Press and hold in the motion control
activator (1) on the back of the tool with
the palm of your hand.
When the LED work light (4) illuminates
the tool is ready for use.

the motion control activator (1). Move tool
to new position, then press and hold in the
motion control activator (1) on the back of
the tool with the palm of your hand..
This tool automatically re-calibrates itself
periodically to ensure correct operation of the
motion-based gyro controls. If the contorls do
not appear to be working corectly the tool can
be manually callibrated.
Press the motion control activator (1).
Release the motion control activator (1).
Place the tool on a level surface.
5 seconds to indicate that the tool has been
re-calibrated.
Set the initial starting point.
Rotate the tool clockwise and the screw-
driver will activate in the forward direction.
The speed of the tool is determined by
the amount of rotation. .
Small rotation = slower speed.
Large rotation = Higher speed.
Set the initial starting point.

ENGLISH (Original instructions)
Rotate the tool anti-clockwise and the
screwdriver will activate in the reverse
direction.
The speed of the tool is determined by
the amount of rotation. .
Small rotation = slower speed.
Large rotation = Higher speed.
The LED work light (4) is activated automati-
cally when the motion control activator (1) is
depressed.
To maintain battery life in case off accidental
activation, the tool will automatically turn off
after 45 seconds of continuous opperation.
The LED work light (4) will blink rapidly for 5
seconds before the tool shuts down.
Always use the correct type and size of
screwdriver bit.
-
ing a small amount of washing liquid or
soap as a lubricant.
Always hold the tool and screwdriver bit in
a straight line with the screw.
Your Black & Decker tool has been designed
to operate over a long period of time with
a minimum of maintenance. Continuous
satisfactory operation depends upon proper
tool care and regular cleaning.
Your charger does not require any mainte-
nance apart from regular cleaning.
Before performing any maintenance
on the tool, remove the battery from the tool.
Unplug the charger before cleaning it.
Regularly clean the ventilation slots in
your tool and charger using a soft brush or
dry cloth.
Regularly clean the motor housing using
a damp cloth. Do not use any abrasive or
solvent-based cleaner.
Regularly open the chuck and tap it to
remove any dust from the interior.
ZSeparate collection. This product
must not be disposed of with
normal household waste.
Decker product needs replacement, or if it
is of no further use to you, do not dispose of
it with household waste. Make this product
available for separate collection.
