2-CHANNEL VGA BOOSTER
TRADEMARKS
Black Box and the logo are registered trademarks of Black Box
Corporation.
Windows is a registered trademark or trademark of Microsoft Corporation
in the United States and/or other countries.
Any other trademarks mentioned in this manual are acknowledged to be the property
of the trademark owners.

5
TABLE OF CONTENTS
Contents
Chapter Page
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3.1 The Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3.2 Typical Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

6
2-CHANNEL VGA BOOSTER
1. Specifications
Connectors: Input: (1) DB15HD female; Output: (2) DB15HD female
Resolution Supported: Up to 1024 x 768 for VGA, SVGA, and XGA
Distance Limits (each output): Up to 700 ft. (213 m) @ 640 x 480 pixels;
up to 600 ft. (183 m) @ 800 x 600 pixels;
up to 500 ft. (152 m) @ 1024 x 768 pixels
Horizontal Frequency: 31.5 to 35.52 kHz
Signal: Analog
Signal Format: RGBS
Temperature: Operating: 32 to 104°F (0 to 40°C); Storage: -40 to +176°F
(-40 to +80°C)
Humidity: Operating: Up to 80%, noncondensing; Storage: Up to 90%,
noncondensing
Mean Time Between Failures (MTBF): 10,000 hours
Power: 9 VDC, 500/600 ma (part number 10155)
Size: 1.5"H x 7.25"W x 6.25"D (3.8 x 18.4 x 15.9 cm)
Weight: 2.2 lb. (0.9 kg)

7
CHAPTER 2: Introduction
2. Introduction
With the 2-Channel VGA Booster, you can view the output of a VGA adapter
on 1 or 2 monitors simultaneously. You can place each monitor up to
700 feet (213 m) away from the Booster, depending on the operating mode.
The Booster package contains the following:
• (1) 2-Channel VGA Booster
• (1) 9-VDC power supply
• (1) 6-ft. (1.8-m) male-to-male VGA input cable
• This users’ manual
You may also order optional monitor extension cables, specially designed
for use with this product.

8
2-CHANNEL VGA BOOSTER
3. Installation
3.1 The Installation Procedure
Follow these steps to install your 2-Channel VGA Booster.
1.Place the Booster within 6 ft. (1.8 m) of the computer.
2.Connect the 6-ft. VGA input cable (included) from the VGA output
of the computer to the connector marked “VGA.”
3.Connect the VGA compatible monitor(s) to the connector(s) marked
“Output” on the rear of the Booster. You may use monitor extension
cables to extend the distance up to 700 feet (213.4 m) as shown in
Table 3-1.
4.Plug the 9-VDC wall power transformer (included) into the jack on the
rear of the Booster.
5.Plug the power transformer into an AC wall outlet. When the unit is
properly powered, the front-panel LED will glow red.
6.Turn on the computer and the monitor(s). The monitor(s) will display
the computer’s output.
7.Use the front-panel knobs to adjust the gain and peaking of the Booster’s
amplifiers to compensate for the long extension cable. The knobs have 6
positions from SHORT to LONG and correspond to cable lengths for
standard VGA (up to 480 lines), or Super VGA (up to 768 lines), as shown
in Table 3-1.

9
CHAPTER 3: Installation
Table 3-1. Front panel knob positions.
Knob Cable Length for VGA Cable Length for Super VGA
Position
1 0 to 125 ft. (0 to 38 m) 0 to 100 ft. (0 to 30.4 m)
2 125 to 250 ft. (38 to 76 m) 100 to 175 ft. (30.4 to 53.2 m)
3 250 to 375 ft. (76 to 112.5 m) 175 to 250 ft. (53.2 to 76 m)
4 375 to 500 ft. (112.5 to 152 m) 250 to 325 ft. (76 to 98.8 m)
5 500 to 600 ft. (152 to 182.4 m) 325 to 425 ft. (98.8 to 129.2 m)
6 600 to 700 ft. (182.4 to 212.8 m) 425 to 500 ft. (129.2 to 152 m)
NOTE
For Super-VGA modes operating at 800 lines, the maximum
recommended length is 600 ft. ( 82.4 m). For Super-VGA modes
operating at 768 lines, the maximum recommended length is 500 ft.
( 52 m).
8.As shipped, the Booster is internally jumpered to support a standard color
VGA monitor. The internal jumpers are located on jumper block JP1. You
may change these jumpers for different monitor types as shown in
Table 3-2.
Table 3-2. Jumper settings.
Monitor Type JP1 Jumpers to Install
Color VGA Positions 2 and 5
Mono hrome VGA Positions 3 and 5
8514/A VGA Positions 1 and 3
XGA Positions 1 and 4

10
2-CHANNEL VGA BOOSTER
3.2 Typical Application

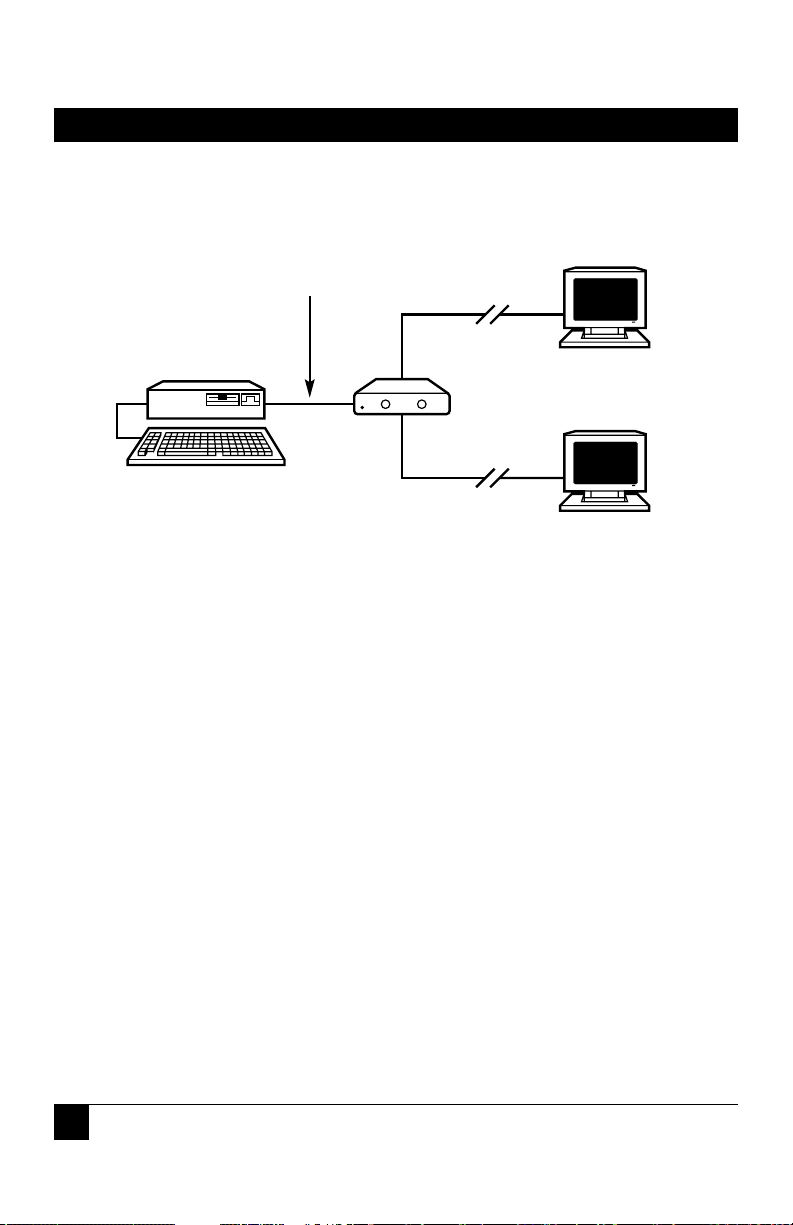

Figure 3-1. Typical application of the AC074A.
PC with VGA
output driver
6-ft. ( .8-m) male-to-male
DB 5HD cable (included)
Keyboard
Monitor
Monitor
AC074A
700 ft.
(2 2.8 m)
700 ft.
(2 2.8 m)

11
CHAPTER 4: Operation
4. Operation
Once you install the 2-Channel VGA Booster, it requires no ongoing
adjustments. The Booster works continuously, and you can place it out of
sight if you wish.
The Booster extended the viewing position of VGA monitors, so you must
compensate for the normal signal losses that will occur when you add cable
to a VGA monitor. The Booster compensates for this loss via equalized
amplification, so that the signal at the remote end closely matches the signal as
it left the VGA adapter. You receive true detail and color fidelity in the VGA
image.
Each monitor output is independently buffered. This insures isolation and
proper signal levels, regardless of the number of monitors you use. You can
cascade the boosters to achieve multiple outputs at different distances from
the computer. Call Technical Support for help with your application.
NOTE
The plug-in transformer will feel warm after the unit is on for awhile. This
is normal, since the Booster draws a significant amount of power.

12
2-CHANNEL VGA BOOSTER
5. Troubleshooting
Problem: Power LEDs glow but no video.
Solution: Disconnect all video cables. Is the LED off? Check AC
power at the outlet. Check the power-supply plug for proper seating.
Problem: One channel is OK, but the other is not.
Solution: Swap extension cables. If the problem follows the cables,
replace the defective cable.
Problem: Output is not clear or some colors are blurred.
Solution: Change the video software driver. Use another driver that supports
the distance you are using. (Under Windows®, this can be changed using
Windows Setup in the Main Menu. Select “Options” and then “Change System
Settings.”)
Problem: Brightness, size, or position are different from original settings.
Solution: Use the monitor’s brightness, size, and/or position controls to
adjust the display.
Problem: One or two colors are missing on one of the VGA monitors.
Solution: Make sure all connections to the Booster are secure. Make sure the
monitor screwlocks are tightened.
