Black Box UVX-HDMI-FO-MINI User manual

Chapter
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) FREE technical support 24 hours a day, 7 days
a week: Call 724-746-5500 or fax [phone]
www.blackbox.com • [e-mail]
Customer
Support
Information
User Manual
Transmit Ultra HD/4K HDMI up to 1000 feet (300 m) and
USB up to 650 feet (200 m).
Video Extender - 4K HDMI, USB, Fiber
UVX-HDMI-FO-MINI

724-746-5500 | blackbox.com
Page 2
Trademarks Used in this Manual
TRADEMARKS USED IN THIS MANUAL
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
PCI Express is a registered trademark of PCI-SIG.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

724-746-5500 | blackbox.com Page 3
Laser Warning/Safety Information
LASER WARNING:
Do not look directly into the path of the laser on the extenders' fiber
connectors. Your eyes might be damaged!
The laser is made of a 1300/1550 nm optical module and certified by IEC
60950 as Laser Class 1.
Safety Information
• Keep this manual for future reference.
• Read all safety information before setting up the Video Extender — 4K HDMI,
USB, Fiber.
• Before cleaning, unplug the extender from its wall outlet. Clean with a damp
cloth; do not use harsh cleaners.
• Use only the external power supply that you received with your extender
receiver and an approved power supply (optional) for the extender transmitter;
do not use damaged power cords or wall outlets.
• Avoid using the extenders in wet, flammable, or magnetic environments.
• Grounded 3-pin power outlets are required.
• Do not place heavy equipment on top of the extenders.

724-746-5500 | blackbox.com
Page 4
FCC and IC RFI Statements
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY
CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
Class B Digital Device. This equipment has been tested and found to comply with
the limits for a Class B computing device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. However, there is no guarantee
that interference will not occur in a particular installation. This equipment gener-
ates, uses, and can radiate radio frequency energy, and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio
communications. If this equipment does cause harmful interference to radio or
telephone reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult an experienced radio/TV technician for help.
Caution:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
To meet FCC requirements, shielded cables and power cords are required to
connect this device to a personal computer or other Class B certified device.
This digital apparatus does not exceed the Class B limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe B prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.

724-746-5500 | blackbox.com Page 5
NOM Statement
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas
antes de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas
para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones
de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua— por ejemplo,
cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio— El usuario no debe intentar dar servicio al equipo eléctrico más
allá a lo descrito en las instrucciones de operación. Todo otro servicio
deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama,
sofá, alfombra o superficie similar puede bloquea la ventilación, no se
debe colocar en libreros o gabinetes que impidan el flujo de aire por los
orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo
del tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.

724-746-5500 | blackbox.com
Page 6
NOM Statement
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no
sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com Page 7
Table of Contents
Table of Contents
Page
Trademarks Used in this Manual...................................................................2
Laser Warning ........................................................................................3
Safety Information ........................................................................................3
FCC and IC RFI Information...........................................................................4
NOM Statement ........................................................................................4
Chapter Page
1. Specifications ........................................................................................8
2. Overview ........................................................................................10
2.1 Introduction........................................................................................10
2.2 Features ........................................................................................10
2.3 What's Included..................................................................................10
2.4 Additional Items You Will/May Need.................................................11
2.5 Hardware Description.........................................................................12
2.5.1 Transmitter................................................................................12
2.5.2 Receiver ....................................................................................13
2.6 Typical Application .............................................................................14
3. Installation ........................................................................................15
4. Troubleshooting ........................................................................................16
4.1 Contacting Black Box..........................................................................16
4.2 Shipping and Packaging ....................................................................16

724-746-5500 | blackbox.com
Page 8
Chapter 1: Specifications
1. Specifications
Approvals FCC Class B
CE
HDMI 1.4b
HDCP
IEC 60950 certified Laser Class 1
Environmental
Temperature Operating: 31 to 122° F (0 to 50° C);
Storage: -4 to +158° F (-20 to +70° C)
Humidity Operating: 10 to 80%, noncondensing;
Storage: 5 to 95%, noncondensing
Optical
Laser IEC 60950 certified as Laser Class 1
Cable (not included) 50/125 µm OM3 multimode fiber
TX Module 850 nm VCSEL;
1310 InGaAs/InP laser diode;
1550 InGaAs/inP PIN type photo diode
RX Module 1550 InGaAs/inP laser diode;
850 InGaAs/InP PIN type photo diode;
1310 InGaAs/InP PIN type photo diode
Performance
Bandwidth 2.97 Gbps
Distance (Maximum) HDMI:
1000 ft. (300 m);
For 187.5 kbps low-speed USB 1.1:
130 ft. (40 m);
For 1.5 to 12 Mbps high-speed USB 1.1:
650 ft. (200 m)

724-746-5500 | blackbox.com Page 9
Chapter 1: Specifications
Performance (continued)
Resolution
(Maximum)
4096 x 2160 @ 30 Hz
Physical
Connectors Transmitter:
(1) fiber LC (output),
(1) micro USB for optional power supply;
(1) HDMI (links to source);
Receiver:
(1) fiber LC (input),
(1) micro USB for power,
(1) HDMI (links to display device)
Dimensions Each unit: 0.6"H x 1.6"W x 2.2"D (1.4 x 4.1 x 5.6 cm)
Weight Each unit: 0.2 lb. (0.09 kg)
Power
Transmitter Derives power from the HDMI interface connected to
the graphic card via the +5 V pin, or through the
USB 1.1 interface;
Connector: (1) Micro USB
Receiver Type: External power supply (included);
Voltage: 5-V AC/DC;
Connector: (1) Micro USB

724-746-5500 | blackbox.com
Page 10
Chapter 2: Overview
2. Overview
2.1 Introduction
Use the Video Extender — 4K HDMI, USB, Fiber to transmit Ultra HD/4K HDMI
up to 1000 feet (300 meters) and USB up to 650 feet (200 meters) via one
50/125 µm OM3 multimode fiber cable with an LC connector.
The extender transmits low-speed USB 1.1 at speeds up to 187.5 kbps at
distances up to 650 feet (200 meters) and full-speed USB 1.1 signals at speeds
ranging from 1.5 to 12 Mbps at distances up to 130 feet (40 meters). Typical
low-speed devices include keyboards and mice; typical full-speed devices include
external hard drives, USB hubs, and USB memory sticks.
2.2 Features
• Transmits and extends Ultra HD/4K signals.
• Drives HDMI 4K signal up to 1000 feet (300 meters) via one multimode fiber
optic cable.
• Compatible with HDMI 1.4b standard.
• Works with KVM applications.
• Complies with HDCP.
• Supports EDID.
• Meets USB 1.1 standards.
2.3 What's Included
Your package should include the following items. If anything is missing or
damaged, contact Black Box Technical Support at 724-746-5500 or
[e-mail].
• (1) Video Extender — 4K HDMI, USB, Fiber Transmitter
• (1) Video Extender — 4K HDMI, USB, Fiber Receiver
• (1) 5V AC/DC USB Adapter for receiver module.
• (1) Micro-B-to-Type-A-USB cable
• (1) Micro-B to-USB-Type-A-female-and-USB-Type-A-male “Y”-cable
• (2) 1.6-foot (0.5-meter) HDMI copper cables
• This user's manual

724-746-5500 | blackbox.com Page 11
Chapter 2: Overview
2.4 Additional Items You Will/May Need
Required:
• 50/125 µm OM3 multimode fiber cable
Optional:
• Optional 5-V USB power supply for the Transmitter (not included; depends on
the power supply capability of the graphic card via the +5 V pin).
NOTE: Most laptops or PCs that have a PCI Express®graphics card installed
supply enough power to run the Transmitter module.
• Optional USB hub for connection of multiple USB devices such as keyboard,
mouse, memory stick, etc.

724-746-5500 | blackbox.com
Page 12
Chapter 2: Overview
2.5 Hardware Description
2.5.1 Transmitter

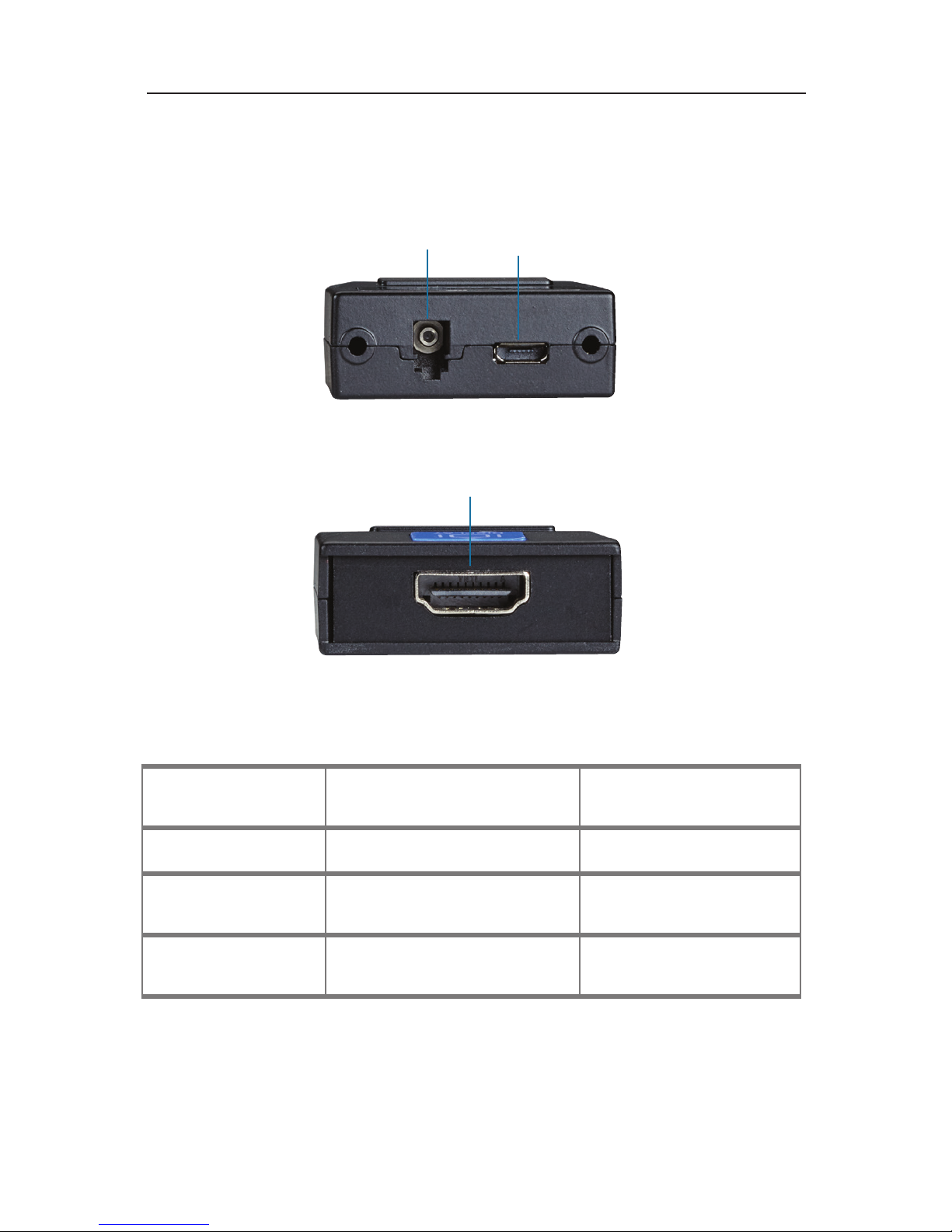

Figures 2-1 and 2-2 show the front and back panels of the transmitter. Table 2-1
describes its components.
1 2
Figure 2-1. Front panel of the transmitter.
3
Figure 2-2. Back panel of the transmitter
Table 2-1. Transmitter components.
Number in
Figures 2-1 and 2-2
Component Description
1(1) fiber LC connector Links to fiber out.
2(1) micro USB Type A
female connector
Links to 5-V USB power
supply (optional*)
3(1) HDMI female connector Links to HDMI source
device.
*NOTE: In most cases, the graphic card can supply enough power via the +5 V
pin. If not, you will need a power supply (not included).

724-746-5500 | blackbox.com Page 13
Chapter 2: Overview
2.5.2 Receiver
Figures 2-3 and 2-4 show the front and back panels of the receiver. Table 2-2
describes its components.
1 2
Figure 2-3. Front panel of the receiver.
3
Figure 2-4. Back panel of the receiver.
Table 2-2. Receiver components.
Number in
Figures 2-3 and 2-4
Component Description
1(1) fiber LC connector Links to fiber in.
2(1) micro USB Type A
female connector
Links to 5-V USB power
supply (included)
3(1) HDMI female connector Links to HDMI display
device.

724-746-5500 | blackbox.com
Page 14
Chapter 2: Overview
2.6 Typical Application
Use the extenders in airports, movie theaters, and other kiosks; ATMs, confer-
ence systems, and video wall systems; digital signage; in broadcasting, medical,
military, factory automatic, and traffic control applications.
Diagram Format
Rule Size: 1 pt
DVI
Audio
USB
CATx
Fiber
HDMI
50/125 µm OM3 multimode
fiber optic cable
Display
Printer
Keyboard
Mouse
Hub
Receiver
(UVX-HDMI-FO-MINI)
Transmitter
(UVX-HDMI-FO-MINI)
PC
Figure 2-3. Typical application.

724-746-5500 | blackbox.com Page 15
Chapter 3: Installation
3. Installation
Follow the steps listed below to install your Video Extenders.
1. Plug the micro USB B connector end of the included Micro-B-to-Type-A-USB
cable into the transmitter's female micro USB port.
2. Plug the USB Type A connector end of the Micro-B-to-Type-A-USB cable into
the video source's USB port.
3. Plug the micro USB connector on the included Micro-B to-USB-Type-A-
female-and-USB-Type-A-male “Y”-cable into the receiver's micro USB port.
4. Plug the other end of the Micro-B to-USB-Type-A-female-and-USB-Type-A-
male “Y”-cable to the receiver's 5-V power adapter (included).
5. Plug the USB female connector on the “Y” cable from the receiver to the USB
peripheral device (keyboard, mouse, printer, USB hub).
6. Using the LC connectors on a 50/125 µm OM3 multimode fiber cable (not
included), link the Transmitter to the Receiver.
7. Connect the HDMI cable between the source and the transmitter.
8. Connect the HDMI cable between the display and the receiver.
9. Power on the source and display devices.

724-746-5500 | blackbox.com
Page 16
Chapter 4: Troubleshooting
4. Troubleshooting
4.1 Contacting Black Box
If you determine that your Video Extender — 4K HDMI, USB, Fiber is
malfunctioning, do not attempt to alter or repair the unit. It contains no
user-serviceable parts. Contact Black Box Technical Support at 724-746-5500 or
[e-mail].
Before you do, make a record of the history of the problem. We will be able to
provide more efficient and accurate assistance if you have a complete descrip-
tion, including:
• the nature and duration of the problem.
• when the problem occurs.
• the components involved in the problem.
• any particular application that, when used, appears to create the problem or
make it worse.
4.2 Shipping and Packaging
If you need to transport or ship your Video Extender — 4K HDMI, USB, Fiber:
• Package it carefully. We recommend that you use the original container.
• If you are returning the unit, make sure you include everything you received
with it. Before you ship for return or repair, contact Black Box to get a Return
Authorization (RA) number.

724-746-5500 | blackbox.com Page 17
NOTES

724-746-5500 | blackbox.com
Page 18
NOTES

724-746-5500 | blackbox.com Page 19
NOTES

Chapter
724-746-5500 | blackbox.com
Great tech support is just 60 seconds away
at 724-746-5500 or blackbox.com.
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
UVX-HDMI-FO-MINI User Manual, version 1
About Black Box
Black Box provides an extensive range of networking and infrastructure
products. You’ll find everything from cabinets and racks and power and surge
protection products to media converters and Ethernet switches all supported by
free, live 24/7 Tech support available in 60 seconds or less.
© Copyright 2015. Black Box Corporation. All rights reserved. Black Box®and the Double Diamond
logo are registered trademarks of BB Technologies, Inc. Any third-party trademarks appearing in
this white paper are acknowledged to be the property of their respective owners.
