Black Box VX-HDMI-FO User manual

BL A C K B O X®
Extend video, 3D video (1080i), and audio signals
up to 1600 meters from an A/V source
via multimode fiber optic cable.
Using duplex multimode cable and 1080p video, extend the distance
up to 800 meters.
3D HDMI Fiber Extender
VX-HDMI-FO
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) FREE technical support 24 hours a day, 7 days
a week: Call 724-746-5500 or fax [phone] Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
Customer
Support
Information

724-746-5500 | blackbox.com
Page 2
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

724-746-5500 | blackbox.com Page 3
FCC and IC RFI Statements
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY
CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed
to provide reasonable protection against such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.

724-746-5500 | blackbox.com
Page 4
NOM Statement
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.

724-746-5500 | blackbox.com Page 5
NOM Statement
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com
Page 6
Table of Contents
Chapter Page
1. Specifications............................................................................................... 7
2. Overview ..................................................................................................... 8
2.1 Introduction ........................................................................................ 8
2.2 Features............................................................................................... 8
2.3 What’s Included .................................................................................. 8
2.4 System Requirements.......................................................................... 9
2.5 Hardware Description ......................................................................... 9
3. Installation.....................................................................................................11
3.1 Preparing for Installation....................................................................11
3.2 Installation Steps ................................................................................12
4. Operation ......................................................................................................13
5. EDID Configuration (Local Unit Only) .......................................................... 14
Appendix. Installing Duplex Multimode Fiber Optic Cable...............................17

724-746-5500 | blackbox.com Page 7
Chapter 1: Specifications
1. Specifications
3D Video Supported — Yes
Cable — 50/125-µ or 62.5/125µ duplex multimode fiber optic cable
Extension Distance — 2560 feet (800 m), approx. 0.5 mi. (1080p);
5120 feet (1600 m), approx. 1 mi. (1080i)
User Controls — Local unit: (1) EDID config button;
Remote unit: None
Video Resolution (Maximum) — Full HD: (1920 x 1080), WUXGA: (1920 x 1200)
Connectors — Local unit: Input: (1) HDMI, Output: (1) HDMI, (1) IR (infrared),
(1) SC fiber;
Remote unit: Input: (1) SC fiber, (1) IR (infrared), Output: (2) HDMI
Indicators — Each unit: (2) top-panel LEDs: (1) Video OK LED,
(1) Link OK/Power LED
Power Consumption (Maximum) — Per unit: 3 W
Size — Each unit: 0.9"H x 2.9"W x 5.9"D (2.4 x 7.5 x 15 cm)
Weight — Local unit: 1.3 lb. (0.57 kg);
Remote unit: 1.2 lb. (0.56 kg)

724-746-5500 | blackbox.com
Page 8
Chapter 2: Overview
2. Overview
2.1 Introduction
The 3D HDMI Fiber Extender consists of a Local and a Remote Unit. It enables users
to extend video, 3D video (1080i), and audio signals up to 5120 feet (1600 m,
approx. 1 mi.) from an A/V source via duplex multimode fiber optic cable, or up to
2560 feet (800 m, approx. 0.5 mi., 1080p) using duplex multimode fiber optic cable.
The HDMI digital display supports up to the maximum resolution of full HD (1920 x
1080)/WUXGA and (1920 x 1200)/UXGA (1600 x 1200), along with audio channels.
The EDID Config function enables the best video presentation. Optionally, the 3D
HDMI Fiber Extender can configure audio or audio and video EDID via push-button
commands.
Use the Fiber Extender in applications that require greater distance, high speed
transmission, real-time high video resolution, security, and noise immunity. Its
scalable design enables your enterprise to grow.
2.2 Features
• Extends the video signal up to 2560 feet (800 m), approx. 0.5 mi. (1080p)
or 5120 feet (1600 m), approx. 1 mi. (1080i) over multimode fiber.
• Supports pure digital transmission with zero compression.
• EDID Config function increases display capability
• Includes selectable EDID (audio) functions for multimedia system integration
• IR extending function is available (38 kHz only)
• Complies with HDMI 1.3b specification
• Complies with 3D-video, HDCP compliant, and Blu-ray ready
• Software and driver installation NOT required
2.3 What’s Included
Your package should contain the following items. If anything is missing or damaged,
contact Black Box Technical Support at 724-746-5500 or [e-mail].
• 3D HDMI Fiber Extender Local Unit
• 3D HDMI Fiber Extender Remote Unit
• (2) Power supplies with snap-on power plug
• IR collector
• IR emitter
• 2-m SC-SC duplex 50-/125-micron patch cord
• (2) sets of 4 foot pads

724-746-5500 | blackbox.com Page 9
Chapter 2: Overview
• (10) small screws
• (8) small rare earth magnets for mounting
• Quick Install Guide
2.4 System Requirements
You will need to supply the following items:
• HDCP compliant monitors with HDMI interface for the HDCP video source
• HDMI cable
2.5 Hardware Description
Figures 2-1 shows the local and remote units. Table 2-1 describes their components.
L1 L2 L3
L5 L4
L8 L6 L7
L8
R1 R2 R3
R5 R4
R6 R7

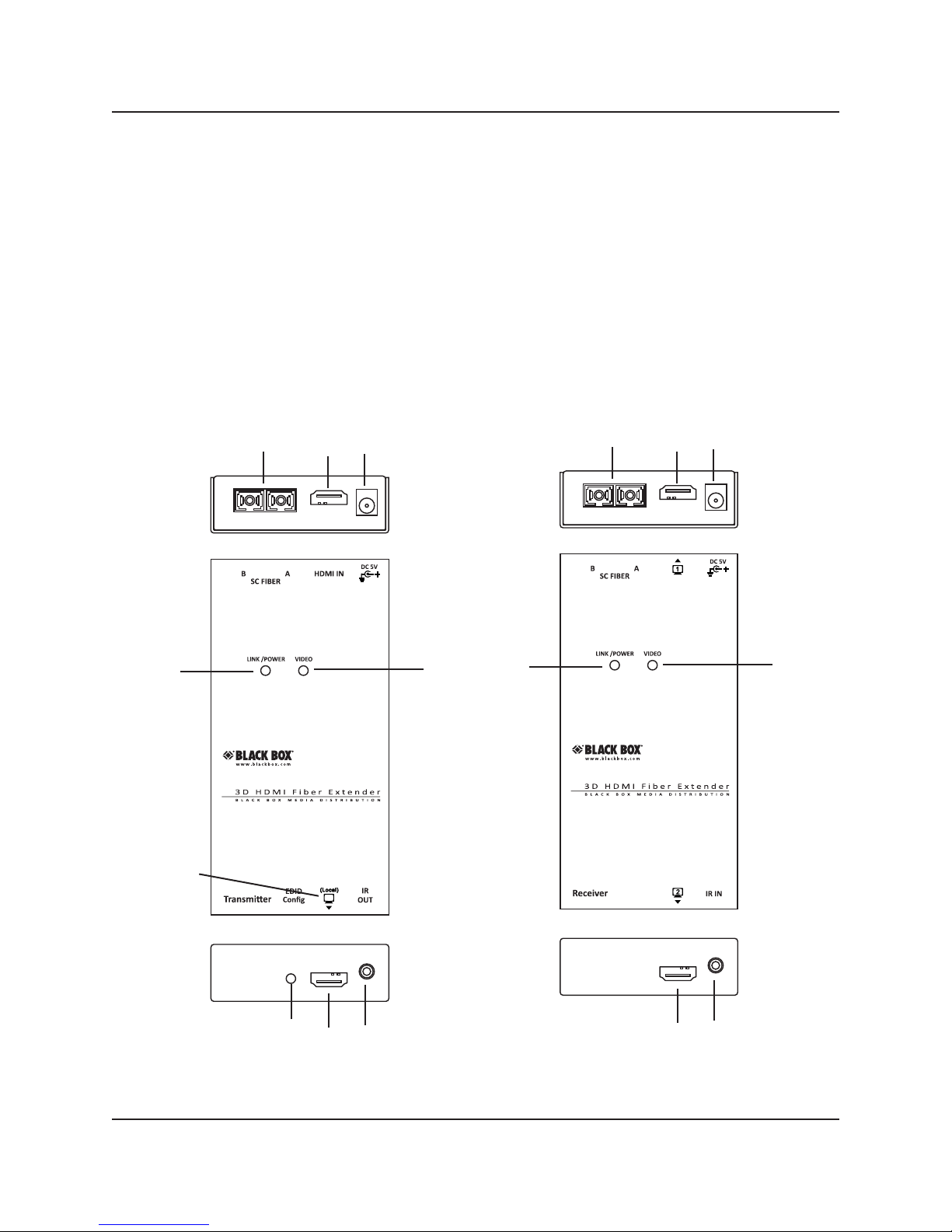

Figure 2-1. Local (L) and Remote (R) units.

724-746-5500 | blackbox.com
Page 10
Chapter 2: Overview
Table 2-1. Local and remote units components.
L1 R1
SC-SC fiber
interface
Connect the multimode optical fiber cable to
this port.
L2 —
HDMI connector
Connect to the HDMI source.
—R2 Connect to the HDMI monitor.
L3 R3 Power supply Apply the proper power to the unit.
L4 R4 Video OK LED Yellow: Video signal OK/EDID configuration
(see Chapter 5).
L5 R5 Link OK/Power LED
Green: Power on
Blue: Connect to a powered-on extender
unit.
L6 R6 HDMI connector Connect to the HDMI monitor
L7 R7 IR control jack Plug the external sensor here
(L7: Transmitter/R7: Receiver)
L8 — EDID config button EDID Configuration (see Chapter 5).

724-746-5500 | blackbox.com Page 11
Chapter 3: Installation
3. Installation
CAUTION: Do not stare into the beam or look directly into the ends of any fiber
optic cables. You might be exposed to invisible laser radiation. The laser
beam can injure the eye.
3.1 Preparing for Installation
• Determine where the Local Unit and Remote Unit will be located
• Use SC to SC duplex multimode fiber optic cable (50/125 or 62.5/125) to
interconnect the local and remote units.
• Make sure that the fiber cable length is long enough for the connection between
the Local Unit and the Remote Unit so you don’t have to splice fiber. Try to
complete the installation in one pull.
• The Extender is HDCP compliant and required to use the HDCP-compliant display
when it is connecting to the HDCP video source.
• Never attempt to disassemble or reassemble the enclosure for any purpose. This
may cause personal injury and/or property damage.
IR
transceiver
Local unit Remote unit
Fiberoptic cable

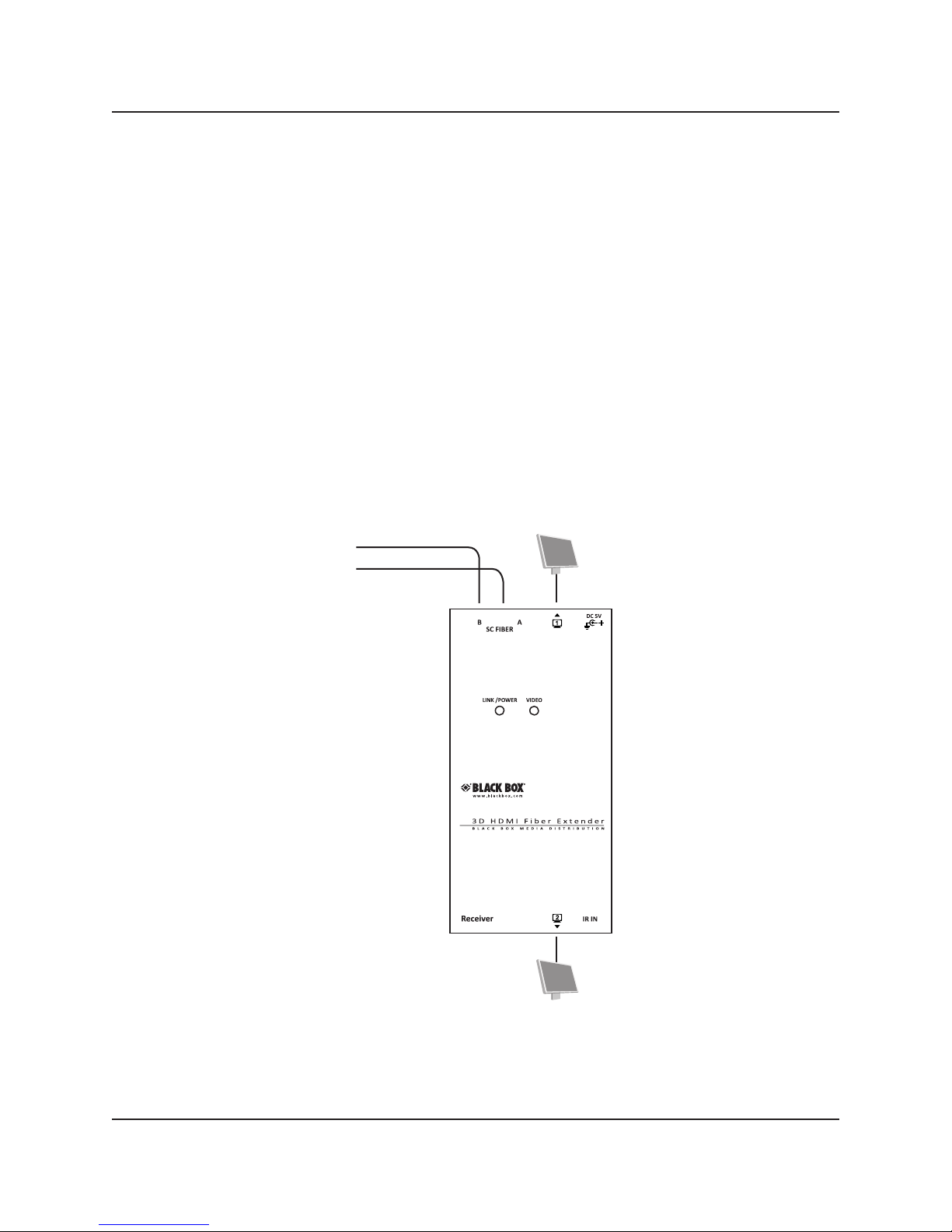

Figure 3-1. Sample installation.

724-746-5500 | blackbox.com
Page 12
Chapter 3: Installation
3.2 Installation Steps
1. Connect the video source to the local unit.
2. Connect the monitor to the local unit and/or remote unit.
3. Use an SC-to-SC duplex multimode fiber optic cable to link the SC-SC fiber ports
on the Local and Remote Units together.
4. After all device connections are completed, connect the provided power cord
into an appropriate power source, and plug the opposite end into the power
connector on the unit.

724-746-5500 | blackbox.com Page 13
Chapter 4: Operation
4. Operation
The LEDs on the Extender Units show the real-time status indicating the linking and
communication between the local and the remote unit. The LED indicator on the
top of the unit shows the status.
The quality of the output signal depends upon the quality of the video source, cable,
and display device used. Low-quality cables degrade output signals causing elevated
noise levels. Use the proper cable and make sure the display device is capable of
handling the resolution and refresh rate selected.
NOTES:
1. The system will disable the video output signal when it detects non-HDCP-
compliant display(s) when playing the HDCP video source.
2. A 2D monitor might disable the video output signal when it detects 3D video
source.
Video source
with HDCP
from local unit
HDCP
compliant
Remote unit
HDCP
compliant
Figure 4-1. Use a quality video source, cable, and display device.

724-746-5500 | blackbox.com
Page 14
Chapter 5: EDID Configuration (Local Unit Only)
5. EDID Configuration (Local Unit Only)
In some cases, display problems may occur because of incorrect EDID
communication between the display monitor and the unit or inappropriate EDID
data programmed by display manufacturers. Press the “EDID Config” button on the
top panel of the local unit to enable the unit to configure EDID from EDID-compliant
monitors or have the system automatically optimize all valid (audio and/or video)
outputs. Table 5-1 summarizes EDID Configuration.
Table 5-1. EDID configuration.
EDID Mode Video EDID Audio EDID
Auto mixing and
EDID Config
Auto mixing: Min. (of all)
Automatically optimize all
valid (video) outputs for
minimum requirement
Config local monitor
(audio) EDID and all
connected monitors use
the configured (audio)
EDID
EDID Config
Config local monitor
(video) EDID and all
connected monitors use
the configured (video)
EDID
Config local monitor
(audio) EDID and all
connected monitors use
the configured (audio)
EDID
Auto mixing
Auto mixing: Min. (of all)
Automatically optimize all
valid (video) outputs for
minimum requirement
Auto mixing: Min. (of all)
Automatically optimize all
valid (audio) outputs for
minimum requirement
NOTE: The default mode is auto mixing.

724-746-5500 | blackbox.com Page 15
Chapter 5: EDID Configuration (Local Unit Only)
Mode 1: Auto Mixing + EDID Config
Step 1. Press and hold the “EDID config” button for three seconds.
Step 2. Release the button right after the Video OK LED flashes yellow quickly.
Step 3. When the LED flashes yellow twice, it has learned the audio configuration,
and the system will reboot.
NOTE: If the LED flashes four times, it signifies failed EDID Config. Please try again.
The system enters Auto Mixing and Config Local Monitor Audio EDID mode. It will
copy local monitor (audio) EDID, and the system automatically optimizes all valid
(video) outputs for minimum requirements, and all connected monitors use the local
monitor’s configured (audio) EDID.
Mode 2: EDID Config
Step 1. Press and hold the “EDID config” button for six seconds.
Step 2. Release the button right after the Video OK LED Indicator flashes yellow
slowly.
Step 3. Next, when it flashes yellow twice, it has configured the EDID and the
system will reboot.
NOTE: If the LED flashes four times, it signifies failed EDID config. Please try again.
The system enters Config Local Monitor EDID mode. It will configure local monitor
(Audio + Video) EDID, and all connected monitors use the local monitor’s
configured (Audio + Video) EDID.
Mode 3: Auto Mixing
Step 1. Press and hold the “EDID config” button for nine seconds
Step 2. Release the button as soon as the Video OK LED Indicator goes out.
Step 3. When the LED flashes yellow twice, it indicates it has configured
successfully, and the system will reboot.
NOTE: If the LED flashes four times, it signifies failed EDID Config. Please try again.
The system enters Auto Mixing mode. In this way, the system automatically
optimizes all valid outputs (Audio + Video).

724-746-5500 | blackbox.com
Page 16
Chapter 5: EDID Configuration (Local Unit Only)
Table 5-2. LED Indicator functions.
Press “EDID
config” button for
Video OK LED
indicator Status
3 seconds Yellow: Flash quickly
Auto mixing (video) and
Copy local monitor EDID
(audio)
6 seconds Yellow: Flash slowly Copy local monitor EDID
(video + audio)
9 seconds Off Auto mixing (video +
audio)
—Yellow: Flash twice Successful copy and
system reboot
—Yellow: Flash four times Failed copy

724-746-5500 | blackbox.com Page 17
Appendix: Installing Duplex Multimode Fiber Cable
Appendix. Installing Duplex Multimode Fiber Optic Cable
1. We recommend that you use OM3 multimode fiber optic cable (50/125 and
62.5/125) terminated with SC duplex connectors to interconnect the local unit
and remote unit. Table A-1 shows the specifications.
Table A-1. Duplex multimode fiber optic cable specifications.
Cable Diameter
(micron) 50/125 µm 62.5/125 µm
Video signal 1080i 1080p 1080i 1080p
Maximum cable
length (feet/meters)
5120 ft.
(1600 m)
2560 ft.
(800 m)
1640 ft
(500 m)
820 ft.
(250 m)
2. You may need to order appropriate cable lengths that conform to the application
environment; however, the maximum cable length should not exceed 5120 feet
(1600 meters), approx. 1 mi.; otherwise, signal degradation may occur (especially
for video resolution).
3. Do not exceed the cable bend radius. Fiber optic cable can break when kinked or
bent too tightly, especially during pulling.
4. Do not twist the cable. Twisting the cable can stress the fibers. Tension on the
cable and pulling ropes can cause twisting.
5. Don’t look into the ends of any fiber optic cables. You might be exposed to
invisible laser radiation.
6. Follow the cable manufacturer's recommendations. Fiber optic cable is often
custom-designed for the installation, and the manufacturer may have specific
instructions for how to install it.

724-746-5500 | blackbox.com
Page 18
NOTES

724-746-5500 | blackbox.com Page 19
NOTES

Chapter
Page 900 724-746-5500 | blackbox.com
BL A C K B O X®
Great tech support is just 30 seconds away
at 724-746-5500 or blackbox.com.
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
VX-HDMI-FO, version 2
About Black Box
Black Box provides an extensive range of networking and infrastructure products.
You’ll find everything from cabinets and racks and power and surge protection
products to media converters and Ethernet switches all supported by free, live 24/7
Tech Support available in 30 seconds or less.
© Copyright 2012. Black Box Corporation. All rights reserved.
