8-Port 10/100BASE-TX Hardened Ethernet Extender Switch
LB308A
User’s Manual
Use this managed hardened switch plus VDSL extender
in extreme environments.

Page 2 724-746-5500 | blackbox.com LB308A
FCC and NOM Statements
FEDERAL COMMUNICATIONS COMMISSION AND
INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy,
and if not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference
when the equipment is operated in a commercial environment. Operation of
this equipment in a residential area is likely to cause interference, in which case
the user at his own expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise
emission from digital apparatus set out in the Radio Interference Regulation
of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que
el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.

Page 3
724-746-5500 | blackbox.com
LB308A
NOM Statement
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio — El usuario no debe intentar dar servicio al equipo eléctrico más allá
lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe
colocar en libreros o gabinetes que impidan el flujo de aire por los orificios
de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo
del tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.

Page 4 724-746-5500 | blackbox.com LB308A
NOM Statement
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 5
724-746-5500 | blackbox.com
LB308A
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of BB
Technologies, Inc.
Apple and Macintosh are registered trademarks of Apple Computer, Inc.
Hyperterminal is a registered trademark of Hilgraeve, Inc.
Internet Explorer is a registered trademark of Microsoft Corporation.
Netscape is a registered trademark of Netscape Communications Corporation.
UNIX is a registered trademark of The Open Group.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

Page 6 724-746-5500 | blackbox.com LB308A
Quick Start Guide
Quick Start Guide
This quick start guide describes how to install and use the 8-Port 10/100BASE-TX
Hardened Ethernet Extender Switch. Use it in harsh environments where space is limited.
QS.1 Physical Description
Figure QS-1 illustrates the port status LEDs and power inputs. Tables QS-1 and
QS-2 describe these components.
3 2 1
4
5
6
13
13
13
13
9
8
11
7
10
12

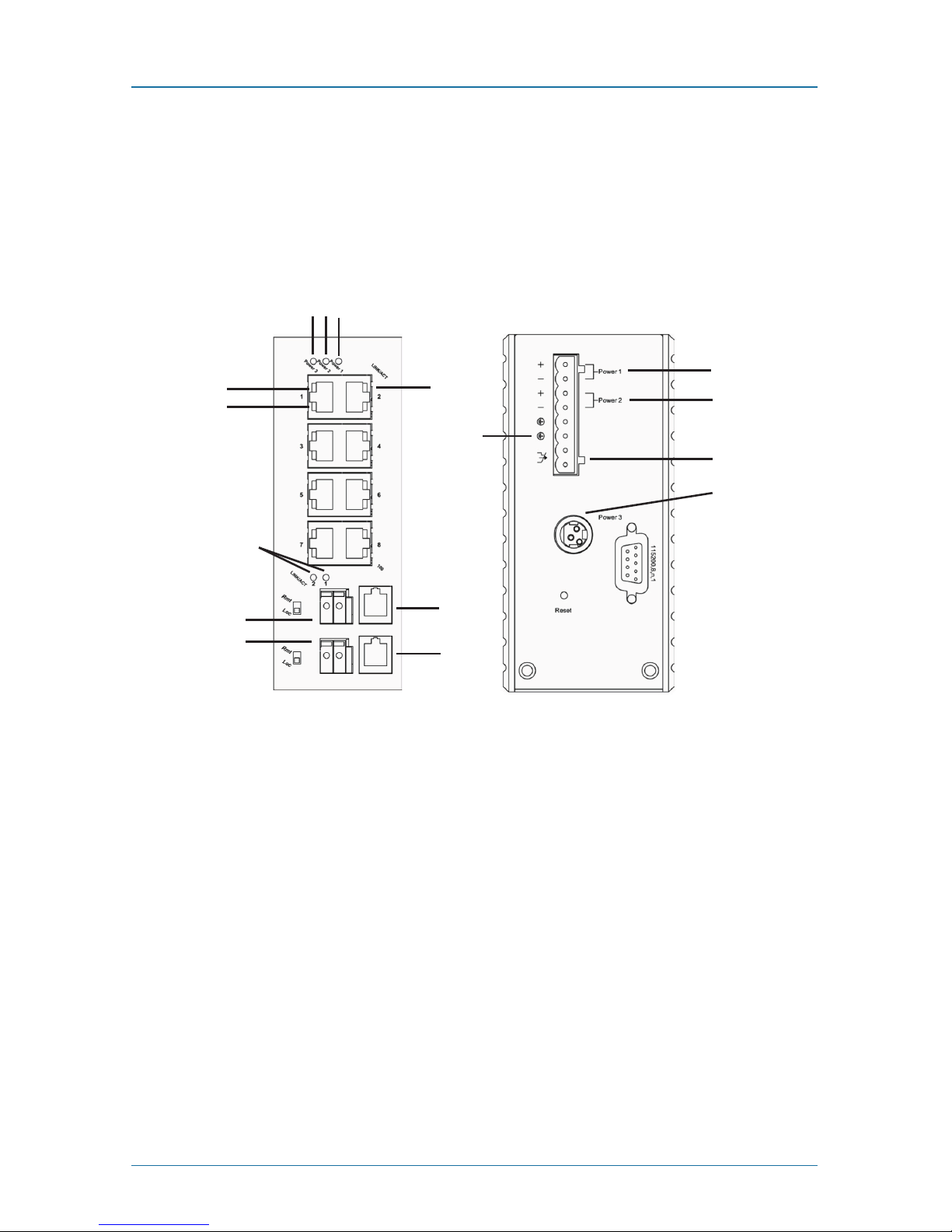

Figure QS-1. Port status LEDs and power inputs.

Page 7
724-746-5500 | blackbox.com
LB308A
Quick Start Guide
Table QS-1. Port status LEDs.
Number Indicator State Indication
1Power 1 Steady Power on.
2Power 2
Off Power off.
3Power 3
10/100BASE-TX Port
4LINK/ACT
Steady A valid network connection is established.
Flashing Transmitting or receiving data. ACT stands for Activity.
5100
Steady Connection at 100-Mbps speed.
Off Connection at 10-Mbps speed.
Ethernet Extender Port
6LINK/ACT
Steady A valid network connection is established.
Flashing Transmitting or receiving data. ACT stands for Activity.
Table QS-2. Power input assignment.
Number Input Polarity Voltage Connector
7Power 3 12 VDC DC jack
8Power 2
+12–48 VDC
Terminal block
-Power Ground
9Power 1
+12–48 VDC
-Power Ground
10 Ground
11 Relay output rating 1 A @24 VDC

Page 8 724-746-5500 | blackbox.com LB308A
Quick Start Guide
Table QS-3. Ports on the switch.
Number Number of Ports Description Mode Selection
12 (8) RJ-45 10/100BASE-TX ports
10BASE-T full-duplex mode
10BASE-T half-duplex mode
100BASE-TX full-duplex mode
100BASE-TX half-duplex mode
Auto-negotiating mode
13 (2) RJ-11 and terminal blocks Ethernet Extender ports Asymmetrical or symmetrical
DC Terminal Block Power Inputs:
You can use two power inputs to power on the Hardened Ethernet Extender
Switch. Redundant power supplies are supported.
QS.2. Functional Description
The Hardened Ethernet Extender Switch:
• Meets NEMA TS1/TS2 environmental requirements, including temperature,
shock, and vibration for traffic control equipment.
• Meets EN61000-6-2 and EN61000-6-4 EMC generic standard immunity for an
industrial environment.
• Manageable via SNMP, Web browser, Telnet, and RS-232 console port.
• RS-232 console supports command-line interface.
• Ethernet Extender ports are asymmetrical or symmetrical on the VDSL, full-
duplex 59-Mbps downstream/31-Mbps upstream asymmetrical, or full-duplex
50-Mbps symmetrical communications link over an existing copper telephone
line.
• Operates transparently to higher-layer protocols such as TCP/IP.
• Two DIP switches configure local (LOC) and remote (REM).
• Supports 802.3/802.3u/802.3x autonegotiating, 10-/100-Mbps, full-/half-
duplex, Auto MDI/MDI-X Ethernet ports.
• Suports 8192 MAC addresses.

Page 9
724-746-5500 | blackbox.com
LB308A
Quick Start Guide
• Provides 2 MB of memory buffer.
• Relay output alarms indicate power and port link failure.
• Includes redundant 12–48-VDC power terminal block power inputs and 12-VDC
jack with a 100–240-VAC external power supply.
• Operating voltage and maximum current consumption are: 0.92 A @ 12-VDC,
0.46 A @ 24 VDC, 0.23 A @ 48 VDC. Maximum power consumption is 11 W.
• Operating temperature range is -40 to +167° F (-40 to +75° C).
• Supports DIN rail and panel mounting installation.
QS.3. Console Configuration
1. Connect to the Hardened Ethernet Extender Switch console: Connect the DB9
straight cable to the RS-232 serial port of the device and the RS-232 serial port
of the terminal or computer running the terminal emulation application.
For direct access to the administration console, connect a terminal or PC
equipped with a terminal emulation program (such as HyperTerminal®)
to the Hardened Ethernet Extender Switch console port.
2. Configure the settings for the terminal emulation program:
Baud rate: 115,200 bps
Data bits: 8
Parity: none
Stop bit: 1
Flow control: none
3. Press the Enter key. The Command Line Interface (CLI) screen should appear as
shown in Figure QS-2.
4. Log on to Exec Mode (View Mode): At the “switch_a login:” prompt, type
“root” and press “Enter” to logon to Exec Mode (or View Mode). The
“switch_a>” prompt will show on the screen (see Figure QS-3).

Page 10 724-746-5500 | blackbox.com LB308A
Quick Start Guide
Figure QS-2. switch_a> prompt.
5. Log on to Privileged Exec Mode (Enable Mode): At the “switch_a>” prompt,
type “enable” and press “Enter” to log on to Privileged Exec Mode (or Enable
Mode). The “switch_all” prompt will show on the screen.
6. Log on to Configure Mode (Configure Terminal Mode): At the “switch_all”
prompt, just type in “configure terminal” and press Enter to log on to
Configure Mode (or Configure Terminal Mode). The “switch_a(config)#”
prompt will show on the screen.
Figure QS-3. switch_a(config)# prompt.

Page 11
724-746-5500 | blackbox.com
LB308A
Quick Start Guide
QS.4 Web Configuration
1. Log in to the Ethernet Switch: Specify the default IP address (192.168.1.10) of
the Hardened Ethernet Extender Switch in the Web browser. A login will
appear as shown in Figure QS-4.
Figure QS-4. Login screen.
2. Enter the factory default login ID: root. Enter the factory default password (no
password), then click on the “Login” button to log in to the Hardened Ethernet
Extender Switch.

Page 12 724-746-5500 | blackbox.com LB308A
Quick Start Guide

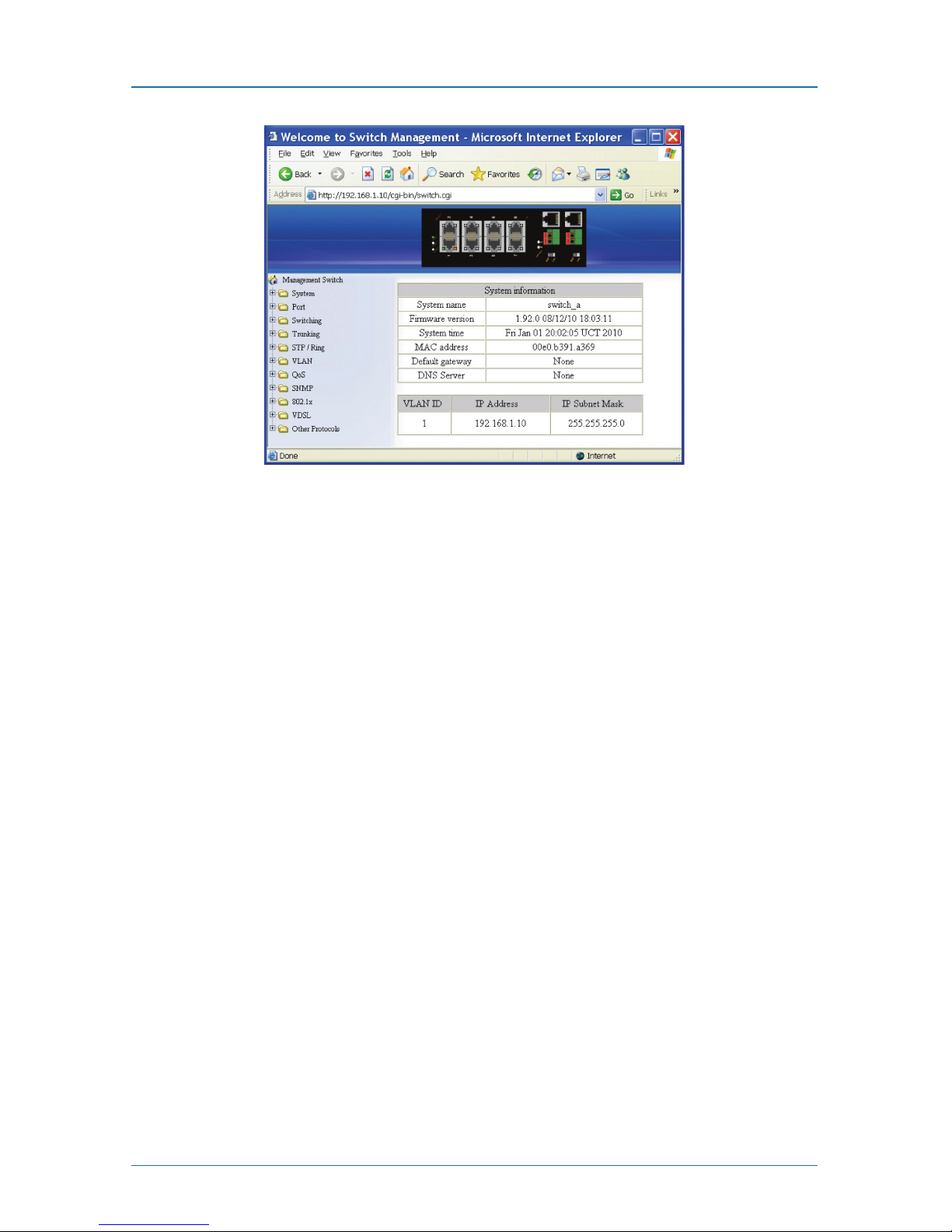

Figure QS-5. Welcome screen.

Page 13
724-746-5500 | blackbox.com
LB308A
Preface
Preface
This manual describes how to install and use the 8-Port 10/100BASE-TX Ethernet
Extender. The extender is scalable and uses SNMP/RMON Web-based
management.
To get the most from this manual, you should have an understanding of Ethernet
networking concepts.
In this manual, you will find:
• Specifications
• Illustrated LED functions.
• Installation instructions.
• Management configuration.
• SNMP, IGMP

Page 14 724-746-5500 | blackbox.com LB308A
Table of Contents
Table of Contents
Quick Start Guide ........................................................................................ 6
QS.1 Physical Description .......................................................................... 6
QS.2 Functional Description ...................................................................... 8
QS.3 Console Configuration...................................................................... 9
QS.4 Web Configuration..........................................................................11
Preface ...................................................................................... 13
1. Specifications ...................................................................................... 17
2. Overview ...................................................................................... 19
2.1 Introduction.................................................................................... 19
2.2 Features ...................................................................................... 19
2.3 Management Support.................................................................... 20
2.4 What’s Included ............................................................................. 21
2.5 Hardware Description..................................................................... 21
2.6 Hardened Ethernet Extender Switch Management ........................ 25
2.6.1 Web-Based Browser Interface ....................................... 25
2.6.2 Administration Console via RS-232 Serial Port (CLI)....... 25
2.6.3 External SNMP-based Network Management
Application .................................................................... 25
3. Installation ...................................................................................... 26
3.1 Selecting a Site for the Hardened Ethernet Extender Switch .......... 26
3.2 DIN Rail Mounting.......................................................................... 26
3.3 Connecting to Power ..................................................................... 27
3.3.1 12-VDC Jack .................................................................. 27
3.3.2 Redundant DC Terminal Block Power Inputs ................. 27
3.3.3 Alarms for Power Failure................................................ 28
3.3.4 Reset Button.................................................................. 29
3.4 Connecting to Your Network ......................................................... 29
3.4.1 Cable Type and Length.................................................. 29
3.4.2 Cabling .......................................................................... 29
4. Hardened Ethernet Extender Switch Management ..................................... 31
4.1 Management Access Overview ...................................................... 31
4.2 Administration Console (CLI).......................................................... 31
4.2.1 Direct Access ................................................................. 32
4.2.2 Modem Access .............................................................. 32
4.3 Web Management ......................................................................... 32
4.4 SNMP-based Network Management.............................................. 33

Page 15
724-746-5500 | blackbox.com
LB308A
Table of Contents
4.5 Protocols ...................................................................................... 33
4.6 Management Architecture ............................................................. 34
5. Web-Based Browser Management ............................................................ 35
5.1 SNMP and RMON Management .................................................... 35
5.1.1 Overview ....................................................................... 35
5.1.2 SMNP Agent and MIB-2 (RFC 1213).............................. 35
5.1.3 RMON MIB (RFC 2819) and Bridge MIB (RFC 1493) ..... 36
5.2 Web-Based Management .............................................................. 37
5.2.1 Logging On to the Hardened Ethernet Extender Switch 38
5.2.2 Understanding the Browser Interface ............................ 38
5.2.3 System ........................................................................... 40
5.2.4 Port................................................................................ 54
5.2.5 Switching....................................................................... 60
5.2.6 Trunking ........................................................................ 63
5.2.7 STP Ring ........................................................................ 64
5.2.8 VLAN ............................................................................. 73
5.2.9 QoS ............................................................................... 79
5.2.10 SNMP ............................................................................ 82
5.2.11 802.1x ............................................................................ 87
5.2.12 VDSL .............................................................................. 91
5.2.13 Other Protocols.............................................................. 96
6. Command-Line Console Management...................................................... 103
6.1 Administration Console ................................................................ 103
6.1.1 Exec Mode (View Mode)............................................. 104
6.1.2 Privileged Exec Mode (Enable Mode) .......................... 108
6.1.3 Configure Mode (Configure Terminal Mode)................112
6.2 System .....................................................................................116
6.3 Port .................................................................................... 127
6.4 Switching .................................................................................... 133
6.5 Trunking .................................................................................... 139
6.6 STP Ring .................................................................................... 140
6.7 VLAN .................................................................................... 157
6.8 QoS .................................................................................... 165
6.9 SNMP .................................................................................... 168
6.10 802.1x .................................................................................... 176
6.11 VDSL .................................................................................... 182
6.12 Other Protocols ............................................................................ 188

Page 16 724-746-5500 | blackbox.com LB308A
Apppendix A. DB9 DCE Pin Assignment.......................................................... 203
Appendix B. Time Zone, Country, and City Lists .............................................. 204
Table of Contents

Page 17
724-746-5500 | blackbox.com
LB308A
Chapter 1: Specifications
1. Specifications
Address Table Size — 8192 MAC addresses
Cable — 10BASE-T: 2-pair UTP/STP CAT3/4/5, up to 328 ft. (100 m);
100BASE-TX: 2-pair UTP/STP CAT5, up to 328 ft. (100 m);
Ethernet Extender: Telephone wires up to 6232 ft. (1900 m)
EMI — FCC Part 15, Class A; EN61000-6-4: EN55022, EN61000-3-2, EN61000-3-3
EMS — EN61000-6-2: EN61000-4-2 (ESD standard); EN61000-4-3 (radiated RFI
standards); EN61000-4-4 (burst standards), EN61000-4-5 (surge standards),
EN61000-4-6 (induced RFI standards), EN61000-4-8 (magnetic field standards)
Forwarding Rate — 10BASE-T: 10/20 Mbps, half-/full-duplex;
100BASE-TX: 100/200 Mbps, half-/full-duplex;
Ethernet Extender: Asymmetric: 1/1, 14/1, 22/1, 25/2, 25/5, 28/5, 35/6, 42/8,
47/14, 52/24, 59/31 Mbps;
Symmetric: 1, 3, 5, 10, 15, 20, 25, 30, 40, 50 Mbps
Operating Voltage and Maximum Current Consumption — 0.92 A @
12 VDC, 0.46 A @ 24 VDC, 0.23 A @48 VDC
Performance — 14,880 pps for 10 Mbps;
148, 810 pps for 100 Mbps
Standards — IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, Ethernet over VDSL
Switching Method — Store-and-Forward
Traffic Control Standards — Meets NEMA TS1/2 environmental requirements
Connectors — (8) RJ-45 (10/100BASE-T), (1) DB9 F (RS-232 control port),
(2) RJ-11 and terminal blocks (interconnect)
Indicators — LEDs: Per unit: Power Status (Power 1, Power 2, Power 3);
Per port: 10/100TX, LINK/ACT, 100, RJ-11;
Terminal block, LINK/ACT
Temperature Tolerance — Operating: -40 to +167° F (-40 to +75° C);
Storage: -40 to +185° F (-40 to +85°C)
Humidity — 5-95%, noncondensing
Power — Input: 12-VDC jack, external AC/DC required;
Terminal block: 12–48 VDC;
Power consumption: 11 W maximum

Page 18 724-746-5500 | blackbox.com LB308A
Chapter 1: Specifications
Size — 5.7"H x 2.4"W x 4.9"D (14.5 x 6 x 12.5 cm)
Weight — 2.4 lb. (1.1 kg)

Page 19
724-746-5500 | blackbox.com
LB308A
Chapter 2: Overview
2. Overview
2.1 Introduction
Use the 8-Port 10/100BASE-TX Hardened Ethernet Extender Switch in harsh
environments where space is limited.
2.2 Features
The Hardened Ethernet Extender Switch:
• Meets NEMA TS1/TS2 environmental requirements, including temperature,
shock, and vibration for traffic control equipment.
• Meets EN61000-6-2 and EN61000-6-4 EMC generic standard immunity for an
industrial environment.
• Manageable via SNMP, Web browser, Telnet, and RS-232 console port.
• RS-232 console supports command-line interface.
• Ethernet Extender ports are asymmetrical or symmetrical on the VDSL, full-
duplex 59-Mbps downstream/31-Mbps upstream asymmetrical, or full-duplex
50-Mbps symmetrical communications link over an existing copper telephone
line.
• Operates transparently to higher-layer protocols such as TCP/IP.
• Two DIP switches configure local (LOC) and remote (REM).
• Supports 802.3/802.3u/802.3x autonegotiating, 10-/100-Mbps, full-/half-
duplex, auto MDI-MDI-X Ethernet ports.
• Supports 8192 MAC addresses.
• Provides 2 MB of memory buffer.
• Relay output alarms indicate power and port link failure.
• Includes redundant 12–48-VDC power terminal block power inputs and 12-VDC
jack with a 100–240-VAC external power supply.
• Operating voltage and maximum current consumption are: 0.92 A @12 VDC,
0.46 A @ 24 VDC, 0.23 A @ 48 VDC. Maximum power consumption is 11 W.
• Operating temperature range is -40 to +167° F (-40 to +75° C).
• Supports DIN rail and panel mounting installation.

Page 20 724-746-5500 | blackbox.com LB308A
Chapter 2: Overview
2.3 Management Support
The 8-Port 10/100BASE-TX Hardened Ethernet Extender Switch supports VLAN,
trunking, port security, port mirroring, QoS, internetworking protocols, and
network management methods.
VLAN:
• Port-based VLAN
• IEEE 802.1q tagged VLAN
Trunking:
• MAC-based trunking with automatic link failover
Port Security:
• Per-port programmable MAC address locking
• Up to 24 static secure MAC addresses per port
• IEEE 802.1x port-based network access control
Port Mirroring:
• Port mirroring
QoS (IEEE 802.1p Quality of Service):
• Four priority queues
Internetworking Protocols:
• Bridging: IEEE 802.1s multiple spanning treee, IEEE 802.1w rapid spanning tree,
IEEE 802.1D spanning tree compatible, IEEE 802.1Q GVRP
• IP multicast: IGMP snooping
• Rate control
• NTP
Network Management Methods:
• Console port access via RS-232 cable (CLI, Command-Line Interface)
• Telnet remote access
