Black Box AC1056A-2 User manual

BL A C K B O X®
Broadcast a crisp, clear VGA signal from one PC
to two, four, or eight VGA monitors.
Use for trade shows, training, even public information systems.
Compact Video Splitters
AC1056A-2
AC1056A-4
AC1056A-8
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) FREE technical support 24 hours a day, 7 days
a week: Call 724-746-5500 or fax [phone] Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
Customer
Support
Information

724-746-5500 | blackbox.com
Page 2
FCC and IC RFI Statements/NOM Statement
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY
CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed
to provide reasonable protection against such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a residen-
tial area is likely to cause interference, in which case the user at his own expense
will be required to take whatever measures may be necessary to correct the i
nterference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.

724-746-5500 | blackbox.com Page 3
NOM Statement
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.

724-746-5500 | blackbox.com
Page 4
NOM Statement
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com Page 5
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

724-746-5500 | blackbox.com
Page 6
Table of Contents
Table of Contents
1. Specifications.......................................................................................................7
2. Overview..............................................................................................................8
2.1 Introduction .................................................................................................8
2.2 What’s Included...........................................................................................8
2.3 Hardware Description ..................................................................................9
2.3.1 AC1056A-2........................................................................................9
2.3.2 AC1056A-4 .....................................................................................10
2.3.3 AC1056A-8 ..................................................................................... 11
3. Installation .........................................................................................................13
4. Operation ..........................................................................................................14
Appendix: Troubleshooting.....................................................................................15
A.1 Contacting Black Box..............................................................................15
A.2 Shipping and Packaging..........................................................................15

724-746-5500 | blackbox.com Page 7
Chapter 1: Specifications
1. Specifications
Number of VGA Outputs — AC1056A-2: (2);
AC1056A-4: (4);
AC1056A-8: (8)
Signal Bandwidth — AC1056A-2, AC1056A-4: 350 MHz;
AC1056A-8: 300 MHz
Signal Type — VGA, SVGA, Multi-sync
Cable Length — AC1056A-2: (1) 5-ft. (1.5-m) input cable, (1) 10-ft. (3-m) output
cable;
AC1056A-4: (1) 5-ft. (1.5-m) input cable, (3) 10-ft. (3-m) output cables;
AC1056A-8: (1) 5-ft. (1.5-m) input cable, (7) 10-ft. (3-m) output cables;
NOTE: Or, you can use up to 210 feet (64 m) maximum cable length of user-supplied
output cable.
Connectors — AC1056A-2: Input: (1) HD15 female,
Output: (2) HD15 female;
AC1056A-4: Input: (1) HD15 female,
Output: (4) HD15 female;
AC1056A-8: Input: (1) HD15 female,
Output: (8) HD15 female
Indicators — (2) LEDs: (1) Power, (1) Active
Power — Input: 100–240 VAC, 50/60 Hz autosensing inline power supply;
Output: 5 VDC, 2A
Size — AC1056A-2: 0.9"H x 3.3"W x 2.7"D (2.3 x 8.4 x 6.9 cm);
AC1056A-4: 1.6"H x 3.3"W x 2.7"D (4.1 x 8.4 x 6.9 cm);
AC1056A-8: 1.7"H x 7.8"W x 3"D (10.7 x 19.8 x 7.6 cm)
Weight — AC1056A-2: 0.4 lb. (0.2 kg);
AC1056A-4: 0.6 lb. (0.3 kg);
AC1056A-8: 1.3 lb. (0.6 kg)

724-746-5500 | blackbox.com
Page 8
Chapter 2: Overview
2. Overview
2.1 Introduction
The Compact Video Splitter (2-, 4-, or 8-port) broadcasts and boosts one VGA
signal source to 2, 4, or 8 VGA monitors. Use it for presentations, exhibits,
demonstrations, trade shows, monitor testing, or business meetings.
There’s no software or interface card to install. Simply connect the cables, power on
the splitter, and you’re ready to transmit one VGA image to multiple monitors with
excellent quality. A high-bandwidth circuit enables a high-resolution, 350-MHz VGA
signal to display on 2 or 4 monitors, or a 300-MHz signal to display on 8 monitors.
The maximum distance between the VGA input source and the output can be
up to 210 feet (64 m). (For distances longer than 10 feet [3 m], you must supply
the output cables.) The splitter works with VGA, SVGA, and multisync monitors to
provide crisp, clear VGA images. Cascade splitters for more VGA outputs. (Call Tech
Support for details.) If the VGA input is lost, the splitter automatically saves power.
2.2 What’s Included
Your package should contain the following items. If anything is missing or damaged,
contact Black Box at 724-746-5500 or [e-mail].
Your package should include the following items:
• (1) AC1056A-2*, AC1056A-4**, or AC1056A-8*** unit
• (1) power supply (special P/N VMVA314792)
• (1) power cord
• (4) rubber feet
• (1) 5-ft. (1.5-m) input cable (HD15 male to HD15 male, part number
EVNPS06-0005-MM)
• (1) user manual
*AC1056A-2 also includes (1) HD15 male to HD15 female 10-ft. (3-m) cable
(EVNPS06-0010-MF)
**AC1056A-4 also includes (3) HD15 male to HD15 female 10-ft. (3-m) cables
(EVNPS06-0010-MF)
***AC1056A-8 also includes (7) HD15 male to HD15 female 10-ft. (3-m) cables
(EVNPS06-0010-MF)

724-746-5500 | blackbox.com Page 9
Chapter 2: Overview
2.3 Hardware Description
2.3.1 AC1056A-2
Figures 2-1 and 2-2 show the front and back panels of the AC1056A-2. Table 2-1
describes its components.
5
2
Figure 2-1. AC1056A-2 front panel.
1
Figure 2-2. AC1056A-2 back panel.
Table 2-1. AC1056A-2 components.
Component Description
1(2) HD15 connectors Outputs
2(1) HD15 connector Input
3Power LED (not shown,
on top of unit)
Lights when the splitter is powered by
the 5-VDC power adapter
4Active LED (not shown,
on top of unit)
Lights when there is a VGA signal at the
input port
55-VDC power connector Links to a 5-VDC power adapter

724-746-5500 | blackbox.com
Page 10
Chapter 2: Overview
2.3.2 AC1056A-4
Figures 2-3 and 2-4 show the front and back panels of the AC1056A-4. Table 2-2
describes its components.
5
2
Figure 2-3. AC1056A-4 front panel.
1
1
1
1
Figure 2-4. AC1056A-4 back panel.

724-746-5500 | blackbox.com Page 11
Chapter 2: Overview
Table 2-2. AC1056A-4 components.
Component Description
1(4) HD15 connectors Outputs
2(1) HD15 connector Input
3Power LED (not shown,
on top of unit)
Lights when the splitter is powered by
the 5-VDC power adapter
4Active LED (not shown,
on top of unit)
Lights when there is a VGA signal at the
input port
55-VDC power connector Links to a 5-VDC power adapter
2.3.3 AC1056A-8

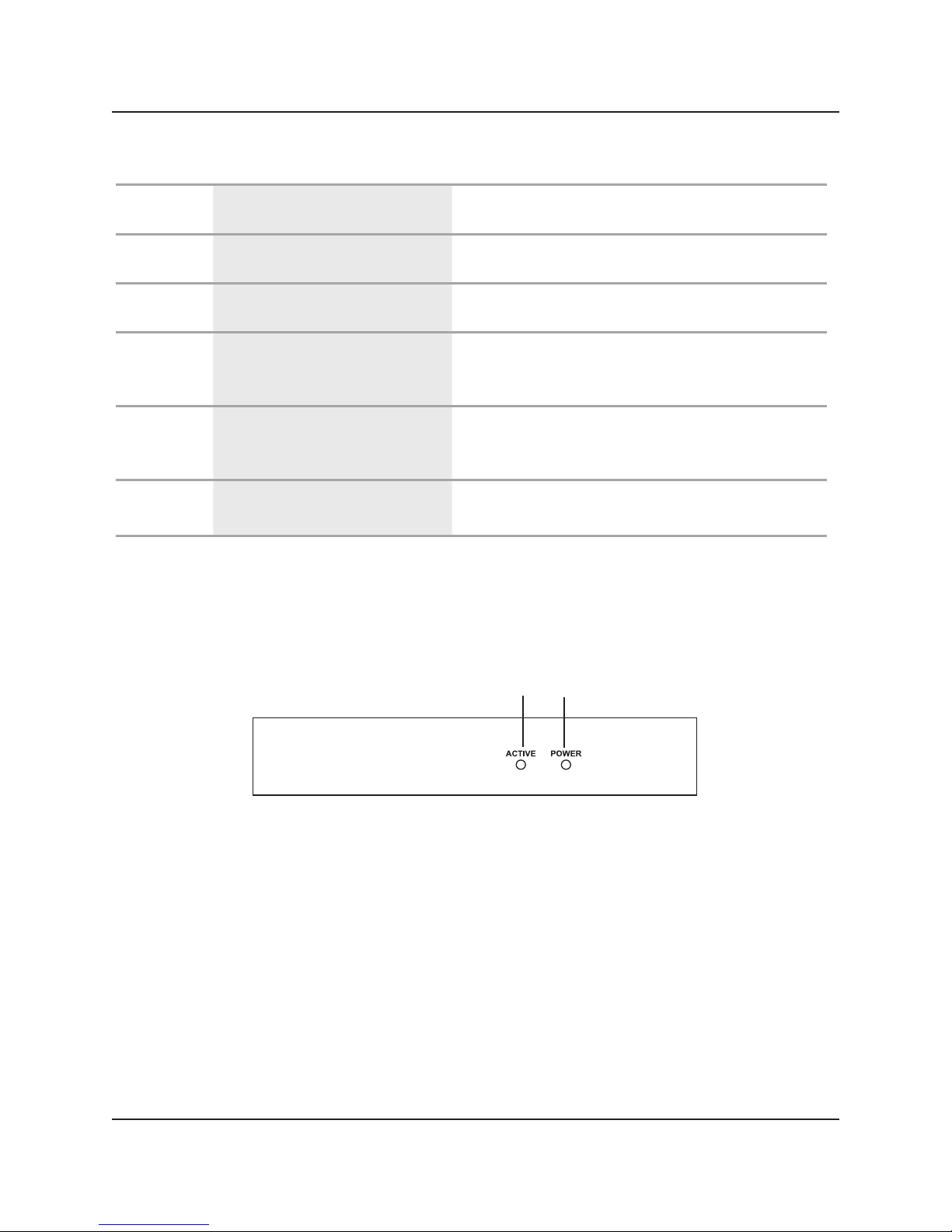

Figures 2-5 and 2-6 show the front and back panels of the AC1056A-8. Table 2-3
describes its components.
34
Figure 2-5. AC1056A-8 front panel.

724-746-5500 | blackbox.com
Page 12
Chapter 2: Overview
21
1
5
Figure 2-6 AC1056A-8 back panel.
Table 2-3. AC1056A-8 components.
Component Description
1(8) HD15 connectors
(on back of unit) Outputs
2(1) HD15 connector (on
back of unit) Input
3Power LED (on front
of unit)
Lights when the splitter is powered by
the 5-VDC power adapter.
4Active LED (on front
of unit)
Lights when there is a VGA signal at the
input port
55-VDC power connector
(on back of unit) Links to a 5-VDC power adapter

724-746-5500 | blackbox.com Page 13
Chapter 3: Installation
3. Installation
1. For the 2-port model (AC1056A-2), you’ll need two HD15 male-to-male output
cables (one of these cables is included). You’ll also need one input cable (includ-
ed).
For the 4-port model (AC1056A-4), you’ll need four output cables (three of these
cables are included) and one input cable (included).
For the 8-port model (AC1056A-8), you’ll need eight output cables (seven of
these cables are included) and one input cable (included).
Connect multiple monitors to the video splitter’s output connectors as shown in
Figure 3-1.
NOTE: If you want to use the Compact Video Splitter’s Display Data Channel (DDC)
feature, you must have a monitor on Port 1. If you have additional monitors
on other ports with higher resolutions, they will only support the resolution
of the monitor on Port 1.
VGA outputs to computers
VGA outputs to computers
VGA input
Compact Video Splitter,
8-Port (AC1056A-8)
Figure 3-1. Compact Video Splitter, 8-Port (AC1056A-8) connection.

724-746-5500 | blackbox.com
Page 14
Chapter 3: Installation/Chapter 4: Operation
2. You’ll also need to connect the Compact Video Splitter’s input connector to the
VGA source. Use an HD15 male-to-male cable (included) for this connection.
3. Connect the included power supply cord’s barrel connector to the barrel
connector receptacle on the Compact Video Splitter. Then plug the other end
of the power cord into an AC outlet.
4. Operation
Once the Compact Video Splitter is installed, it operates unattended. The splitter has
two front-panel LEDs that indicate its status at a glance.
• The Active LED lights when there is a VGA signal at the input port.
• The Power LED lights when the Compact Video Splitter is powered by the 5-VDC
power adapter.

724-746-5500 | blackbox.com Page 15
Appendix: Troubleshooting
Appendix. Troubleshooting
A.1 Contacting Black Box
If you determine that your Compact Video Splitter is malfunctioning, do not attempt
to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box at
724-746-5500 or [e-mail].
Before you do, make a record of the history of the problem. We will be able to
provide more efficient and accurate assistance if you have a complete description,
including:
• the nature and duration of the problem.
• when the problem occurs.
• the components involved in the problem.
• any particular application that, when used, appears to create the problem or make
it worse.
A.2 Shipping and Packaging
If you need to transport or ship your Compact Video Splitter:
• Package it carefully. We recommend that you use the original container.
• If you are shipping the Compact Video Splitter for repair, make sure you include
everything that came in the original package. Before you ship, contact Black Box
to get a Return Authorization (RA) number.

Chapter
Page 900 724-746-5500 | blackbox.com
BL A C K B O X®
Great tech support is just 30 seconds away
at 724-746-5500 or blackbox.com.
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
AC1056A-2, version 2
About Black Box
Black Box provides an extensive range of networking and infrastructure products.
You’ll find everything from cabinets and racks and power and surge protection
products to media converters and Ethernet switches all supported by free, live 24/7
Tech support available in 30 seconds or less.
© Copyright 2011. Black Box Corporation. All rights reserved.
