About This Manual
This manual describes the Black Box Express Ethernet Switch in these basic sections:
?? Product Features
?? Installation
?? Trouble-shooting
?? Glossary of Terms
Product Features
This section examines the key features, the physical features, and the product specifications
of each model.
Installation
This section leads with a Quick Tip, and continues with a detailed description of
Connecting to Power and Connecting to Your Network with the two types of cable: copper-
based and fiber-optic. The section concludes with instructions on using the Uplink Function.
Trouble-shooting
This guide leads you through trouble-shooting the most common networking problems.
Glossary
A brief glossarydefines the terms used in this manual.

Express Ethernet Switch
5
This manual services the compact size of Express Ethernet Switch, LB9002A-SC/ST, which
has 1 port TX and 1 port FX.

Express Ethernet Switch
6
Table of Contents
About This Manual ............................................................................................................................4
Product Features...............................................................................................................................4
Installation.........................................................................................................................................4
Trouble-shooting..............................................................................................................................4
Glossary..............................................................................................................................................4
Product Features.................................................................................................................................7
Key Features......................................................................................................................................7
Physical Features..............................................................................................................................8
Illustrated Compact-Size Switches...........................................................................................9
LB9002A-SC-R2/LB9002A-ST-R2.....................................................................................9
Fiber Module Installation.........................................................................................................10
Product Specifications....................................................................................................................10
Installation.........................................................................................................................................12
Quick Tip .........................................................................................................................................12
Connecting to Power......................................................................................................................12
Connecting to Your Network.......................................................................................................12
Copper-based cabling................................................................................................................12
Fiber-optic cabling.....................................................................................................................13
Uplink or MDI Function...............................................................................................................13
No Power to the Switch.................................................................................................................14
No Connectivity to the Data Terminal Equipment...................................................................14
No Connectivity to Certain Nodes on the Network..................................................................14
Transmission Problems .................................................................................................................15
Trademarks.......................................................................................................................................16
Glossary..............................................................................................................................................16

Express Ethernet Switch
7
Product Features
This section addresses:
?? Key Features
?? Physical Features (including LEDs)
?? Product Specification
Key Features
?? Auto-negotiation for speed and duplex on every TX port
?? Plug & play
?? True non-blocking architecture
?? Full wire-speed forwarding
?? Store-and-forward switching mechanism
?? Runt and CRC filtering eliminate erroneous packets to optimize network bandwidth
?? Back pressure for half-duplex
?? IEEE 802.3x flow control for full-duplex
?? MAC address filtering and relearning that automatically adjusts to the network
configuration
?? Comprehensive array of LED indicators that communicate the status of the switch and
trouble-shooting information
?? Designed in compliance with 10BASE-T, IEEE802.3u, 100BASE-TX, and 100BASE-
FX standards
?? Full compatibility with standard Ethernet applications, internetworking systems, and
client-side adapters to minimize migration cost

Express Ethernet Switch
8
Physical Features
?? AC Input:100-250VAC, 47-63Hz internal universal power supply
?? Input Fuse:2A
?? Power Consumption: 7W
?? Operating Temperature:0 C-40 C (32 F-104 F)
?? Storage Temperature:-25 C-70 C (-13 F-158 F)
?? Humidity: 10%-90% non-condensing
?? Emission Compliance:FCC part 15 class B, CE Mark, VCCI Class
B
?? Safety: UL
?? Dimensions:W254mm x D135mm x H36mm (10" x 5.3”x 1.4")
?? Net weight: 0.9kg (2.1lb)

Express Ethernet Switch
9
Illustrated Compact-Size Switches
The front panel of the compact switch has two or eight ports and LED indicators to provide
instant feedback on the status of the switch. This group includes LB9002A-SC/ST, and
LB9108A.
LB9002A-SC-R2/LB9002A-ST-R2

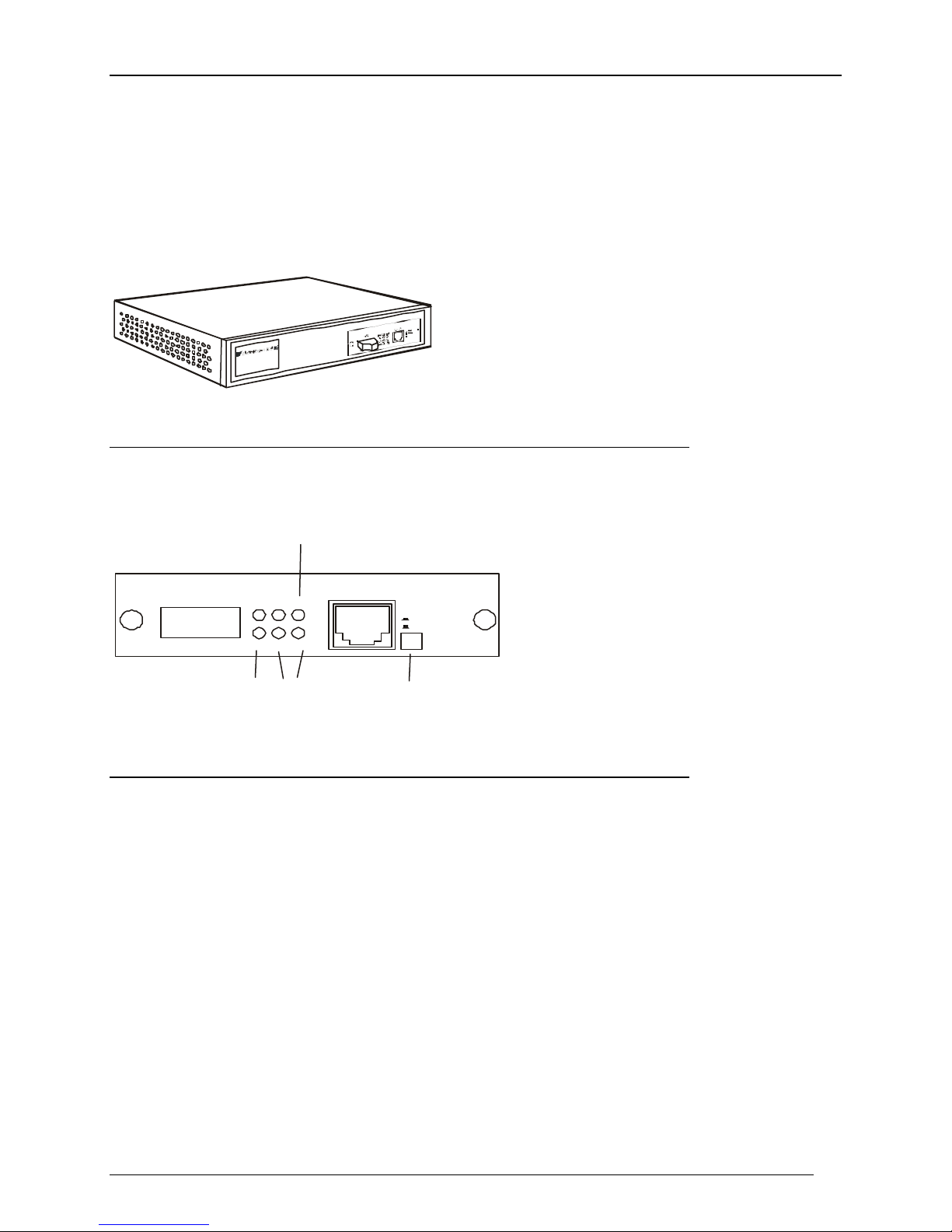

Figure 1: Compact-size, 2-port with fiber LB9002A-SC-R2 (also available in ST)
100FX
TX RX
LNK/ACT PWR
FDX/COL 100
10/100TX
MDI
MDI-X
?
?
?
?
Figure 2: LED and functions of the two-port switch (LB9002A-SC-R2 & LB9002A-ST-
R2)
?Port Status for the FX port
Two LEDs , LNK/ACT and FDX/COL, convey the status of the port as detailed on the
following table
?Port Status for the TX port
Three LEDs, LNK/ACT, FDX/COL, and 100, convey the status of the port as detailed on
the following table.
Table 1: Port status display LEDs for compact-size, 1 port TX, 1 port FX (part#
LB9002A-ST/SC-R2)

Express Ethernet Switch
10
LED State Indication
Steady The port has established a valid network connection
LNK/ACT
(link/activity) Flashing The port is receiving or transmitting data
Steady The port has established a valid 100 Mbps connection
100 Off The port has established a valid 10 Mbps network connection
Steady The connection is in full-duplex mode
Flashing Collision occurred in the 10/100 domain
FDX/COL
(full-duplex/collision) Off The connection is in half-duplex mode
*Collision will only occur on the half-duplex mode of transmission between two devices.
?Power
This LED illuminates when the switch is connected to a power supply and turned on.
?MDI Button
Also referred to as the uplink button.
The following chart details the LED status displays.
Table 2: Port Status Display
LED State Indication
LNK (link) Steady The port has established a valid network connection
ACT (activity) Flashing The port is transmitting or receiving data
Steady The connection is in full-duplex mode
FDX (full-duplex) Off The connection is in half-duplex mode
?Uplink button
Fiber Module Installation
?? Turn off the power. The module is not hot-swappable.
?? Remove the cover plate, retaining screws and plate for later replacement
?? Slide in the module, following the guides
?? Snap in the module to attain a firm connection
Product Specifications
All Black Box Express Ethernet Switches auto-negotiate 10/100 Mbps, usestore-and-
forward and non-blocking architectures and use back pressure for half-duplex and IEEE
802.3x compliant flow-control for full-duplex. The Express Ethernet Switches support
substantial MAC entries with address filtering and relearning capabilities.
ETHERNET STANDARDS
IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX/FX

Express Ethernet Switch
11
CABLE
10BASE-T: 2-pair UTP Cat. 3, 4, or 5;
100BASE-TX: 2-pair UTP Cat. 5;
100BASE-FX: 62.5/125 multi-mode fiber-optic cable
SWITCHING METHOD
Store-and-Forward
FORWARDING RATE
14,800 pps for 10 Mbps;
148,800 pps for 100 Mbps
TEMPERATURE
Operating: 32 to 104°F (0 to 40°C)
Storage: -13 to +158°F (-25 to +70°C)
HUMIDITY
10 to 90% non-condensing
EMISSION COMPLIANCE AND SAFETY STANDARDS
FCC part 15 Class B, CE Mark, VCCI, cUL

Express Ethernet Switch
12
Table 8:Specifications per model
Model Dimension "W x "D x "H Weight Output Pwr
LB9002A-SC/ST 10 x 5.3 x 1.4
25.4 x 13.5 x 3.6 cm 2.1 lb.
0.9 kg 100-250VAC
47-63 Hz 7W
Installation
Quick Tip
Install a Black Box Express Ethernet Switch as a plug-and-play device. No special
configuration is required. Details below are consistent with the installation of any electronic
device
Place the Black Box Express Ethernet Switch where it will not be subjected to extreme
temperatures, humidity, or electromagnetic interference. Specifically, the site you select
should meet the following requirements:
?? The room temperature should be between 32 and 104 degrees Fahrenheit (0 to 40
degrees Celsius).
?? The relative humidity should be less than 90 percent, non-condensing.
?? Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards for IEC 801-3, Level 2 (3V/M) field strength.
?? Make sure that the switch receives adequate ventilation. Do not block the ventilation
holes on the side of the switch or the fan exhaust port on the rear of the switch.
?? The power outlet should be within 1.8 meters of the switch.
Connecting to Power
Connect the supplied AC power cord to the receptacle on the back of the switch, and then
plug the cord into a standard AC outlet with a voltage range from 100 to 120 VAC. For
external power supply units, plug the jack into the DC receptacle on the front of the unit,
and plug the power supply unit into a 110~220 AC outlet.
Turn the switch on by flipping the ON/OFF switch on the rear of the unit to the I (ON)
position. The O position is OFF.
Connecting to Your Network
If you are making a connection to a server or workstation, be sure that it has a properly
installed 100BASE-TX (or 100BASE-FX if the switch does not contain 100BASE-TX
ports) network interface card. Connect the RX/TX jacks on the target device to the TX/RX
jacks on the switch and the RJ-45 jacks on the target device to the RJ-45 jacks on the
switch.
Use the uplink port for connecting to a regular (i.e. non-uplink) port of a hubor another
switch. If connecting to an uplink port of a hub or another switch, use any port. There is no
uplink issue with fiber ports.
Copper-based cabling
Connect cables to computers or network segments into the RJ-45 ports on the front of the
switch.

Express Ethernet Switch
13
The cable must be a Category 5 shielded twisted-pair or unshielded twisted-pair (STP/UTP)
cable for 100BASE-TX, or Category 3, 4, or 5 STP/UTP cable for 10BASE-T. Consult
Table 9 for further details.
Fiber-optic cabling
Prepare a pair of fiber optic cables with SC or ST type connectors at both ends. The cable
for fiber ports must be a 62.5/125 micron fiber-optic cable for 100BASE-FX. Consult Table
9 for further details.
Table 9: Cable Specifications
Speed Connector Port Speed
Half/Full
Duplex
Cable Range
100BASE-TX RJ-45 100/200 Mbps Category 5 UTP 100 meters
10BASE-TRJ-45 10/20 Mbps Category 3, 4, or 5 UTP 100 meters
100BASE-FX ST or SC 200 Mbps 62.5/125 micron fiber-
optic cable 2 kilo-meters
Uplink or MDI Function
A network of switches connected (or cascaded) together via uplink ports is termed a
“collapsed backbone.” The uplink function transforms the adjacent or indicated port into an
uplink port with a push of the button or by sliding the switch. This allows connection to
another switch or hub without preparing crossover cable. However, this is unnecessary
when either connecting directly to the uplink port of another switch or hub or when
connecting fiber ports between switches or hubs.

Express Ethernet Switch
14
Trouble-shooting Guide
This trouble-shooting guide describes problems that could occur with the Express Ethernet
Switch. The guide states possible reasons for the problems, and possible steps to take to
solve the problems.
No Power to the Switch.
Symptom: Power cord is connected to the switch,but all LEDs, including the Power LED,
are off.
Possible
Problem Solution
Loose power
connection or
faulty power supply
1.
Check both ends of the power cord to make certain that they are securely connected to the power receptacle
on the switch and to the power outlet.
2. Verify that the power outlet has power.
No Connectivity to the Data Terminal Equipment.
Symptom: An Ethernet switch cannot communicate to the directly connected computers or
network segments.
Possible
Problem Solution
Incorrect or
faulty
cabling
1. Check cables for a secure connection.
2. Verify that the correct type of cable is in use.
?? For connection to a PC or a network interface card (NIC), use a straight-through cable.
?? For uplink to another switch or hub, use a cross-wire cable, or use a regular straight-
throughcableconnected
to the uplink port with the uplink button activated.
?? Refer to Table 9 for cable specifications.
1.Verify proper cable preparation.
2.Use a time domain reflectometer (TDR) or other cable-checking device to verify
thatthecablehasnoopens,
shorts, or other problems.
3.Swap the cable with another of the same kind to see if the cable is bad.
?? Replace or fix the faulty cable as necessary.
Dysfunctional NIC
on a PC or
workstation
Run the diagnostic supplied by the v
endor on the NIC to determine if it is functioning properly. If it is not, replace
it.
Packet Overflow or
Hardware problem Reset the switch by pressing the reset button or turn the switch off, then on again.
No Connectivity to Certain Nodes on the Network
Symptom: Data terminal equipment (DTE) connected to the switch can not send or receive
information from certain segments on the same network or across to another LAN or WAN.
Possible
Problem Solution
Hardware problem Check for a damaged RJ-45 jack, or fiber SC or ST type connector.

Express Ethernet Switch
15
Transmission Problems
Symptom: Connections across a LAN switch are slow or unreliable.
Possible
Problem Solution
Incorrect full-or
half-duplex
settings
Express Ethernet Switches are all equipped with auto-negotiation to communicate with other DTEs on the
network for the best available performance.
1.Verify if the connected NIC is equipped with auto-negotiation (this is not the same as auto-sensing).
2.Change the DIP switch setting if available.
Exceeded cabling
distance or
misused cable
1.
Ensure that the proper cable is in use and that the recommended distance is not exceeded. For information,
refer to Table 9.
2. Check the cable distance using a cable tester or TDR. Verify that the cable lengths attached to the s
witch
meet Ethernet/IEEE 802.3 specifications.
3.
If the distance is out of specification, reduce the length of the cable or add a repeater, ensuring no more than
four repeaters are attached.
Bad adapter in
attached device
Check the switch port statistics.
If excessive errors are found, run the adapter card diagnostic utility to determine
the problem.

Express Ethernet Switch
16
Trademarks
Any trademarks are acknowledged to be the property of the trademark owners.
Glossary
10BASE-TNetworking standard for twisted-pair cabling capable of carrying data at 10 Mbps.
100BASE-TX Networking standard for two pairs of high-quality twisted-pair wires carrying data at 100 Mbps.
100BASE-FX Networking standard for fiber-optic cabling capable of carrying data at 100 Mbps.
auto-
negotiation Two-part process by which a network device automatically senses the speed and duplex capability of another
device.
Category 5 Networking standard certifying that a copper wire cable can carry data at up to 100 Mbps.
collision Concurrent Ethernet transmissions from two or more devices on the same segment.
Ethernet Networking standard for transmitting data at 10 Mbps.
Fast Ethernet Networking standard for transmitting data at 100 Mbps.
fiber-optic
cable Cable made of thin glass threads that carry data in the form of light pulses.
full-duplex A communications technique that allows bi-directional, simultaneous transmission between two devices on a single
segment.
half-duplex A communications technique in which one device on a segment transmits while theotherreceives,thenthe process
is reversed.
IEEE 802 Set of Institute of Electrical and Electronic Engineers standards for defining methods of access and control on
LANs.
LAN Local area network. A network where computers are connected in close proximity, such as in the same building or
office park. A system of LANs connected at a distance is called a wide-area network (WAN).
MAC address Media access control address. A hardware address that uniquely identifies each node of a network.
Mbps Millions of bits per second.
segment Section of a network bounded by bridges, routers, hubs, or switches. Dividing an Ethernet into multiple segments is
a common way to increase bandwidth on a LAN.
store-and-
forward Switching feature where the port receives the entire incoming frame and stores it in the buffers while checking for
runts and error frames before forwarding it to the destination port.
switch Device that filters and forwards packets between LAN segments.
UTP Unshielded twisted pair; cabling with wires that are twisted around each other. The individual wires are not
insulated.
wire speed
The ability to handle the fastest rate of traffic that a generator can deliver without dropping packets. On a 100 Mbps
connection, wire-speed traffic is 148,809 packets per second using 64-
byteframesor8,127packetspersecondusing
1,518-byte frames.
