Black Horse Model P47 Thunderbolt Owner's manual

SPECIFICATION
MadeinVietnam.


Wingspan : 1,620 mm 64 in.


Length : 1,340 mm 53 in.


Weight : 3.3 Kg 7.26 Lbs.


Engine : 61 cu.in 2 Stroke
91 Cu.in 4 Stroke


Radio : 6 channels.


Servo : 9 servos.
INSTRUCTIONMANUALBOOK

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
2
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your P-47 THUNDERBOLT. Use the parts listing
below to identify all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesignedtohelpthenew pilotonhiswaytosuccessfulR/C flight.Theywillalsobeable
to advise on any insurance and safety regulations that may apply.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modellingknife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.

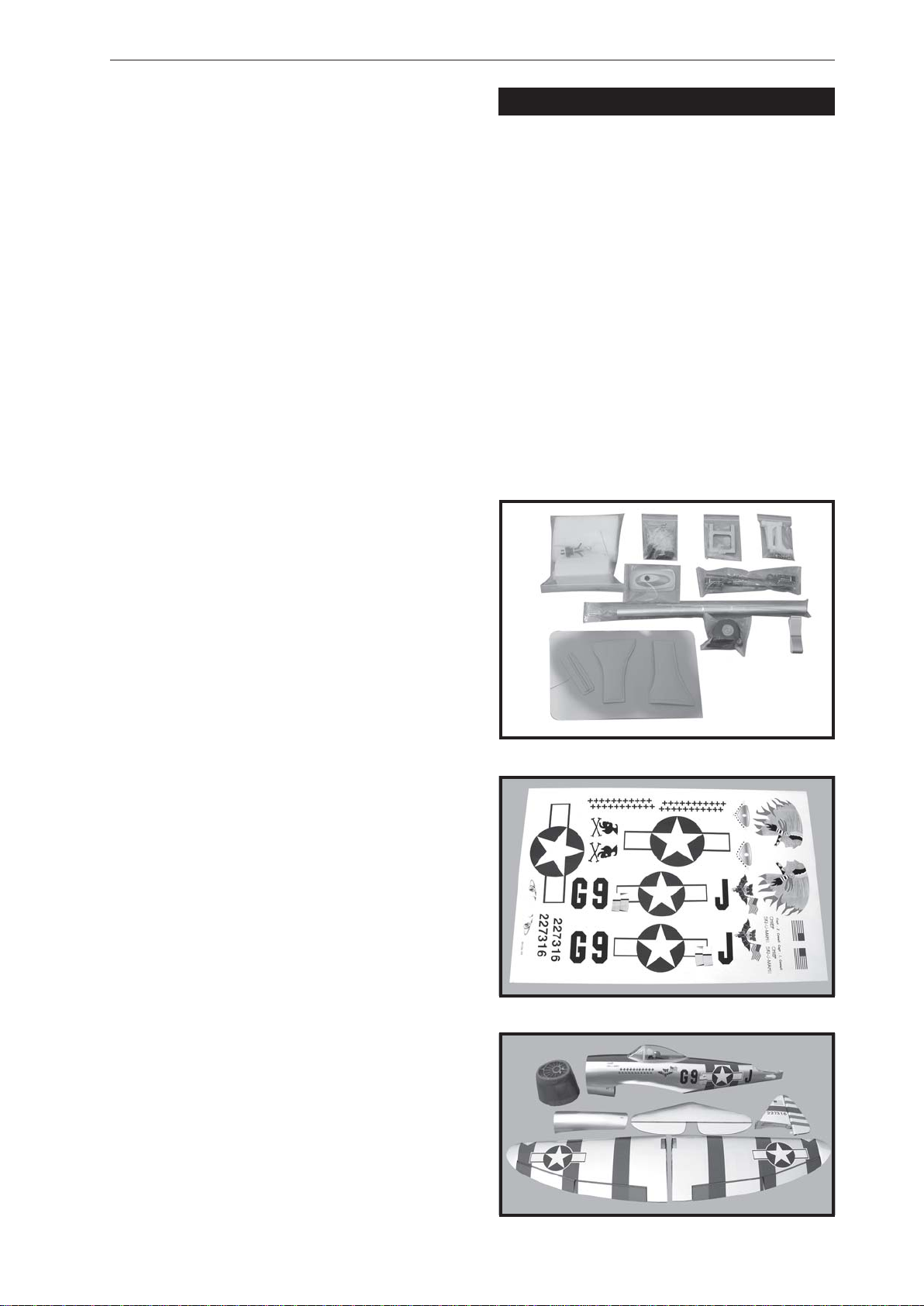

Some more parts.
HARDWAREPACK
COWLING.
Landinggear.....
Toavoid scratching yournew airplane,do not
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the
aircraftand toprotect thetable. Keepa couple
of jars or bowls handy to hold the small parts
after you open the bag.
Please trial fit all the parts. Make sure you
havethecorrectpartsand thatthey fitand are
alignedproperly beforegluing!Thiswill assure
properassembly.P-47 THUNDERBOLT ARFis
handmadefromnatural materials,everyplane
is unique and minor adjustments may have to
be made. However, you should find the fit
superior and assembly simple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the
following: paint thinner, C/A glue accelerator,
C/A glue debonder and acetone. Do not let
these chemicals come in contact with the
colors on the covering and the plastic parts.
PARTS LISTING.
FUSELAGE ASSEMBLY
(1) Fuselage.
WING ASSEMBLY
(1) Right wing half with pre-installed
aileron.
(1) Left wing half with pre-installed
aileron.
Some more parts........

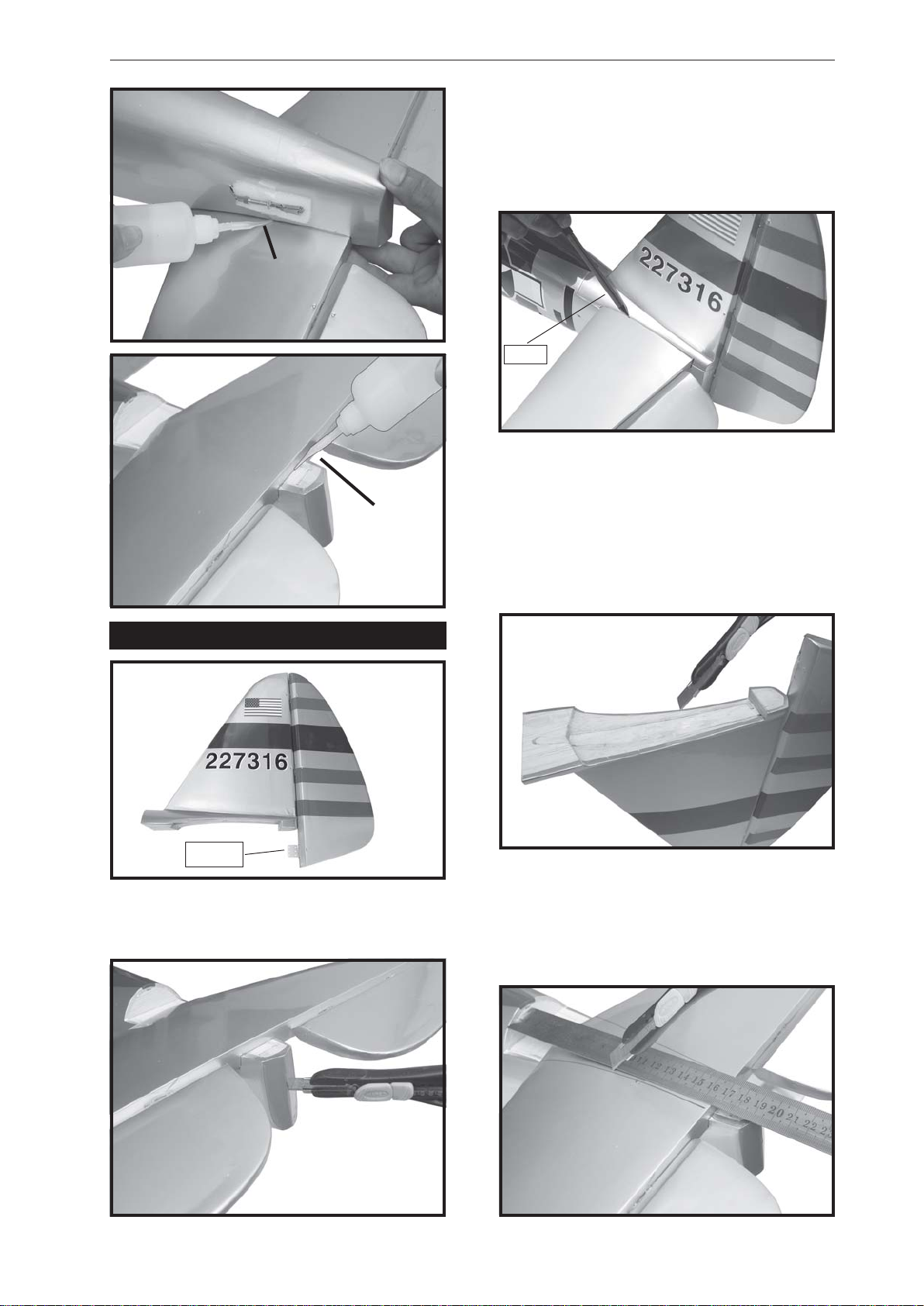

Tail section assembly
(1) Vertical stabilizer with pre-
installedrudder.
(1) Horizontal stabilizer with pre-
installedelevator halves.
SUGGESTION.
NOTE.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
3
+ This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Do not smoke near fuel
+ Store fuel in a cool, dry place, away from
children and pets.
+ Wear safety glasses.
+Theglowplug clipmust besecurelyattached
to the glow plug.
+ Do not flip the propeller with your fingers.
+ Keep loose clothing and wires away from
thepropeller.
+ Do not start the engine if people are near.
Do not stand in line with the side of the
propeller.
+ Make engine adjustments from behind the
propeller only. Do not reach around the
spinningpropeller.
SAFETY PRECAUTION.
Caution: this model is not a toy!
If you are a beginner to this type of powered
model,please askan experiencedmodelflyer
forhelpandsupport.Ifyouattempttooperate
themodel withoutknowingwhat youaredoing
you could easily injure yourself or somebody
else. Please keep your safety and well-being
in mind at all times.
Important: before you start construction
Evenifyou havealreadybuilt alarge number
ofRCmodelspleaseread rightthrough these
instructions and check all the kit components
against the parts list. We have taken great
trouble to keep construction as simple as
possible, without making any compromises
in the area of safety.
Note regarding the film covering
Minor creases or bubbles may develop in the
film covering due to major fluctuations in
weather conditions (temperature, humidity
etc.); in rare cases you may even find a slight
warp in a component. These minor faults are
in the nature of film-covered built-up wooden
structures, and can easily be corrected using
a heat gun, as commonly used for modelling.
Creases: Blowwarm airoverthearea
and rub down with a soft
cloth.
Wing warp: Hold the panel twisted
gently in the opposite
direction to the warp, and
apply warm air to remove
the creases from the
covering.
Caution! do not heat the film more than is
absolutely necessary. If the air or the iron is
too hot, the film may melt and holes may be
formed.
This model is highly pre-fabricated and can
bebuilt inavery shorttime.However,the work
which you have to carry out is important and
must be done carefully. The model will only
be strong and fly well if you complete your
tasks competently - so please work slowly
and accurately.
When self-tapping screws have to be
screwed into wood, apply a little white
glue to prevent them shaking loose: just
squirt white glue into the hole and fit the
screw.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
4
Flap.
Flap.

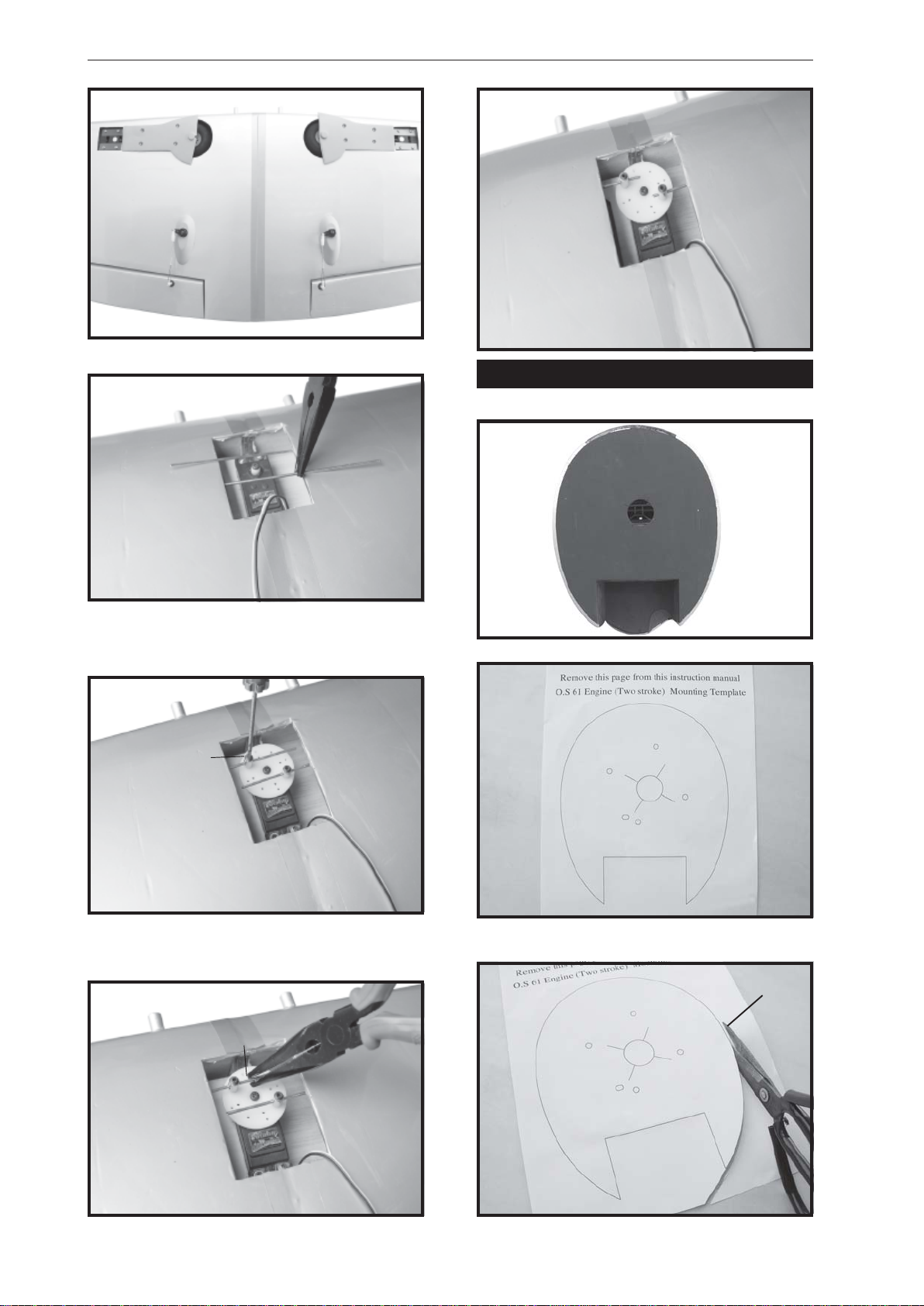

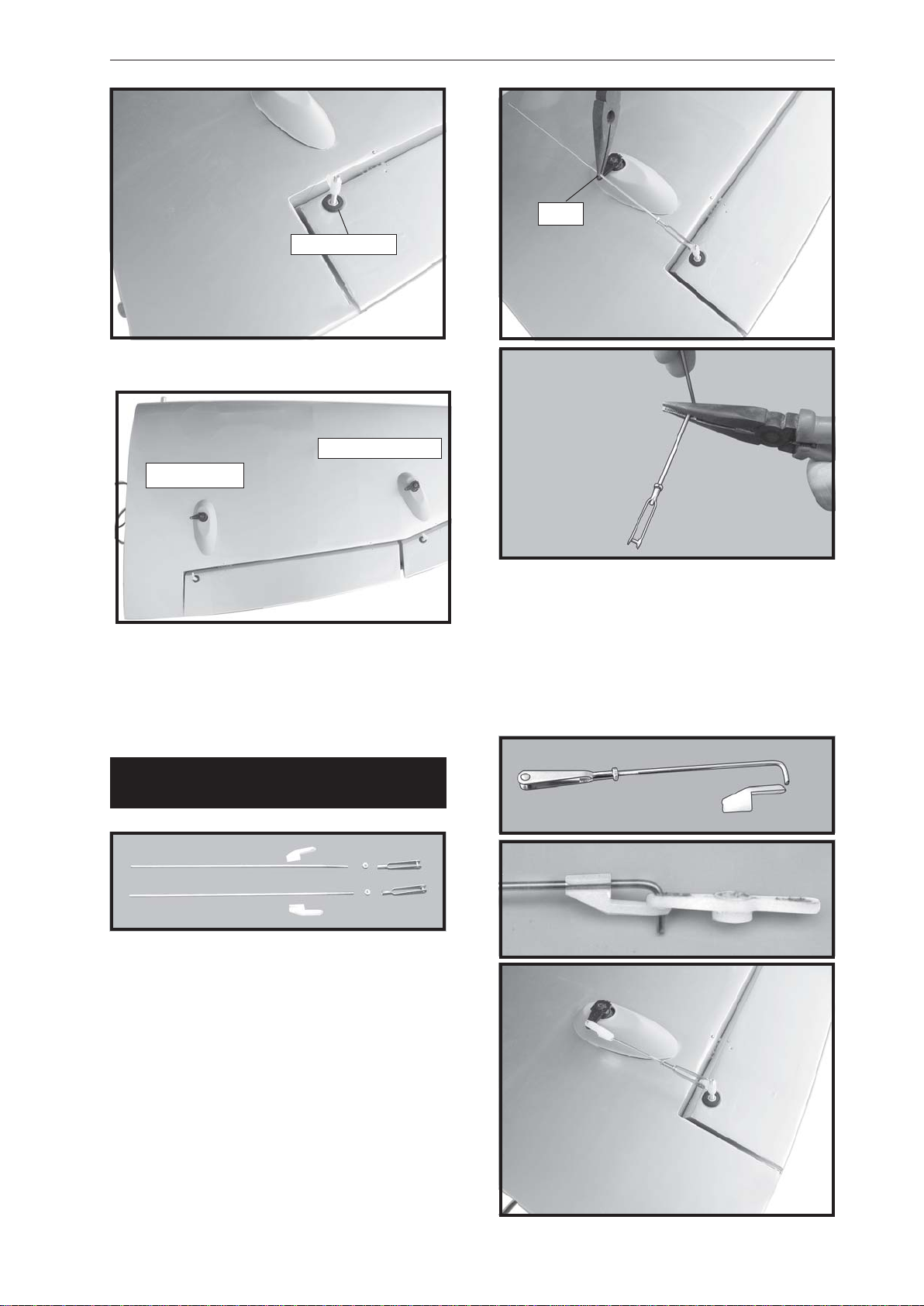

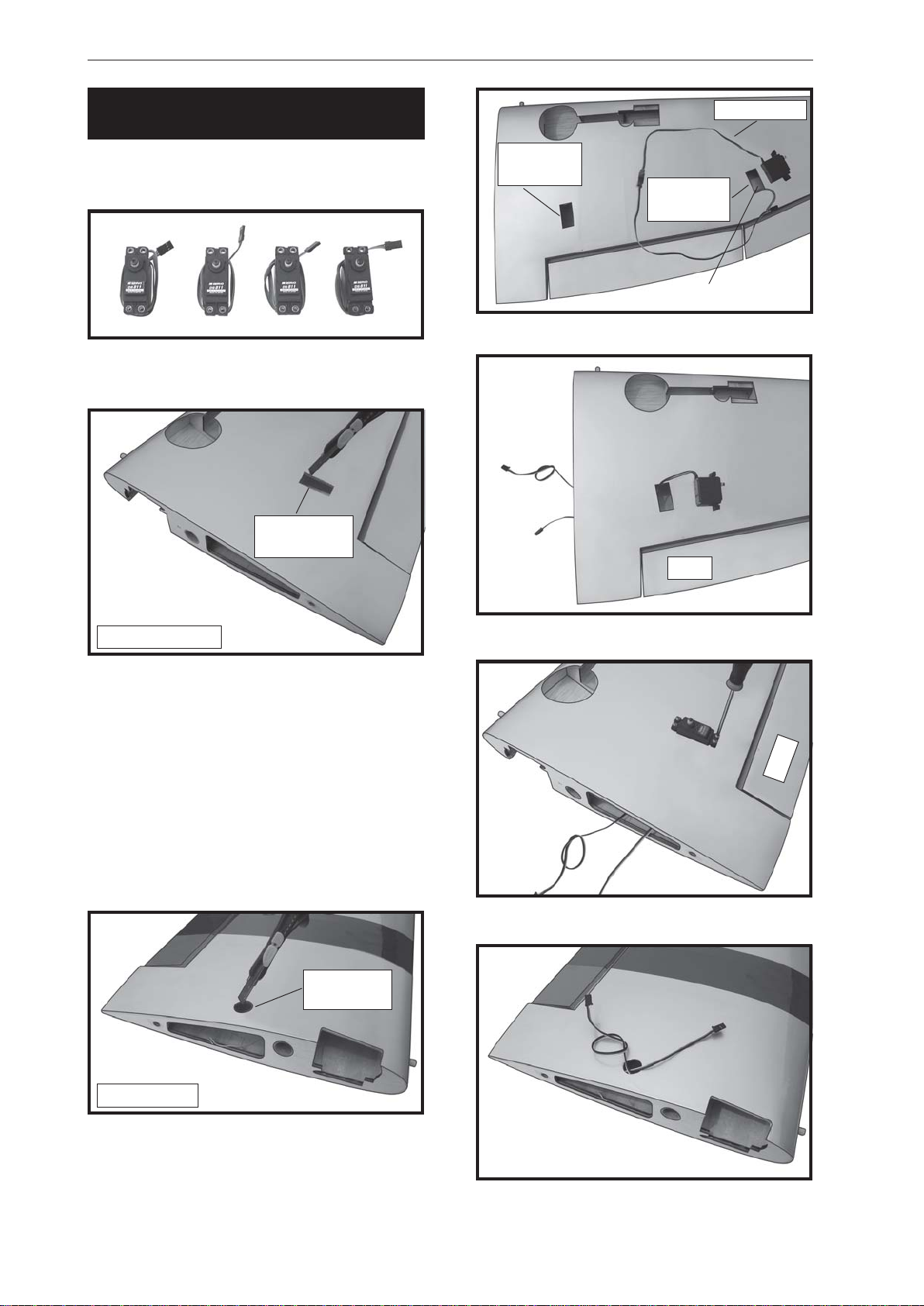

 1) Install the rubber grommets and brass
eyelets onto the aileron - flap servos.
3) Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out,
remove the masking tape and the servo lead
from the thread.
2) Using a modeling knife, remove the
covering at possition show below.
INSTALLING THE AILERON - FLAP
SERVOS.
4)Drill 1,6mmpilotholesthroughtheblock
of wood for each of the four mounting screws
provided with the servo.
Remove the
covering.
Bottom of wing.
Topofwing.
Removethe
covering.
Thread.
Servo wire.
Flap
servo tray. Aileron
servo tray
Bottom side
Top side

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
5
Repeat the procedure for the other
wing half.
Servocover.
Trimandcut.
C/Aglue.

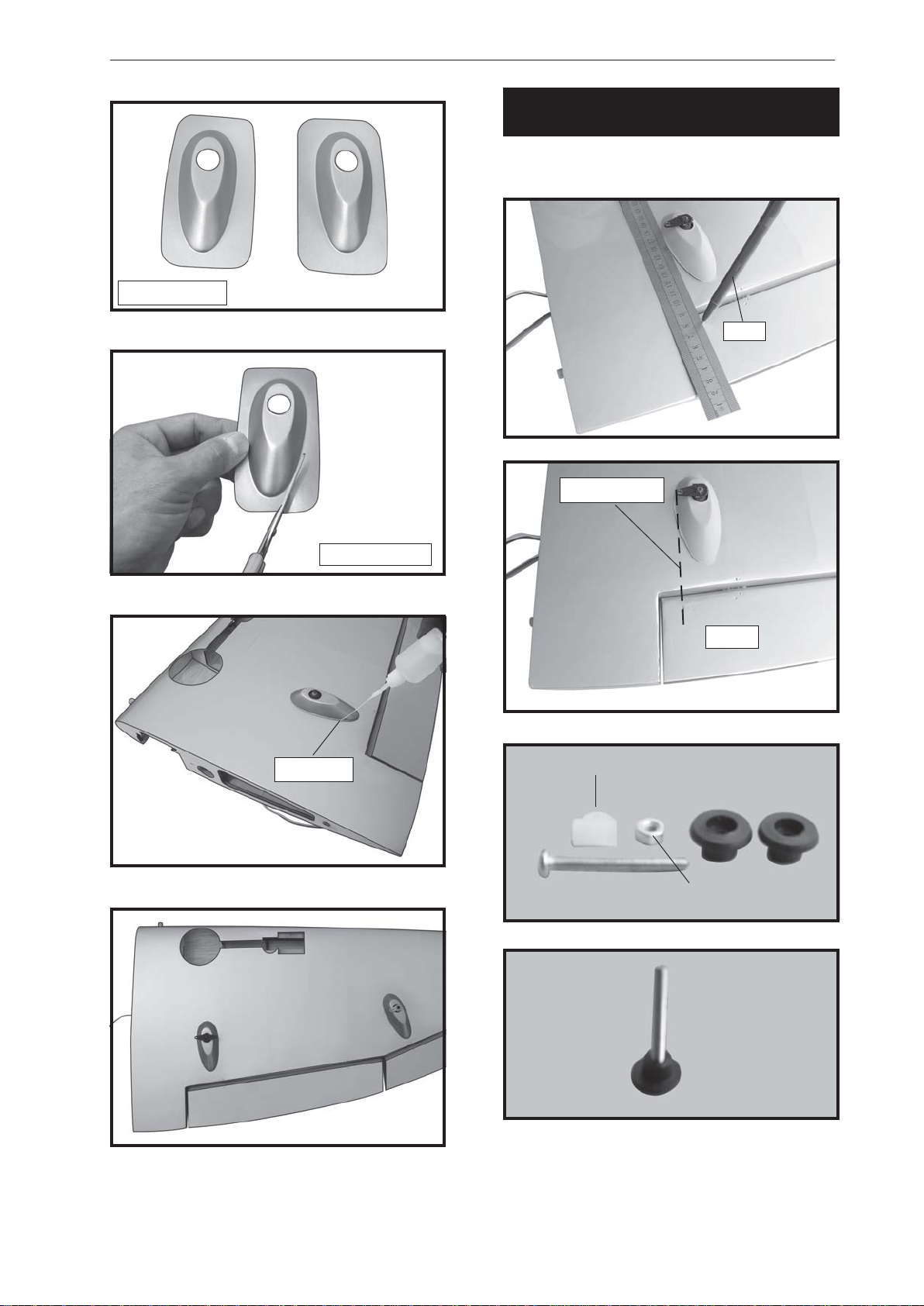

Using a ruler & pen to draw a straight
line as below picture.
INSTALLING THE AILERON - FLAPSERVO
CONTROLHORN.
Pen.
Nilon control clasp.
M3locknut.
3mm x 50mm.
Straitghline.
Flap.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
6
C/Aglue.
C/Aglue.

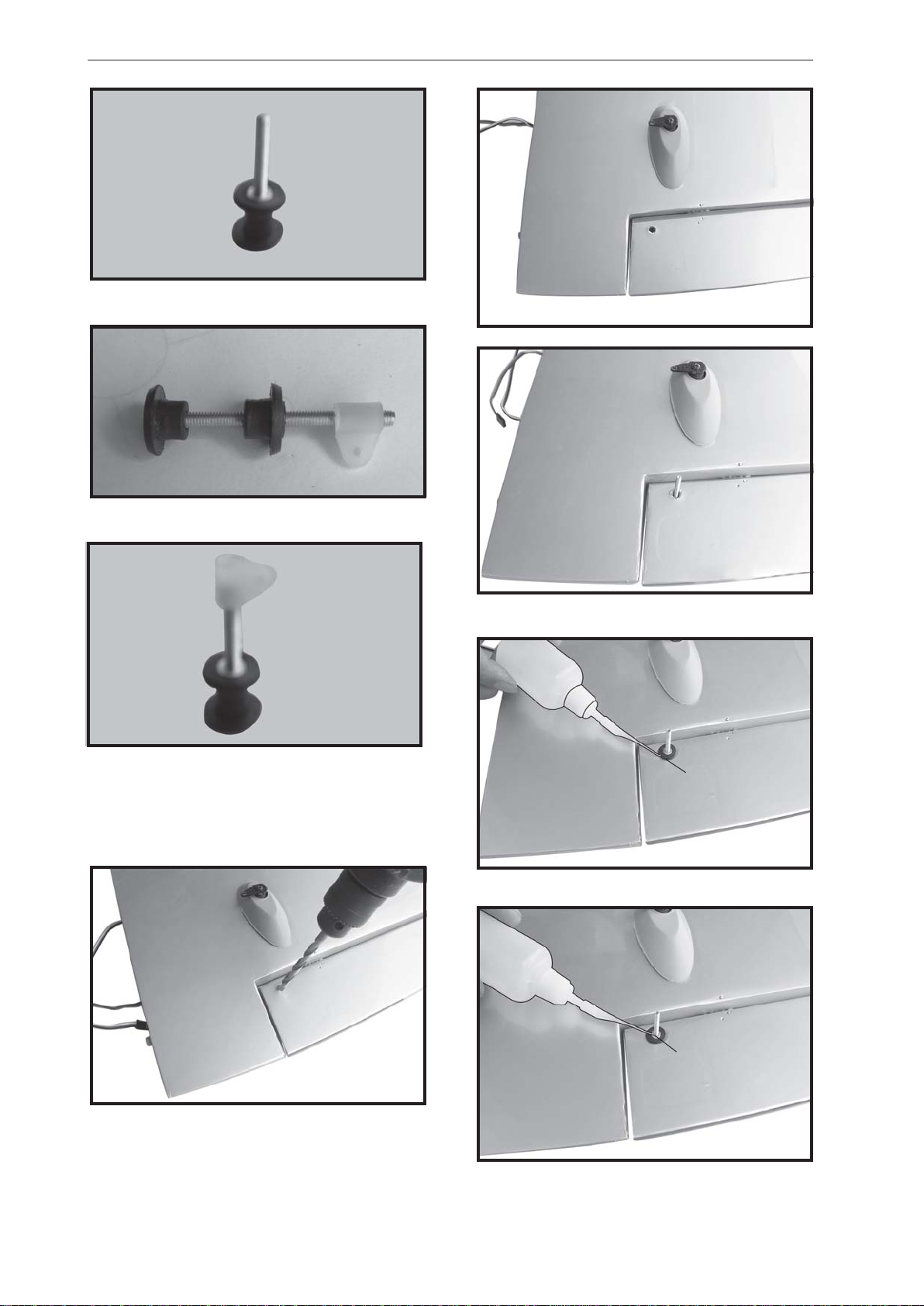

AileronControlhorn
Drill 1 hole with 6 mm diameter.
Install control horn as same as picture
below.
Aileroncontrolhorn
Flap controlhorn

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
7
Controlhorn.
Aileron servo.
Flapservo.
1. Working with the aileron linkage for
now, thread one clevis onto one of the
threaded wires.
2. Attach the clevis to the outer hole in the
control horn.
3. Plug the aileron servo into the receiver
andcentertheservo. Installtheservoarmonto
the servo. The servo arm should be
perpendicular to the servo and point toward
the middle of the wing.
Cut.
Repeat the procedure for the other
wing half.
InstallAileron control horn as same as the
way of flap control horn .
INSTALLING THE AILERON
LINKAGES.
4. Locate one nylon servo arm, and using
wire cutters,remove all but one of the arms.
Using a 2mm drill bit, enlarge the third hole
out from the center of the arm to accommo-
date the aileron pushrod wire.
5.Usingpliers,carefullymake a90 degree
bend down at the mark made. Cut off the ex-
cess wire, leaving about 4mm beyond the
bend.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
8
Retractable
servotray.
Apply masking tape.
Dowelbrace.
Aluminium
brace.
Epoxy
glue.
Push.

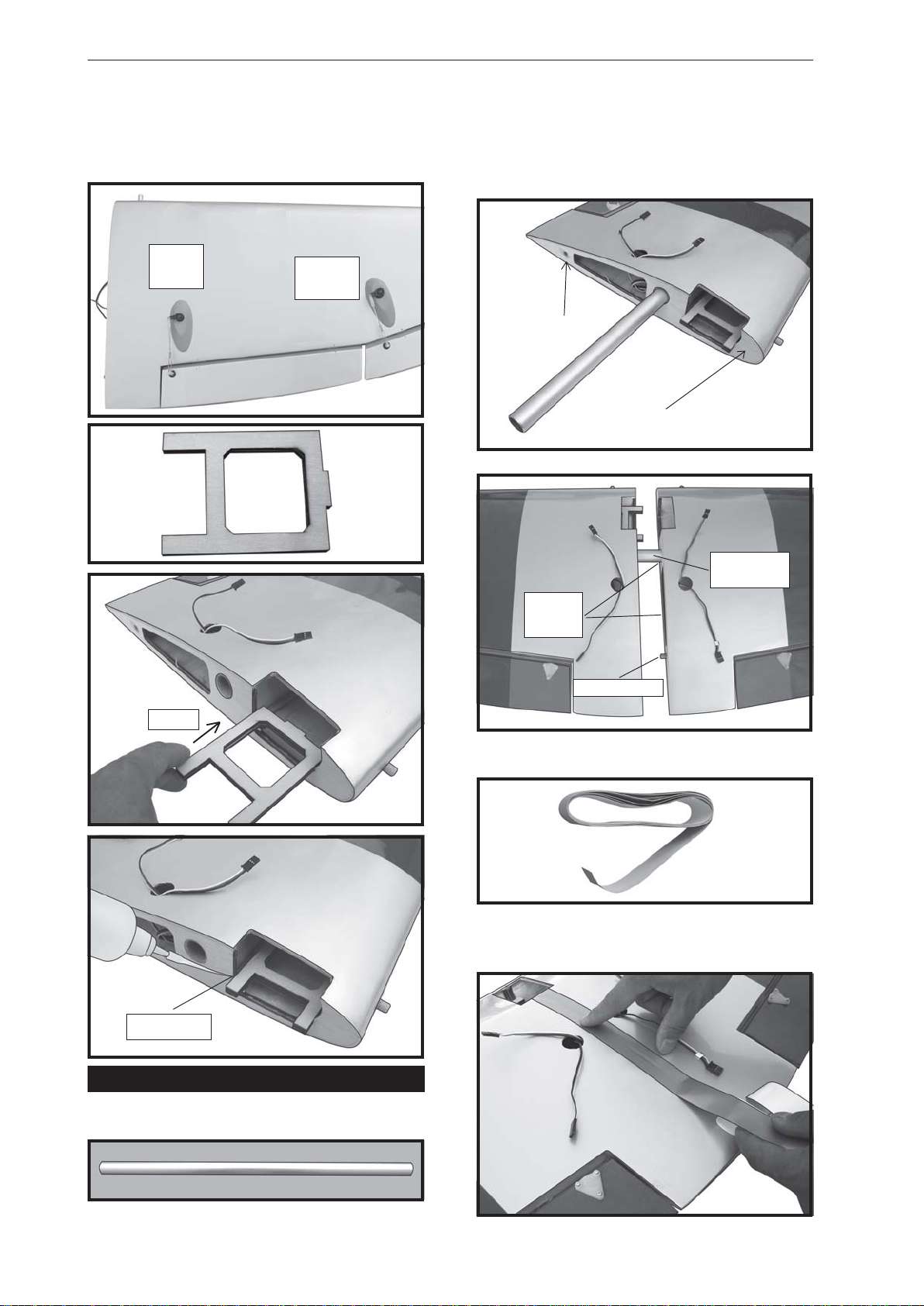

2)Test fitthealuminium tubedihedralbrace
into each wing haft. The brace should slide in
easily. If not, use 220 grit sand around the
edges and ends of the brace until it fits prop-
erly.
C/Aglue.
Flap
servo. Aileron
servo.
6.Insertthe90degree bend down through
the hole in the servo arm. Install one nylon
snap keeper over the wire to secure it to the
arm. Installthe servoarm retainingscrew and
remove the masking tape from the aileron.
JOINING THE WING HALVES.
1) Location the aluminium wing dihedral
brace.
Epoxyglue.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
9

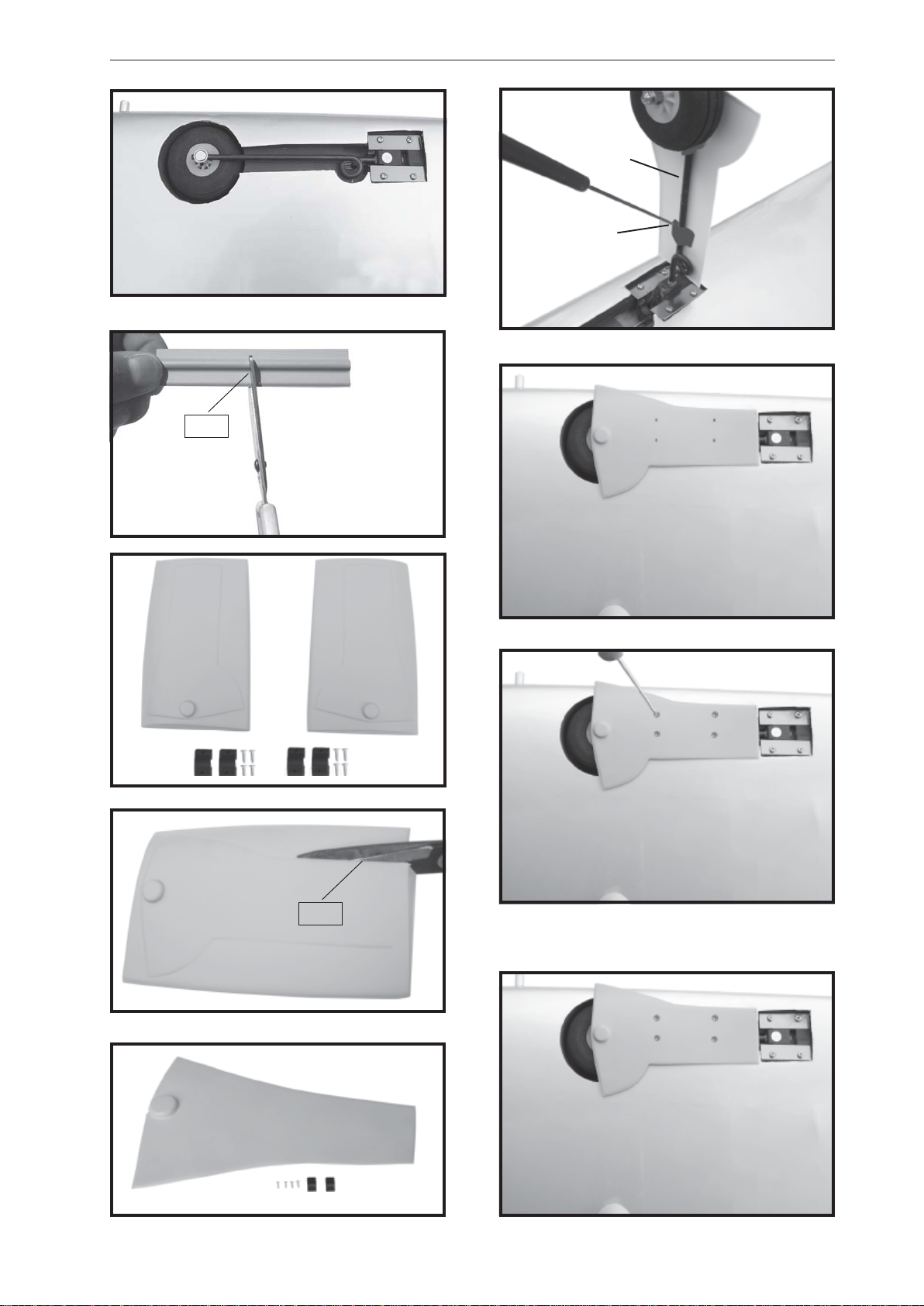

INSTALLING RETRACTABLE
LANDING GEAR.
Servo.
Retract pushrod
Nylon rod (pipe).
Removecovering.
Nylon rod (pipe).
Nylon rod (pipe).
Bottom side
Top side
Bottom side
Retract pushrod
Nylon rod (pipe).
Bottom side
25 mm
(1’’)
Metalconnector.
Servo arm.
Servo for retractable only.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
10
35mm
3 x 12mm
Cut off the excess wire leaving about
30-35mm beyond.
Retract pushrod

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
11
Cut.
Cut.
2x8mm
Markpoint
Epoxy

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
12
Cut
cut
Secure
Top side
Cut

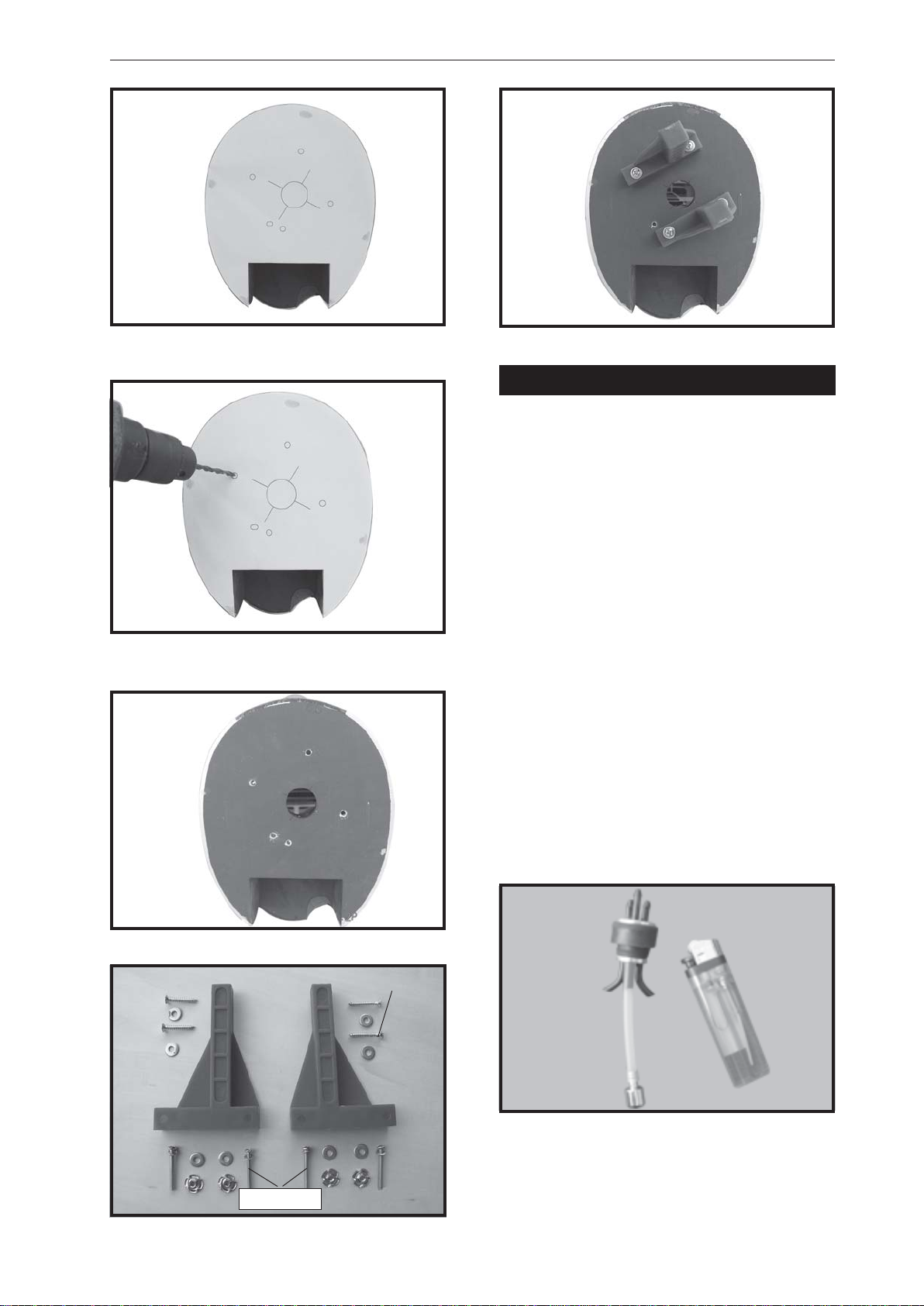

ENGINE MOUNT.
See pictures below:
Bottom side

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
13
4x30mm.
3.5x25mm.
end of the line to the weighted clunk and the
otherendtothenylonpickuptubein thestop-
per.
3) Carefully bend the second nylon tube
up at a 45 degree angle (using a cigarette
lighter). This tube will be the vent tube to the
muffler.
4) Carefullybend thethirdnylon tubedown
ata 45degreeangle (usingacigarettelighter).
This tubewill bevent tubeto thefuelingvalve.
INSTALLING THE STOPPER ASSEMBLY
1) The stopper has been pre-assembled
at the factory.
2) Using a modeling knife, cut one length
ofsiliconfuelline(thelengthofsiliconfuel line
iscalculatedbyhow theweightedclunk should
restabout 8mmawayfromtherearofthetank
andmove freelyinside thetank). Connectone
When the stopper assembly is installed in the
tank, the top of the vent tube should rest just
belowthetopsurfaceof thetank. Itshould not
touch the top of the tank.
FUEL TANK.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
14
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
througheasily.
9) To secure thefuel tankin place, applya
bead of silicon sealer to the forward area of
thetank, whereit exitsthefuselagebehind the
enginemountingboxandtotherearof thetank
at the forward bulkhead.
5) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using
amodeling knife. Ifflashing is present, make
sure none of it falls into the tank.
6) When satisfied with the alignment of
thestopperassemblytightenthe3mm x20mm
machine screw until the rubber stopper ex-
pandsand sealsthetankopening. Donotover
tighten the assembly as this could cause the
tank to split.
8) Feed three lines through the fuel tank
compartment and through the pre-drilled hole
in the firewall. Pull the lines out from behind
the engine, while guiding the fuel tank into
place. Push the fuel tank as far forward as
possible,the frontofthetankshould justabout
touch the back of the firewall.
7) Using a modeling knife, cut 3 lengths of
fuel line 150mm long. Connect 2 lines to the 2
vent tubes and 1 line to the fuel pickup tube in
the stopper.
Vent tube Fuel pick- up tube
Fuelfilltube
Do not secure the tank into place perma-
nently until after balancing the airplane. You
may need to remove the tank to mount the
battery in the fuel tank compartment

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
15
12.5cm.
Fueltank.
INSTALLING THE ENGINE.
Locate the long piece of wire used for the
throttlepushrod. Oneendofthewire hasbeen
pre-bend in to a “Z” bend at the factory. This
“Z” bend should be inserted into the throttle
armofthe enginewhentheengine isfitted onto
theenginemount.Fittheengineto theengine
mount using the screws provided.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
16
4) Installthe mufflerand mufflerextension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
andfuelfillervalve.
2) While keeping the back edge of the
cowl flush with the marks, align the front of
thecowlwiththecrankshaftofthe engine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Hold the cowl firmly in place using
pieces of masking tape.
3) Slide the cowl back over the engine
andsecure itin placeusing fourwood screws.

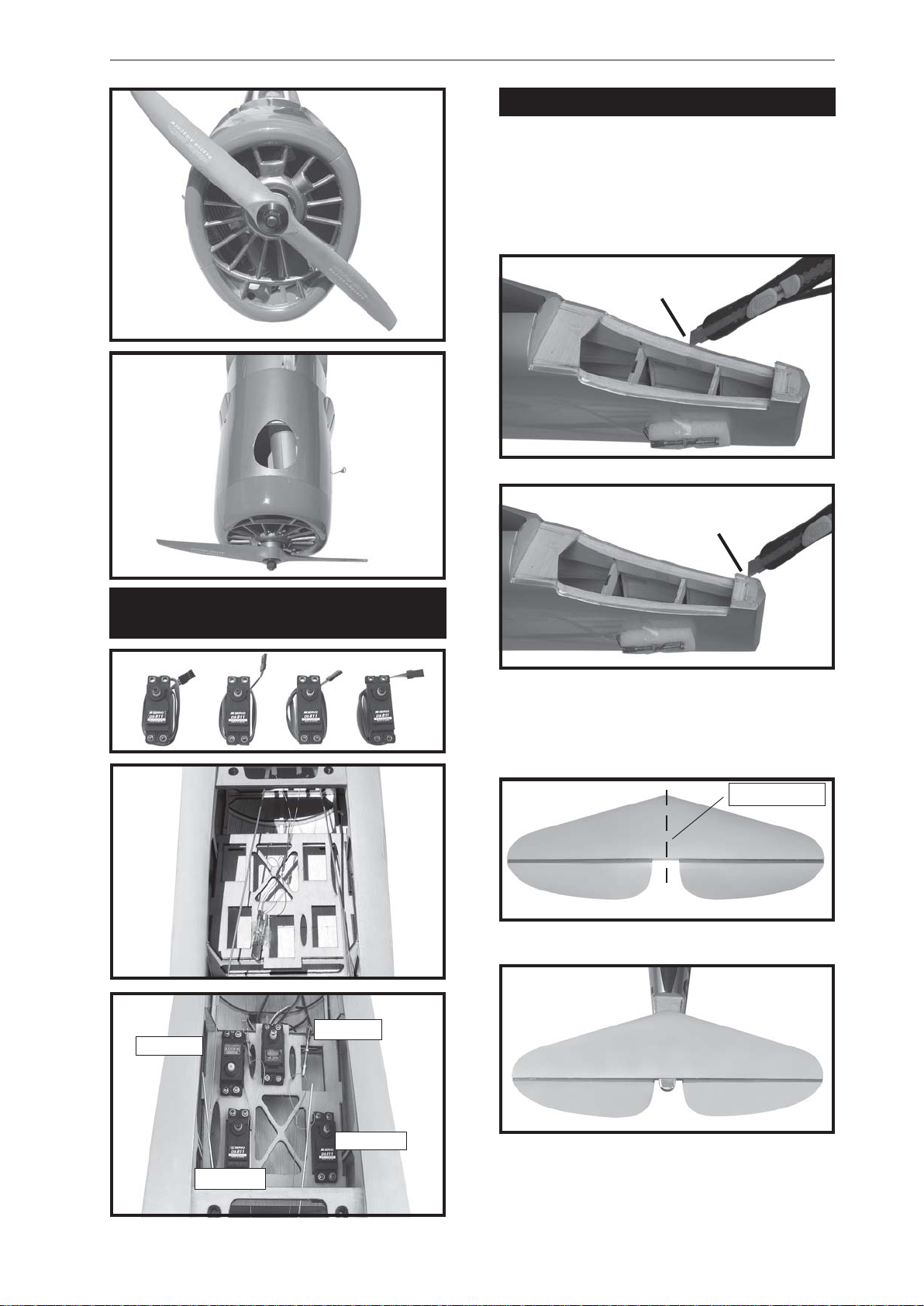

INSTALLING THE PROPELLER.
See pictures below.
COWLING.
1) Slide the fiberglass cowl over the en-
gineand lineup thebackedgeofthe cowlwith
the marks you made on the fuselage.
3mmX10mm.
3mmX10mm.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
17
3) Markthe shapeof thevertical ontheleft
and right sides onto the horizontal stabilizer
using a left-tip pen.
2) Draw a center line onto the horizontal
stabilizer. Then put the horizontal into the fu-
selage.
Center line.

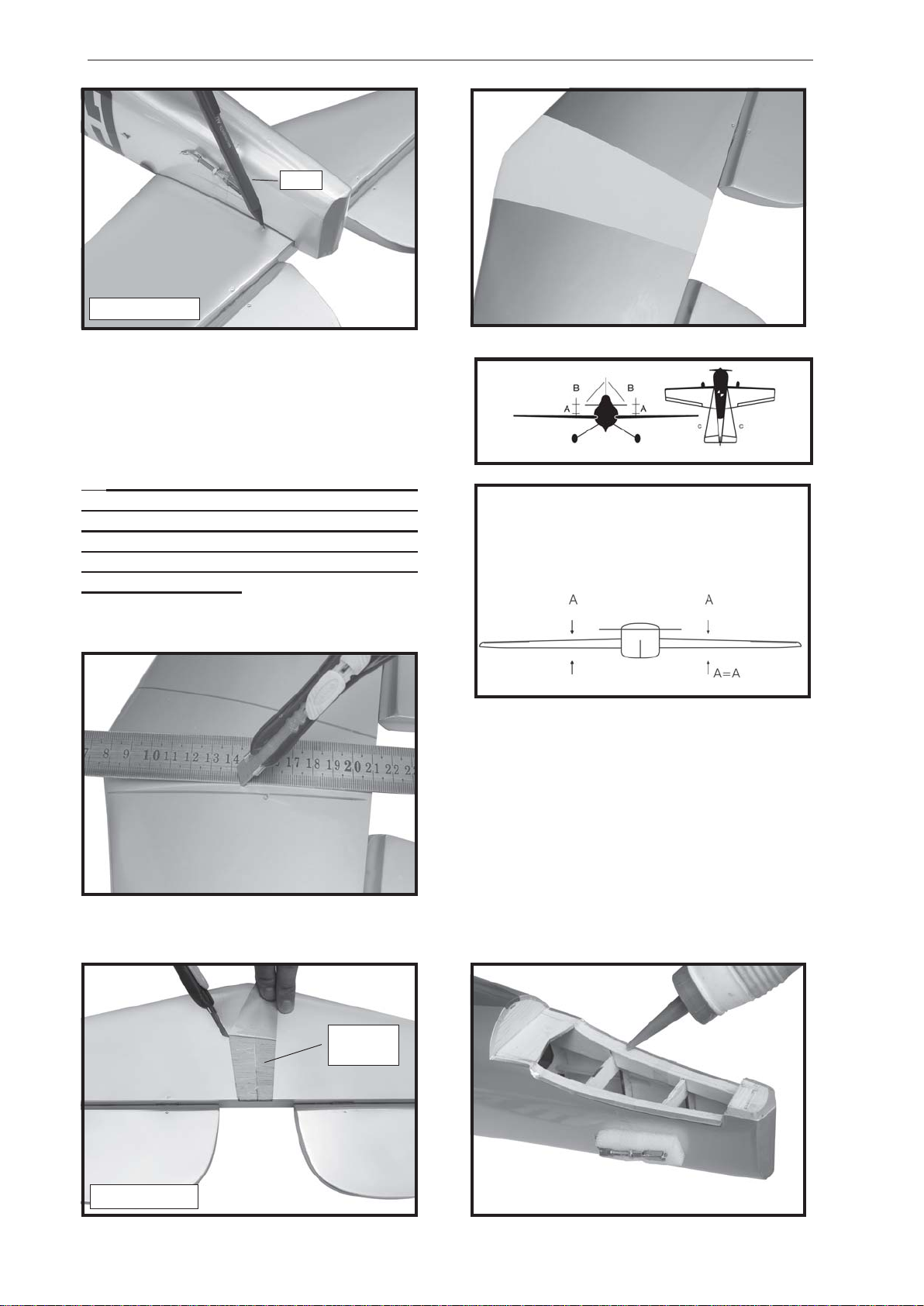

1) Using a modeling knife, cut away the
covering from the fuselage for the stabilizer
and remove it.
HORIZONTALSTABILIZERINSTALLATION.
Horizontalstabilizerinstallation.
See picture below.
Remove covering.
Top elevator
INSTALLING THE FUSELAGE
SERVOS.
Throttle. Rudder.
Elevator.
Elevator.
Remove covering.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
18
4) Remove the stabilizer. Using the lines
youjustdrew asa guide,carefully removethe
coveringfrom betweenthem usingamodeling
knife.
When cutting through the covering to
remove it, cut with only enough pressure
to only cut through the covering it’s self.
Cutting into the balsa structure may
weaken it. This could lead to possible
failure during flight.
Bottom side.
Pen.
Check to mark sure the wing and stabi-
lizer are paralell. If they are not, lightly sand
theopeninginthefuselageforthe stabilizer
until the stabilizer is paralell to the wing.
epoxy cures. Remove any excess epoxy us-
inga papertoweland rubbingalcoholand hold
the stabilizer in place with T-pins or masking
tape.
5) When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
topandbottomofthestabilizermountingarea
and to the stabilizer mounting platform sides
inthefuselage.Slidethestabilizerin placeand
re-align. Double check all of your
measurements one more time before the
Remove
covering.
Bottom side.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
19
3) Markthe shapeof thevertical ontheleft
and right sides of the rudder using a left-tip
pen.
2) Puttherudderinto thefuselageas same
as picture below.
4. Now, remove the rudder and using a
modeling knife, carefully cut just inside the
marked lines and remove the film of the rud-
der. Just as you did with the horizontal stabi-
lizer, make sure you only press hard enough
to cut the film, not the balsa rudder.
Pen.
Also carefully remove the covering from
below the lines as you drew as same picture
below.
Remove covering.
1) Using a modeling knife, cut away the
coveringfromtheendoffuselagefortherudder
hing.
VERTICAL STABILIZER.
C/Aglue
C/Aglue
Hinge.
Remove covering. Remove covering.

P47 - THUNDERBOLT. INSTRUCTION MANUAL.
20
Elevator control horn install as same as the
wayofaileroncontrolhorn.Pleaseseepictures
below.
6) When you are sure that everything is a
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
slot in the mounting platform and to the verti-
cal stabilizer mounting area. Apply epoxy to
the lower rudder hinge. Set the stabilizer in
place and re-align. Double check all of your
measurements once more before the epoxy
cures. Remove any excess epoxy using a
paper towel and rubbing alcohol and hold the
stabilizerinplacewithT-pins ormasking tape.
Allow the epoxy to fully cure before proceed-
ing.
ELEVATOR CONTROL HORN INSTALLA-
TION.
Nilon control clasp.
M3locknut.
3mm x 40mm.
5. Put the vertical stabilizer back in
place. Using a triangle, check to ensure
that the vertical stabilizer is aligned 90 de-
gree to the horizontal stabilizer.
Epoxy glue
C/A glue.
