Black Horse Model CAP 232 Owner's manual

SPECIFICATION


Wingspan : 2,060 mm 81 in.


Length :


Weight : 5.2 kg 11.44 Lbs.


Radio : 06 channels.


Servo : 06 servos.


Engine : 160 Cu.in 2 Stroke.
200 Cu.in 4Stroke.
Instruction Manual book
MadeinVietnam.
1,840 mm 72.4 in.

CAP 232. Instruction Manual
2
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manualthoroughlybeforestartingassemblyofyour CAP232.Usethepartslistingbelowtoidentify
all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesignedtohelpthenew pilotonhis waytosuccessfulR/Cflight.Theywill alsobeable
to advise on any insurance and safety regulations that may apply.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modellingknife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
Some more parts.
HARDWAREPACK
COWLING.
Landinggear.....
Toavoid scratching yournewairplane, donot
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the
aircraftand toprotect thetable. Keepa couple
of jars or bowls handy to hold the small parts
after you open the bag.
Pleasetrialfitall theparts.Makesureyou have
the correct parts and that they fit and are
alignedproperly beforegluing!Thiswillassure
proper assembly. CAP 232 ARF is hand made
from natural materials, every plane is unique
andminoradjustmentsmayhave tobe made.
However, you should find the fit superior and
assembly simple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the
following: paint thinner, C/A glue accelerator,
C/A glue debonder and acetone. Do not let
these chemicals come in contact with the
colors on the covering and the plastic parts.
PARTS LISTING.
FUSELAGE ASSEMBLY
(1) Fuselage.
WING ASSEMBLY
(1) Right wing half with pre-installed
aileron.
(1) Left wing half with pre-installed
aileron.
Tail section assembly
(1) Vertical stabilizer with pre-
installedrudder.
(1) Horizontal stabilizer with pre-
installedelevator halves.
SUGGESTION.
NOTE.

CAP 232. INSTRUCTION MANUAL
3
Caution: this model is not a toy!
If you are a beginner to this type of powered
model,please askan experiencedmodelflyer
forhelpandsupport.Ifyouattempt tooperate
themodel withoutknowingwhat youaredoing
you could easily injure yourself or somebody
else. Please keep your safety and well-being
in mind at all times.
Important: before you start construction
Evenifyou havealreadybuilt alarge number
ofRCmodelspleaseread rightthrough these
instructions and check all the kit components
against the parts list. We have taken great
trouble to keep construction as simple as
possible, without making any compromises
in the area of safety.
Note regarding the film covering
Minor creases or bubbles may develop in the
film covering due to major fluctuations in
weather conditions (temperature, humidity
etc.); in rare cases you may even find a slight
warp in a component. These minor faults are
in the nature of film-covered built-up wooden
structures, and can easily be corrected using
a heat gun, as commonly used for modelling.
Creases: Blowwarm airoverthearea
and rub down with a soft
cloth.
Wing warp: Hold the panel twisted
gently in the opposite
direction to the warp, and
apply warm air to remove
the creases from the
covering.
Caution! do not heat the film more than is
absolutely necessary. If the air or the iron is
too hot, the film may melt and holes may be
formed.
This model is highly pre-fabricated and can
bebuilt inavery shorttime.However,the work
which you have to carry out is important and
must be done carefully. The model will only
be strong and fly well if you complete your
tasks competently - so please work slowly
and accurately.
When self-tapping screws have to be
screwed into wood, apply a little white
glue to prevent them shaking loose: just
squirt white glue into the hole and fit the
screw.
+ This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Do not smoke near fuel
+ Store fuel in a cool, dry place, away from
children and pets.
+ Wear safety glasses.
+Theglowplugclipmustbesecurelyattached
to the glow plug.
+ Do not flip the propeller with your fingers.
+ Keep loose clothing and wires away from
thepropeller.
+ Do not start the engine if people are near.
Do not stand in line with the side of the
propeller.
+ Make engine adjustments from behind the
propeller only. Do not reach around the
spinningpropeller.
SAFETY PRECAUTION.
 1. Install the rubber grommets and brass
eyelets onto the aileron servo.
INSTALLING THE AILERON SERVOS.

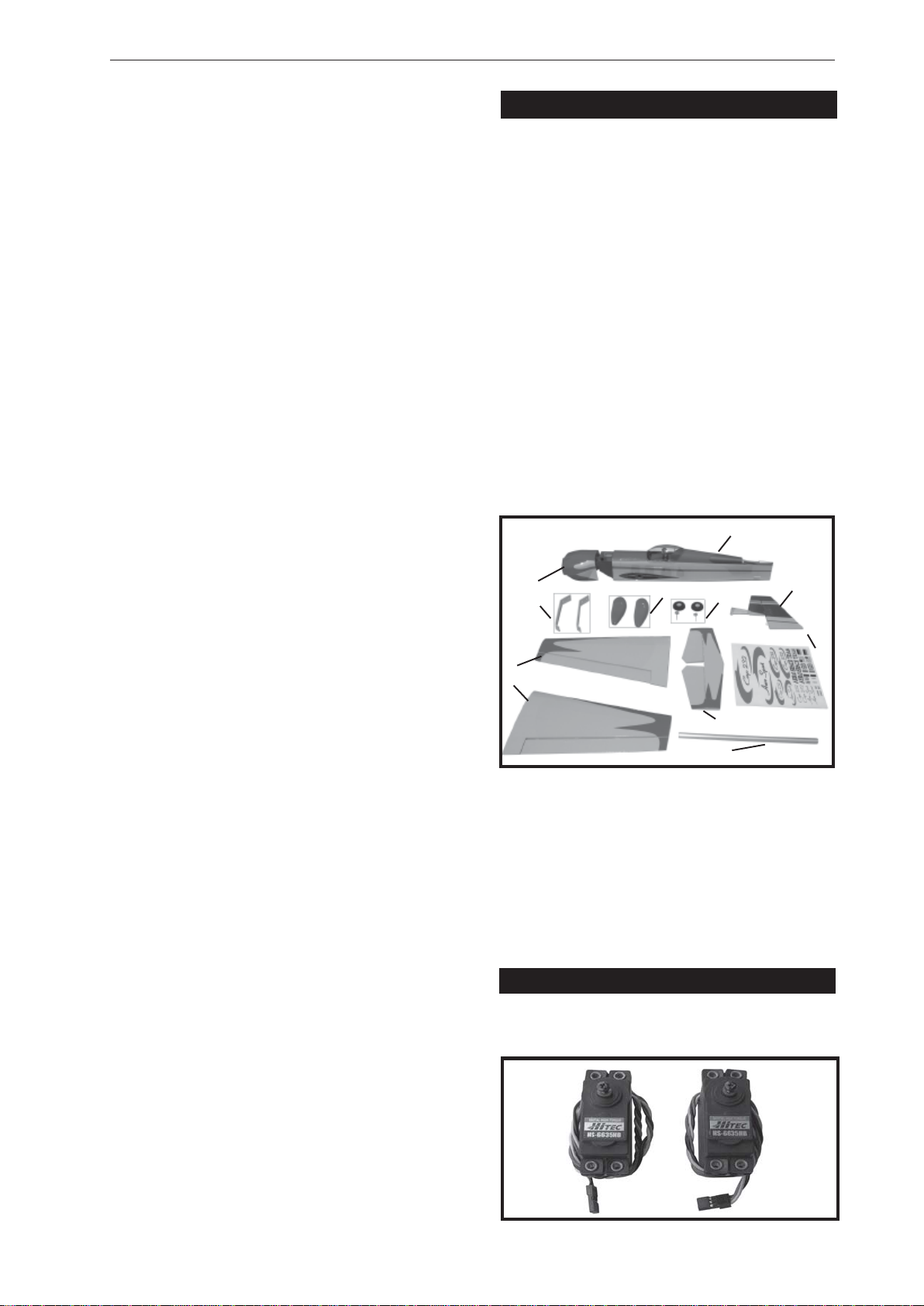

REPLACEMENT LARGE PARTS
A
B
C
D
F
G
E
H
I
K
B. Fuselage.
D. Horizon stabilizer.
E. Vertical stabilizer.
C. Wing panel.
A. Cowling.
G. Decal sheet .
F.Aluminium wing dihedral brace.
K.Aluminiumlandinggear.
I. Cover wheel pant.
H. Wheel.

CAP 232. Instruction Manual
4
 2. Usingamodeling knife,removethe cov-
ering at possition show below.
4.Drill1,5mm pilotholesthrough theblock
of wood for each of the four mounting screws
providedwiththeservo.Installservointoaileron
servo tray as same as picture below.
3. Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out,
remove the masking tape and the servo lead
from the thread.
Electric
wire.
Thread.
Bottom of wing.
Remove the
covering.
Bottom of wing.
C/Aglue.
C/Aglue.
C/Aglue.

CAP 232. INSTRUCTION MANUAL
5
5. Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out,
remove the masking tape and the servo lead
from the thread.
Repeat the procedure for the other wing
half.
Remove the
covering. Bottom side.
Control horn of Aileron
INSTALLINGTHEAILERON CONTROLHORN.
3x50mm.
Nilon control clasp.
M3locknut.
Remove the
covering.
Top side.
