Black Horse Model ROCKWELL AERO COMMANDER SHRIKE User manual

SPECIFICATION


Wingspan : 2,060 mm 81.10 in.


Length : 1,460 mm 57.48 in.


Weight : 4.8 kg 10.56 Lbs.


Radio : 06 channels.


Servo : 07 servos.


Engine : 46 2 stroke.
Instruction Manual book
MadeinVietnam.

2
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your ROCKWELL AERO COMMANDER SHRIKE
. Use the parts listing below to identify all parts.
WARNING
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesignedtohelpthenew pilotonhiswaytosuccessfulR/C flight.Theywillalso beable
to advise on any insurance and safety regulations that may apply.
TOOLS & SUPPLIES NEEDED
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modellingknife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
Some more parts.
HARDWAREPACK
COWLING.
Landinggear.....
Toavoid scratching yournew airplane,do not
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the air-
craftand toprotect thetable.Keepacoupleof
jars or bowls handy to hold the small parts af-
ter you open the bag.
Pleasetrialfitalltheparts. Makesureyouhave
the correct parts and that they fit and are
alignedproperly beforegluing!Thiswillassure
properassembly.ROCKWELLAEROCOMMANDER
SHRIKE ARF is hand made from natural
materials,everyplaneisuniqueand minorad-
justmentsmay haveto bemade.However,you
should find the fit superior and assembly sim-
ple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the follow-
ing:paintthinner,C/Aglue accelerator,C/Aglue
debonderandacetone. Donotletthesechemi-
cals come in contact with the colors on the
covering and the plastic parts.
PARTS LISTING
FUSELAGE ASSEMBLY
(1) Fuselage.
WING ASSEMBLY
(1) Right wing half with pre-installed
aileron.
(1) Left wing half with pre-installed
aileron.
Tail section assembly
(1) Vertical stabilizer with pre-
installedrudder.
(1) Horizontal stabilizer with pre-
installedelevator halves.
SUGGESTION
NOTE.

3
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
Caution: this model is not a toy!
If you are a beginner to this type of powered
model,please askan experiencedmodelflyer
forhelp andsupport.Ifyouattempttooperate
themodel withoutknowingwhat youaredoing
you could easily injure yourself or somebody
else. Please keep your safety and well-being
in mind at all times.
Important: before you start construction
Evenifyou havealready built alarge number
ofRC modelspleaseread rightthrough these
instructions and check all the kit components
against the parts list. We have taken great
trouble to keep construction as simple as
possible, without making any compromises
in the area of safety.
Note regarding the film covering
Minor creases or bubbles may develop in the
film covering due to major fluctuations in
weather conditions (temperature, humidity
etc.); in rare cases you may even find a slight
warp in a component. These minor faults are
in the nature of film-covered built-up wooden
structures, and can easily be corrected using
a heat gun, as commonly used for modelling.
+ This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Do not smoke near fuel
+ Store fuel in a cool, dry place, away from
children and pets.
+ Wear safety glasses.
+Theglowplugclip mustbesecurelyattached
to the glow plug.
.
SAFETY PRECAUTION.
+ Do not flip the propeller with your fingers.
+ Keep loose clothing and wires away from
thepropeller.
+ Do not start the engine if people are near.
Donot standinlinewiththesideof thepropel-
ler.
+ Make engine adjustments from behind the
propeller only. Do not reach around the spin-
ningpropeller
Creases: Blowwarm airover thearea
and rub down with a soft
cloth.
Wing warp: Holdthepaneltwisted gently
in the opposite direction to
the warp, and apply warm
air to remove the creases
from the covering.
When self-tapping screws have to be
screwed into wood, apply a little white glue
to prevent them shaking loose: just squirt
white glue into the hole and fit the screw.
Caution! do not heat the film more than is
absolutely necessary. If the air or the iron is
too hot, the film may melt and holes may be
formed.
This model is highly pre-fabricated and can
bebuilt inaveryshorttime. However,the work
which you have to carry out is important and
must be done carefully. The model will only
be strong and fly well if you complete your
taskscompetently -so pleaseworkslowlyand
accurately.

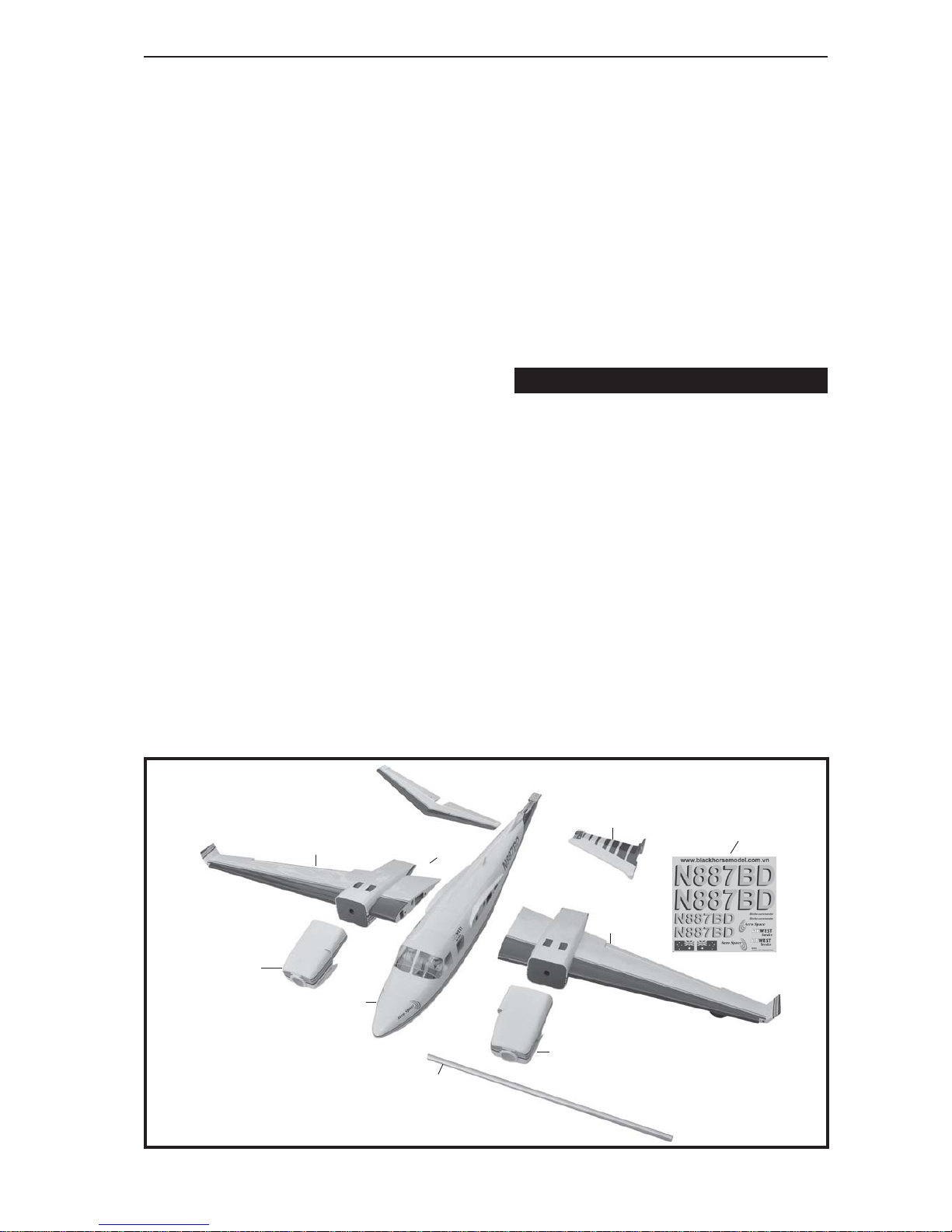

REPLACEMENT LARGE PARTS
C
D
E
F
A
B
B
A
G

4
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
 1) Install the rubber grommets and brass
eyelets onto the aileron servos.
1.INSTALLING THE AILERON SERVOS.
I. AILERON.
B. Wing panel.
C. Fuselage.
A.Cowling.
D . Horizon stabilizer.
F. Aluminium wing dihedral brace.
E. Vertical stabilizer
REPLACEMENT SMALL PARTS
Bottom side of left wing
G. Decal Sheets.
1.Air retract (Nose gear).
2.Air retracts (Main gear).
3.Airtank.
10.Valve control.
9.Air line sets.
8. Valve one way.
6. 4 way connector.
7. 3 way connector.
11. Plastic parts for pushrod.
4. Wheels(75mm).
5. Wheel(65mm).
1.
3.
4.
5.
8.
9.
6.
7.
10.11.
2.

5
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
C/Aglue
C/Aglue
C/Aglue
C/Aglue
Aileron
Bottom side

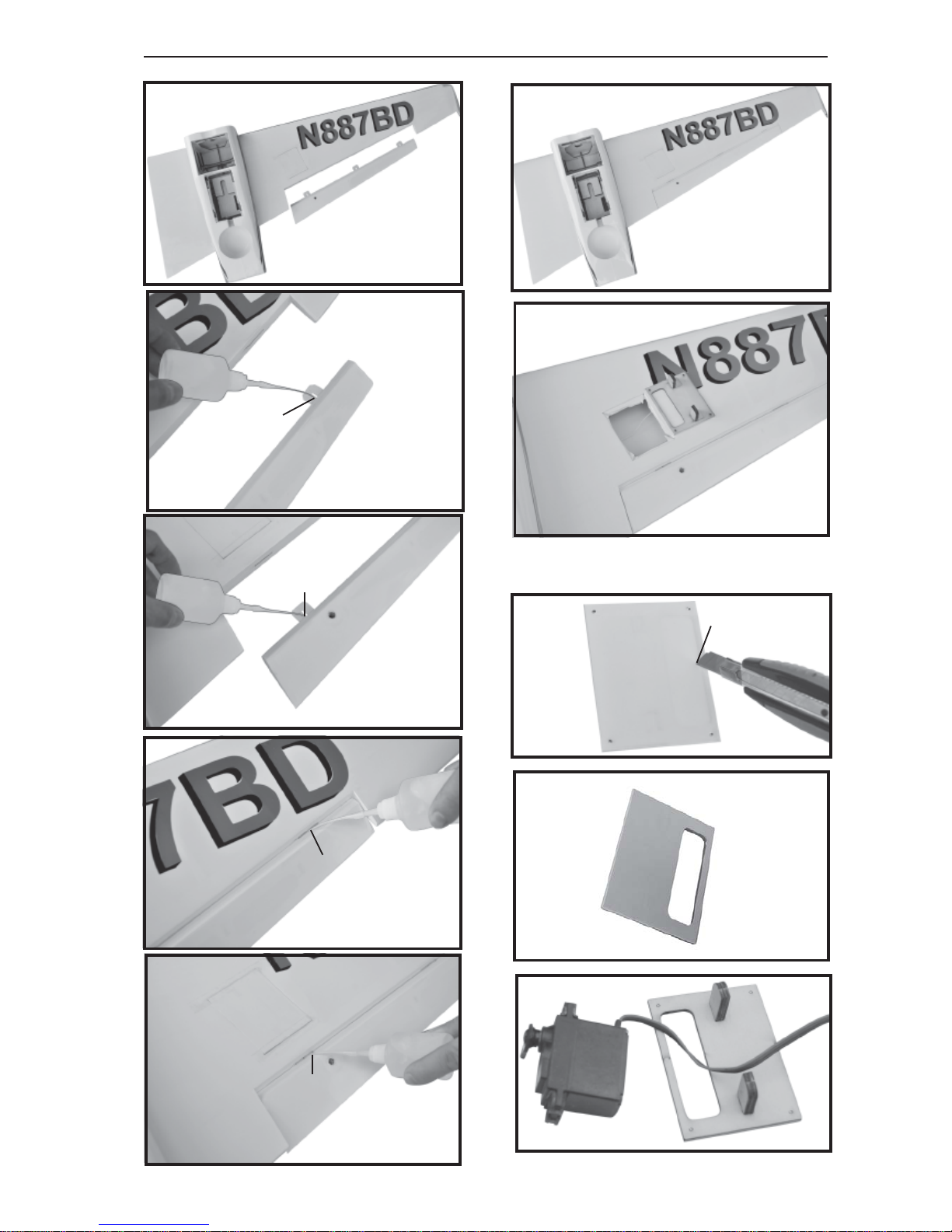

 2)Using amodeling knife,remove thecov-
ering at possition show below.
Bottom side
Remove
covering

6
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
3mm x 40mm.
Nilon control clasp.
M3 lock nut.
Aileroncontrolhorn
2.INSTALLING THE AILERON CONTROL HORN.
 4)Drill1,6mmpilotholes throughthe block
of wood for each of the four mounting screws
provided with the servo.
 3) Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out, re-
move the masking tape and the servo lead
from the thread.
 5. Instal servo tray with aileron servo into
the wing as same as picture below.
Secure.
Bottom side
Thread.
Electric way
Secure
2x10mm.

7
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.

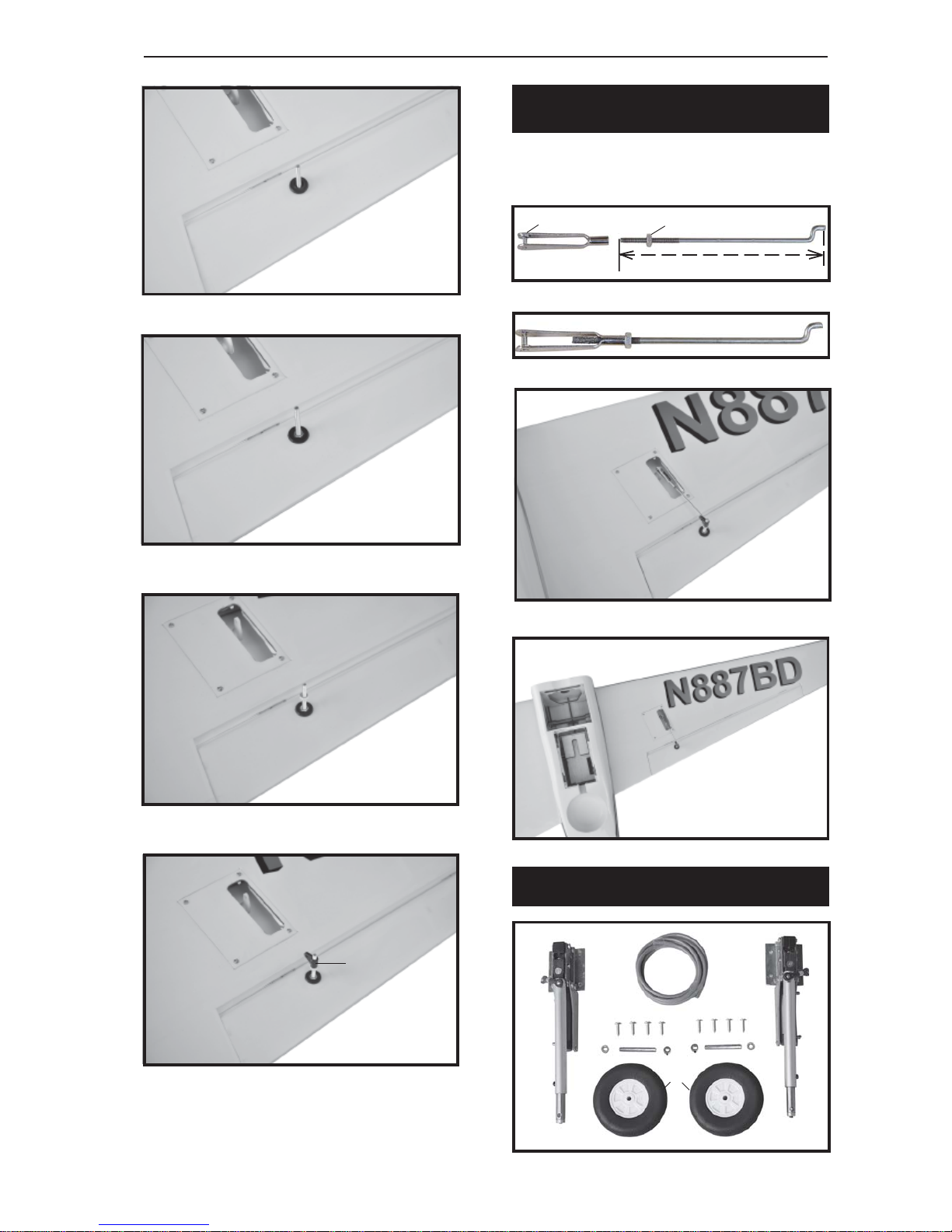

Installing the aileron linkages as pictures
below.
INSTALLING THE AILERON
LINKAGES.
70mm
M2
INSTALLING AIR RETRACTABLE
LANDING GEAR.
3x15 mm.
75mm.
Repeat the procedure for the other wing
half.
Elevator
control horn

8
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
3x15mm.
Secure. Secure.
75mm.
Secure.

9
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
INSTALLING THE STOPPER ASSEMBLY
 1) The stopper has been pre-assembled
at the factory.
 2) Using a modeling knife, cut one length
ofsilicon fuelline(thelengthofsiliconfuel line
iscalculatedbyhowtheweightedclunkshould
restabout 8mmaway fromtherearofthetank
andmove freelyinside thetank). Connectone
FUEL TANK.
end of the line to the weighted clunk and the
otherend tothenylonpickuptubein thestop-
per.
Drill a hole
2mm diameter.
See pictures below:

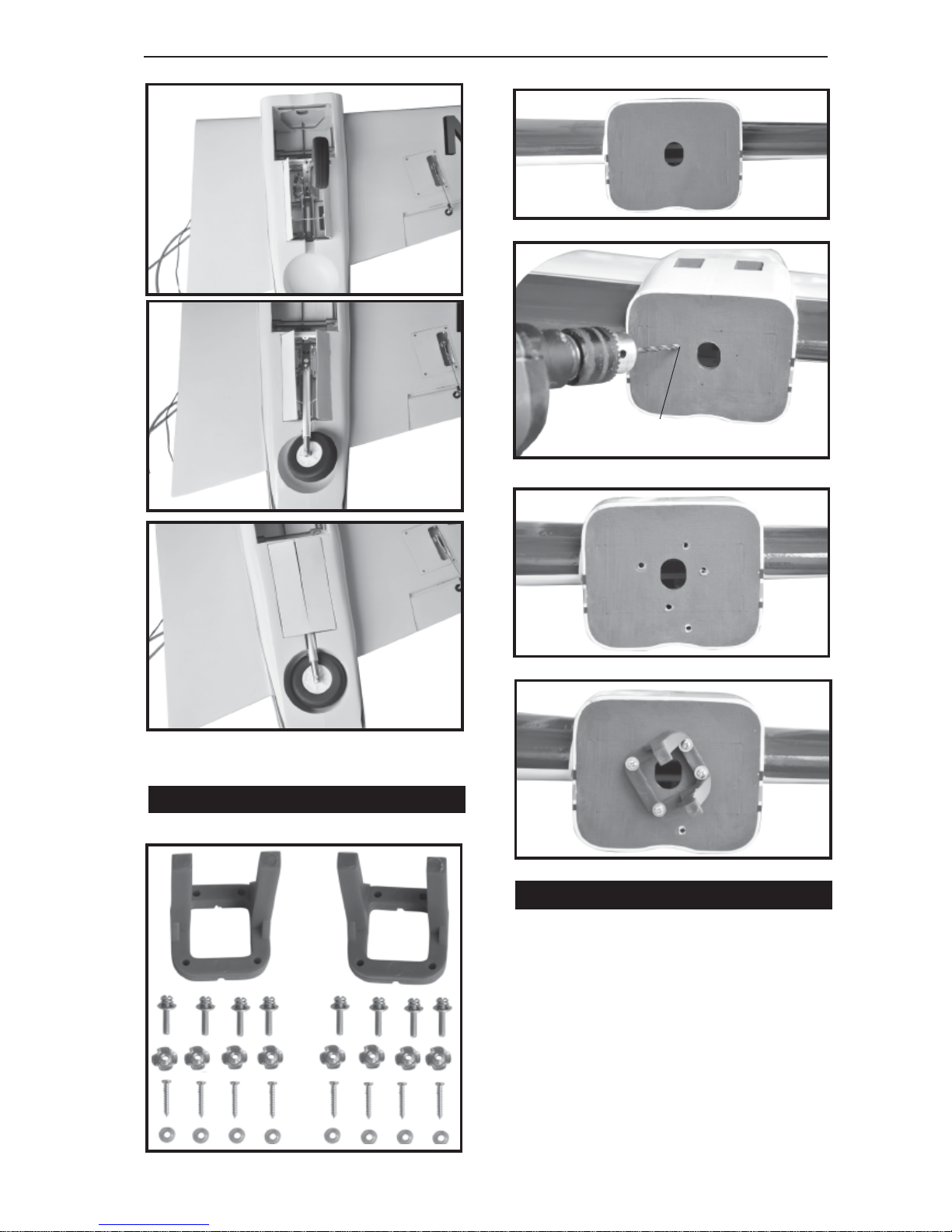

INSTALLING THE ENGINE MOUNT.
Repeat the procedure for the other wing
half.
4 x 30mm
3 x 20mm

10
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.

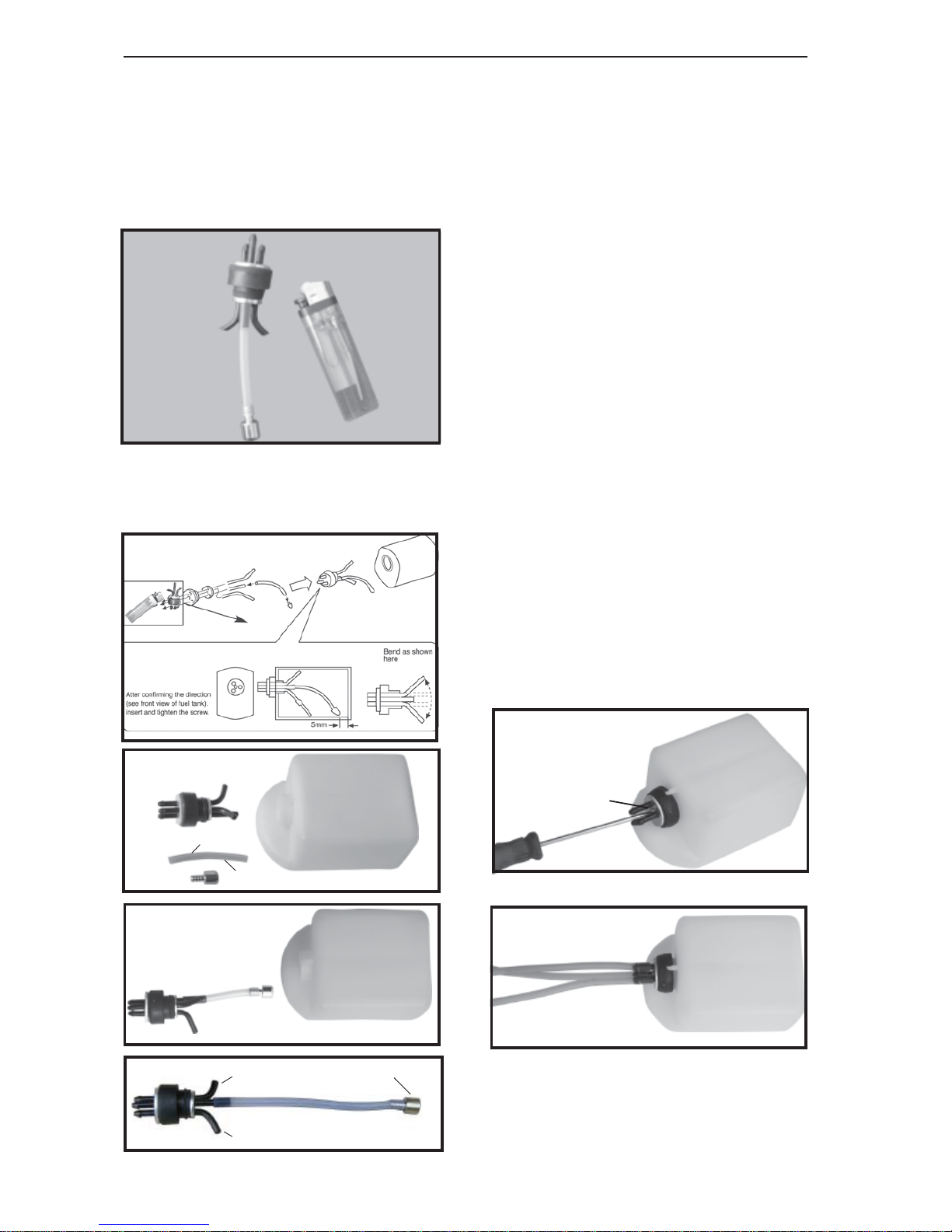

When the stopper assembly is installed in the
tank, the top of the vent tube should rest just
belowthe topsurfaceof thetank. Itshould not
touch the top of the tank.
Vent tube
Fuelfilltube
Fuel pick- up tube
 3) Carefully bend the second nylon tube
up at a 45 degree angle (using a cigarette
lighter). This tube will be the vent tube to the
muffler.
 4) Carefullybend thethirdnylontubedown
ata 45degreeangle (usingacigarettelighter).
This tubewill bevent tubeto thefuelingvalve.
 6. When satisfied with the alignment of the
stopper assembly tighten the 3mm x 20mm
machine screw until the rubber stopper ex-
pandsand sealsthetank opening.Do notover
tighten the assembly as this could cause the
tank to split.
 8. Feed three lines through the fuel tank
compartment and through the pre-drilled hole
in the firewall. Pull the lines out from behind
the engine, while guiding the fuel tank into
place. Push the fuel tank as far forward as
possible,the frontofthetankshould justabout
touch the back of the firewall.
 7. Using a modeling knife, cut 3 lengths of
fuel line 150mm long. Connect 2 lines to the 2
vent tubes and 1 line to the fuel pickup tube in
the stopper.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
througheasily.
 9. To secure the fuel tank in place, apply a
bead of silicon sealer to the forward area of
thetank, whereit exitsthefuselage behindthe
enginemountingbox andtotherearofthetank
at the forward bulkhead.
Secure
Do not secure the tank into place perma-
nently until after balancing the airplane.
You may need to remove the tank to mount
the battery in the fuel tank compartment.
(Silicon tube not included)
Silicon tube

11
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
Fueltank.
INSTALLING THE ENGINE.
Locate the long piece of wire used for the
throttlepushrod. Oneendofthewire hasbeen
pre-bend in to a “Z” bend at the factory. This
“Z” bend should be inserted into the throttle
armofthe enginewhentheengine isfittedonto
theengine mount.Fittheengineto theengine
mount using the screws provided.
105mm
Drill a hole
2mm diameter.
Markpoint

12
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
Pushrodwire
3 x 20mm
Left side
Secure
COWLING.
Bottom side
Top side
Trim and cut
 1. Slide the fiberglass cowl over the en-
gineand lineup thebackedgeofthe cowlwith
the marks you made on the fuselage.
2. While keeping the back edge of the
cowl flush with the marks, align the front of
thecowlwiththecrankshaftoftheengine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Hold the cowl firmly in place using
pieces of masking tape.
3. Slide the cowl back over the engine
andsecure itin placeusing fourwood screws.
See picture below.
4. Installthemufflerandmufflerextension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
andfuel fillervalve.

13
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
INSTALLING THE SPINNER.
Installthe spinnerbackplate,propellerand
spinner cone. The spinner cone is held in
place using two 3mm x 12mm wood screws.
3 x 12mm
Trim and cut
Bottom side
Bottom side
Front view.
Install one adjustable metal connector
through the third hole out from the center of
one servo arm, enlarge the hole in the servo
arm using a 2mm drill bit to accommodate the
servo connector. Remove the excess mate-
rial from the arm.
After installing the adjustable metal con-
nector apply a small drop of thin C/A to
the bottom nut. This will prevent the con-
nector from loosening during flight.
Throttle servo
Secure
Secure
INSTALLING THE THROTTLE PUSHROD.

14
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
Connector.
 1. Install the rubber grommets and brass
colletsintothe elevatorservo.Testfit theservo
into the servo tray.
 2. Mount the servo to the tray using the
mountingscrews providedwithyourradiosys-
tem.
SERVO INSTALLATION.
ELEVATOR INSTALLATION.
Repeat the procedure for the other wing
half.
Connector.
Secure
Cut
Bottom side of the wing.
Top side of the wing.

15
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.

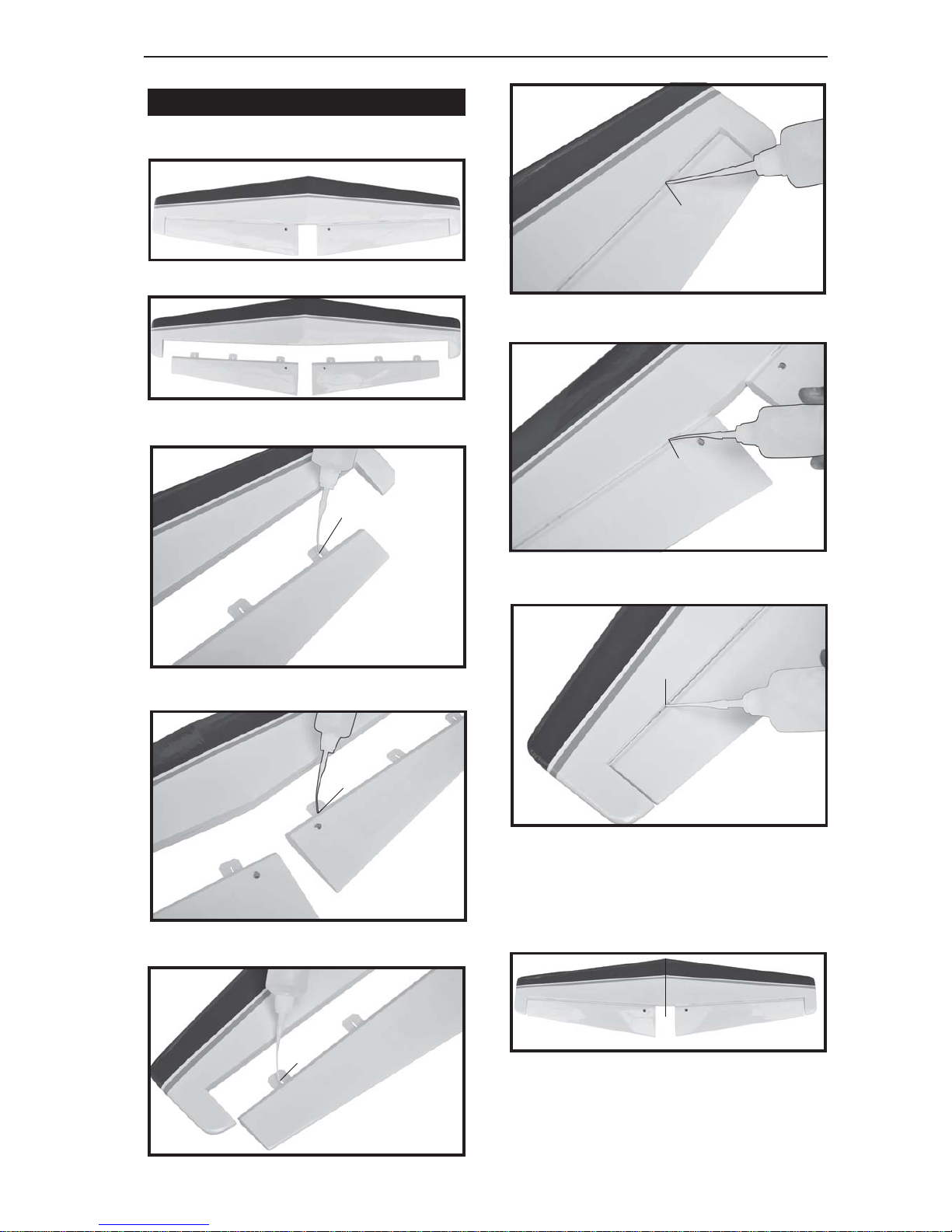

HORIZONTAL STABILIZER.
See pictures below:
C/A glue.
C/A glue.
C/A glue.
Top side
C/A glue.
C/A glue.
 1. Draw a center line onto the horizontal
stabilizer. Then slide the horizontal into the
fuselage.
 2 Using a modeling knife, cut away the
covering from the fuselage for the stabilizer
and remove it.
C/A glue.
Centerline

16
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.

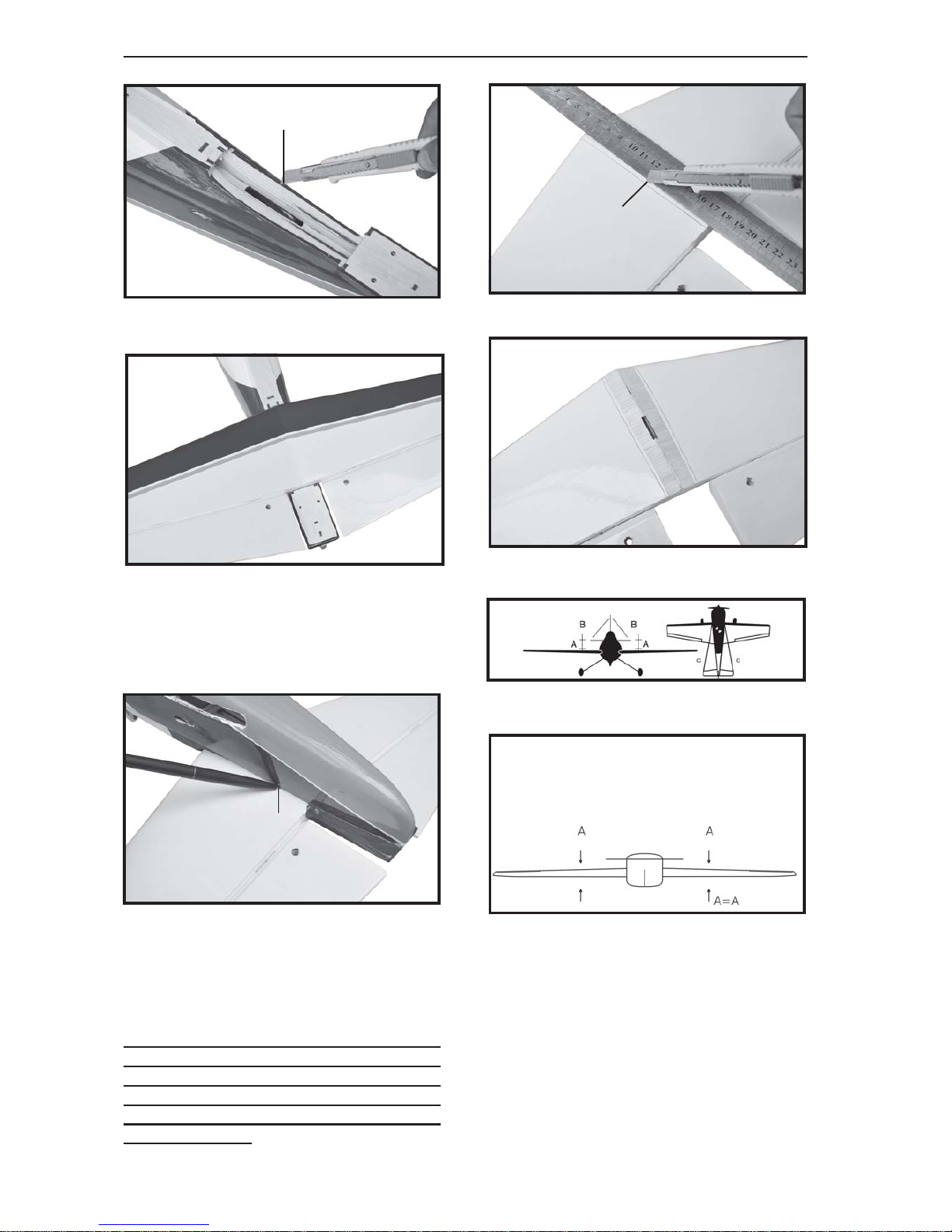

Check to mark sure the wing and stabi-
lizer are paralell. If they are not, lightly sand
theopening inthefuselageforthe stabilizer
until the stabilizer is paralell to the wing.
Remove covering
 5. When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
topand bottomofthestabilizermountingarea
and to the stabilizer mounting platform sides
inthefuselage.Slidethestabilizerinplaceand
re-align. Double check all of your measure-
ments one more time before the epoxy cures.
Remove any excess epoxy using a paper
towel and rubbing alcohol and hold the stabi-
lizer in place with T-pins or masking tape.
 3. Mark theshape ofthe verticalon theleft
and right sides onto the horizontal stabilizer
using a left-tip pen.
Remove covering
 4. Remove the stabilizer. Using the lines
youjustdrew asa guide,carefully removethe
coveringfrom betweenthem usingamodeling
knife.
When cutting through the covering to
remove it, cut with only enough pressure
to only cut through the covering it’s self.
Cutting into the balsa structure may
weaken it. This could lead to possible fail-
ure during flight.
Markline
Bottom side

17
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
6.After the epoxy has fully cured, remove
the masking tape or T-pins used to hold the
stabilizer in place and carefully inspect the
glue joints. Use more epoxy to fill in any
gaps that were not filled previously and
clean up the excess using a paper towel and
rubbingalcohol.
Epoxyglue
Epoxyglue
C/Aglue
C/Aglue
Elevator control horn install as same as the
way of aileron control horn. Please see pic-
tures below.
ELEVATOR CONTROL HORN
PUSHROD INSTALLATION.
C/Aglue
3mm x 40mm.
Nilon control clasp.
M3 lock nut.

18
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
M2 M2 lock nut.
Elevatorpushrodinstallassameastheway
of aileron pushrod.
ELEVATOR PUSHRODINSTALLATION.
Elevator
pushrod Elevator
pushrod
Secure
Secure

19
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
C/Aglue
C/Aglue
Secure
Rudder servo install as same as method of
elevator servo. See picture below:
VERTICAL INSTALLATION.

20
ROCKWELL AERO COMMANDER SHRIKE -Item code: BH90 INSTRUCTION MANUAL.
 1) Using a modeling knife, remove the
covering from the top of the fuselage and the
covering from over the precut hinge slot cut
intothelower rearportion ofthe fuselageThis
slot accepts the lower vertical.
Removecovering.
 3. Mark the shape of the vertical on the
leftand rightside of therudder onto thehori-
zontal stabilizer using a felt-tip pen.
 4. Now, remove the rudder and using a
modeling knife, carefully cut just inside the
marked lines and remove the film of the rud-
der. Just as you did with the horizontal stabi-
lizer, make sure you only press hard enough
to cut the film, not the balsa rudder.
 2. Put the rudder into the fuselage as
same as picture below.
Markline
 Also carefully remove the covering from
the horizontal fin as below the lines which
you drew as same picture below.
Removecovering
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
Epoxyglue
Epoxyglue
