BVI 9400 Calibration Quick Reference
BVI 9400 Calibration Quick Reference
The entire calibration process may take up to 15 minutes. You may calibrate your instrument as often as you like; you do not have
to wait for the next scheduled calibration date. However, at a minimum, you must calibrate the instrument every 12 months.
Prepare for Calibration
Set up the calibration tank in a location that is within
10 feet of Charger and Wireless Hub.
Place the calibration tank on a flat, nonreflective surface and
remove the lid. Pour clean, room temperature water into the
container, filling to the indicator mark. Make sure the water
contains a minimal amount of bubbles. Place the spiral-
shaped target in the container, using the notches to position
target correctly. Replace the lid on the calibration container.
Place the probe
Place the Probe in the cutout in the top of the calibration
tank. Make sure the black tip of the Probe is submerged
in the water.
Open ScanPoint® QuickPrint
From your desktop, open QuickPrint by double-clicking
the QuickPrint icon.
Establish BVI 9400 - QuickPrint
connection
Press the ScanPoint®button on the BVI 9400.
On the QuickPrint screen, click the FIND NEW button.
When QuickPrint establishes a connection with the
BVI 9400, an icon will appear along the left menu.
Savings Calculation
Date Started 3/21/2007
Number of Scans 22
Cath Avoided 15
UTI Avoided 0
Savings $1500
ScanPoint®
button

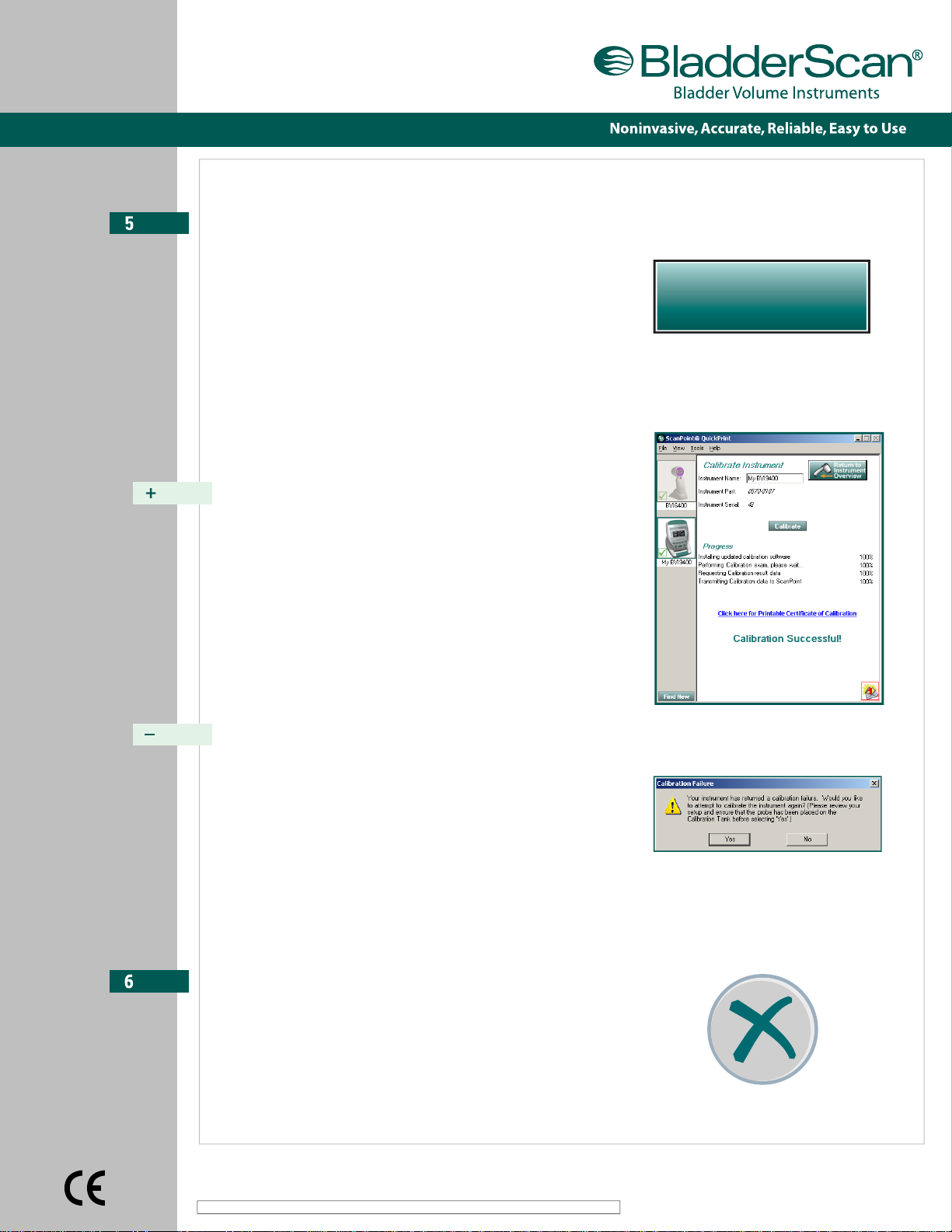

Successful calibration
If ScanPoint®was able to locate the calibration target,
the instrument analyzes the scan data to ensure that it
meets the calibration parameters. If necessary, the
instrument automatically rescans the phantom. When
calibration is complete, a ‘Calibration Successful’ message
is displayed on your computer.
To print a record of the calibration, click: Click Here for
Printable Certificate of Calibration.
0900-1447-01-60
End calibration
To terminate the calibration procedure and end
communication with the ScanPoint®, press the
CANCEL (X) button on the BVI 9400.
Remove the Probe from the calibration chamber lid and
dry it with a clean, soft cloth.
Failed calibration
If ScanPoint®was unable to locate the calibration target,
it displays an error message and instructs you to ensure
that the calibration chamber has enough water and that
the Probe is seated properly in the calibration system.
You may choose to calibrate again or to quit the
calibration process.
NOTE: If you are unable to calibrate, contact your local
Verathon Medical®representative or Verathon Medical®
Customer Care at 1.800.331.2313.
www.verathon.com https://my.scanpoint.com
For more information, call 800.331.2313 (in the U.S. and Canada) or contact your local Verathon Medical®representative.
Verathon Corporate Headquarters: 20001 North Creek Parkway, Bothell, WA 98011, USA. Phone: [phone]
VM Europe B.V.: Boerhaaveweg 1, 3401 MN IJsselstein, The Netherlands, Phone:[phone]
BVI 9400 Calibration Quick Reference
BVI 9400 Calibration Quick Reference
Calibrate instrument
From the Tools menu, select Calibrate Instrument. When
the Calibration screen opens, click the CALIBRATE button.
ScanPoint®then automatically scans and analyzes the
calibration target.
IMPORTANT! Do not remove the Probe from the calibration
chamber until four arrows appear on the Probe’s LCD
screen. Do not disconnect the Charger and Wireless Hub
from the computer or otherwise break the connection
between the BVI 9400 and the ScanPoint®host computer
until all processing is complete.
Calibrate
To order additional rolls of paper (0800-0319) or batteries (0400-0066), contact Customer Care at 800.331.2313.
