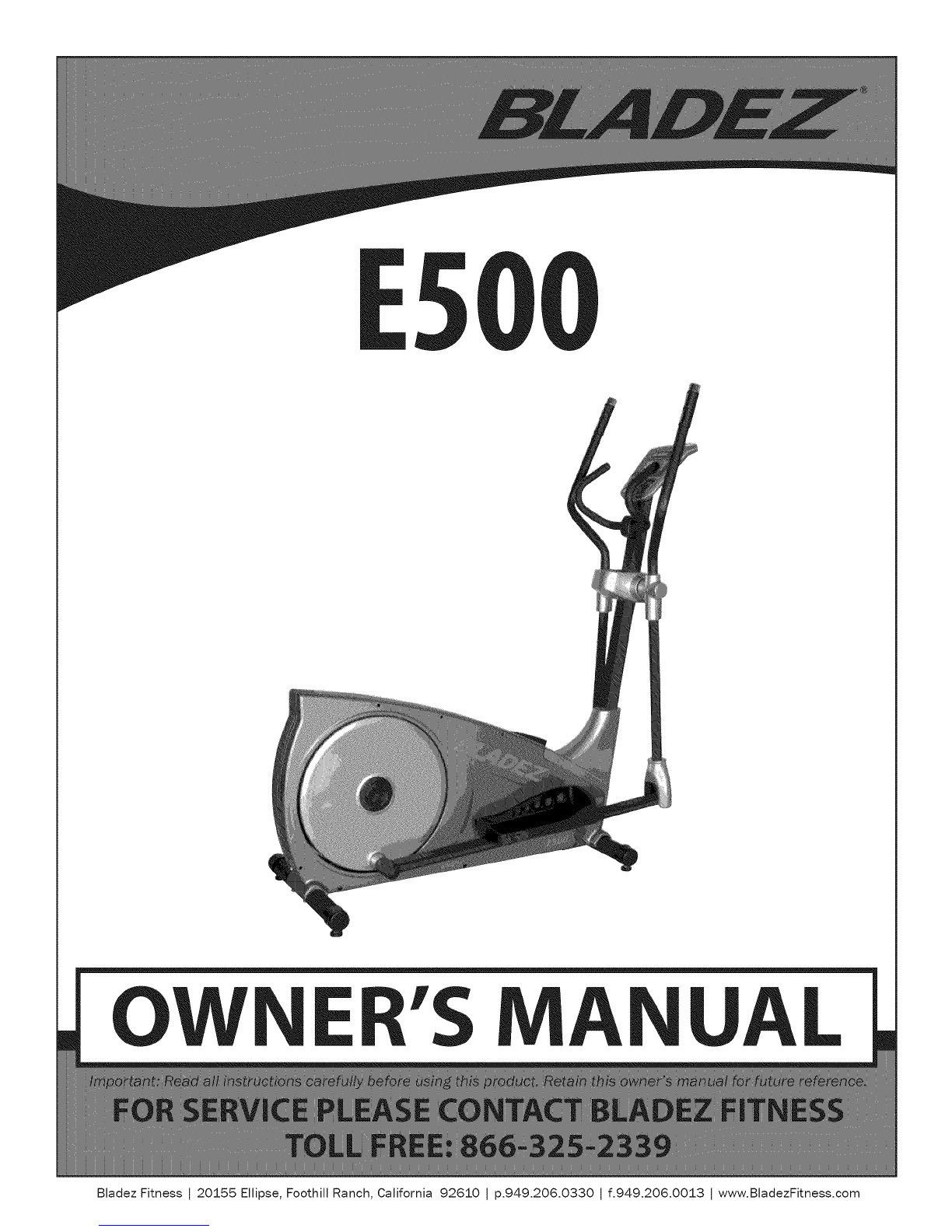

BLADEZ E500 User manual

Bladez Fitness I 20155 Ellipse, Foothill Ranch, California 92610 I p.949.206.0330 I f.949.206.0013 I www.BladezFitness.com

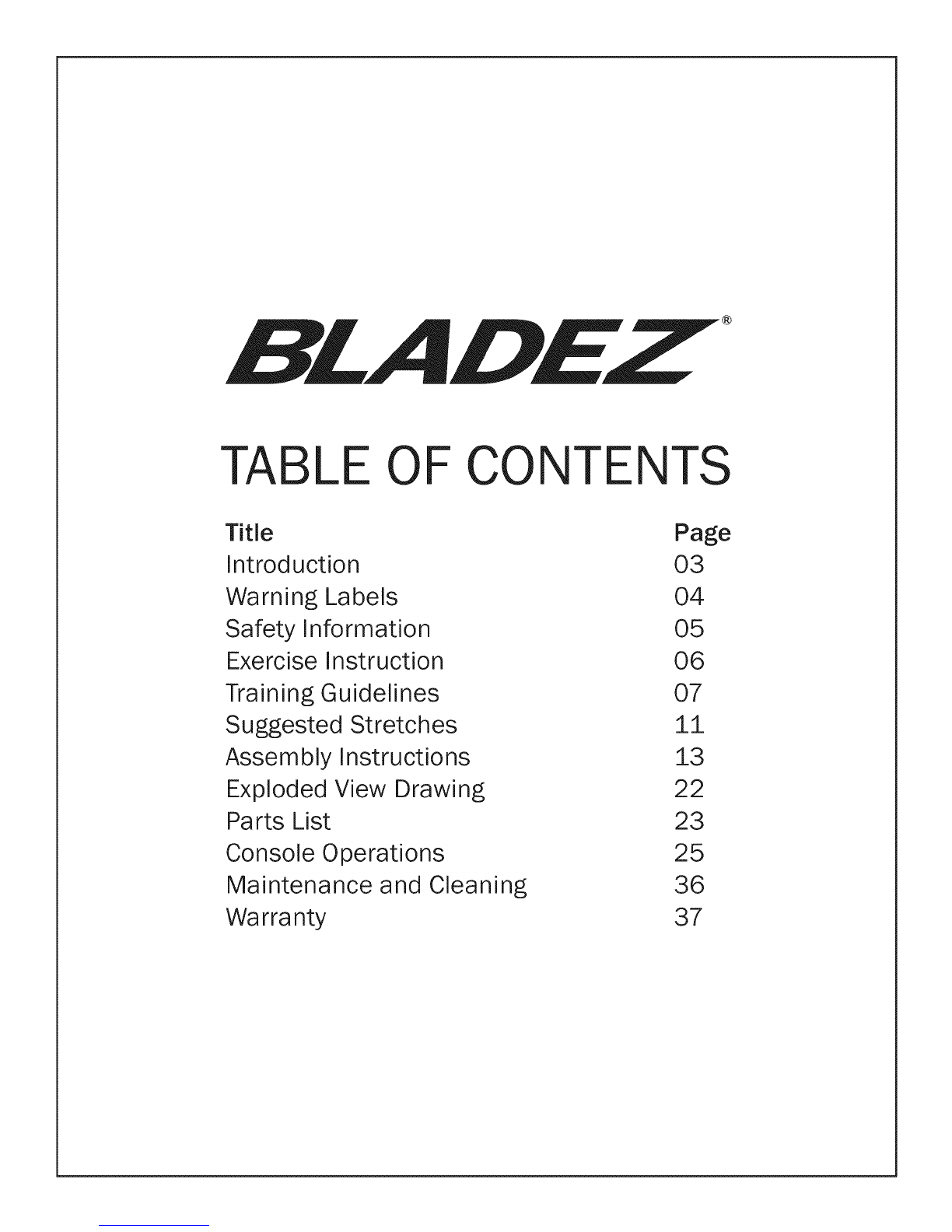

TABLE OF CONTENTS
Title
Introduction
Warning Labels
Safety Information
Exercise Instruction
Training Guidelines
Suggested Stretches
Assembly Instructions
Exploded View Drawing
Parts List
Console Operations
Maintenance and Cleaning
Warranty
Page
03
04
05
06
07
ii
i3
22
23
25
36
37

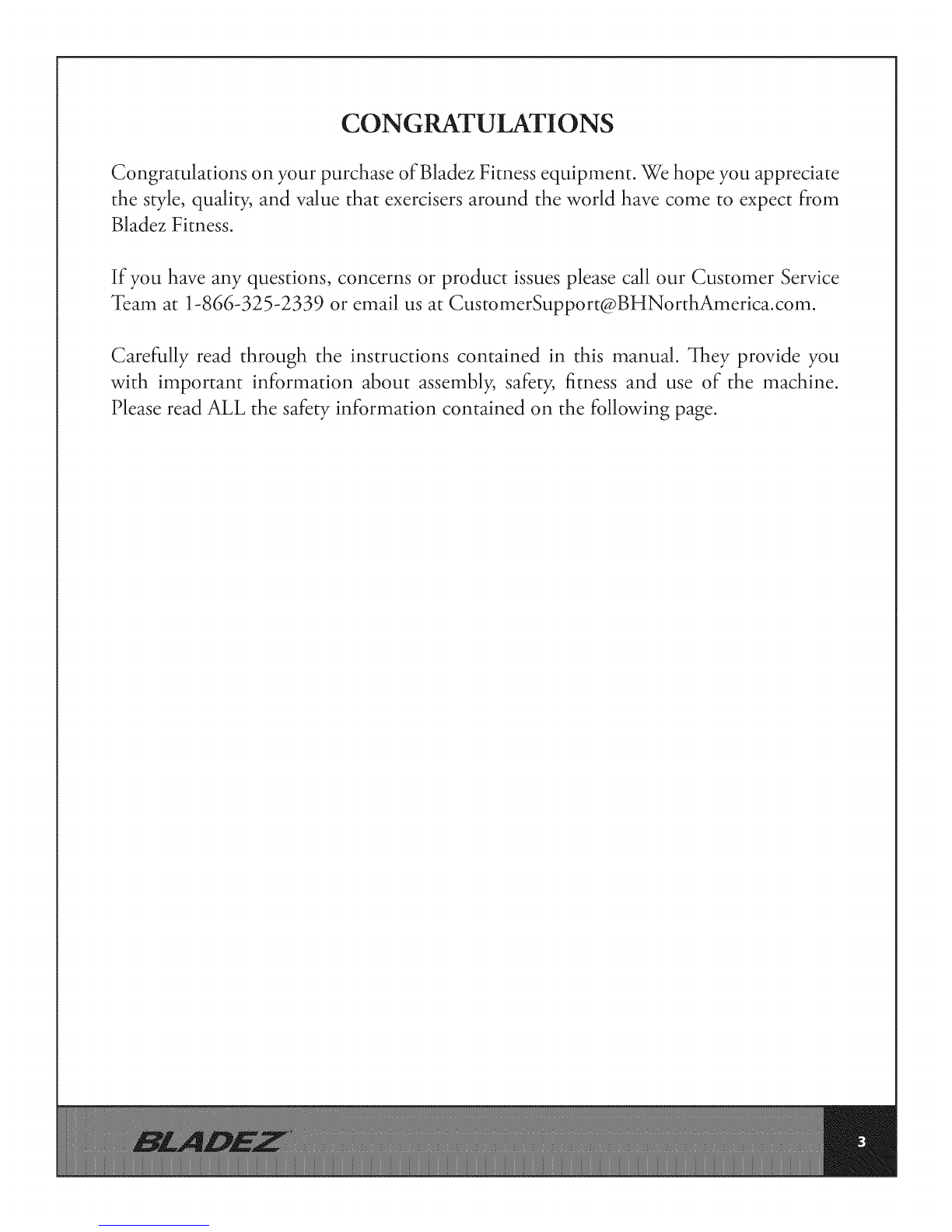

CONGRATULATI ONS
Congratulations on your purchase of Bladez Fitness equipment. We hope you appreciate
the style, quality, and value that exercisers around the world have come to expect from
Bladez Fitness.
If you have any questions, concerns or product issues please call our Customer Service
Team at 1-866-325-2339 or email us at [email protected].
Carefully read through the instructions contained in this manual. _hey provide you
with important information about assembly, safety, fitness and use of the machine.
Please read ALL the safety information contained on the following page.

WARNING LABELS
This device complies with Part 15 of the FCCRules.
Operation issubject to the following two conditions:
(1)Thisdevice may not causeharmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Cet appareil conforme avec Article 15 des
r_glements de FCC Le fonctionnement est soumit
au 2 conditions suivantes: (I) Cetappareilnepeut
pas causer des interferences nuisible,et (2) cet
appareil doit accepter toutes les interference m_ues,
y comprisles interferences qui peuventcauser
l'op_rationind_sirable.
\
•Misuseof this machine may • Lamauva]seutilJsationdecet
result in serious injury.
o Read user'smanual prior to use
andfollow all warnings and
instructions
Do not allow children on or
around machine.
Pedalscontinue tospinwhen
youstop pedaling
Spinning pedalscancause
injury
Reducepedal speedin a
controlled manner
Userweight must not exceed
330 Ibs/150 kgs
Thisproductsshould alwaysbe
usedon alevelsurface
Thisproduct isnot intendedfor
therapeutic use
Replacelabelif damaged,
illegible or removed
Keepbodyand clothing free
and clearofall moving parts
Theheart latedisplayed may
be inaccurateand should be
usedfor referenceonly
•Consulta physicianprior to
k using anyexerciseequipment
appareilpeutentlainerdes
blessumsglaves
•lisezlemanueldel'unlisateul
avantunlisationetsuiveztousles
avernssementsetlesinstru_nons
• Nepermettezpasauxenfantsde
setenilsul ou autourde l'appaleil
• Lepoidsdel'utilisateurnedevrait
pasexcedertSO
• Cetappamildoittoujoulsetle
utilis_surunesurfaceplane
Nepasfaireusagea desRns
th_apeudques
Lesp_dalsconthluentdetourner
guandvousarrOtezdep_dalm
Lespedalsenmouvementpeuvent
causerdesblessures
R_duisezI_vaessedesp_dales
d'unemani_le_ontrdlee
nemplacezl'autocollants'ilest
endommag_,illisibleou
manquam
• Galderle corpset lesv_tements,
libreet_loignerderoutesles
pi_esmobiles
• Laflequencecmdiaqued_mont_
peut_,treinexacteetdoit_tre
utilisera taredei_f_rence
seulement
• Consulterunm_dednavam
d'unlise_tout _quipement
d'exemce ,j
Gardezvosmainsetdoigts_loign_sde
cetendroit
/ /
ii/ //"
/
/
/
// /
/
i
/
/
f
I
i i
i

SAFETY INFORMATION
PRECAUTIONS
_his equipment has been designed and constructed to provide maximum safety.
Nevertheless, certain precautions should be taken when using exercise equipment.
Read the whole manual before assembling and using the machine. Please observe the
following safety precautions:
1. Keep children and pets away from this equipment at all times. DO NOT leave them unsupervised in the
room where the machine is kept.
2. If you experience dizziness, nausea, chest pains or any other symptom while using this machine STOP the
exercise. SEEK IMMEDIATE MEDICAL ATTENTION!
3. Use the machine on a level and solid surface. Adjust the feet for stability.
4. Keep your hands away fi:om any of the joints and moving parts.
5. Wear clothing suitable for doing exercise. Do not wear baggy clothing that might get caught in the machine.
Always wear athletic shoes when using the machine and tie the laces securely.
6. This machine must only be used for the purposes described in this manual. DO NOT use accessories that
are not recommended by Bladez Fitness. Read manual prior to use and follow all warnings and instructions.
7. Do not place sharp objects near the machine.
8. Any person with physical or coordination limitations should not use the machine without the assistance of
a qualified person or doctor. Misuse of this machine may result in serious injury.
9. Do warm-up stretching exercises before using the equipment.
10. Do not use the machine if it is not working correctly.
11. Before using the machine, thoroughly inspect the equipment for proper assembly.
12. Keep a perimeter of 3 feet (1 meter) around the machine before operating the equipment.
13. Use only authorized and trained technicians if a repair is needed.
14. Please follow the advice for correct training, as detailed in the Training Guidelines.
15. Use only the tools provided to assemble this machine.
16. Replace warning labels if damaged, illegible or removed.
17. This machine was designed for a maximum user weight of 330 lbs (150 kgs)
18. The machine can only be used by one person at a time.
Caution: Consult your doctor before beginning to use the machine or any exercise program. Read all
of the instructions before using any exercise equipment.
KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

NOTE: Thisequipmenthasbeentestedandfoundtocomplywith thelimitsforClassBdigitaldevice,
pursuanttopart 15oftheFCCRules.Theselimits aredesignedto provideareasonableprotection
againstharmfulinterferencein a residentialinstallation. Thisequipmentgenerates,usesandcan
radiateradiofrequencyenergyand,if not installedandusedin accordancewith theinstructions,may
causeharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningthe
equipmentoffandon,theuserisencouragedto try to correcttheinterferencebyoneormoreofthe
followingmeasures:
* Reorientorrelocatethereceivingantenna
* Increasetheseparationbetweentheequipmentandthereceiver
* Connecttheequipmentinto an outleton a circuit differentfrom that to which thereceiveris
connected
* Consultthedealeroranexperiencedradio/TVtechnicianforhelp
EXERCISE INSTRUCTION
Use of the machine offers various benefits; it can improve fitness, muscle tone and when
used in conjunction with a calorie controlled diet, it can help you lose weight.
1. Consult your doctor before starting any exercise program. It is advisable to
undergo a complete physical examination.
2. Work at the recommended exercise level. Do not over exert yourself.
3. If you feel any pain or discomfort, stop exercising immediately and consult your
doctor.
4. Wear appropriate clothing and footwear for the exercise; do not wear loose
clothing; do not wear leather soled shoes or footwear with high heels.
5. It is advised that you do warm-up stretches before working out.
6. Get on the equipment slowly and securely.
7. Select the program or workout option that is most closely aligned with your
workout interests.
8. Start slowly and work your way up to a comfortable pace.
9. Be sure to cool down after your workout.

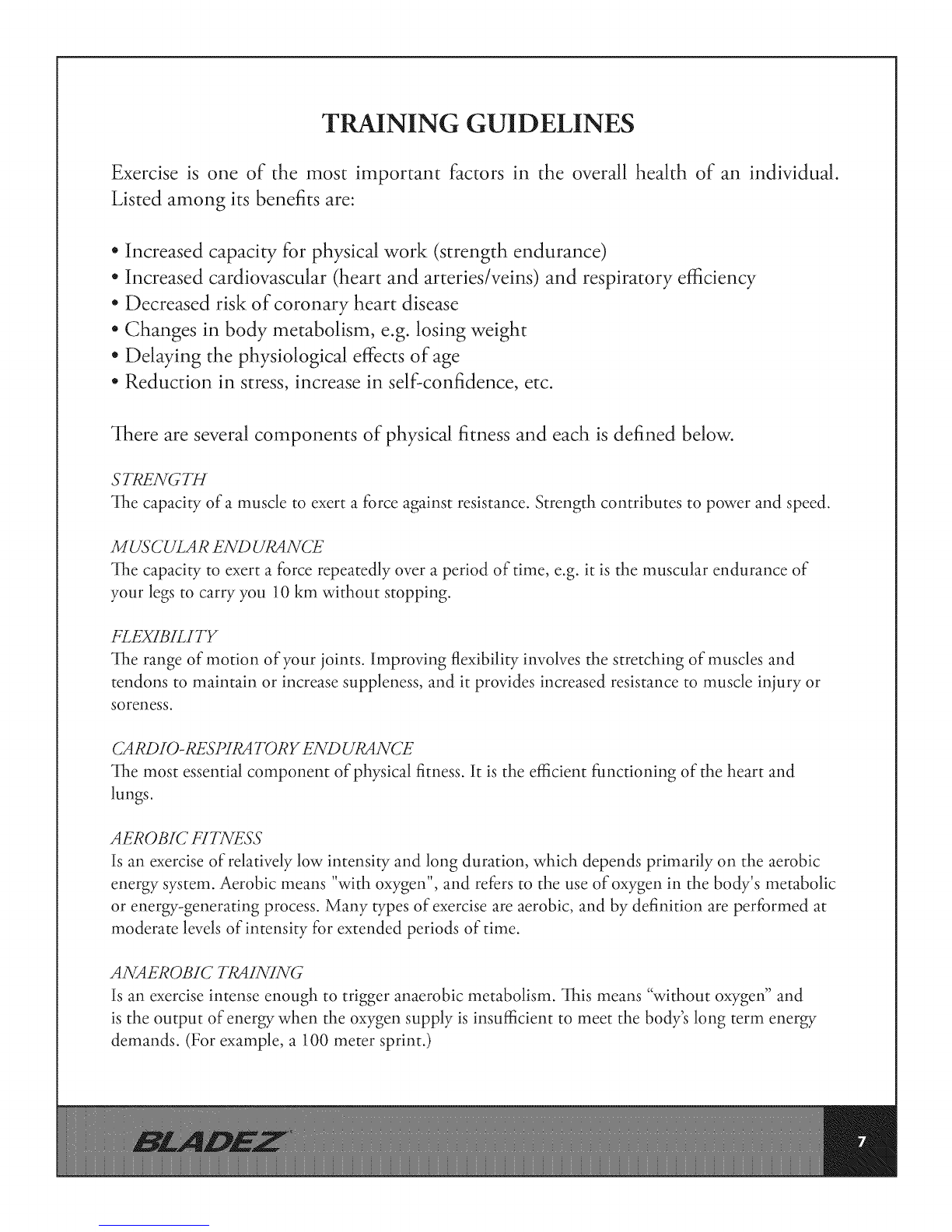

TRAINING GUIDELINES
Exercise is one of the most important factors in the overall health of an individual.
Listed among its benefits are:
* Increased capacity for physical work (strength endurance)
* Increased cardiovascular (heart and arteries/veins) and respiratory efficiency
* Decreased risk of coronary heart disease
* Changes in body metabolism, e.g. losing weight
* Delaying the physiological effects of age
* Reduction in stress, increase in self-confidence, etc.
_here are several components of physical fitness and each is defined below.
S TRENG TH
The capacity of a muscle to exert a force against resistance. Strength contributes to power and speed.
M USCUZAR END URA NCE
The capacity to exert a force repeatedly over a period of time, e.g. it is the muscular endurance of
your legs to carry you 10 km without stopping.
FLEXIBILITY
The range of motion of your joints. Improving flexibility involves the stretching of muscles and
tendons to maintain or increase suppleness, and it provides increased resistance to muscle injury or
soreness.
CARD I0- RESI IRA TO R I7END URANCE
The most essential component of physical fitness. It is the el_cient functioning of the heart and
lungs.
AEROBIC FITNESS
Is an exercise of relatively low intensity and long duration, which depends primarily on the aerobic
energy system. Aerobic means "with oxygen", and refers to the use of oxygen in the body's metabolic
or energy-generating process. Many types of exercise are aerobic, and by definition are performed at
moderate levels of intensity for extended periods of time.
ANAEROBIC TRAINING"
Is an exercise intense enough to trigger anaerobic metabolism. This means "without oxygen" and
is the output of energy when the oxygen supply is insul_cient to meet the body's long term energy
demands. (For example, a 100 meter sprint.)

OXYGEN UPTAKE
The effort that you can exert over a prolonged period of time is limited by your ability to deliver
oxygen to the working muscles. Regular vigorous exercise produces a training effect that can increase
your aerobic capacity by as much as 20 to 30%. An increased VO2 Max indicates an increased ability
of the heart to pump blood, of the lungs to ventilate oxygen, and of the muscles to take up oxygen.
THE TRAINING" THRESHOLD
This is the minimum level of exercise which is required to produce significant improvements in any
physical fitness parameter.
0 VERLOAD
This is where you exercise above your comfort level. The intensity, duration and frequency of exercise
should be above the training threshold and should be gradually increased as the body adapts to the
increasing demands. As your fitness level improves, the training threshold should rise. Working
through your program and gradually increasing the overload factor is important.
PROGRES570N
As you become more fit, a higher intensity of exercise is required to create an overload and therefore
provide continued improvement.
SPE CIFI (2S
Different forms of exercise produce different results. The type of exercise that is carried out is specific
to the muscle groups being used and to the energy source involved. There is little transfer of the
effects of exercise, i.e. from strength training to cardiovascular fitness. That is why it is important to
have an exercise program tailored to your specific needs.
REVERSIBILITY
If you stop exercising or do not do your program often enough, you will lose the benefits you have
gained. Regular workouts are the key to success.
WARM- U7)
Every exercise program should start with a warm-up where the body is prepared for the effort to
come. It should be gentle and preferably use the muscles group to be involved later. Stretching
should be included in both your warm-up and cool down, and should be performed after 3-5
minutes of low intensity aerobic activity or calisthenic type exercise.
WARM DOWN OR (200L DOWN
This involves a gradual decrease in the intensity of the exercise session. Following exercise, a large
supply of blood remains in the working muscles. If it is not returned promptly to the central
circulation, pooling of blood may occur in the muscles.

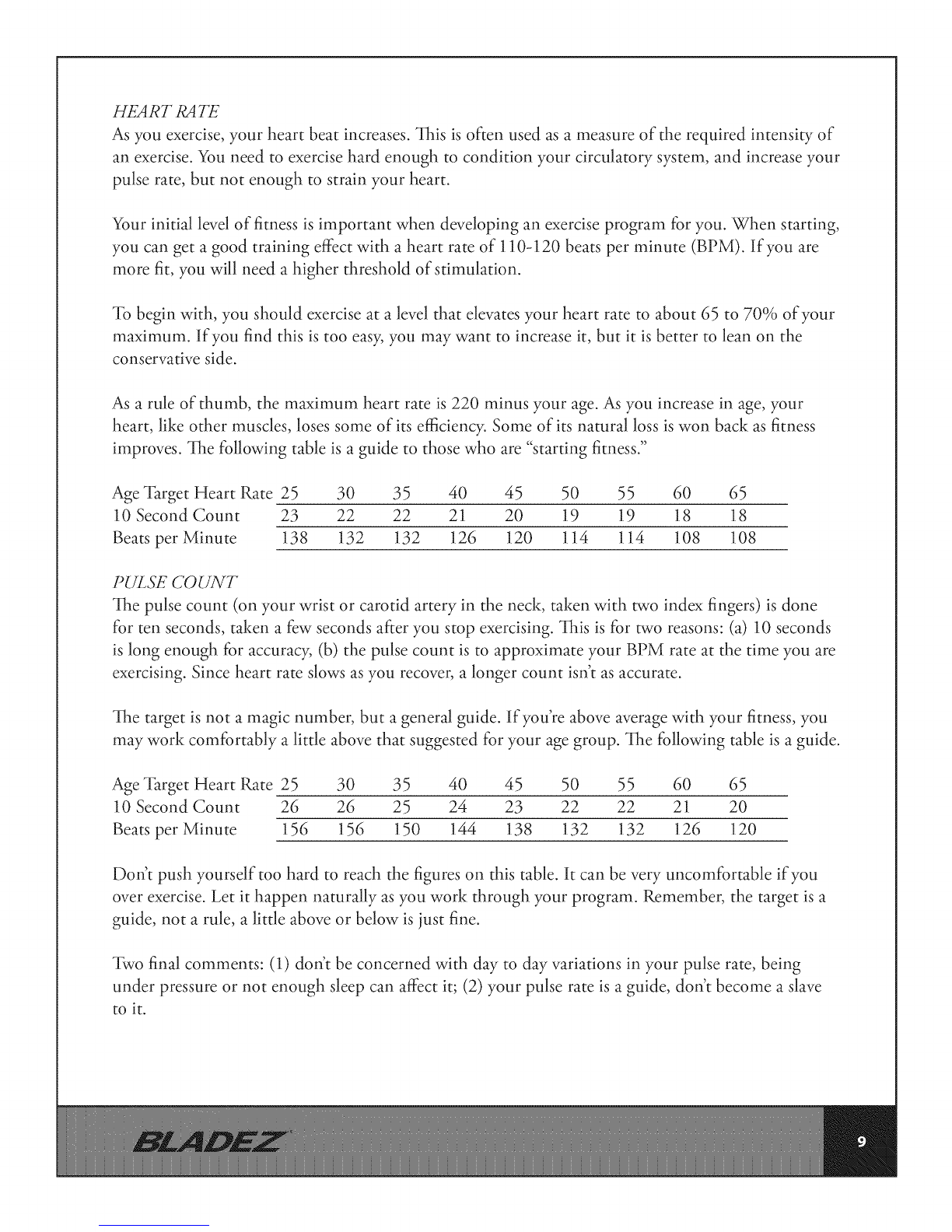

HEART RATE
As you exercise, your heart beat increases. This is often used as a measure of the required intensity of
an exercise. You need to exercise hard enough to condition your circulatory system, and increase your
pulse rate, but not enough to strain your heart.
Your initial level of fitness is important when developing an exercise program for you. When starting,
you can get a good training effect with a heart rate of I 10-120 beats per minute (BPM). If you are
more fit, you will need a higher threshold of stimulation.
To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70% of your
maximum. If you find this is too easy; you may want to increase it, but it is better to lean on the
conservative side.
As a rule of thumb, the maximum heart rate is 220 minus your age. As you increase in age, your
heart, like other muscles, loses some of its efficiency: Some of its natural loss is won back as fitness
improves. The following table is a guide to those who are "starting fitness."
Age Target Heart Rate 25 30 35 40 45 50 55 60 65
10 Second Count 23 22 22 21 20 19 19 18 18
Beats per Minute 138 132 132 126 120 114 114 108 108
PULSE (]OUNT
The pulse count (on your wrist or carotid artery in the neck, taken with two index fingers) is done
for ten seconds, taken a few seconds after you stop exercising. This is for two reasons: (a) 10 seconds
is long enough for accuracy, (b) the pulse count is to approximate your BPM rate at the time you are
exercising. Since heart rate slows as you recover, a longer count isn't as accurate.
The target is not a magic number, but a general guide. If you're above average with your fitness, you
may work comfortably a little above that suggested for your age group. The following table is a guide.
Age Target Heart Rate 25 30 35 40 45 50 55 60 65
10 Second Count 26 26 25 24 23 22 22 21 20
Beats per Minute 156 156 150 144 138 132 132 126 120
DoNt push yourself too hard to reach the figures on this table. It can be very uncomfortable if you
over exercise. Let it happen naturally as you work through your program. Remember, the target is a
guide, not a rule, a little above or below is just fine.
Two final comments: (1) don't be concerned with day to day variations in your pulse rate, being
under pressure or not enough sleep can affect it; (2) your pulse rate is a guide, don't become a slave
to it.

MUSCLE SORENESS
For the first week or so, muscle soreness may be the only indication you have that you are on an
exercise program. This, of course, does depend on your overall fitness level. A confirmation that you
are on the correct program is a very slight soreness in most major muscle groups. This is quite normal
and will disappear in a matter of days.
If you experience major discomfort, you may be on a program that is too advanced, or you have
increased your program too rapidly:
If you experience PAIN during or after exercise, your body is telling you something. Stop exercising
and consult your doctor.
WHAT TO WEAR
Wear clothing that will not restrict your movement in any way while exercising. Clothes should be
light enough to allow the body to cool. Excessive clothing that causes you to perspire more than you
normally would gives you no advantage. The extra weight you lose is body fluid and will be replaced
with the next glass of water you drink. Always wear athletic shoes.
BREA THING" DURING EXERCISE
Do not hold your breath while exercising. Breathe normally as much as possible. Remember,
breathing involves the intake and distribution of oxygen, which feeds the working muscles.
RES T PERIODS
Once you start your exercise program, you should continue through to the end. Do not break off
halfway through and then restart at the same place later on without going through the warm-up stage
again. The rest period required between exercises may vary from person to person.

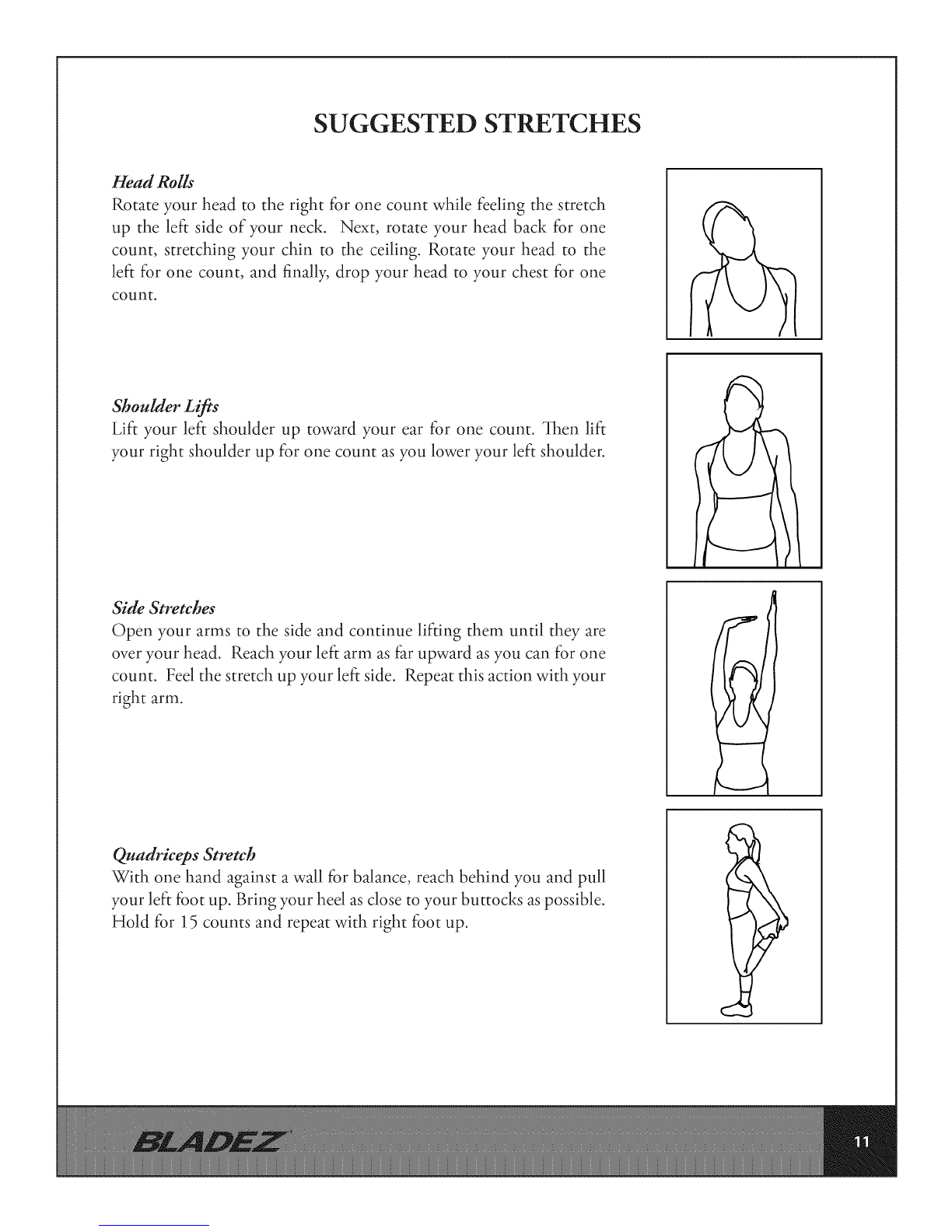

SUGGESTED STRETCHES
Head Rolls
Rotate your head to the right for one count while feeling the stretch
up the left side of your neck. Next, rotate your head back for one
count, stretching your chin to the ceiling. Rotate your head to the
left for one count, and finally; drop your head to your chest for one
count.
Shoulder Lifts
Lift your left shoulder up toward your ear for one count. Then lift
your right shoulder up for one count as you lower your left shoulder.
Side Stretches
Open your arms to the side and continue lifting them until they are
over your head. Reach your left arm as far upward as you can for one
count. Feel the stretch up your left side. Repeat this action with your
right arm.
Quadriceps Stretch
With one hand against a wall for balance, reach behind you and pull
your left foot up. Bring your heel as close to your buttocks as possible.
Hold for 15 counts and repeat with right foot up.

SUGGESTED STRETCHES
Inner Thigh Stretch
Sit with the soles of your feet together with your knees pointing
outward. Pull your feet as close into your groin as possible. Gently
push your knees towards the floor. Hold for 15 counts.
Toe Touches
Slowly bend forward from your waist, letting your back and
shoulders relax as you stretch toward your toes. Reach down as far
as you can and hold for 15 counts.
Hamstring Stretches
Sit with your right leg extended. Rest the soles of your left foot
against your right inner thigh. Stretch toward your toes as far as
possible. Hold for 15 counts. Relax and then repeat with left leg
extended.
Calf/Achilles Stretches
Lean against a wall with your right leg in front of the left and your
arms forward. Keep your left leg straight and the right foot on the
floor; then bend the right leg and lean forward by moving your hip
toward the wall. Hold, then repeat on the other side for 15 counts.

ASSEMBLY INSTRUCTIONS
STEP 1
1) Fasten the Front Stabilizer (95) with 2 Curved Washers (21) and 2 Allen Bolts (73) to
the underside of Stabilizer and tighten.
2) Fasten the Rear Stabilizer (74) with 2 Curved Washers (21) and 2 Allen Bolts (73) to
the underside of stabilizer and tighten.
\
/
, /

STEP 2
1) Remove the pre-assembled 4 Allen Bolts (22), 4 Spring Washers (19), 2 Curved Washers
(21) and 2 Flat Washers (94). Lift the Handlebar Post (25) until it is vertical and slide on
the Front Protection Cover (29), connect the Upper Computer Cable (116) with the Lower
Computer Cable (119),
2) Attach the Handlebar Post (25) onto the Main Frame (99) and secure it with 4 Allen
Bolts (22), 4 Spring Washers (19), 2 Curved Washers (21) and 2 Flat Washers (94).
29
117
/
25
fJ t16
1i9
.........................22
94
19
21
116
29
11
119
,f
29
25
99

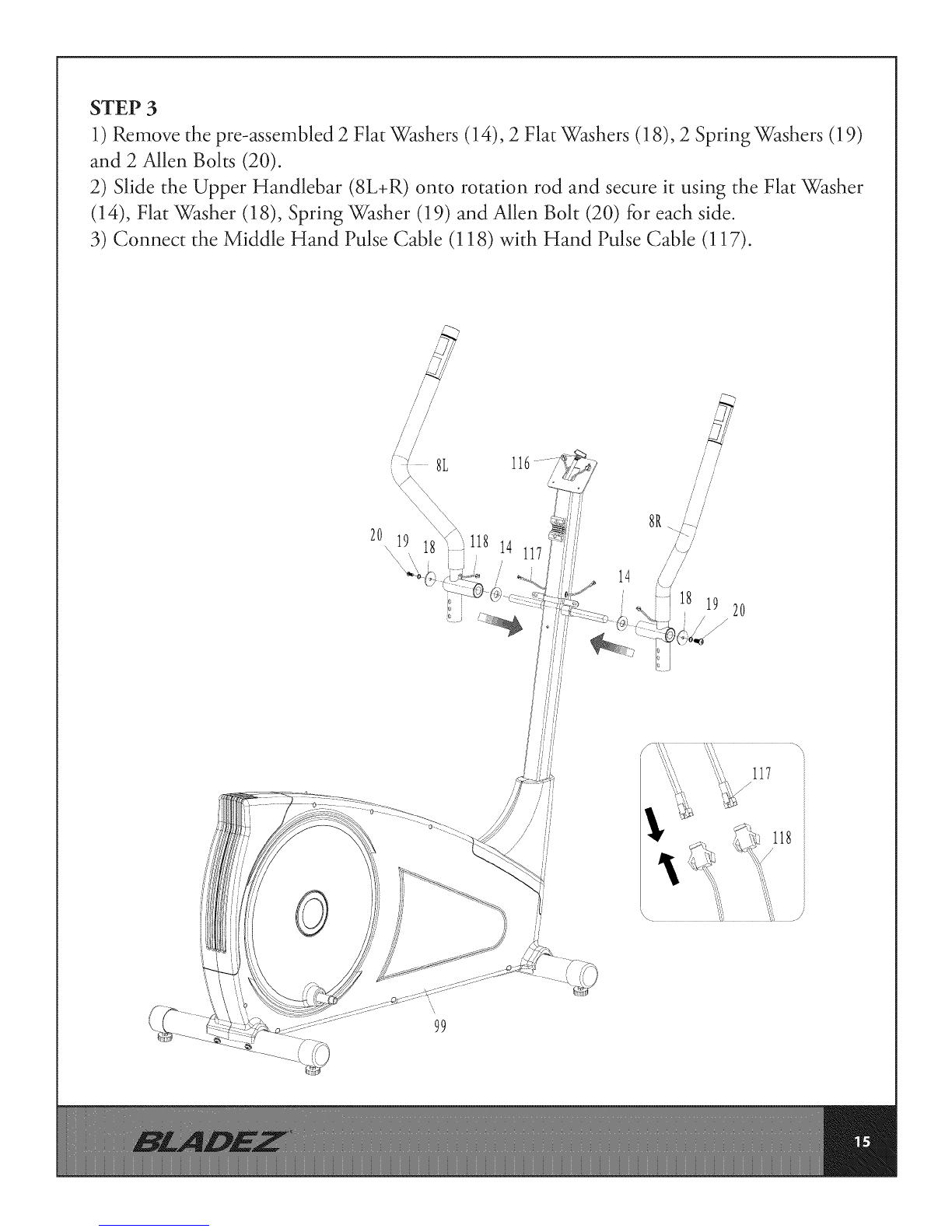

STEP 3
1) Remove the pre-assembled 2 Flat Washers (14), 2 Flat Washers (18), 2 Spring Washers (19)
and 2 Allen Bolts (20).
2) Slide the Upper Handlebar (8L+R) onto rotation rod and secure it using the Flat Washer
(14), Flat Washer (18), Spring Washer (19) and Allen Bolt (20) for each side.
3) Connect the Middle Hand Pulse Cable (118) with Hand Pulse Cable (117).
2O
// //
/ ///
/-4 8L 116
118 14 117
/
8R
14
/ /
/ /
//
/--/
2O
/
©
118
/
99

STEP 4
1) Slide the right Lower Handlebar (33R) into the right Upper Handlebar (8R), fasten it
using 4 Allen Bolts (22), 4 Spring Washers (19) and 4 Curved Washers (21).
2) Slide the left Lower Handlebar (33L) into the left Upper Handlebar (8L), fasten it using
4 Allen Bolts (22), 4 Spring Washers (19) and 4 Curved Washers (21).
©
22 o._: 22
21........ 21
19 19
33R
33L......... i
!
I
i
99

STEP 5
1) Connect the left Side Rail (42L) with the left Lower Handlebar (33L) using Allen Bolt
(34), Flat Washer (32) and nylon Nut (31).
2) Attach the left Side Rail (42L) onto the left crank and secure it with the Flat Washer (39),
Spring Washer (19) and Allen Bolt (20). Do the same for the right Pedal Bar (42R). Put the 2
crank End Caps (38) onto the left and right crank.
//// // 116
2O
/
/
/
38 39
19
/
42L
I i
j i
33L....i
33L......P
.... 33R
99
39 19 26 3_8

STEP 6
1) Attach the plastic Cover (15H) and plastic Cover (15Q) onto the left Handlebar using
Curved Washer (26) and Screw (27) as show in A.
2) Attach the plastic Cover (15H) and plastic Cover (15Q) onto the right Handlebar using
Curved Washer (26) and Screw (27) as shown in B.
3) Attach the plastic Cover (23H) and (23Q) onto the Handlebar Post using Screw (24)
and 2 Self-tapping Screws (27) as as shown in C. Put the Water Bottle Holder (23S) into
the plastic Cover (23H).
4) Attach the plastic Cover (30L +R) onto the right Side Rail (42R) using Curved Washer
(26) and Screw (27) as shown in D. Do the same for the left Side Rail.
15H 15Q
15H
24
///
15Q
23Q
27
=_ ........15H
26
99
42R
26 27
/
30R
i

STEP 7
Attach the right Footplate (35R) onto the right Side Rail (42R) and secure it with 2 Flat
Washers (32), 2 Spring Washers (43), 2 Bolts (44).
2) Do the same for the left Footplate (35L).
/
//////i////////
/ /
/ii< ///
f- \
32 43 44
....35L
99
32
43 44
35R

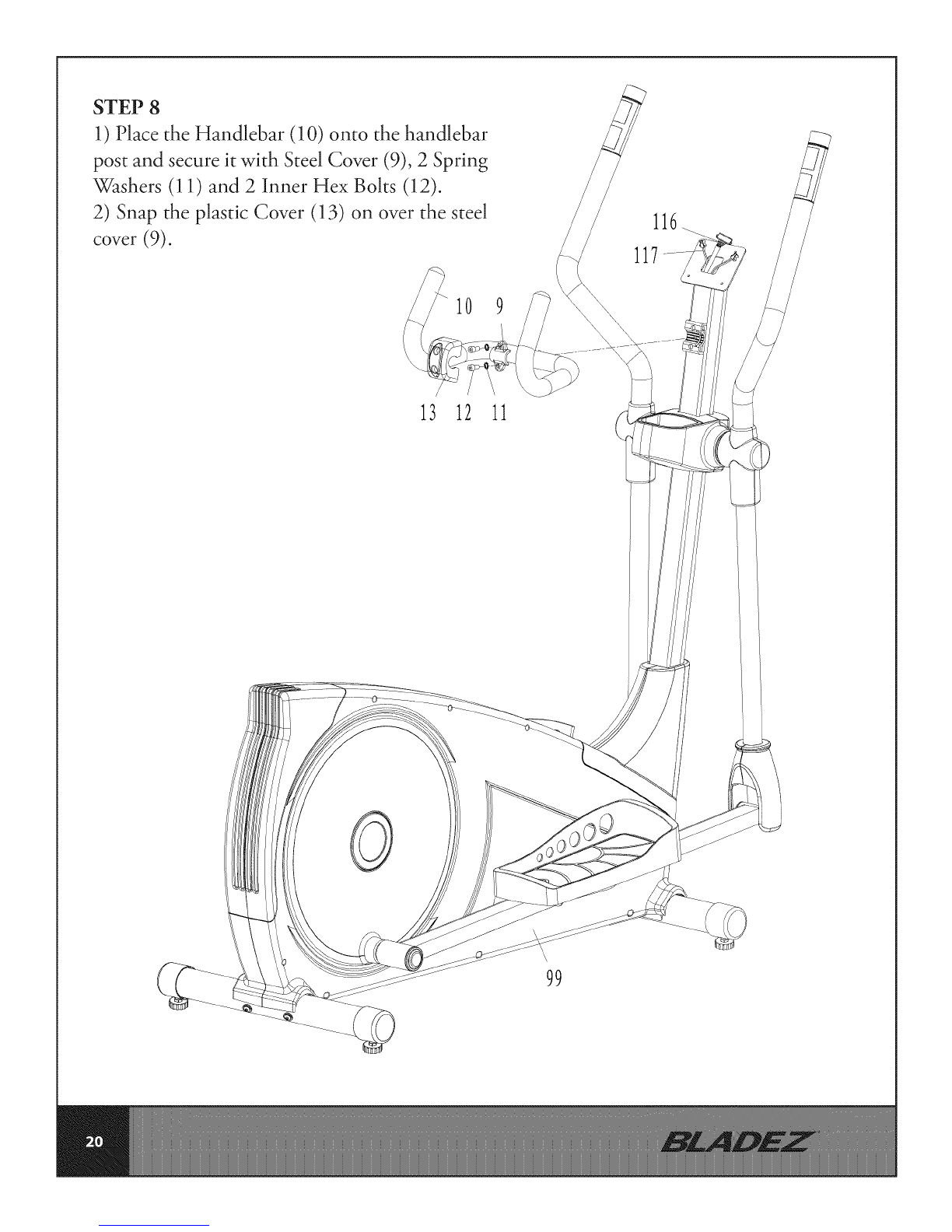

STEP 8
1) Place the Handlebar (10) onto the handlebar
post and secure it with Steel Cover (9), 2 Spring
Washers (11) and 2 Inner Hex Bolts (12).
2) Snap the plastic Cover (13) on over the steel
cover (9). 116
117
10 9
13 12 11
\99
