BLADEZ POWERMILL BF-6730 HRP User manual

INTRODUCTION
C ongratulations for selecting POWERMILL BF-6730 HRP as your primarily source
of fitness. Bladez’s treadmill offers many exercise programs that benefit users of all
levels and ages. The treadmill is designed to make your workouts more effective and
enjoyable.
Please read this manual carefully before using BF-6730 HRP POWERMILL. This
will allow you to get a full understanding of all the features Bladez treadmill
provides. If you have a question or concerns, please contact BLADEZ Corporation or
any authorized BLADEZ FITNESS distributors in your area.
BLADEZ Corporation
20155 Ellipse
Foothill Ranch, CA 92610
Phone: [phone]
Fax: [phone]
Email: [e-mail]
BEFORE YOU BEGIN
It is very important to get yourself familiar with the frequently used components of
your POWERMILL.
Frame
Power Cord
Power Cord
Socket
Power Switch
Circuit Breaker
Safety Key/Clip
Co
m
puter

2
TABLE OF CONTENT
SECTION PAGE
1. IMPORTANT SAFETY INSTRUCTIONS ............................................................... 3
2. ASSEMBLY INSTRUCTIONS................................................................................. 5
3. FUNCTIONS ON CONSOLE................................................................................... 8
4. GET STARTED .........................................................................................................12
5. PREVENTIVE MAINTENANCE.............................................................................18
6. PRE-PROGRAMS DETAILS ...................................................................................19
7. EXPLODED VIEWS.................................................................................................26
8. PART LIST.................................................................................................................27
9. TROUBLESHOOTING.............................................................................................28
10. WARRANTY.............................................................................................................30

3
SECTION 1
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using the treadmill:
Notice: Consult your family physician or health care professional to develop a well
planned exercise program to fit his/her health need. If you encounter any pain or
breathing discomfort while working out, STOP/RESET! and consult your physician
before continuing.
DANGER! – It is wise to always unplug this appliance from the
electrical outlet immediately after using and before cleaning to reduce the risk of
electric shock, risk of burns and injuries to persons.
1WARNING!
The treadmill should never be left unattended when in operation, unplug from outlet
when not in use or when servicing the unit.
1. Close supervision is necessary when this appliance is used by, on, or near
children, invalids, or disabled persons.
2. Use this appliance only for its intended use as described in this manual. Do
not use any attachment not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, or if it is not
working properly. Return the appliance to a service center for examination
and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen
is being administered.
8. To disconnect, turn all controls to the off position, then remove plug from
outlet.
9. Connect this appliance to a properly grounded outlet only.
10.This appliance is intended for household use only.
SAVE THESE INSTRUCTIONS

4
SECTION 1
IMPORTANT SAFETY INSTRUCTIONS CONTINUED
GROUNDING INSTRUCTIONS
This product must be grounded. If it malfunctions or breaks down, grounding
provides a path of least resistance for electric current to reduce the risk of electric
shock. This product is equipped with a cord which has an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
DANGER! – Improper connection of the equipment-grounding conductor can result
in a risk of electric shock. Check with a qualified electrician or serviceman if you are
in doubt as to whether the product is product is properly grounded. Do not modify
the plug provided to you. If it does not fit the outlet, have a proper outlet installed
by a qualified electrician.
This product is for use on a nominal 110-120-volt circuit and has a grounding plug
that looks like the plug illustrated in the figure. Make sure that the product is
connected to an outlet having the same configuration as the plug. No adapter or
extension cord should be used with this product.
Grounding methods
GROUNDING
PIN
GROUNDED
OUTLET

5
SECTION 2
ASSEMBLY INSTRUCTIONS
The followings are part and tool components necessary to assemble the treadmill
ASSEMBLY PART LIST
ITEM NO. DESCRIPTION QUANTITY
a Bolt, M5 x P0.8 x 15 2
b Bolt, M8 x P1.25 x 40 2
c Bolt, M8 x P1.25 x 60 4
d Bolt, M8 x P1.25 x 75 4
e Screw Ø 5x25 2
f Allen wrench 5mm 1
g T-wrench hexagon 8mmx200mm 1
h Chest strap 1
i Power Cord 1
j Safety key 1
k Silicon 1
SECTION 2
kjih
f g
a dcb e

6
ASSEMBLY INSTRUCTIONS CONTINUED
Illustrations of treadmill assembly:
A minimum of two people are
required to assemble this treadmill.
Also, read and understand all
instructions thoroughly before
assembling the treadmill.
Failure to do so could result in injury.
1. Use 2 bolts (a) to secure the
bottle holder (J) to the right side
upright (D).
NOTE: Bottle hold can be placed
onto either the left (C) or right
(D) side uprights.
You will find two holes on one
side and that is the inner side of
the left and right uprights
2. Tie the attached black guide wire
to the wire connector and feed
the wire slowly through the
bottom left upright (C) opening
and pull the connector from the
top. Be sure not to pull on the
wire too hard if it does not feed
easily.
Then secure the left (C) and right
uprights (D) onto the base frame
with 2 bolts (b) to the front side
and 4 bolts (d) to the sides using
5mm allen wrench as shown.
Seal all those 6 holes with screw
covers (G) on top
Note: Leave all handlebar bolts
loose until console display has
been installed, then tighten all of
the handlebar bolts.

7
ASSEMBLY INSTRUCTIONS CONTINUED
3. Insert handrails (E and F) onto console
mounting pipes connected to the
computer console (A); make sure that
holes are lined up with each other.
4. Rest the handrails with console on top
of the uprights. Secure them with 4
bolts (c).
5. Then tighten all handrail bolts.
Press to snap the left and right
handrail covers (H and I) in
place and secure them with 2
screws (e).

8
SECTION 3

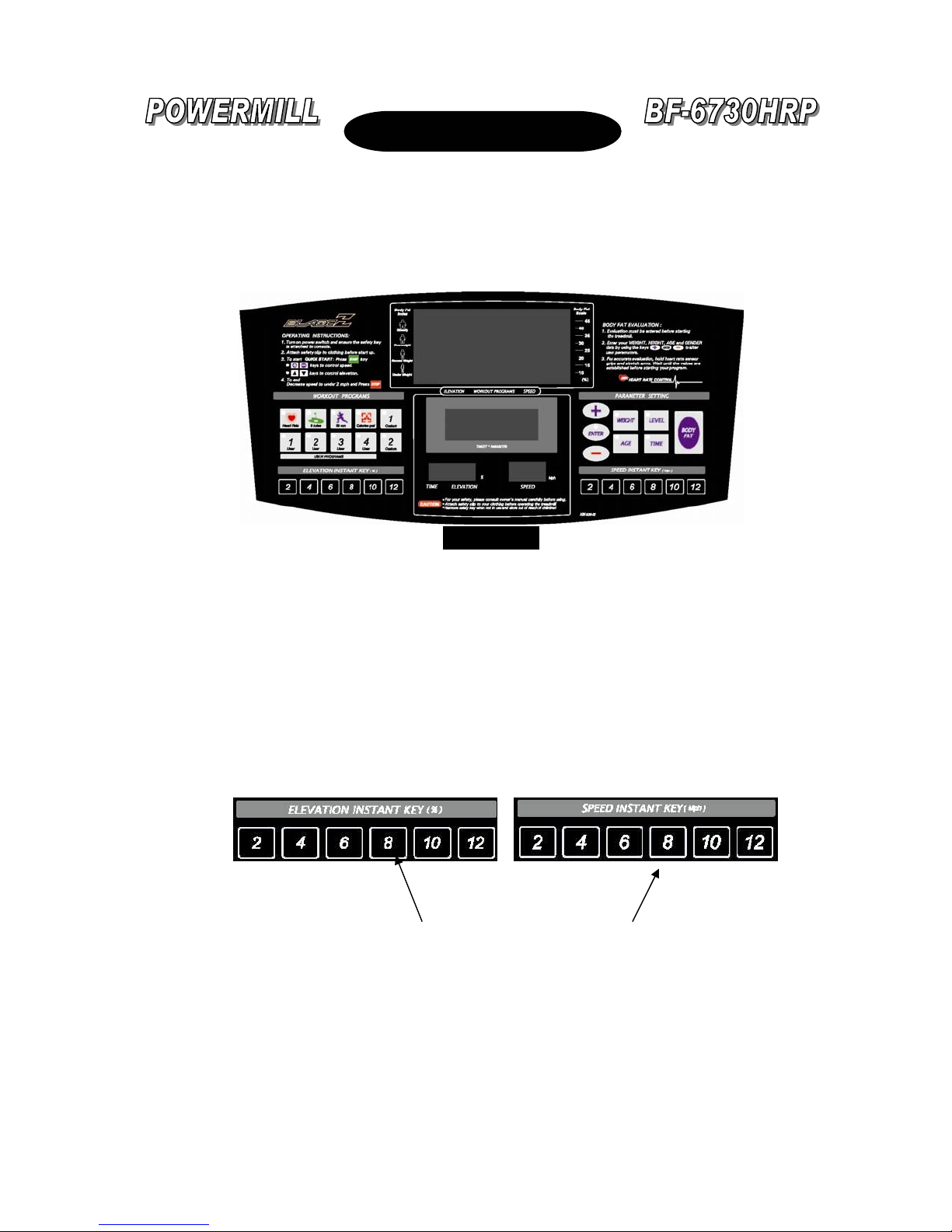

FUNCTIONS ON CONSOLE
Our simple and user friendly design of the console will enable you to get an intense
workout with minimum efforts.
BF-6730HRP
Features of the console
I. Instant Keys
You can use “instant keys” to activate your desired speed and
elevation program immediately. The programming allows the speed
to be set at 2 ,4 ,6 ,8 ,10 and 12 Mph. It also allows the elevation to
be set at 2, 4, 6, 8, 10, and 12% elevation.
Press STOP/RESET once to end the current operation, wait 60 seconds
and the treadmill will return to ready mode.
Press and hold STOP/RESET button for 3 seconds and the treadmill will
RESET itself.
ElevationInstantKeys SpeedInstantKeys

9
Body
Fat
FUNCTIONS ON CONSOLE CONTINUED
II. Body Fat Scale and Index
BodyFatIndex BodyFatScale
Workout Programs Parameter Setting
Body Fat Index – tells the user the body fat level in terms of figure sizes.
Body Fat Scale – tells the user the body fat level in terms of percent.
Process of measuring Body Fat
1. Switch on the unit, press to activate the program.
2. Program will ask you to input your current weight, height, and
age. Only weight and age selections will be notified by a red light
indicator at the top left corner of the button found in the Parameter
Setting region.
Weight (lbs): Default is 150 with range 50-400 in increment of 2
MakeselectionusingkeysinParameterSettingsandpress“ENTER”to
confirm
Height (ft-in): Default is 5’7” with range 4’3”-7’11” in increment of 1”
MakeselectionusingkeysinParameterSettingsandpress“ENTER”to
confirm
Age: Default is 30 with range 13-113 in increment of 1
MakeselectionusingkeysinParameterSettingsandpress“ENTER”to
confirm
Sex: Default is male M , press ¬, ▬to select and press “ENTER” to
confirm

10
FUNCTIONS ON CONSOLE CONTINUED
3. Hold the heart rate sensor firmly for 30 seconds for result, result on the
left side of the rectangle window shows Body Fat Index and the right
shows Body Fat Scale (as shown in arrows).
Below is a chart showing the cross reference of all the LED lights represent
in terms of BODY FAT in %.
Light 1 0~5.0 %
Light 2 5.1~10.0 %
Light 3 10.1~15.0 %
Light 4 15.1~20.0 %
Light 5 20.1~25.0 %
Light 6 25.1~30.0 %
Light 7 30.1~35.0 %
Light 8 35.1~40.0 %
Light 9 40.1~45.0 %
Light 10 45.1~50.0 %
LED Light Body fat value
Since the levels of body fat scale and index are slightly different between
male and female, the chart below shows the cross reference of each LED
represents.
Light 2 0~4.9 %
Light 3 5.0~9.9 %
Light 4 10.0~14.9 %
Light 5 15.0~19.9 %
Light 6 20.0~24.9 %
Light 7 25.0~29.9 %
Light 8 30.0~34.9 %
Light 9 35.0 % above
0~14.9 %
15.0~19.9 %
20.0~24.9 %
25.0~29.9 %
30.0~34.9 %
35.0~39.9 %
40.0~44.9 %
45.0 % above
LED Light (Male) (Female)
Obesity
Overweight
Normalweight
Underweight
III. Workout Programs (Left side of the Panel)
There are 3 pre-set workout programs and they are 9-HOLE, 5K RUN and
CALORIES. Only 5K RUN has the warm up and cool down profiles before
and after the actual exercise programs respectively. Each warm up and cool
down profile will take 5 minutes to complete, refer to Section 6 for detail.

11

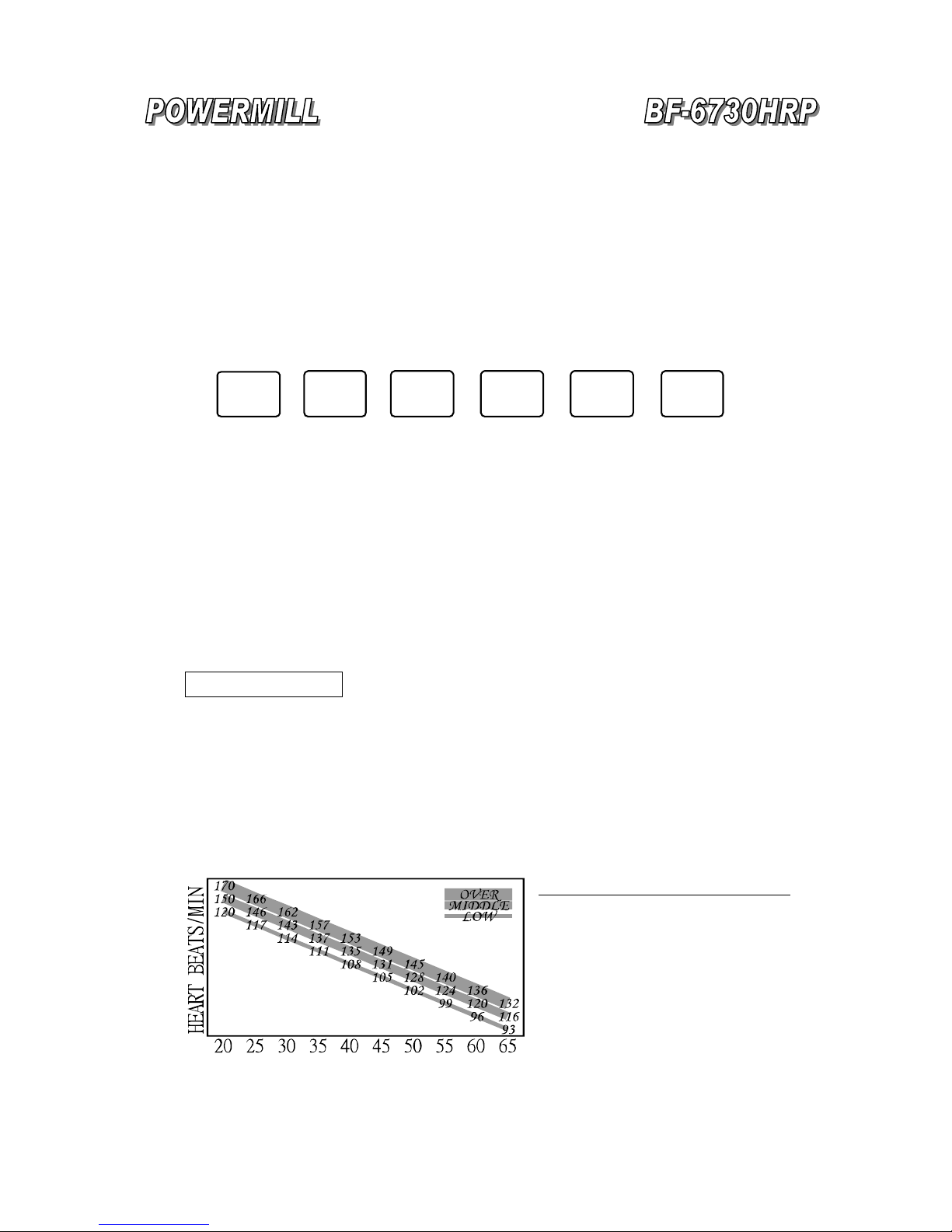

FUNCTIONS ON CONSOLE CONTINUED
IV. Parameter Setting (Right side of the Panel)
The key settings in this area are used to input required data for BODY FAT
and all the WORKOUT PROGRAMS.
V. Button Display
At the bottom of the display panel, you can find buttons as below.
SCAN: Press this button will allow the window to display values
corresponding to the order of DISTANCE, CAL, PACE, METS and PULSE
sequentially.
DISTANCE: Total range travel in Miles, range 0.1-999.9
CAL: Amount of body heat in Calories burned during workout, range 1-9999
PACE: Time requires to complete 1 mile within a fixed speed in minute,
range 4 min 50 sec – 120 min
METS: Metabolism 1.38-32.6
PULSE: Heart Beat per minute, BPM, range 40-240
DISTANCECAL PACE
min METS PULSESCAN
Pulse Detection:
You can detect your pulse with or without the treadmill in operation, but the
unit needs to be turned on. Once you hold the sensor grips firmly or put on
the wireless heart rate strap, the result of your heart rate will be displayed
within seconds. Below is a chart indicating the heart beats rate per age group
based on different exercise levels.
GREEN LED – Heart Rate under 90
BLUE LED – Heart Rate between 91-130
RED LED – Heart Rate over 130
TARGET HEART RATE ZONE
Beginner – Bottom Zone
Cardiovascular – Middle Zone
Athletic – Upper Zone

12
SECTION 4
GET STARTED
CAUTION: Before operating this treadmill, please read carefully the following
precautions.
•Attach safety clip to the cloth before operating the unit
•Step on the side rails to start the unit
•Start with slow speed to get yourself familiar with the movement
•Pulse sensor is not a medical device and there are many factors that can affect
the accuracy of the heart rate reading. It is intended to provide only as a
general guideline as to where the user’s current heart rate.
Procedure:
1. Plug the power cord to the AC wall outlet and turn the power switch on.
2. Put the safety key into the recess of the console. A warning noise
will sound and the window will display a Beating Heart ♥.
3. LED indicator in the WORKOUT PROGRAM will light up across all the
workoutprogramssequentially.
Atthisstage,thetreadmillisin ready mode. Now, you can detect your heart
rate by griping the heart rate sensor or by wearing the heart rate strap
provided
4. If the safety key is not in the recess area, you will see a red arrow pointing
downward in the display window as shown below

13

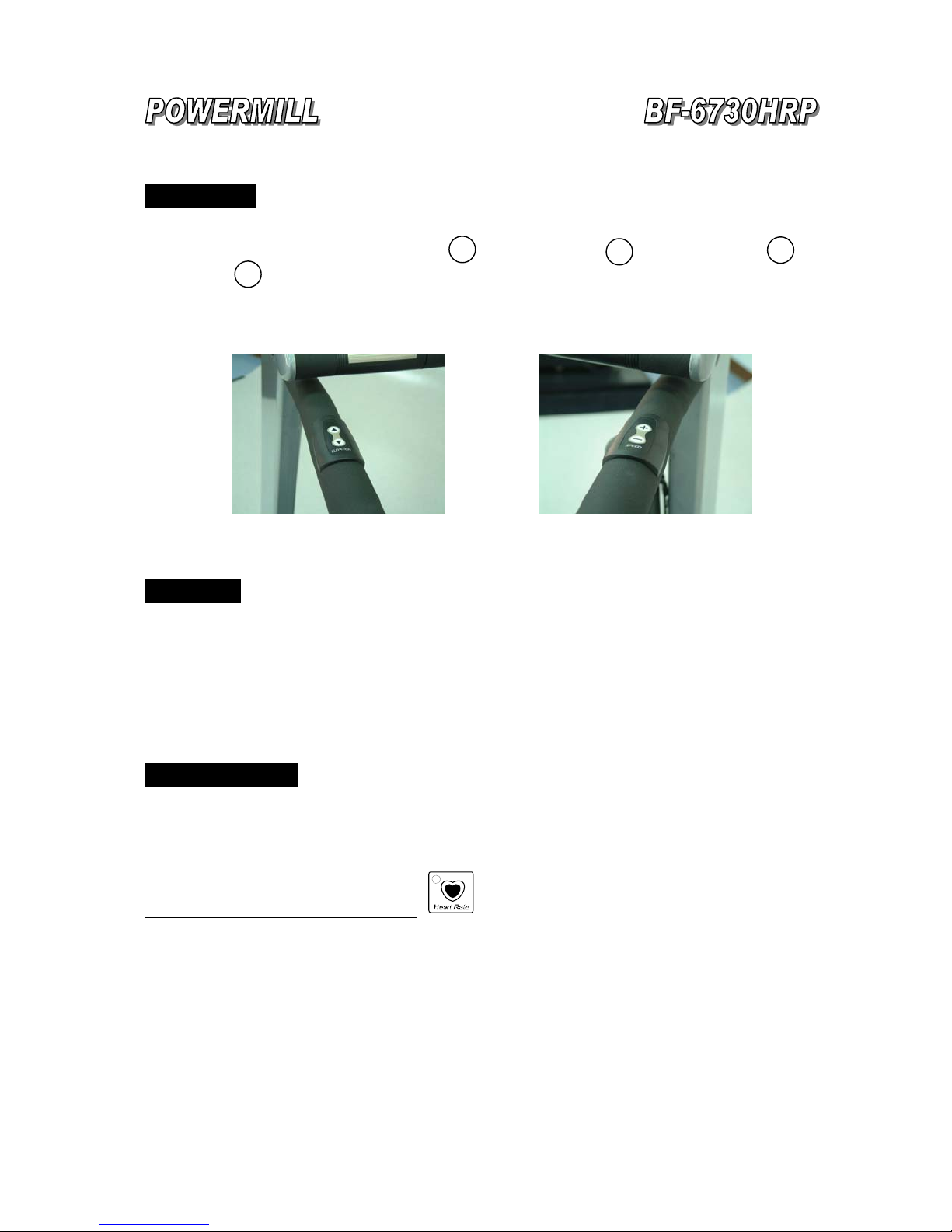

GET STARTED CONTINUED
Manual Start
Just press “START” to begin and the treadmill will start to move at the speed of
0.5 mph. At this time, you can press ¬to accelerate, ▬to decelerate, Sto
rasie and Tto lower the unit. You can also use the left and right handrail
controls (as shown in picture beolw) to adjust the elevation and speed respectively.
ElevationRange:0-15% SpeedRange:0.5-12.4Mph
(LeftHandrail–Elevation) (RightHandrail–Speed)
Quick Start
Use instant keys to get to your desired speed and elevation programs immediately.
Quick programs come in increments of 2, 4, 6, 8, 10 and 12 mph in speed and of 2, 4,
6, 8, 10, and 12 % in elevation. Refer to Section 3 item I for key locations. You can
use either keys on the console panel or the handrail controls to adjust speed and
elevation at any time.
Pre-Program Start
NOTE: Any of the Pre-Program can be manually adjusted by the user at any time
during the workout process. Once the change is made to the program, it will stay at
that level until the user makes another change or power off the unit.
HEART RATE PROGRAM (HRP)
The objective of HRP is to allow user to slowly develop the ideal heart beat that
he/she wants to achieve. During the entire workout activity, this program will
automatically adjust the unit either in speed or elevation to keep the user within the
desired heart rate. This is one of the most effective ways to keep you in shape as you
will achieve your goal by developing strength and endurance of your body.
NOTE: HRP can be executed only with the heart rate strap put on

14
GET STARTED CONTINUED
In this mode, you are required to input the following
i)Weight (lbs): Default is 150 with range 50-400 in increment of 2
Make selection using keys in Parameter Settings and press “ENTER” to confirm
ii).Time (minutes): Default is 20 with range 20-60 in increment of 1
Make selection using keys in Parameter Settings and press “ENTER” to confirm
iii) Age: Default is 30 with range 13-113 in increment of 1
Make selection using keys in Parameter Settings and press “ENTER” to confirm
iv)BPM: This value changes according to your last input in Age selection. You can
also choose your own pulse value or press “ENTER” to accept default value. The
chart below indicates the default BPM value per age group. Each age group has
its own recommended low side (L) and high side (H) BPM for your reference.
Age
BPM
Default
value
HL
Age
BPM
Default
value
HL
Age
BPM
Default
value
HL
Age
BPM
Default
value
HL
14765
146
93
66
145
92
67
144
92
68
143
91
69
143
91
70
142
90
71
141
90
72
140
90
73
139
90
74
138
90
75
137
90
76
136
90
77
135
90
78
134
90
79
133
90
80 90
93
92
92
91
91
90
89
89
88
88
87
86
86
85
85
84
13281 90 83
82
130
90
83
129
90
84
128
90
85
127
90
86
126
90
87
125
90
88
124
90
89
124
90
90 90
131 83
82
82
81
80
80
79
79
78
13 197 124
14 196 124
15 195 123
16 194 122
17 193 122
18 192 121
19 191 121
20 190 120
21 189 119
22 188 119
23 187 118
24 186 118
25 185 117
26 184 116
27 183 116
28 182 115
29 181 115
30 181 114
31 180 113
32 179 113
33 178 112
34 177 112
35 176 111
124
124
123
122
122
121
121
120
119
119
118
118
117
116
116
115
115
114
113
113
112
112
111
36 175 110
37 174 110
38 173 109
110
110
109
59
152
97
60
151
96
61
150
95
62
149
95
63
148
94
64 94
153 97
96
95
95
94
94
39 172 109
40 171 108
41 170 107
42 169 107
43 168 106
44 167 106
45 166 105
46 165 104
47 164 104
48 163 103
49 162 103
50
161
162 102
51
160
101
52
159
101
53
158
100
54
157
100
55
156
99
56
155
98
57
154
98
58 97
109
108
107
107
106
106
105
104
104
103
103
102
101
101
100
100
99
98
98
97
12391
122
90
92
121
90
93
120
90
94
119
90
95
118
90
96
117
90
97
116
90
98
115
90
99
114
90
100
113
90
101
112
90
102
111
90
103 90
77
77
76
76
75
74
74
73
73
72
71
71
70
110104
109
90
105
108
90
106 90
70
69
68
107107
106
90
108
105
90
109 90
68
67
67
105110
104
90
111
103
90
112 90
66
65
65
102113 90 64

15
GET STARTED CONTINUED
Make selection using keys in Parameter Settings and press “ENTER” to
confirm. The treadmill will then start to operate.
WORKOUT PROGRAMS
There are 3 Pre-Programs
I. 9-HOLE
This program actually simulates the motion of golfers walking in a golf course
and the resistance level is based on uphill and downhill movement. The entire
program is 3828 yards and will STOP/RESET automatically once the distance is
reached.
In this mode, you are required to input the following
i)Weight (lbs): Default is 150 with range 50-400 in increment of 2
Make selection using keys in Parameter Settings and press “ENTER” to confirm
ii)LVL: Default is Level 1 with range 1-10 in increment of 1
Make selection using keys in Parameter Settings and press “ENTER” to confirm
II. 5K RUN
This program will STOP/RESET once you reach a total distance of 3.1 miles.
In this mode, you are required to input the following
i)Weight (lbs): Default is 150 with range 50-400 in increment of 2
Make selection using keys in Parameter Settings and press “ENTER” to confirm
ii)LVL: Default is Level 1 with range 1-10 in increment of 1
Make selection using keys in Parameter Settings and press “ENTER” to confirm
III. CALORIES GOAL
This program is designed for calories burning purpose, the user can set up any
specific calories goal. The program will STOP/RESET once the desired calories
level is reached.

16
GET STARTED CONTINUED
In this mode, you are required to input the following
i)Weight (lbs): Default is 150 with range 50-400 in increment of 2
Make selection using keys in Parameter Settings and press “ENTER” to confirm
ii).CAL(cal): Default is 200 with range 40-560 in increment of 1
Make selection using keys in Parameter Settings and press “ENTER” to confirm
iii) LVL: Default is Level 1 with range 1-10 in increment of 1
Make selection using keys in Parameter Settings and press “ENTER” to confirm
There are also 4 USER and 2 CUSTOM programs that allow you to tailor the
program to better suit your workout goal.
USER PROGRAMS
4
USER
3
USER
2
USER
1
USER
Press any one of the 4 buttons will put you to a program input mode, each button can
store up to 50 exercise sequences (SE01-SE50) and each sequence can have it’s own
speed, elevation and time. NOTE: If you do not response within 10 seconds, the
program will keep the default setting and take you to the next sequence
automatically.
In this mode, you are required to input the following
i)Weight (lbs): Default is 150 with range 50-400 in increment of 2
Make selection using keys in Parameter Settings and press “ENTER” to confirm
Now, you can proceed to input your desired exercise profile.
ii) In each sequence, you can adjust ELEVATION by pressing either the S/
Tor the elevation quick start keys on the panel or using the left handrail
control. Confirm by pressing “ENTER”.
iii) To adjust SPEED, you can use either the ¬/ ▬or the speed quick
start keys on the panel or use the right handrail control. Confirm by pressing
“ENTER”.
iv) To adjust TIME, press either ¬/ ▬keys from the Parameter Setting
area only and confirm by pressing “ENTER”.
Note: You do not have to input all 50 sequences, press START at any time in any
sequence and the treadmill will start to operate based on your input information.

17
GET STARTED CONTINUED
CUSTOM PROGRAMS
2
CUSTOM
1
CUSTOM
There are 2 CUSTOM programs and their functions are similar to the USER
programs explained above except they have built in programs as shown below. You
can use the existing program or edit the program to suit your workout profile.
CUSTOM 2 SpeedElevation
CUSTOM 1 Speed
E
levation

18
SECTION 5
PREVENTIVE MAINTENANCE
If the running belt has shifted to left or
right off the center or simply skid when
running, please refer to the following
1. Turn the power off.
2. Use a 8mm T-wrench hexagon to
tighten the rear roller bolt on the
side of the treadmill toward which
the belt is moving as shown.
3. Tighten about 1/4 of turn
(clockwise).
Note: If the belt does not move
back to the center of the treadmill,
make another adjustment to the
same bolt until the running belt
moves closer to the center.
Once the running belt has been adjusted
closer to the center, the treadmill can be
powered on again.
g
It is recommended that the deck be
lubricated every 6~12 months according
to the frequency of usage.
Use 8mm T-wrench hexagon to loosen the
bolts in the end caps. Remove excessive
accumulations of dust, dirt, and other
substances from running deck. Use a clean
soft cloth and on-abrasive cleaner.
Warning! Do not use cleaner under the
running belt.
Pull up running belt, dispense lubricant on
deck, and spread evenly.
After lubricating deck, center the belt,
and tighten the end caps. Check belt
condition and adjust if necessary
following the steps above.
Rear Roller Bolt
8 mm T-wrench
0.5~4.0 Mile lubricate every 1 year
4.0~8.0 Mile lubricate every 6 months
8.0~12.4 Mile lubricate every 3 months

19
SECTION 6
PRE-PROGRAM DETAILS
There are 3 pre-set programs and each program has 10 levels of workout choices as shown in
the following profiles. They are the 9-HOLE, 5K RUN and CALORIES programs, only 5K
RUN has warm up and cool down profile. The followings are the warm up and cool down
profiles in 5K RUN program.
5K RUN
Warm Up Profile
0
2
4
6
012345
Time (minutes)
Speed (Mph)
5K RUN
Cool Down Profile
0
2
4
6
Time (minutes)
Speed (Mph)
Warm up: (First 5 minutes) with 0% Elevation
Speed 3.0 mph 4.8 mph 4.8 mph 5.4 mph 5.4 mph
Time 1 minute 1 minute 1 minute 1 minute 1 minute
Cool down: (Last 5 minutes) with 0% Elevation
Speed 5.4 mph 5.4 mph 4.8 mph 4.8 mph 3.0 mph
Time 1 minute 1 minute 1 minute 1 minute 1 minute

20
Level 5 SpeedElevation
Level 4 SpeedElevation
Level 3 SpeedElevation
Level 2 SpeedElevation
Level 1 Speed
E
levation
PRE-PROGRAM DETAILS CONTINUED
1) 9-HOLE (LEVEL 1 – 5)
2%
0
2%
0
4%
0
2
2
2
2
2
3.5 M
p
h
3.5 M
p
h
3.5 M
p
h
3.5 M
p
h
3.5 M
p
h
6%
4
2
0
4%
2
0
