BLAUBERG Ventilatoren Primo 315 User manual

InlIne mIxed-flow fan
USER'S MANUAL
EN
Primo

Primo
2
www.blaubergventilation.com.au
CONTENTS
Safety requirements..................................................................................................................................................................... 3
Purpose................................................................................................................................................................................................ 5
Delivery set........................................................................................................................................................................................ 5
Designation key.............................................................................................................................................................................. 5
Technical data.................................................................................................................................................................................. 6
Mounting and set-up.................................................................................................................................................................. 7
Connection to power mains .................................................................................................................................................. 9
Technical maintenance.............................................................................................................................................................. 10
Troubleshooting......................................................................................................................................................................................................11
Storage and transportation regulations.......................................................................................................................... 11
Manufacturer’s warranty........................................................................................................................................................... 12
Certificate of acceptance.......................................................................................................................................................... 13
Seller information.......................................................................................................................................................................... 13
Installation certificate.................................................................................................................................................................. 13
Warranty card................................................................................................................................................................................... 13
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the Primo unit and all
its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.

www.blaubergventilation.com.au
Primo
3
SAFETY REQUIREMENTS
All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and
repair operations.
Only qualied electricians with a work permit for electrical units up to 1000 V are
allowed for installation. The present user’s manual should be carefully read before
beginning works.
Check the unit for any visible damage of the impeller, the casing, and the grille before starting
installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
While mounting the unit, avoid compression of the casing! Deformation of the casing may result
in motor jam and excessive noise.
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous
materials.
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration
of its products at any time in order to incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.
This unit is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the unit by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the unit.
Connection to the mains must be made through a disconnecting device, which is integrated
into the fixed wiring system in accordance with the wiring rules for design of electrical units,
and has a contact separation in all poles that allows for full disconnection under overvoltage
category III conditions.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a safety hazard.

Primo
4
www.blaubergventilation.com.au
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
CAUTION: In order to avoid a safety hazard due to inadvertent resetting of the thermal cut-
out, this unit must not be supplied through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by the utility.
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other fuel-burning appliances.
The appliance may adversely affect the safe operation of appliances burning gas or other
fuels (including those in other rooms) due to back flow of combustion gases. These gases can
potentially result in carbon monoxide poisoning. After installation of the unit the operation
of flued gas appliances should be tested by a competent person to ensure that back flow of
combustion gases does not occur.
Ensure that the unit is switched off from the supply mains before removing the guard.
WARNING: If there are any unusual oscillating movements, immediately stop using the unit and
contact the manufacturer, its service agent or suitably qualified persons.
The replacement of parts of the safety suspension system device shall be performed by the
manufacturer, its service agent or suitably qualified persons.

www.blaubergventilation.com.au
Primo
5
DELIVERY SET
DESIGNATION KEY
PURPOSE
The product described herein is a mixed-flow inline fan for supply or extract ventilation of premises.
The fan is designed for connection to ø 315, 355 and 400 mm air ducts.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
Name Number
Fan 1 pc.
User’s manual 1 pc.
Packing box 1 pc.
Primo EC 355 W
Options
W: power cord with a mains plug
US: three-position speed switch
Air duct diameter [mm]
315, 355, 400
Electric motor type
_: asynchronous
EC: electronically commutated
Unit series
Inline mixed-flow fan

Primo
6
www.blaubergventilation.com.au
TECHNICAL DATA
The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to
80 % at 25 °C. Ingress protection rating against access to hazardous parts and water ingress is IPX4.
The unit is rated as a class I electric appliance. The unit design is constantly being improved, thus some models may be slightly different
from those described in this manual.
Overall dimensions of the unit [mm]
ød
ød
B
L
øD
C
A
B1
C1
Model
Dimensions [mm] Weight
[kg]
D d A L B B1 CC1
Primo 315 406 310 451 468 468 566 437 439 15
Primo 355 406 350 451 372 468 566 437 439 15
Primo 400 451 395 496 415 513 623 482 484 18.5

www.blaubergventilation.com.au
Primo
7
MOUNTING AND SETUP
READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT.
BEFORE MOUNTING, MAKE SURE THERE ARE NO VISIBLE DEFECTS ON THE UNIT, SUCH
AS MECHANICAL DAMAGES, MISSING PARTS, IMPELLER JAMMING ETC.
WHEN MOUNTING THE UNIT, IT IS NECESSARY TO PROVIDE PROTECTION AGAINST
CONTACT WITH HAZARDOUS ZONES OF THE FAN BY INSTALLING AIR DUCTS OF THE
NECESSARY LENGTHS AND PROTECTIVE GRILLES.
MOUNTING MUST BE PERFORMED BY QUALIFIED SPECIALISTS ONLY, PROPERLY
TRAINED AND QUALIFIED TO INSTALL AND MAINTAIN VENTILATION EQUIPMENT.
The unit is intended for mounting with round air ducts. The fan is installed between the air ducts.
The fan casing is equipped with fixing brackets for suspended mounting or for mounting on a horizontal or vertical surface.
While installing the unit ensure convenient access for subsequent maintenance and repair. Fasteners for fan mounting are not included
in the delivery set and should be ordered separately. While choosing fasteners consider the material of the mounting surface as well as
the weigh of the unit, refer to the Technical data section. Fasteners for unit mounting should be selected by a service technician.
The unit can be mounted in two operation positions, which makes mounting easier. For this, dismantle the fan handle first or set it to
another position.
After choosing one of two positions, securely mount the brackets to the fan.
1. 2.

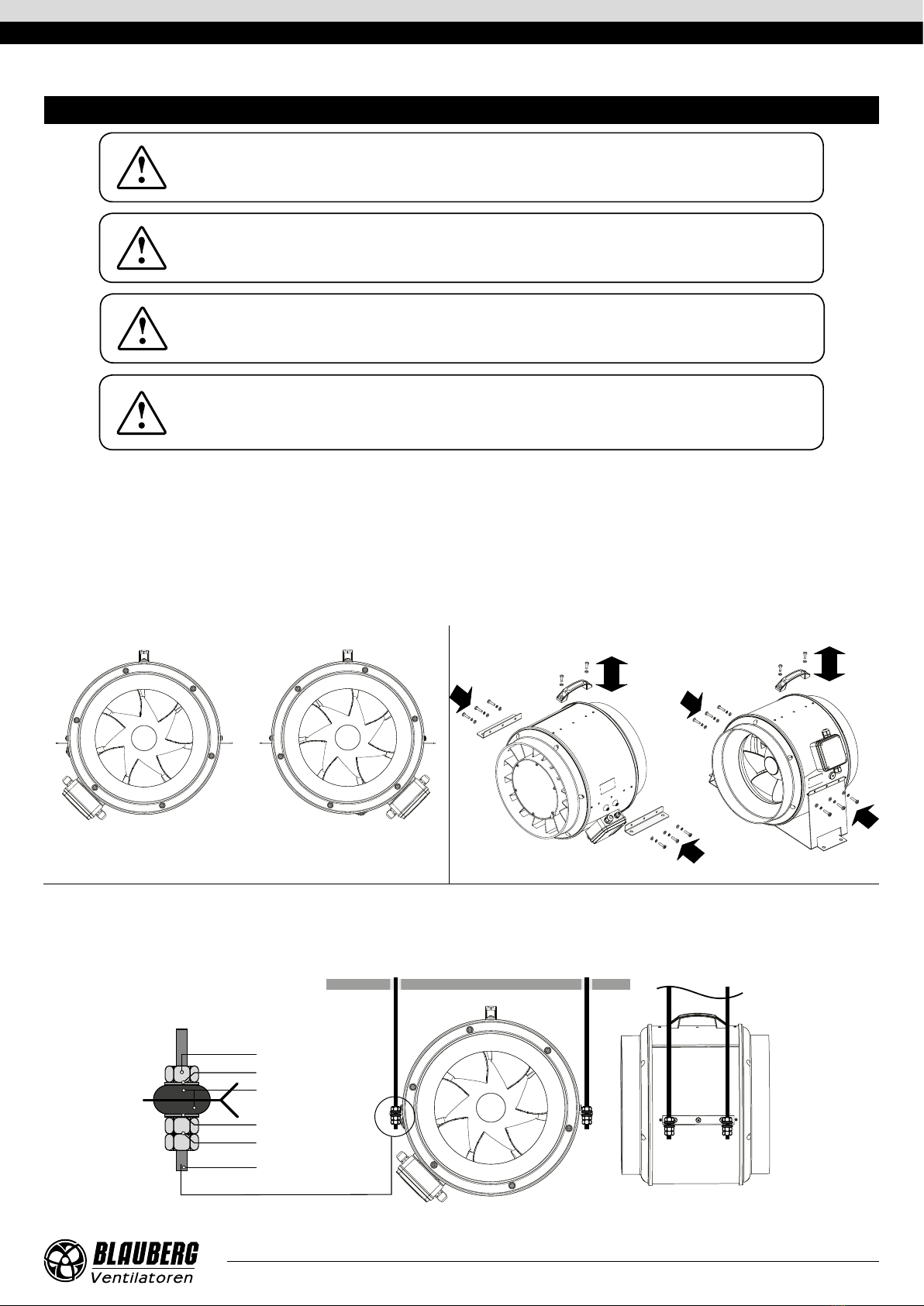

SUSPENDED MOUNTING
Install the fan on the threaded rods (not included in the delivery set).
WARNING! When mounting the fan on threaded rods, it is necessary to provide protection of the nuts against
self-loosening.
Nut
Washer
Vibration absorbing
rubber
Washer
Nut and lock nut
Threaded rod

Primo
8
www.blaubergventilation.com.au

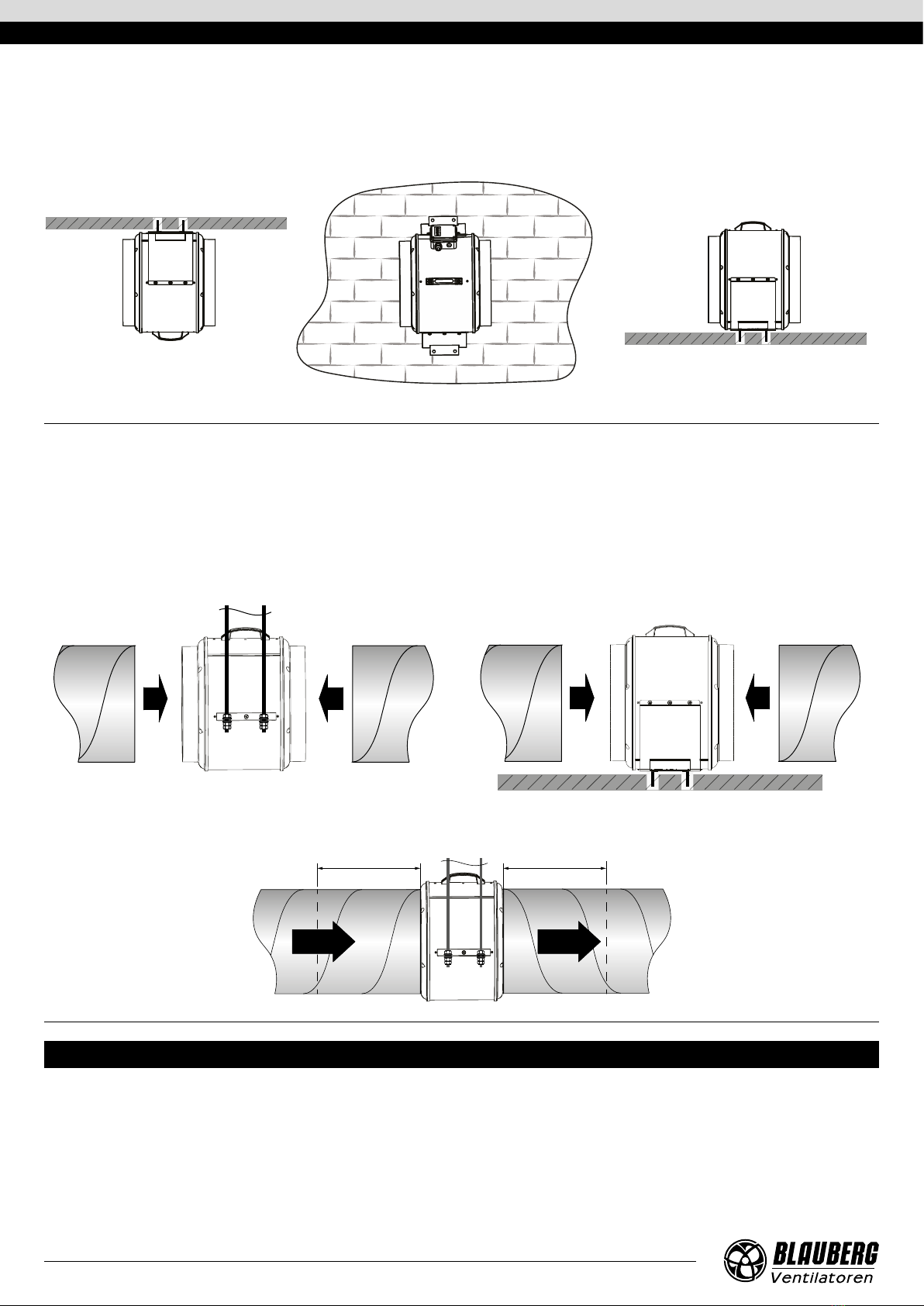

SURFACE MOUNTING
Fasten the fan to the surface using the screws with the dowels of appropriate size (not included in the delivery set).
Make sure the fan is fastened securely.
Connect the air ducts of the appropriate diameter to the fan (connections must be airtight).
Air motion in the system must be in compliance with the direction of the arrow on the fan label.
To attain the best performance of the fan and to minimise turbulence-induced air pressure losses, it is recommended to connect the
straight air duct section to the spigots on both sides of the unit while mounting.
Minimum recommended straight air duct section length is equal to 3 fan diameters (see the "Technical data" section).
If the air ducts are shorter than 1 m or not connected, the internal parts of the unit must be protected from ingress of foreign objects.
To prevent uncontrollable access to the fans, the spigots may be covered with a protecting grille or other protecting device with
mesh width not more than 12.5 mm.
3xD 3xD
ELECTRONICS OPERATION ALGORITHM
The EC motor is controlled by sending of an external control signal from 0 to 10 V to the X2 terminal block or by the R1 internal speed
controller. Control method selection is carried out by means of the SW DIP switch:
- DIP switch in IN position. The control signal is set by the R1 internal speed controller, which allows turning the fan on and off, smoothly
regulating the fan motor rotation speed (air flow) in the range from minimum to maximum speed.
Rotations are controlled from the minimum (extreme right position) to the maximum (extreme left position).
When rotating clockwise, the rotations increase.
- DIP switch in EXT position. The control signal is set by the S1 external control unit.

www.blaubergventilation.com.au
Primo
9
CONNECTION TO POWER MAINS
POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT.
THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE
MANUFACTURER’S LABEL.
ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED
AND WILL VOID THE WARRANTY.
High — high speed
Med — medium speed
Low — low speed
N — neutral
L — line
— grounding
S — ON\OFF switch
S1 — switch
QF — automatic circuit breaker
R1 — internal speed controller
SW — DIP switch

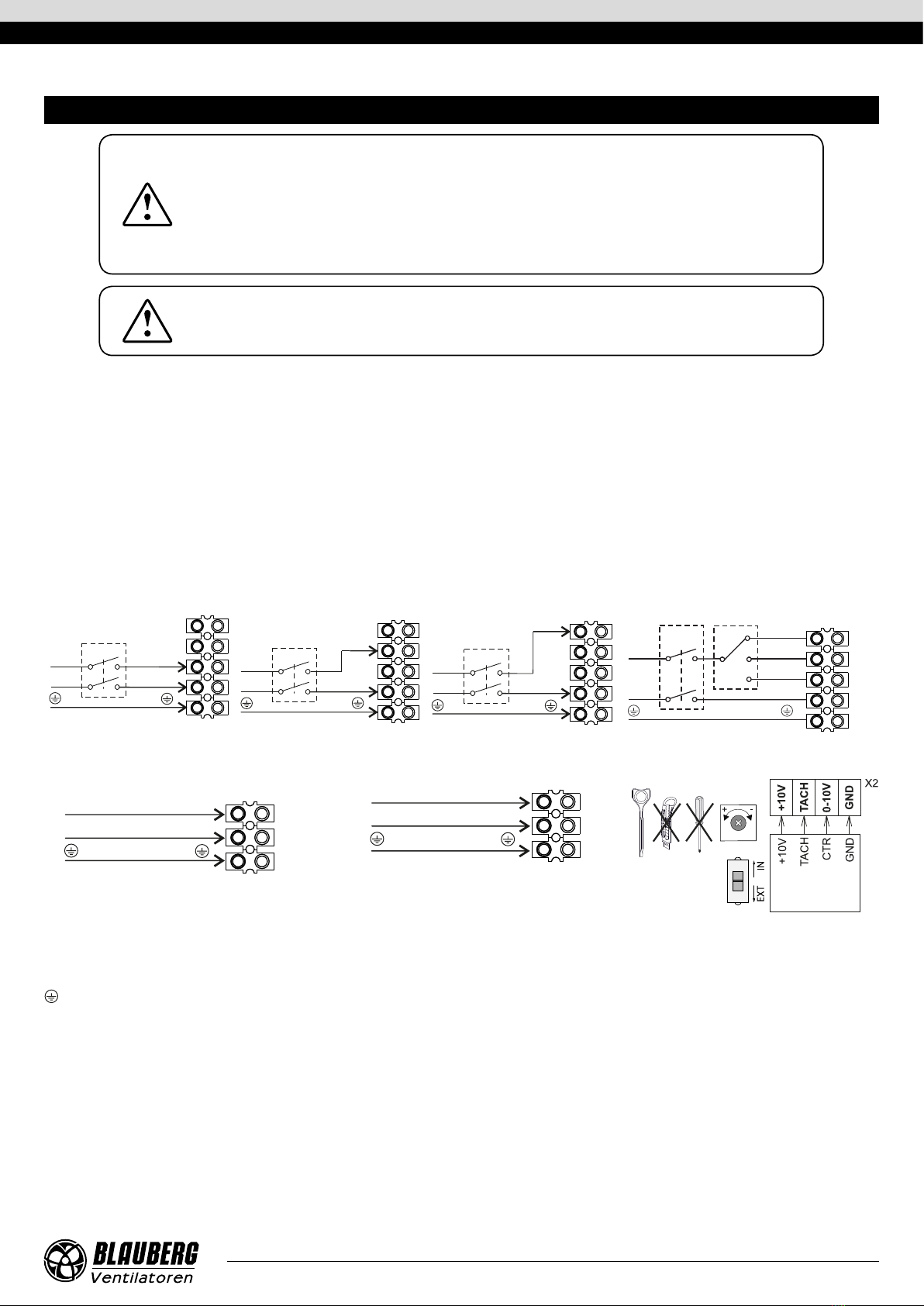

WIRING DIAGRAM
S
N
L
High speed
N
Low
Med
High X
S
N
L
Low speed
N
X
Low
Med
High
S
N
L
Medium speed X
Low
Med
High
N
S
N
L
High-Med-Low speed
N
X
Low
Med
High
S1
Boost ...
Boost ... V Boost ... EC
The unit is designed for connection to power mains with the parameters specified in the "Technical data" section.
The connection must be made using durable, insulated and heat-resistant conductors (cables, wires). The actual wire cross section
selection must be based on the maximum load current, maximum conductor temperature depending on the wire type, insulation,
length and installation method. The fan connection shall be made on the terminal block mounted inside the terminal box in strict
accordance with the wiring diagram and terminal designations. The external power input must be equipped with a QF automatic circuit
breaker built into the stationary wiring to open the circuit in the event of overload or short-circuit. The position of the external circuit
breaker must ensure free access for quick unit power-off. The automatic circuit breaker rated current must exceed the ventilator current
consumption, see the Technical data section or the unit label. It is recommended to select the rated current of the circuit breaker from
the standard series, following the maximum current of the connected unit. The circuit breaker is not included in the delivery set and can
be ordered separately.
L
N
L
NX1
SW
R1
L
N
L
NX1

Primo
10
www.blaubergventilation.com.au
DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE
OPERATIONS!
MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE
PROTECTION
TECHNICAL MAINTENANCE
Clean the product surfaces regularly (once in 6 months) from dust and dirt.
Disconnect the fan from power mains prior to any maintenance operations.
Disconnect the air ducts from the fan.
Clean the fans with a soft brush, cloth, vacuum cleaner or compressed air.
Do not use water, aggressive solvents, or sharp objects as they may damage the impeller.
It is forbidden to remove or change the location of the balancers on the impeller, as this can lead to increased level of vibration, noise
and reduce the service life of the unit.
During technical maintenance, make sure that there are no visible defects on the unit, the mounting brackets are securely fastened to
the fan casing and the unit is securely mounted.

www.blaubergventilation.com.au
Primo
11
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
from +5 °C to + 40 °C and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at
least 3-4 hours.
TROUBLESHOOTING
Problem Possible reasons Troubleshooting
The fan(s) do(es) not
get started.
No power supply. Make sure the power supply line is connected correctly,
otherwise troubleshoot the connection error.
Jammed motor. Disconnect the fan from power supply. Troubleshoot
the motor jamming. Restart the fan.
The fan has overheated. Disconnect the fan from power supply. Eliminate the
cause of overheating. Restart the fan.
Automatic circuit
breaker tripping
following the fan
turning on.
High current consumption due to short circuit in
power line. Turn the fan off. Contact the Seller.
Noise, vibration.
The fan impeller is soiled. Clean the impellers.
The fan or casing screw connection is loose. Tighten the screw connection of the fan or the casing
against stop.
The ventilation system components (air ducts,
diffusers, louvre shutters, grilles) are clogged or
damaged.
Clean or replace the ventilation system components
(air ducts, diffusers, louvre shutters, grilles).

Primo
12
www.blaubergventilation.com.au
MANUFACTURER’S WARRANTY
Blauberg Warranty:
• This warranty is given by Blauberg Australasia Pty Ltd, with an office at Unit 5, 45A Eastern Creek Drive, Eastern Creek, New South
Wales 2766, Australia. Phone [phone].
• From the date of purchase, the original purchaser is entitled to free replacement parts, or a new unit for a period of 24 months years
from the date of purchase.
• The defective parts or unit must be returned to Blauberg Australasia Pty Ltd at your own cost before an exchange or parts or unit
will be given.
• A proof of purchase will be required before a warranty claim is accepted.
• The warranty will also not cover damage caused by misuse, neglect, shipping accident, incorrect or improper installation, voltage
supply problems, unauthorised modification or repairs of any kind, exposure to corrosive conditions, exposure to weather and
where no fault is found with the product.
• We will not cover any loss incurred by you in relation to the product or making the claim under this warranty including without
limitation any costs associated with installation, reinstallation, or transporting the product.
Additional Information:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement of
the purchased product for a major failure of the product. You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure. Our ventilation products also come with a two year limited
warranty given by Blauberg Australasia Pty Ltd, with an office at Unit 5, 45A Eastern Creek Drive, Eastern Creek, New South Wales 2766,
as set out in the instruction manual in the box. If your product does not provide the general features and functions described in the user
documentation in the five year period after delivery to you, please call Blauberg Australasia Pty Ltd, ABN 85 637 003 582 on 1300 475-504
with details of your product, serial number and proof of purchase. You maybe required to return the ventilation product to the address
listed, in which case such a return will be at your own cost. The benefits under this warranty are in addition to other rights and remedies
that you may have at law.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND
TROUBLEFREE OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION
OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE
PURCHASE DATE STAMP.

www.blaubergventilation.com.au
Primo
13
CERTIFICATE OF ACCEPTANCE
Unit Type Inline mixed-flow fan
Model
Serial Number
Manufacture Date
Quality Inspector’s
Stamp
SELLER INFORMATION
Seller
Seller’s Stamp
Address
Phone Number
E-mail
Purchase Date
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are
acknowledged and accepted.
Customer’s Signature
INSTALLATION CERTIFICATE
The unit _____________________________________ is installed pursuant to the requirements stated
in the present user's manual.
Installation Stamp
Company name
Address
Phone Number
Installation
Technician’s Full Name
Installation Date: Signature:
The unit has been installed in accordance with the provisions of all the applicable local and national construction,
electrical and technical codes and standards. The unit operates normally as intended by the manufacturer.
Signature:
WARRANTY CARD
Unit Type Inline mixed-flow fan
Seller’s Stamp
Model
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller

Primo
14
www.blaubergventilation.com.au

www.blaubergventilation.com.au
Primo
15

www.blaubergventilation.com.au
BlaubergAustralasia208EN-06
