BLAUBERG VENTO Expert A50-1 Pro User manual

VENTO Expert A50-1 Pro
VENTO Expert DUO A30-1 Pro
OPERATION MANUAL
EN
HEAT RECOVERY SINGLE-ROOM
REVERSIBLE VENTILATION UNIT

2
www.blaubergventilatoren.de
VENTO Expert A50-1 Pro / DUO A30-1 Pro
Read the user’s manual carefully prior to installing and operating the unit.
Fulfil the user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical and
technical norms and standards.
The warnings contained in the user’s manual must be considered most seriously since they contain vital personal safety information.
Failure to follow the rules and safety precautions noted in this user’s manual may result in an injury or unit damage.
After a careful reading of the manual, keep it for the entire service life of the unit.
While transferring the unit control the user’s manual must be turned over to the receiving operator.
Symbol legend:
The user’s manual consisting of the technical details, operating instructions and technical specification applies to the installation and
mounting of the single-room energy regeneration reversible ventilator VENTO Expert (DUO) (hereinafter referred to as „ventilator“ or „unit“
as mentioned in the „Safety Requirements“ and „Manufacturer’s Warranty“ sections as well as in warnings and information blocks).
CONTENTS
SAFETY REQUIREMENTS
Safety requirements ..............................................................................2
Purpose .................................................................................................4
Delivery set............................................................................................4
Designation key.....................................................................................4
Technical data.......................................................................................5
Unit design and operating logic............................................................6
Mounting and set-up .............................................................................9
Connection to power mains and control .............................................12
Technical maintenance .......................................................................17
Troubleshooting...................................................................................19
Storage and transportation regulations...............................................19
Manufacturer’s warranty......................................................................20
Acceptance certificate ........................................................................21
Seller information.................................................................................21
Installation certificate...........................................................................21
Warranty card......................................................................................21
WARNING!
DO NOT!
UNIT MOUNTING AND OPERATION SAFETY PRECAUTIONS
• Disconnect the unit from power mains
prior to any installation operations. • Unpack the unit with care.
• Do not lay the power cable of the unit in
close proximity to heating equipment.
• While installing the unit follow the safety
regulations specific to the use of electric
tools.

www.blaubergventilatoren.de
3
VENTO Expert A50-1 Pro / DUO A30-1 Pro
• Do not use damaged equipment or
cables when connecting the unit to power
mains.
• Do not operate the unit outside the
temperature range stated in the user's
manual.
• Do not operate the unit in aggressive or
explosive environments.
• Do not touch the unit controls with wet
hands.
• Do not carry out the installation and
maintenance operations with wet hands.
• Do not wash the unit with water.
• Protect the electric parts of the unit
against ingress of water.
• Do not allow children to operate the unit. • Disconnect the unit from power mains prior
to any technical maintenance.
• Do not store any explosive or highly
flammable substances in close proximity to
the unit.
• When the unit generates unusual sounds,
odour or emits smoke disconnect it from
power supply and contact the Seller.
• Do not open the unit during operation. • Do not direct the air flow produced by the
unit towards open flame or ignition sources.
• Do not block the air duct when the unit is
switched on.
• In case of continuous operation of the unit
periodically check the security of mounting.
• Do not sit on the unit and avoid placing
foreign objects on it. • Use the unit only for its intended purpose.
THE PRODUCT MUST BE COLLECTED SEPARATELY AT THE END OF SERVICE LIFE.
DO NOT DISPOSE OF AS UNSORTED MUNICIPAL WASTE.
UNIT MOUNTING AND OPERATION SAFETY PRECAUTIONS

4
www.blaubergventilatoren.de
VENTO Expert A50-1 Pro / DUO A30-1 Pro
The ventilator is designed to ensure continuous mechanical air exchange in flats, cottages, hotels, cafes and other domestic and public
premises.
The ventilator is equipped with a ceramic regenerator that enables supply of fresh filtered air heated by means of extract air heat energy
regeneration.
The ventilator is designed for wall flush mounting.
PURPOSE
The unit is rated for continuous operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
THE UNIT MAY NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL,
MENTAL OR SENSORY CAPACITIES, OR LACKING THE APPROPRIATE TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED ACCESS
BY UNATTENDED CHILDREN.
DELIVERY SET
Name
Number
VENTO Expert
A50-1 Pro
VENTO Expert DUO
A30-1 Pro
Indoor unit of the ventilator 1 pc. 1 pc.
Air duct 1 pc. 1 pc.
Air flow separator - 3–6 pcs.
Sound-absorbing material 1 pc. -
Assembled cartridge 1 pc. 1 pc.
Outer ventilation hood 1 pc. 1 pc.
Remote control 1 pc. 1 pc.
Cardboard template 1 pc. 1 pc.
Fastening set 2 packs 2 packs
User's manual 1 pc. 1 pc.
Mounting hood installation instruction 1 pc. 1 pc.
Packing box 1 pc. 1 pc.

www.blaubergventilatoren.de
5
VENTO Expert A50-1 Pro / DUO A30-1 Pro
TECHNICAL DATA
The ventilator is designed for indoor application at ambient temperature from -30 °C (-22 °F) up to +50 °C (+122 °F) and relative humidity up
to 97 %.
The ventilator is rated as a class II electric appliance.
Hazardous parts access and water ingress protection rating IP24.
The unit design is constantly improved, so some models may slightly differ from the ones depicted herein.
TECHNICAL DATA
Speed VENTO Expert A50-1 Pro VENTO Expert DUO A30-1 Pro
I II III I II III
Unit voltage [V/50–60 Hz] 1~100–240 1~100–240
Power [W] 3.61 4.15 5.2 2.17 3.66 6.62
Current [A] 0.025 0.030 0.039 0.026 0.039 0.066
Air capacity [m3/h] (CFM) 15 (9) 30 (19) 50 (29) 10(6) 20(12) 30(18)
Filters G3 (MERV 7);
F8 (MERV 13) option G3 (MERV 7)
Transported air temperature [˚C(˚F)] from -30 (-22) up to 50 (122)
Noise level, 1 m [dB(A) (Sones)] 20 (0.6) 27 (1.0) 30 (1.2) 33(1.2) 40(2.0) 43(2.5)
Noise level, 3 m [dB(A) (Sones)] 11 (0.3) 18 (0.5) 21 (0.6) 24(0.5) 31(1.0) 34(1.2)
Noise level attenuation [dB(A) (Sones)] 42 (2.5) 42(2.5)
Heat recovery efficiency [%] 97 90 82 85 80 75
Ingress protection IP24 IP24
The air duct length depends on the unit model.
Air duct length
VENTO Expert A50-1 Pro 250(150*)-500 (9 13/16”(5 7/8”)-19 11/16”)
VENTO Expert A50-1 L Pro 250 (150*)-700 (9 13/16”(5 7/8”)-27 9/16”)
VENTO Expert DUO A30-1 Pro 280-500 (11”-19 11/16”)
VENTO Expert DUO A30-1 L Pro 280-700 (11”-27 9/16”)
* minimum air duct length for Vento Expert A50-1 (L) S Pro
The supplied ventilation hood model depends on the ventilator model.
The overall dimensions of the outer ventilation hood are stated in the installation
instruction.
The overall dimensions of the front panel are stated below.
160 ( 6 5⁄16")
Air duct length
Outer ventilation hood
Front panel
207
(8 1/8")
85
(3 3/8")
137
(5 3/8")
138
(5 7/16")
235
(9 1/4")
71
(2 13/16")
285
(11 1/4")
207
(8 1/8")
85
(3 3/8")
137
(5 3/8")
138
(5 7/16")
VENTO Expert A50-1 Pro VENTO Expert DUO A30-1 Pro
OVERALL DIMENSIONS OF THE INDOOR UNIT, MM (INCH)

6
www.blaubergventilatoren.de
VENTO Expert A50-1 Pro / DUO A30-1 Pro
UNIT DESIGN AND OPERATING LOGIC
VENTILATOR DESIGN
Filters
Clean the air flowing through the
ventilator of dust and foreign
objects. Prevent contamination of
the regenerator.
Front part of the indoor unit
Fulfils the decorative function. The design enables
to shut off the air duct in case of extended
downtime of the ventilator.
The front part of the VENTO Expert A50-1 Pro
unit is used for air filtration.
Back part of the indoor unit
The assembly unit includes a circuit board and basic
control units located on the side of the indoor unit.
Back part of the indoor unit
The assembly unit includes a circuit board
and basic control units located on the side
of the indoor unit.
Cartridge
Construction consisting of fans and a
regenerator. Generates air flow, provides air
regeneration.
Cartridge
Construction consisting of a fan, a
regenerator and filters. Generates
air flow, provides energy
regeneration and air cleaning.
Air duct
Plastic air duct.
Air ow separators
Designed for separation of supply
and exhaust air streams.
Outer ventilation hood
Prevents ingress of water and foreign objects
into the ventilator.
Each ventilator model has a matching
ventilation hood model.
Sound-absorbing material
A layer of sound-absorbing material
for attenuation of noise generated
during the ventilator operation.
VENTO Expert A50-1 Pro
The ventilator consists of an indoor unit with a decorative front panel, a cartridge, an air duct with a sound absorbing layer and an outer
ventilation hood.
The cartridge is a basic functional part of the ventilator.
The cartridge consists of a fan, a regenerator and two filters that ensure rough air filtration and prevent ingress of dust and foreign
objects into the regenerator and the fan.
The indoor unit is equipped with automatic shutters that close during the ventilator standstill and prevent air backdraft.
VENTO Expert DUO A30-1 Pro
The ventilator consists of an indoor unit with a decorative front panel and filters, a cartridge, an air duct with air flow separators and an
outer ventilation hood.
The filters ensure rough air filtration and prevent ingress of dust and foreign objects into the cartridge.
The cartridge is a basic functioning part of the ventilator.
It consists of a fan and a regenerator.
The outer ventilation hood is used to prevent direct ingress of water and other objects to the ventilator.
VENTO Expert DUO A30-1 Pro
VENTO Expert A50-1 Pro

www.blaubergventilatoren.de
7
VENTO Expert A50-1 Pro / DUO A30-1 Pro
Filter
Cleans the air owing through the ven-
tilator of dust and foreign
objects. Prevents contamination
of the regenerator.
Fan
Generates air ow.
Regenerator
Provides extract
air energy
regeneration for warming up of supply
air ow.
Regenerator
Provides extract air energy
regeneration for warming up
of supply air ow.
Socket connector
Provides connection to the control board.
Fan
Generates air ow.
CARTRIDGE DESIGN
VENTO EXPERT A50-1 PRO OPERATION MODES
The ventilator has two operation modes:
Ventilation. The ventilator operates either in extract or supply mode at a set speed.
Regeneration. The ventilator operates in reversible mode with heat and humidity recovery.
Air supply. All the connected ventilation units in the network switch to air supply mode.
In Regeneration mode the ventilator operates in two cycles, 70 seconds each.
Cycle I. As warm stale extract air flows through the ceramic regenerator, it heats up and moisturizes the regenerator and transfers up
to 97 % of heat energy. In 70 seconds after the regenerator gets warmed the ventilator is switched to supply mode.
Cycle II. Fresh intake air from outside flows through the ceramic regenerator, absorbs accumulated moisture and is heated up to the
room temperature. In 70 seconds after the regenerator gets cooled down, the ventilator is switched to air extract mode and the cycle
is renewed.
A
I
R
E
X
T
R
A
C
T
A
I
R
S
U
P
P
L
Y
+20 ˚С
-7 ˚С
+20 ˚С
-7 ˚С
+17 ˚С
-10 ˚С
+17 ˚С
-10 ˚С
70 s
70 s
19.4 ˚F
19.4 ˚F
14 ˚F
14 ˚F
62.6 ˚F
62.6 ˚F
68 ˚F
68 ˚F
The cartridge is a solid block and cannot be dismantled.
The VENTO Expert A50-1 Pro unit has a cartridge with filters that can be easily removed for maintenance purposes.
The socket connector routed from the cartridge is connected to the control board in the back part of the indoor unit.
VENTO Expert A50-1 Pro VENTO Expert DUO A30-1 Pro

8
www.blaubergventilatoren.de
VENTO Expert A50-1 Pro / DUO A30-1 Pro
VENTO EXPERT DUO A30-1 PRO OPERATION MODES
The ventilator has three operation modes:
Ventilation. One fan operates in the air extract mode and the other fan operates in the air supply mode at set speed. The fans do not
change their rotation direction.
Air extract. Both fans operate in air extract mode at set speed.
In case of a sensor activation the ventilation unit follows one of two functioning algorithms to be set during setup of the ventilation unit
via the DIP switch. For details, see page 14.
Regeneration. One of the fans of the ventilator operates in extract mode and the other one in supply mode.
The fans change their rotation direction every 70 seconds.
Exhaust air Extract air
Intake air Supply air
Intake air
70 s
70 s
Supply air
Exhaust air Extract air
The shutters are closed The shutters are opened The indoor unit is equipped with automatic shutters.
During the ventilator operation the automatic shutters are opened
and let the air flow freely through the ventilator.
The automatic shutters are closed within 2 minutes at the ventilator
shut down.
FUNCTIONING OF VENTO EXPERT A50-1 PRO SHUTTERS

www.blaubergventilatoren.de
9
VENTO Expert A50-1 Pro / DUO A30-1 Pro
MOUNTING AND SET-UP
READ THE USER’S MANUAL PRIOR TO MOUNTING THE UNIT.
DO NOT BLOCK THE AIR DUCT OF THE INSTALLED UNIT WITH DUST ACCUMULATING
MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR
CIRCULATION IN THE ROOM.
1. Prepare a round core hole in the outer wall. The hole size is shown in the figure below. While preparing a core hole it is recommended
to make preparations for layout of the power cable and other required cables.
Ø 180
Ø 7 1/16"
min 500
min 19 11/16"
min 500
min 19 11/16"
min 500
min 19 11/16"
A
AA-A
2. Insert the air duct in the wall. For ease of installation use the polystyrene wedges included in the delivery. The air duct end must
protrude for the distance that enables installation of the outer ventilation hood (see the User’s manual for the outer ventilation hood).
0–3 mm
(0–1/8")
Fill the gaps between the air
duct and the wall with
a mounting foam
A
Polystyrene wedge
min 3 mm
Insert the air duct into the wall as shown in the picture on the left.
Install the air duct with the minimum slope of 3 mm down from the
outer wall side.
On the outer wall side the air duct end must protrude to a distance
that enables installation of the outer ventilation hood.
Distance Ais stated in the installation instruction for the ventilation
hood.
Adjustment of the air duct length is possible before and after its
fixation in the wall.
In the first case calculate the required length before mounting
and in the second case be sure to have enough access to cut the
air duct length after its installation.

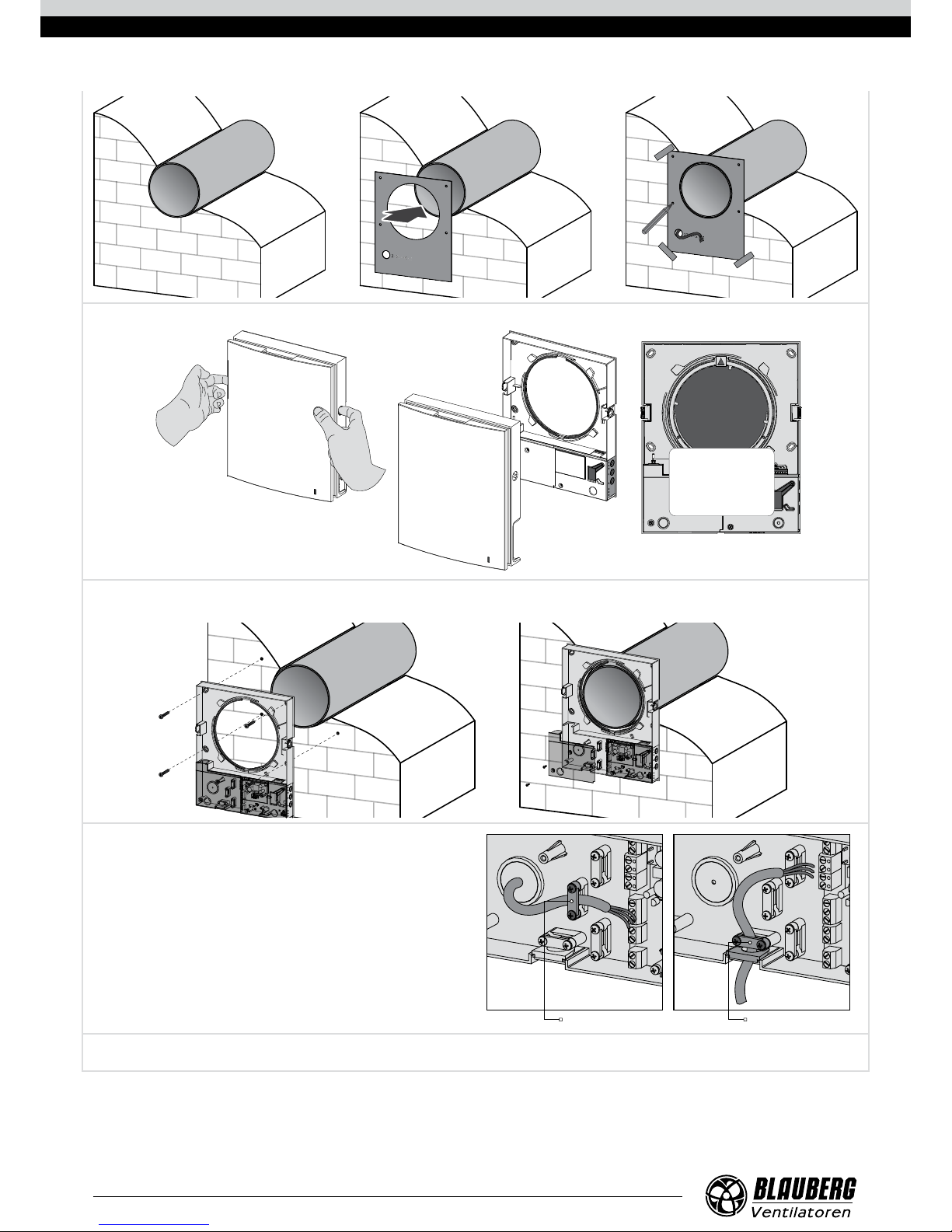

3. Stick the delivered cardboard master plate on the indoor wall using a mounting tape.
The large opening in the master plate must be axially aligned with the air duct.
For aligning of the master plate with respect to the horizon line it is recommended to use a builder’s level.
Then mark the fastening holes for installation of the supplied dowels and drill the holes to a required depth.
Route the power cable from the ventilator outside through the specially marked opening on the master plate.

10
www.blaubergventilatoren.de
VENTO Expert A50-1 Pro / DUO A30-1 Pro
4. Press the side latches to detach the front part of the indoor unit from its back part.
The thermal actuator rod
must be in lower position
when installing the
front panel of the
VENTO Expert A50-1 Pro
unit.
5. Fix the back part of the indoor unit on the wall with the screws supplied with the mounting kit of the ventilator.
Remove the two retaining screws from the left transparent cover to enable access to the terminals.
6. Route the power cable as figured below and connect the
ventilator to power mains in compliance with the external wiring
diagram, see page 12.
Fix the power cable and the signal cables with a cable clamp.
After completion of the electrical connection re-install the
transparent cover in site.
Cable clamp Cable clamp
7. Insert the cartridge into the air duct as figured below. Be sure the pointer is directed upwards. Then fix the wire with the protruding
clamp and connect the socket connector to the circuit board.

www.blaubergventilatoren.de
11
VENTO Expert A50-1 Pro / DUO A30-1 Pro
Insert the wires under the
cable clamp and connect the
socket connector to the circuit
board.
The mark must be directed
upwards.
8. Install the front part of the indoor unit.
VENTO Expert A50-1 Pro VENTO Expert DUO A30-1 Pro
9. Insert the sound absorbing layer into the air duct from the
outside.
Roll the layer of the sound absorbing material to match the air
duct diameter. The protecting paper layer must be outside. Insert
the sound absorbing roll into the cartridge against stop.
Make a mark at the end of the air duct, remove the material and
cut the roll as marked.
Insert the ready sound absorbing roll into the air duct.
9. Install the sectional air flow separators from the outside.
Install a required quantity of the air flow separators in the air duct
until it bumps up the cartridge.
Mark the last air flow separator to be flush with the air duct face,
remove it from the air duct and cut the excessive part of the last
air flow separator.
Tighter fixation is provided if the air flow separator protrudes to
some distance.
Install the adjusted air flow separators to the air duct.
10. Install the outer ventilation hood. The mounting sequence of the outer ventilation hood is described in the installation instruction
for the ventilation hood.

12
www.blaubergventilatoren.de
VENTO Expert A50-1 Pro / DUO A30-1 Pro

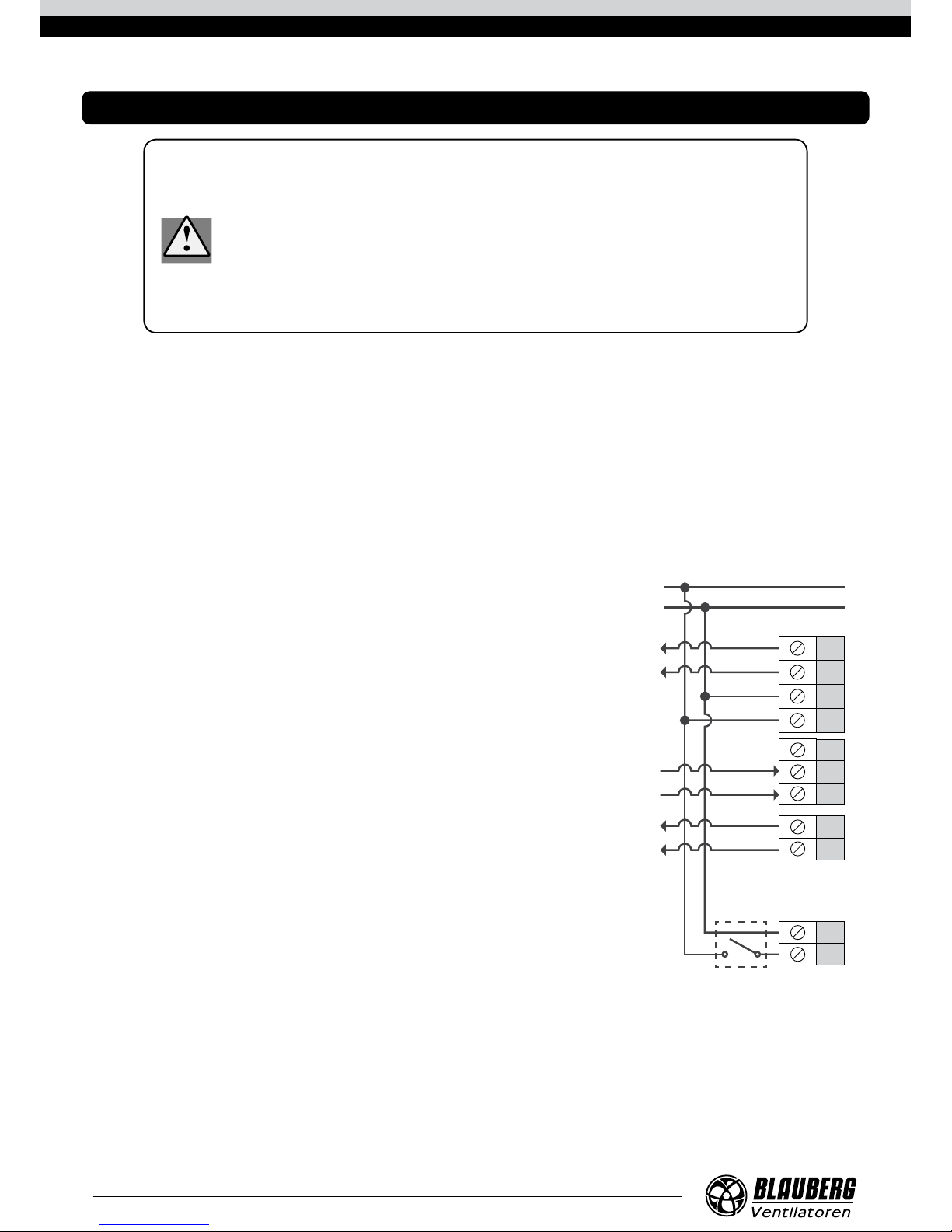

CONNECTION TO POWER MAINS AND CONTROL
DISCONNECT THE UNIT FROM POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE
UNIT.
INSTALLATION SHALL ONLY BE PERFORMED BY A PROFESSIONAL ELECTRICIAN
QUALIFIED FOR UNASSISTED OPERATIONS WITH ELECTRICAL INSTALLATIONS UP TO
1000 V AFTER CAREFUL STUDY OF THE PRESENT USER’S MANUAL.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE
MANUFACTURER’S LABEL. ANY INTERNAL CONNECTION MODIFICATIONS ARE NOT
ALLOWED AND RESULT IN WARRANTY LOSS.
The ventilator is rated for connection to single-phase AC 100–240 V/ 50–60 Hz power mains. The routing of the power and signal cables
is shown in the „Mounting and set-up“ section, page 9.
For electric installations use insulated, durable and heat-resistant electric leads (cables, conductors) with the minimum cross section
0.5 up to 0.75 mm2for the power cable and 0.25 mm2for the control cables. The cable cross-section is given for reference only. The
signal cable must be shielded. The actual conductor cross-section selection must be based on its type, maximum permissible heating,
insulation, length and installation method.
Use copper wires for all the electric connections!
Connect the unit to power mains via the terminal block installed in the control board in compliance with the wiring diagram and terminal
designation.
Connect the unit to power mains through the external automatic circuit breaker with a magnetic trip integrated into the fixed wiring
system. The circuit breaker trip current must exceed the consumption current of the ventilator. For details, please refer to the table on
page 5.
The ventilator design enables connecting any external controls with a normally
opened contact (NO-contact), such as an external CO2sensor, humidity
sensor, relay switch, etc.
When the contacts NO1 and NO2 close the ventilator switches to high speed.
The ventilators can be connected in series and in parallel with a
central control by the master ventilator.
In case of in series or in parallel connection of several ventilators
power is supplied either from a previous ventilator or from power
mains.
N
L
N
L (~)
N (~)
L
In
Gnd
NO1
NO2
+12V
Power
to the next
ventilator
Input for 0-10 V
analogue sensor
NO contact
of an external control
unit
Power
1~100-230 V
50-60 Hz
Gnd
Out
Control signal output
to the next ventilator
EXTERNAL CONNECTIONS DIAGRAM

www.blaubergventilatoren.de
13
VENTO Expert A50-1 Pro / DUO A30-1 Pro
Master Slave 1 Slave N
N
L
N
L
In
Gnd
Gnd
Out
NO1
NO2
+12V
N
L
N
L
In
Gnd
Gnd
Out
NO1
NO2
+12V
N
L
N
L
N
L
In
Gnd
Gnd
Out
NO1
NO2
+12V
Power input
100-240 V/50-60 Hz
to the next ventilator

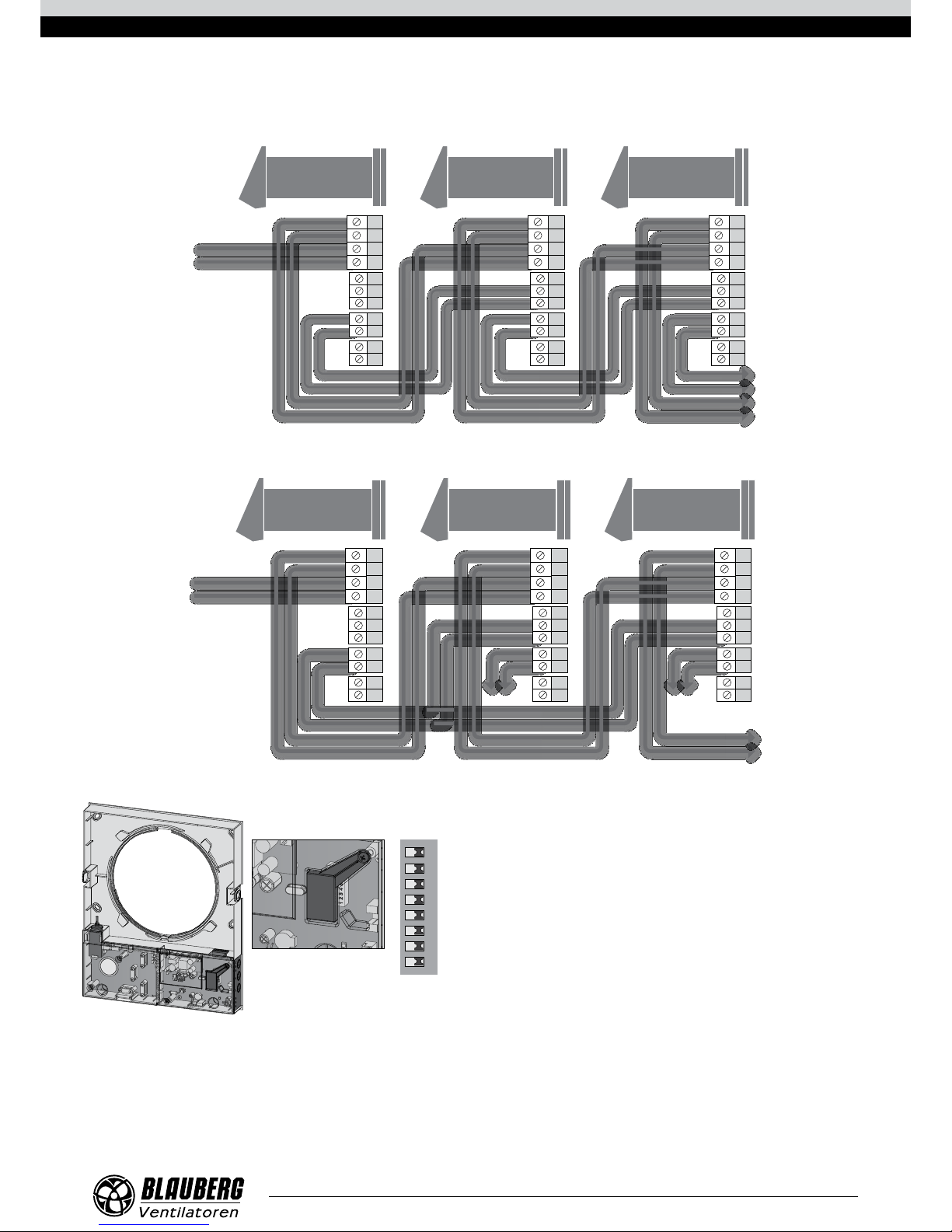

WIRING DIAGRAM FOR IN SERIES CONNECTION
WIRING DIAGRAM FOR IN PARALLEL CONNECTION
Prior to operating set up the ventilator using the DIP-switch. It is
located on the controller circuit board. To access the DIP-switch
take off the front panel of the indoor unit and uplift the rubber plug
that covers the switch.
VENTILATOR SET-UP
Open the rubber plug
DIP-switch under
the plug
12345678
N
L
N
L
In
Gnd
Gnd
Out
NO1
NO2
+12V
N
L
N
L
In
Gnd
Gnd
Out
NO1
NO2
+12V
N
L
N
L
N
L
In
Gnd
Gnd
Out
NO1
NO2
+12V
Power input
100-240 V/50-60 Hz
to the next ventilator
Master Slave 1 Slave N

14
www.blaubergventilatoren.de
VENTO Expert A50-1 Pro / DUO A30-1 Pro
The ventilator can be operated with the
remote control or the control buttons on
the side part of the indoor unit, as figured
below.
In case of in series or in parallel connection
the signal from a control unit is received by
the first ventilator (Master) only.
Filter
Alarm
Master
Speed
OFF
Turning unit ON/OFF
Party mode. Activation of high
speed timer for 4 hours.
Night mode. Activation of low
speed timer for 8 hours.
Speed selection
Ventilation mode
VENTO Expert A50-1 Pro
The unit operates in supply or extract
mode at set speed.
VENTO Expert DUO A30-1 Pro
One of the fans of the ventilation unit
operate in exhaust mode and the
other one in the supply mode at set
speed. The air flow direction mains
constant.
Regeneration mode
VENTO Expert A50-1 Pro
In this mode the unit switches
between supply and extract mode
every 70 seconds with heat recovery.
VENTO Expert DUO A30-1 Pro
In this mode the fan rotation direc-
tion changes to opposite every 70
seconds. This operation mode
enables heat recovery.
Speed /OFF
Speed/off. The speed selection
sequence is follows: low-medi-
um-high speed-Off.
Buttons on
the unit casing
Remote control
DIP-SWITCH POSITIONING
1
Turning the ventilator off is allowed.
The switch position enables deactivation of the ventilator with the button on the control panel side.
1
Turning the ventilator off is not allowed.
The switch position disables deactivation of the ventilator with the button on the control panel side.
VENTO Expert A50-1 Pro VENTO Expert DUO A30-1 Pro
Fan rotation direction:
For controlled ventilation it is recommended to install the ventilators
pairwise and integrate them in a group using a signalling cable.
Set one half of the connected units into supply mode and the other half
into extract mode.
Operation algorithm when a humidity sensor is activated:
In case of a humidity or an external relay sensor activation the ventilation
unit follows one of two operation algorithms.
2
Air supply.
This positioning of the switch enables supply operation
of the ventilator in Ventilation mode.
In Regeneration mode the ventilator starts operating first
in supply mode.
2
Algorithm 1.
Both fans operate in air extract mode at maximum
speed.
2
Air extract.
This positioning of the switch enables extract operation
of the ventilator in Ventilation mode.
In Regeneration mode the ventilator starts operating first
in extract mode.
2
Algorithm 2.
Both fans switch to maximum speed.
One fan operates in air supply mode the other one - in air
extract mode.
Humidity sensor set value.
The humidity sensor measures the extract air humidity.
If the extract air humidity is above the set point, the ventilator switches to Speed III.
As humidity drops down to the set point, the ventilator changes to pre-set speed after elapsing of the time set on the delay timer.
Humidity control is
disabled
Set value
40 %
Set value
50 %
Set value
60 %
Set value
70 %
Set value
80 %
345 345 345 345 345 345
Delay timer.
During activation of the humidity sensor or any other control unit the ventilator switches to higher speed.
After normalization of the indoor humidity level or any other air parameters the ventilator returns to a previously set mode in set time period.
Time delay
0 min
Time delay
5 min
Time delay
15 min
Time delay
30 min
6 7 6 7 6 7 6 7
UNIT CONTROL

www.blaubergventilatoren.de
15
VENTO Expert A50-1 Pro / DUO A30-1 Pro
OPERATION OF THE VENTILATION UNIT WITH THE BUTTONS ON THE INDOOR UNIT
Speed
OFF
The speed setting engages cyclically: I-II-III-Off.
All the units integrated in a single network operate according to the speed settings of the Master unit.
I: permanent indicator glowing indicates operation of the unit at first speed.
The indicator blinks when the first speed timer is activated.
Iand II: permanent glowing of the indicators I and II indicates operation of the unit at second speed.
I, II and III: permanent glowing of the indicators I, II and III indicates operation of the ventilation unit at third speed.
Blinking of the indicators I, II and III indicates activation of the timer for Party mode or the turn-off delay timer triggered by any
connected external sensors or the integrated humidity sensor.
Regeneration mode
VENTO Expert A50-1 Pro
The fan rotation direction changes to opposite every 70 seconds. Heat recovery is performed in this mode.
VENTO Expert DUO A30-1 Pro
The rotation direction of both fans changes to opposite every 70 seconds. Heat recovery is performed in this mode.
Ventilation mode.
VENTO Expert A50-1 Pro
The ventilator operates in permanent supply or extract mode at set speed. The air flow direction depends on positioning of the
DIP-switch (set to air extract by default).
VENTO Expert DUO A30-1 Pro
One fan operates in the air extract mode and the other fan operates in the air supply mode at set speed. The fans do not change
their rotation direction.
Filter
Contamination indicator of filters.
90 days (continuous operation) after installation of the cartridge the Filter contamination indicator starts glowing.
In this case clean or replace the filters (see the „Technical maintenance“ section).
During in-series connection the first ventilator indicator has a steady glow and the indicator of the ventilator requiring filter
replacement blinks.
The filter timer is reset once the cartridge socket is disconnected from the circuit board.
Alarm
Alarm indicator for emergency shutdown of the unit.
Permanent glowing of the Alarm indicator of the Master unit indicates an alarm in the network of the connected ventilation units.
Its blinking indicates shutdown of a specific ventilation unit in the network.
In case of an emergency shutdown of the VENTO Expert A50-1 Pro unit the defective ventilation unit is marked with the blinking
Alarm indicator.
All the connected VENTO Expert A50-1 Pro ventilation units are also stopped.
All the connected VENTO Expert DUO A30-1 Pro ventilation units continue operating.
In case of an emergency shutdown of the VENTO Expert DUO A30-1 Pro unit the defective ventilation unit is marked with the
blinking Alarm indicator.
The defective ventilation unit shuts down and the other connected ventilation units continue their operation.
Master
Master unit indicator
Permanent glowing of the indicator shows the leading unit in the network (Master unit).
Indicator blinking indicates the driven unit (Slave) and no connection to the Master unit.
No glowing of the lamp indicator means that this ventilation unit is a Slave ventilation unit and it is connected to a Master unit.
REMOTE CONTROL OF THE VENTILATION UNIT
Turning the unit on/off.
The unit may be turned off only if it is enabled by the settings.
Reset of alarm and timer settings.
Ventilator speed selection: Speed III-II-I respectively.
Regeneration mode.
VENTO Expert A50-1 Pro
The fan rotation direction changes to opposite every 70 seconds. Heat recovery is performed in this mode.
VENTO Expert DUO A30-1 Pro
The rotation direction of both fans changes to opposite every 70 seconds. Heat recovery is performed in this mode.
Ventilation mode.
VENTO Expert A50-1 Pro
The ventilator operates in permanent supply or extract mode at set speed. The air flow direction depends on positioning of the
DIP-switch (set to air extract by default).
VENTO Expert DUO A30-1 Pro
One fan operates in the air extract mode and the other fan operates in the air supply mode at set speed. The fans do not change
their rotation direction.
Timer control button:
– Activation of Speed III for 4 hours
– Activation of Speed I for 8 hours
Upon expiration of the set time period the ventilator reverts to a pre-set speed.
Press any button of the manual speed setting to deactivate the timer.

16
www.blaubergventilatoren.de
VENTO Expert A50-1 Pro / DUO A30-1 Pro
AIR FLOW BLOCKING FOR VENTO EXPERT A50-1 PRO
Press the front panel to close the air duct. The fan turns off automatically. The unit functionality is not changed.
To open the air duct pull the front panel while holding the special recesses. The fan starts operating according to the actual speed setting.
Air duct shut-off Air duct opening
The front panel incorporates an operating LED indicator. During the dark time the indicator light intensity drops down.
AIR FLOW BLOCKING FOR THE VENTO EXPERT DUO A30-1 PRO
Press the side tabs to detach the front part of the indoor unit from its back part and close the air duct. Then open the latches and
remove the front part of the front panel. Remove the air flow separator by pulling one of the side clamps. Install the front part of the
front panel and press it gently to close the air duct.
The fan turns off automatically. The unit functionality is not changed.
Open the air duct in the reverse order.
The fan starts operating according to the actual speed setting.
The front panel incorporates an operating LED indicator. During the dark time the indicator light intensity drops down.

www.blaubergventilatoren.de
17
VENTO Expert A50-1 Pro / DUO A30-1 Pro
TECHNICAL MAINTENANCE
Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning and replacement of the filters.
To access the basic assembly units follow the steps:
Turn off the unit using the remote control or the buttons on the indoor unit.
VENTO Expert DUO A30-1 Pro
1. Press the latches on the side of the indoor control unit to take off the front part. Then open the latches and remove the front part of
the front panel. Remove the filters for cleaning. Reverse the above procedures to reassemble.
VENTO Expert A50-1 Pro
1. Press the latches on the side of the indoor control unit to take off the front part.
Please make sure the thermal actuator rod is in lower position during re-installation of the front panel. If the thermal actuator
rod is up, please wait for about 2 minutes until it goes down.
While installing
the front panel the thermal
actuator rod must be
in low position.
2. Disconnect the socket from the circuit board. While removing the socket do not pull the wires. Uplift it with a flat screw driver of a
respective size.
Use a at screwdriver to dis-
connect the socket.
Do not pull the wires!
Disconnect the socket from
the circuit board.
Disconnect the socket from
the circuit board.
VENTO Expert A50-1 Pro VENTO Expert Duo A30-1 Pro
WARNING! Never remove the control board! It may cause an alarm! After completion of the servicing and assembly of the
ventilation unit and re-installation of the socket reset an alarm following the procedure on page 16.

18
www.blaubergventilatoren.de
VENTO Expert A50-1 Pro / DUO A30-1 Pro
3. Pull the cord to remove the cartridge from the air duct.
VENTO Expert A50-1 Pro VENTO Expert DUO A30-1 Pro
Clean the filters as they get clogged, but not less than once in three months.
• After the set filter replacement periodicity (90 days) has expired the Filter indicator starts glowing.
• For the VENTO Expert A50-1 Pro unit the filter timer is reset once the cartridge socket is disconnected from the circuit board.
• Reset the filter timer for the VENTO Expert DUO A30-1 Pro unit by turning the DIP switch 8 off and back on again.
• Wash the filters and let them get dry. Install dry filters in the air duct.
• Vacuum cleaning is allowed.
• The filter rated service life is 3 years.
• For new filters contact the Seller.
Some dust may accumulate on the heat exchanger block even in
case of regular maintenance of the filters.
• Clean the regenerator regularly to ensure its high heat recovery
efficiency.
• Vacuum clean the regenerator not less than once a year.
4. Replacement of the remote control battery (if necessary).
In case of a long operation of the remote control the battery must
be replaced.
No response of the unit for pressing the remote control buttons
indicates the need to replace the battery.
Battery type: CR2025.
Remove the holder with the battery from the lower part of the
remote control.
Replace the battery and install the holder with a new battery
back to the remote control.
+
CR2025
3V
+
CR2025
3V

www.blaubergventilatoren.de
19
VENTO Expert A50-1 Pro / DUO A30-1 Pro
POSSIBLE REASONS AND TROUBLESHOOTING
Problem Possible reasons Troubleshooting
When switching on the
ventilator the fan does not
start.
No power supply.
Make sure the power supply line is connected
correctly, otherwise troubleshoot the connection
error.
The motor is jammed, the impeller blades are
soiled.
Turn the ventilator off. Troubleshoot the motor
jam and the impeller clogging. Clean the blades.
Restart the ventilator.
Circuit breaker tripping
during the ventilator
start-up.
Overcurrent as a result of short circuit in the
electric circuit.
Turn the ventilator off.
Contact the Seller for further information.
Low air flow.
Low set fan speed. Set higher speed.
The filters, the fan or the regenerator is clogged. Clean or replace the filter. Clean the fan and the
regenerator.
Noise, vibration.
The impeller is clogged. Clean the impeller.
Loose screw connection of the ventilator casing
or the outer ventilation hood.
Tighten the screws of the ventilator or the outer
ventilation hood.
TROUBLESHOOTING
STORAGE AND TRANSPORTATION REGULATIONS
Store the unit in the manufacturer’s original packing box in a dry ventilated premise at ambient temperatures from +5 ˚C ( 41 ˚F) up to +40
˚C (104 ˚F).
Storage environment must not contain aggressive vapours and chemical mixtures provoking corrosion, insulation and sealing deformation.
Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
Follow the handling requirements applicable for the particular type of cargo.
The unit can be carried in the original packing by any mode of transport provided proper protection against precipitation and mechanical
damage.
Avoid sharp blows, scratches or rough handling during loading and unloading.
Do not expose the unit to sudden changes in temperature.
Such changes can lead to condensation of moisture inside the unit and performance disturbance when the unit is switched on.
Prior to the initial power-up after transportation at subzero temperatures allow the unit to warm up at room temperature for at least 2hours.

20
www.blaubergventilatoren.de
VENTO Expert A50-1 Pro / DUO A30-1 Pro
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby
declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/
EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance of
the transportation, storage, installation, and operation regulations.
Should any malfunctions occur in the course of the unit operation through the Manufacturer's fault during the guaranteed period of
operation, the user is entitled to get all the faults eliminated by the manufacturer by means of warranty repair at the factory free of charge.
The warranty repair includes work specific to elimination of faults in the unit operation to ensure its intended use by the user within the
guaranteed period of operation.
The faults are eliminated by means of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment
paperwork certifying the purchase.
The unit model must comply with the one stated in the user’s manual.
Contact the Seller for warranty service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with missing
component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components caused
by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE
ANY MAINTENANCE OPERATIONS!
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON
PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL
WITH THE PURCHASE DATE STAMP.
