DELIVERY SET
Fan - 1 pc.
Screws with dowels - 4 pcs.
Plastic screwdriver - 1 pc. (only for the models with a timer)
User’s manual - 1 pc.
Packing box - 1 pc.
BRIEF DESCRIPTION
The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. It
is designed for wall or ceiling mounting (Fig. 3-5). The fan is designed for connection to ø 100, 125 and 150 mm air ducts.
OPERATION GUIDELINES
The fan is rated for connection to single-phase AC 220-240 V/50 Hz power mains.
Air motion direction in the system must match the pointer on the fan casing.
Hazardous parts access and water ingress protection rating is IP34.
The fan is rated for operation at the ambient temperature ranging from +1 °C up to +45 °C.
The unit is rated as a Class II electrical appliance.

8
EN
DESIGNATION KEY
Bravo X X 100 X X X
Voltage:
12: motor with 12 V/50 Hz rated voltage
Dierences from the base model:
e2: the motor is equipped with rolling bearings. without check valve
Additional options:
S: pull cord switch
T: turn-off delay timer
ST: turn-off delay timer and pull cord switch
H: humidity sensor and turn-off delay timer
SH: humidity sensor, turn-off delay timer and pull cord switch
IR: motion sensor
Outlet duct diameter [mm]
Colour:
_: white
Vintage
Platinum
Chrome
Gold
Motor modication:
Max: high-powered motor
Still: low-noise motor
Fan series

9
EN
ELECTRONICS OPERATION ALGORITHM
The fan with the T timer activates upon control voltage application to the LT input terminal by the external switch (e.g.
indoor light switch). After the control voltage is off, the fan continues to operate within the set time period adjustable from
2 to 30 minutes by the timer. For the ST model, the fan is turned on/off with an internal cord switch.
The fan with the timer and the humidity sensor H starts after the control voltage is supplied to the LT input terminal or
if the indoor humidity level H exceeds the set point adjustable from ~60 % to ~90 %. After the control voltage is off or the
humidity level has decreased, the fan will keep running within the time set by the timer ranging from 2 to 30 minutes. To set
the maximum humidity setpoint, set the potentiometer to Hmax position (90 %).
CAUTION! Connect the fans rated for 12 V power voltage (stated on the packing box and on the fan casing) to
12 V power mains only!
INSTALLATION AND SET-UP

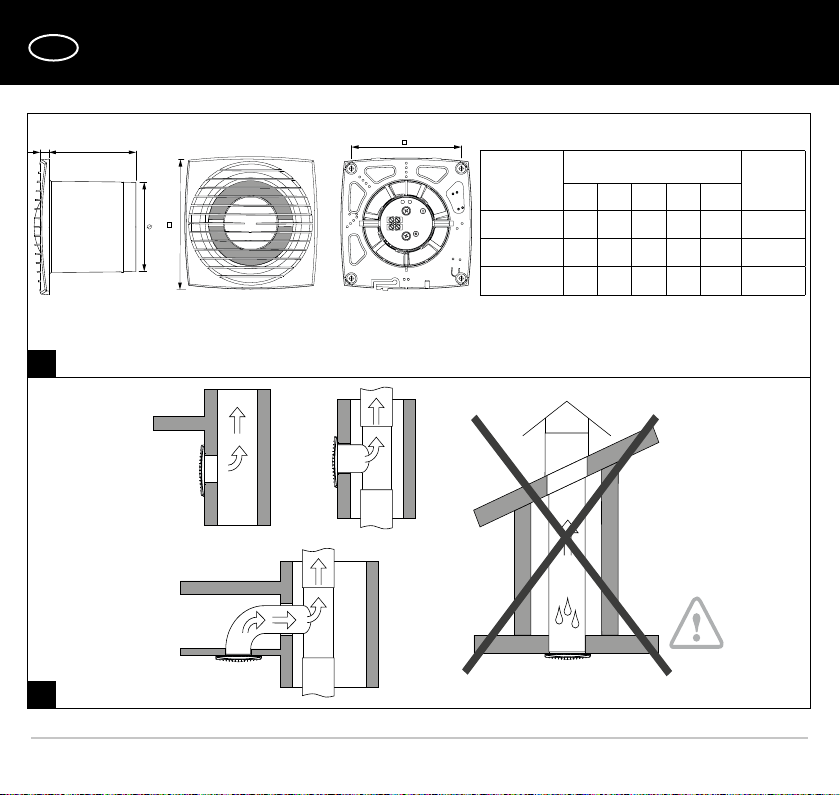

The fan is designed for wall or ceiling mounting with direct air exhaust to the ventilation shaft or into the round air duct of
matching diameter (Fig. 2).
Fan installation sequence:
step 1. Cut off power supply and make sure electricity has been turned off (Fig. 6).
step 2. Run the power cable to the vent hole (Fig. 7).
step 3. Remove the front panel from the fan. Then remove the circuit board cover (Fig. 8).
step 4. Mark and drill holes for mounting the fan and then install the fan (Fig. 9-11).
step 5. Connect the fan to power mains according to the wiring diagram (Fig. 14-17).
step 6. Cover the casing with a front panel and a decorative panel (Fig. 12).
step 7. Supply power voltage to the fan (Fig. 13).
TERMINAL DESIGNATIONS ON WIRING DIAGRAMS
L— phase (220-240 V only) S— external switch
N— neutral (220-240 V only) QF — automatic circuit breaker
LT — timer control line

10
EN
DO NOT USE A METAL SCREWDRIVER, KNIFE, ETC. FOR ADJUSTMENT
OPERATIONS NOT TO DAMAGE THE CIRCUIT BOARD.
T
o
2 min 30 min
H
60% 90%
for H/SH
for T/H/ST/SH
FAN SETUP
— to adjust the humidity set point, turn the control knob Hclockwise to increase and counter-clockwise to decrease the
humidity sensor set point, adjustable from 60 % up to 90 %.
— to adjust the fan turn-off delay time, turn the control knob To clockwise to increase and counter-clockwise to
decrease the turn-off delay time respectively, adjustable from 2 up to 30 minutes.
The fan delivery set includes a specially designed
plastic screwdriver for fan settings adjustments. Use it
to change the turn-on and turn-off delay time and the
humidity set point.
THE TIMER CIRCUIT IS LIVE.
MAKE SURE THE FAN IS DISCONNECTED FROM POWER SUPPLY.

11
EN
TECHNICAL MAINTENANCE
The fan maintenance periodicity is at least once per 6 months.
Maintenance steps:
• Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 18).
• Remove the front and the decorative panels, wipe the fan with a dry cloth or a brush (Fig. 19).
• Clean the front panel under running water (Fig. 20).
• Wipe the fan surfaces dry.
• Cover the fan with the front panel.
• Connect power supply to the fan (Fig. 21).
CAUTION! Do not allow water or liquid come into contact with electric components!
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
from +5 °C to + 40 °C and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and
sealing deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation
and mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature
for at least 3-4 hours.

12
EN
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility.
We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/
EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and
of the Council and CE-marking Council Directive 93/68/EEC. This certificate is issued following test carried out on samples
of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 60 months after the retail sale date provided the user's
observance of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the
course of the unit operation through the Manufacturer's fault during the guaranteed period of operation, the user is entitled
to get all the faults eliminated by the manufacturer by means of warranty repair at the factory free of charge. The warranty
repair includes work specific to elimination of faults in the unit operation to ensure its intended use by the user within the
guaranteed period of operation. The faults are eliminated by means of replacement or repair of the unit components or a
specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the
payment paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact
the Seller for warranty service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission
with missing component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's
manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal
components caused by the user.

13
EN
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind,
blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE
OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE
UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.

14
EN
1.
2.
b
a
c
d
e
Model
Dimensions [mm] Weight
[kg]
a b c d e
Bravo 100 150 122 102 100 17 0.56
Bravo 125 176 144 104 125 17 0.73
Bravo 150 205 174 124 150 19 0.9

15
EN
3. 4.
5.

16
EN
QF
L N
6. 7. 8.
9. 10.
11. 12. 13.

17
EN
QF
L
N
SL
N
QF
L
N
L
N
Contact of the S switch
or the pull cord switch is
OPENED
Fan runs
Contact of the S switch
or the pull cord switch is
CLOSED
Fan does not run
L
LT
S
N
L
N
QF
L
LT
N
L
N
QF
Fan does not run
Contact of the S switch
or the pull cord switch is
CLOSED
Fan runs
Contact of the S switch
or the pull cord switch is
OPENED
Activation of turn-off
delay timer (2-30 minutes)
14.
15.
Bravo 100/125/150
Bravo 100/125/150 S
Bravo 100/125/150 T
Bravo 100/125/150 ST

18
EN
L
LT
S
N
L
N
QF
L
LT
N
L
N
QF
Fan does not run
Humidity exceeds set point
Yes
No
Fan runs
Humidity is below set point
Activation of turn-off
delay timer (2-30 minutes)
Contact of the S switch
or the pull cord switch is
CLOSED
Fan runs
Contact of the S switch
or the pull cord switch is
OPENED
Humidity exceeds set point
No
Yes
16.
Bravo 100/125/150 H Bravo 100/125/150 SH

19
EN
QF
L
N
L
N
Fan does not run
Motion detected
Fan runs
No motion detected
Activation of turn-off
delay timer (2-30 minutes)
17.
Bravo100/125/150 IR

20
EN
QF
L N
18. 19.
20. 21.
