Blaupunkt FL 06 User manual

V1.0
User's Guide
Mobile phone FL 06

EN
2
Contents
1. Safety .......................................................................................... 5
2. Product specifications................................................................ 6
3. Keys and device appearance...................................................... 6
4. Getting Started ........................................................................... 7
4.1. Installation........................................................................ 7
4.2. Charging the battery........................................................ 8
4.3. Maintaining the battery................................................... 8
5. Power On/Off.............................................................................. 8
6. Idle screen options..................................................................... 9
7. Calling.......................................................................................... 9
7.1. Make a call........................................................................ 9
7.2. Receive call....................................................................... 9
7.3. Emergency calls................................................................ 9
7.4. Available functions during calls....................................... 9
7.5. ECT*................................................................................ 10
7.6. Wi-Fi calling*.................................................................. 11
8. Messaging.................................................................................11
8.1. Reading new message ...................................................11

EN
3
8.2. Writing a new message .................................................12
9. WhatsApp .................................................................................12
10. Facebook Lite.......................................................................... 13
11. Phone...................................................................................... 13
12. Contacts..................................................................................14
13. Browser...................................................................................14
14. Calculator................................................................................ 15
15. Calendar.................................................................................. 15
16. Camera.................................................................................... 15
17. Clock........................................................................................ 15
18. Email .......................................................................................15
19. File manager...........................................................................16
20. FM Radio.................................................................................16
21. Gallery..................................................................................... 16
22. Music.......................................................................................16
23. Settings ...................................................................................17
23.1. Network & Internet .....................................................17
23.2. Connected devices.......................................................18

EN
4
23.3. Battery..........................................................................18
23.4. Display.......................................................................... 18
23.5. Sound ............................................................................ 18
23.6. Storage .........................................................................19
23.7. Security & location.......................................................19
23.8. System ..........................................................................19
24. Sound recorder.......................................................................19
25. Videos ..................................................................................... 19
26. Declaration of Conformity .....................................................20

EN
5
1. Safety
Please read the safety instructions carefully, as ignoring it may be
dangerous or illegal.
The owner of the device is responsible for the use of this
appliance.
Explosion hazards and restricted areas
Turn off the device in explosion hazardous areas. Sparks in such
places may lead to an explosion or fire that may result in serious
injury or death. Turn off the devicce at gasoline or gas filling
stations, especially near the fuel pumps. Follow the instructions
strictly in locations such as fuel tanks, chemical plants, and
explosive substances.
Road safety
Observe the local laws and regulations regarding smartphone
usage while driving. If you make a phone call while driving,
observe the following rules: Focus on driving to become aware of
traffic conditions; If the device has a hands-free function, use
handsfree. If the traffic situation requires, stop the car before you
pick up the phone.
Interference
Do not switch on the device, where it is prohibited to use a mobile
phone or to interfere with radio waves.
Qualified service
The product can only be repaired by a qualified person.
Charger, battery and other accessories
Only use a battery, charger and other accessories approved by the
manufacturer. Do not connect incompatible products.
The mains power socket used must be close to the charger/holder
and easily accessible, so that it can be used as an 'on/off' facility.
Hearing protection
To avoid hearing loss, do not listen to music or radio for a long
time at high volume.
Water resistance
The appliance is not waterproof, so keep it dry.

EN
6
Use environment
The device complies with the recommended emission values for
radio waves when kept at a minimum distance of 1.5 cm from the
ear. When carrying the phone in a case, belt clip or holder, make
sure that it does not contain metal and that the phone is slightly
distracted from the body. When using other accessories, it is not
possible to operate in accordance with radio frequency guidelines.
If you do not use a case and do not hold the phone on your ear,
keep it at least 2.5 cm away from your body, especially during data
transfer.
2. Product specifications
The device handles one Micro SIM cards.
Power Supply Features:
•Input: (AC), 100-240V - 50/60Hz – 0.15A
•Output: (DC), 5V – 0.55A – 2.75W
Battery Type and Voltage: Li-ion battery 3.7V - 1600mAh
Network type:
•GSM 900/1800MHz
•WCDMA 900/2100MHz
•LTE B1/B3/B7/B20
SAR values: 0.768W/Kg (Head) – 1.643W/Kg (Body)
Note: Actual operating conditions depend on local conditions,
network environment, and user habits.

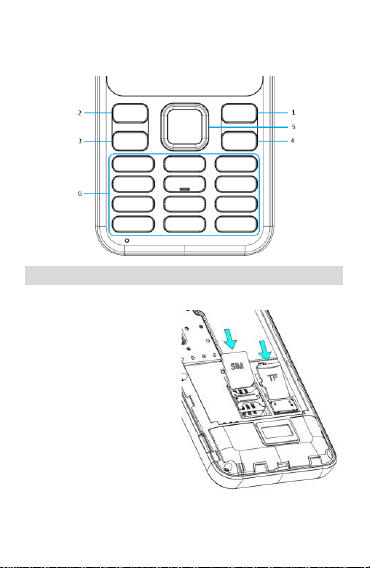

3. Keys and device appearance
1. Right softkey: In Menu mode: to return to the home screen
2. Left softkey: In standby mode: opens the Status/Notification
bar.
3. Call (Dial) button: Dialing and Receiving calls. In Idle mode,
open the Favorites list
4. Call End Button: Press and hold to turn on/off the phone
5. Navigation keys (scroll in the menu): In standby mode: opens
the Menu.

EN
7
6. Alphanumeric keypad: Press the corresponding keys to enter
numbers when dialing or the characters of the numbers when
writing text.
4. Getting Started
4.1. Installation
1. Open and remove the
phone back protection
cover
2. Insert the SIM into the
device. The golden contacts
on the SIM card face down
and the edges align with the
corresponding edges of the
SIM card.
3. Insert the battery chip
into the protruding metal
point in the battery slot,
insert the battery, and push
the top down until the battery engages in the recess.
4. Put back the back cover.

EN
8
4.2. Charging the battery
Connect the charger to the appliance and plug the other end into
the socket. If the device is turned on while charging, the battery
icon will move in the right corner of the display. Charging is
completed when the charging indicator on the top right is lit. If
charging is switched off, a charging indicator appears on the
display. When charging is complete, unplug the charger from the
unit.
Note: When the battery voltage is low, awarning message is
displayed on the display. Charge the battery as soon as you can,
to avoid any inconvenience, the device can be switched off during
a telephone conversation. Your device can automatically turn off
when the power level is too low.
4.3. Maintaining the battery
The device has a rechargeable battery. When not using the
charger, disconnect it from the power source. For more than a
week, do not leave the phone charging. Temperature influences
battery capacity. Battery may need to be cooled or warmed up
before charging. If the battery temperature is lower than 0 °C or
higher than 45 °C, do not charge the battery. Use the battery
according to its intended purpose. Do not short-circuit the battery
terminals. Do not use a damaged battery. If you are using an
appliance under extreme temperature conditions, the battery will
not work properly and its life span will be reduced. DO NOT throw
the battery into fire, follow local laws and regulations regarding
the disposal of the spent battery.
5. Power On/Off
1. Press and hold the End / On-Off button to turn the unit on or
off.
2. If you require a PIN code after power on, enter the correct PIN.
If you enter the wrong number, press the „#” key to delete the
number.
3. To turn off the phone, press and hold the power key until a pop-

EN
9
up message appears, and choose Power off.
6. Idle screen options
When you are in the idle screen, and press the Left softkey, you
can reach a quick menu. Here can be turned on/off the Wi-Fi,
Bluetooth, mobiledata, torch and aeroplane mode. Also in this
menu the incoming notifications can be checked.
7. Calling
7.1. Make a call
When the network service provider name appears on the display,
the phone is ready to make and receive calls.
In Standby mode, press the number keys to enter the number you
want to call, press the right soft key to clear the wrong numbers,
press the Dial key to start the call if the specified number is correct.
To enter an international phone number format, Long press the
[0] key until [+] international call sign appears on the display.
7.2. Receive call
When an incoming call is alerted to your device if your service
provider supports the number display, the display shows the
caller's number or the caller's name (depending on whether you
have saved it in the phone book).
Press the dial key to answer the incoming call.
7.3. Emergency calls
You can immediately make an emergency call without a SIM card.
Different networks can use different emergency numbers, so
please contact your network operator.
7.4. Available functions during calls
Some operations and services are available during an active call.
Many of these depend on network support, please check with
your network service provider for these options. Some functions
can only be used under special conditions.

EN
10
• Mute: You can mute your device's microphone when
you need to make a conversation while you are on the
call so that someone on the other side of the line does
not hear it.
• Speaker: turning on/off the handsfree mode.
• Keypad: you can use it, where DTMF ( Dual-tone multi-
frequency signalling) using is needed.
•Hold Hold an active call or keep it from hold.
•Add call: You can manually enter a phone number to call
it.
•Start recording: making record about the call. If you want
to finish it, please press the Stop recording option.
•Swap: * You can exchange the held and active calls.
•Merge: * Combine calls to a conference call.
•Transfer: * Transfer the call to another number.
•Hangup all: finishing all calls
•Hangup holding: finishing the held call
•Merge*: make a conference call from separate calls
•Manage*: manage the members of the conference call
(separate calls or hang up the selected call)
7.5. ECT*
The Explicit Communication Transfer (ECT) service enables a user
to transfer an ongoing call to a third party so that the other two
parties can communicate with each other.
1. You can transfer a single call by choosing the
Transfer option. After it you can add the number
from the phonebook or input manually. Please
note, it just works when the number is given in
national format. Finally choose the Transfer option.
2. If you have two separate calls at the same time,
(one active and one held), you can transfer them

EN
11
to each other.
3. During an ongoing call you can answer another
incoming call by swiping up the screen or press the
Call button. (Active Call waiting option is needed).
After receiving the second call, please press the
Transfer option.
7.6. Wi-Fi calling*
If your network operator provides it, your phone can starts and
receives calls via Wi-Fi network. You need an active servcie on
your mobile subscription:
1. Connect to a Wi-Fi network.
2. Turning on he Wi-Fi calling option (Phone > Left
softkey: Settings > Calls > Wi-Fi Calling > Enable
Wi-Fi calling.
3. In the Calling preference option select the Wi-Fi
preferred mode.
Note: The menu items marked with [*] only work under special
conditions. Such as: "Swap", which can only be achieved if one of
the calls is held on the other active. To access the conference call,
you need a service that you can activate with your network.
8. Messaging
It can be opened from the idle screen or in the main menu.
8.1. Reading new message
When you receive a message, a beep and vibration will alert you
to this and a pop-up window will appears on the display with the
new message text.

EN
12
8.2. Writing a new message
1. Open the Messaging app and then press the Left
softkey,
2. Choose the „New message” option
3. Input the text in the „Type the text message” field.
4. Input the phone number in the „Type name or
number” field, or add it from the phonebook.
5. If you press the paperclip icon in the right corner
at the top off the screen, you can add attachment
to the text (but it will be changed to MMS).
6. Press the send button at right at the bottom of the
screen.
Reaching the Settings menu: In the conversation view press the
Left softkey and then the Settings. You can check and change the
SMS, MMS and Notfication settings here, and in the General
settings you can manage the message font size, storage settings
and cell broadcast settings.
9. WhatsApp
It can be opened from the idle screen or in the main menu.
At the first start: the device downloads the app. The browser
displays the following: For your security, your phone is a not
allowed to insall unknown apps from this source.
1. Choose the SETTINGS, then turn on Allow from
this source switch.
2. Then press the Right softkey and choose the
INSTALL option.
3. When it’s done, choose the OPEN, and after the
AGREE AND CONTINUE with cursor.
4. Input your phone number, and then press the
NEXT button also with the cursor.
5. You have to verify your phone number by choosing
OK, or before it you can edit it.

EN
13
6. Choose the CONTINUE option and then ALLOW:
the phone will fill the empty field automatically.
7. Type a name and choose NEXT with the cursor.
With new message icon (at bottom right corner) you can send text
to your WhatsApp contacts. If you don’t have any, you can invite
them.
In the CALLS option you call your WhatsApp contacts.
10. Facebook Lite
It can be opened from the idle screen or in the main menu.
At first start: you have to agree the Facebook Terms and Data
Policy by pressing the CONTINUE with the cursor.
1. The application has to be updted, press the
UPDATE button, but before decide would you like
to use mobile data if it’s Wi-Fi unavailable or not.
2. Wait for the update and after it login to your
account or create a new one.
11. Phone
It can be opened from the idle screen or in the main menu.
Here can be found the favorite contacts (if you added one or
more), call history and contacts.
By pressing the Left softkey you can reach the Settings:
•Display options: sort by and name format settings
can be reached here.
•Sounds and vibration: managing the sound and
vibration settings.
•Quick responses: editing quick answers.
•Calls: managing Fixed dialling numbers, Wi-Fi
Calling, Turn on video calling, Call forwarding, Call
barring, Caller ID and Call waiting settings (About
these services please contact to your operator).

EN
14
•Call blocking: here you can add the phone
numbers, what can’t call you and write messages.
•Voicemail: here can be checked and managed the
voicemail settings. In the Advanced
settings>Setup>Voicemail number menu path: the
voicemail number can be set and edited.
•Accessibility: turning on or off TTY mode and noise
reduction.
12. Contacts
It can be opened from the idle screen or in the main menu or from
the phone.
For creating new contact:
1. Choose the Create new contact option
2. Choose the storage where you want to save the
contact (phone or SIM).
3. Fill the desired fields.
4. Press the SAVE option to save the number.
In the Settings menu you can reach the following options: My info
(creating owner profile), setting default account for new contacts,
Contacts to display, Sorty by, name format and phonetic name
settings, importing and exporting contacts between storages (SIM,
phone storage, internal storage and microSD card) and blocked
numbers.
13. Browser
You can access the internet via this application by entering URL-s
in the address bar. You must have a subscription to access the web
pages, and you must complete the appropriate configuration
settings on your device.

EN
15
14. Calculator
You can use it for basic calculation operation and advanced
mathematical functions too.
15. Calendar
It can be used as a simple calendar, changing its settings, or
checking the actual date, jump to a date, creating and managing
events.
To create an event:
1. Press the Left softkey and the New event option
2. Add the event details.
3. Press the Done option for saving it.
16. Camera
Use the camera to take photos and videos.
To take a photo or video, press the camera or the video icon.
To set the camera parameters, press the Settings icon at the left
corner of the top of the screen.
To turn on/off the flashlight: press the icon at the top of the
screen in the middle.
To change between the back and the front camera press the icon
at the right corner also at the top of the screen.
17. Clock
You can check the date and time on the clock surface. By pressing
the alarm icon, you can set a new alarm, or turn the current alarm
on or off. You can set a countdown, stopwatch and city too. The
stopwatch result can be shared via WhatsApp, Facebook Lite,
Bluetooth, Email, Messaging. By pressing the Left softkey you can
turn ont he screensaver or managa the Clock application settings.
18. Email
Here you can set an e-mail account by adding the e-mail address,

EN
16
the account type (POP3 or IMAP) and the password or with the
MANUAL SETUP option by adding every important details.
19. File manager
Here You can open, rename or delete the files in microSD card
memory or in the internal storage.
20. FM Radio
Connect the headset, then press the FM Radio icon in the main
menu. You can move forward or backward through the channels
and add the currently listened channel to Favourites. By opening
the Radio Stations at the right of the top of the screem, the
machine automatically searches for and stores available stations.
Also at the right of the top of the screen: if you press the
earphone icon, yo can change between earphone and the speaker.
With the second mode, you can listen to the radio with handsfree
mode.
By pressing the Left softkey you can record the broadcast by
choosing the Start recording option. In the Saved recordings
menu you can listen tot he record.
21. Gallery
You can view pictures and videos taken with your camera, or
those stored on your microSD card or in the internal storage.
22. Music
Here you can play the music files which was saved to the internal
storage or in the microSD-card. The songs are grouped by artist
and albums, but you can create separate playlist from them too:
1. Open the song and then press the Left softkey.
2. Choose the Add to playlist option, and then choose an existing
list or create a new one.

EN
17
23. Settings
23.1. Network & Internet
⚫Aeroplane mode
You can turn Aeroplane mode on or off here. By activating it, the
device turns off the wireless features (mobile network, Wi-Fi,
Bluetooth, FM radio, GPS) but the multimedia features (Music,
Video) can still be used.
⚫Wi-Fi
Turn on the feature to access Wi-Fi networks. The device
automatically displays available networks. Select the network you
want to connect to. Enter the password if it’s necessary.
⚫Mobile network
oYou can turn on or off the roaming data;
oTurn on or off the Enhanced 4G LTE Mode (this switch
can’t be reached in every software version);
oChoose from the following network types: 2G only,
3G only, 3G/2G Auto, 4G/3G/2G Auto;
oCheck and edit access points;
oManually search and choose a network.
⚫Data Usage
In this menu, you can review your data usage (mobile and Wi-Fi
too), and turn your mobile data on and off. You can set the
maximum amount of data that can be marketed through a mobile
network (Billing cycle> Set data limit). Attention! The service
provider can calculate the costs of data traffic in different units.

EN
18
⚫Hotspot & tethering
You can share your device's Internet connection via USB, via
Bluetooth or by setting a Wi-Fi hotspot.
⚫VPN
Virtual private networks can be configured in this menu item.
23.2. Connected devices
Your device supports Bluetooth, which allows you to send data
wirelessly.
•Turn on the function.
•From the Available Devices list, select the device
you want to exchange data with. Before sending
data, you need to pair your device with another
device.
•To pair, make sure the code on the screen
matches the code of the other device.
•If the code matches, confirm.
23.3. Battery
We get information about the battery (current charge, last full
charge and screen usage since full charge). Here you can turn on
or off power management settings (intelligent power saving
standby ,battery saver, and showing battery percentage).
23.4. Display
You can set here the brightness level, wallpaper, sleep and font
size.
23.5. Sound
It is possible to set the device's ringtone, volume, and other tones.

EN
19
23.6. Storage
You can check here the device and the SD-card storage.
23.7. Security & location
Here can be set different device security and privacy rules.
⚫Screen lock
In this menu, you can set screen lock on your device to prevent
unauthorized access.
⚫SIM card lock
You can turn the PIN code on or off and change the SIM
23.8. System
This menu option allows you to perform language settings, set
date and time, do more reset methodes, set scheduled power
on/off, and check software and hardware information.
24. Sound recorder
Your device supports voice recording.
1. Press the Record button to start the recording.
2. Press the Stop to finish it.
3. If you want keep the record, press the SAVE option.
With the Left softkey you can change the voice quality and the
recording mode.
25. Videos
You can view the videos taken with your camera, or those stored
on your SD card or in the internal storage.

EN
20
26. Declaration of Conformity
The Blaupunkt FL 06 is compliant with the essential requirements
and relevant provisions of RoHS Directive 2014/53 / EU and
2011/65 / EU. The Declaration of Conformity is available on our
website.
Designed and Engineered by
Blaupunkt Competence Center Mobile Europe
HTM Mobile Kft.
1118 Budapest, Dayka Gábor utca 3. Hungary
Assembled in P.R.C by
Mobiwire Mobiles (NingBo) Co., Ltd
Building A.No.999 Dacheng Road, Fenghua, Ningbo, Zhejiang,
China 315500
For more information on this product, visit our website at
www.htmmobile.hu or www.blaupunkt.com.
