Blaze 40E User manual
1
BLAZE 40/60E ELECTRIC FAN HEATER
PRODUCT MANUAL
IMPORTANT INSTRUCTIONS
READ AND UNDERSTAND THIS MANUAL BEFORE ASSEM-
BLING, STARTING OR SERVICING THE HEATER.
IMPROPER USE OF HEATER CAN CAUSE SERIOUS
INJURY.KEEP THIS MANUAL FOR FUTURE REFERENCE.
SAVE THESE INSTRUCTIONS
FOR PROFESSIONAL USE ONLY
2
BLAZE 40 and 60 E (240V/480V and 600V) OPERATING
INSTRUCTIONS MANUAL
Suitable for Indoor or Outdoor Installation / Unvented / Unattended Type
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND
INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN
RESULT IN DEATH, SERIOUS BODILY INJURYAND
PROPERTY LOSS OR DAMAGE FROM HAZARDS OF
FIRE, EXPLOSION, BURNS ASPHYXIATION, OR
ELECTRICAL SHOCK
ONLY PERSONS WHO CAN UNDERSTAND AND
FOLLOW THE INSTRUCTIONS SHOULD USE OR
SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER
INFORMATION SUCH AS AN INSTRUCTIONS
MANUAL, LABEL, ETC. CONTACT THE
MANUFACTURER
WARNING: FIRE, BURN, INHALATION AND
EXPLOSION HAZARD, KEEP SOLID
COMBUSTIBLES, SUCH AS BUILDING
MATERIALS, PAPER, OR CARDBOARD, A SAFE
DISTANCE AWAY FROM THE HEATER AS
RECOMMENDED BY THE INSTRUCTIONS
NEVER USE THE HEATER IN SPACES WHICH DO OR
MAY CONTAIN VOLATILE OR AIRBORNE
COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE
SOLVENTS, PAINT THINNER, DUST PARTICLES OR
UNKNOWN CHEMICALS
WARNING: NOT FOR HOME OR
RECREATIONAL VEHICLE USE
3
EXTREME CAUTION IS NECESSARY WHEN ANY HEATER
IS USED BY OR NEAR CHILDREN OR INVALIDS AND WHEN-
EVER THE HEATER IS LEFT OPERATING AND UNATTENDED.
DO NOT OPERATE ANY HEATER AFTER IT MALFUNCTIONS.
DISCONNECT POWER AT SERVICE PANEL AND HAVE HEATER
INSPECTED BY A REPUTABLE ELECTRICIAN BEFORE REUSING.
TO DISCONNECT HEATER, TURN CONTROLS TO OFF, AND TURN
OFF POWER TO HEATER CIRCUIT AT MAIN DISCONNECT PANEL.
DO NOT INSERT OR ALLOW FOREIGN OBJECTS TO ENTER ANY
VENTILATION OR EXHAUST OPENING AS THIS MAY CAUSE AN
ELECTRIC SHOCK OR FIRE, OR DAMAGE THE HEATER.
USE THIS HEATER ONLY AS DESCRIBED IN THIS MANUAL. ANY
OTHER USE NOT RECOMMENDED BY THE MANUFACTURER MAY
CAUSE FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.
PREVENT A POSSIBLE FIRE, DO NOT BLOCK AIR INTAKES OR
EXHAUST IN ANY MANNER.
STORE HEATER IN A CLEAN DRY AREA WHEN NOT IN USE.
WARNING: HEATER MUST BE PROPERLY INSTALLED BEFORE IT IS USED
4
Introduction
You have just received a Blaze 40 or 60 E (240V/480V or 600V) 40kW or 60kW Electric Construction Heater
manufactured by Campo Equipment Co. Ltd.
Use: The Blaze 40 or 60 E Electric Construction Heater is designed for temporary heat only. The heater
maybe installed indoors or outdoors and used to bring 100% outdoor air,or heat and re-circulate building air.
The Blaze 40 or 60 E is designed to heat large spaces, buildings and machines without worrying about on
site fuel.
Quality:The Blaze 40 or 60 E is built with the highest quality of components, giving our
Customers the confidence they deserve in a Ecoblaze product.
Convenience:The Blaze 40 or 60 E gives our customers the flexibility of a 20kw/40kw or 20kw/40kw/60kw
heat setting respectively.
Colour coded Cam Lock power connections for easy installation. A remote thermostat option is
available.
Safety
NOTE :
Wiring procedures and connections shall be in accordance with the national and local codes having
jurisdiction.
Always verify that you have proper voltage supply.(240V/480V or 600V—
depending on the which version you have purchased) It is important to check the
wiring connections inside the heater before plugging in the Cam Locks.
Use a meter to measure volt supply to each cam lock.
CAUTION:
Work on the internal systems should only be attempted by an authorized service
representative and only when power has been disconnected and cannot be
reconnected to the heater.
Grounding
The heater is supplier with a cam lock system with a grounding connection and is indicated with a "G"
on the cam lock panel. It is very important to double check that all grounding connections are properly
secure.
The appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with
the
National Electrical Code, ANS/NFPA 70; or the Canadian Electrical Code, CSA C22.1
5
Clearance to Combustibles
This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at
least 15 feet (4.6 m) from the front of the heater and keep them away from the sides and rear.
The discharge temperature of these units may reach very high temperatures. Maintain minimum
distance from combustible materials as follows:
MINIMUM CLEARANCES
Top to Combustibles 6” (152 mm)
Sides to Combustibles 6” (152 mm)
Bottom to Combustibles 6” (152 mm)
Discharge End to Combustibles 15’ ( 4.6 m )
6
MAINTENANCE
Before cleaning, make sure the power has been turned off at the circuit breaker panel and that the
heating element of the heater is cool
1 Every heater should be inspected before each use, and at least annually by a
qualified service person
2 The appliance must be kept clear and free from combustible materials,
gasoline and other flammable vapors, and/or liquids
3 The flow of ventilation air must not be obstructed. Be sure to check the fan assembly and
ensure the motor and blade are operating properly
4 Compressed air may be used to keep components free of dust and dirt
build up.
WARNING
Any non-routine maintenance must be performed by an authorized service representative.
Pre-Start Checklist
1
Heater must be level and lockable wheels must be in the locked position
2
Make sure fan switch and heat selection switch are in the “OFF”
position.
3
Make sure the air intake is free from any obstruction(s)
4
Make sure the heater outlet is free from any obstruction(s)
5
Make sure the heater is properly grounded
6
Check power supply voltage and amps.
7
START UP INSTRUCTIONS
1
Determine power source-240V or 480V or 600V(confirm power source is correct for version
of Blaze 40 or 60 E that you have purchased)
2
Remove top cover and inspect all wiring
(once complete, secure top cover to heater using the same hardware)
3
Connect Flanged Cam locks to female cam locks
(colour coded) Connect cam locks as follows:
RED L1
BLACK L2
BLUE L3
Ground G
3PHASEUNITCONNECTION
4 Turn on power supply
5 Determine "Bypass" or “Remote Stat”(if remote, set desired temperature)
6 Turn Heat on/off switch to the "ON" position
(The blower will start and heater elements will start to heat up)
7 Turn on heater settings as desired
8
CAUTION; Failure to have proper air flow will cause heater to shut
down, it is imperative to maintain proper air flow.
:
TEMPERATURE SETTINGS
HEAT SETTINGBTU
/
Hr. CFM
60kW 205,000 4,500
40kW 136,500 4
,
500
20kW 68,250 4
,
500
F
A
N ONLY 04
,
500
SHUTDOWN
1
Move heat ON/OFF control setting to the "OFF" position
2
When cooling fan shuts down you may shut off power source
3
Shut off power source
4
Disconnect all power sources
5
Store heater
9
HEATER TECHNICAL SPECIFICATIONS
MODEL BLAZE 150 E
Power Requirements
Available in 240V/480V or 600V
MAXIMUM INPUT(KW)
136,500 BTU (Blaze 40E), 205,000 BTU (Blaze 60E)
240V/480V 600V
AMP DRAW
60KW
144/72AMPS 58 AMPS
40KW
96/48AMPS 39 AMPS
20KW
48/24AMPS 19.5 AMPS
INLETSIZE
OUTLETSIZE
(Designedfor20"Dia.Ducting)
DIMENSIONS
HXLXW (IN.)
WEIGHT
12” Dia.
12"
o
r 1
6
” Di
a
.
51.5” X 22” X 35.5”
300 LBS

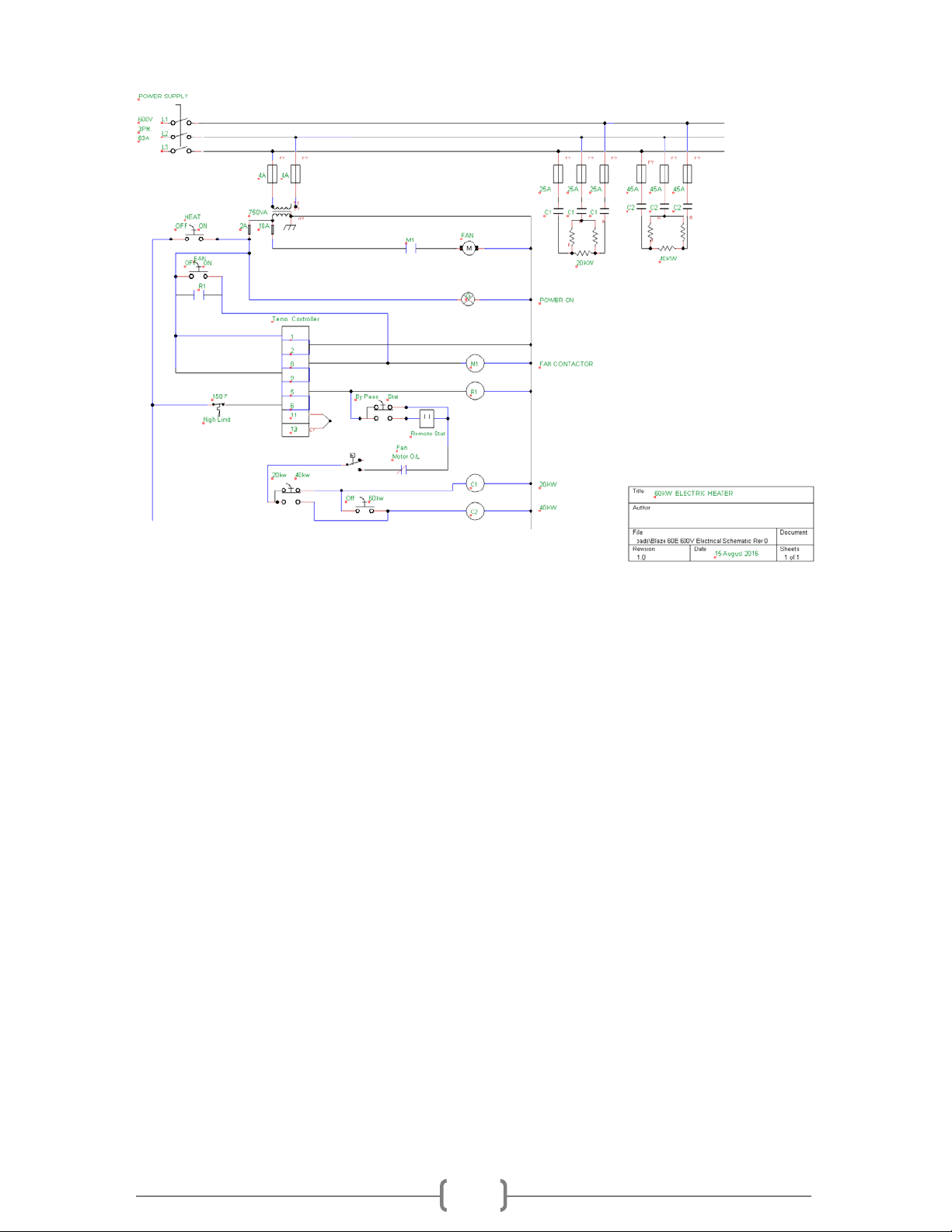

10
11
ECOBLAZE60E(240V/480V)

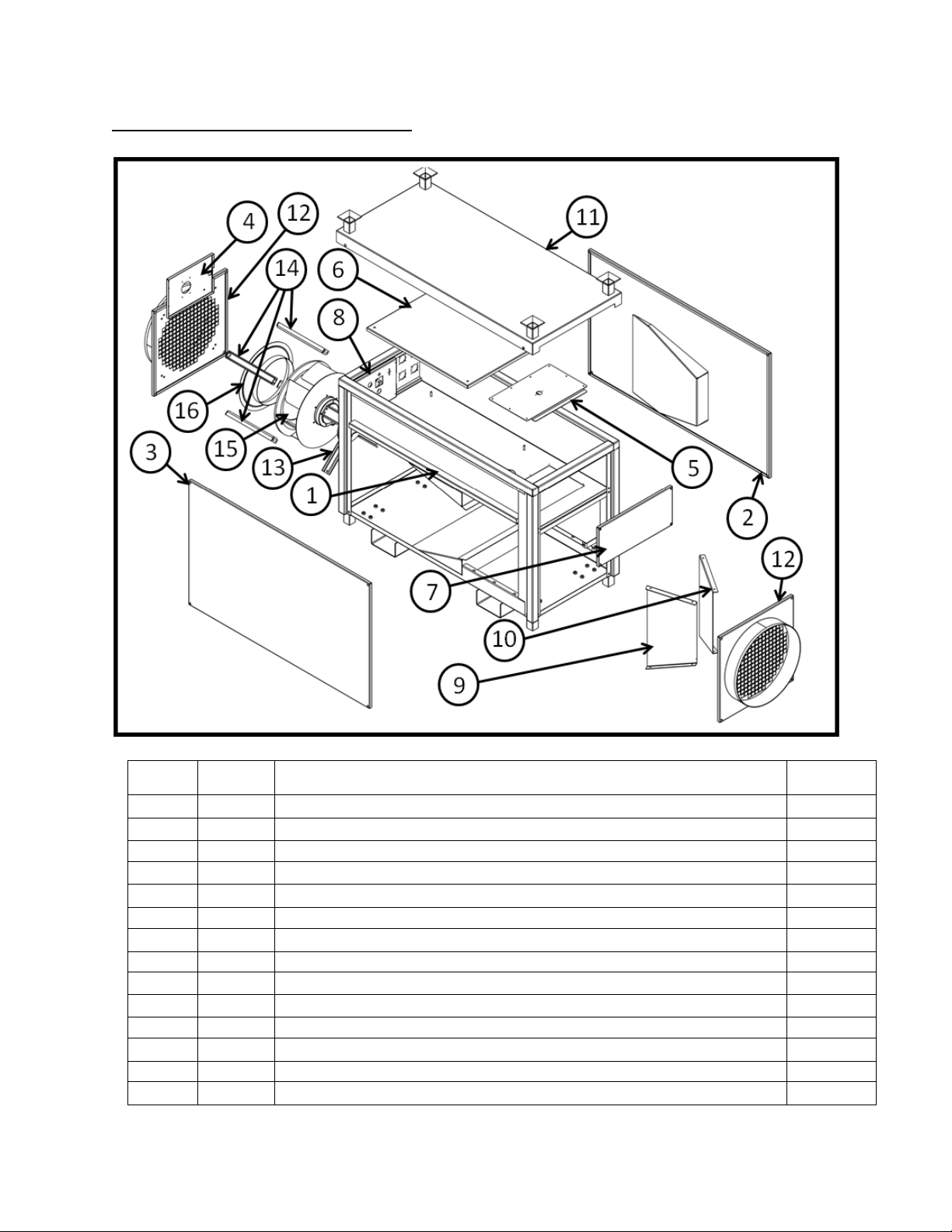

BLAZE60E(240V/480V)PARTSBREAKOUTREV1
ITEM#PART#DESCRIPTIONQUANTITY
1C50115FRAME1
2C50116SIDEPANELLEFT1
3C50117SIDEPANELRIGHT 1
4C50118DOORPANEL1
5C50119ACCESSPANEL1
6C50120ELECTRICALPANEL 1
7C50121PANEL1
8C50122ELECTRICALPANEL(CONTROLS)1
9C50123DEFLECTORRIGHT1
10C50124DEFLECTORLEFT1
11C50125TOPPANEL1
12C50126RETURNPANEL/SUPPLYPANEL1
13C50127FANMOUN
T
1
14C50128FANPOST 4
ECOBLAZE60E(240V/480V)
15C40029FANMOTORE1
16C40030INLETCONEFORFANMOTORE1
OPTIONALPARTS
C40051FANMOTORR1
C40052INLETCONEFORFANMOTORR 1
C5015912"SUPPLYPANEL 1
C5016016"SUPPLYPANEL1
ECOBLAZE60E(240V/480V)
BLAZE60E(240V/480V)CONTROLPANELBREAKOUTREV1
ITEM#PART#DESCRIPTIONQUANTITY
1C50127FANMOUNT1
2C50128FANPOST4
3C50129ROTARYSWITCH 1
4C50130TRANSFORMER 1
5C50131BLACKCAMLOCK 1
6C50132REDCAMLOCK1
7C50133BLUECAMLOCK 1
8C50134GREENCAMLOCK1
9C50135FUSEHOLDER 1
10C50136FUSEHOLDER 1
11C50162FUSEHOLDER 1
12C5013730AFUSE 3
13C5013860AFUSE 3
14C50163100AFUSE 3
ECOBLAZE60E(240V/480V)
15C50257CONTACTOR 1
16C50140CONTACTOR2
17C50164CONTACTOR 1
18C50256CONTACTOR2
19C50038FUSEHOLDER1
20C50141FUSEHOLDER 2
21C501424A600VT.D.FUSE2
22C501432A250VT.D.FUSE 1
23C5014410A250VT.D.FUSE 1
24C90050RELAY12
25C90025POWERONINDICATORLIGHTGREEN1
26C90029OUTLETFORPLUG1
27C70065SELECTORSWITCH 4
28C70069FIXINGCOLLAR3
29C70071CONTACTBLOCK 2
30C50166CONTACTBLOCK 3
31C50155AIRSWITCH 1
32C40033TEMPERATURECONTROLLER 1
33C50156THERMOCOUPLEASSEMBLY1
34C50167ELEMENT 1
35C50168CASTER4
36C40029FANMOTORE1
37C40030INLETCONEFORFANMOTORE 1
38C90055CAPACITORFORFANMOTORE1
39C50124DEFLECTORLEFT1
40C90041HIGHLIMITSWITCH1
41C70064SELECTORSWITCH1
42C50299HINGE2
43C70087GRABHANDLE1
44C502981/4TURNLATCH1
45C70072FLIPLIDCOVERHOUSING1
46C50242AUX.CONTACT6
OPTIONALPARTS
C50158CONTACTOR2
C50161CONTACTOR 1
C40028THERMOCOUPLEASSEMBLY1
C90054CAPACITORFORFANMOTORR 1
C40051FANMOTORR1
C40052INLETCONEFORFANMOTORR 1
C50260FANMOTORP1
ECOBLAZE60E(240V/480V)
BLAZE60E(240V/480V)DECALKITBREAKOUTREV1
C50316BLAZE60E240/480VDECALKIT
C50317SERIALNUMBER(VARIABLEDATA)
C50302CAMPOLOGO
C50303CAUTION‐‐SHOCKRISK
C50304CAUTION‐‐BURN/FIREHAZ.
C50305CAUTIONCAMLOCKS
C50306DANGER‐‐MOVINGPARTS
C50307DANGER‐‐HAZ.VOLTAGE
C50308CAUTION‐‐AIRFLOWBLOCK
C50309MUSTBEGROUNDED
C50318BLAZE60E
C50311BUTTONS
ECOBLAZE60E(600V)
BLAZE60E(600V)PARTSBREAKOUTREV1
ITEM#PART#DESCRIPTIONQUANTITY
1C50115FRAME1
2C50116SIDEPANELLEFT1
3C50117SIDEPANELRIGHT 1
4C50118DOORPANEL1
5C50119ACCESSPANEL1
6C50120ELECTRICALPANEL 1
7C50121PANEL1
8C50122ELECTRICALPANEL(CONTROLS) 1
9C50123DEFLECTORRIGHT1
10C50124DEFLECTORLEFT1
11C50125TOPPANEL1
12C50126RETURNPANEL/SUPPLYPANEL1
13C50127FANMOUN
T
1
14C50128FANPOST 4
ECOBLAZE60E(600V)
15C40029FANMOTORE1
16C40030INLETCONEFORFANMOTORE1
OPTIONALPARTS
C40051FANMOTORR1
C40052INLETCONEFORFANMOTORR 1
C5015912"SUPPLYPANEL 1
C5016016"SUPPLYPANEL1
ECOBLAZE60E(600V)
BLAZE60E(600V)CONTROLPANELBREAKOUTREV1
ITEM#PART#DESCRIPTIONQUANTITY
1C50127FANMOUNT1
2C50128FANPOST4
3C50235TRANSFORMER1
4C50257CONTACTOR 1
5C50131BLACKCAMLOCK 1
6C50132REDCAMLOCK1
7C50133BLUECAMLOCK 1
8C50134GREENCAMLOCK1
9C50239 FUSEHOLDER 1
10C50241 60AFUSE 3
11C50135FUSEHOLDER1
12C5013730AFUSE 3
13C50240FUSEHOLDER1
ECOBLAZE60E(600V)
14C501424A600VT.D.FUSE2
15C50141FUSEHOLDER 2
16C501432A250VT.D.FUSE1
17C5014410A250VT.D.FUSE1
18C50259CONTACTOR1
19C90050RELAY12
20C70071CONTACTBLOCK 2
21C90055CAPACITORFORFANMOTORE1
22C70051GROUNDLUG 1
23C50155AIRSWITCH 1
25C90025POWERONINDICATORLIGHTGREEN 1
26C90029OUTLETFORPLUG 1
27C70065SELECTORSWITCH 4
28C70069FIXINGCOLLAR3
30C50166CONTACTBLOCK3
31C70072FLIPLIDCOVERHOUSING1
32C40033TEMPERATURECONTROLLER 1
33C50156THERMOCOUPLE1
34C50313ELEMENT 1
35C50168CASTER4
36C40029FANMOTORE1
37C40030INLETCONEFORFANMOTORE 1
39C50124DEFLECTORLEFT1
40C90041LIMITSWITCH1
42C50299HINGE2
43C70087GRABHANDLE1
44C50298LOCK1
OPTIONALPARTS
C40028THERMOCOUPLEASSEMBLY1
C90054CAPACITORFORFANMOTORR 1
C40051FANMOTORR1
C40052INLETCONEFORFANMOTORR 1
C50260FANMOTORP
This manual suits for next models
1
Table of contents
Other Blaze Heater manuals
Popular Heater manuals by other brands
Flamerite Fires
Flamerite Fires Milan Installation precautions
Protherm
Protherm electrical direct-heating convector instructions
iHeater
iHeater mini 500 IH-101 owner's manual
Norseman
Norseman XB Series Installation, operation & maintenance instructions
The boss
The boss SRCH51101 manual
Purmo
Purmo OPTIMO 500E ECO Installation & operating manual
