Blizzard infinipix SPEKTRO User manual

Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2022

Page 2
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
TABLE OF CONTENTS
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions 4
2. Meet the Innipix™ Spektro 5
Main Features 5
DMX Quick Reference 5
Innipix™ Spektro Pin-Up Picture 6
Rear Connections 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch of Innipix™ Spektro Fixtures 7
Data/DMX Cabling 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh?!? 8
Take It To The Next Level: Setting Up DMX Control 8
Assembly Instructions 9
Mounting & Rigging 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
DMX Values In-Depth 11
Static Color Values 14
Built-In Program Values 14
Dimensional Drawings 14
5. Appendix 15
Keeping Your Innipix™ Spektro As Good As New 15
Returns (Gasp!) 15
Shipping Issues 15

Page 3
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• Innipix™ Spektro LED Fixture
• Power Cord
• A Set of Fixture Joining Plates & thumbscrews
• This Lovely User Manual
Getting It Out Of The Box
Congratulations on purchasing the Innipix™ Spektro. Now that you’ve got your xture,
you should carefully unpack the box and check the contents to ensure that all parts are
present and in good condition. If anything looks as if it has been damaged in transit, notify
the shipper immediately and keep the packing material for inspection. Again, please save
the carton and all packing materials. If a xture must be returned to the factory, it is im-
portant that the xture be returned in the original factory box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run o a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the
xture you receive is suitable for your local power supply. See the label on the xture or
refer to the xture’s specications chart for more information. A xture’s listed current
rating is its average current draw under normal conditions. Check the xture or device
carefully to make sure that if a voltage selection switch exists that it is set to the correct
line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied does
not match the voltage indicated on the voltage selector switch. All xtures must
be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something goes wrong, please just visit our website at www.blizzardpro.com/
support and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information contained in this document are subject to change without notice. Blizzard
Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user
manual. We reserve the right to update the existing, or create a new document to correct any errors or
omissions. You can download the latest version of this document from www.blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 7/18/2022 J. Thomas 8/10/2022

Page 4
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
Please read these instructions carefully. They include
important information about the installation, usage and
maintenance of this product.
Safety Instructions
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the de-
cal or rear panel of the xture.
• Make sure there are no ammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least
20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
• ALWAYS secure xture using a safety chain. NEVER carry the xture by its
head. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized tech-
nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the
housing or attempt any repairs yourself. In the unlikely event your unit may
require service, please open a support ticket at www.blizzardpro.com/support.

Page 5
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
2. MEET THE INFINIPIX™ SPEKTRO
Main Features
• 196 tri-color SMD 5050 LEDs (RGB)
• 7 blocks (23 x 23 cm), each with 28 LEDs
• 4 horizontal sections per block for smooth gradient eects
• 120° viewing angle
• 0 to 100% dimming and variable strobe
• Free standing setup with 0-40° locking ip-out stand
• +5V USB to power SoC-It™ wireless unit (not included)
• Includes bracket hardware to allow multiple unit rigging
• 4-button control menu with LED display
• Convection cooled, zero fan noise
• PowerCON-compatible power input/output
• 3/5-pin XLR input/output
Control
• Protocol: USITT DMX-512, RDM
• DMX Channels: 3/4/5/21/28 or 84 DMX channels
• 4-button control menu with LED display
• Operating modes: DMX512, M/S, auto, sound active mode
DMX Quick Reference (3/4/5/7/21/28/84-Channel Modes)
3CH 4CH 5CH 7CH 21CH 28CH 84CH What it does
-- 111-- -- -- Dimmer
-- -- 2-- -- -- -- Strobe
1-- 3 2-- -- -- All Red
2-- 43 -- -- -- All Blue
3 -- 5 4-- -- -- All Green
-- -- -- -- -- -- -- Strobe
-- 2-- 5 -- -- -- Built-In Eects
-- 3 -- -- -- -- -- Static Colors
-- 4-- 6 -- -- -- Program Speed
-- -- -- 7 -- -- -- Strobe
-- -- -- -- 1-3 -- -- Block 1 Red, Green, Blue
-- -- -- -- -- -- -- --
-- -- -- -- 19-21 -- -- Block 7 Red, Green, Blue
-- -- -- -- -- 1-28 -- Static Colors
-- -- -- -- -- -- 1-3 Section 1 Red, Green, Blue
-- -- -- -- -- -- -- --
-- -- -- -- -- -- 82-84 Section 28 Red, Green, Blue

Page 6
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
Figure 2: Rear Connections

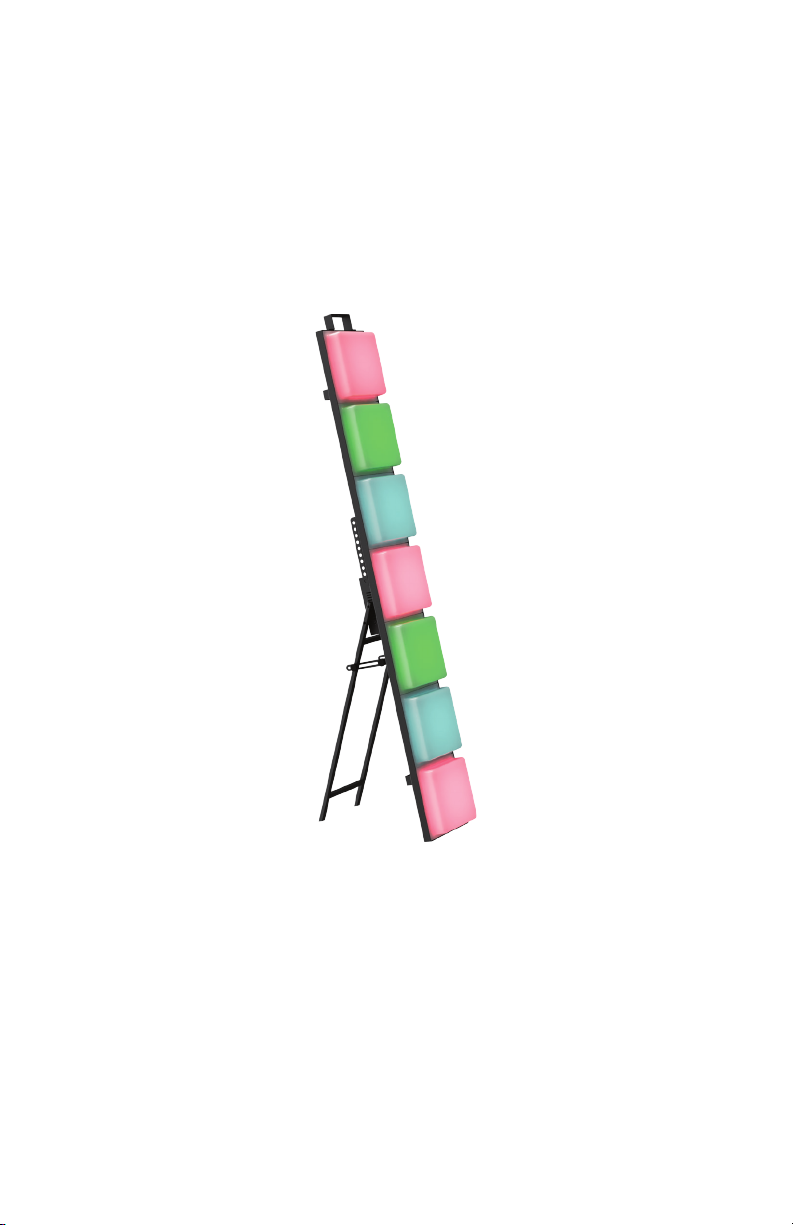

Figure 1: Innipix™ Spektro Pin-Up Picture
Block 1
Section 28
Section 27
Section 26
Section 25
Block 2
Block 3
Block 4
Block 5
Block 6
Block 7
Section 24
Section 23
Section 22
Section 21
Section 20
Section 19
Section 18
Section 17
Section 16
Section 15
Section 14
Section 13
Section 12
Section 11
Section 10
Section 9
Section 8
Section 7
Section 6
Section 5
Section 4
Section 3
Section 2
Section 1
Block and Section Identication:
TOP
196* 5050 SMD RGB LEDs
7 blocks, each containing 4
rows of 7 LEDs. Each block has
a total of 28 RGB LEDs.
Top Bracket
Rear Bracket
Rear Bracket
Stand
POWER IN POWER OUTDMX OUTDMX IN DMX OUTDMX IN
5-pin DMX In/Out 3-pin DMX In/Out Power In/Out

Page 7
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
Fuse Replacement
This xture utilizes a high-output switch-mode power supply with an internal
fuse. Under normal conditions, the fuse should not require replacement. Should
your xture require fuse replacement, please contact us for instructions.
Connecting A Bunch of Innipix™ Spektro Fixtures
You will need a serial data link to run light shows using a DMX-512 controller
or to run shows on two or more xtures set to sync in master/slave operating
mode. The combined number of channels required by all the xtures on a serial
data link determines the number of xtures the data link can support.
Fixtures on a serial data link must be daisy chained in a single line. Also, con-
necting more than 32 xtures on one serial data link without the use of an
optically-isolated DMX splitter may result in deterioration of DMX signal. The
maximum recommended cable-run distance is 500 meters (1640 ft).
Data/DMX Cabling
To link xtures together you’ll need data cables. You should use data-grade
cables that can carry a high quality signal and are less prone to electromagnetic
interference.
For instance, Belden© 9841 meets the specications for EIA RS-485 applica-
tions. Standard microphone cables will “probably” be OK, but note that they
cannot transmit DMX data as reliably over long distances. In any event, the
cable should have the following characteristics:
• 2-conductor twisted pair plus a shield
• Maximum capacitance between conductors – 30 pF/ft.
• Maximum capacitance between conductor & shield – 55 pF/ft.
• Maximum resistance of 20 ohms / 1000 ft.
• Nominal impedance 100 – 140 ohms
Before replacing a fuse, disconnect the power cord.
ALWAYS replace with the same type and rating of fuse.
3. SETUP
Disclaimer: The power connectors tted to the xture and xture cord are designed for compatibility
with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not
manufactured by, aliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik®
and powerCON® are registered trademarks of Neutrik AG.

Page 8
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connec-
tor on the other end. (Duh!)
To build your own DMX Terminator:
Obtain a 120-ohm, 1/4-watt resistor, and wire it between pins 2 & 3 of the last xture. They are also
readily available from specialty retailers.
Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the DMX cable to the female connector
(output) on the controller.
Step 2: Connect the female connector of the
DMX cable to the rst xture’s male connector
(input).
Note: It doesn’t matter which xture address is the rst one
connected. We recommend connecting the xtures in terms
of their proximity to the controller, rather than connecting the
lowest xture number rst, and so on.
Step 3: Connect other xtures in the chain
from output to input as above. Place a DMX
terminator on the output of the nal xture to
ensure best communication.
CAUTION: Do not allow contact between the common and the xture’s chassis
ground. Grounding the common can cause a ground loop, and your xture may
perform erratically. Test cables with an ohm meter to verify correct polarity and
to make sure the pins are not grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
This xture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output. The
sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 3/5-pin XLR
connectors to connect the controller to the xture, or the xture to another xture.
Conductor 3-Pin Female (Output) 5-Pin Male (Input)
Ground/Shield Pin 1 Pin 1
Data 1- (Primary Data Link) Pin 2 Pin 2
Data 1+ (Primary Data Link) Pin 3 Pin 3
Data 2- (Optional Secondary Data Link) -- Pin 4 - Do Not Use
Data 2+ (Optional Secondary Data Link) -- Pin 5 - Do Not Use
12
33
INPUT OUTPUT
Common
DMX +
DMX -
DMX OUTDMX IN
First
Fixture
in Chain
Next
Fixture
in Chain
DMX OUTDMX IN
A Word on Termination:
DMX is a resilient communication protocol, however
errors still occasionally occur. Termination reduces signal
errors, and therefore best practices include use of a
terminator in all circumstances. If you are experiencing
problems with erratic xture behavior, especially over
long signal cable runs, a terminator may help improve
performance.

Page 9
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
Assembly Instructions
1.) On a at surface, lay the top and bottom xture pieces face down, and align the bottom
of the top piece with the top of the bottom piece. You may want to lay them on a piece of
cardboard (or other soft material) to avoid the possibility of scratching the block lenses.
2.) Align the joining plate with the screw holes found on the top an bottom pieces, and use
the included thumbscrews to securely attach the pieces together.
3.) Connect the data wiring cable from the bottom piece to the top piece.
4.) For a single freestanding setup, you can now set the xture upright on the oor, swivel
the stand anywhere up to a 40° angle, and tighten the stand's locking knobs.
5.) To vertically join multiple xtures, use the second joining plate and thumbscrews to
attach them together (top to bottom). You should only use the top hanging bracket on the
uppermost rigged xture(s). The top bracket can support up to 4 xtures.
6.) For horizontally connected xtures, use the rear swivel mount brackets and extra
thumbscrews to secure them together.
Mounting & Rigging
This xture may be mounted in any SAFE position using the top or rear clamp mounting
brackets.
IMPORTANT: Always secure mounted xtures with a safety cable.
Swivel
Bracket
Swivel
Bracket
Swivel
Bracket
Swivel
Bracket
Joining
Plate
Top
Bracket
Rear
Bracket
Rear
Bracket
Joining plates connect the 2 halves, and can join up to 4 rigged xtures.
To mount the xture, use a suitable "C" or "O" type clamp. The clamp should be rated
to hold at least 10x the xture’s weight to ensure structural stability. Do not mount to
surfaces of unknown strength, and ensure properly rated rigging is used.

Page 10
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
The control panel LCD display shows the menu items you select from the menu map on
page #11. When a menu function is selected, the display will show immediately the rst
available option for the selected menu function. To select a menu item, press <ENTER>.
Use the <UP/DOWN> buttons to navigate the menu options. Press the <ENTER> button
to select the menu function currently displayed, or to enable a menu option. To return to
the previous option or menu without changing the value, press the <MENU> button.
4. OPERATING ADJUSTMENTS
The Control Panel
All the features and dierent modes possible with the Innipix™ Spektro are accessed by
using the control panel on the rear of the xture. There are 4 control buttons under to the
LED display which allow you to navigate through the various control panel menus.
<MENU>
Is used to navigate to the previous higher-level menu item.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
<ENTER>
Is used to select and conrm/store the current selection.
MENU UP DOWN ENTER

Page 11
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
Control Panel Menu Structure
Auto Sp 1-10 Speed (slow <-> fast) Auto Mode Eects
St 0-9 Strobe (slow <-> fast)
Addr 3 CH A001-A510 3CH DMX mode, select starting address
4 CH A001-A508 4CH DMX mode, select starting address
5 CH A001-A507 5CH DMX mode, select starting address
7 CH A001-A505 7CH DMX mode, select starting address
21CH A001-A492 12CH DMX mode, select starting address
28CH A001-A485 28CH DMX mode, select starting address
84CH A001-A429 84CH DMX mode, select starting address
Shou Sh 1-45 Program shows 1-45
Sp 1-10 Program speed (slow <-> fast)
St 0-9 Program strobe (slow <-> fast)
Soud Sou1 Sen1-9 Sound active mode 1 + mic sensitivity 1-9
Sou2 Sound active mode 2 + mic sensitivity 1-9
Colo r000-255 Red intensity (0% <--> 100%)
g000-255 Green intensity (0% <-> 100%)
b000-255 Blue intensity (0% <-> 100%)
St 0 – St 9 Strobe (slow <-> fast)
StAt CL00-CL37 Static colors 0-37
SLAU <ENTER> Set the xture as a slave xture
Info Ver Displays the rmware version
Set dis 10s Set the control panel menu display to shut o or stay
on continually.
20s
30s
60s
on
dir Set to allow reverse direction of auto chases
DMX Values In-Depth (3-Channel Mode)
3CH Value What it does
1000 <-> 255 All Red (0% <-> 100%)
2000 <-> 255 All Blue (0% <-> 100%)
3 000 <-> 255 All Green (0% <-> 100%)
DMX Values In-Depth (4-Channel Mode)
4CH Value What it does
1000 <-> 255 Dimmer (0% <-> 100%)
2000 <-> 255 Built-In Eects (see Built-In Program Values on p.14)
3 000 <-> 255 Static Colors (see Static Color Values on p.14)
4000 <-> 255 Program Speed (slow <-> fast)

Page 12
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
DMX Values In-Depth (7-Channel Mode)
7CH Value What it does
1000 <-> 255 Dimmer (0% <-> 100%)
2000 <-> 255 All Red (0% <-> 100%)
3 000 <-> 255 All Green (0% <-> 100%)
4000 <-> 255 All Blue (0% <-> 100%)
5000 <-> 255 Built-In Eects (see Built-In Program Values on p.14)
6 000 <-> 255 Program Speed (slow <-> fast)
7000 <-> 009
010 <-> 255
Strobe
No function
Strobe (slow <-> fast)
DMX Values In-Depth (21-Channel Mode) Blocks 1-7 RGB Color Mixing
RGB
21CH Value What it does Value What it does
1000 <-> 255 Block 1 Red 12 000 <-> 255 Block 4 Blue
2000 <-> 255 Block 1 Green 13 000 <-> 255 Block 5 Red
3 000 <-> 255 Block 1 Blue 14 000 <-> 255 Block 5 Green
4000 <-> 255 Block 2 Red 15 000 <-> 255 Block 5 Blue
5000 <-> 255 Block 2 Green 16 000 <-> 255 Block 6 Red
6 000 <-> 255 Block 2 Blue 17 000 <-> 255 Block 6 Green
7 000 <-> 255 Block 3 Red 18 000 <-> 255 Block 6 Blue
8000 <-> 255 Block 3 Green 19 000 <-> 255 Block 7 Red
9000 <-> 255 Block 3 Blue 20 000 <-> 255 Block 7 Green
10 000 <-> 255 Block 4 Red 21 000 <-> 255 Block 7 Blue
11 000 <-> 255 Block 4 Green
DMX Values In-Depth (28-Channel Mode) See Static Color Values on p.14
28CH Value What it does Value What it does
1000 <-> 255 Section 1 15 000 <-> 255 Section 15
2000 <-> 255 Section 2 16 000 <-> 255 Section 16
3 000 <-> 255 Section 3 17 000 <-> 255 Section 17
4000 <-> 255 Section 4 18 000 <-> 255 Section 18
5000 <-> 255 Section 5 19 000 <-> 255 Section 19
6 000 <-> 255 Section 6 20 000 <-> 255 Section 20
7 000 <-> 255 Section 7 21 000 <-> 255 Section 21
8000 <-> 255 Section 8 22 000 <-> 255 Section 22
9000 <-> 255 Section 9 23 000 <-> 255 Section 23
10 000 <-> 255 Section 10 24 000 <-> 255 Section 24
11 000 <-> 255 Section 11 25 000 <-> 255 Section 25
12 000 <-> 255 Section 12 26 000 <-> 255 Section 26
13 000 <-> 255 Section 13 27 000 <-> 255 Section 27
14 000 <-> 255 Section 14 28 000 <-> 255 Section 28
DMX Values In-Depth (5-Channel Mode)
5CH Value What it does
1000 <-> 255 Dimmer (0% <-> 100%)
2000 <-> 009
010 <-> 255
Strobe
No function
Strobe (slow <-> fast)
3 000 <-> 255 All Red (0% <-> 100%)
4000 <-> 255 All Green (0% <-> 100%)
5 000 <-> 255 All Blue (0% <-> 100%)

Page 13
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
DMX Values In-Depth (84-Channel Mode) Sections 1-28 RGB Color Mixing
84CH Value What it does Value What it does
1000 <-> 255 Section 1, Red 43 000 <-> 255 Section 15, Red
2000 <-> 255 Section 1, Blue 44 000 <-> 255 Section 15, Blue
3 000 <-> 255 Section 1, Green 45 000 <-> 255 Section 15, Green
4000 <-> 255 Section 2, Red 46 000 <-> 255 Section 16, Red
5000 <-> 255 Section 2, Blue 47 000 <-> 255 Section 16, Blue
6 000 <-> 255 Section 2, Green 48 000 <-> 255 Section 16, Green
7 000 <-> 255 Section 3, Red 49 000 <-> 255 Section 17, Red
8000 <-> 255 Section 3, Blue 50 000 <-> 255 Section 17, Blue
9000 <-> 255 Section 3, Green 51 000 <-> 255 Section 17, Green
10 000 <-> 255 Section 4, Red 52 000 <-> 255 Section 18, Red
11 000 <-> 255 Section 4, Blue 53 000 <-> 255 Section 18, Blue
12 000 <-> 255 Section 4, Green 54 000 <-> 255 Section 18, Green
13 000 <-> 255 Section 5, Red 55 000 <-> 255 Section 19, Red
14 000 <-> 255 Section 5, Blue 56 000 <-> 255 Section 19, Blue
15 000 <-> 255 Section 5, Green 57 000 <-> 255 Section 19, Green
16 000 <-> 255 Section 6, Red 58 000 <-> 255 Section 20, Red
17 000 <-> 255 Section 6, Blue 59 000 <-> 255 Section 20, Blue
18 000 <-> 255 Section 6, Green 60 000 <-> 255 Section 20, Green
19 000 <-> 255 Section 7, Red 61 000 <-> 255 Section 21, Red
20 000 <-> 255 Section 7, Blue 62 000 <-> 255 Section 21, Blue
21 000 <-> 255 Section 7, Green 63 000 <-> 255 Section 21, Green
22 000 <-> 255 Section 8, Red 64 000 <-> 255 Section 22, Red
23 000 <-> 255 Section 8, Blue 65 000 <-> 255 Section 22, Blue
24 000 <-> 255 Section 8, Green 66 000 <-> 255 Section 22, Green
25 000 <-> 255 Section 9, Red 67 000 <-> 255 Section 23, Red
26 000 <-> 255 Section 9, Blue 68 000 <-> 255 Section 23, Blue
27 000 <-> 255 Section 9, Green 69 000 <-> 255 Section 23, Green
28 000 <-> 255 Section 10, Red 70 000 <-> 255 Section 24, Red
29 000 <-> 255 Section 10, Blue 71 000 <-> 255 Section 24, Blue
30 000 <-> 255 Section 10, Green 72 000 <-> 255 Section 24, Green
31 000 <-> 255 Section 11, Red 73 000 <-> 255 Section 25, Red
32 000 <-> 255 Section 11, Blue 74 000 <-> 255 Section 25, Blue
33 000 <-> 255 Section 11, Green 75 000 <-> 255 Section 25, Green
34 000 <-> 255 Section 12, Red 76 000 <-> 255 Section 26, Red
35 000 <-> 255 Section 12, Blue 77 000 <-> 255 Section 26, Blue
36 000 <-> 255 Section 12, Green 78 000 <-> 255 Section 26, Green
37 000 <-> 255 Section 13, Red 79 000 <-> 255 Section 27, Red
38 000 <-> 255 Section 13, Blue 80 000 <-> 255 Section 27, Blue
39 000 <-> 255 Section 13, Green 81 000 <-> 255 Section 27, Green
40 000 <-> 255 Section 14, Red 82 000 <-> 255 Section 28, Red
41 000 <-> 255 Section 14, Blue 83 000 <-> 255 Section 28, Blue
42 000 <-> 255 Section 14, Green 84 000 <-> 255 Section 28, Green

Page 14
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
Built-In Program Values
000 <-> 002
003 <-> 005
006 <-> 008
009 <-> 011
012 <-> 014
015 <-> 017
018 <-> 020
021 <-> 023
024 <-> 026
027 <-> 029
030 <-> 032
033 <-> 035
036 <-> 038
039 <-> 041
042 <-> 044
045 <-> 047
048 <-> 050
051 <-> 053
054 <-> 056
057 <-> 059
060 <-> 062
No Function
Eect 1
Eect 2
Eect 3
Eect 4
Eect 5
Eect 6
Eect 7
Eect 8
Eect 9
Eect 10
Eect 11
Eect 12
Eect 13
Eect 14
Eect 15
Eect 16
Eect 17
Eect 18
Eect 19
Eect 20
063 <-> 065
066 <-> 068
069 <-> 071
072 <-> 074
075 <-> 077
078 <-> 080
081 <-> 083
084 <-> 086
087 <-> 089
090 <-> 092
093 <-> 095
096 <-> 098
099 <-> 101
102 <-> 104
105 <-> 107
108 <-> 110
111 <-> 113
114 <-> 116
117 <-> 119
120 <-> 122
123 <-> 125
126 <-> 128
Eect 21
Eect 22
Eect 23
Eect 24
Eect 25
Eect 26
Eect 27
Eect 28
Eect 29
Eect 30
Eect 31
Eect 32
Eect 33
Eect 34
Eect 35
Eect 36
Eect 37
Eect 38
Eect 39
Eect 40
Eect 41
Eect 42
129 <-> 131
132 <-> 134
135 <-> 137
138 <-> 140
141 <-> 143
144 <-> 146
147 <-> 149
150 <-> 152
153 <-> 155
156 <-> 158
159 <-> 161
162 <-> 164
165 <-> 167
168 <-> 170
171 <-> 173
174 <-> 176
177 <-> 179
180 <-> 182
183 <-> 185
186 <-> 188
189 <-> 191
192 <-> 255
Eect 43
Eect 44
Eect 45
Eect 46
Eect 47
Eect 48
Eect 49
Eect 50
Eect 51
Eect 52
Eect 53
Eect 54
Eect 55
Eect 56
Eect 57
Eect 58
Eect 59
Eect 60
Eect 61
Auto 1
Sound 1
Sound 2
Static Color Values
000 <-> 001 R:000 G:000 B:000 128 <-> 134 R:000 G:255 B:255
002 <-> 008 R:255 G:000 B:000 135 <-> 141 R:000 G:225 B:255
009 <-> 015 R:255 G:050 B:000 142 <-> 148 R:000 G:190 B:255
016 <-> 022 R:255 G:100 B:000 149 <-> 155 R:000 G:150 B:255
023 <-> 029 R:255 G:150 B:000 156 <-> 162 R:000 G:100 B:255
030 <-> 036 R:255 G:190 B:000 163 <-> 169 R:000 G:050 B:255
037 <-> 043 R:255 G:225 B:000 170 <-> 176 R:000 G:000 B:255
044 <-> 050 R:255 G:255 B:000 177 <-> 183 R:050 G:000 B:255
051 <-> 057 R:225 G:255 B:000 184 <-> 190 R:100 G:000 B:255
058 <-> 064 R:190 G:255 B:000 191 <-> 197 R:150 G:000 B:255
065 <-> 071 R:150 G:255 B:000 198 <-> 204 R:190 G:000 B:255
072 <-> 078 R:100 G:255 B:000 205 <-> 211 R:225 G:000 B:255
079 <-> 085 R:050 G:255 B:000 212 <-> 218 R:255 G:000 B:255
086 <-> 092 R:000 G:255 B:000 219 <-> 225 R:255 G:000 B:225
093 <-> 099 R:000 G:255 B:050 226 <-> 232 R:255 G:000 B:190
100 <-> 106 R:000 G:255 B:100 233 <-> 239 R:255 G:000 B:150
107 <-> 113 R:000 G:255 B:150 240 <-> 246 R:255 G:000 B:100
114 <-> 120 R:000 G:255 B:190 247 <-> 253 R:255 G:000 B:050
121 <-> 127 R:000 G:255 B:225 254 <-> 255 R:255 G:255 B:255
Dimensional Drawings
62.5" (158.5 cm)
9.1" (23 cm)
5.2"
(13 cm)

Page 15
Innipix™ Spektro Manual Rev. A © 2022 Blizzard Lighting, LLC
Keeping Your Innipix™ Spektro As Good As New
The xture you’ve received is a rugged, tough piece of pro lighting equipment, and as long
as you take care of it, it will take care of you.
Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of
light output, and keeping the vents free of dust will keep the xture running cool.
Returns (Gasp!)
If you nd yourself with a xture that isn’t behaving like it should, you’ll need to obtain a
Return Authorization (RA).
Don’t worry, this is easy. Just visit www.blizzardpro.com/support and open a support
ticket, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable,
pre-paid freight method. We suggest using USPS Priority or UPS.
When returning your xture for service, be sure to include the following:
1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
We will, at our discretion, repair or replace the xture. Please remember that any shipping
damage which occurs in transit to us is the customer’s responsibility, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and must be
reported to the carrier immediately upon receipt of the items. Claims must be
made within seven (7) days of receipt.
5. APPENDIX
Tech Specs!
Weight & Dimensions
Dimensions 9.1 x 5.2 x 62.5 (23 x 13 x 158.5 cm)
Weight 17 lbs (7.7 kg)
Power
Operating Voltage AC 110V-240V/50-60Hz
Power Consumption 47W, .66A, PF: .61
Light Source
LED 196* (7* 28 pcs) SMD 5050 3-in-1 RGB LEDs
Luminous Intensity 2,150 nits
Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512, RDM
DMX Channels 3/4/5/7/21/28/84-channel DMX modes
Input/Output 3/5-pin XLR Male/Female
Other Operating Modes DMX512, M/S, standalone, auto, sound active
Warranty 2-year limited warranty

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
