Blizzard TOURNADO RGBALC User manual

SUITABLE FOR OUTDOOR USE
Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2023
TM

Page 2
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
TABLE OF CONTENTS
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions 4
2. Meet The TOURnado™ RGBALC 5
Main Features 5
DMX Quick Reference 5
TOURnado™ RGBALC Pin-Up Picture 6
Rear Connections 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch of TOURnado™ RGBALC Fixtures 7
Data/DMX Cabling 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh?!? 8
Take It To The Next Level: Setting Up DMX Control 8
Fixture Linking (M/S Mode) 9
Mounting & Rigging 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
DMX Mode 12
Dimming Mode Settings 12
Custom Programs 13
Auto, Modes, and Auto Speed 13
Color Calibration Settings 14
Custom Static Colors & Preset Colors 14
Fixture Reset Functions 15
Data Sync Feature 15
Fixture Information 15
DMX Values In-Depth 16
Troubleshooting 17
5. Appendix 18
Keeping Your TOURnado™ RGBALC As Good As New 18
Returns (Gasp!) 18
Shipping Issues 18
Tech Specs! 19
Photometric Data 19

Page 3
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• 1x TOURnado™ RGBALC LED Fixture
• 1x IP rated AC power cord
• This Lovely User Manual
Getting It Out Of The Box
Congratulations on purchasing the TOURnado™ RGBALC. Now that you’ve got your xture,
you should carefully unpack the box and check the contents to ensure that all parts are
present and in good condition. If anything looks as if it has been damaged in transit, notify
the shipper immediately and keep the packing material for inspection. Again, please save
the carton and all packing materials. If a xture must be returned to the factory, it is im-
portant that the xture be returned in the original factory box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run o a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the
xture you receive is suitable for your local power supply. See the label on the xture or
refer to the xture’s specications chart for more information. A xture’s listed current
rating is its average current draw under normal conditions. Check the xture or device
carefully to make sure that if a voltage selection switch exists that it is set to the correct
line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied does
not match the voltage indicated on the voltage selector switch. All xtures must
be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, please just visit our website at www.blizzardpro.com/
support and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information contained in this document are subject to change without notice. Blizzard
Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user
manual. We reserve the right to update the existing, or create a new document to correct any errors or
omissions. You can download the latest version of this document from www.blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 5/25/2023 J. Thomas 5/25/2023

Page 4
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Please read these instructions carefully. They include
important information about the installation, usage and
maintenance of this product.
Safety Instructions
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the de-
cal or rear panel of the xture.
• Make sure there are no ammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least
20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
• ALWAYS secure xture using a safety chain. NEVER carry the xture by its
head. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized tech-
nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the
housing or attempt any repairs yourself. In the unlikely event your unit may
require service, please open a support ticket at www.blizzardpro.com/support.

Page 5
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
2. MEET THE TOURNADO™ RGBALC
MAIN FEATURES
• Color mixing via 7x 20W RGBALC 6-in-1 LEDs
• IP65 rated outdoor LED xture
• OLED control menu w/touch sensitive buttons
• 25 degree beam angle
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• RGBALC color mixing ability in standalone mode
• 6/8/12-channel DMX proles w/32-bit dimming
• Convection cooled cast aluminum housing
• Dual mounting brackets for positioning exibility
• Flicker-free constant-current LED driver
• IP rated locking power and 5-pin DMX connections
DMX Quick Reference (6-Channel Mode)
Channel What is does...
1 Red Intensity (0 <--> 100%)
2 Green Intensity (0 <--> 100%)
3 Blue Intensity (0 <--> 100%)
4 Amber Intensity (0 <--> 100%)
5 Lime Intensity (0 <--> 100%)
6 Cyan Intensity (0 <--> 100%)
DMX Quick Reference (8-Channel Mode)
Channel What is does...
1 Master Dimmer (0 <--> 100%)
2 Red Intensity (0 <--> 100%)
3 Green Intensity (0 <--> 100%)
4 Blue Intensity (0 <--> 100%)
5 Amber Intensity (0 <--> 100%)
6 Lime Intensity (0 <--> 100%)
7 Cyan Intensity (0 <--> 100%)
8 Strobe (Slow <--> Fast)
DMX Quick Reference (12-Channel Mode)
Channel What is does...
1 Master Dimmer (0 <--> 100%)
2 Red Intensity (0 <--> 100%)
3 Green Intensity (0 <--> 100%)
4 Blue Intensity (0 <--> 100%)
5 Amber Intensity (0 <--> 100%)
6 Lime Intensity (0 <--> 100%)
7 Cyan Intensity (0 <--> 100%)
8 Strobe (Slow <--> Fast)
9 Built-In Programs
10 Auto Speed (Slow <--> Fast)
11 Virtual Color Wheel
12 32-Bit Dimming

Page 6
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Figure 2: Rear Connections

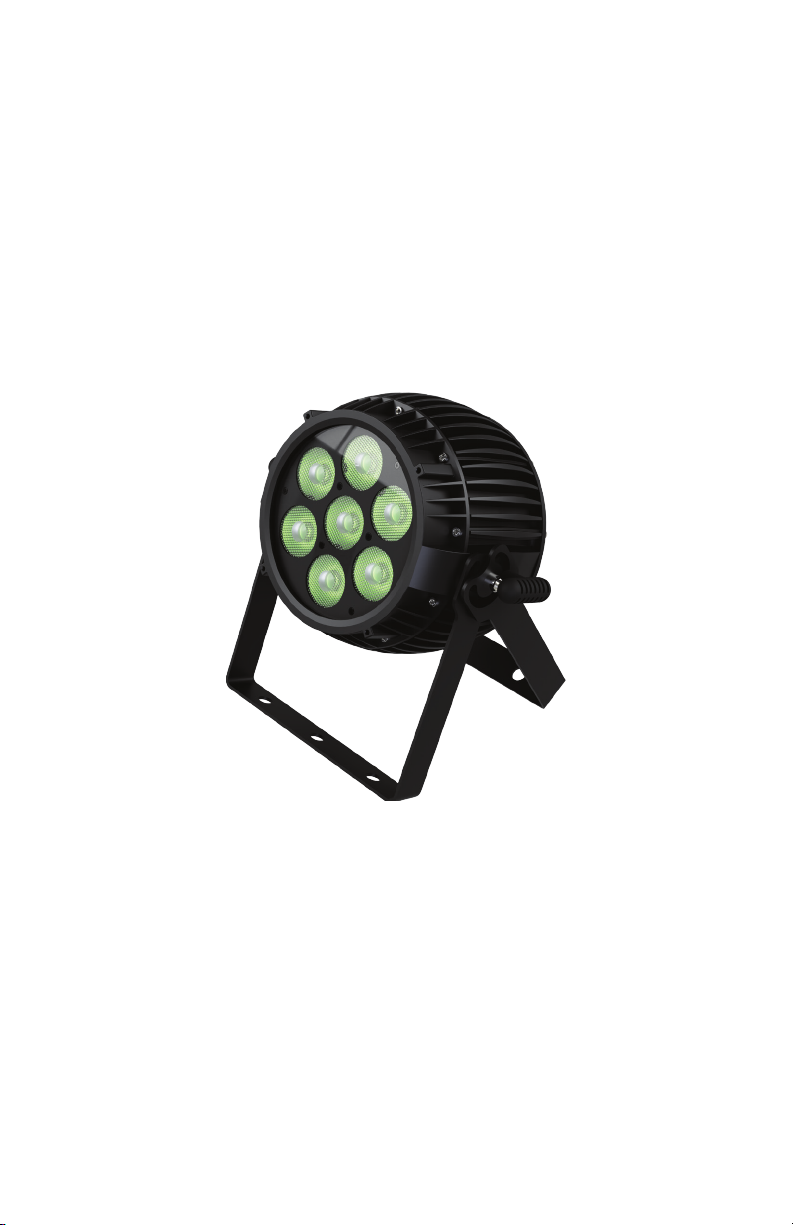

Figure 1: TOURnado™ RGBALC Pin-Up Picture
7x 20W
RGBALC LEDs
Convection
Cooled
Housing
Locking
Knobs
Dual Mounting
Brackets
Power In Power Out
DMX Output
Control Menu
DMX Input
Tempered
Glass Lens

Page 7
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Fuse Replacement
This xture utilizes a high-output switch-mode power supply with an internal
fuse. Under normal conditions, the fuse should not require replacement. Should
your xture require fuse replacement, please contact us for instructions.
Connecting A Bunch of TOURnado™ RGBALC Fixtures
You will need a serial data link to run light shows using a DMX-512 controller
or to run shows on two or more xtures set to sync in master/slave operating
mode. The combined number of channels required by all the xtures on a serial
data link determines the number of xtures the data link can support.
Fixtures on a serial data link must be daisy chained in a single line. Also, con-
necting more than 32 xtures on one serial data link without the use of an
optically-isolated DMX splitter may result in deterioration of DMX signal. The
maximum recommended cable-run distance is 500 meters (1640 ft).
Data/DMX Cabling
To link xtures together you’ll need data cables. You should use data-grade
cables that can carry a high quality signal and are less prone to electromagnetic
interference.
For instance, Belden© 9841 meets the specications for EIA RS-485 applica-
tions. Standard microphone cables will “probably” be OK, but note that they
cannot transmit DMX data as reliably over long distances. In any event, the
cable should have the following characteristics:
• 2-conductor twisted pair plus a shield
• Maximum capacitance between conductors – 30 pF/ft.
• Maximum capacitance between conductor & shield – 55 pF/ft.
• Maximum resistance of 20 ohms / 1000 ft.
• Nominal impedance 100 – 140 ohms
Before replacing a fuse, disconnect the power cord.
ALWAYS replace with the same type and rating of fuse.
3. SETUP
Disclaimer: The power connectors tted to the xture and xture cord are designed for compatibility
with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not
manufactured by, aliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik®
and powerCON® are registered trademarks of Neutrik AG.

Page 8
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connec-
tor on the other end. (Duh!)
To build your own DMX Terminator:
Obtain a 120-ohm, 1/4-watt resistor, and wire it between pins 2 & 3 of the last xture. They are also
readily available from specialty retailers.
Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the DMX cable to the female connector
(output) on the controller.
Step 2: Connect the female connector of the
DMX cable to the rst xture’s male connector
(input).
Note: It doesn’t matter which xture address is the rst one
connected. We recommend connecting the xtures in terms
of their proximity to the controller, rather than connecting the
lowest xture number rst, and so on.
Step 3: Connect other xtures in the chain
from output to input as above. Place a DMX
terminator on the output of the nal xture to
ensure best communication.
CAUTION: Do not allow contact between the common and the xture’s chassis
ground. Grounding the common can cause a ground loop, and your xture may
perform erratically. Test cables with an ohm meter to verify correct polarity and
to make sure the pins are not grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
If you use a controller with a 3-pin DMX output connector, you will need to use a 3-pin to 5-pin adapter. If
you’d like to build your own, the chart below details a proper cable conversion:
Conductor 3-Pin Female (Output) 5-Pin Male (Input)
Ground/Shield Pin 1 Pin 1
Data 1- (Primary Data) Pin 2 Pin 2
Data 1+ (Primary Data) Pin 3 Pin 3
Data 2- (Optional) -- Pin 4 - Do Not Use
Data 2+ (Optional) -- Pin 5 - Do Not Use
3
1
2
5
4
3
1
2
5
4
INPUT OUTPUT
DMX OUTDMX IN
First
Fixture
in Chain
Next
Fixture
in Chain
DMX OUTDMX IN
A Word on Termination:
DMX is a resilient communication protocol, however
errors still occasionally occur. Termination reduces signal
errors, and therefore best practices include use of a
terminator in all circumstances. If you are experiencing
problems with erratic xture behavior, especially over
long signal cable runs, a terminator may help improve
performance.

Page 9
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Fixture Linking (M/S Mode)
1. Connect the male connector side of the DMX cable to the output female
connector of the rst xture.
2. Connect the end of the cable coming from
the rst xture which will have a female
connector to the input connector of the next
xture consisting of a male connector. Then,
proceed to connect from the output as stated
above to the input of the following xture
and so on.
A quick note: Often, the setup for Master-Slave and
Standalone operation requires that the rst xture in the
chain be initialized for this purpose via either settings in the
control panel or DIP-switches. Secondarily, the xtures that
follow may also require a slave setting.
Check the “Operating Adjustments” section in this manual for complete
instructions for this type of setup and conguration.
DMX OUTDMX IN
First
Fixture
in Chain
Next
Fixture
in Chain
DMX OUTDMX IN
Mounting & Rigging
This xture may be mounted in any SAFE position provided there is enough
room for ventilation. The fan or vent pathway must never be obstructed.
IMPORTANT: Regardless of the rigging option you choose for your xtures,
always be sure to secure your xture with a safety cable.
Mount the xture using a suitable "C" or "O" type clamp. The clamp should be
rated to hold at least 10x the xture’s weight to ensure structural stability. Do
not mount to surfaces of unknown strength, and ensure properly rated rigging
is used when mounting xtures overhead.
Overhead mounting requires extensive experience, which includes calculating
working load limits, knowledge of the installation material being used, and
periodic safety inspections. If you lack these qualications, do not attempt the
installation yourself.
Bracket
Clamp Clamp

Page 10
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS
The Control Panel
All the features and dierent modes possible with the TOURnado™ RGBALC
are accessed by using the control panel on the rear of the xture. There are 4
control buttons which allow you to navigate through the various control panel
menus.
<MENU>
Is used to navigate to the previous higher-level menu item.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
<ENTER>
Is used to select and conrm/store the current selection.
The control panel display shows the menu items you select from the menu map
on page #11. When a menu function is selected, the display will show immedi-
ately the rst available option for the selected menu function. To select a menu
item, press <ENTER>.
Use the <UP> and <DOWN> buttons to navigate the menu options. Press the
<ENTER> button to select the menu function currently displayed, or to enable
a menu option. To return to the previous option or menu without changing the
value, press the <MENU> button.

Page 11
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Control Panel Menu Structure
ADDR 001-512 To choose the DMX address
STATIC R Red intensity (0% <--> 100%)
G Green intensity (0% <--> 100%)
B Blue intensity (0% <--> 100%)
A Amber intensity (0% <--> 100%)
L Lime intensity (0% <--> 100%)
C Cyan intensity (0% <--> 100%)
SHUT Flash / strobe speed (0-255)
PRSC (preset colors) NONE, R, G, B, A, L, C, YELLOW, PINK, CYAN, ORANGE, VIOLET,
GOLDEN, 2700K, 3200K, 4000K, 5500K, 6500K, RGBL
SET CAL To set global intensity levels of each color + USE: YES/NO
CHMD 6CH To run in 6-channel mode
8CH To run in 8-channel mode
12CH To run in 12-channel mode
DIM
(dimming)
LIN Linear dimming curve
SQR Square law curve
ISQR Inverse square law curve
SCUR S-curve
LIN. Linear dimming curve (smooth)
SQR. Square law curve (smooth)
ISQR. Inverse square law curve (smooth)
SCUR. S-curve (smooth)
LOCK YES/NO
To unlock, press the buttons in this order: <MENU>, <UP>,
<DOWN>, <ENTER>, <MENU>, <UP>, <DOWN>, <EN-
TER>, <MENU>, <UP>, <DOWN>, <ENTER> with no longer
than 3 seconds between each button press.
CUSTOM CT01-CT10 <ENTER> R/G/B/A/L/C adjustments for custom color banks 01-10
AUTO AT01-AT05 <ENTER> Auto programs 1-5
ATSP <ENTER> Auto speed 0-255 (fast to slow)
CHS1 <ENTER> Custom program 1
CHS2 <ENTER> Custom program 2
CHS3 <ENTER> Custom program 3
PROG CHS1-
CHS3
Custom
programs
1-3.
SC01-SC25
25 scenes
for each
custom
program.
R (0-255) SHUT (strobe, 0-255)
G (0-255) AUTO (None, AT01-AT05)
B (0-255) ATSP (speed, 0-255 seconds)
A (0-255) TIME (duration, 0-255 seconds)
L (0-255) WAIT (before fade, 0-255 seconds)
C (0-255) USE (use scene, YES/NO)
INFO SOFTWARE Software version information
TEMP Display the internal temperature of the xture
POWER Current automated overheat protection level (100%/80%/50%)
LOAD ST L Restore factory settings
PR L Restore factory program settings
SEND YES/NO Sync settings between xtures via DMX

Page 12
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
Setting the DMX Address:
1.) The default mode for the xture is DMX, which appears as 001 on the LED readout. To
select a dierent DMX address, using the <MENU> button, select ADDR, then hit <ENTER>.
Use the <UP/DOWN> buttons to select the correct address, then hit <ENTER> to conrm.
Setting the DMX Channel Mode:
1.) To select a DMX channel mode, press the <MENU> button, then use the <UP/DOWN>
buttons until the display reads SET and press the <ENTER> button. Then use the <UP/
DOWN> buttons until the display reaches CHMD, and press <ENTER>. Now press the <UP/
DOWN> buttons again to highlight your desired DMX channel mode, and press the <ENTER>
button to conrm.
Slave Mode:
1.) Daisy chain the DMX in/out connections on all xtures.
2.) There is nothing else to it! The rst xture in the DMX chain is the master xture, and the
other xtures down the line will follow it.
Dimming Mode Settings
Allows users to set the xture to use 1 of 4 (x2) dimming curve settings for smoother (and slower)
dimming capabilities. In the control panel menu, there are two settings for each curve that are
distinguishable from one another by the trailing dot.
*The curve settings with the trailing dot adds a bit more delay to the curve for a smoother eect.
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to SET and press <ENTER>,
then <UP/DOWN> buttons again to scroll to DIM, and press the <ENTER> button.
2.) Now use the <UP/DOWN> buttons to highlight either LIN (Linear), SQR (Square), ISQR
(Inverse Square), SCUR (S-Curve), LIN. (Smooth Linear), SQR. (Smooth Square), ISQR.
(Smooth Inverse Square), or SCUR. (Smooth S-Curve), then hit <ENTER>.
DMX% DMX% DMX% DMX%
Output Output Output Output
(LIN, LIN.) (SQR, SQR.) (ISQR, ISQR.) (SCUR, SCUR.)
Linear Curve Square Law Inverse Square Law S-Curve

Page 13
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Custom Programs
Allows users to create up to 3 customizable, 25 scene programs that are directly accessible via the control
panel and also in DMX mode.
Creating A Custom Program:
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to PROG, and press <ENTER>.
2.) Now use the <UP/DOWN> buttons to highlight your choice of either CHS1, CHS2, or
CHS3 and press <ENTER>.
3.) Start with editing scene 1 (SC01), customizing it to your liking by using the choices outlined
in the table below. You can insert any of its 5 built-in auto programs (AT01-AT05), and adjust
its speed (ATSP 0-255), and also set the duration (in seconds) before moving on to the next
scene (TIME 0-255). You can also add a fade in eect to the start of this scene (WAIT 0-255),
and/or strobe (SHUT 0-255). Finally, if you want to use this scene in your program, be sure to
enable it (USE: YES/NO).
4.) Repeat the above process to create up to 25 scenes in each of the 3 customizable programs.
R (0-255) - Red Intensity C (0-255) - Cyan Intensity WAIT (0-255) - Fade In (fast - slow)
G (0-255) - Green Intensity SHUT (0-255) - Strobe (slow - fast) USE (YES/NO) Use Scene in Program?
B (0-255) - Blue Intensity AUTO (AT01-AT05) - Auto Programs IMPORTANT:
If USE is set to NO, or TIME is set
to 0, the scene will not run!
A (0-255) - Amber Intensity ATSP (0-255) - Auto Speed (fast - slow)
L (0-255) - Lime Intensity TIME (0-255) - Scene Time (seconds)
Running A Custom Program:
1.) To view your newly created lighting masterpiece, use the <MENU> and <UP/DOWN>
buttons to navigate to AUTO, and press <ENTER>.
2.) Use the <UP/DOWN> buttons to highlight your choice of CHS1, CHS2, or CHS3 and press
<ENTER>. These are directly accessible from the built-in program channel in DMX mode.
Auto, Modes, and Auto Speed
Set single or Master/Slaved units to run auto modes at user selectable speeds.
Auto Mode:
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to navigate to AUTO, and press
the <ENTER> button.
2.) Now use the <UP/DOWN> buttons to highlight any program ranging from AT01-AT05,
and press <ENTER>.
Auto Speed:
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to AUTO and press <ENTER>,
then with the <UP/DOWN> buttons navigate to ATSP, and press the <ENTER> button.
2.) Make a selection from 0-255, and press <ENTER> to choose a speed (slow <--> fast).

Page 14
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Color Calibration Settings
Allows the user to setup and save 1 customized R/G/B/A/L/C color balance setting and save it for future
use. This custom setting is global, and it will eect all modes.
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to SET and press <ENTER>,
then on while CAL, push <ENTER> again.
2.) Use the <UP/DOWN> buttons to highlight either R(Red Level), G(Green Level), B(Blue
Level), A(Amber Level), L(Lime Level), or C(Cyan Level) then hit <ENTER>.
3.) Now using the <UP/DOWN> buttons, select the maximum level for each color between
000-255 (000=o), and hit <ENTER> to conrm your choice.
4.) You have now just setup and saved a custom global color calibration setting that you can use
at you convenience. To use your custom setting now (or later), press the <UP/DOWN> buttons
to reach USE, and press <ENTER>. Then choose either YES or NO and press <ENTER>. When
you select YES, it enables this custom color calibration globally, and when choosing NO the
xture will continue to use the default color calibration settings. Your customized settings will
be saved for later use even after powering o the xture. It can be altered to your liking at any
time. Just remember to return to this setting to either enable or disable it when needed.
Custom Static Colors & Preset Colors
Allows the user to create and save custom static colors for use in standalone or DMX mode.
Static Color Mixing and Preset Mixed Colors
Important: When nished editing and saving a static color, you must return to (and stay
on) any one of the editing screens (0-255) to make the eect stay on continually. If you were
only to press <ENTER> to save your nal edit, you would again be on the static color/eect
selection menu, which from here will result in blackout mode after 1 minute.
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to STAT and press <ENTER>,
then <UP/DOWN> buttons to select R/G/B/A/L/C, and push <ENTER> to conrm your
selection. Then in adjust the values (0-255) to your liking and press <ENTER> to save.
2.) In the same manner, you can select SHUT to add a strobe eect.
3.) You can also select <PRSC> and use the <UP/DOWN> buttons to scroll through and
quickly use any of the xtures built-in preset colors.
Mix and Save Custom Colors (1-10)
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to CTST and press <ENTER>,
then <UP/DOWN> buttons to select a color bank from CT01-CT10, and push <ENTER> to
conrm your selection.
2.) Now use the <UP/DOWN> buttons to highlight either R(Red Level), G(Green Level), B
(Blue Level), A(Amber Level), L(Lime Level), or C(Cyan Level) then hit <ENTER>.
3.) Finally, using the <UP/DOWN> buttons, select the maximum level for each color between
000-255 (000=o), and hit <ENTER> to conrm your choice(s).
4.) These 10 custom colors can be accessed and edited to your liking at any time, and will be
saved even after powering o the xture.
5.) Your custom colors and programs are also directly accessible from the built-in program
channel in DMX mode.

Page 15
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Fixture Reset Functions
Allows users to reset the xture to factory default settings, without loosing customized settings, or reset
the custom programs exclusively.
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to LOAD and press <ENTER>,
then use the <UP/DOWN> buttons to highlight ST L or PR L, and press <ENTER>.
2.) Use the <UP/DOWN> buttons to highlight either YES or NO, then press <ENTER>.
3.) The ST L reset function will reset all default values with the exception of those in ADDR
(address), CTST (10 custom colors), and PROG (custom scenes and programs).
4.) The PR L reset function will only reset all customized program settings found in the PROG
settings (custom scenes and programs).
Data Sync Feature
Users can transfer their custom settings from one xture to another via DMX.
1.) Disconnect xtures from any DMX controllers, and link them together via DMX in/out.
2.) On the sending xture (DMX out), navigate the main menu using the <UP/DOWN> buttons
to reach SEND, and press the <ENTER> button.
3.) Select YES, and press the <ENTER> button to begin the transfer.
4.) Information for ADDR (address), or CAL (global intensity) will not be sent.
5.) After the data has been transferred, the receiving xture will be automatically be reset.
Fixture Information
These are not editable features, they are for informational purposes only.
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to INFO and press <ENTER>,
then use the <UP/DOWN> buttons to highlight SOFT or POW, and press <ENTER>.
2.) The SOFT information simply displays the current software version installed on the xture,
and POW displays the xtures current power level setting. Under normal conditions, it will be
at 100%... but this xture has built-in overheat protection that may automatically reduce the
output level to 80%, or 50% in high temperature situations.

Page 16
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
DMX Values In-Depth (6/8/12-Channel Modes)
6CH 8CH 12CH Value What It Does
-- 1 1 000 <--> 255 Dimmer (0% <--> 100%)
1 2 2 000 <--> 255 Red Intensity (0% <--> 100%)
2 3 3 000 <--> 255 Green Intensity (0% <--> 100%)
3 4 4 000 <--> 255 Blue Intensity (0% <--> 100%)
4 5 5 000 <--> 255 Amber Intensity (0% <--> 100%)
5 6 6 000 <--> 255 Lime Intensity (0% <--> 100%)
6 7 7 000 <--> 255 Cyan Intensity (0% <--> 100%)
-- 8 8
000 <--> 005
006 <--> 020
021 <--> 060
061 <--> 100
101 <--> 140
141 <--> 180
181 <--> 220
221 <--> 255
Strobe
No strobe
Non-synchronous strobe (slow <--> fast)
Synchronous strobe (slow <--> fast)
Electronic sine wave (slow <--> fast)
Random strobe (slow <--> fast)
Opening pulse (slow <--> fast)
Closing pulse (slow <--> fast)
Electronic square wave (slow <--> fast)
-- -- 9
000 <--> 005
006 <--> 010
011 <--> 015
016 <--> 020
021 <--> 025
026 <--> 030
031 <--> 035
036 <--> 040
041 <--> 045
046 <--> 050
051 <--> 055
056 <--> 060
061 <--> 065
066 <--> 070
071 <--> 075
076 <--> 080
081 <--> 110
111 <--> 115
116 <--> 120
121 <--> 125
126 <--> 130
131 <--> 135
136 <--> 140
141 <--> 145
146 <--> 150
151 <--> 155
156 <--> 160
161 <--> 165
166 <--> 170
171 <--> 175
176 <--> 180
181 <--> 185
186 <--> 190
191 <--> 195
196 <--> 200
201 <--> 220
221 <--> 225
226 <--> 230
231 <--> 235
236 <--> 255
Built-In Programs
No Function
Custom color 1 (CT01 in menu settings)
Custom color 2 (CT02 in menu settings)
Custom color 3 (CT03 in menu settings)
Custom color 4 (CT04 in menu settings)
Custom color 5 (CT05 in menu settings)
Custom color 6 (CT06 in menu settings)
Custom color 7 (CT07 in menu settings)
Custom color 8 (CT08 in menu settings)
Custom color 9 (CT09 in menu settings)
Custom color 10 (CT10 in menu settings)
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
Reserved
Red
Green
Blue
Amber
Lime
Cyan
Yellow
Pink
Cyan
Orange
Violet
Golden
2700K White
3200K White
4000K White
5500K White
6500K White
RGBL
No Function
Custom program 1 (CH01 in menu settings)
Custom program 2 (CH02 in menu settings)
Custom program 3 (CH03 in menu settings)
No Function

Page 17
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
DMX Values In-Depth (6/8/12-Channel Modes), continued
6CH 8CH 12CH Value What It Does
-- -- 10 000 <--> 255 Auto Speed (slow <--> fast)
-- -- 11
000 <--> 010
011
012 <--> 050
051
052 <--> 090
091
092 <--> 130
131
132 <--> 170
171
172 <--> 210
211
212 <--> 250
251 <--> 255
Virtual Color Wheel
No Function
Blue
Blue (+ green)
Cyan
Cyan (- blue)
Green
Green (+ red)
Yellow
Yellow (- green)
Red
Red (+ blue)
Magenta
Magenta (- red)
Blue
-- -- 12
000 <--> 010
011 <--> 020
021 <--> 030
031 <--> 040
041 <--> 050
051 <--> 060
061 <--> 070
071 <--> 080
081 <--> 090
091 <--> 255
Dimming Mode
Default (as set in the LED menu)
Linear curve
Square law curve
Inverse square law curve
S-curve
Linear curve (smooth)
Square law curve (smooth)
Inverse square law curve (smooth)
S-curve (smooth)
Default (as set in the LED menu)
Troubleshooting
Symptom Solution
No Light Output Check power connection and ensure that the xture is operating
under the correct working mode.
Dim Output Check the overheat protection level in the menu. If it has been
triggered, ensure that the xture has sucient ventilation.
Chase Speed Too
Fast/Slow
Verify that the speed adjustment settings are correct.
Loss of DMX
Control
Check the DMX and the power connections to make sure that they
are connected.
Make sure the DMX address setting is correct.
Check to see if the channel mode setting is correct.
No Power Verify that the power cord and circuit are functioning.
Blown Fuse Check power cords and circuit for damage.
Fixture Not
Responding /
Responding Errati-
cally
Make sure all connectors are seated properly and securely.
Use only DMX cables and/or check cables for defects.
Install a DMX signal terminator.
Reset xture(s).

Page 18
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Keeping Your TOURnado™ RGBALC As Good As New
The xture you’ve received is a rugged, tough piece of pro lighting equipment, and as long
as you take care of it, it will take care of you. Cleaning the optics routinely with a suitable
glass cleaner will greatly improve the quality of light output.
In transit, keep the xtures in cases. Common sense and taking care of your xtures will
be the single biggest thing you can do to keep them running at peak performance and let
you concentrate on designing a great light show. That’s what it’s all about, after all!
Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry about
sending a defective unit back, or sending a unit in for service. But, like any complex
piece of equipment designed and built by humans, once in a while, something doesn’t go
as planned. If you nd yourself with a xture that isn’t behaving like a good little xture
should, you’ll need to obtain a Return Authorization (RA).
Don’t worry, this is easy. Just visit www.blizzardpro.com/support and open a support
ticket, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable,
pre-paid freight method. We suggest using USPS Priority or UPS. Make sure you carefully
pack the xture for transit, and whenever possible, use the original box & packing for
shipping.
When returning your xture for service, be sure to include the following:
1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
We will, at our discretion, repair or replace the xture. Please remember that any shipping
damage which occurs in transit to us is the customer’s responsibility, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and must be reported to
the carrier immediately upon receipt of the items. Claims must be made within seven (7)
days of receipt.
5. APPENDIX
11.4" (289 mm)
8.6" (218 mm)
6.5"
(163 mm)
12.5" (317 mm)

Page 19
TOURnado™ RGBALC Manual Rev. A © 2023 Blizzard Lighting, LLC
Tech Specs!
Weight & Dimensions
Width 11.4 inches (289 mm)
Depth 6.5 inches (163 mm)
Height 12.5 inches (317 mm)
Weight 9.7 lbs (4.4 kg)
Power
Operating Voltage AC 100V-240V/50-60Hz
Power Consumption 112W, 1.48A, PF: .65
Light Source
LED 7x 20W RGBALC 6-in-1 LEDs (100,000 hours)
Optical
Luminous Intensity 6,204 Lux @ 2.5M, 1,401 Lux @ 5M
Beam Angle 25-degree beam
Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 6/8/12-channel DMX modes
Input/Output 5-pin XLR Male/Female
Other Operating Modes DMX512, M/S, Standalone, Auto Mode
Warranty
2-year limited warranty, does not cover malfunction caused by
damage to LEDs.
Photometric Data
2-meter 3-meter 4-meter 5-meter
Beam Lux fc Lux fc Lux fc Lux fc
25° 8,978 834.0 4,322 401.6 2,348 218.1 1,401 130.1
Luminous Intensity:
Distance:
Diameter:
25° Beam Angle
35.5" (90 cm) 53" (135 cm)
2m 3m
70.9" (180 cm)
4m
88.6" (225 cm)
5m

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
