Blizzard Motif Settelenti User manual

Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2023
SUITABLE FOR OUTDOOR USE
RGBW

Page 2
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
TABLE OF CONTENTS
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions 4
2. Meet the Motif™ Settelenti 5
Main Features 5
DMX Quick Reference 5
Motif™ Settelenti Pin-Up Picture 6
Rear Connections 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch of Motif™ Settelenti Fixtures 7
Data/DMX Cabling 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh?!? 8
Take It To The Next Level: Setting Up DMX Control 8
Fixture Linking (M/S Mode) 9
Mounting & Rigging 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
Starting DMX Address 11
DMX Channel Mode 11
Run Mode 11
DMX Values In-Depth 12-13
5. Appendix 14
Keeping Your Motif™ Settelenti As Good As New 14
Returns (Gasp!) 14
Shipping Issues 14

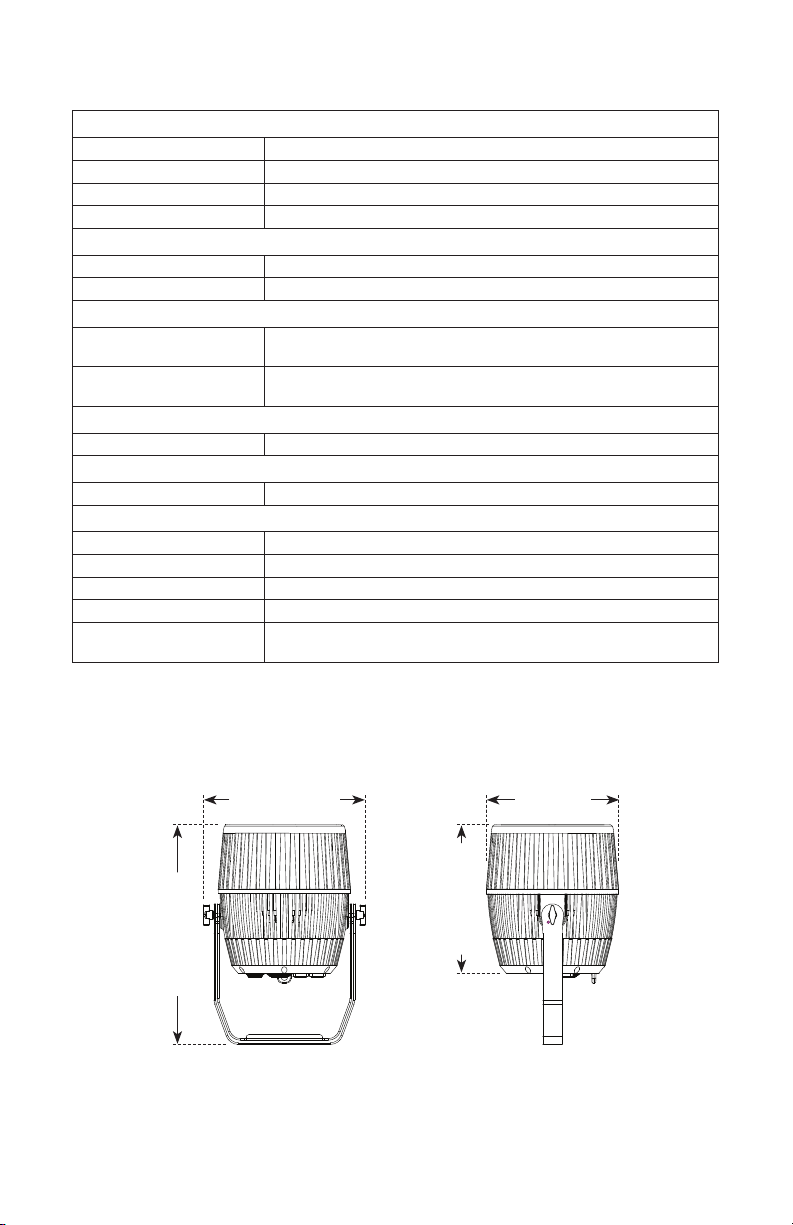

Dimensional Drawings 15

Page 3
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• Motif™ Settelenti RGBW LED Fixture
• Power Cord
• This Lovely User Manual
Getting It Out Of The Box
Congratulations on purchasing the Motif™ Settelenti. Now that you’ve got your xture, you
should carefully unpack the box and check the contents to ensure that all parts are present
and in good condition. If anything looks as if it has been damaged in transit, notify the
shipper immediately and keep the packing material for inspection. Again, please save the
carton and all packing materials. If a xture must be returned to the factory, it is important
that the xture be returned in the original factory box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run o a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer
channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the
xture you receive is suitable for your local power supply. See the label on the xture or
refer to the xture’s specications chart for more information. A xture’s listed current
rating is its average current draw under normal conditions. Check the xture or device
carefully to make sure that if a voltage selection switch exists that it is set to the correct
line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line
voltage applied. Damage to your xture may result if the line voltage applied does
not match the voltage indicated on the voltage selector switch. All xtures must
be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, please just visit our website at www.blizzardpro.com/
support and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information contained in this document are subject to change without notice. Blizzard
Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user
manual. We reserve the right to update the existing, or create a new document to correct any errors or
omissions. You can download the latest version of this document from www.blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 4/20/2022 J. Thomas 7/27/2023

Page 4
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
Please read these instructions carefully. They include
important information about the installation, usage and
maintenance of this product.
Safety Instructions
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the de-
cal or rear panel of the xture.
• Make sure there are no ammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least
20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
• ALWAYS secure xture using a safety chain. NEVER carry the xture by its
head. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized tech-
nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the
housing or attempt any repairs yourself. In the unlikely event your unit may
require service, please open a support ticket at www.blizzardpro.com/support.

Page 5
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
2. MEET THE MOTIF™ SETTELENTI
Main Features
• 7x 40W icker-free 4-in-1 RGBW LEDs (60,000 hours)
• 96x 0.2W RGB SMD LEDs
• IP65 rated, suitable for outdoor use
• Smooth 0-100% linear dimming
• 5.7° to 38° zoomable beam angle
• Individually controllable LED/SMD color presets + auto
• 1-20Hz strobe eects
• IP65 rated 3-pin DMX and power in/out connections
• powerCON™ TRUE1 compatible power in/out
• Heavy-duty aluminum enclosure
Control
• Protocol: USITT DMX-512, RDM
• DMX Channels: 9/19-channels
• 4-button colored LCD menu w/touch sensitive buttons
• Operating modes: DMX512, M/S, auto
DMX Quick Reference (9/19-Channel Modes)
9CH 19CH What it does
-- 1 Dimmer (40W LEDs, 0% - 100%)
1 2 Red intensity (40W LEDs, 0% - 100%)
2 3 Green intensity (40W LEDs, 0% - 100%)
3 4 Blue intensity (40W LEDs, 0% - 100%)
4 5 White intensity (40W LEDs, 0% - 100%)
-- 6 Strobe (40W LEDs, slow to fast)
5 7 Zoom (0% - 100%)
-- 8 Color macros + white presets (40W LEDs)
-- 9 Auto programs (40W LEDs)
-- 10 Auto speed (40W LEDs, slow to fast)
-- 11 Dimmer (SMD LEDs, 0% - 100%)
6 12 Red (SMD LEDs, 0% - 100%)
7 13 Green (SMD LEDs, 0% - 100%)
8 14 Blue (SMD LEDs, 0% - 100%)
-- 15 Strobe (SMD LEDs, slow to fast)
-- 16 Color Macros (SMD LEDs)
-- 17 Auto Programs (SMD LEDs)
-- 18 Auto Speed (SMD LEDs, slow to fast)
9 19 Reset (keep the value for 3 seconds)

Page 6
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
Figure 2: Rear Connections
Figure 1: Motif™ Settelenti Pin-Up Picture
7x 40W
4-in-1
RGBW LEDs
96x 0.2W
RGB SMD
LEDs
Heavy-duty aluminum
enclosure
Locking
Knob
Dual Mounting
Brackets
Safety Loop
Power In
Power OutDMX Out
DMX In
Control Panel

Page 7
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
Fuse Replacement
This xture utilizes a high-output switch-mode power supply with an internal
fuse. Under normal conditions, the fuse should not require replacement. Should
your xture require fuse replacement, please contact us for instructions.
Connecting A Bunch of Motif™ Settelenti Fixtures
You will need a serial data link to run light shows using a DMX-512 controller
or to run shows on two or more xtures set to sync in master/slave operating
mode. The combined number of channels required by all the xtures on a serial
data link determines the number of xtures the data link can support.
Fixtures on a serial data link must be daisy chained in a single line. Also, con-
necting more than 32 xtures on one serial data link without the use of an
optically-isolated DMX splitter may result in deterioration of DMX signal. The
maximum recommended cable-run distance is 500 meters (1640 ft).
Data/DMX Cabling
To link xtures together you’ll need data cables. You should use data-grade
cables that can carry a high quality signal and are less prone to electromagnetic
interference.
For instance, Belden© 9841 meets the specications for EIA RS-485 applica-
tions. Standard microphone cables will “probably” be OK, but note that they
cannot transmit DMX data as reliably over long distances. In any event, the
cable should have the following characteristics:
• 2-conductor twisted pair plus a shield
• Maximum capacitance between conductors – 30 pF/ft.
• Maximum capacitance between conductor & shield – 55 pF/ft.
• Maximum resistance of 20 ohms / 1000 ft.
• Nominal impedance 100 – 140 ohms
Before replacing a fuse, disconnect the power cord.
ALWAYS replace with the same type and rating of fuse.
3. SETUP
Disclaimer: The power connectors tted to the xture and xture cord are designed for compatibility
with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not
manufactured by, aliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik®
and powerCON® are registered trademarks of Neutrik AG.

Page 8
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connec-
tor on the other end. (Duh!)
To build your own DMX Terminator:
Obtain a 120-ohm, 1/4-watt resistor, and wire it between pins 2 & 3 of the last xture. They are also
readily available from specialty retailers.
Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the DMX cable to the female connector
(output) on the controller.
Step 2: Connect the female connector of the
DMX cable to the rst xture’s male connector
(input).
Note: It doesn’t matter which xture address is the rst one
connected. We recommend connecting the xtures in terms
of their proximity to the controller, rather than connecting the
lowest xture number rst, and so on.
Step 3: Connect other xtures in the chain
from output to input as above. Place a DMX
terminator on the output of the nal xture to
ensure best communication.
CAUTION: Do not allow contact between the common and the xture’s chassis
ground. Grounding the common can cause a ground loop, and your xture may
perform erratically. Test cables with an ohm meter to verify correct polarity and
to make sure the pins are not grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.
They are widely available over the internet and from specialty retailers. If you’d like to build your own, the
chart below details a proper cable conversion:
Conductor 3-Pin Female (Output) 5-Pin Male (Input)
Ground/Shield Pin 1 Pin 1
Data 1- (Primary Data Link) Pin 2 Pin 2
Data 1+ (Primary Data Link) Pin 3 Pin 3
Data 2- (Optional Secondary Data Link) -- Pin 4 - Do Not Use
Data 2+ (Optional Secondary Data Link) -- Pin 5 - Do Not Use
12
33
INPUT OUTPUT
Common
DMX +
DMX -
DMX OUTDMX IN
First
Fixture
in Chain
Next
Fixture
in Chain
DMX OUTDMX IN
A Word on Termination:
DMX is a resilient communication protocol, however
errors still occasionally occur. Termination reduces signal
errors, and therefore best practices include use of a
terminator in all circumstances. If you are experiencing
problems with erratic xture behavior, especially over
long signal cable runs, a terminator may help improve
performance.

Page 9
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
Fixture Linking (M/S Mode)
1. Connect the male connector side of the DMX cable to the output female
connector of the rst xture.
2. Connect the end of the cable coming from
the rst xture which will have a female
connector to the input connector of the next
xture consisting of a male connector. Then,
proceed to connect from the output as stated
above to the input of the following xture
and so on.
A quick note: Often, the setup for Master-Slave and
Standalone operation requires that the rst xture in the
chain be initialized for this purpose via either settings in the
control panel or DIP-switches. Secondarily, the xtures that
follow may also require a slave setting.
Check the “Operating Adjustments” section in this manual for complete
instructions for this type of setup and conguration.
DMX OUTDMX IN
First
Fixture
in Chain
Next
Fixture
in Chain
DMX OUTDMX IN
Mounting & Rigging
This xture may be mounted in any SAFE position provided there is enough
room for ventilation. The fan or vent pathway must never be obstructed.
IMPORTANT: Regardless of the rigging option you choose for your xtures,
always be sure to secure your xture with a safety cable.
Mount the xture using a suitable "C" or "O" type clamp. The clamp should be
rated to hold at least 10x the xture’s weight to ensure structural stability. Do
not mount to surfaces of unknown strength, and ensure properly rated rigging
is used when mounting xtures overhead.
Overhead mounting requires extensive experience, which includes calculating
working load limits, knowledge of the installation material being used, and
periodic safety inspections. If you lack these qualications, do not attempt the
installation yourself.
Bracket
Clamp Clamp

Page 10
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
The control panel LCD display shows the menu items you select from the menu
map on page #11. When a menu function is selected, the display will show im-
mediately the rst available option for the selected menu function. To select a
menu item, press <ENTER>.
Use the <UP> and <DOWN> buttons to navigate the menu options. Press the
<ENTER> button to select the menu function currently displayed, or to enable
a menu option. To return to the previous option or menu without changing the
value, press the <MENU> button.
4. OPERATING ADJUSTMENTS
The Control Panel
All the features and dierent modes possible with the Motif™ Settelenti are ac-
cessed by using the control panel on the rear of the xture. There are 4 control
buttons under to the LCD display which allow you to navigate through the vari-
ous control panel menus.
<MENU>
Is used to navigate to the previous higher-level menu item.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
<ENTER>
Is used to select and conrm/store the current selection.

Page 11
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
Control Panel Menu Structure
Address 001-512 Set the starting address from 001-512
Run Mode DMX512 Set the xture to run in DMX mode
Auto 1 (40W LEDs) Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
Program 7
Program 8
Auto run (40W LED programs 1-8)
Auto speed
Zoom Manual (0-255, wide <-> narrow)
Auto Zoom (O/On)
Auto 2 (SMD LEDs) Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
Program 7
Program 8
Auto run (SMD LED programs 1-8)
Auto speed
Zoom Manual (0-255, wide <-> narrow)
Auto Zoom (O/On)
CH Mode 9CH 9-channel DMX mode
19CH 19-channel DMX mode
Manual Red Red intensity (0-100%)
Green Green intensity (0-100%)
Blue Blue intensity (0-100%)
White White intensity (0-100%)
SMD R Red SMD LED intensity (0-100%)
SMD G Green SMD LED intensity (0-100%)
SMD B Blue SMD LED intensity (0-100%)
Presets White Presets 1-11 (0-100%)
Strobe Strobe (0-20, slow <-> fast)
Zoom Zoom (narrow <-> wide)
Set Display Yes/No (to ip the display)
Slave Yes/No (Yes = Master, No = Slave Units)
Keylock Yes/No
*If set to Yes, press UP, DOWN, UP, DOWN,
ENTER when returning to the menu after a
screen timeout occurs. The menu goes dark
after 1 minute of inactivity.
DMX Fail Hold (holds last signal if DMX is lost)
Blackout (blackout if DMX signal is lost)
Info Version Displays the rmware version
Reset Yes/No Reset the xture

Page 12
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
DMX Values In-Depth (9/19-Channel Modes)
9CH 19CH Value What it does
-- 1 000 <-> 255 Dimmer (40W LEDs, 0% - 100%)
1 2 000 <-> 255 Red (40W LEDs, 0% - 100%)
2 3 000 <-> 255 Green (40W LEDs, 0% - 100%)
3 4 000 <-> 255 Blue (40W LEDs, 0% - 100%)
4 5 000 <-> 255 White (40W LEDs, 0% - 100%)
-- 6 000 <-> 255 Strobe (40W LEDs, slow to fast)
5 7 000 <-> 255 Zoom (wide to narrow)
-- 8
000 <-> 009
10
011 <-> 029
30
031 <-> 049
50
051 <-> 069
70
071 <-> 089
90
091 <-> 109
110
111 <-> 129
130
131 <-> 141
142 <-> 152
153 <-> 163
164 <-> 174
175 <-> 185
186 <-> 196
197 <-> 207
208 <-> 218
219 <-> 229
230 <-> 240
241 <-> 255
Manual Color & White Presets (40W LEDs)
No function
Red
R: 100%, G: Up, B: 0%
Yellow
R: Down, G: 100%, B: 0%
Green
R: 0%, G: 100%, B: Up
Cyan
R: 0%, G: Down, B: 100%
Blue
R: Up, G: 0%, B: 100%
Magenta
R: 100%, G: Up, B: 100%, W: Up
RGBW 100%
White 1 (3800K)
White 2 (4000K)
White 3 (4400K)
White 4 (4700K)
White 5 (5000K)
White 6 (5100K)
White 7 (5300K)
White 8 (5400K)
White 9 (5600K)
White 10 (6300K)
White 11 (7800K)
-- 9
000 <-> 009
010 <-> 037
038 <-> 065
066 <-> 093
094 <-> 121
122 <-> 149
150 <-> 177
178 <-> 205
206 <-> 233
234 <-> 255
Auto Programs (40W LEDs)
No Function
Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
Program 7
Program 8
Auto run (1-8)
-- 10 000 <-> 255 Auto speed (40W LEDs, slow to fast)

Page 13
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
DMX Values In-Depth (9/19-Channel Modes)
9CH 19CH Value What it does
-- 11 000 <-> 255 Dimmer (SMD LEDs, 0% - 100%)
6 12 000 <-> 255 Red (SMD LEDs, 0% - 100%)
7 13 000 <-> 255 Green (SMD LEDs, 0% - 100%)
8 14 000 <-> 255 Blue (SMD LEDs, 0% - 100%)
-- 15 000 <-> 255 Strobe (SMD LEDs, slow to fast)
-- 16
000 <-> 009
10
011 <-> 049
50
051 <-> 089
90
091 <-> 129
130
131 <-> 169
170
171 <-> 209
210
211 <-> 254
255
Manual Color (SMD LEDs)
No function
Red
R: 100%, G: Up, B: 0%
Yellow
R: Down, G: 100%, B: 0%
Green
R: 0%, G: 100%, B: Up
Cyan
R: 0%, G: Down, B: 100%
Blue
R: Up, G: 0%, B: 100%
Magenta
R: 100%, G: Up, B: 100%
RGB 100%
-- 17
000 <-> 009
010 <-> 037
038 <-> 065
066 <-> 093
094 <-> 121
122 <-> 149
150 <-> 177
178 <-> 205
206 <-> 233
234 <-> 255
Auto Programs (SMD LEDs)
No Function
Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
Program 7
Program 8
Auto run (1-8)
-- 18 000 <-> 255 Auto Speed (SMD LEDs, slow to fast)
9 19 000 <-> 255 Reset (keep the value for 3 seconds)

Page 14
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
Keeping Your Motif™ Settelenti As Good As New
The xture you’ve received is a rugged, tough piece of pro lighting equipment, and as
long as you take care of it, it will take care of you. That said, you’ll need to take care of it
if you want it to operate as designed. You should keep the xture clean, especially if you
are using it in an environment with a lot of dust, fog, haze, wild animals, wild teenagers or
spilled drinks.
Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of
light output. Keeping the fans free of dust and debris will keep the xture running cool and
prevent damage from overheating.
In transit, keep the xtures in cases. You wouldn’t throw a prized guitar, drumset, or other
piece of expensive gear into a gear trailer without a case, and similarly, you shouldn’t even
think about doing it with your shiny new light xtures.
Common sense and taking care of your xtures will be the single biggest thing you can do
to keep them running at peak performance and let you worry about designing a great light
show, putting on a great concert, or maximizing your client’s satisfaction and “wow factor.”
That’s what it’s all about, after all!
Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry about
sending a defective unit back, or sending a unit in for service. But, like any complex
piece of equipment designed and built by humans, once in a while, something doesn’t go
as planned. If you nd yourself with a xture that isn’t behaving like a good little xture
should, you’ll need to obtain a Return Authorization (RA).
Don’t worry, this is easy. Just visit www.blizzardpro.com/support and open a support
ticket, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable,
pre-paid freight method. We suggest using USPS Priority or UPS. Make sure you carefully
pack the xture for transit, and whenever possible, use the original box & packing for
shipping.
When returning your xture for service, be sure to include the following:
1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
We will, at our discretion, repair or replace the xture. Please remember that any shipping
damage which occurs in transit to us is the customer’s responsibility, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and must be
reported to the carrier immediately upon receipt of the items. Claims must be
made within seven (7) days of receipt.
5. APPENDIX

Page 15
Motif™ Settelenti Manual Rev. A © 2023 Blizzard Lighting, LLC
Tech Specs!
Weight & Dimensions
Width 11.5 inches (291 mm)
Depth 9.4 inches (238 mm)
Height 10.5 inches (266 mm)
Weight 20 lbs (9.1 kg)
Power
Operating Voltage AC 90V-260V/50-60Hz
Power Consumption 232W, 1.99A, PF: .99
Light Source
LED 7x 40W 4-in-1 RGBW LEDs (60,000 hours)
96x 0.2W RGB SMD LEDs
Luminous Intensity 11,688 Lux @ 2.5M (narrow) | 1,083 Lux @ 2.5M (wide)
2,644 Lux @ 5M (narrow) | 248 Lux @ 5M (wide)
Optical
Beam Angle 5.7° to 38° zoomable beam angle
Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512, RDM
DMX Channels 9/17-channel DMX modes
Input/Output 3-pin XLR Male/Female
Other Operating Modes DMX512, M/S, Standalone, Auto Mode
Warranty
2-year limited warranty, does not cover malfunction caused by
damage to LEDs.
Dimensional Drawings
11.5" (291 mm)
15.6" (394.3 mm)
9.4"
(238 mm)
10.5" (266 mm)

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
