Welcome to Thurston Manufacturing Company. Our goal is to provide
quality productsandservices toour customers.Thecompany’s BLU-JET
products have a reputation for quality, excellence in design and proven
durability.Energetic,resourcefulandcontinuousimprovementgoalsin
Environmental, Safety, Quality, Production and Engineering keep our
rmatthecuttingedgeoftechnology.
We hope your BLU-JET equipment will give you years of service.
Introduction
Read this manual carefully. It will instruct you on how to operate and
service your machine safely and correctly. Failure to do so could result
in personal injury and/or equipment damage.

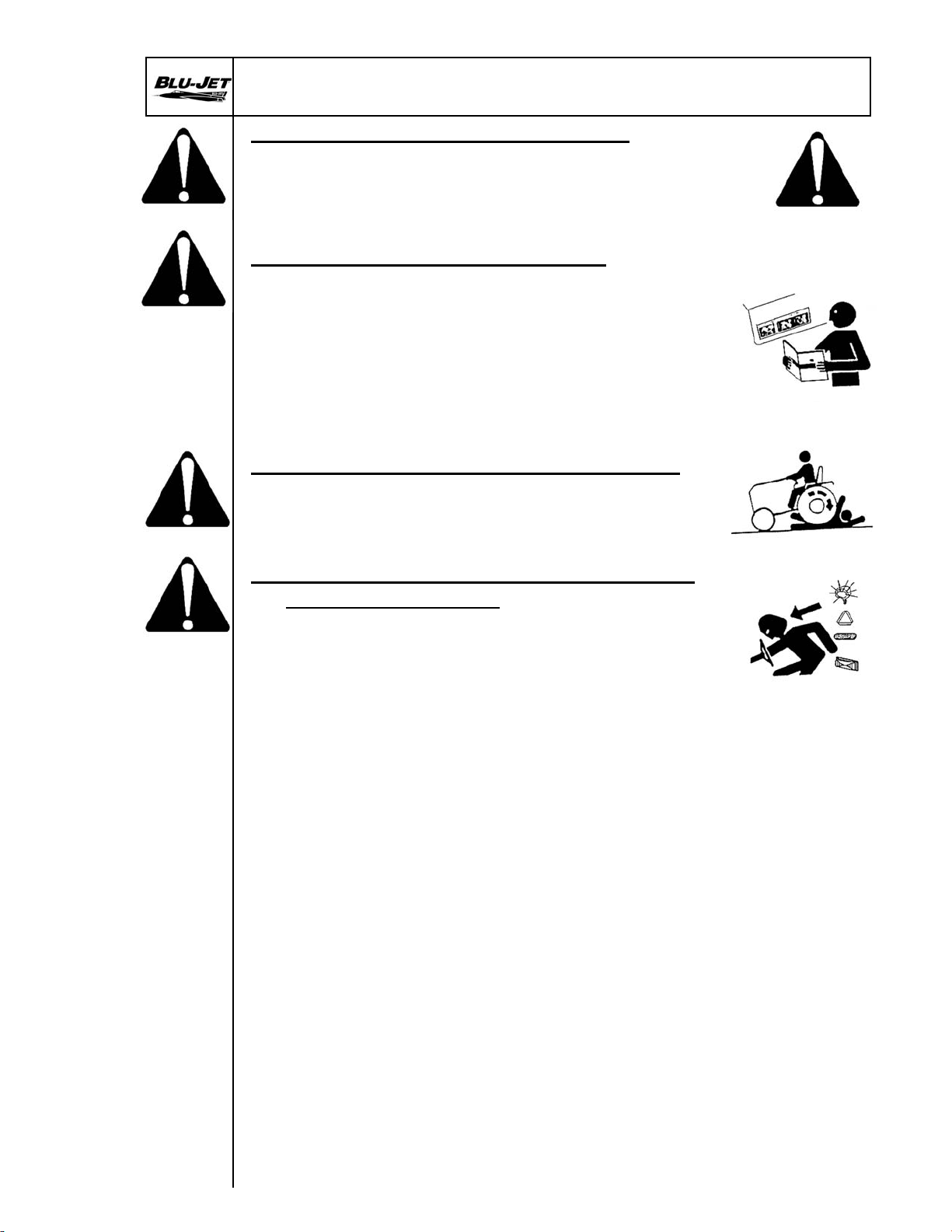

SAFETY INFORMATION
Indicates an imminently hazardous situation that, if
not avoided, will result in death or serious injury.
Thesignwillhavethecolorcombinationofredand
white.
Indicates a potentially hazardous situation that, if
not avoided, could result in death or serious injury.
Thesignwillhavethecolorcombinationoforange
and black.
Indicates a potentially hazardous situation that, if
not avoided, may result in minor or moderate injury.
The sign will have the color combination of yellow
and black.
NOTE: Indicates a special point of information.
Carefully read and follow all safety signs. Reinstall safety signs that
are damaged or missing.
Right-hand and left-hand sides of the implement are determined by
facing in the direction the implement will travel when going forward.
DANGER
WARNING
CAUTION

3
Introduction
For your convenience we have four easy ways to register your warranty.
• Call our toll free number and ask for warranty registration. 1-800-658-3127
• Fax completed warranty registration form. Fax: [phone]
• Register on-line in warranty page at www.blu-jet.com
• Complete and return registration form.
Thurston Manufacturing Company Warranty does not cover the following:
1) Cleaning, transporting, mailing and service call charges.
2) Depreciation or damage caused by normal wear, accidents,
improper protection or improper use.
See complete Warranty for details.
MODEL NO.__________________________
SERIAL NO.__________________________
DATE PURCHASED___________________
Record your implement model and serial number in the space provided below.
Yourdealerneedsthisinformationtogiveyouprompt,efcientservicewhen
you order parts.

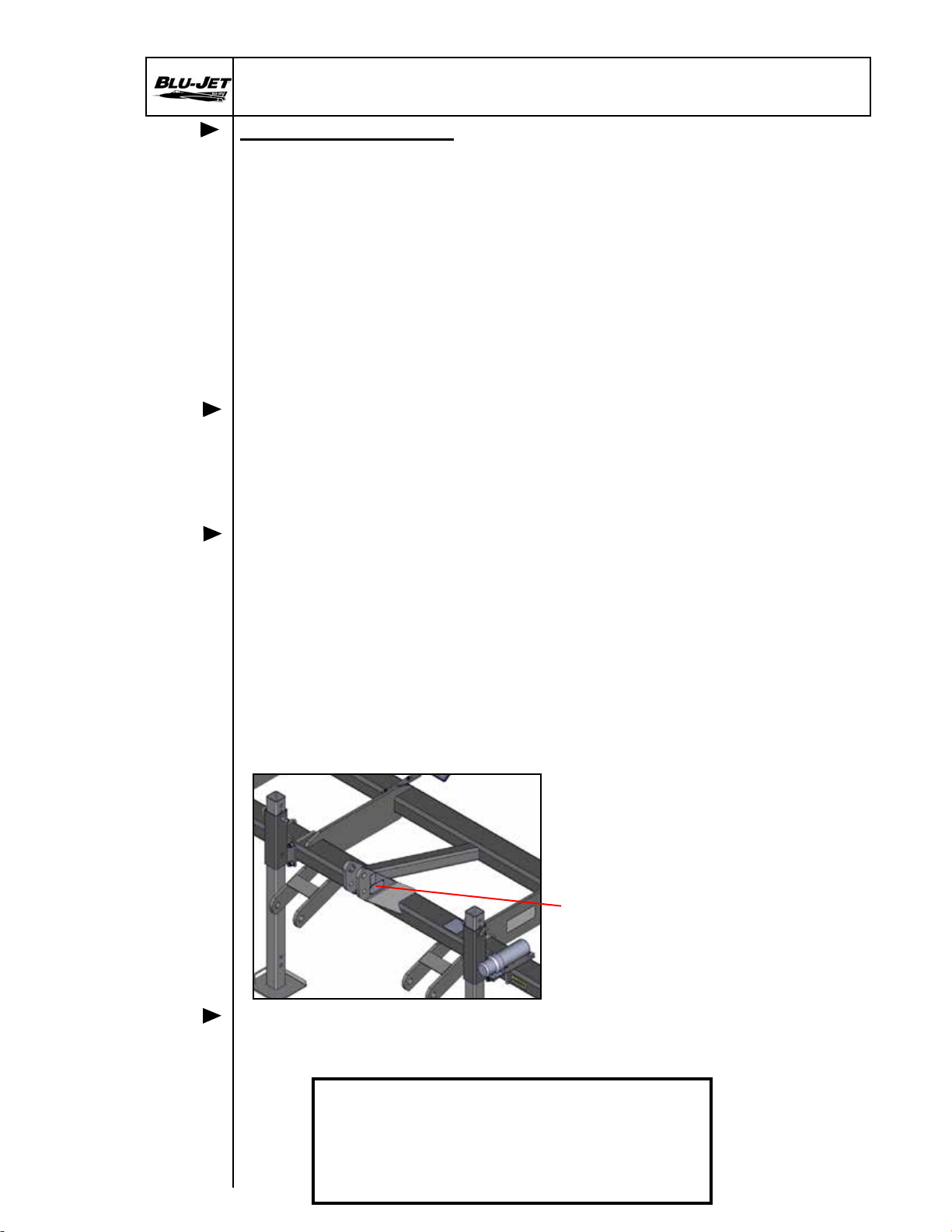

(From the rear of
the mainframe.)
Serial Number
located on the
left-hand front of
the mainframe.
General Information:

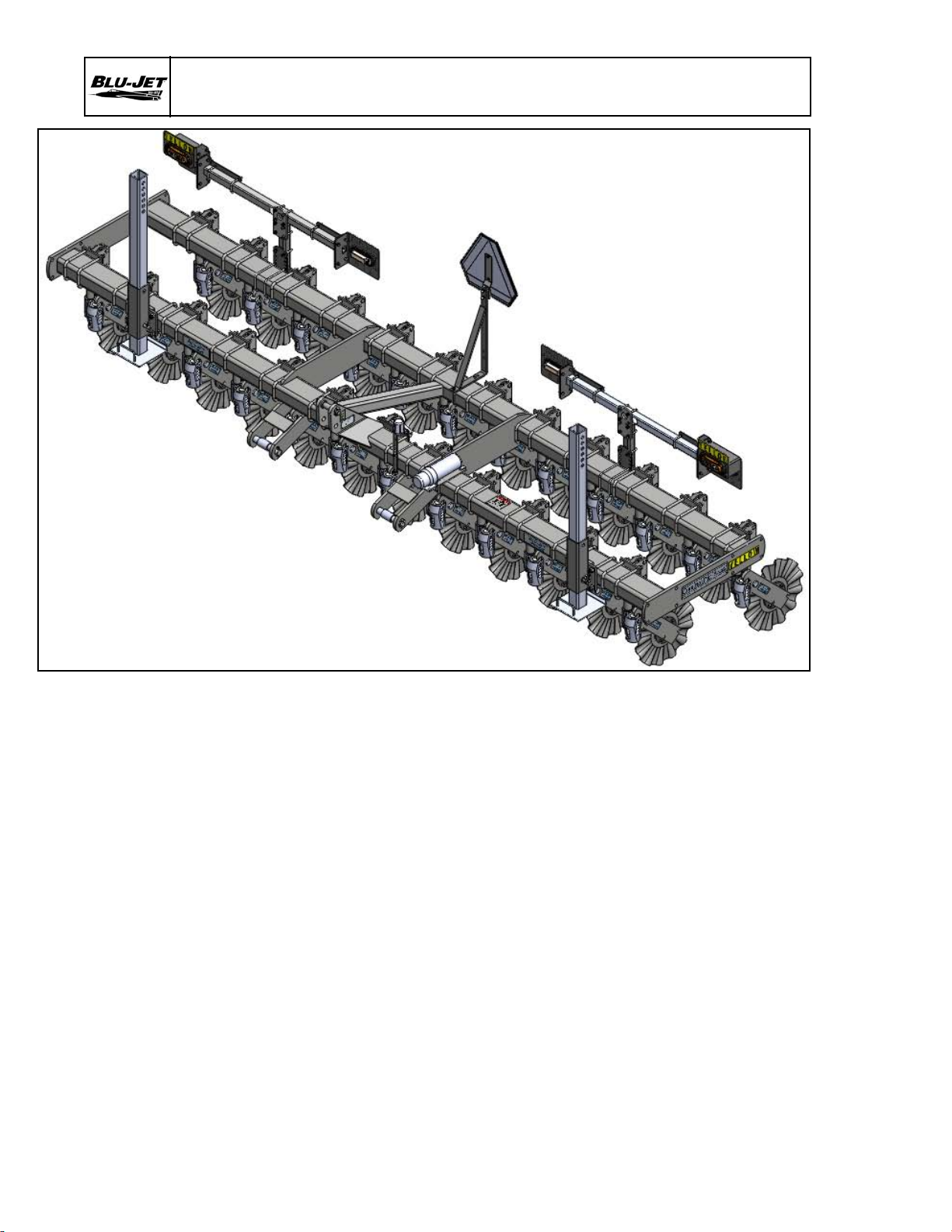

The BLU-JET CoulterPro unit is one of the most versatile machines
you can own. Using the Super 1200 Coulter, the CoulterPro is designed
to chop and size residue and lightly till the soil. Available in four working
widths from 15’ to 30’ and various spacing options, there is a combination
sure to suit your soil and residue conditons. The CoulterPro can also be
paired with the LandTracker 9400 and your planter or drill for one-pass
tillage and planting operations.
The CoulterPro is also availiable with an optional rolling harrow for
additionalseedbednishing.
Warrantyisprovidedforcustomerswhooperateandmaintaintheirequipment
as described in this manual. Warranty registration is accomplished by the
dealer completing and forwarding the WARRANTY REGISTRATION FORM to
Thurston Manufacturing Company. It is in your best interest to ensure that
this has been done.

4
1. All hardware properly tightened
 2. Lubricationofgreasettings
3. All decals properly located and readable
4. Other adjustments for machine level height, etc.
5. Overall condition (touch up any scratches, clean and
polish)
6. Operator’s manual
DATE SET UP_______________________________
SIGNATURE________________________________
PRE-DELIVERY CHECKLIST
Dealer Checklist
To The Dealer:
Inspect the implement thoroughly after assembly to be certain it is
functioning properly before delivering it to the customer. The following
checklist is a reminder of points to cover. Check off each item as it is
found satisfactory or after proper adjustment is made.
DELIVERY
Review the operator’s manual with the customer. Explain
the following:
1. Safe operation and service
2. Correct machine installation and operation
3. Daily and periodic lubrication and maintenance
4 Daily and periodic inspections
5. Troubleshooting
6. Storing machine
7. Thurston Manufacturing Company parts and service
8. Have the customer write the machine model and serial
number in space provided in manual introduction
9. Give customer the operator’s manual and encourage
the customer to read the manual carefully
10. Completion and mailing of warranty registration
form
DATE DELIVERED__________________________
SIGNATURE_______________________________
MODEL NO.________________________________
SERIAL NO.________________________________

5
To The Owner
Thank you for your recent purchase of a new BLU-JET
implement.TheprimaryobjectiveofThurstonManufacturing
Company is to build and provide you with a quality product.
However,intheeventthataproblemdoesoccur,itisimperative
thatyourwarrantyregistrationisonleinordertoaccurately
respondtoyourspecicservicecircumstances.
For your convenience we have four easy ways to register
your warranty:
•Callourtollfreenumberandaskfor
warranty registration.
1-800-658-3127
• Fax your completed warranty
registration form.
1-402-385-3043
• Register on-line at:
www.blu-jet.com
• Complete and mail the warranty
registration form.
Thismanualhasbeenpreparedtoassistyouintheassembly
of your new machine and contains information pertaining to
safety, operations and all of its parts. Our personnel in sales
andservicearealwaysavailabletoassistyouwhenquestions
ariseconcerningtheassemblyoroperationsofyourtoolbar.
When ordering parts, please refer to part numbers and
descriptions as listed throughout this book. All parts and
whole goods will be shipped FOB Thurston, Nebraska. Or
FOB your regional distributor. Always check merchandise
immediately upon receipt for damage or shortage. Note any
discrepancyoncarrier’sbillofladingandnotifySenderwithin
10 days. Returned goods will be subject to a 15% restocking
charge.ThurstonManufacturingCompanyreservestheright
to make improvements and modications on equipment
without obligation to change previously built equipment.All
prices are subject to change without notice.
Register
Warranty
One of
Four Ways

6
Thurston Manufacturing Company warrants each new BLU-JET machine
primary framework to be free from defects in material and workmanship for a period
ofve(5)years,normalwearofwearingpartsexcepted.ThurstonManufacturing
Company further warrants each new BLU-JET product to be free from defects in
material and workmanship, normal wear of wearing parts excepted, for a period
of one (1) year. All accessories purchased and resold by Thurston Manufacturing
Company will be warranted according to their respective manufacturer. Tires on
BLU-JET equipment are warranted through their respective tire manufacturers and
their network of dealers in your local area.
Warranty begins from date of delivery to the original purchaser and applies
to all new BLU-JET products that have not been altered and are being used for the
intendedpurpose.Negligence,abuseormodicationofequipmentmanufactured
by or purchased and resold by Thurston Manufacturing Company will void this
warranty.
The obligation of Thurston Manufacturing Company to honor this warranty
is limited to the repair or replacement of defective merchandise, to the original
purchaser, subject to inspection of equipment in question by an authorized Thurston
Manufacturing Company sales or service technician. In the USA, freight of warranty
replacement parts including main frame centers and wings will be prepaid for a
period of one (1) Year by Thurston Manufacturing Company. Shipments of repaired
or replaced parts including main frame centers and wings after one year will be paid
by the customer.
Return of defective goods must be made within thirty (30) days of failure to
Thurston Manufacturing Company, Thurston, Nebraska USA or to the nearest
authorized BLU-JET Distributor or Rep Sales and service outlet.
Thurston Manufacturing Company will not be held responsible for any repair
charges made by customers without prior written consent and prior equipment
inspection by an authorized Thurston Manufacturing Company sales or service
technician.
This warranty shall not be interpreted to render liability for injury or damages
of any kind, direct, consequential or contingent to person or property. This warranty
does not extend to loss of crops, economic and/or commercial loss, loss because
of delay in crop production or any expense incurred for labor, supplies, substitute
machinery, rental or for any other reason. This warranty is subject to any existing
condition of supply, which may directly affect Thurston Manufacturing Company’s
ability to obtain materials of manufacture and delivery of replacement parts.
Thurston Manufacturing Company reserves the right to make improvements
indesignandchangesinspecicationsatanytimewithoutincurringanyobligation
to owners of units previously sold.
No one is authorized to alter, modify or enlarge this warranty nor its exclusions,
limitations and reservations. Thurston Manufacturing Company makes no
representations or warranties, expressed or implied (including implied warranties
ofmerchantabilityandtness),exceptforthosesetforthinThurstonManufacturing
Company’s current applicable published warranty policies and procedures.
Layton W. Jensen, President 022398\mgmt
Limited Warranty

7
Safety
RECOGNIZE SAFETY INFORMATION
• This is the safety-alert symbol. When you see his symbol
on your machine or in this manual, be alert to the
potential for personal injury. Follow recommended
precautions and safe operating practices.
FOLLOW SAFETY INSTRUCTIONS
• Carefully read all safety messages in this manual and
on your machine safety signs. Keep safety signs in good
condition. Replace missing or damaged safety signs.
• Learn how to operate the machine and how to use
controls properly.
• Do not let anyone operate without instruction.
• Keep your machine in proper working condition.
 • Unauthorizedmodicationtothemachinemay
impair the function and/or safety and affect machine life.
PROTECT CHILDREN AND BYSTANDERS
• Before you back, LOOK CAREFULLY behind for
children.
• Clear area of children, pets and bystanders.
HIGHWAY AND TRANSPORT OPERATIONS
Adopt safe driving practices:
• Keep the brake pedals latched together at all times.
NEVER USE INDEPENDENT BRAKING WITH MACHINE
IN TOW AS LOSS OF CONTROL AND/OR UPSET OF
UNIT CAN RESULT.
• Always drive at a safe speed relative to local
conditions and ensure that your speed is low enough
for a emergency stop to be safe and secure. Keep
speed to a minimum.
• Reduce speed prior to turns to avoid the risk of
overturning.
• Avoid sudden uphill turns on steep slopes.
• Always keep the tractor or towing vehicle in
gear to provide engine braking when going downhill.
Do not coast.
• Do not drink and drive.
• Comply with state and local laws governing highway
safety and movement of farm machinery on public roads.
• Use approved accessory lighting and necessary
warning devices to protect operators of other vehicles
on the highway during daylight and nighttime transport.
 • Theuseofashingamberlightsisacceptableinmost
localities. However, some localities prohibit their use.
Local laws should be checked for all highway lighting
and marking requirements.
• When driving the tractor and equipment on the road
or highway under (20 mph max.) (32 kmph max.) at night or
  duringtheday,useashingamberwarninglights
  andaslowmovingvehicle(SMV)identicationemblem.

8
Safety
AP 2483-8-98
AP 2234-7-98
AP 2914
Observe Safety Signs
Rigid Frame
Folding Frame

9

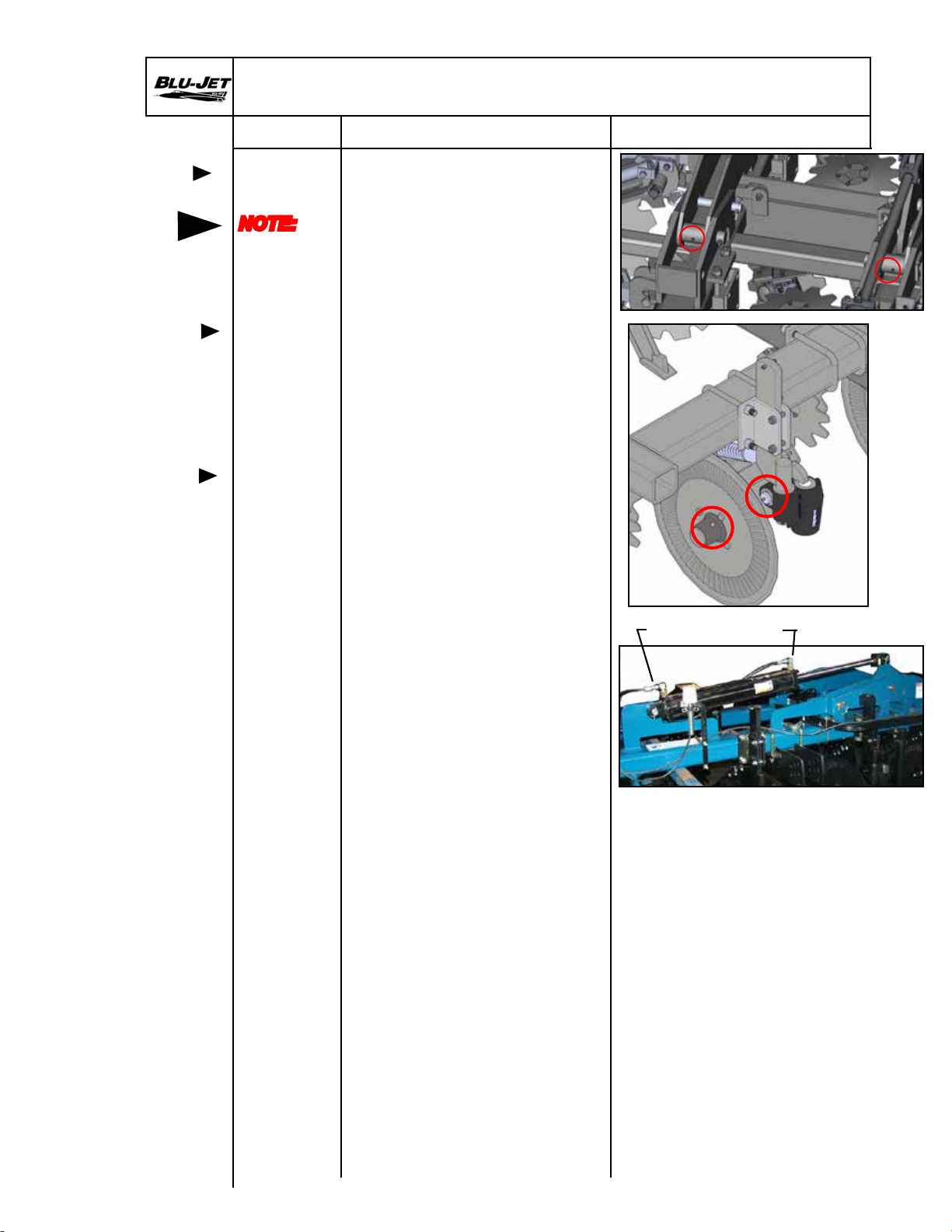

Operating Instruction
1. Unfold wings and grease
wing hinges daily.
2. Grease all coulter arm pivots.
3. The plug on the coulter hub
can be removed. A zerk can
be installed. Hub and spindle
assembly should be greased
twice seasonally.
4. Hydraulic wing cylinders are
 designedwithoilow 
 restrictorttingstoprovidea
smooth and even folding
 sequence.Oilowrestrictor
 modicationmaynegatively
affectthefolding performance.
 Theoilowrestrictorsslow
thewingoperationformaximum
safety.
5. All exposed cylinder rods
should be greased before
seasonal storage to prevent
rusting.
Lubricating
wing hinge
NOTE:
Grease all
zerks daily.
Coulter
pivot shaft
lubrication
Coulter
hub
lubrication
Oil Flow Restricter
Task Procedures Illustrations

10
Task Procedures Illustrations
Preparing
for storage A. Store the machine in a dry place. If the storage building has a dirt
 oor,lowertheparkstandsandsupportthestandwitha 
board to prevent the stand from entering the ground.
B. Scrape or brush off any dirt on the machine and remove all
trash.
C. Relieve pressure from both hydraulic circuits. Heat from the sun
can cause hydraulic systems to become over pressurized and
cause hoses or components to burst.
D. Before storing, apply grease to all hydraulic cylinder rods to
prevent rust or store with cylinders retracted if possible
E. Fasten hydraulic hose ends to front of machine to keep the hose
ends above the ground.
F. Paint any surface that can rust.
G. Lubricateallgreasettings.
H. Inspect the machine for worn or broken parts and replace the
parts as needed.
A. Remove the protective grease from the hydraulic cylinder rods.
B. Assemble any parts taken off for storage or reconditioning.
C. Check the complete machine for loose bolts and cotter pins.
Check for parts out of adjustment which could result in rapid
wear, possible breaking and poor operation.
D. Lubricate the complete machine.
E. Check tires for correct air pressure.
F. Check wheel bolt torque.
Removing
from
storage
Wingex
spacers Flex spacers
out position
Flex spacers
in position
NOTE:Wingexspacersintheout
position.Wingcanoat
2 degrees down 3 1/4” below
level a range of approximately
35” (30 ft. toolbar)
This spacer position should
be used for mechanical or
hydraulic wing lockdown.
 Wingexspacerspositioned
 totheinside.Wingscanoat
from 7-1/2” below level to
13-1/2” above level a range
of approximately 44”.
(30 ft. tool bar)
Operating Instruction
Tractor side
Hole for hydraulic
pressure wing
lockdown
Mechancial
wing lockdown
Wing lockdown pin

11
80000011 CoulterPro 15’, 25 x 7” Spacing
80000011 CoulterPro 15’, 25 x 7” Spacing

12
80200019 Coulter Bundle, Drill Till 25 x 7” Spacing
80200019 Coulter Bundle, Drill Till 25 x 7” Spacing
AM4773
4 PLACES

13

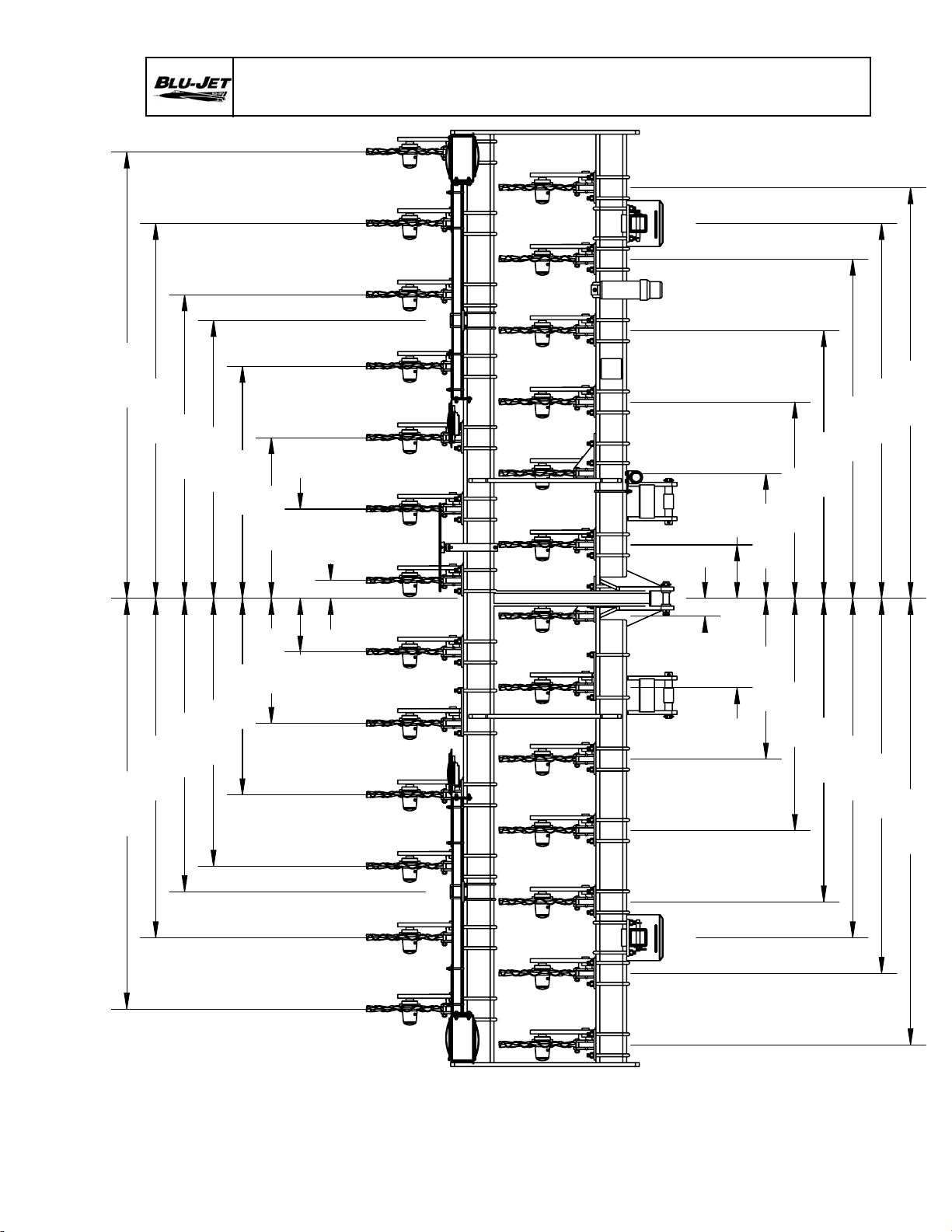

80000011 CoulterPro 15’, 25 x 7” Spacing
80-1/2"
66-1/2"
57-1/2"
52-1/2"
38-1/2"
24-1/2"
10-1/2"
3-1/2"
17-1/2"
31-1/2"
45-1/2"
59-1/2"
54-1/2"
73-1/2"
87-1/2"
87-1/2"
73-1/2"
66-1/2"
59-1/2"
45-1/2"
31-1/2"
17-1/2"
3-1/2"
10-1/2"
24-1/2"
38-1/2"
52-1/2"
66-1/2"
73-1/2"
80-1/2"
COULTER PRO
15' RIGID
7" EVEN

14
CoulterPro 80000011 15’ Drill Till 25 X 7
CoulterPro 80000011 15’ Drill Till 26 X 7
80000011 CoulterPro 15’, 25 X 7 and 26 X 7

15
80000011 CoulterPro 15’, 26 x 7” Spacing
CoulterPro 80000011 15’ Drill Till 26 X 7

16
80200011 Coulter Bundle Drill Till, 26 X 7” Spacing
80200011 Coulter Bundle Drill Till 26 X 7” Spacing
AM4773
AM4774

17
80000011 CoulterPro 15’, 26 x 7” Spacing
80-1/2"
66-1/2"
57-1/2"
52-1/2"
38-1/2"
24-1/2"
10-1/2"
3-1/2"
17-1/2"
31-1/2"
45-1/2"
59-1/2"
54-1/2"
73-1/2"
87-1/2"
87-1/2"
73-1/2"
66-1/2"
59-1/2"
45-1/2"
31-1/2"
17-1/2"
3-1/2"
10-1/2"
24-1/2"
38-1/2"
52-1/2"
66-1/2"
73-1/2"
80-1/2"
COULTER PRO
15' RIGID
7" EVEN

18
80000012 CoulterPro 15’, 24 x 7.5” Spacing
