Blu TF200 User manual

2013-07
1 866 907 0122 blubathworks.com
®
In-wall Basin & Bathtub
Spouts
Installation Guide
TF200
TF210
TF510
TF512
TF514
basin
bathtub

2013-07
1 866 907 0122 blubathworks.com
®
1
Attention – Before Installation
1. Inspect this product to ensure you have all parts as shown that are required for proper installation.
2. The valve cartridge has been factory tested and adjusted – DO NOT TAKE THE CARTRIDGE APART. Taking the
cartridge apart will void the warranty.
3. Ensure that both hot and cold water feeds are properly connected to the marked lav connecting.
4. This product must be installed by a professional contractor.
5. Refer to the specification and assembly drawings attached for installation directions.
6. Flow Pressure –Min. 25 PSI, Max. 80 PSI. Recommended pressure – 50 to 60 PSI.
Installation Requirements
Please read the instructions carefully so as to avoid any damage to the fixture.
1. To ensure this product is installed properly, you must read and follow these guidelines.
2. The owner/user of the faucet must keep this information for future reference.
3. Be sure your installation conforms to local codes.
4. Refer to the specification and assembly drawings attached. Faucet is sold partially assembled but shown fully
disassembled for illustrative and service purposes only.
5. Inspect this product to ensure you have all parts required for proper installation.
6. Use only a strap wrench or protected/smooth-jaw wrench on any finished surface.
7. If possible, install the faucet assembly on the sink or mounting surface before setting.
8. Do NOT use putty during this installation.
Cleaners For Fittings And Accessories
To avoid damaging the surface and working components of the fittings, certain precautions must be taken in terms of us-
age and subsequent cleaning as many cleaning agents contain acids for general cleaning and removing calcium depos-
its. When caring for your fittings and accessories, please note the following:
- Only apply cleaners which are expressly intended for the use
- Never use any cleaner containing hydrochloric acid, formic acid or acetic acid on or near the fitting, as they can
cause considerable damage
- Do not use cleaners containing phosphoric acid
- Do not use cleaners containing chlorine bleach solutions
- Never mix or combine cleaning agents
- Abrasive cleaners and unsuitable scouring agents such as scouring pads
Technical Support Assistance
If further assistance is required, please contact:
Product support at 1.866.907.0122 (09:00 - 17:00hrs PST) or email
[email protected]
North America
Blu Bathworks Inc.
188 Smithe Street, Vancouver BC, Canada, V6B 6A9
T+1.604.299.0122 F+1.604.299.0125

2013-07
1 866 907 0122 blubathworks.com
®
2

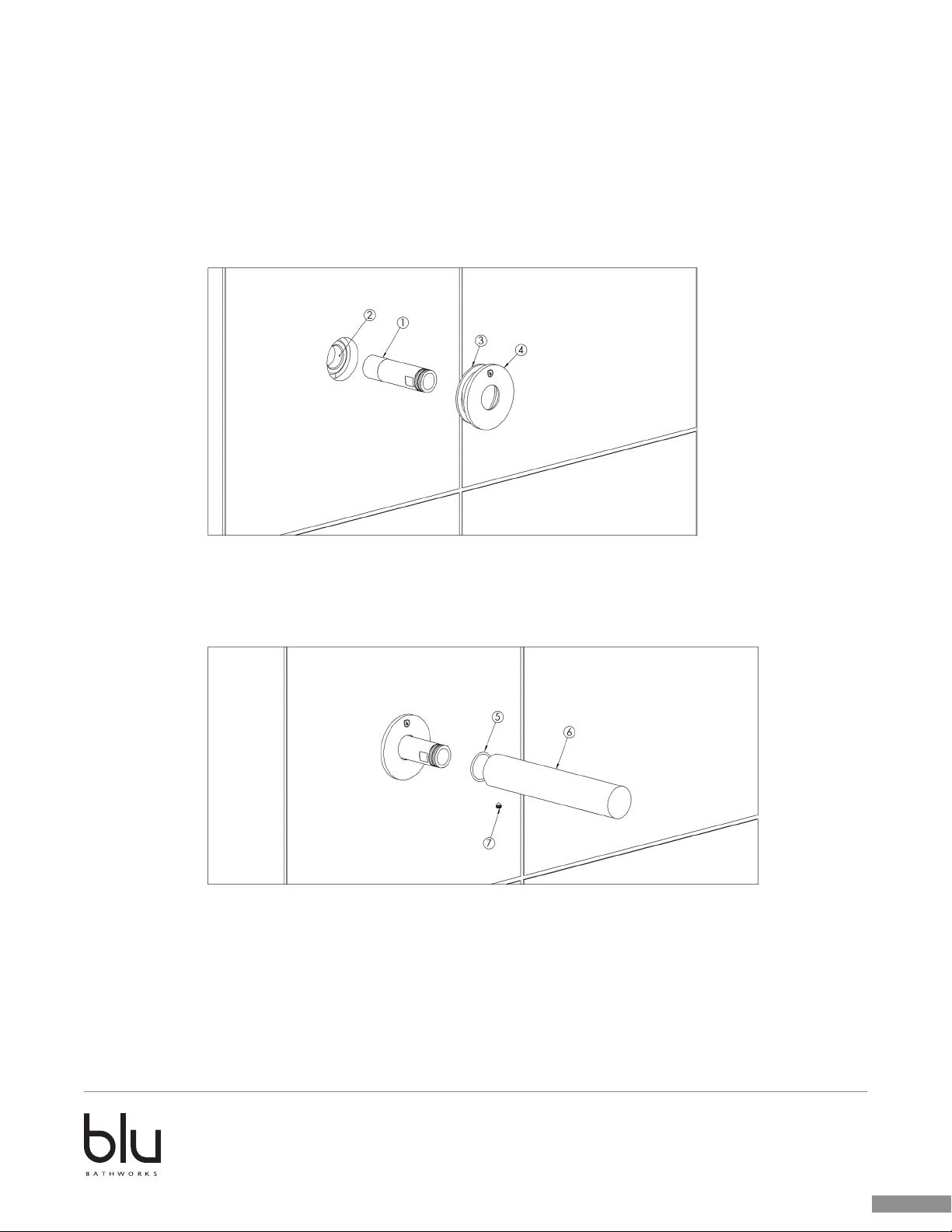

BASIN - STEP 1
• Screw the rod (1) on the pipe (2).
• Place the foam gasket (3) on the back part of the plate(4).
• Place the plate (4) on the finished wall.
BASIN - STEP 2
• Place the O-ring (5) on the spout (7).
• Place the flow restrictor (6) in the seal inside the spout (7).
• Place the spout (7) on the rod and fix it with the grub screw (8).

2013-07
1 866 907 0122 blubathworks.com
®
3
BATHTUB - STEP 1
• Screw the rod (1) on the pipe (2).
• Place the foam gasket (3) on the back part of the plate(4).
• Place the plate (4) on the finished wall.
BATHTUB - STEP 2
• Place the O-ring (5) on the spout (6).
• Place the spout (6) on the rod and fix it with the grub screw (7).

2013-07
1 866 907 0122 blubathworks.com
®
4
BASIN SPOUTS
Ø1"
[25]
Ø2½"
[60]
¼"
[7]
¼"
[7]
Ø1"
[25]
Ø2½"
[60]
¼"
[7]
¼"
[7]
NPT ½"
7"
[180]
1"
[24]
¼"
[6]
¼"
[4]
6½"
[163]
NPT ½"
10"
[250]
1"
[24]
¼"
[6]
¼"
[4]
9¼"
[233]
TF200
TF210

2013-07
1 866 907 0122 blubathworks.com
®
5

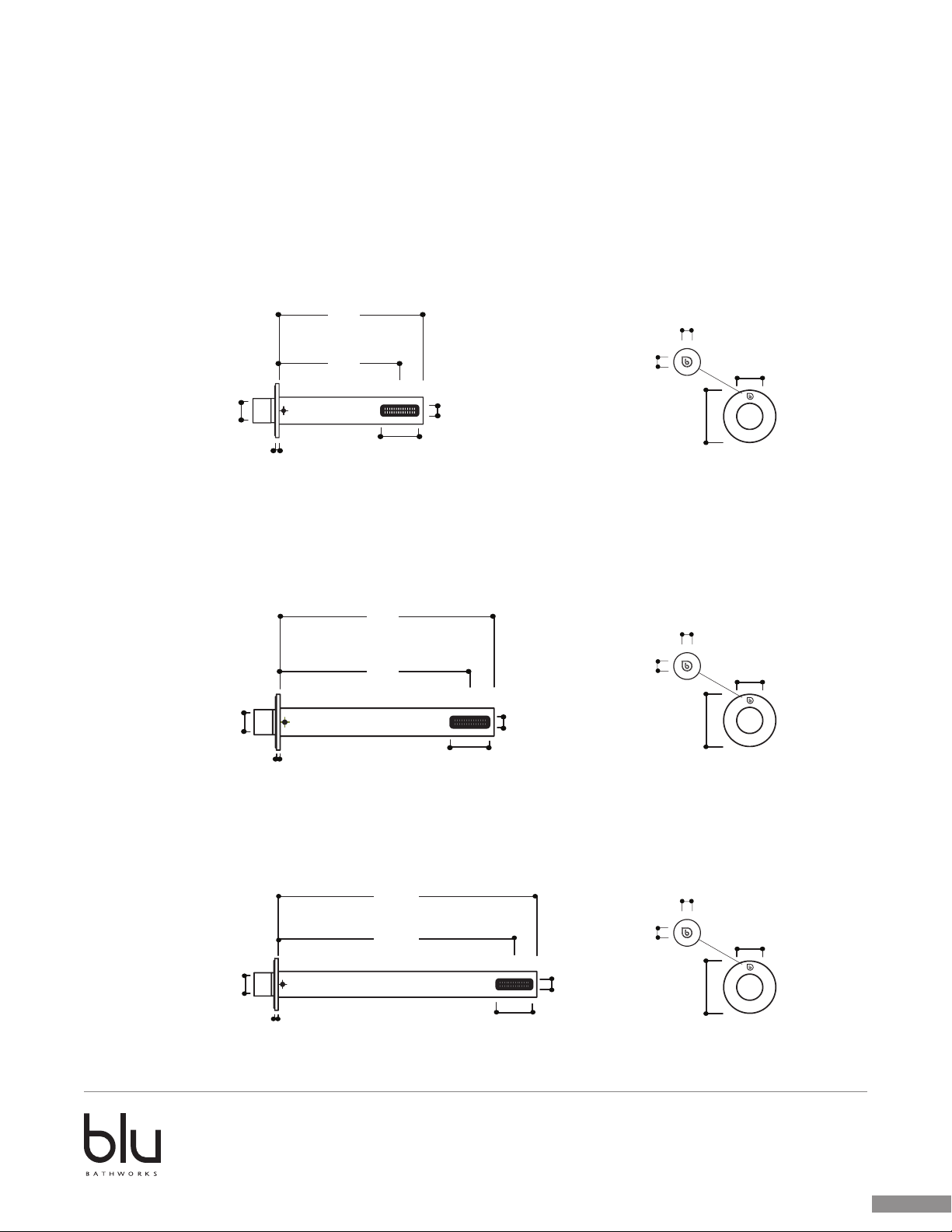

BATHTUB SPOUTS
TF510
TF512
TF514
6¼"
[160]
5¼"
[134]
¼"
[4]
NPT ½"½"
[12]
1½"
[42]
9"
[230]
8"
[204]
¼"
[4]
NPT ½"½"
[12]
1½"
[42]
¼"
[4]
NPT ½"½"
[12]
1½"
[42]
11¾"
[300]
10¾"
[274]
Ø1¼"
[30]
Ø2½"
[60]
¼"
[7]
¼"
[7]
Ø1¼"
[30]
Ø2½"
[60]
¼"
[7]
¼"
[7]
Ø1¼"
[30]
Ø2½"
[60]
¼"
[7]
¼"
[7]

2013-07
1 866 907 0122 blubathworks.com
®
6

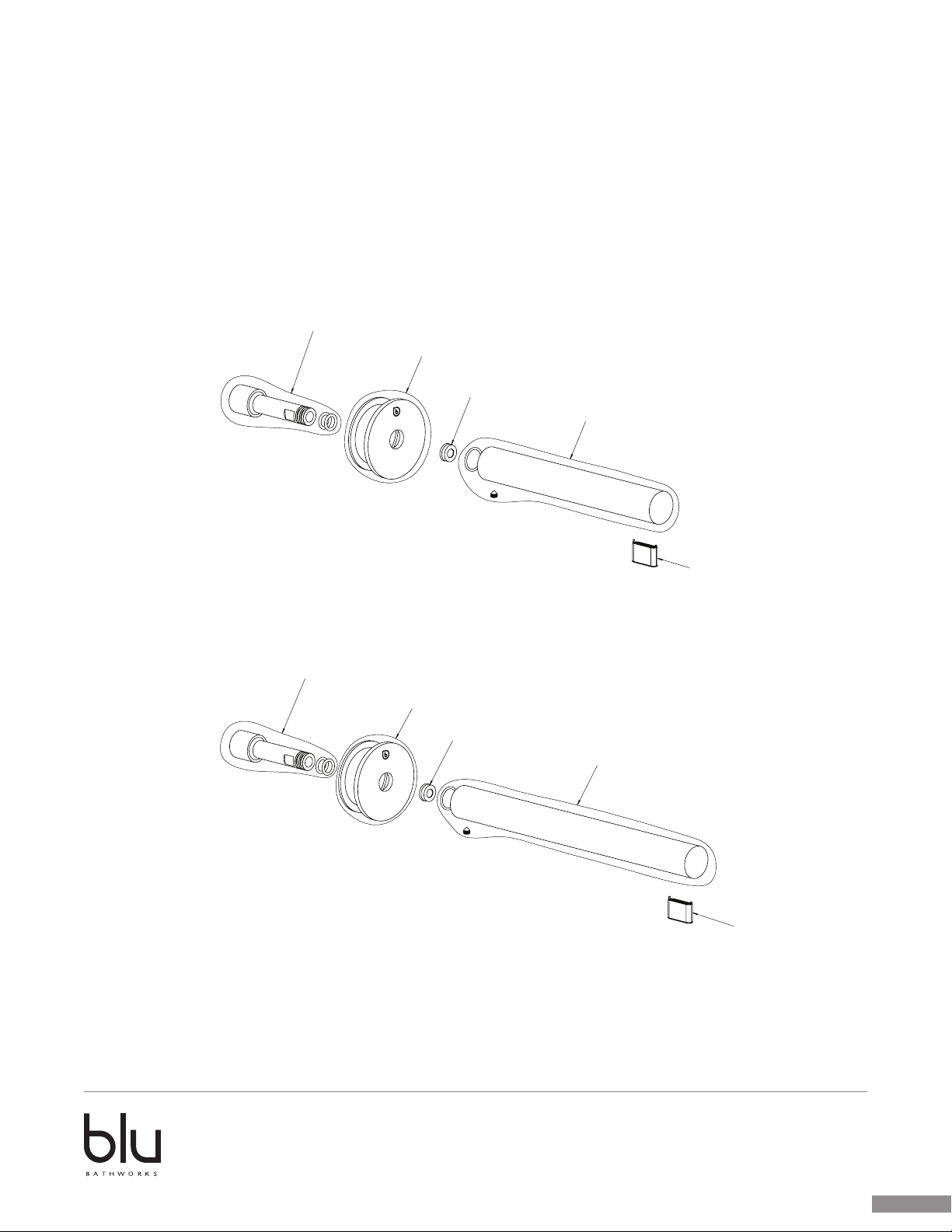

BASIN SPOUTS
P0000000501
P1293000033
P1293000032
P0000000500
P0000000513
0 0 0
T F 2 0 0
Group round spout Ø25 h180
P1293000016
23/05/13
04/04/2013 A
DATA N° MODIF.
Peso gr.
APPROV.
EMIS.
DATA
VIETATA OGNI RIPRODUZIONE DI QUESTO DISEGNO SENZA PREVENTIVA AUTORIZZAZIONE DELLA DITTA
TRATTAMENTO
MATERIALE
DENOMINAZIONE
DISEGNO N°
CODICE N°
di Boccalerio Remo s.r.l.
Via Casale n°34 A
28010 BOLZANO NOVARESE (NO)
SCALA
( )
TOLLERANZE GENERALI
oltre 30 fino a 120 = 0,3
oltre 120 fino a 400 =
0,5
oltre 400 fino a 1000 =
0,8
da 0,5 fino a 6 =
0,1
oltre 6 fino a 30 = 0,2
ANGOLI =
30'
RAGGI = R 0,5
SMUSSI = 0,3 x 45°
SUPERFICI
GREZZA
SGROSSATA
FINITA
RETTIFICATA
R.B.
LA DITTA ADOTTA UNA POLITICA DI CONTINUO MIGLIORAMENTO
QUINDI SI RISERVA IL DIRITTO DI APPORTARE MODIFICHE SENZA PREAVVISO
3,2
12,5
0,8
TF200
TF210
P0000000501
P1293000034
P1293000032
P0000000500
P0000000513
0 0 0
T F 2 1
0
Group round spout Ø25 h250
P1293000017
09/05/13
04/04/2013 A
DATA N° MODIF.
Peso gr.
APPROV.
EMIS.
DATA
VIETATA OGNI RIPRODUZIONE DI QUESTO DISEGNO SENZA PREVENTIVA AUTORIZZAZIONE DELLA DITTA
TRATTAMENTO
MATERIALE
DENOMINAZIONE
DISEGNO N°
CODICE N°
di Boccalerio Remo s.r.l.
Via Casale n°34 A
28010 BOLZANO NOVARESE (NO)
SCALA
( )
TOLLERANZE GENERALI
oltre 30 fino a 120 = 0,3
oltre 120 fino a 400 =
0,5
oltre 400 fino a 1000 =
0,8
da 0,5 fino a 6 =
0,1
oltre 6 fino a 30 =
0,2
ANGOLI =
30'
RAGGI = R 0,5
SMUSSI = 0,3 x 45°
SUPERFICI
GREZZA
SGROSSATA
FINITA
RETTIFICATA
R.B.
LA DITTA ADOTTA UNA POLITICA DI CONTINUO MIGLIORAMENTO
QUINDI SI RISERVA IL DIRITTO DI APPORTARE MODIFICHE SENZA PREAVVISO
3,2
12,5
0,8

2013-07
1 866 907 0122 blubathworks.com
®
7

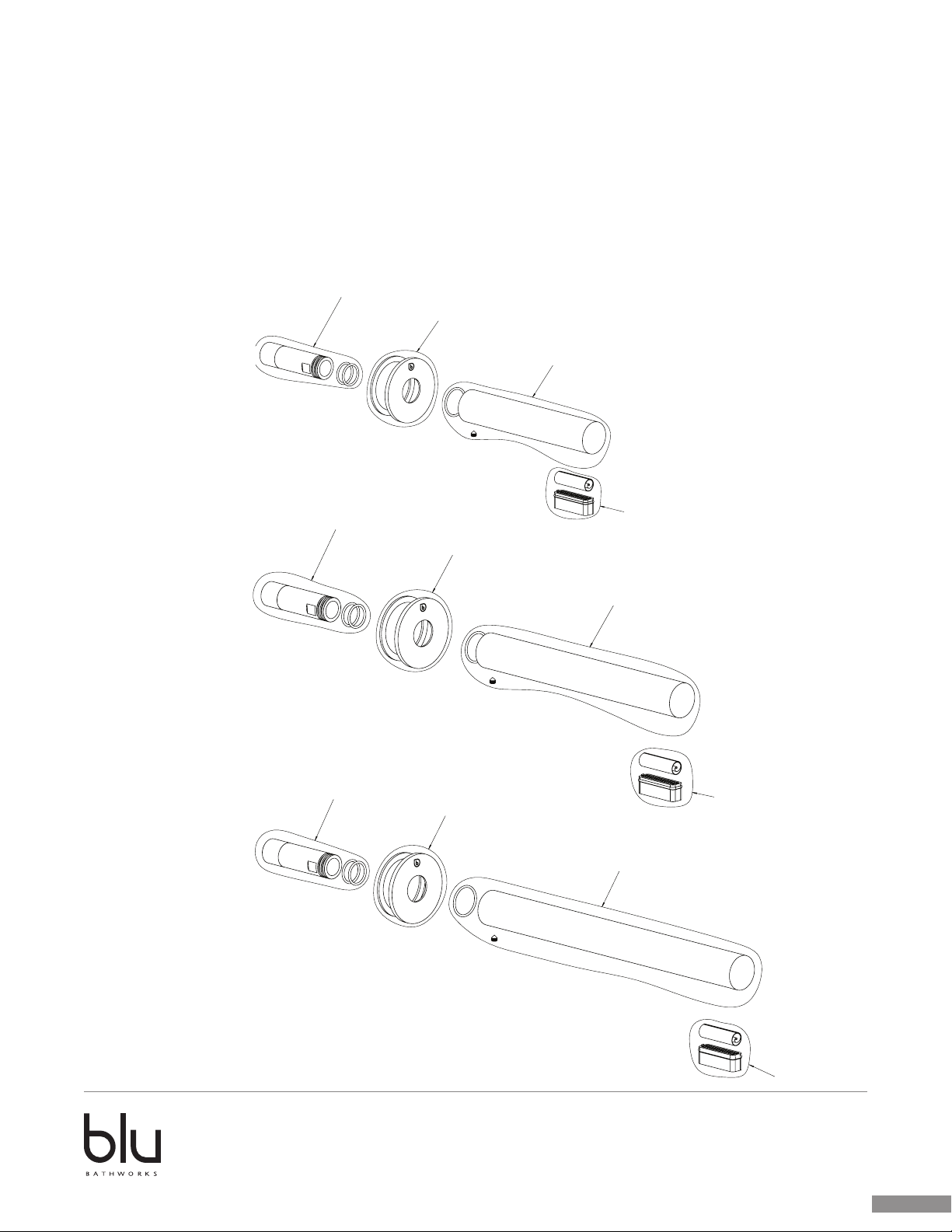

P0000000498
P1293000025
P1293000024
P0000000327
0 0 0
T F 5 1 0
Group round spout Ø30 h160
P1293000013
09/05/13
04/04/2013 A
DATA N° MODIF.
Peso gr.
APPROV.
EMIS.
DATA
VIETATA OGNI RIPRODUZIONE DI QUESTO DISEGNO SENZA PREVENTIVA AUTORIZZAZIONE DELLA DITTA
TRATTAMENTO
MATERIALE
DENOMINAZIONE
DISEGNO N°
CODICE N°
di Boccalerio Remo s.r.l.
Via Casale n°34 A
28010 BOLZANO NOVARESE (NO)
SCALA
( )
TOLLERANZE GENERALI
oltre 30 fino a 120 = 0,3
oltre 120 fino a 400 =
0,5
oltre 400 fino a 1000 =
0,8
da 0,5 fino a 6 =
0,1
oltre 6 fino a 30 =
0,2
ANGOLI =
30'
RAGGI = R 0,5
SMUSSI = 0,3 x 45°
SUPERFICI
GREZZA
SGROSSATA
FINITA
RETTIFICATA
R.B.
LA DITTA ADOTTA UNA POLITICA DI CONTINUO MIGLIORAMENTO
QUINDI SI RISERVA IL DIRITTO DI APPORTARE MODIFICHE SENZA PREAVVISO
3,2
12,5
0,8
P1293000026
P1293000024
P0000000327
0 0 0
T F 5 1 2
Group round spout Ø30 h230
P1293000014
16/05/13
P0000000498
24/05/2013 B
04/04/2013 A
DATA N° MODIF.
Peso gr.
APPROV.
EMIS.
DATA
VIETATA OGNI RIPRODUZIONE DI QUESTO DISEGNO SENZA PREVENTIVA AUTORIZZAZIONE DELLA DITTA
TRATTAMENTO
MATERIALE
DENOMINAZIONE
DISEGNO N°
CODICE N°
di Boccalerio Remo s.r.l.
Via Casale n°34 A
28010 BOLZANO NOVARESE (NO)
SCALA
( )
TOLLERANZE GENERALI
oltre 30 fino a 120 = 0,3
oltre 120 fino a 400 =
0,5
oltre 400 fino a 1000 =
0,8
da 0,5 fino a 6 =
0,1
oltre 6 fino a 30 =
0,2
ANGOLI =
30'
RAGGI = R 0,5
SMUSSI = 0,3 x 45°
SUPERFICI
GREZZA
SGROSSATA
FINITA
RETTIFICATA
R.B.
LA DITTA ADOTTA UNA POLITICA DI CONTINUO MIGLIORAMENTO
QUINDI SI RISERVA IL DIRITTO DI APPORTARE MODIFICHE SENZA PREAVVISO
3,2
12,5
0,8
P0000000498
P1293000027
P1293000024
P0000000327
0 0 0
T F 5 1 4
Group round spout Ø30 h300
P1293000015
16/05/13
04/04/2013 A
DATA N° MODIF.
Peso gr.
APPROV.
EMIS.
DATA
VIETATA OGNI RIPRODUZIONE DI QUESTO DISEGNO SENZA PREVENTIVA AUTORIZZAZIONE DELLA DITTA
TRATTAMENTO
MATERIALE
DENOMINAZIONE
DISEGNO N°
CODICE N°
di Boccalerio Remo s.r.l.
Via Casale n°34 A
28010 BOLZANO NOVARESE (NO)
SCALA
( )
TOLLERANZE GENERALI
oltre 30 fino a 120 = 0,3
oltre 120 fino a 400 =
0,5
oltre 400 fino a 1000 =
0,8
da 0,5 fino a 6 =
0,1
oltre 6 fino a 30 =
0,2
ANGOLI =
30'
RAGGI = R 0,5
SMUSSI = 0,3 x 45°
SUPERFICI
GREZZA
SGROSSATA
FINITA
RETTIFICATA
R.B.
LA DITTA ADOTTA UNA POLITICA DI CONTINUO MIGLIORAMENTO
QUINDI SI RISERVA IL DIRITTO DI APPORTARE MODIFICHE SENZA PREAVVISO
3,2
12,5
0,8
BATHTUB SPOUTS
TF510
TF512
TF514

2013-07
1 866 907 0122 blubathworks.com
®
8
where water meets modern®
188 Smithe Street, Vancouver, BC V6B 6A9 Canada | T1.604.299.0122 | TF 1.866.907.0122 | F 1.604.299.0125 | blubathworks.com
®
where water meets modern®
188 Smithe Street, Vancouver, BC V6B 6A9 Canada | T1.604.299.0122 | TF 1.866.907.0122 | F 1.604.299.0125 | blubathworks.com
®
warranty
terms and conditions
LIMITED FURNITURE RESIDENTIAL WARRANTY
Blu Bathworks®(“Blu”) furniture products are warranted to the original purchaser to be free from defects in all material and workmanship during normal
residential use for a period of five (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment, subject to the terms and conditions set forth in this warranty.
LIMITED CERAMICS RESIDENTIAL WARRANTY
Blu Bathworks®("Blu") ceramic products are warranted to the original purchaser to be free from defects in all material and workmanship during normal
residential use for a period of one (1) year from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment, subject to the terms and conditions set forth in this warranty.
LIMITED blu·stone™RESIDENTIAL WARRANTY
Blu Bathworks® ("Blu") blu·stone™products are warranted to the original purchaser to be free from defects in all material and workmanship during normal
residential use for a period of five (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment, subject to the terms and conditions set forth in this warranty. Blu Bathworks®does not recommend exceeding US/Canada maximum hot water
temperature regulations of 150°F/65°C, respectively. Exceeding stated temperatures could result in damage to blu.stone basins and bathtubs.
LIMITED ACRYLIC BATHTUBS RESIDENTIAL WARRANTY
Blu Bathworks®("Blu") acrylic bathtubs are warranted to the original purchaser to be free from defects in all material and workmanship during normal
residential use for a period of five (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment, subject to the terms and conditions set forth in this warranty.
LIMITED TAPWARE RESIDENTIAL WARRANTY
Blu Bathworks®(“Blu”) tapware products are warranted to the original purchaser to be free from defects in all mechanical parts and polished chrome finishes
during normal residential use for as long as the original purchaser owns his or her home. Blu will, at its election, repair, provide a replacement part or product, or
make appropriate adjustment, subject to the terms and conditions set forth in this warranty.
LIMITED ELECTRONICA TAPWARE RESIDENTIAL WARRANTY
Blu Bathworks®(“Blu”) electronica tapware products are warranted to the original purchaser to be free from defects in all electronic parts during normal
residential use for a period of five (5) years from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment, subject to the terms and conditions set forth in this warranty.
LIMITED COMMERCIAL WARRANTY
Blu Bathworks®("Blu") products are warranted to the original purchaser to be free from defects in all material and workmanship during normal usage for a period
of one (1) year from the date of purchase. Blu will, at its election, repair, provide a replacement part or product, or make appropriate adjustment, subject to the
terms and conditions set forth in this warranty.
This warranty applies only to Blu Bathworks®("Blu") products distributed in North America.
This warranty is non-transferable and is for the exclusive benefit of the original purchaser of a Blu product. This warranty may be exercised by the original
purchaser of a unit in a new residential development. Blu recommends using a professional plumber for all installation and repair. This warranty does not apply
to products that have been installed in any manner other than as set out in Blu’s printed instructions, or to products that have been altered in any way.
For further clarity, the above stated warranty does not cover or apply to damage attributable to:
(a) neglect, misuse, abuse, accident or negligence;
(b) normal wear and tear;
(c) dirt or lime scale, or the use of inappropriate cleaners (such as those containing abrasives, ammonia, acids, waxes, bleaches, solvents, alcohol, or any
product not recommended for chrome); and
(d) damage caused by transportation, or improper storage.
This is the only warranty of Blu, which makes no other warranty of any kind. Blu disclaims any liability for special, incidental or consequential damages. In no
event shall the liability of Blu under this warranty exceed the purchase price of the product.
PROCEDURE FOR WARRANTY SERVICE
Refer to blubathworks.com for policy and procedures relating to requests for service under the terms of this warranty.
Original proof of purchase is required. Blu is not responsible for removal or installation costs, or the costs of shipping and handling associated with any service.
Repaired or replaced products or parts are warranted only for the period remaining under the initial warranty.
®
