Blue Ox BX1126 User manual

BX1126
2007-15 Jeep Wrangler/Wrangler Unlimited
Installation Instructions
292-2909 Rev K Page 1 of 7 8/15/14
Attachment Tab Height: 14-1/2”
Attachment Tab Width: 24”
1. Blue Ox®towing products and accessories are
intended to be installed by Blue Ox® Dealers
who are familiar with our products and have the
equipment and knowledge necessary to do “t
work”. If needed, Blue Ox®Dealers can be found
at www.blueox.com or by contacting our Customer
Care Department at [phone].
2. Many Blue Ox®baseplates are designed to
use existing holes and hardware to mount the
baseplate to the towed vehicle. Even though bolts
are there, do not assume they are adequate for
baseplate mounting. Always use the hardware
supplied in the hardware kit and existing hardware
as specied in the installation instructions.
Reference your vehicle owner’s
manual for manufacturer’s towing
specications.
Serial Number
If the front of your vehicle looks different than
this, please contact us at [phone]. !
Failure to read and follow these instructions
could result in separation of the towed vehicle
from the tow bar, causing property damage,
loss of towed vehicle, personal injury or death.
WARNING
Bolt Size Grade 5 Grade 8
1/4” 10 14
5/16” 19 29
3/8” 33 47
7/16” 54 78
1/2” 78 119
5/8” 154 230
3/4” 257 380
Bolt Torque Specications
Torque in Foot-Pounds for Inch Bolts
Bolt Torque Specications
Torque in Foot-Pounds for Metric Bolts
Bolt Size Grade 8.8 Grade 10.9
6MM 6 8
8MM 16 22
10MM 31 40
12MM 54 70
14MM 89 117
16MM 161 230
18MM 222 318
Please read BOTH these Installation Instructions and the General Instructions prior to
installing or operating this equipment.

BX1126
2007-15 Jeep Wrangler/Wrangler Unlimited
Installation Instructions
292-2909 Rev K Page 2 of 7 8/15/14
Drill a hole according to the tail
light wiring kit instructions.
Instruction Notes: The belly pan and metal bumper are removed and reinstalled for the baseplate
installation. Some drilling and trimming is required.
Place all components that are removed on a at, sturdy surface. All items will be reinstalled unless
otherwise noted after the baseplate is installed.
The dimensional variations between otherwise identical vehicles can be considerable. While the
baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to
compensate for vehicle manufacturer’s tolerances.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle.
Attachment Tabs: Due to the design of the removable tabs, the RangeFinder II tow bar can not be
used. Adapters, except the BX8833 and BX88151, can not be used with this baseplate.
NOTICE
• Handling of some cosmetic parts when installing this product may require the use of protective
covers, rags, specialty tools, etc. to prevent damage.
• When using power drills be aware of the dangers of torque and drill bit length.
• When using a reciprocating saw be aware of objects behind the cutting surface.
• Use a good quality paint to spray cut edges of frame to prevent rusting.
• Be sure that ALL electrical connections are plugged in and accessories are functioning properly
before reinstalling the fascia.
• The baseplate is computer tested to your vehicle’s GVWR, exceeding this weight will void the
manufacturer’s warranty.
• Be sure to use Loctite®Red on all bolts before tightening. Tighten all bolts according to the
torque chart provided.
• Dealer or installer be certain the user receives these instruction sheet.
• If the baseplate is in an accident, it must be replaced. DO NOT use it again! An accident can
cause unseen damage and using it again could result in more damage or serious injury. DO NOT
use the baseplate if it is damaged or missing parts.

BX1126
2007-15 Jeep Wrangler/Wrangler Unlimited
Installation Instructions
292-2909 Rev K Page 3 of 7 8/15/14

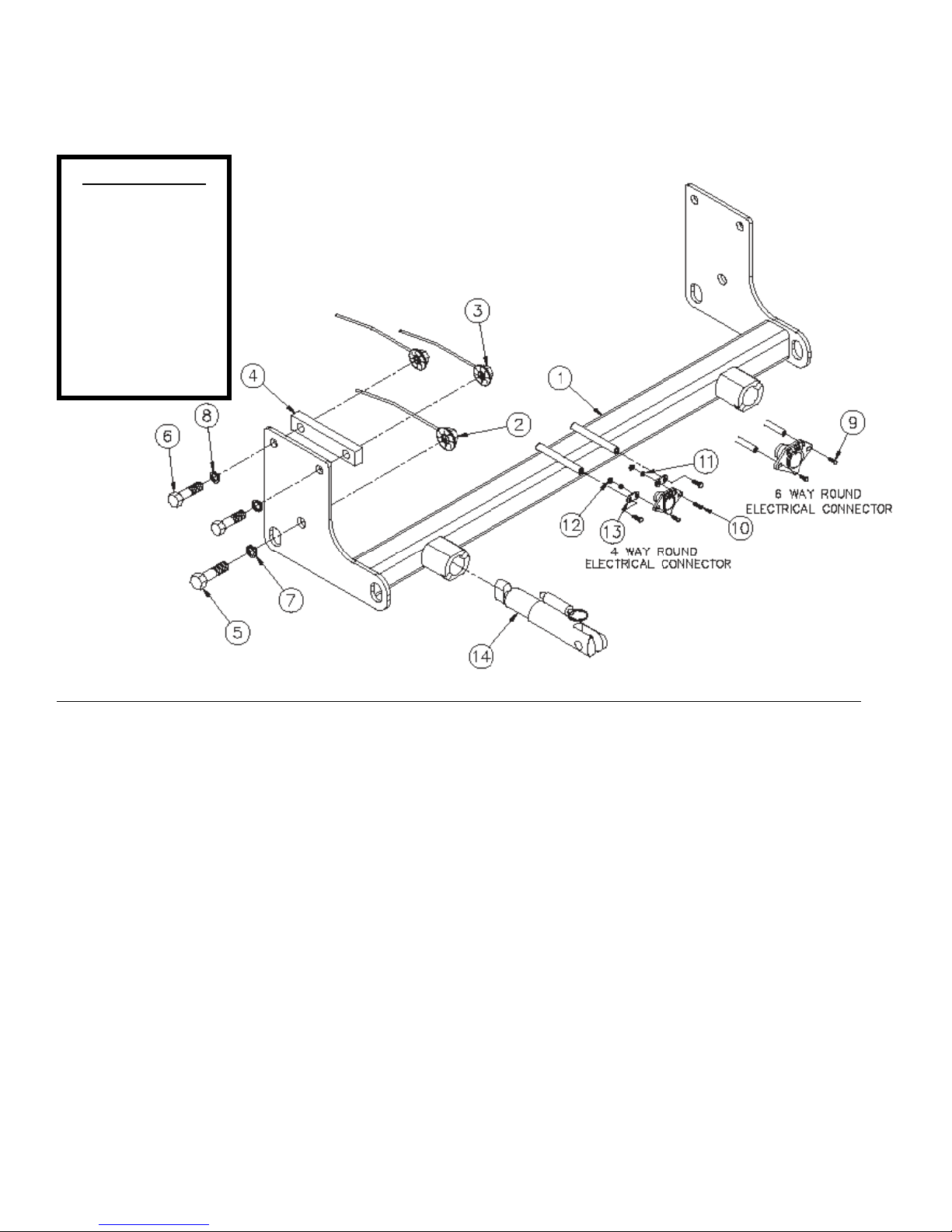

Item No. Part No. Description Qty.
1.................................61-6344 .............................BX1126 Baseplate ...........................................................1
2.................................61-3997 .............................5/8”-11 Nut Wire ..............................................................2
3.................................61-4029 .............................1/2”-13 Whiz Nut w/14” Wire ...........................................4
4.................................102-6768 ...........................BX1126 Spacer Plate ......................................................2
5.................................201-0350 ...........................5/8”-11 x 1-1/2” Hex Head Bolt, Grade 5, ZP ..................2
6.................................201-0068 ...........................1/2”-13 x 1-3/4” Hex Head Bolt, Grade 5, ZP ..................4
7.................................203-0013 ...........................5/8” Lock Washer, ZP ......................................................2
8.................................203-0012 ...........................1/2” Lock Washer, ZP ......................................................4
9.................................201-0979 ...........................#12-14 x 1” Self Drilling Screw, ZP..................................2
10...............................201-0192 ...........................#10-32 x 1/2” Round Head Slot Screw............................2
11 ...............................203-0054 ...........................#10 Lock Washer.............................................................2
12...............................202-0047 ...........................#10-32 Hex Nut ...............................................................2
13...............................101-5822 ...........................4-Way Connector Adapter ...............................................2
14...............................62-3468 .............................Attachment Tab Assembly, SF/SB (R) .............................2
15...............................226-0046(not shown) ........Class III Safety Cables ....................................................2
16...............................229-0359(not shown) ........3/8” Quicklink, ZP ............................................................2
17...............................290-0437(not shown) ........Black Cap Plug Receiver.................................................2
Tools Required
Large Vise Grip
Utility Knife
Phillips Screwdriver
Torque Wrench
Drill
Reciprocating Saw
Tape Measure
Loctite®RED
17/32” Drill Bit
18MM Socket
3/4” Socket
15/16” Socket
Important:
Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts. If a bolt is lost or
in need of replacement, for your safety and the preservation of your baseplate, be sure to use a replacement bolt of the same grade
(In most cases it will be Grade 5, please reference the parts list above). Replacement parts may be ordered through your nearest Blue
Ox® Dealer or Distributor. Failing to follow and/or altering these installation instructions in either installation or required equipment will
void the manufacturer’s warranty.

BX1126
2007-15 Jeep Wrangler/Wrangler Unlimited
Installation Instructions
292-2909 Rev K Page 4 of 7 8/15/14
1. Using a Phillips screwdriver, remove the four
(4) push pins from the bottom of the belly pan.
There are two (2) on each side.
1 2
2. Using a Phillips screwdriver, remove the two
(2) push pins from tabs on the backside of the
belly pan. Set the belly pan aside.



3. Disconnect foglights from back side of metal
bumper. Using the 18mm socket, remove the
two (2) metric bolts on outside edge of frame.
Do this on both sides of the vehicle.
3 4
4. Using the 18mm socket, remove the two (2)
metric bolts on inside edge of frame. Do this
on both sides of the the vehicle.





BX1126
2007-15 Jeep Wrangler/Wrangler Unlimited
Installation Instructions
292-2909 Rev K Page 5 of 7 8/15/14
56
6. On the 2007-09 models: Using the
reciprocating saw, cut the lower frame
extension ush with the outside edge of the
lower side bracket. Do this to both sides of
the vehicle. We recommend painting the cut
edges to prevent them from rusting.
5. Pull the bumper forward and disconnect
clips from the wiring loom running along the
backside of the bumper. Set the bumper aside.
 


7

7. On the 2007-09 models: Align the
baseplate’s lower hole with the existing lower
hole in the frame, insure baseplate is level with
frame and clamp in place with the vice grips.
Do this to both sides of the vehicle.
8
8. On the 2010 model and newer: Align the
baseplate’s lower hole with the existing middle hole
in the frame, insure baseplate is level with frame
and clamp in place with the vice grips. Do this to
both sides of the vehicle.


BX1126
2007-15 Jeep Wrangler/Wrangler Unlimited
Installation Instructions
292-2909 Rev K Page 6 of 7 8/15/14
9. Insert the 5/8”-11 whiz nut into the frame end
and align with the lower hole on the 2007-09s
and the middle hole on the 2010s and newer.
Install the 5/8”-11 x 1-1/2” hex bolt and 5/8”
lock washer and tighten to whiz nut. Do this on
both sides of the vehicle.
9

10



13

13. Hold the belly pan up to its original position,
mark and trim a slot for baseplate endplate
to come through with the utility knife. Do this
to both sides of the vehicle. Slide the belly
pan between baseplate crosstube and lower
frame suspension. Allow endplate to come
through slot and reinstall the belly pan to its
original location.
11. Reinstall the bumper and wiring loom.
Re-connect the foglights.
12. Attach the permanent baseplate safety cables to
the provided convenience link on the baseplate
(gray arrow). The photo above shows the
recommended installation of the cables to frame
of vehicle (white arrow). Additional options may
interfere with suggested mounting; in this case
secure the cables to a solid piece of the frame
as described in the instructions included with
the permanent baseplate safety cables. Be sure
the safety cables do not rub against any hoses
or moving parts. Do this to both sides of the
vehicle.
12


10. Using a 17/32” drill bit, drill the top holes
of the baseplate thru the frame. Install the
spacer plate in between the baseplate and
frame (white). Install 1/2”-13 x 1-3/4” bolts
with 1/2” lock washers thru the baseplate,
spacer and frame (gray). Insert 1/2” whiz nuts
with wires on the inside of the frame. Do this
on both sides of the vehicle.

BX1126
2007-15 Jeep Wrangler/Wrangler Unlimited
Installation Instructions
292-2909 Rev K Page 7 of 7 8/15/14
Shown without removable tabs installed Shown with removable tabs installed
CUSTOMER SERVICE COMMITMENT
Blue Ox® is committed to providing you with exceptional customer care throughout your lifetime
with our products. Our team is here to assist you with any questions you may have regarding the
performance of your product. Simply call [phone] and you can speak with our customer care
team.
Additionally, please visit our website to see which rallies our Destination America team will be
attending. For a nominal fee, our service technician will service your towing system to ensure it’s in
proper working condition. Also, as a commitment to our customers, should you visit our factory, you
can stay at our full service Blue Ox® campground at no charge along with enjoying a factory tour.
Again, thank you for being our customer and for the condence you have shown in the performance
of our products. It is because of customers like you we enjoy the success we have today.
© 2014 Blue Ox
One Mill Road, Industrial Park
Pender, Nebraska 68047
Phone: [phone]
Fax: [phone]
www.blueox.com

5/11/15
Permanent Baseplate Safety Cable Installation
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar.
The principle function of the permanent baseplate safety cables is to prevent the towed vehicle from
breaking loose in the event the connection between the frame of the towed vehicle and the baseplate
fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail
or cross member of the vehicle’s frame. The illustrations below show the possible arrangements
recommended by Blue Ox®. Each permanent baseplate safety cable must have an adequate weight
rating for the towing system. The weight rating of the two (2) cables together will not qualify.
Do not mount the permanent baseplate safety cables against wires, hoses or brake lines.
These permanent baseplate safety cables should remain installed as long as the baseplate is
installed on the vehicle. Permanent baseplate safety cables are to be used in conjunction with,
and NOT a replacement for legally required safety cables attaching the towed vehicle to the towing
vehicle.
Notice To Baseplate Installer
1. It is YOUR responsibility to watch for:
• Oil cooler and air conditioner lines
• Electrical wires and hoses
• Missing parts or attaching points on the frame
** If the baseplate is improperly installed and is against a wire or hose, it could cause uid leaks or
electrical shorts some time after the actual baseplate installation.
General Information
1. Ensure that your product(s) are registered online at www.blueox.com. It is crucial to register your product(s)
so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/
or recalls.
2. It is the owner’s responsibility to inspect all towing equipment for cracked welds, missing or worn
parts and loose bolts before each towing trip. Be sure to use Loctite®Red on all bolts and tighten to the
recommended specications.
3. It is the owner’s responsibility to hook up all towing equipment per manufacturer’s instructions/
recommendations.
4. Remove the attachment tabs when not in use (if applicable).
