Blue Ox BX3776 User manual

Page 1 of 8 292-2984 3/2/09
2008-09 Toyota Scion XB
(No Foglights)
Installation Instructions
BX3776
1. Blue Ox®towing products and accessories
are intended to be installed by Blue Ox®
Dealers who are familiar with our products and
have the equipment and knowledge to do “fit
work.” When necessary, Blue Ox®Dealers can
be found at www.blueox.us or by contacting
our Customer Care Department at
[phone].
2. Many Blue Ox®Baseplates are designed to
use existing holes and hardware to mount
the baseplate to the towed vehicle. Even
though bolts are there, do not assume they
are adequate for baseplate mounting. Always
use hardware supplied in the hardware kit
or existing hardware specified in the
Baseplate Towing Installation Instructions.
Serial Number
Confirm the towability and pre-towing
procedures for your vehicle with
the owner’s manual or contact the
vehicle’s manufacturer for specific
towing procedures. You can also
contact REMCO for additional towing
information at 1(800)228-2481.
Please read BOTH these Installation Instructions and the General Towing
Instructions before attempting to install or operate this equipment.
!
Failure to read and follow these instructions
could result in separation of the towed vehicle
from the tow bar, causing property damage,
loss of towed vehicle, personal injury or death.
WARNING
Attachment Tab Height: 12 1/2”
Attachment Tab Width: 18”
Bolt Torque Specifications
Torque in Foot-Pounds per Inch Bolts
Bolt Torque Specifications
Torque in Foot-Pounds per Metric Bolts
Bolt Size Grade 8.8 Grade 10.9
6MM 6 8
8MM 16 22
10MM 31 40
12MM 54 70
14MM 89 117
orque Specifi
in Foot-Pounds per In
orque Specifi
in Foot-Pounds per Inc
Torque Specific
e in Foot-Pounds per Me
t Size
Grade 8.8
Grade
6MM
8
8MM
2
2
0MM
40
MM
7
8
Torque Specific
e in Foot-Pounds per Met
t
6
8
0M
0
MM
7
e
G
Gr
ad
e 8
.8
G
n
ize
M
6
1
6
31
54
89
M
rad
8
Bolt Size Grade 5 Grade 8
1/4” 10 14
5/16” 19 29
3/8” 33 47
7/16” 54 78
1/2” 78 119
5/8” 154 230

Important:
Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts. If a bolt
is lost or in need of replacement, for your safety and the preservation of your baseplate, be sure to use a replacement bolt of
the same grade (In most cases it will be Grade 5, please reference the parts list above). Replacement parts may be ordered
through your nearest Blue Ox® Dealer or Distributor.
Page 2 of 8 292-2984 3/2/09
2008-09 Toyota Scion XB (No Foglights)
Installation Instructions
BX3776
Tools Required
Loctite®RED Phillips Screwdriver
9/16” Socket Flat Screwdriver
10MM Socket Large Vise Grips
13/32” Drill Bit Reciprocating Saw
Parts List
Ref. No. Qty. Part # Description
1 1 61-6434 WLDM’T, BASEPLATE, BX3776
2 5 61-5208 WLDT, NUT PLT, 1/4X1X1, 3/8” BLT WIR
3 8 201-0443 3/8-16 X 1” HEX BOLT GRD.5, ZP
4 5 201-0440 3/8-16 X 1 1/2” HEX BOLT, GRD.5, ZP
5 13 203-0010 3/8” LOCK WASHER, ZP
6 8 202-0003 3/8-16 HEX NUT, ZP
7 3 201-0655 6MM-1.0 X 30MM HEX BOLT, GRD8.8,ZP
8 5 203-0001 1/4” FLAT WASHER, ZP
9 1 107-2982 TUBE,5/8 OD(.120W) X 5/8 INCH
10 2 201-0553 1/4-20 X 1/2” HX.WSHD.TYPE F TCS, ZP
11 2 201-0192 #10-32 X 1/2” SLOT, RD. HD. SCREW
12 2 203-0054 #10 LOCK WASHER
13 2 202-0047 #10-32 HEX NUT
14 2 101-5822 ADAPTER, 4 WAY CONNECTOR
15 2 62-3468 ATT TAB ASSY, SF/SB
3 201-0654 #10-16 X 1” SELF DRILLING SCREW (not shown)
2 229-0359 QUICKLINK, 3/8”, ZP (not shown)
2 226-0046 BASEPLATE SAFETY CABLE, 36” CL III (not shown)
2 290-0437 RECEIVER, CAP PLUG (BLK) (not shown)
ELECTRICAL CONNECTOR
6 WAY ROUND
4 WAY ROUND
ELECTRICAL CONNECTOR
SENSOR BRACKET
RELOCATE TEMPERATURE
RESERVOIR
UPPER FRONT

1. Using a flat screwdriver, remove four plastic
push pins from the radiator cover driver’s side
and with a 10MM socket, remove one bolt
from the outside edge (grey arrow). Set push
pins and bolt aside to be reinstalled later.
Vehicle Weight:
Motorhome mount tow bars are recommended for
use with this baseplate. Due to the design of the
removable tabs, the RangeFinderII, Adventurer,
and Ambassador tow bars can not be used. The
Acclaim tow bar may be used, but will not fold and
store on the front of the vehicle. Adapters, except
the BX8833 and BX88151, can not be used with
this baseplate.
Installation Notes: The radiator cover,
fascia, washer reservoir and vent tube are
removed and reinstalled during installation of
the baseplate. Drilling is required. Trimming
of the lower frame support webbing is
required.
The dimensional variations between otherwise
identical vehicles can be considerable.
While the baseplate was designed for easy
installation, it may be necessary to tailor the
baseplate slightly to compensate for auto
manufacturer’s tolerances. These minor
adjustments may include filing a hole slightly,
bending electrical rods and/ or bending end
plates.
The BX8869 Bulb and Socket Wiring Kit is
recommended for this vehicle.
2008-09 Toyota Scion XB (No Foglights)
Installation Instructions
BX3776
Installation Instructions:
Page 3 of 8 292-2984 3/2/09

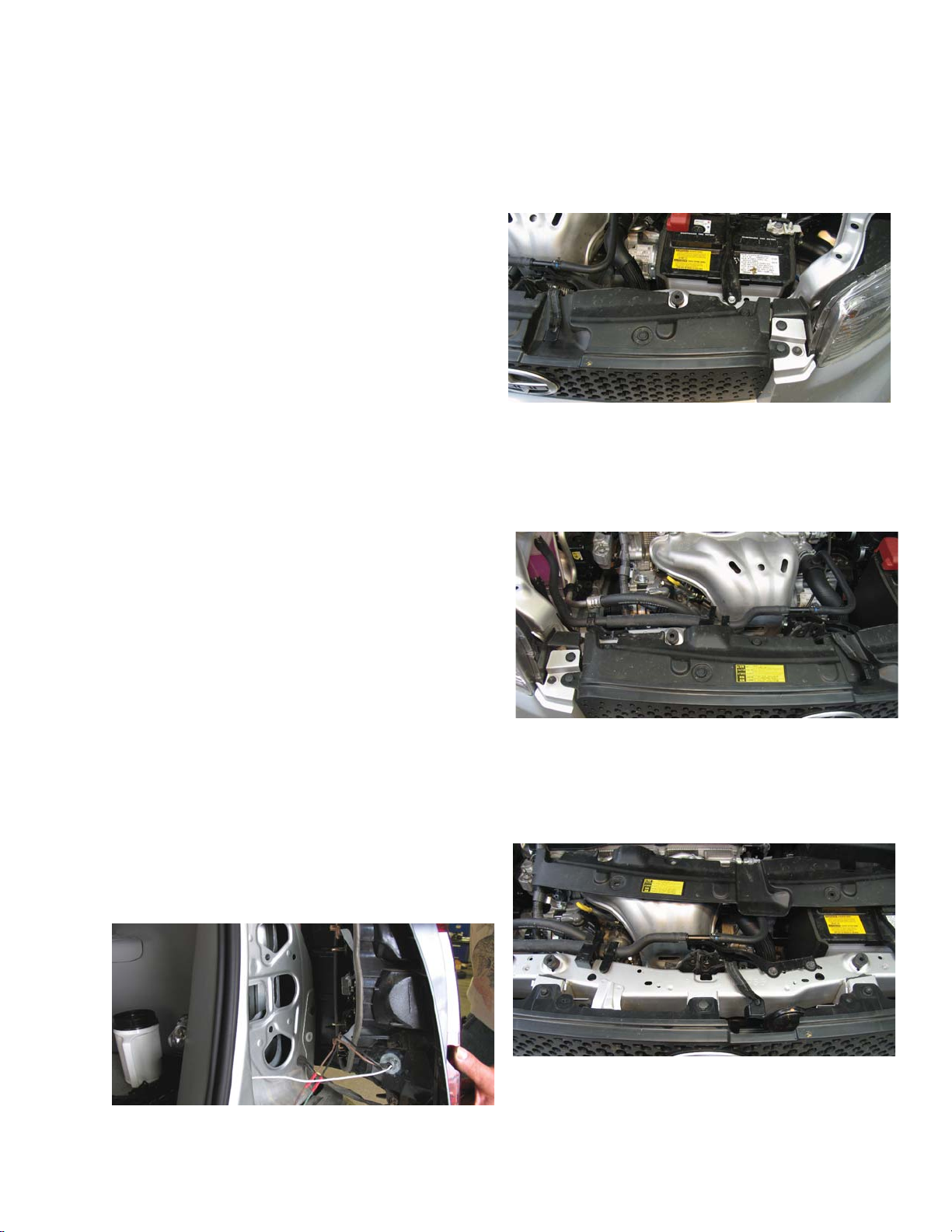

2. On the passenger side, using a flat
screwdriver, remove five plastic push pins and
with a 10MM socket, remove one metric bolt
on the outside edge (grey arrow). Set bolt
aside to be reinstalled later.
1
1
Ô
Ô
Ô
Ô
Ô
Ô
2
2
3
3
3. Above the grill, remove the cover. Using a
10MM socket, remove two metric bolts. Using
a flat screwdriver, remove push pin from the
center (grey arrow). Set cover, bolts and pin
aside to be reinstalled later.
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Location of the BX8869
Location of the BX8869
Bulb & Socket Wiring Kit
Bulb & Socket Wiring Kit

4. Using 10MM socket, remove one metric bolt
just forward of the front tire on bottom side of
fascia. Using a flat screwdriver, turn the screw
pin (grey arrow) 90oand the screw will pop
out. Do this to both sides of vehicle. Set bolts
and pins aside to be reinstalled later.
2008-09 Toyota Scion XB (No Foglights)
Installation Instructions
BX3776
6. Using a 10MM socket, remove two bolts from
the right side of the washer reservoir. Set bolts
aside for later reinstallation.
Page 4 of 8 292-2984 3/2/09
5. Remove eight metric bolts from lower edge
of fascia all the way around using a 10MM
socket. Pull fascia corners out to the side
of the vehicle on both sides, then forward.
Set aside fascia and bolts aside for later
reinstallation.
7. Using a 10MM socket, remove metric bolt from
the top of the washer reservoir. Disconnect
wires and hoses. Set aside bolt for later
reinstallation.
Ô
Ô
Ô
Ô
4
4
Ô
Ô
6
6
Ô
Ô
7
7
8. Using a 10MM socket, remove the bolt from
between wheel well cover and left side of
washer reservoir. Disconnect all electrical and
fluid lines, then remove reservoir and bolt. Set
aside for later reinstallation.
8
8
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
5
5
Ô
Ô
Ô
Ô
Ô
Ô

Page 5 of 8 292-2984 3/2/09
2008-09 Toyota Scion XB (No Foglights)
Installation Instructions
BX3776
9
9

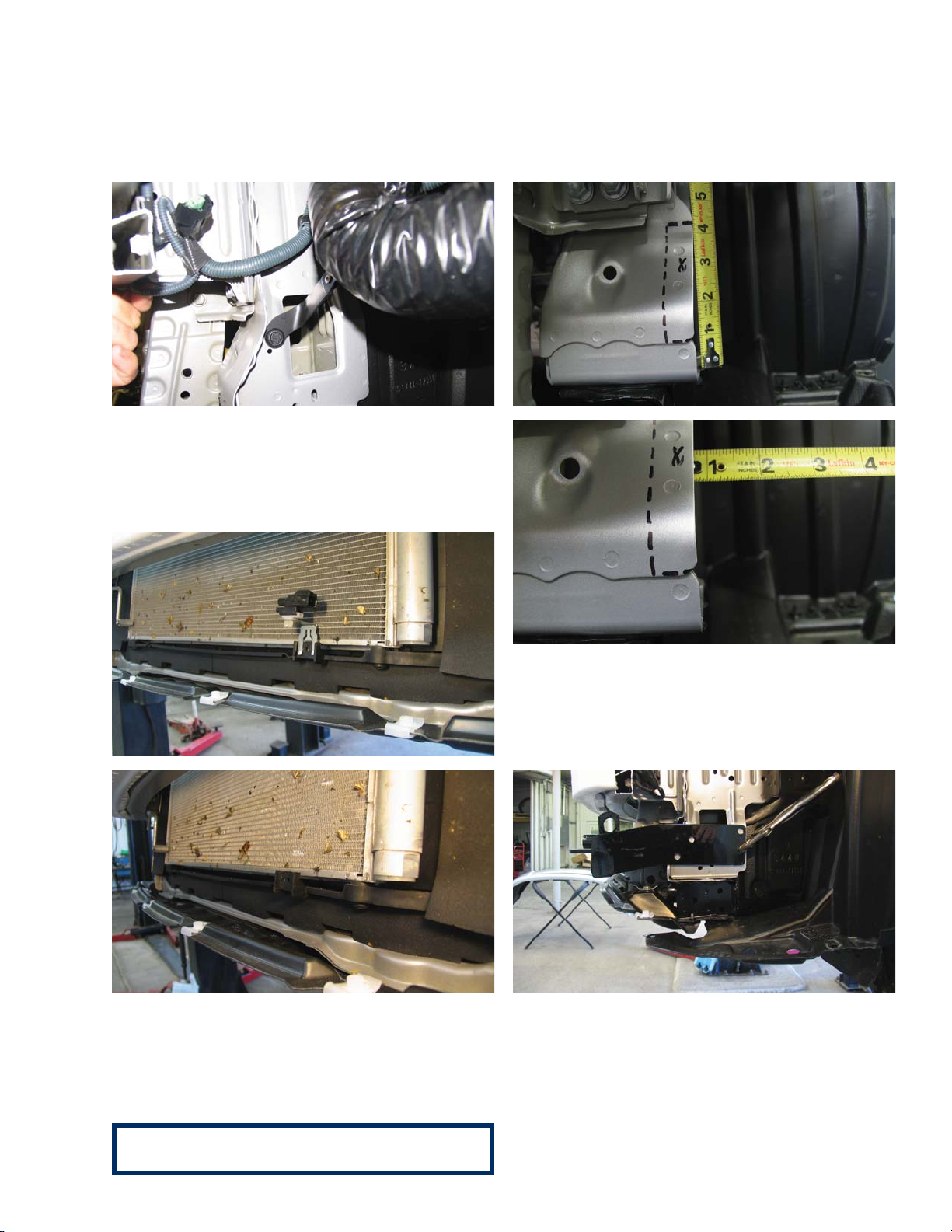

9. On the driver’s side, using a flat screwdriver
remove the push pin holding the vent tube.
Also pull out the clip (grey arrow) from wire
loom. Move the vent tube out of the way.
Save the pin to reinstall later.
11. On the driver’s side, remove the sensor and
clip. Using a reciprocating saw, cut off the
bracket flush with lower radiator support. Be
sure not to damage radiator.
10. Using a reciprocating saw, cut a notch 3 1/2”
long by 3/4” in lower frame support webbing.
Do this on both sides. (Vertical cut should be
flush with the side of support.)
Ô
Ô
11A
11A
10A
10A
Ô
Ô
Ô
Ô
10B
10B
12. On the driver’s side, slide the baseplate
into the notch we cut out and as far back as
possible, it should be flush with back webbing.
Adjust to a level position with the vehicle and
clamp with large vise grips. Do this on both
sides. Using the baseplate as a template with
a 13/32” drill bit, drill all four holes.
Ô
Ô
12
12
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
Ô
11B
11B
Using a good quality paint, spray cut edges
of frame to prevent rusting.

2008-09 Toyota Scion XB (No Foglights)
Installation Instructions
BX3776
14
14
14. On the passenger side, start a 6MM-1.0 x
30MM hex bolt in existing hole, the lower
front bolt location for the reservoir. Using the
baseplate as a template, drill three holes into
the frame and webbing with the 13/32” drill bit.
Ô
Ô
16. Using the 13/32” drill bit, drill one hole using
the baseplate as a template into the front of
lower frame support. Do this on both sides.
16
16
Ô
Ô
Ô
Ô
Ô
Ô
13. On the driver’s side, the back two bolts (white
arrows) are 3/8-16 x 1” hex bolts and 3/8” lock
washers with 3/8-16 hex nuts. The front two
(grey arrows) are 3/8-16 x 1 1/2” hex bolts
with 3/8” lock washers and 1/4” x 1” x 1” nut
plates inserted through the opening above the
baseplate. Tighten all bolts with Loctite Red.
13
13
Ô
Ô
Ô
Ô
15
15
15. On the passenger side, the back two bolts
(white arrows) are 3/8-16 x 1” hex bolts and
3/8” lock washers with 3/8-16 hex nuts. The
front (grey arrow) is a 3/8-16 x 1 1/2” hex bolt
with a 3/8” lock washer and 1/4” x 1” x 1” nut
plate inserted through the opening above the
baseplate. Tighten all bolts with Loctite Red.
Ô
Ô
Ô
Ô
Ô
Ô
Page 6 of 8 292-2984 3/2/09
17
17
BE SURE TO USE LOCTITE®RED ON ALL BOLTS
BEFORE TIGHTENING. TIGHTEN ALL BOLTS
ACCORDING TO THE TORQUE CHART ON THE
FRONT PAGE OF THESE INSTRUCTIONS OR ON
PAGE 3 OF THE BASEPLATE TOWING GENERAL
INSTRUCTIONS.
17. Insert a 3/8-16 x 1 1/2” hex bolt with 3/8” lock
washer and 1/4” x 1” x 1” nut plate into the
opening on the side of frame support. Tighten
with Loctite Red. Do the same on the other
side.
Ô
Ô
18. Put the temperature gauge back on in front of
the radiator.

2008-09 Toyota Scion XB (No Foglights)
Installation Instructions
BX3776

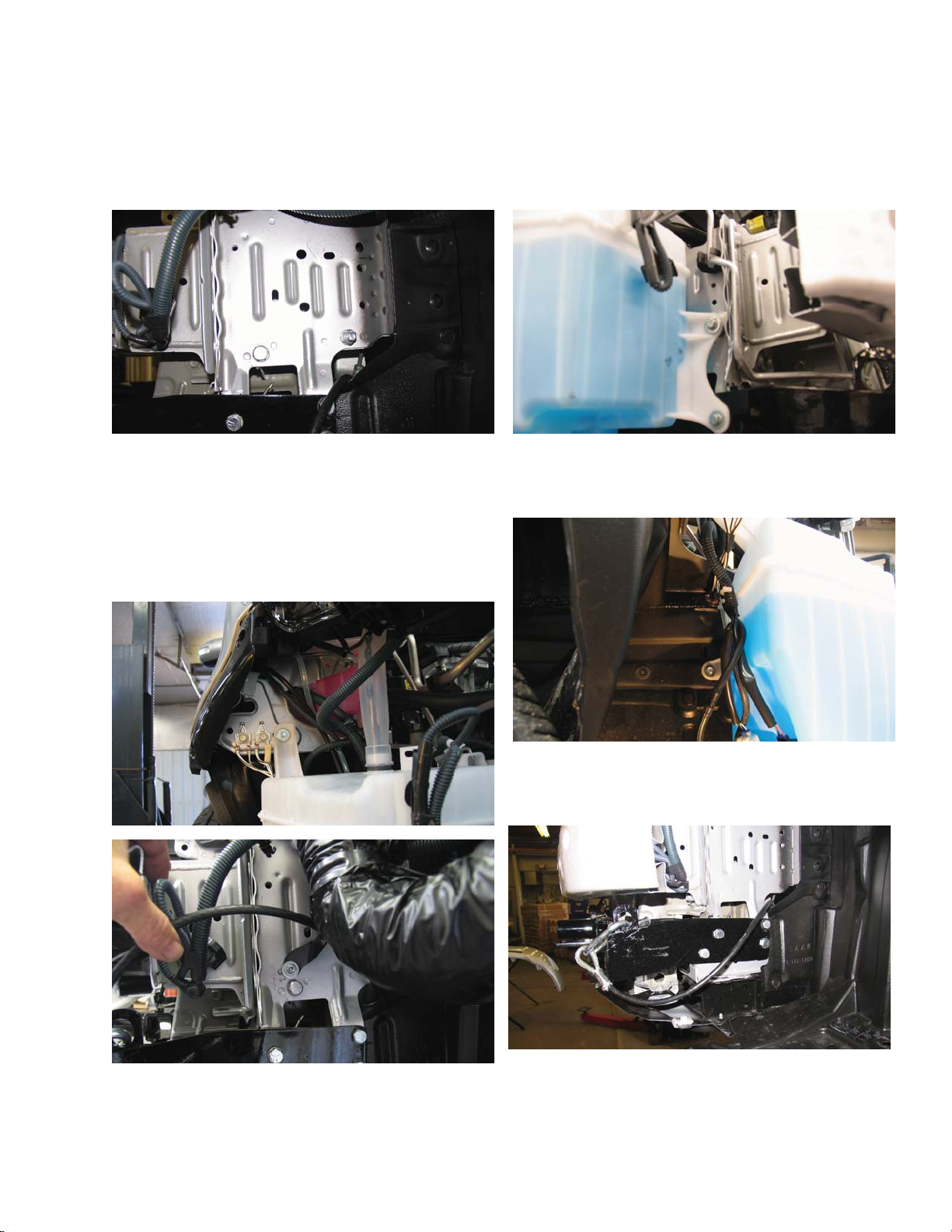

20. Reattach washer reservoir, use 6MM-1.0 x
30MM hex bolts and a 1/4” flat washer. In
the top, use a 5/8” tube spacer and a 1/4” flat
washer.
Page 7 of 8 292-2984 3/2/09
Ô
Ô
21A
21A
Ô
Ô
20
20
Ô
Ô
19. To give reinforcement to frame webbing, using
the 13/32” drill bit, drill two holes, insert 3/8-16
x 1” hex bolts. In the front (white arrow) use
a 1/4” x 1” x 1” nut plate and in the back (grey
arrow) use a 3/8” lock washer with a 3/8-16
hex nut. Tighten with Loctite Red. Do this on
both sides.
19
19
Ô
Ô
Ô
Ô
22. Reattach the vent tube using a #10-16 x 1”
self drilling screw with a 1/4” flat washer.
22
22
Ô
Ô
21. Attach top and left washer reservoir with
#10-16 x 1” self drilling screws with 1/4” flat
washers into frame. Reattach all wires and
hoses.
Ô
Ô
21B
21B
23. Attach baseplate safety cables, wrap around
lower frame support. If you are unable to
place safety cables in this position, position
the cables around a solid piece of the frame.
226-0046 base plate safety cables and 229-
0359 quick links are recommended.
23
23
24. Reinstall fascia, radiator cover, bolts and push
pins.

© 2007, 08, 09 Blue Ox
One Mill Road, Industrial Park
Pender, Nebraska 68047
Phone: [phone]
Fax: [phone]
www.blueox.us
CUSTOMER SERVICE COMMITMENT
Blue Ox is committed to providing you with
exceptional customer care throughout your lifetime
with our products. Our team is here to assist you
with any questions you may have regarding the
performance of your product. Simply call 1-800-
228-9289 and you can speak with our customer
care team.
Additionally, please visit our website to see
which rallies our Destination America team will
be attending. For a nominal fee, our service
technician will service your towing system to
ensure it’s in proper working condition. Also as
a commitment to our customers, should you visit
our factory you can stay at our full service Blue
Ox campground at no charge along with enjoying
a factory tour.
Again thank you for being our customer and for
the confidence you have shown in the performance
of our products. It is because of customers like
you we enjoy the success we have today.
Page 8 of 8 292-2984 3/2/09
2008-09 Toyota Scion XB (No Foglights)
Installation Instructions
BX3776
Shown without removable tabs installed.
Shown without removable tabs installed.
Shown with removable tabs installed.
Shown with removable tabs installed.
Be sure that ALL electrical connections
are plugged in properly and functioning
BEFORE installing the fascia.
DEALER or INSTALLER:
Be certain the user receives the
instruction sheets for their products.
Install the tow bar and safety cables
according to the instructions provided in their
packages. When demonstrating to customer,
be sure to include all original content and
packages. Do NOT substitute other devices if
the tow bar pins and clips are misplaced.
