Blue Ox BX1119 User manual

BX1119
2002-04 Jeep Liberty
Installation Instructions
292-5885 Rev. H Page 1 of 5 8/10/17
Attachment Tab Height: 19”
Attachment Tab Width: 20”
1. Blue Ox®towing products and accessories
are intended to be installed by Blue Ox®
Dealers who are familiar with our products and
have the equipment and knowledge to do “t
work”. When necessary Blue Ox®Dealers can
be found at www.blueox.com or by contacting
our Customer Care Department at (402)
385-3051 or Toll Free at [phone].
2. Many Blue Ox®Baseplates are designed to
use existing holes and hardware to mount
the baseplate to the towed vehicle. Even
though bolts are there, do not assume they
are adequate for baseplate mounting. Always
use hardware supplied in the hardware kit
or existing hardware specied in the
Baseplate Towing Installation Instructions.
Conrm the towability and pre-towing
procedures for your vehicle with
the owner’s manual or contact the
vehicle’s manufacturer for specic
towing procedures.
Bolt Size Grade 5 Grade 8
1/4” 10 14
5/16” 19 29
3/8” 33 47
7/16” 54 78
1/2” 78 119
5/8” 154 230
Bolt Torque Specications
Torque in Foot-Pounds for Inch Bolts
Bolt Torque Specications
Torque in Foot-Pounds for Metric Bolts
Bolt Size Grade 8.8 Grade 10.9
6MM 6 8
8MM 16 22
10MM 31 40
12MM 54 70
14MM 89 117
Serial Number
Please read BOTH these Installation Instructions and the General
Towing Instructions before attempting to install or operate this equipment.
!
Failure to read and follow these instructions
could result in separation of the towed vehicle
from the tow bar, causing property damage,
loss of towed vehicle, personal injury or death.
WARNING

BX1119
2002-04 Jeep Liberty
Installation Instructions
292-5885 Rev. H Page 2 of 5 8/10/17
4 PIN
CONNECTOR
6 PIN
CONNECTOR
1
2
3
4
8
12
5
7
11
6
10
9
BX1119
2002-04 JEEP LIBERTY

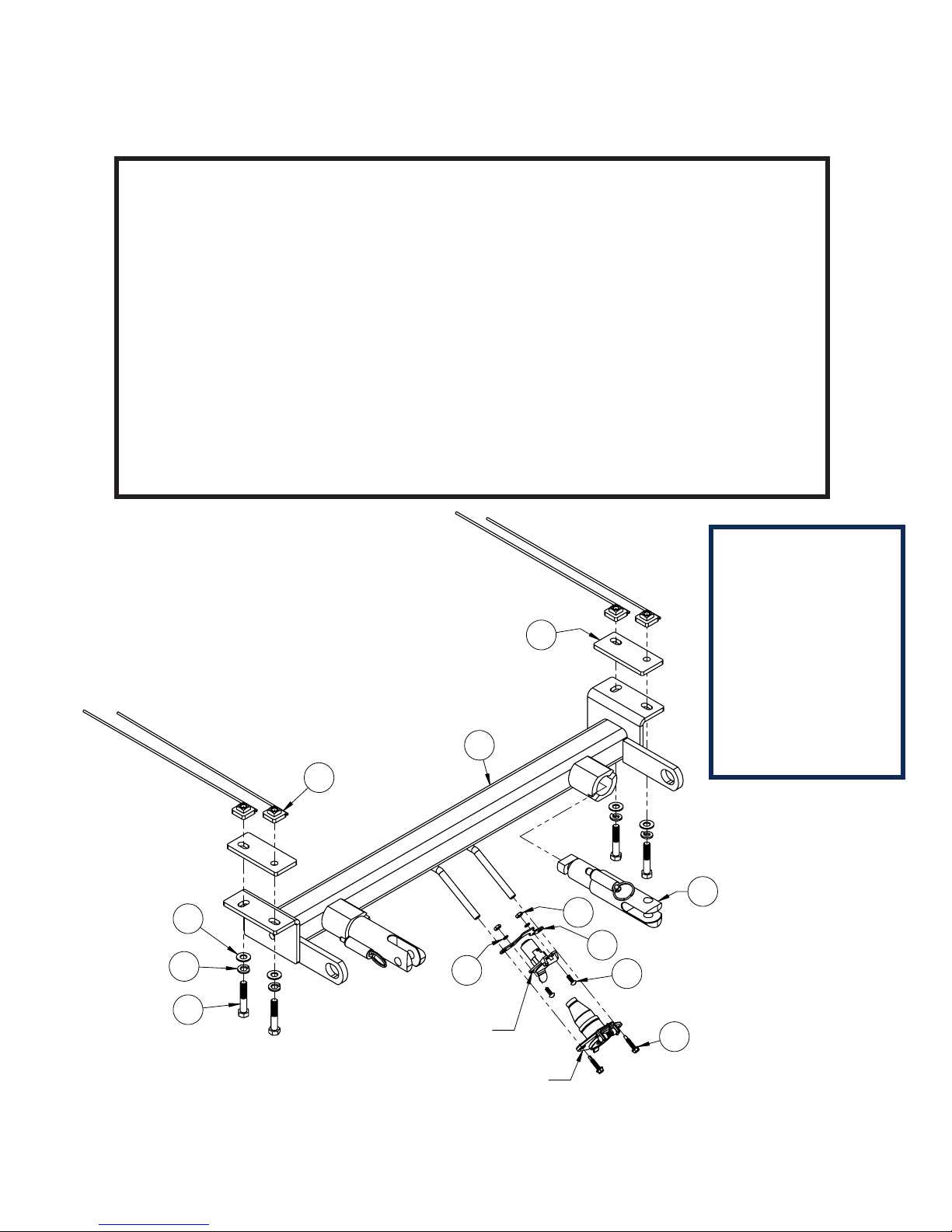

ITEM NO. PART NUMBER DESCRIPTION QTY.
1 61-5208 WLD, NUT PLATE, 1/4 X 1 X 1, (3/8-16) W / 14" WIRE 4
2
61-5649 WLDM'T, BP, BX1119 1
3
62-3468 ATT TAB ASSY, REM, SF/SB, 1 HOLE 2
4
102-5597 SIDE PLATE SUPPORT, BX1115 2
5
201-0192 #10-32-1/2" SLOT, ROUND HEAD SCREW 2
6
201-0444 3/8-16 X 2 HEX BOLT GRADE 5 ZP 4
7
201-0979 #12-14 X 1" SELF DRILLING SCREW, ZP 2
8
202-0047 #10-32 HEX NUT 2
9
203-0003 WASHER, 3/8 FLAT, ZP 4
10
203-0010 WASHER, 3/8 LOCK, ZP 4
11
203-0054 WASHER, #10 LOCK 2
12
299-0685 ELECTRICAL BRACKET, ZP 1
13
226-0046 BASEPLATE SAFETY CABLE, 36" CL III ( NOT SHOWN) 2
14
229-0359 QUICKLINK, 3/8", ZP (NOT SHOWN) 2
15
229-0536 6.3MM, PLASTIC RIVETS (NOT SHOWN) 10
16
290-0437 RECEIVER, CAP PLUG (BLK) (NOT SHOWN) 2
17
294-0805 CONNECTOR, 4 PIN, LPP6010700 (NOT PROVIDED) 1
18
294-0902 CONNECTOR 6 PIN, BLK PLASTIC (NOT PROVIDED) 1
Parts List
Ref. No. Qty. Part # Description
1 4 61-5208 Weldment, 3/8-16, Nut Plate, With Wire
2 1 61-5649 Weldment, Baseplate, BX1119
3 2 62-3468 Removable Attachment Tab (SF/SB)
4 2 102-5597 Side Plate Support
5 2 201-0192 #10-32 x 1/2” Slot, Rd. Hd. Screw
6 4 201-0444 3/8-16 x 2” Hex Bolt, Grd. 5, ZP
7 2 201-0979 #12-14 x 1” Self Drilling Screw, ZP
8 2 202-0047 #10-32 Hex Nut
9 4 203-0003 3/8” Flat Washer, ZP
10 4 203-0010 3/8” Lock Washer, ZP
11 2 203-0054 #10 Lock Washer
12 1 299-0685 Electrical Bracket, ZP
13 2 226-0046 Baseplate Safety Cable, 36” CL III (Not Shown)
14 2 229-0359 Quicklink 3/8, ZP (Not Shown)
15 10 229-0536 6.3, Plastic Rivets (Not Shown)
16 2 290-0437 Cap Plug, Black (Not Shown)
Important:
Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts. If a bolt is lost or in need of
replacement, for your safety and the preservation of your baseplate, be sure to use a replacement bolt of the same grade (In most cases it will be Grade
5, please reference the parts list above). Replacement parts may be ordered through your nearest Blue Ox®Dealer or Distributor.
10MM Socket
13/32” Drill Bit
T-20 Torx
Phillips Screwdriver
Vise Grips
Side Cutters
Plastic Rivet Gun
Loctite®RED
Tools Required

BX1119
2002-04 Jeep Liberty
Installation Instructions
292-5885 Rev. H Page 3 of 5 8/10/17
Removable Tabs:
Motorhome mount tow bars are recommended for
use with this baseplate. Due to the design of the
removable tabs, the RangeFinder II, Adventurer and
Ambassador tow bars can not be used. The Acclaim
tow bar may be used, but will not fold and store on
the front of the vehicle. Adapters, except for the
BX8833 and the BX88151, can not be used with this
baseplate.
Instructions:
The grille and front fascia are removed and
reinstalled during the baseplate installation.
Existing holes may need to be drilled out. There
is NO trimming to the fascia. Tow hooks are
removed and NOT reinstalled. Drilling is required.
The dimensional variations between otherwise
identical vehicles can be considerable. While
the baseplate was designed for easy installation,
it may be necessary to tailor the baseplate
slightly to compensate for auto manufacturer’s
tolerances. These minor adjustments may
include ling a hole slightly, bending electrical
rods, and/ or bending end plates.
The BX8869 Bulb and Socket Wiring Kit is
recommended for this vehicle.

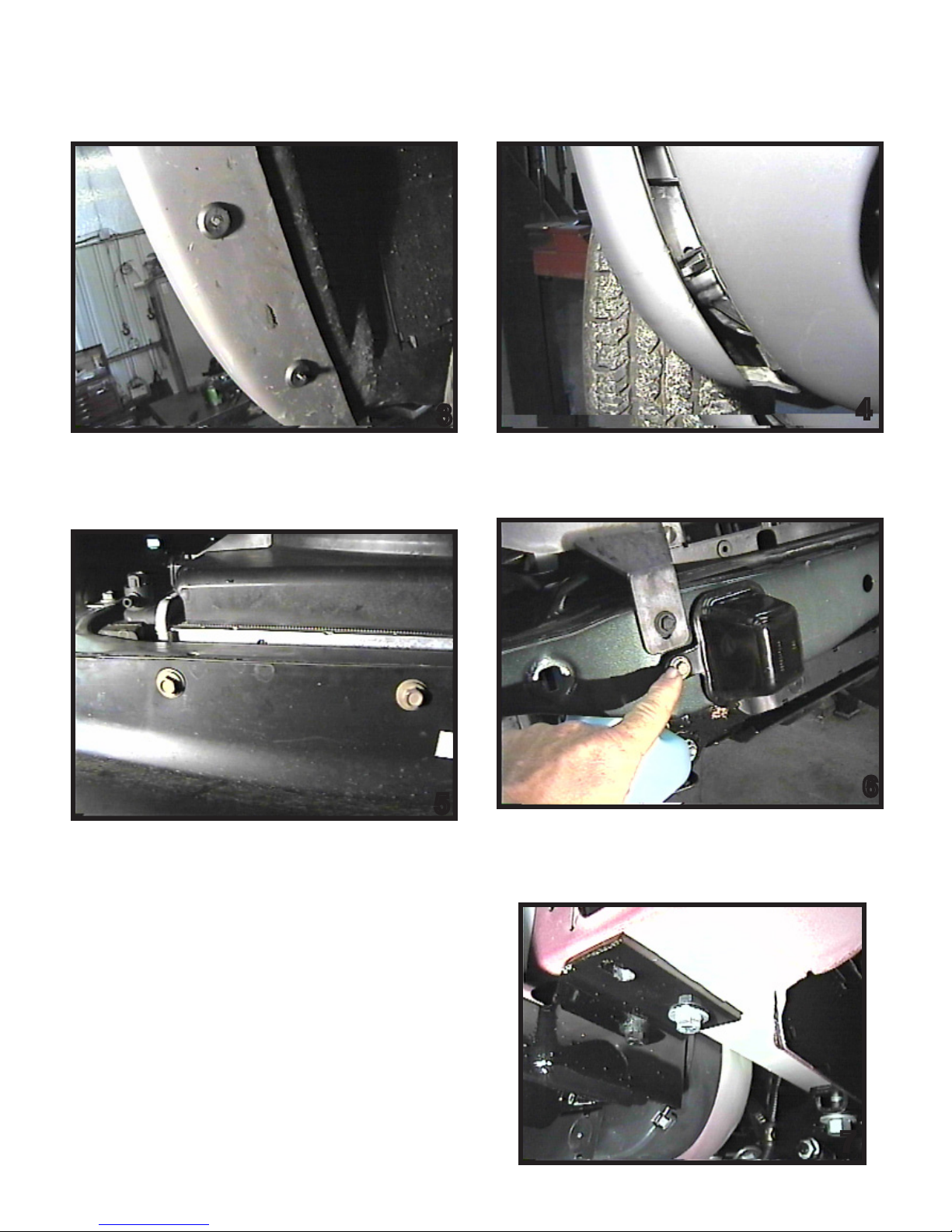

1. Using the T-20 Torx, remove the two Torx bolts
from the top of the headlight assembly and two on
the top center of grille. Do this to both sides of the
vehicle. Set the torx bolts aside to be reinstalled
later. Pull top of grille forward and lift up to remove.
1
2. Remove the six push pins from the top side of the
fascia. Disconnect the electrical plug on the driver’s
side as seen in the photo above.
2
Possible Location of the BX8869
Bulb & Socket Wiring Kit.

Installation Instructions:

BX1119
2002-04 Jeep Liberty
Installation Instructions
292-5885 Rev. H Page 4 of 5 8/10/17
4. Release three clips from the fascia’s side by
opening the access panel on the wheel well, just
forward of the front tires. Do this to both sides of
the vehicle.
4
5
5. Using the 10MM socket, remove four metric bolts
from the air dam under the radiator cross member.
Set the bolts aside to be reinstalled later. Pull
the fascia forward from the bottom and set aside
carefully to be reinstalled later. NOTE: 2003 and
2004 models will only have two metric bolts to
remove.
6. To remove the frame cup, use a 10MM socket to
remove the metric bolt. Set cup and bolt aside to
be reinstalled later. Do this to both sides of the
vehicle. Some models may have tow hooks that will
be removed at this time.
6
7. Clamp the baseplate into place using the vise
grips. Insert side plate support into frame opening
to align with existing holes. Insert the 3/8-16 nut
plate into the frame opening to align with
3/8-16x2” hex bolt, the 3/8” lock washer, and
the 3/8” at washer. Do this to both sides of the
vehicle.
8. Reinstall the frame cups, front fascia and grille.
Replacement rivets are provided for the fender
wells. 7
3
3. Just forward of the front tire are four rivets, cut and
remove the three lower rivets and two rivets on the
underside of the fascia corner. Do this to both sides
of the vehicle. These rivets will be replaced by
others later.
4

BX1119
2002-04 Jeep Liberty
Installation Instructions
292-5885 Rev. H Page 5 of 5 8/10/17
BE SURE TO USE LOCTITE® RED ON ALL BOLTS
BEFORE TIGHTENING. TIGHTEN ALL BOLTS
ACCORDING TO THE TORQUE CHART ON THE
FRONT PAGE OF THESE INSTRUCTIONS OR ON
PAGE 3 OF THE BASEPLATE TOWING GENERAL
INSTRUCTIONS. CUSTOMER SERVICE COMMITMENT
Blue Ox is committed to providing you with
exceptional customer care throughout your lifetime
with our products. Our team is here to assist you
with any questions you may have regarding the
performance of your product. Simply call 1-800-228-
9289 and you can speak with our customer care team.
Additionally, please visit our website to see which
rallies our Destination America team will be attending.
For a nominal fee, our service technician will service
your towing system to ensure it’s in proper working
condition. Also as a commitment to our customers,
should you visit our factory you can stay at our full
service Blue Ox campground at no charge along with
enjoying a factory tour.
Again thank you for being our customer and for the
condence you have shown in the performance of our
products. It is because of customers like you we enjoy
the success we have today.
© 2005, 07, 08, 09 Blue Ox
One Mill Road, Industrial Park
Pender, Nebraska 68047
Phone: [phone]
Toll Free: [phone]
Fax: [phone]
www.blueox.com
With Removable Tabs Installed.
Install the tow bar and safety cables according
to their instructions. When demonstrating this to
the customer, be sure to include all of the Blue Ox
packaging and contents.
DO NOT substitute other devices if the tow bar
pins and clips are misplaced.
Be sure that ALL electrical connections
are plugged in properly and functioning
BEFORE Installing the fascia.
DEALER or INSTALLER:
Be certain the user receives the
instruction sheets for their products.
If the baseplate is in an accident, it must
be replaced. DO NOT use it again! An
accident can cause unseen damage and
using it again could result in more damage
or serious injury. DO NOT use the
baseplate if it is damaged or missing parts.
