Bluewater Spirit Series User manual

BLUEWATER SPIRIT
WATER PURIFIER
COMPLETE USER MANUAL
Applies only to products with serial number 1804-61001 and later

02
Complete User manual
CONTENTS
INTRODUCTION 03
About this manual 03
Limited warranty 03
Environment information 03
Disposal 03
Symbols 03
Safety instructions 04
Safety information 04
PRODUCT OVERVIEW 06
Models 06
Spirit outside 06
Spirit inside and replacement components 06
Move the water purifier 08
SYSTEM OVERVIEW 09
System description 09
Intended use 09
Leak protection system 10
Low pressure protection 10
Water production 10
INSTALLATION 12
Unpack Spirit 13
Position Spirit 13
Install clean water faucet 14
Install feed water connection 14
Install drain water connection 15
Connect the water purifier 15
Flush Spirit 16
Do a check for leaks 16
MAINTENANCE 17
Each month 17
Each 4-6 months 18
Each year 21
Other 21
TECHNICAL INFORMATION 27
Technical data 27
Requirements on feed water to water purifier 27
TROUBLESHOOTING 28
How to solve simple problems 28

03 © Bluewater Group 2019
INTRODUCTION
About this manual
This manual contains complete user instructions for the Spirit. It gives you the necessary
instructions to safely install, operate, do maintenance and do troubleshooting on the device.
Original language
The original language of this instruction is English.
Printing options
This manual is made to be printed as a double sided A4 or A5 booklet.
Limited warranty
Refer to www.bluewatergroup.com/warranty for more information on Limited warranty.
Environment information
80% of the the water purifier components and its packaging have a label to help you
recycle and discard it correctly. The water purifier is more ecient when it cleans
water for longer periods. Example: do not fill a glass with water. Fill a jug instead.
Disposal
At the end of the water purifier’s life, disconnect the plug from the electrical supply and cut
the cable at the point where it enters the appliance. Make sure that children do not play with
the left-over cable. Contact your local authority for information about where the water purifier
can be left, or contact your dealer.
Appliances bearing this symbol must be deposited at the designated local reception
point for the disposal of electrical and electronic equipment. This product may not be
disposed by using the normal household refuse collection processes.
Symbols
The following symbols can be found on the water purifier:
Symbol Description Symbol Description
The WQA Gold Seal is proof that the
water purifier has been independantly
tested and is certified against NSF/ANSI
58 and CSA Standard B483.1. It has also
been tested and certified against NSF/
ANSI 372.
The ETL Listed Mark is proof that the
device has been independently tested
and meets the applicable published
standard.

04
Complete User manual
Safety instructions
Before you install or operate the device, you must read the safety information. Obey the
instructions in this manual to prevent injuries or damage to the equipment. This manual
contains CAUTIONS and NOTES that are applicable for the safe operation of the device.
A CAUTION identifies conditions that can cause injury, or
damage to the equipment.
Obey the instructions and do not continue until all conditions
are accepted and engaged.
A Note identifies important information for a trouble free and optimal use of the water
purifier.
Safety information

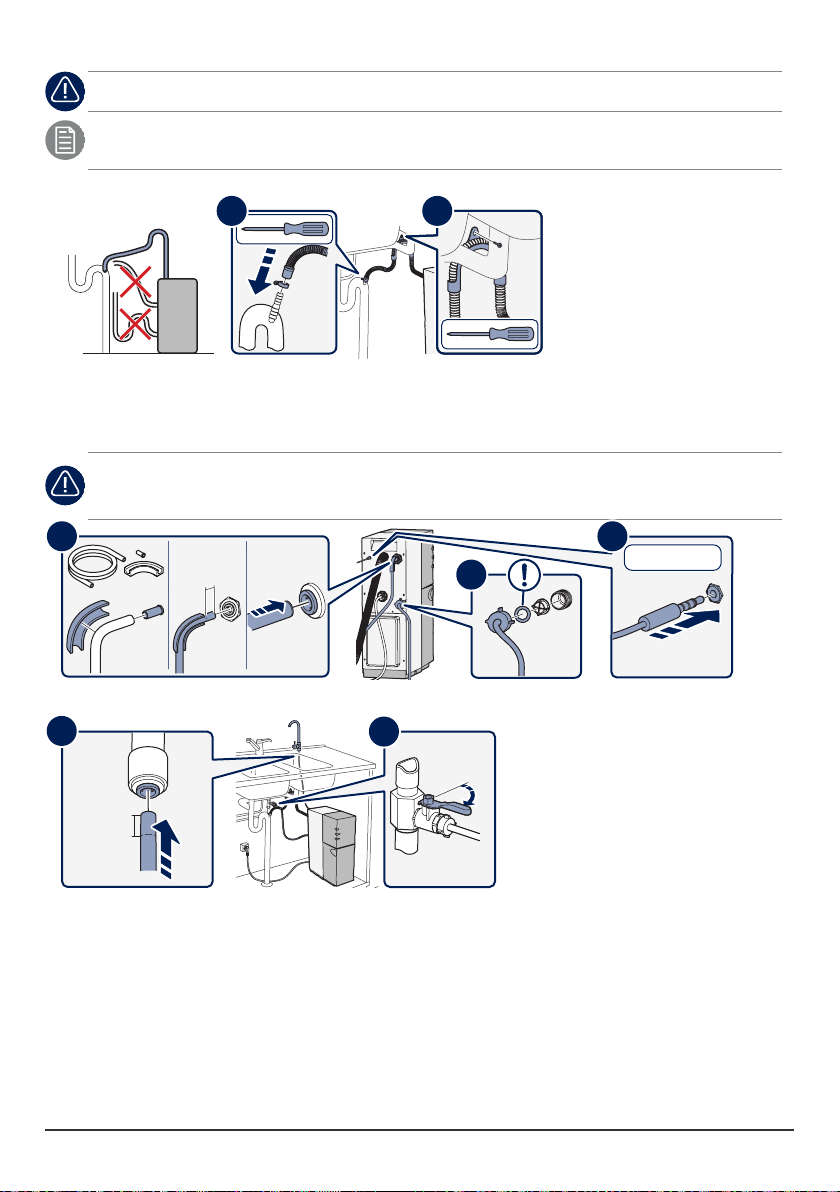

Install the water purifier in accordance with local regulations. If
you are not sure, contact a Bluewater dealer for aid. Bluewater
has no responsibility for installation of the water purifier.
Do not drink the water when the service light shows that it is
not clean.
Store water in vessels that are resistant to corrosion.
This appliance can be used by children who are more than 8
years old. It can also be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge, if they have been given supervision or instruction
about the use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Do not repair or modify parts of the water purifier. This can
make it operate incorrectly, and lead to injury and damage not
covered by the warranty.
Spirit is a reverse osmosis system. It contains a replaceable
membrane that is very important for eective reduction of total
dissolved solids (TDS). Replace this membrane regularly.
Test the cleaned water periodically, at least one time every year,
to make sure that Spirit performs correctly. If the water is not
clean, tastes or smells bad, do not drink it.

05 © Bluewater Group 2019
Only approved Bluewater sta can do servicing and repairs on
the water purifier. Only use original replacement cartridges and
parts from Bluewater. For the spare parts catalogue and contact
information for purchases, see
www.bluewatergroup.com.
The water to be cleaned must obey the requirements in
”Technical information”.
Installation must comply with applicable local plumbing codes
and regulations.
Only connect the water purifier to one clean water faucet
supplied by Bluewater. Do not connect it to other pipes, tanks
or dishwashers.
Do not put or keep objects on top of the water purifier.
Do not put the water purifier in water.
Connect the water purifier to an earthed electrical supply. Use a
socket that is easy to access after installation. Only an approved
electrician must do permanent wiring on the system. A safety
switch must be installed on the system. Incorrect installation
can lead to damage, or make the water purifier dangerous to
use.
Do not use the power cord if there are visible signs of damage
on it. If the power cord is damaged, a qualified electrician must
replace it in order to prevent danger.
If the water purifier is disconnected from water and electricity for >5 days, store it as
described in “Put into storage” on page 24.

06
Complete User manual
PRODUCT OVERVIEW
Models
Model
Spirit 300 Electronically controlled Bluewater faucet
Spirit 300Cp Pressure controlled, compatible with
household appliances
Faucet adapted to reverse
osmosis
Spirit outside

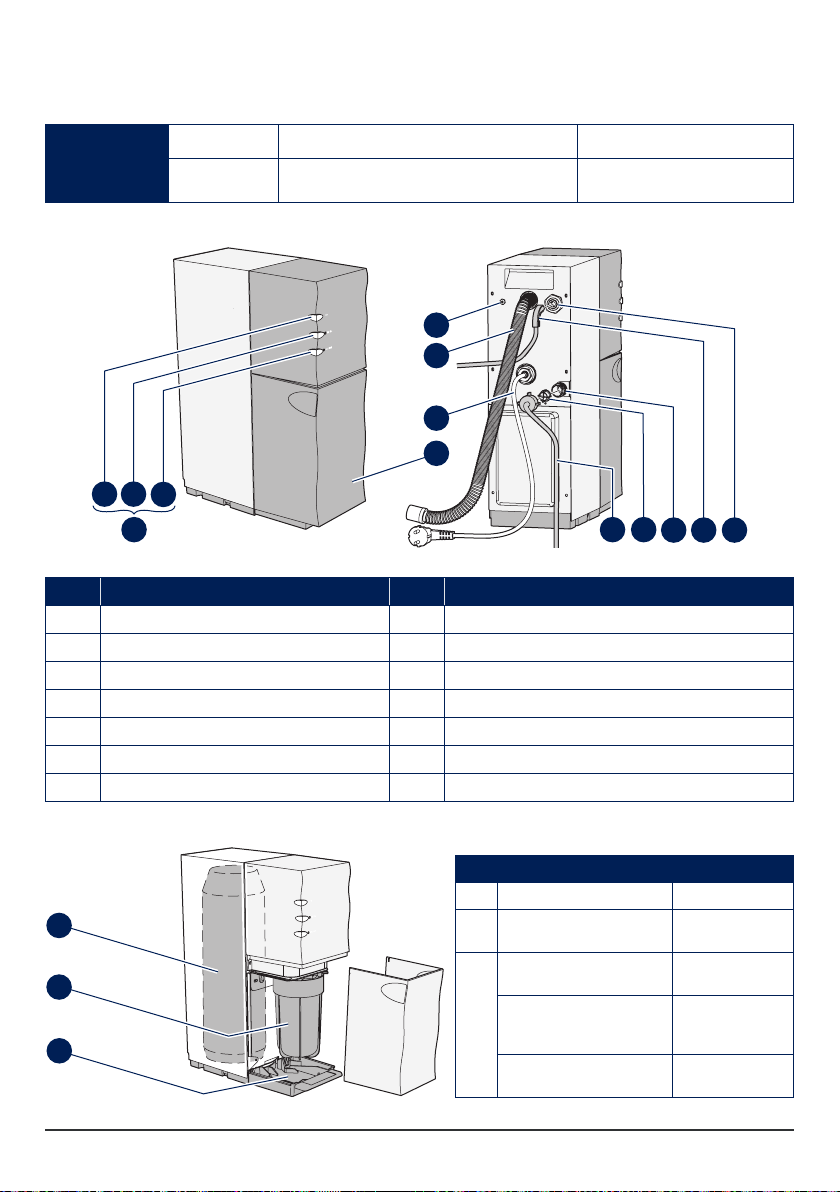

Figure 1. Spirit outside
Pos Description Pos Description
1 Control panel 8 Electrical connection for faucet (Spirit 300)
2 ON light 9 Feed water hose
3 FILTER light 10 Grid filter
4 SERVICE light 11 Feed water connection
5 Front cover 12 Clean water hose
6Power cord 13 Clean water connection
7Drain water hose
Spirit inside and replacement components
Pos Description Art. no
1 Base plate
2 Prefilter, carbon filter,
granulated
919240004
3 Reverse osmosis
membrane
Membrane service kit,
type HR (High
Rejection)
155007301-SP
Membrane service kit,
type HF (High Flow)
150759380-SP
Figure 2. Spirit inside
1
2 3 4
5
9
8
10 11 12 13
6
7
1
2
3

07 © Bluewater Group 2019
Control panel
Figure 3.
Spirit 300
4
1
2
36
5
Control panel

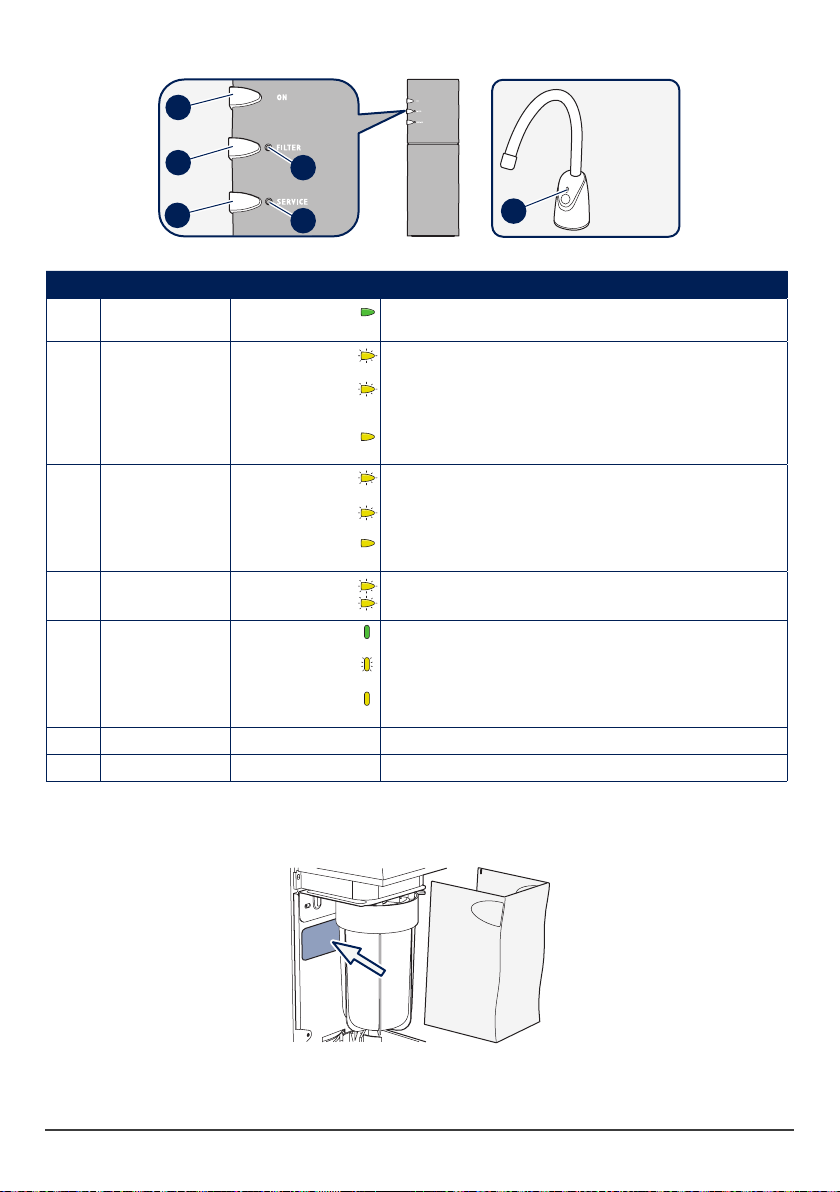

Pos Light/button Description
1 ON light On: The water purifier is connected and operates
correctly.
2 FILTER light Flashes quickly:
Flashes:
On:
The feed water pressure is too low.
The water purifier operates. The filter must be
replaced.
The water purifier has stopped. The filter must be
replaced.
3 SERVICE light Flashes quickly:
Flashes:
On:
The water quality meter does not function.
Decreased water quality.
The water purifier has stopped. The water quality has
decreased.
2 & 3 FILTER and
SERVICE light
Flashes quickly: There is a water leakage or condensation on the base
plate.
4 Faucet lights Green:
Flashes yellow:
Yellow:
Shows good water quality (this can take up to 120
seconds).
The water quality has decreased. Wait for the green
light.
The water purifier has stopped. Look at the control
panel.
5 FILTER button
6 SERVICE button
Data plate
The data plate is located behind the filter.
Figure 4. Data plate

08
Complete User manual
Move the water purifier

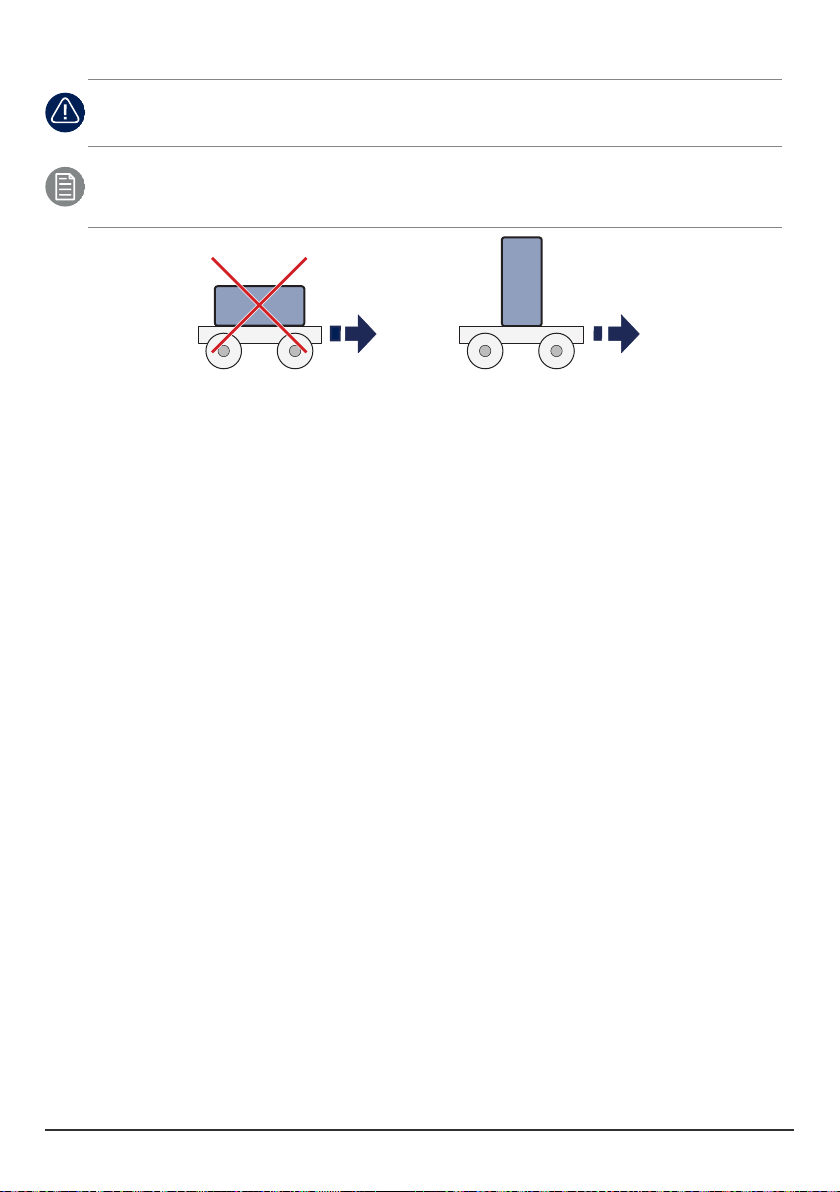

Always transport the water purifier upright.
Install according to “Installation” on page 12.
Put the water purifier into storage if it will not be used for 4 months or more, or if it is
to be disconnected from the water and electricity for >5 days, see “Put into storage” on
page 24.
Figure 5. Move the water purifier

09 © Bluewater Group 2019
SYSTEM OVERVIEW
System description
Figure 6.
Spirit 300Cp
Spirit 300
7
8
6
4
5
2
3
1
System overview, example of a Spirit installation
Pos Description Pos Description
1 Water purifier 5 Bracket for drain water hose
2Power cord 6 Bluewater faucet
3Feed water hose 7Clean water hose
4 Drain water hose, installed with an air gap 8 Faucet electrical connection (Spirit 300)
Intended use
The water purifier is intended to produce purified water. Do not use it for any other purpose.
Any use beside indoor home environment and for purposes other than purifying water for
household use is considered as unintended use and will automatically void your warranty.
The electronically controlled Spirit 300 is intended to produce the quantity of water that is
normally required for cooking and drinking in a household. The pressure controlled Spirit
300Cp can be connected to other devices such as dishwashers.

10
Complete User manual
Leak protection system
A sensor at the bottom of the water purifier senses water leaks. If there is a leak, the feed water
supply is stopped. The water purifier cannot be started again until the leak has been repaired.

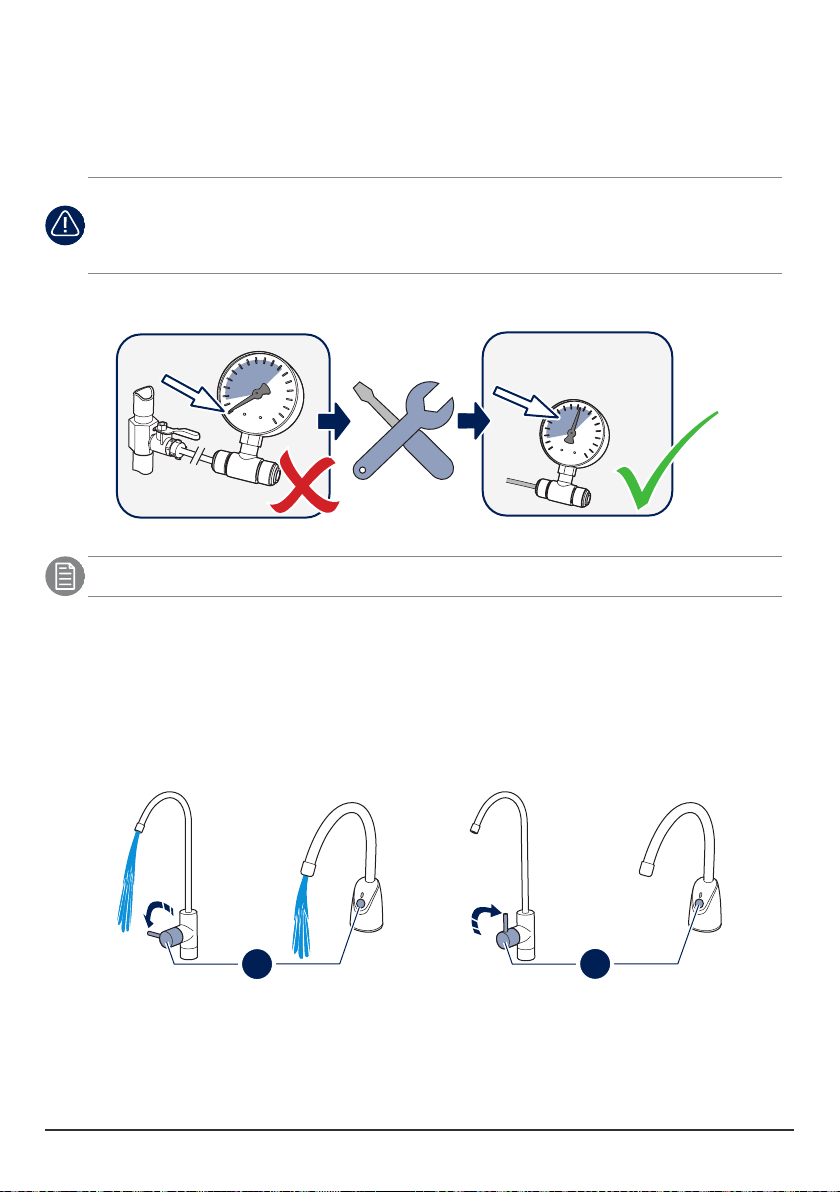

Low pressure protection
If Spirit stops because of low pressure, the cause of the low
pressure must be removed. If not, Spirit can be permanently
damaged.
Low pressure restart function
1,5-10 bar
0,15-1 MPa
22-145 psi
Figure 7. Low pressure restart function
Only included in models suitable for commercial use.
When Spirit has stopped because of a low pressure problem (feed water), water production
can be started manually by pushing the filter button 5 seconds.
The low pressure restart is a function to ensure maximum availability of water.
Spirit starts automatically when it has stopped because of low pressure. It tries to start
three times: after 3 minutes, after 20 minutes and after 4 hours. If the water pressure is not
suciently high after three tries, Spirit will stop.
Water production
Figure 8.
12
Water production on/o

11 © Bluewater Group 2019
Automatic flush
An automatic flush will be performed if one of the conditions below are fulfilled:
Figure 9.
+30 s
6 h
20 s +10 s = 60 s
15 min
1
2
3
Spirit 300Cp 2.5 min
Spirit 300 4.5 min
Spirit 300Cp 2.5 min
Spirit 300 4.5 min
Automatic flush
Pos Description
1 Flush after drawing water. Production cycles shorter than 60 seconds are added together,
and flush takes place when total drawing time exceeds 60 seconds.
2 The water purifier in standby mode. Spirit is connected to water and power and it is more
than 6 hours since the last flush.
3 Flush after maximum operation time 15 minutes. The next production cycle can be started
immediately after completed flush.

12
Complete User manual
INSTALLATION
Install the water purifier in accordance with local regulations. If
you are not sure, contact a Bluewater dealer for aid. Bluewater
has no responsibility for installation of the water purifier.
Install the water purifier in a vertical position on a horizontal
surface. Make sure that hose and cables can move freely when
the water purifier is installed.
Plumbing must be done by an approved plumber. Obey local
rules for plumbing and sanitation if you do work yourself.
Installation must comply with applicable local plumbing codes
and regulations.
Only connect the water purifier (only Spirit 300) to one clean
water faucet supplied by Bluewater. Do not connect it to other
pipes, tanks or dishwashers.
Only connect the water purifier to the cold water supply. The
water must be of sucient quality and fullfil the requirements
onfeed water.
Use the hose set that is supplied with the water purifier. Do not use used hose sets again.

13 © Bluewater Group 2019
Unpack Spirit
Warning! Discard the packing material. It can cause injury to
children if they play with it.
Make sure that Spirit shows no signs of damage, and that no accessories are missing. Tell
the Bluewater dealer about missing parts, damage and other problems. Tell the transport
company immediately if Spirit is damaged during transport.

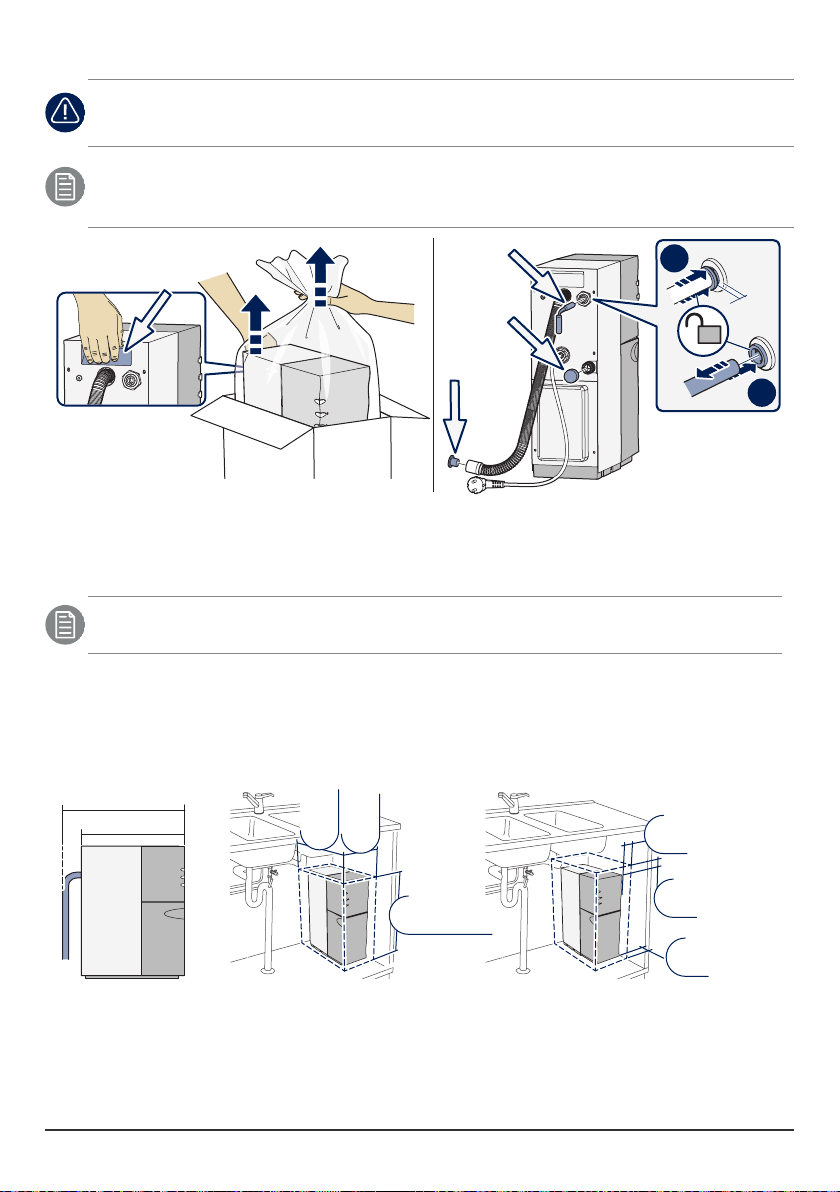

Figure 10. Unpack Spirit
Position Spirit
Put Spirit in a vertical position on a horizontal surface below the kitchen sink. Make sure
that the surface can support Spirit.
Position Spirit near the cold water supply, the drain and an earthed electrical supply.
• Make sure that it is easy to see the control panel.
• Make sure that the front cover can be opened to get access to the prefilter.
• Hose and cables can go in all directions from the connection point. Make sure that nothing can
crush them or cause damage to them.
Figure 11. Position Spirit under the kitchen sink
2
1
400 mm
360
462 mm
400
150
min 20 mm
20
20

14
Complete User manual
Install clean water faucet
Make sure there is enough space for the plastic nut B underneath the sink.
Measurement A must be at least 25 mm.
Make sure there is enough space for the faucet above the sink.

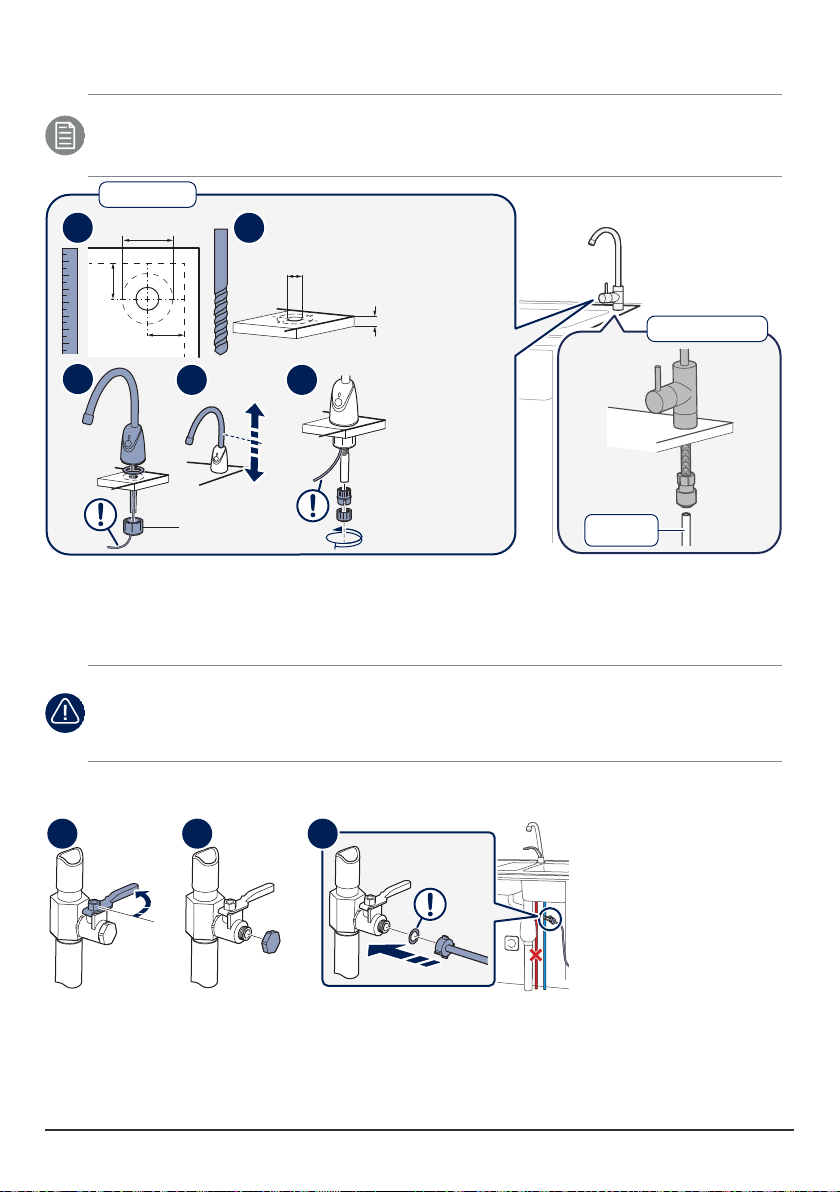

Figure 12.
Spirit 300
Max
40 mm
(1 1/2”)
A
A
B
1234567
Ø 20 mm
(3/4”)
Ø 43 mm
Spirit 300Cp
3/8”
1 2
34 5
Install clean water faucet
Install feed water connection
Only connect the water purifier to the cold water supply.
The water must be of sucient quality and fulfil the
requirements on feed water.
The water purifier is connected to cold water via the feed water hose. See “Requirements on
feed water to water purifier” on page 27.
Figure 13.
1 2 3
Install feed water connection

15 © Bluewater Group 2019
Install drain water connection
Install the drain water hose with an air gap.
The flushed water goes through the drain water hose to the drain water outlet. This
hose can be a maximum of 4 m long. The minimum internal diameter is 13mm.
Figure 14.
1 2
Install drain water connection
Connect the water purifier
Do not connect the clean water hose to equipment before
Spirit has been flushed.
19 mm
3/4” Spirit 300
1
2
3
Figure 15.
19
mm
3/4”
54
Connect the water purifier

16
Complete User manual
Flush Spirit
Do not drink the water when the water purifier flushes. It is not
safe to use.
The water purifier should always be flushed:
• when it is new and has not been used
• when it is installed again after storage/freeze protection
• when it has been cleaned
• when the membrane has been replaced.
UK
US
ZH EU
ON
10 s
123
OFF 1 s
456
45 min

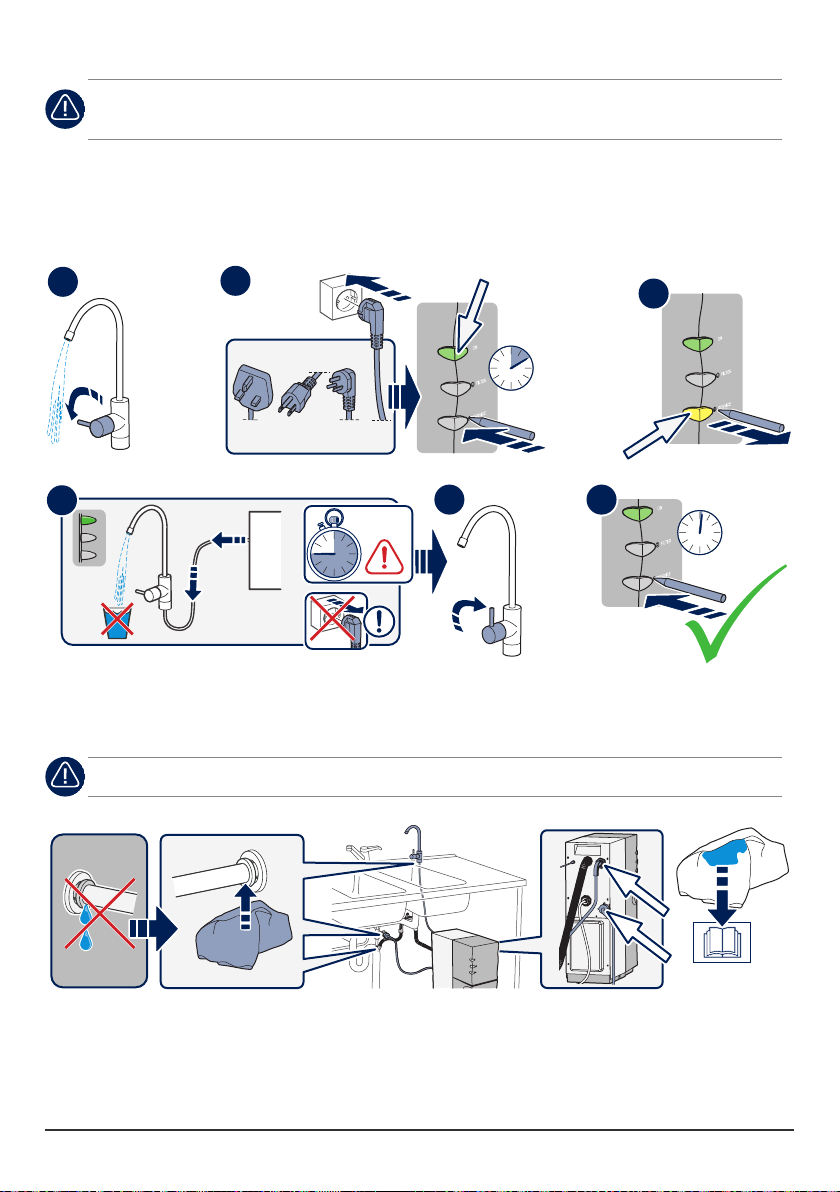

Figure 16. Flush Spirit
Do a check for leaks
The hose connections must be tight!
Figure 17.
Repair
leaks
Check for leaks

17 © Bluewater Group 2019
MAINTENANCE
Regular maintenance is important for correct function and long
term operation. Only educated and approved personnel can do
the maintenance.
The water quality controls the maintenance frequency. If the feed water is of low
quality, do maintenance more often.
Each month
Do a check for leaks
See “Do a check for leaks” on page 16.
Repair leaks
min
10 mm
(1/2”)
1234567
1 2 34
Figure 18.
7
6
58
Repair leaks
Wipe o condensation from base plate
Figure 19. Wipe o condensation from base plate

18
Complete User manual
Each 4-6 months
Descale
The descaling product is harmful. Keep it where children
cannot get it. Clean your hands when you have used it.
Order the descaling product from a Bluewater dealer.
Frequency depending on water quality and usage!
To extend the water purifier lifetime: Descale Spirit with 6 month intervals or when the
flow is decreased.
If Spirit has been descaled and the filters have been replaced, but the water flow
cannot be restored, contact your Bluewater dealer.
The descale takes approximately 10 hours. Do not use the water purifier during this
time.
5-7 s
513
2 3 4
MAX
60 min
1
587
6
700 ml
~25°C
~100 g
910 11 12
1 s
20 s
13 14 15 16
10 h
21
20
19
1817
22 23 24

19 © Bluewater Group 2019
Figure 20. Descale and flush
Each 4-6 months
Descale
The descaling product is harmful. Keep it where children
cannot get it. Clean your hands when you have used it.
Order the descaling product from a Bluewater dealer.
Frequency depending on water quality and usage!
To extend the water purifier lifetime: Descale Spirit with 6 month intervals or when the
flow is decreased.
If Spirit has been descaled and the filters have been replaced, but the water flow
cannot be restored, contact your Bluewater dealer.
The descale takes approximately 10 hours. Do not use the water purifier during this
time.
5-7 s
513
2 3 4
MAX
60 min
1
587
6
700 ml
~25°C
~100 g
910 11 12
1 s
20 s
13 14 15 16
10 h
21
20
19
1817
22 23 24
22 23 24
25 26 27
UK
US
ZH EU
ON
10 s
22 23 24
28 29 30
OFF 1 s
45 min

20
Complete User manual
Replace prefilter
Replace the filters after what comes first of 4-6 months or 18 925 l (5 000 gal) of
purified water.
Order filters from a Bluewater dealer.
Figure 21. Replace prefilter
13 4
2
MAX
60 min
5-7 s
413
5 6 7 8
910 11 12
1 s 2-4 s
13 14 15 16 90 s
