Page 2
Contents Page
1. Instructions for Using the Dryer Guide 3
2. Sample Dryer Service Information Sheet 4
3. Date Code Information 5
4. Routine Maintenance Instructions 6
Links to model guides:
AirCraft®, AirGuard™ & AirPro Dryer™
Compac Dryer™
CubDryer™
EclipseDryer®
ElanDryer™ (International Sales Only)

Page 3
Instructions For Using The Dryer Guide
• Signs for your safety: General mandatory sign (to be
accompanied where
necessary by another sign)
Danger: Electricity
Please fill out the Dryer Service Information Sheet completely. If a section is not
necessary/available insert N/A in the space.
If the faulty dryer has been installed for 2 months or less, then replace complete dryer
and return faulty unit to the nearest Bobrick Customer Service Department.
When you receive a call concerning a dryer problem inform, the customer/end user to
clean the dryer and check the motor brushes before going on with diagnosing the
problem. Fax them the cleaning instructions from the guide. If the dryer still does not
function after cleaning, then continue filling out the Dryer Service Information Sheet.
Inform the customer/end user that the malfunctioning/replaced parts must be returned to
the Bobrick Customer Service Department or a charge will be made for replacement
parts.

Page 4

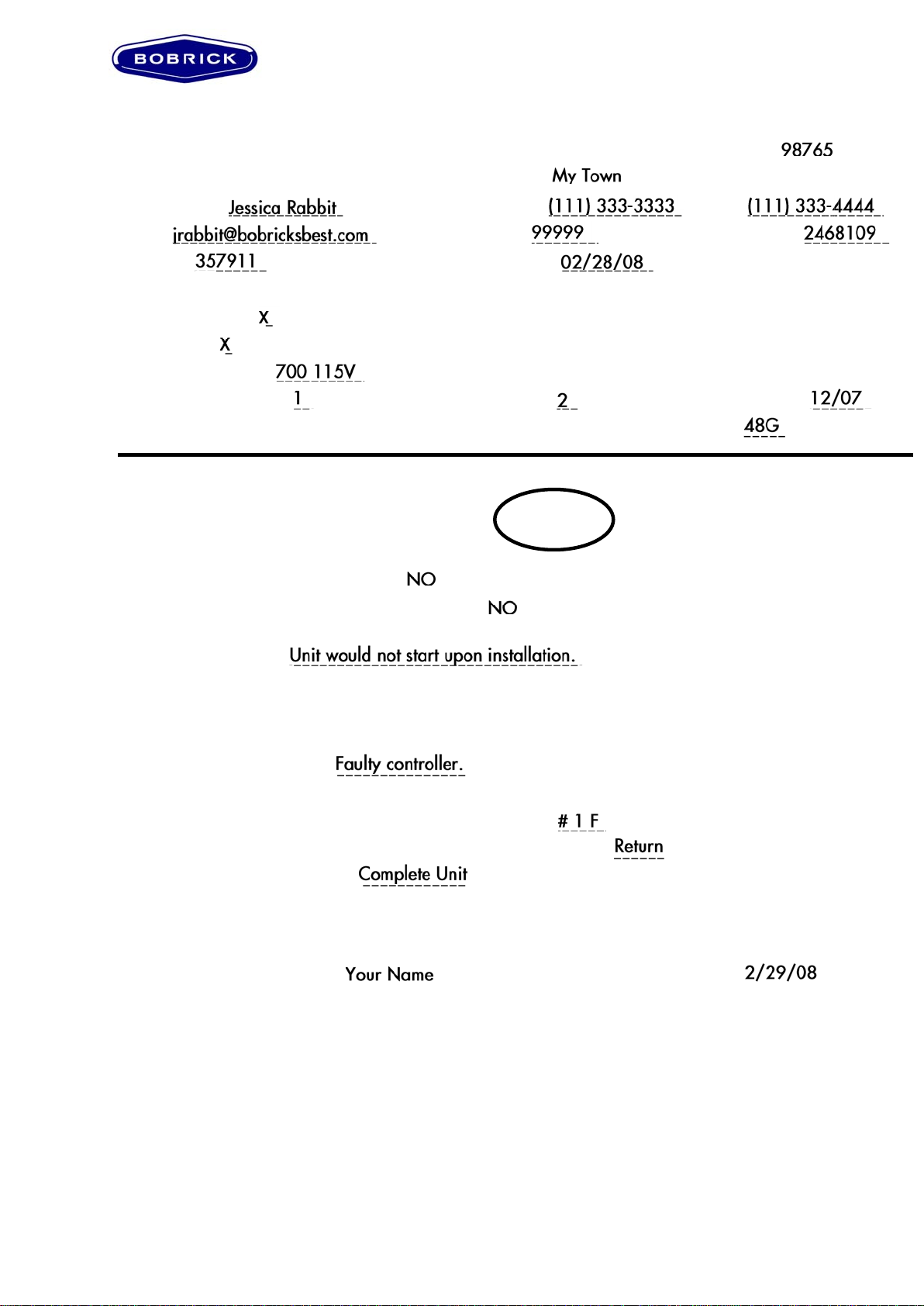

Dryer Service Information Sheet
Distributor/Rep/End-User Name: ______________________________________________________________
Address:___________________________________________________________________________________
City: _________________________________ State: ______________________ Zip code: ______________
Job Name: ____________________________ Job Location: ________________________________________
Contact name: _________________________ Telephone: __________________ Fax: __________________
Email:________________________________ Account #: __________________ Sales order #:___________
Invoice #: _____________________________ Invoice Date: ________________
Dryer Model Information:
Automatic Dryer: _______ TouchButton Dryer: _______ (check one)
Hand Dryer: _____ Hair Dryer: _____ (check one)
Dryer model #/voltage:___________________________________________
Quantity defective:_____________ Quantity on job: _________________ Date of installation: ___________
Date code (as seen on bottom edge of cover on dryer UL label. For example: 04A):________________________
Dryer Information:
When did dryer problems first occur from date of installation? Upon 0–2 2+ Out of
Installation Months Months Warranty
If dryer problem occurred within two months of installation, REPLACE dryer and return faulty dryer.
Does the dryer in any way function now? ______ (Yes or No)
Has the dryer been cleaned in the past 6 months? ______ (Yes or No) If No, send a cleaning sheet and
await outcome.
Full description of fault: _______________________________________________________________________
__________________________________________________________________________________________
Reference to Diagnostic Sheets:
Problem and possible solution: _________________________________________________________________
__________________________________________________________________________________________
Problem number(s) (as seen in left margin on diagnostic sheet): _______________________________________
Repair kit/parts required (if dryer needs to be returned write RETURN):__________________________________
Part number(s) for replacements: _____________________________ Replaced on SO #: ________________
ANY DEFECTIVE PARTS MUST ACCOMPANY THIS COMPLETED SHEET TO BOBRICK’S SERVICE
DEPARTMENT.
Information sheet completed by: ______________________________ Completion Date:__________________
Branch/Rep Firm: _________________________________________________________
White Copy: To Repair/Returns Department at Appropriate Branch (attached to RGA)
Yellow Copy: To BLA Customer Service for Internal Routing
Pink Copy: To Customer Service Files at Appropriate Branch
Form No. CSD-1196 ST Rev. 2/02 Bobrick Washroom Equipment, Inc. Printed in U.S.A.
Bobrick’s best
12345 Your Street, Suite 100
Toon Town
Your State
Fantasy Lane
_________________________
__________________
__________________
__________________
Fax:
__________________
__________________
__________________
__________________
__________________
__________________
__________________
__________________
___________
_____________________________
Automatic Dryer: _______
Hand Dryer: _____
___________________________________________
_____________
_________________
___________
Does the dryer in any way function now? ______
Has the dryer been cleaned in the past 6 months? ______
_______________________________________________________________________
_______________________________________
________________
________________________________
circle
one
( )

Page 5
Date Code Information
The date code on all Bobrick Dryers is found on the upper left corner of the rating label and
on the serial number label.
The date code will contain two digits and one letter.
The digits designate the week and the letter designates the year.
Example: 48G week forty-eight, year 2007.
All digits and letters are in ascending order..
Weeks are numbered from 1 to 52 for each year.
Rating Label
Serial Number Label
H = 2008
G = 2007
F = 2006
E = 2005
D = 2004
C = 2003
B = 2002
A = 2001
Z = 2000
Y = 1999
X = 1998
W = 1997
V = 1996
U = 1995
T = 1994
S = 1993
R = 1992
P = 1991
N = 1990
M = 1989
Date code and
serial number

Page 6
Warning
Risk of electric
shock
Disconnect power
supply before
removing cover
Routine Maintenance Instructions
All Bobrick Dryers require cleaning every 6 months to ensure that they function
effectively. Please note that failing to clean the dryer may result in malfunction and
can void the warranty.
If the dryer is installed in an area prone to dust and dirt this cleaning procedure
should be carried out more frequently.
Check the length of motor brushes, where applicable, when performing the cleaning
procedure.
Cleaning Instructions:
a) The Exterior of Cover
Should be cleaned with a damp cloth, DO NOT use aggressive cleaners or solvents
as they may permanently damage the surface.
Bobrick dryers are drip proof (IP21 or better, see rating label). DO NOT spray with
liquids to an extent that they could enter the unit.
b) The Interior
Having turned off all power to the dryer, remove the cover.
Using a small brush or vacuum, carefully clean out the build up of dust and lint.
Check the length of the motor brushes. If less than ½" replace. Check that motor
brushes are installed correctly and that brushes are worn evenly.
Replace the cover.
Turn the power back on.

Page 1
AirCraft®,
AirGuard™&
AirPro™Dryer
Guide
Effective 2/08
www.bobrick.com
In the United States: BOBRICK WASHROOM EQUIPMENT, INC.
200 Commerce Drive, Clifton Park, NY 12065-1350, Telephone: [phone], FAX: [phone]
11611 Hart Street, North Hollywood, CA 91605-5882: [phone], FAX: [phone]
100 Bobrick Drive, Jackson, TN 38301-5635, Telephone: [phone], FAX: [phone]
In Canada: BOBRICK WASHROOM EQUIPMENT COMPANY.
45 Rolark Drive, Scarborough, Ontario M1R 3B1, Telephone: [phone], FAX: [phone]
International Sales: BOBRICK WASHROOM EQUIPMENT, INC.
11611 Hart Street, North Hollywood, CA 91605-5882, 818-764-1000, FAX: [phone].
Australia: Bobrick Washroom Equipment Pty Ltd., 1800-353158, FAX: [phone]. United Kingdom:
Bobrick Washroom Equipment Ltd.,[phone], FAX: [phone]. Germany: 00800 79
00 456, FAX: [phone]. Other Countries: [phone], FAX: [phone].
Email: [email protected]

Page 2
AirCraft®, AirGuard™& AirPro™Dryers
Contents Page
1. Cover removal 5
2. Diagnostic Sheet 6
3. Field Replacement Parts 9
4. Installation Instructions 12
5. Product Identification 3
6. Schematic Diagrams 26
7. Screwdriver Test 8
8. Warranty 25

Page 3
Product Identification
AirCraft®Dryers
Surface-Mounted Dryers:
B-700 Automatic Hand & Face (pictured)
B-701 Touch Button Hand & Face
B-731 Touch Button Hair
Recessed Dryers:
B-750 Automatic Hand & Face (pictured)
B-751 Touch Button Hand & Face
B-781 Touch Button Hair

Page 4
AirGuard™Dryer
B-708 Automatic
Series Variations:
Series G lower profile cover, no nameplate
or printing. (pictured)
Not all replacement parts are interchangeable, see parts list.
AirPro™Dryer
B-709 Touch Button
B-709 Automatic (pictured)
Series Variations:
Series A touch button model, metal
nameplate.
Series B automatic model, metal nameplate.
Series C automatic model, lower profile cover, no nameplate.
Not all replacement parts are interchangeable, see parts list.

Page 5
Warning
Risk of electric
shock
Disconnect power
supply before
removing cover
Instructions For Removal Of Dryer Cover
To Remove Cover
Locate the two tamper resistant screws at the bottom of the dryer cover.
Using the Allen-wrench (4 or 5mm), turn the screws clockwise to loosen the cover. Do
not take the screws out, the screws have to be moved / rotated up to loosen the cover.
Lifting the cover over the two latches at the top of the chassis, remove the cover.
To Replace Cover
Place the cover over the two latches located at the top of the chassis. Make sure that
the cover has a good fit.
Using the Allen-wrench, turn the screws counter clockwise moved/ rotated down which
will tighten the cover onto the chassis. Do not over tighten screws.
Check to make sure the cover has a good fit. Turn power back on to the dryer unit.

Page 6
Diagnostic Sheet For AirCraft®, AirGuard™&
AirPro™Dryers.
Problem
Possible Cause
Possible Solution
AUTOMATIC
1. Dryer does not run
a) No electricity supply
Check main supply / wiring
b) Dirty control lens
c) Installation fault
Clean control lens
Check service manual for possible
wiring mistakes
d) Worn motor brushes
Check length of brushes; replace if
less than ½"
e) Element open circuit
Return dryer to Bobrick for repair
f) Control nonstart
Replace control
g) Triac open circuit
Replace triac
2. Sparks from dryer
Worn motor brushes
Replace motor brushes
3. Dryer runs at low speed
a) Worn motor brushes
Replace motor brushes
b) Triac halfwave
Remove white wire from triac; no
difference, replace triac
c) Control halfwave
Remove white wire from triac; dryer
stops, replace control
4. Dryer runs continuously
a) Triac short circuit
Remove white wire from triac; no
difference, replace triac
b) Control faulty
Remove white wire from triac; dryer
stops, replace control
5. Dryer cycles on and off
Control
Replace control
6. Dryer sometimes runs
Dirty control lens
Clean control lens
Control
Replace control
7. Dryer is oversensitive
Control
Replace control
8. Dryer blows cold air or
motor runs fast
Heating element
Return dryer to Bobrick for repairs
9. Grinding noise from dryer
a) Worn motor brushes
Replace motor brushes
b) Fan cage is bent or
damaged
Return dryer to Bobrick for repairs
10. Dryer does not run and
heating element glows
Worn motor brushes
Replace motor brushes; if still not
functioning after replacing the motor
brushes, return dryer to Bobrick for
repairs.
TOUCHBUTTON
1. Dryer does not run
a) No electricity supply
Check main supply / wiring
b) Installation fault
Check service manual for possible
wiring mistakes
c) Tabs are not connecting
Turn off power, remove cover and
bend tabs closer to sensor board
d) Worn motor brushes
Check length of brushes; replace if
less than ½"
e) Element open circuit
Return dryer to Bobrick for repair
f) Timer assembly nonstart
Perform Screwdriver Test (see test
instructions)
2. Sparks from dryer
Worn motor brushes
Replace motor brushes
3. Dryer does not run and
heating element glows
Worn motor brushes
Replace motor brushes; if still not
functioning after replacing the motor
brushes, return dryer to Bobrick for
repairs.
4. Dryer runs at low speed
a) Worn motor brushes
Replace motor brushes
b) Timer assembly
Replace timer assembly
5. Dryer runs continuously
b) Timer assembly
Replace timer assembly
6. Dryer blows cold air
Heating element
Return dryer to Bobrick for repair
7. Grinding noise from dryer
a) Worn motor brushes
Replace motor brushes

Page 7
Problem
Possible Cause
Possible Solution
b) Fan cage is bent or
damaged
Return dryer to Bobrick for repair
8. Dryer is oversensitive and
switches on or off randomly
a) Button loose
Pack button O ring with tape
b) Timer assembly or crystal
board
Perform Screwdriver Test (see test
instructions)
9. Dryer cycles on and off
Timer assembly or crystal
board
Perform Screwdriver Test (see test
instructions)

Page 8
Warning
Risk of electric
shock
Disconnect power
supply before
removing cover
Screwdriver Test for Touch Button Dryers
NOTE: This test instruction sheet is not for dissemination to, and should not be
disseminated to, the public including end users.
This test is designed to test the Touch Timer Assembly and the Sensor Board.
Instructions For Test:
1. Turn off the power to dryer.
2. Remove dryer cover.
3. Turn on the power. Do not touch any part of the dryer.
4. Using an insulated screwdriver, short across the two tabs (see below).
a) If dryer runs...................sensor board may be faulty .........replace sensor board.
b) If dryer does not run......timer may be faulty ......................replace touch
controller.
5. Turn off power to dryer.
6. Put dryer cover back on and turn power on.

Page 9
Field Replacement Parts
Replacement parts are intended to be issued by Bobrick after completion of
diagnostic sheets and a problem is identified that involves replacement of parts.
Replacement parts will then be sold to the customer/rep with credit issued upon the
return of identifiable malfunctioning and/or unused parts.
A copy of the Dryer Service Information Sheet must be completed by the rep and
sent to Bobrick prior to return of parts.
Dryer voltage must be identified in order to replace parts. Replacement parts have
options for both the 115V and 208–240V dryers. Check voltage and then designate
correct part(s).
AirCraft®Dryer Replacement Parts
AirGuard™& AirPro™Dryer Replacement Parts

Page 10
AirCraft®Dryer Replacement Parts
Surface touch
Surface automatic
Recessed touch
Recessed automatic
115V
208-240V
115V
208-240V
115V
208-240V
115V
208-240V
Touch controller
hand & face
701-360
701-361
701-360
701-361
Touch controller
hair
731-360
731-361
731-360
731-361
Sensor Board
701-138
701-138
701-138
701-138
Automatic
controller
700-360
700-361
750-360
750-361
Air Outlet Grille
& Seal
701-120
701-120
700-120
700-120
701-120
701-120
700-120
700-120
Covers Model code without the Bfollowed by -150, voltage and then color
code.
Voltage: 115V
208-240V
Color codes: Almond #885
Black #828
Grey #889
Ivory #848
White no code
Eg. 7007-150 115V #828
Model B7007, voltage 115V, color Black.
Common Parts
Triac
700-325
Motor Brushes EMD (Red Retainer)
700-101
Motor Brushes Sintech (Brass Retainer)
700-111
Motor Brushes Ametek & Winston
700-121
Cover Mounting Screws
700-156
Allen Wrench
700-55
Wall Box (Recessed Dryers Only)
700-506
Brush identification
The following items are not to be field replaced: Motor/fan units.
Heating elements.

Page 11
AirGuard™& AirPro™Dryer Replacement Parts
115V
208-240V
Touch controller
701-360
701-361
Sensor Board
701-138
701-138
Automatic controller
700-360
700-361
Air Outlet Grille & Seal
701-120
701-120
B-708 Series A –F cover
708-150 115V
708-150 240V
B-708 Series G cover
708G-150 115V
708G-150 240V
B-709 Series A cover
709-150 115V
709-150 240V
B-709 Series B cover
709B-150 115V
709B-150 240V
B-709 Series C cover
709C-150 115V
709C-150 240V
Product Identification
Common Parts
Triac
700-325
Motor Brushes EMD (Red Retainer)
700-101
Motor Brushes Sintech (Brass Retainer)
700-111
Motor Brushes Ametek & Winston
700-121
Cover Mounting Screws
700-156
Allen Wrench
700-55
Brush identification
The following items are not to be field replaced: Motor/fan units.
Heating elements.

Page 12
Installation Instructions
Installation Instructions Page
Cover Replacement 13
Installation Of Touch Controller 14
Installation Of Base Plate Mounted Triac 15
Installation Of Automatic Controller 16
Instructions For Installation Of Sensor Board 17
Instructions For The Replacement Of Motor Brushes 18
Installation of Surface-Mounted Hand and Hair Dryers 19
Installation of Recessed AirCraft®Hand and Hair Dryers 22

Page 13
Warning
Risk of electric
shock
Disconnect power
supply before
removing cover
Cover Replacement
The dryer covers for
different models are NOT
interchangeable.
To Remove Cover
1. Disconnect the power supply.
2. Locate the two tamper resistant screws at the bottom of the dryer cover.
3. Using the Allen-wrench (4 or 5mm), turn the screws clockwise to loosen the cover.
4. Lifting the cover over the two latches at the top of the chassis, remove the cover.
To Replace Cover
1. Place the cover over the two latches located at the top of the chassis. Make sure that
the cover has a good fit.
2. Using the Allen-wrench, turn the screws counter clockwise loosening the screws; this
will tighten the cover onto the chassis. Do not over tighten the screws.
3. Check to make sure the cover has a good fit. Turn the power supply back on.
4. Allow 10 seconds for the controller to stabilize and check operation of the dryer. On
Automatic Dryers if the operation is intermittent check that the controller has a clear
view out of the cover aperture, use the spacers provided to raise the controller if
required.
Fig 1
Fig 2
Fig 1A
Fig 1B
Fig 2A
Fig 2

Page 14
Warning
Risk of electric
shock
Disconnect power
supply before
removing cover
Installation Of Touch Controller
To Remove Existing Timer
1. Disconnect the power supply and remove the cover.
2. Remove the timer from the base plate by unscrewing the two screws securing the timer bracket to the
base. On recessed dryers the timer bracket is secured to a metal angle bracket, this bracket with its
screws must be removed and retained for use on the replacement timer.
3. Disconnect the pink or yellow, red, and black timer wires from the terminal block and the white wire
push on connector from the triac (115V only). Place the timer aside for return to the Service
Department.
To Install New Timer
1. Mount the timer assembly to the base plate . In the case of recessed dryers, it is first necessary to
attach the metal angle bracket removed from the faulty timer to the new timer.
2. Route the timer wiring under the element tube and attach the white wire push on connector to the
small spade terminal on the triac (115V only), older 208 –240V units may have a base plate mounted
triac, this is no longer required and can be removed.
3. Connect the remaining three timer wires to the terminal block, black wire to terminal 1, red wire to
terminal 2, pink wire to terminal 3.
4. Secure wiring with cable ties provided.
5. Replace dryer cover. Switch on electrical supply and test
operation.
