BOCK storeline s100 User manual

EN
1
Assembly and operating instructions
storeline
•t10X bedside cabinets with s100 flexible
tray

EN
2
Dear Customer,
By purchasing this product from Hermann Bock GmbH, you are acquiring
a long-lasting, modern product with first-rate functionality and safety.
In order to prevent malfunctions and risks to people, users and third
parties, please read this manual carefully and observe all the instruc-
tions and notes it contains.
Klaus Bock

EN
3
Table of contents
1Introduction and general notes .......................................................................4
1.1 Intended use.................................................................................................4
1.2 Warranty ......................................................................................................4
1.3 Note on markets...........................................................................................4
1.4 Tray nameplate.............................................................................................5
2Overview of functions .....................................................................................6
3Assembly and operation..................................................................................7
3.1 Technical specifications –storeline s100 .....................................................7
3.1 Videos...........................................................................................................8
3.2 Assembly and mounting of the storeline s100 onto the t10X......................9
3.3 Operation ...................................................................................................11
3.4 Disassembly................................................................................................14
3.5 Transport, storage and operating conditions.............................................14
3.6 Usage notes................................................................................................15
3.7 Disposal ......................................................................................................15
4Cleaning, care and disinfection......................................................................16
4.1 Cleaning and care .......................................................................................16
4.2 Disinfection.................................................................................................17

EN
4
1Introduction and general notes
1.1 Intended use
–The bedside cabinets and trays are intended for placing items on and for use in
assisting with food consumption, making the work of nurses and caregivers easier
–The bedside cabinets can be used independently from the nursing care bed
–The height of the table surface is adjustable, so it can be positioned and used above
the mattress of the bed
–Patients can use the bedsidecabinets and trays themselves, as long as they have been
instructed in how to do so
–The bedside cabinets and trays are suitable for repeated use, as long as the care and
cleaning instructions are observed
This manual contains safety instructions. All persons who work with the product must
be familiar with the contents of this manual. Improper operation may result in hazards.
1.2 Warranty
If you have questions about the warranty for this product, please contact your vendor. If
you do not use original Bock replacement parts, or if repairs/changes are made to the
bedside cabinets, trays or their components by unauthorised personnel, the warranty is
null and void.
If damage still occurs despite proper handling, please contact the manufacturer or your
retailer.
1.3 Note on markets
This product is not approved for the North American market, nor for the United States
of America in particular. Distribution or use of this product in these markets, including
via third parties, is prohibited by the manufacturer.
Kommentiert [IW1]: Bitte prüfen ob das auch mit der neuen
Serienummer und MDR versehen werden muss

EN
5
Tray nameplate
An individual nameplate is affixed to this product.
Individual nameplate
(1)
(2)
(3)
(4)
(5)
(1) Model number
(2) Date of manufacture: Year - Month - Day
(3) Serial number: Order number - Sequential number
(4) Symbols
(5) Manufacturer
Explanation of symbols:
Product is subject to separate waste disposal
requirements in the European Union. Product may not be disposed of
in household waste.
Use only in dry areas
Refer to manual
Manufacturer’s address
Placeholder individual nameplate
Kommentiert [IW2]: Bitte ein englisches CE verwenden

EN
6

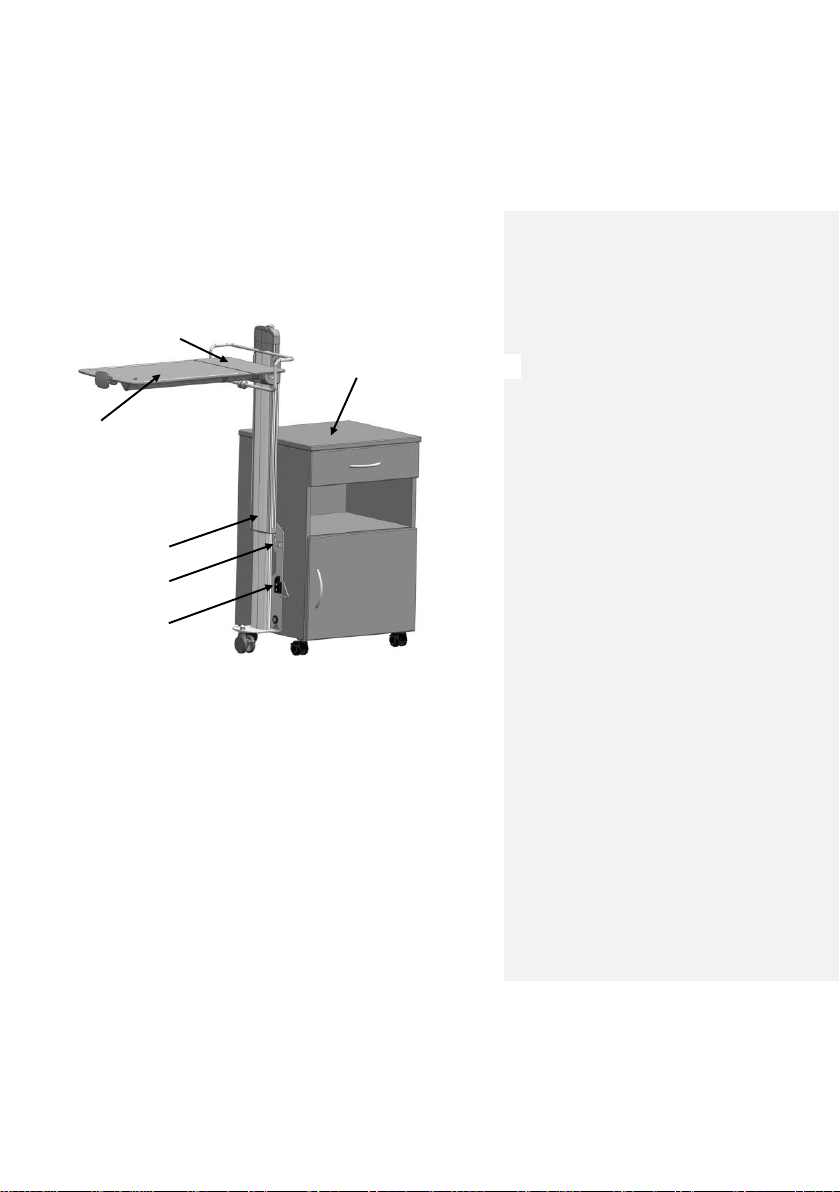

2Overview of functions
Construction and function
Height-adjustable lifting
post
Swiveling tray
Latch for removal
t10x bedside cabinet (shown here: t101)
Locking system for
separate storage of the
s100
Fixed surface

EN
7
3Assembly and operation
3.1 Technical specifications –storeline s100
Technical specifications
storeline s100
storeline s100 with t10X
Dimensions: Total
width/henght
Extended:
800 mm / 1190 mm
Retracted:
170 mm / 870 mm
Extended:
1305 mm / 1190 mm
Retracted:
675 mm / 870 mm
Height of tabletop:
725mm to 1050mm
725mm to 1050mm
Swivel-mounted tray:
550x380
550x380
Fixed surface:
160x380
160x380
Tilting range of the tabletop:
Max. 45°
Max. 45°
Max. load capacity of the tab-
letop (tablet center):
up to 20 kg
up to 20 kg
Castors:
1 x Double castor Ø 65 mm
(with brakes)
1 x Double castor Ø 65 mm
(with brakes)
4x Double castors
Ø 50 mm
(2 x with brakes)
Base frame height:
80 mm
70 mm
Total weight:
11.80 kg
11.80 kg + 37.75 kg
All parts and specifications are subject to ongoing changes, and therefore may vary from
the information listed here. The Technical Specifications may vary for different product versions
width
height
depth
Kommentiert [IW3]: Bitte prüfen ob die Maße mit der Bro-
schüre übereinstimmen
Kommentiert [IW4]: Sind nicht 2 Rollen mit Bremse?? BITTE
PRÜFEN

EN
8
3.1 Videos
▪How to use the storeline s100

EN
9
3.2 Assembly and mounting of the storeline s100 onto the t10X
Assemble the cabinet as shown at the
right.
Remove the cover plugs on the side where
you want to install the tray.
Then, take the connectors out of the
provided bag with all fittings for the
storeline s100 and attach them to the
cabinet.
(3 pieces per side)

EN
10
Once the connectors have been properly
installed, you can mount the tray as
shown in the figure at the right. It should
click into place automatically. Make sure
that the tray is fitted properly into all
three connectors.
The locking mechanism has to engage
around the connector, as shown in the fig-
ure at the right. Warning: If the mecha-
nism is not latched properly, the tray may
come loose from the cabinet.
Once the tray is properly attached, oper-
ate the lever to trigger the hydraulic cylin-
der and press the tray down until it hits
the stopping point.

EN
11

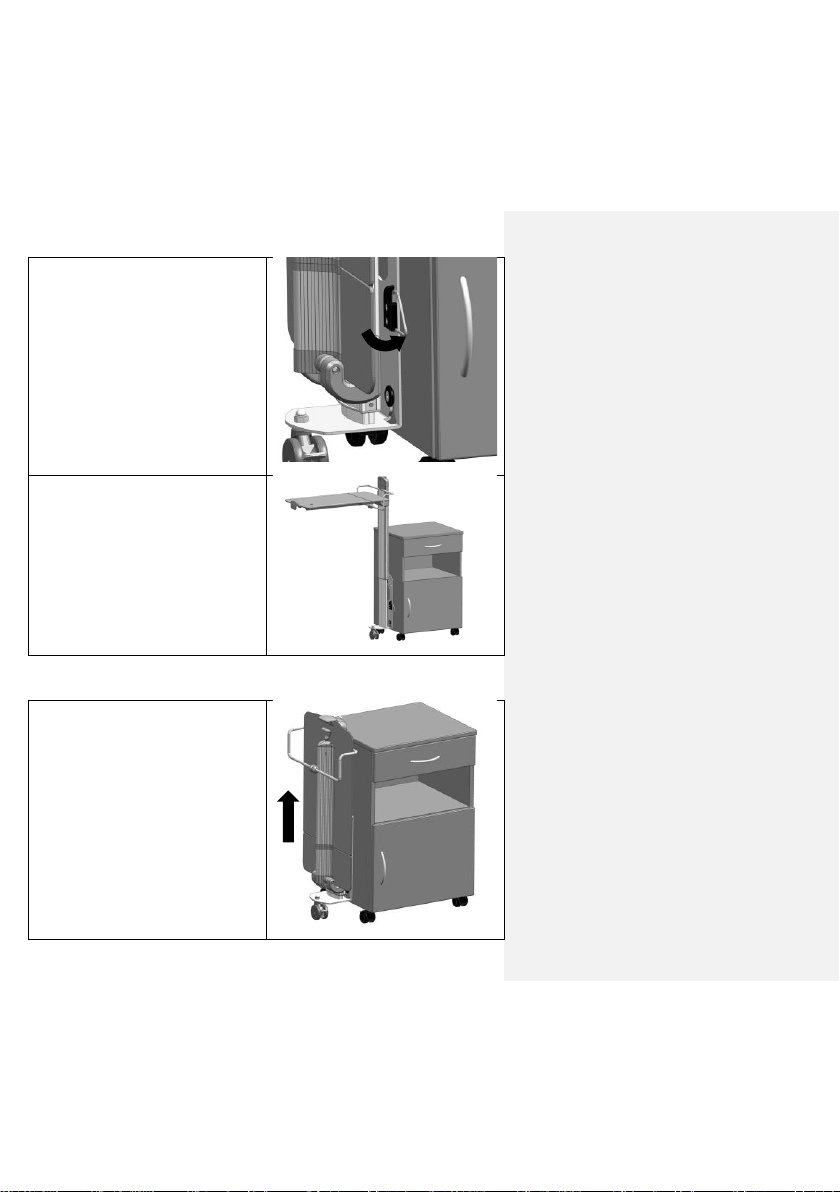

Then, swing the lateral clamp on the lock-
ing system to the side.
Once all these steps are complete, the
bedside table with tray is ready to use.
3.3 Operation
When the tray is retracted, you can use
the handle on the top of the table surface
to pull it out. A stop mechanism limits the
maximum height.

EN
12

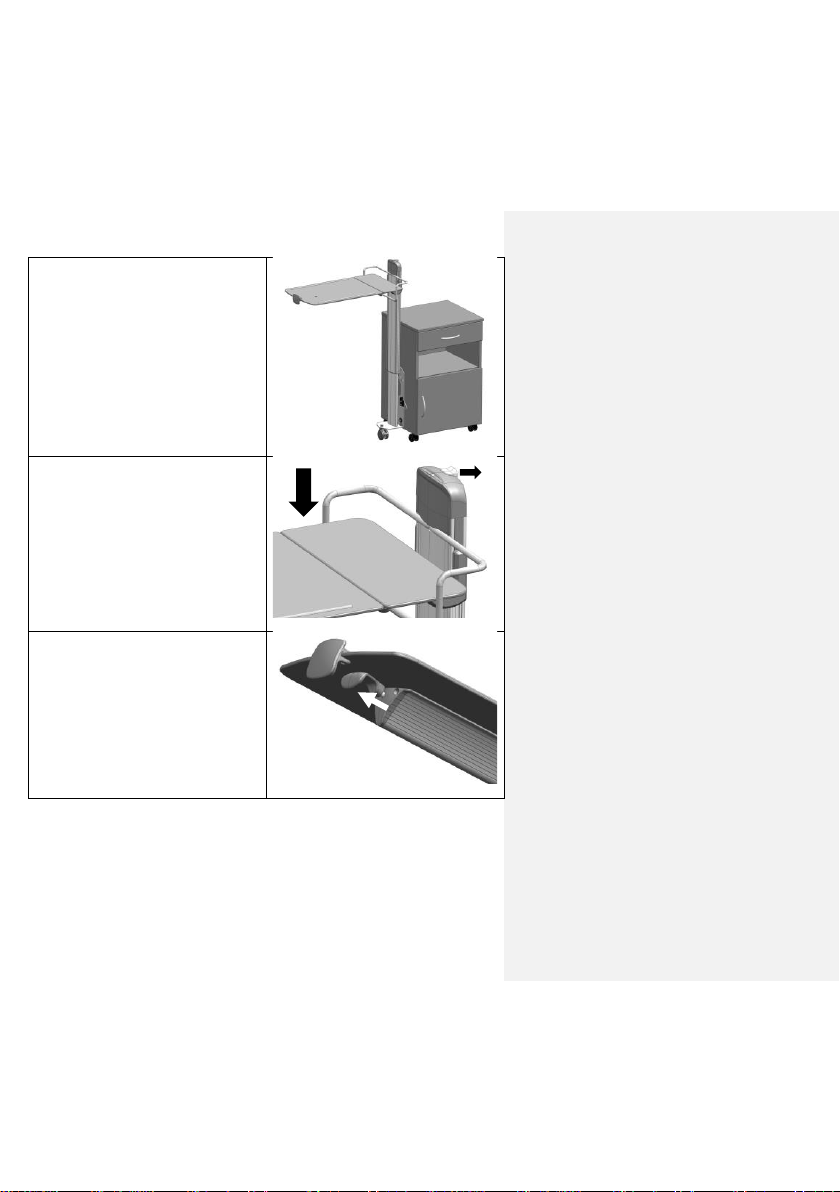

The figure at the right shows the tray in its
highest position.
To lower the tray, press the lever shown
on the right-hand side of the figure dis-
played here. Use your other hand to press
the tray downward.
If you would like to tilt the tray, simply
pull the handle shown at the right. Then
lock the tray into the desired position.
Warning: Before tilting the tray, make
sure that the surface of the tray is clear of
items.

EN
13
The tray is now in a tilted position, as
shown in the figure at the right. The tray
can also be tilted in the opposite direc-
tion.
Bock Safety Note
Please read this entire manual in order to avoid causing damage by using the product
improperly.
Clean and disinfect the product before first use and before every subsequent use.
The maximum load capacity of the tabletop is 10 kg.
Do not lean on the tabletop!
All castors must have their brakes on at all times.
Patients may only use the bedside table and tray if they have been properly instructed
in how to do so.
Check to ensure that the locking hook is fully clasped around the upper connector.
When returning the tray to its horizontal position, make sure that no one’s fingers or
other objects are between the movable and immovable sections of the tray.

EN
14

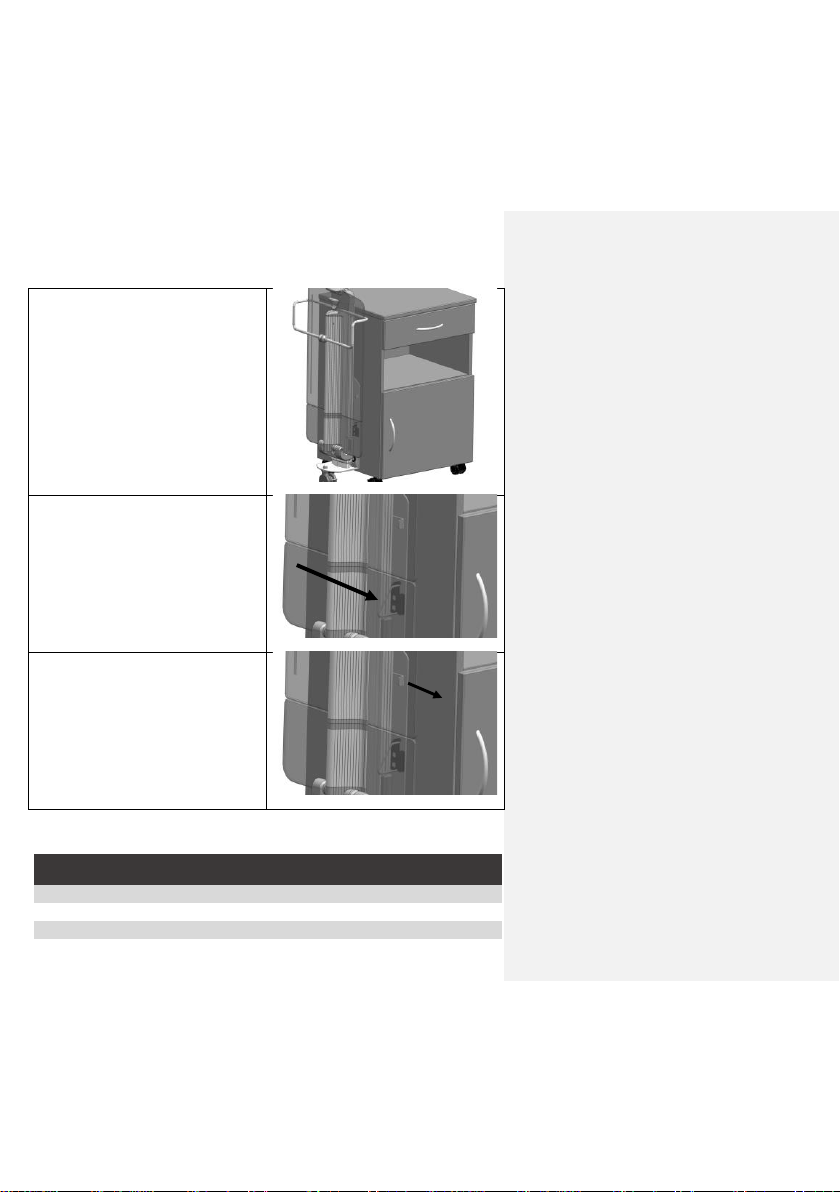

3.4 Disassembly
If you would like to remove the tray, first
collapse it as shown in the figure at the
right.
Then move the transport clamp into the
position where it blocks the table and can
be transported securely. Important note:
The clamp must lock into the dedicated
slot.
Once the tray is secured, you can move
the locking hook to the side with one
hand. Use your other hand to pull the tray
upwards out of the connectors. The tray
has now been removed from the cabinet.
3.5 Transport, storage and operating conditions
Transport and storage
Operation
Temperature
0°C to +40°C
10°C to +40°C
Relative humidity
20% to 80%
20% to 70%
Atmospheric pressure
800hPa to 1060hPA

EN
15
3.6 Usage notes
To keep the bedside cabinet in a particular location, the
brakes on the castors must be locked. To lock the brakes,
push the locking lever downward with your foot.
3.7 Disposal
The individual plastic, metal and wooden components are recyclable, and can be disposed
of for recycling in accordance with applicable laws.

EN
4Cleaning, care and disinfection
4.1 Cleaning and care
Following the care instructions in this section will help you maintain the functionality and
appearance of your Bock product for a long time to come.
The table surfaces of the bedside cabinets and trays are made of coated particleboard
with a decorative finish. Depending on the model, the surface has either a melamine resin
coating or an HPL (high-pressure laminate) coating, with additional edge protection made
of a polymer (ABS). The coated table surfaces are easy to maintain, and their durable,
hygienically sealed materials mean that they do not require special care. Generally, rou-
tine cleaning is sufficient if the tables are used by the same patient. The bedside cabinets
and trays only need to be disinfected if they are visibly contaminated with (potentially)
infectious material, or if they are going to be reused for a new patient.
In order to ensure that your bedside cabinetscabinets and trays remain useable for a long
time to come, please observe the following care and cleaning instructions:
▪The bedside cabinetscabinets and trays are not suitable for mechanical cleaning
or disinfection and should only be cleaned and disinfected manually
▪Light soiling can be cleaned off with a soft, clean and (if necessary) slightly mois-
tened cloth
▪Heavier soiling can be cleaned off with warm soapy water, a mixture of warm
water and detergent, or a conventional cleanser
▪Any remaining residue (oil, wax, etc.) can generally be removed with an organic
solvent (such as acetone)
▪Only use clean, soft cloths, sponges or brushes for cleaning
▪Furniture polish or cleansers containing oil or wax may damage the structure of
the surface and should not be used
▪Cleansers that contain strong acids, highly acidic salts, or abrasive/bleaching in-
gredients should not be used, as they can damage the material
▪Moisture (standing water, damp sponge) can damage the bedside cabinets and
trays, particularly if it gets into the joints of the product, so make sure to keep
the product free from moisture

EN
▪High temperatures can damage the surface of the table, so always make sure to
use trivets or coasters under hot pots or mugs
▪Do not cut or slice anything on the laminated surface, as doing so can scratch the
material
Please follow the manufacturer’s general instructions for cleaning and caring for other
products and materials. You can also find additional notes on cleaning and care, as well as
further relevant information, in the assembly and operating instructions for Hermann
Bock patient beds.
4.2 Disinfection
To disinfect your Bock product, wipe it down with an approved disinfectant agent. Follow
the disinfection procedures tested and approved by the Robert Koch Institute (RKI). To
maintain the durability of plastic components, only mild and gentle products should be
used for disinfection. Concentrated acids, aromatic and chlorinated hydrocarbons, higher
alcohols, ethers, esters and ketones will corrode the material and should not be used. The
list of disinfectant agents and procedures tested and approved by the Robert Koch Insti-
tute can be found online at www.rki.de.
We have tested and approved the following disinfectants:
Manufacturer
Product name
Concentration
Ecolab
Incidin Plus
0.5% solution
Bode Chemie
Bacillol AF
0.5% solution
Schülke
Terralin Protect
0.5% solution
Hermann Bock GmbH
Nickelstr. 12
33415 Verl, Germany
Telephone: [phone] - 0
Fax: [phone] - 25
Website: www.bock.net
Email: [email protected]

EN
Our SALES PARTNERS
Just like us, our business partners are focused on quality, innovation, and exceptionally high standards that are
recognised worldwide. We can rely on our partners as confidently as you rely on us.
Please note that training, replacement parts, repairs, inspections and other forms of service can only be provided
by our authorised personnel and sales partners. Otherwise, all warranty claims will be void.
For a list of our current sales partners, see www.bock.net/kontakt/vertriebspartner (German only)
© registered trademark
890.02136 Last updated: 08-2023
Ver. 01
Subject to technical changes without notice
