Body Craft R200 Recumbent User manual

7699 Green Meadows Drive
Lewis Center, OH 43035
OWNERS MANUAL
MA902 Recreation Supply Inc.
Model No. R200
BODYCRAFT is a division of Recreation Supply
www.bodycraft.com 800-990-5556 [e-mail]
R200 Recumbent

CONGRATULATIONS! And THANK YOU for selecting the
BODYCRAFT R200 Recumbent Bike! Your choice reflects a wise
investment in you and your family’s health and wellness. We
hope you use it for many healthy years!
For your safety and benefit, please read this entire manual. Please keep the manual in a
convenient place for quick reference when needed.
Bodycraft offers a complete array of high quality fitness equipment. Please refer to our web
site at www.bodycraft.com to view more ways to enhance your lifestyle.
Your Bodycraft R200 has all the quality and design elements to make your workout
extremely efficient and comfortable. Your new Recumbent Bike is a serious cardio
fitness machine that will keep you motivated, challenged and within reach of your fitness
goals. The Bodycraft R200 will provide an efficient, low impact cardiovascular workout
that will help improve energy levels and your quality of life. Cardiovascular training is vital for
all ages and the Bodycraft R200 will provide an effective workout, producing results that
will encourage you to reach your fitness goals and maintain the body you have always
wanted. Spending 15 to 30 minutes a day, three times a week is all you need to start seeing
the benefits of a regular exercise program.
As a premium exercise equipment manufacturer we are committed to your complete
satisfaction. If you have questions, suggestions or find missing or damaged parts, we
guarantee your complete satisfaction through our authorized dealer network or by contacting
us directly. Please call your local dealer or Bodycraft.
Phone: [phone]am - 5pm EST Email: [email protected]
Recreation Supply, Inc.
7699 Green Meadows Dr.
Lewis Center, OH 43035
Purchaser’s Reference Information:
IT IS IMPERATIVE THAT YOU FILL IN
THE FOLLOWING INFORMATION AND
REFER TO IT SHOULD THE NEED FOR
SERVICE ARISE.
Product Name: R200 Recumbent Bike
Serial Number: R B _ _ _ _ _ _ _ _ _ _ _ _
Proof of purchase must be supplied to validate warranty and the product must have
been registered with Bodycraft via online at www.bodycraft.com or by calling
800-990-5556 or 740-965-2442 M-F 9 a.m. - 5 p.m. EST.
Serial #

TABLE OF CONTENTS
Product Safety…….…….……….…………….….….….….….……….….….…….………1
Parts Contents……….….….….….……….….….….….….……….…….….….…….……2
Assembly….……….….….……….….….….….……….……………….….….……………3
Adjustments………….………………….….……….….….……….….….….….….………6
Detailed Parts List.……………………….……….….….….….…………….……………..7
Exploded Drawing.…………….……….……….……….……….….…………….………..10
Computer Operation………………………….…………….…………….…………………12
Warranty…………………….………………………………………………………………..18

IMPORTANT SAFETY NOTES
Basic precautions should always be followed, including the following safety
instructions when using this equipment:
Read all instructions before using this equipment.
WARNING: There is a risk assumed by individuals who use this type of equipment. Before
beginning this or any other exercise program consult your physician. This is especially
important for individuals over the age of 35, pregnant women,or persons with pre-existing
health problems. Recreation Supply, Inc. assumes no responsibility for personal injury or
property damage sustained by or through use of this product.
1. It is recommended that you perform warm up exercises before using this equipment.
2. Please make sure all components are not damaged and in working order. Inspect the product
before each use. This is especially important after the first 10 hours of use. Pedals and other
hardware can sometimes work themselves loose. Tighten any loose parts.
3. This equipment should be assembled and placed on a flat surface while in use. Using a mat or
other material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes
that might catch in any part of the equipment.
5. Do not attempt any maintenance or adjustments other than those described in this manual.
Should any problems arise, discontinue use and consult an Authorized Service Representative.
6. Use caution when stepping on or stepping off the machine. Always hold the stationary
handlebars when getting on and off the machine.
7. Do not use the equipment outdoors.
8. This equipment is for household or light commercial use only.
9. Only one person should be on the equipment while in use.
10. Keep children and pets away from the product while in use. This machine is designed
for adults only.
11. If you feel chest pains, nausea, dizziness, or shortness of breath, you should stop
exercising immediately and consult your physician before continuing.
12. The maximum weight capacity for this product is 350 lbs /160 kgs.
13. Clean pads and frame on a regular basis. We recommend warm,soapy water. Do not use harsh
or abrasive chemicals.
14. If unsure about the proper use of the BODYCRAFT R200 call your local BODYCRAFT dealer
or our customer service department at 800-990-5556.
1

Rear Stabilizer
Front Stabilizer
Main Bike
Assembly
Right Left
Seat Pad Handlebar
Back Pad
Handlebar Console Mast
Bottle WaterConsole
Holder Bottle Computer Back Support
Frame
Mast Console
Cover
Left Right
Power Supply Pedal Pedal

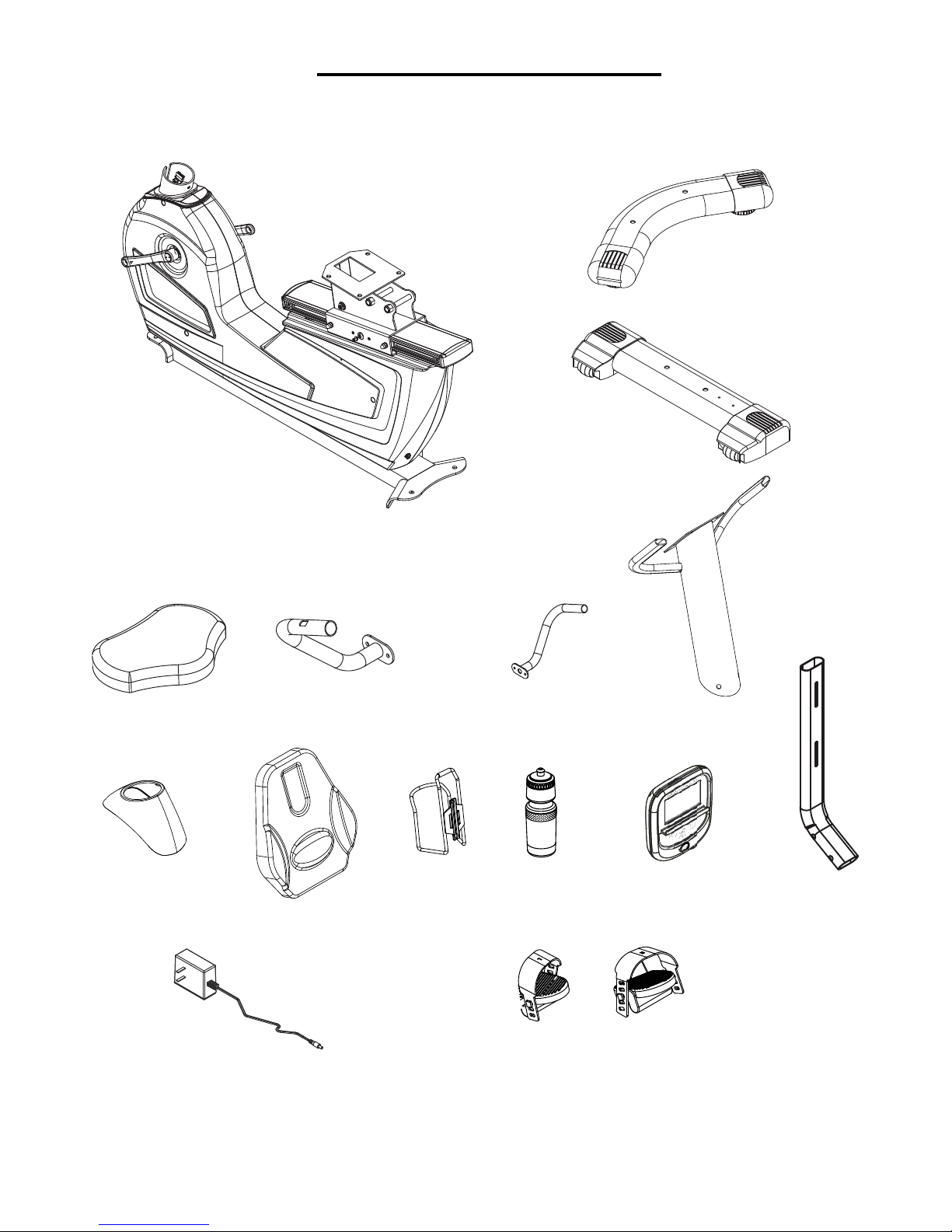

R200 PARTS CONTENTS
2

Step 2 Seat & Back Pad
1. Attach the Seat Pad (28) to the Seat Frame (5) using four M8 Spring Washers (99) and four
M8 x 20L Hex Head Threaded Bolts (77) as shown in Fig. B1. Tighten these bolts.
2. Attach the Back Support Frame (8) to the Seat Frame (5) using two 1/2" x 3-1/2" Hex Head
Bolts (74) and two 1/2" Nylon Nuts (103). Tighten these bolts, then cap each end with four
1/2" Caps (109).
3. Attach the Back Pad (18) to the Back Support Frame (8) using two M8 Washers (92) and
two Back Pad Adjustment Knobs (10). You will be able to use the knobs to adjust the back
support for your comfort.

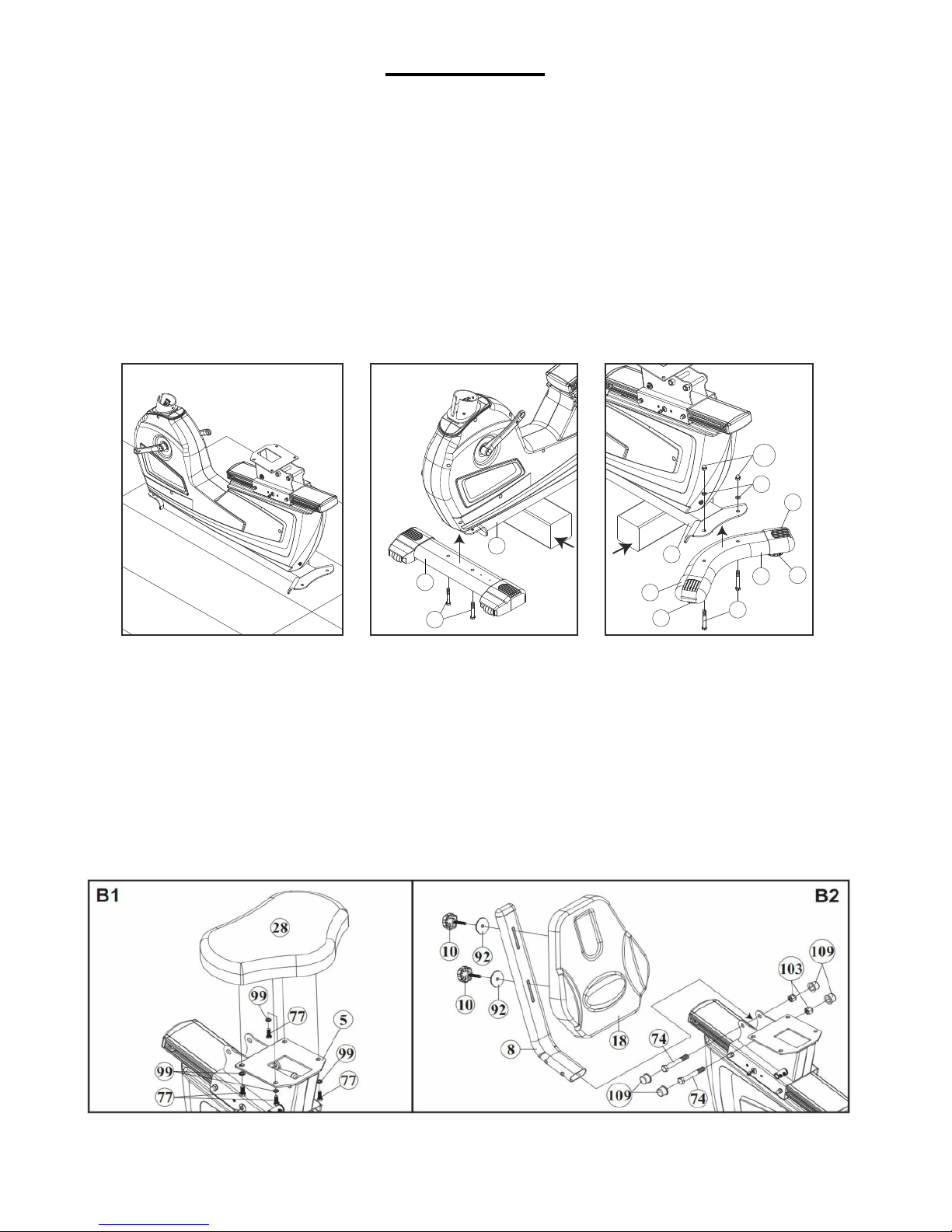

Step 1 Front & Rear Stabilizer
1. Use a Styrofoam block from the packing material to raise the front of the Bike Assembly (1)
then attach the Front Stabilizer (2) using two 3/8" x 2-1/4" Hex Head Bolts (79), as shown in
Fig. A2. Tighten these bolts. Remove the Styrofoam block.
2. Use a Styrofoam block from the packing material to raise the rear of the Bike Assembly (1)
then attach the Rear Stabilizer (3) using two 3/8" x 2-3/4" Hex Head Bolts (75), two 3/8"
Spring Washers (98), and two 3/8" Acorn Nuts (110), as shown in Fig. A3. Tighten these bolts.
Remove the Styrofoam block.
3. Once the bike is in its final location, there are Adjustable Levelers (44) under each end of
the Rear Stabilizer (3) that need to be adjusted to ensure the bike is totally stable on the floor.
A3
75
3
1
110
44
45
44
45
98
A2
79
2
1
A1
ASSEMBLY
3

4

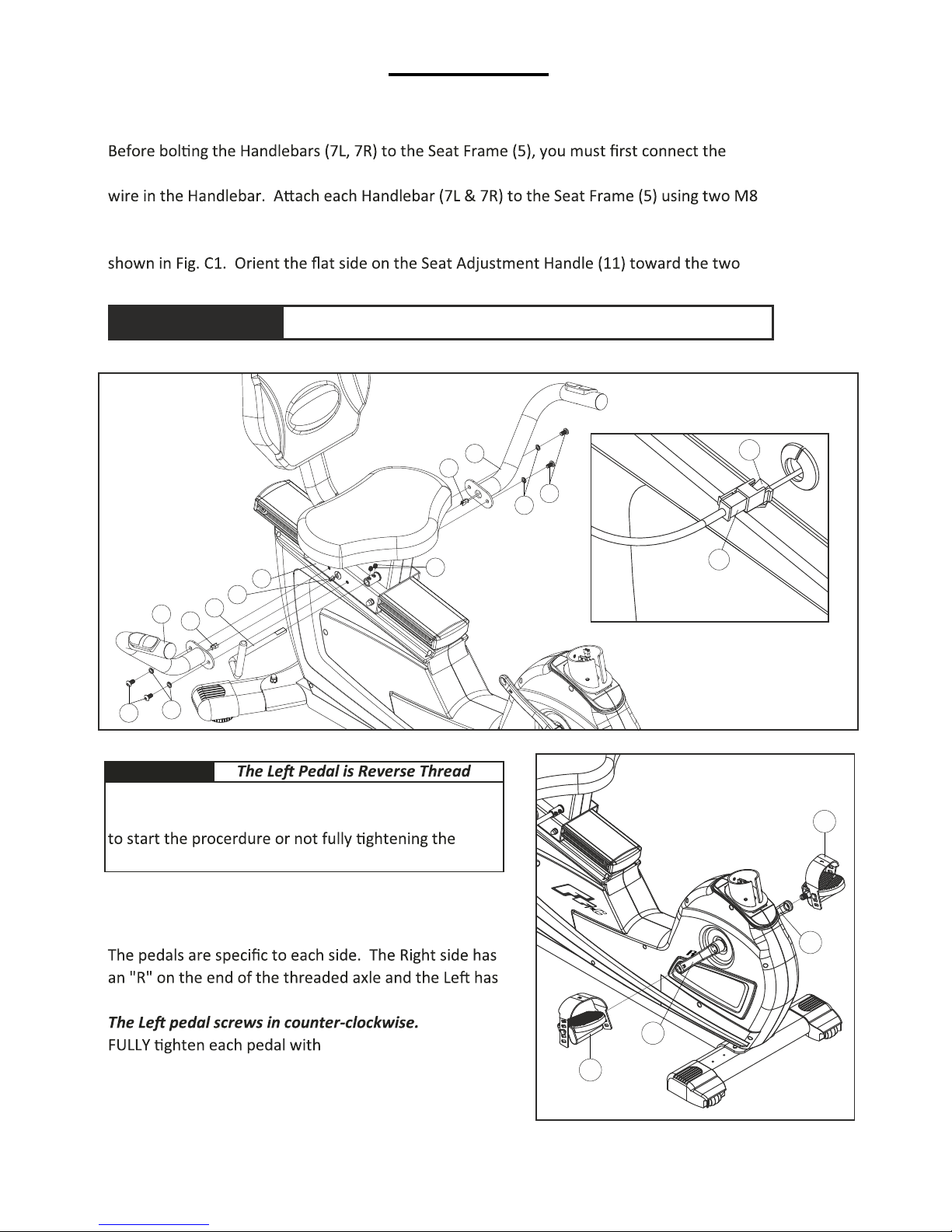

Step 3 Handlebars
1.
Pulse Handlebar Wire (42) to the Pulse Coiled Wire (41) on the Seat Frame (5). Store excess
Spring Washers (99), and two M8 x 15L Dome Head Allen Bolts (76) as shown in Fig. C1.
2. Insert the Seat Adjustment Handle (11) into the bracket welded to the Seat Frame (5). As
M8 x 8L Set Screws (91) and then tighten the Set Screws (91) against the flat side.
IMPORTANT
Start threading each pedal by
HAND
,THEN FULLY
TIGHTEN
each pedal with a wrench. Using a wrench
pedals can damage the crank arms.
Step 4 Assemble Pedals
1.
an "L". CAREFULLY screw each pedal in by
HAND
.
2. Wrench (13).
C1
C2
42
41
42
41
91
99
5
11
42
99
76
7R
76
7L
D1
23R
12R
12L
23L
IMPORTANT NOTE! Be Careful not to pinch any of the wires while assembling the handlebars.
ASSEMBLY

5
Step 5 Console Mast & Computer Console
Step 6 Power Supply
1. SEE F1. Insert the Power Supply (31) into the barrel plug on the rear of the bike. Then plug the Power
ns.
Step 7 Leveling the Bike
1. SEE F2. There are Adjustable Levelers (44) under each end of the Rear Stabilizer (3) that need to be
F1 F2
31
44
3
44
the Console Mast and Computer.
1. Slide the Console Mast Cover (30) onto the Console Mast (6). See Fig. E1 and E2.
2. Hold the Console Mast (6) close to the Bike Assembly and connect both wires; the 4 Pin Console
Mast Harness (38) to the Pulse Connect Harness (39), and the Brake Motor Assembly Cable (34-1)
to the 8 Pin Console Mast Harness (35).
3. Slide the Console Mast (6) onto the Bike Assembly (1) being careful to not pinch any wires. Secure the
Console Mast (6) using three M8 x 16L Flat Head Allen Bolts (81). Tighten Bolts.
4. Hold the Console Computer (21) close to the top of the Console Mast (6) and connect both
wires; the 4 Pin Console Mast Harness (38), and the 8 Pin Console Mast Harness (35).
5. .
6. .
Be Careful not to pinch any of the wires while assembling
E3E1 E2 E4
92
38
38
38
81
92
20
19
6
92
6
1
81
81
39
39
30
6
35
35
35
34-1
34-1
6
21
ASSEMBLY
IMPORTANT
NOTE!

G1
The seat can adjust front-to-back to accommodate
your leg length. Simply rotate the Seat Adjustment
Handle (11) upward to loosen then rotate
downward with force to lock the seat into place.
G2
The Pedal Straps can be adjusted to fit your shoes.
G3.
The Back Support (18) can be adjusted for your
comfort. Simply loosen the Back Pad Adjustment
Knobs (10), position the Back Support, and
re-tighten the Back Pad Adjustment Knobs (10).
G1
G2
G3
18
10
10
11
ADJUSTMENTS
6

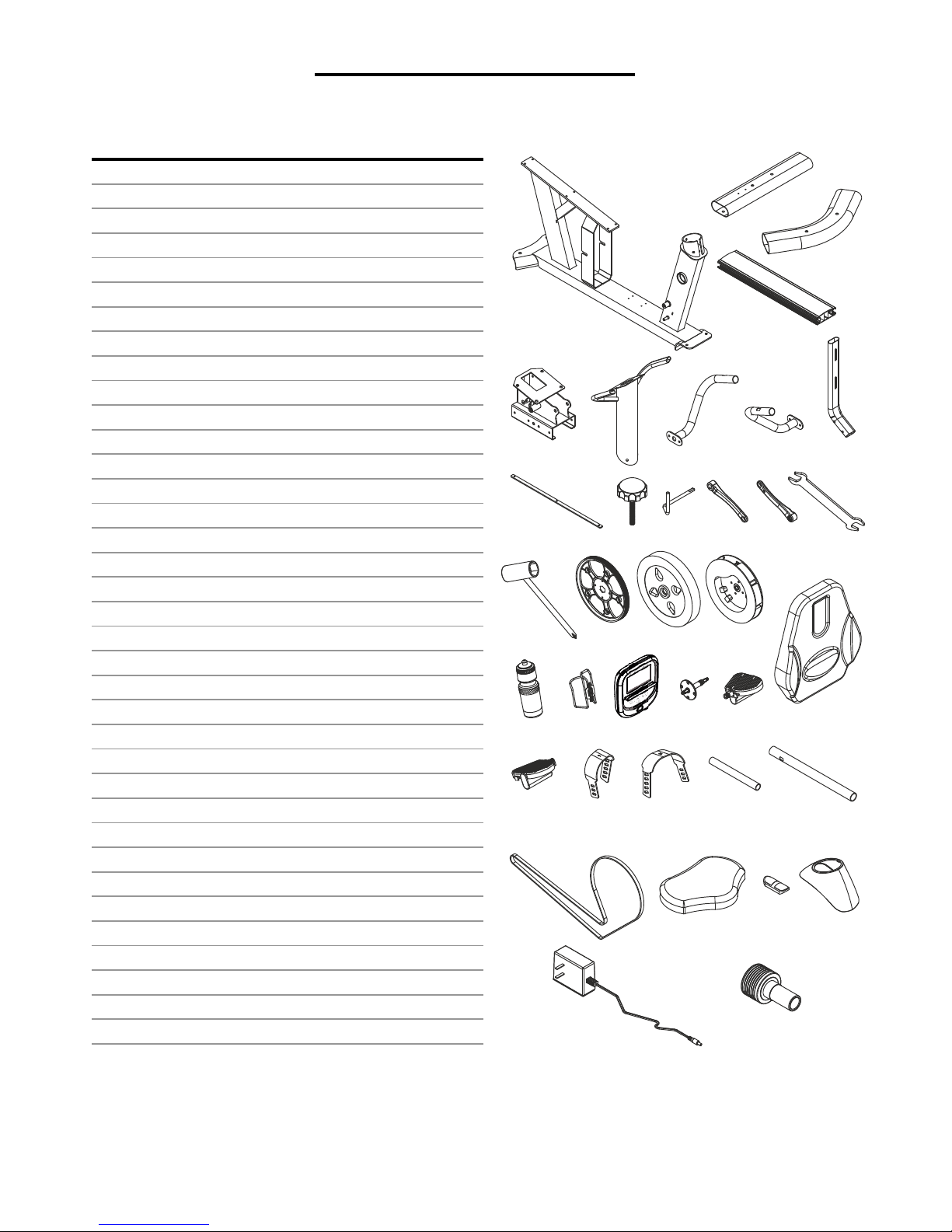

DESCRIPTION QTY.
1 MAIN BIKE ASSEMBLY 1
2 FRONT STABILIZER 1
3 REAR STABILIZER 1
4 SLIDING SEAT TRACK 1
5 SEAT FRAME 1
6 CONSOLE MAST 1
7 L LEFT HANDLEBAR 1
7 R RIGHT HANDLEBAR 1
8 BACK SUPPORT FRAME 1
9 SEAT TRACK BACKING PLATE 2
10 BACK PAD ADJUSTMENT KNOB 1
11 SEAT ADJUSTMENT HANDLE 1
12 L LEFT CRANK ARM 1
12 R RIGHT CRANK ARM 1
13 WRENCH 1
14 SCREWDRIVER/MULTI-TOOL 1
15 CRANK PULLEY 1
16 FLYWHEEL 1
17
FLYWHEEL BRAKE INSERT
1
18 BACK PAD 1
19 WATER BOTTLE 1
20 BOTTLE HOLDER 1
21 COMPUTER CONSOLE 1
22 CRANK SHAFT 1
23 L LEFT PEDAL 1
23 R RIGHT PEDAL 1
24 L LEFT PEDAL STRAP 1
24 R RIGHT PEDAL STRAP 1
25 CONSOLE MAST GRIP 2
26 HANDLEBAR GRIP 2
27 DRIVE BELT 1956mm J6 1
28 SEAT PAD 1
29 HAND PULSE SENSOR PLATE 2
30 CONSOLE MAST COVER 1
31 POWER SUPPLY 1
32 FLYWHEEL CLUTCH PULLEY 1
NO.
1
2
3
4
5
6
7L 7R 8
9 10 11 12L 12R 13
14 15 16 17
18
19 20 21 22 23L
23R 24L 24R 25 26
27 28
31
29 30
32

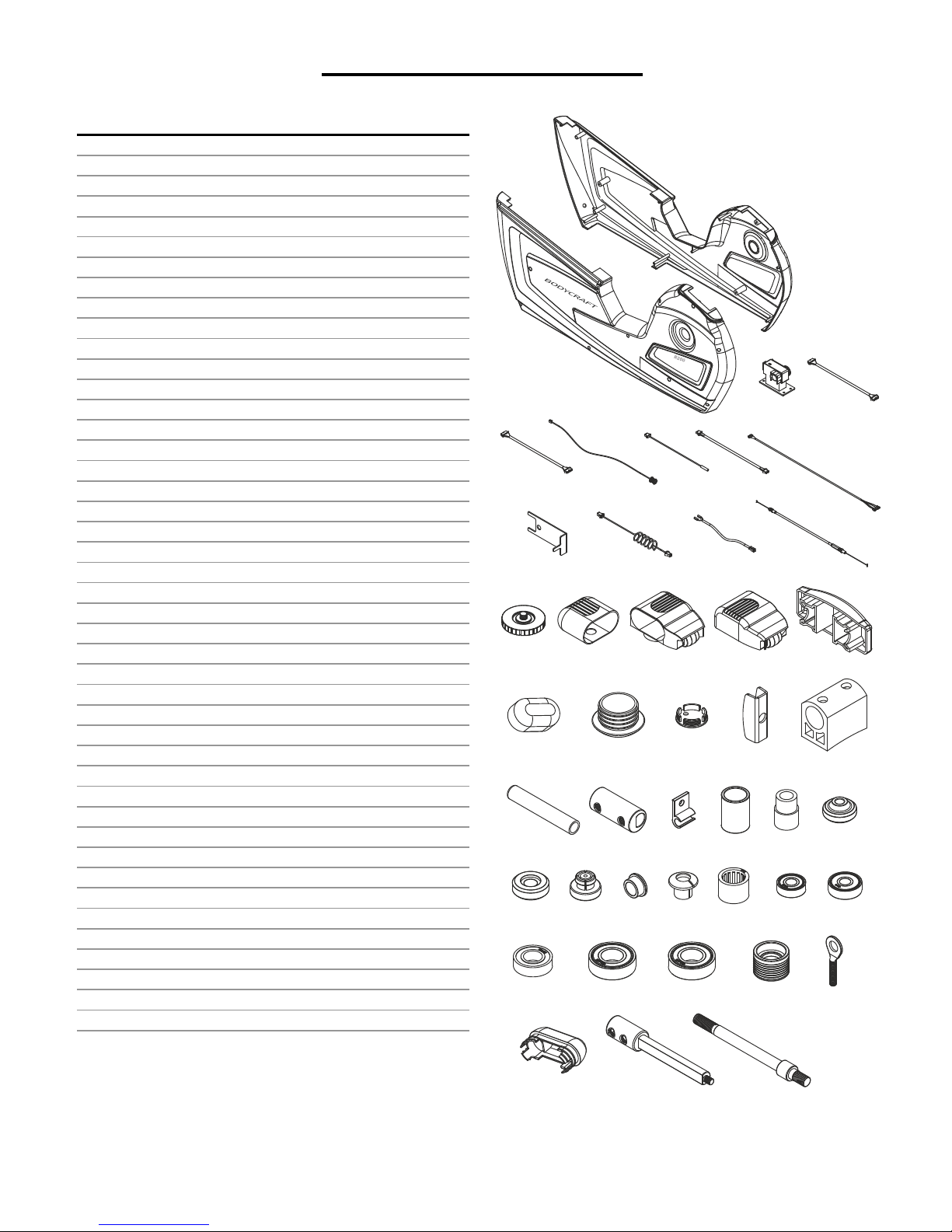

DETAILED PARTS LIST
7

QTY.
33
L
LEFT SHROUD 1
33 R RIGHT SHROUD 1
34 BRAKE MOTOR ASSEMBLY 1
35 8 PIN CONSOLE MAST HARNESS 1
36 POWER RECEPTACAL HARNESS 1
37 SPEED SENSOR PICKUP CABLE 1
38 4 PIN CONSOLE MAST HARNESS 1
39 PULSE CONNECTHARNESS 1
40
BRAKE ANTI-ROTATION BRACKET
1
41 PULSE COILED WIRE 2
42 PULSE HANDLEBAR WIRE 2
43 BRAKE MOTOR PUSH/PULL CABLE 1
44
ADJUSTMENT LEVELER FOOT
2
45 50 X 100mm END CAP 2
46
L
50 X 100mm LEFT WHEEL CAP 1
46 R 50 X 100mm RIGHT WHEEL CAP 1
47 SEAT TRACK END CAP 2
48 15 X 30mm OVAL END CAP 2
49 1-1/4" HANDLEBAR CAP 2
50 1" CRANK CAP 2
52
FLYWHEEL ADJUSTMENT BRACKET
2
53 SEAT STOP BRAKE 1
54 SEAT STOP GRIP 1
55 1-1/4" BRAKE CONNECTOR 1
56 SPEED SENSOR HOLDER 1
57 CRANK SPACER 1
58 STEEL ROLLER BUSHING 4
59 RUBBER SEAT STOPPER 4
60 SEAT ROLLER 4
61
MAGNET
1
62 1/2" BUSHING FOR SEAT ADJ. 4
63 WIRE PROTECTOR 2
64 CLUTCH BEARING 1
65 6000Z BEARING 3
66 6200Z BEARING 1
67 6003Z BEARING 1
68 6004Z SKF BEARING 2
68 A 6004Z TPI BEARING 2
69 SMALL BELT PULLEY 1
70 FLYWHEEL ADJ. FASTENER 2
71 30 X 70mm OVAL END CAP 1
72 SEAT STOP HANDLE COUPLING 1
73 FLYWHEEL AXLE 1
NO.
40
33L
33R
35 36 37 38
41 42 43
44 45 46L 46R 47
48 49 50 52 53
54 55 56 57 58 59
60 61 62 63 64 65 66
67 68 68A 69 70
71 72 73
34 34-1
39
34-1 8 PIN CONSOLE MAST HARNESS 1
DETAILED PARTS LIST
8

DESCRIPTION QTY.
74 1/2" X 3-1/2" HEX HEAD BOLT 4
75 3/8" X 2-3/4" HEX HEAD BOLT 2
76
M8 X 15L DOME HEAD ALLEN BOLT
4
77
M8 X 20L HEX HEAD THREADED BOLT
4
78
M8 X 20L DOME HEAD ALLEN BOLT
4
79 3/8" X 2-1/4" HEX HEAD BOLT 2
80
M8 X 30L FLAT HEAD ALLEN BOLT
4
81
M8 X 16L FLAT HEAD ALLEN BOLT
3
82
M6 X 15L FLAT HEAD ALLEN BOLT
4
83 M8 X 10L MACHINE SCREW 1
84 M6 X 20L MACHINE SCREW 6
85 M5 X 10L MACHINE SCREW 1
86 M5 X 10L MACHINE SCREW 6
87 3/16" X 19L SCREW 8
88 3/16" X 16L SCREW 11
89 M4 X 20L SCREW 2
91 M8 X 8L SET SCREW 4
92 M8 WASHER (φ50) 2
93 M20 WASHER 1
94 M8 WASHER(φ23) 1
95 M6 WASHER(φ18.8) 1
96 M6 WASHER(φ13) 2
97 M5 WASHER 1
98 3/8" SPRING WASHER 2
99 M8 SPRING WASHER 12
100 M6 SPRING WASHER 6
101
LGH2184 NUT
1
102
3/8" HEX NUT
1
103
1/2" NYLON NUT
2
104
M8 LOW HEIGHT NYLON NUT
4
105
M6 NYLON NUT
7
106
M10 NUT
2
107
M20 NYLON NUT
1
108
3/8" SELF LOCKING NUT
2
109 1/2" CAP FOR NUT 4
110
3/8" ACORN NUT
2
111
M8 ACORN NUT
4
112 ALLEN WRENCH 1
NO.
74
75
76
77
78
80
86
87
88
89
91
92
93 94 95 96 97 98
99 100 101 102 103 104
105 106 107 108
110 111 112
81
82
83
84
85
79
109
113
113
ALLEN WRENCH
1
DETAILED PARTS LIST
9

7L
7R
5
28
18
71
10 92
10
8
92
42
76
99 89
29
53
26
49
58
99
58 99
60
60
80
77
77
77
58
99
99
60 80
60
80
58 99
99
95
63
62
77
99
63 91
91
55
72
62
11
74 74
99
54
42
89
26
49
76
99
99
29
41
111
111 105
111
80
109
109
111
103
109
109
Exploded View 1 of 2
10

35
6
19
20
1
15
65
83 97
85
61
94
93
68
69
68A
65
16
64
67
65 32
73
22
50
82
27
17
79
52
96
70
98
66
2
3
87
88
87
88 87
87
87
88
88
88
88
87
31
4
9
9
47
68
57
56
47
43
88 88
30
25
48
48
25
44 75
75
45
45
44
98 84
59
78
59 78
38
39
34
50
81
86 86
86
81
81
21
36
37 88 40
84
52
96 59
59
78
78
70
12L
46L
46R
33L
33R
23L
24L
34-1
12R
23R
24R
105
106
105
108
102
105
110
84
101
104
104
108
107
106
100
100
Exploded View 2 of 2
11

Console Operation Instruction
Please read the console operation instruction thoroughly and get familiar with the console layout. Practice
using this console before you start in order to get a better understanding of the functions. Make sure the AC
adapter is properly plug in before using it. Below is the console layout and detailed operation instructions.
Layout:
--- *The USBport is forsoftware updates only, please donot use forchargingorother software usages.---
Displays
Dot matrix profile window:
Displays program profile during program setting and executing. The program profile will be different
according to which program is selected.
There are 20 columns of LED representing 20 segments of time; each segment time = total program
time divided by 20 columns, except Quick Start program which represents 1 minute instead. During
exercising, a column of LED will blink to indicate the time segment you are currently in and show your
workout progress.
There are also 10 rows of LED representing 20 levels of resistance. Each row represents 2 levels of
resistance. The appropriated row of LED will light up when you adjust the resistance level.
Data display
windows
Keys
Alphanumeric
display window
Data display
windows
Dot matrix
profile
window
12
COMPUTER OPERATION

Data display windows:
There are 8 data display windows displaying “speed, time, distance, calories, rpm, level and watts”
during exercising.
Alphanumeric display window: this display will prompt instruction messages to assist you setting up
the program and during exercising.
Keys
Go key: Pressing this key during idle mode before you select a program will activate the Quick Start
program immediately with default user values. Or pressing this key during the program setup after a
program is selected will start the selected program.
/keys: Used for toggle between different programs during idle mode, user data adjusting during
program setup and resistance level adjustment while a program is running.
Enter key: Used to confirm program and data entry.
Home key: Used to exit the current activities and go back home/idle mode.
Save key: Pressing this key while a program is running to save current program profile as well as user
personal data into the custom program for later use. After saving message, it will return to previous
activities.
Basic Operation
Power up: Since this is a plug in product, there should be power always. If the screen is off, user may
pedal the product to wake up the console.
Pause a program: To pause a program, simply stop pedaling during a program, the console will pause
and stop accumulating data. The pause time is 3 minutes with screen lit. Within pause mode, pedal
again to resume the program.
Power save function: This console is equipped with power save function. If there is no RPM nor key
pressing for 3 minutes, the console will reset and screen will be off to save power.
Start a program: To begin a workout program during idle mode, press the “Go” key to quick start the
program or “/” key to toggle through different programs and “Enter” key to select a program.
Then follow the instruction on the alphanumeric window to set up the personal data. When finished
entering data, press the “Go” key to begin the workout. (You may press “Go”key anytime during
setup to bypass and start the workout immediately.)
Default values: Initially the console is coded with a set of defaults for express quick start. If you didn’t
adjust these values before the program started, they will be used for data calculations, such as
13
COMPUTER OPERATION

calories. It is recommended you adjust these values with your own personal data to get the most
accurate workout feedbacks. The factory defaults are:
oAge –35
oWeight –150lbs or 70kg
oProgram time –30 minutes
End a program and review summary: When program time is reached, it will end the program and
enter summary review mode. There are 30 seconds for you to review and record the workout
summary before it resets and back home.
Units switching: The default units setting is English. To switch this to Metric system, first, press and
hold both “&” keys at the same time in idle mode for 2 seconds to go to “engineering mode”;
second, when message window shows “UNITS: ENGLISH”, press “/”key to switch. Afterwards
press Enter key to confirm. Anytime in “engineering mode”, you may press “Home” key to return
home.
Workout Programs
Besides Quick Start function, there are 6 program options for your selection: Manual, Random, Interval, Hill
Climb, Strength and Custom.
Quick Start: Pressing “GO” key during idle mode will quick start the console. The program will use factory
defaults for calculation and display. The time will count up and each segment of progress profile equals 1
minute. You may stop pedaling at any time or press “Home” key to end the program.
Classic programs: This group includes Manual, Random, Intervals, Hill Climb & Strength program.
These programs are preset profile programs and behave similar. When the desired program appears on the
screen, press Enter key to confirm. Then follow the instruction to set up the user data and start the program.
You may adjust the resistance level by pressing “/”key during program. The dot matrix profile will
update accordingly.
Manual program: The default resistance level for Manual program is L1.
Random program: This is a computer generated profile program and it is different each time.
Intervals program profile: Hill Climb program profile:
Strength program profile:
14
COMPUTER OPERATION

Custom program: This program is a space for you to build your own workout profile and store it for future
use. If you save a program before into custom program, you may recall it and press “Go" key to begin
immediately without the hassle of entering user information again because it has been stored along with the
program profile you created. However if you desire, you may still go through the program setting and change
it as well. Follow the message prompts to operate this program the same way as the original program.
Heart Rate Monitoring Devices & Exercise Tips
Pulse Hand Grips
This product comes standard with stainless steel pulse handgrips. To activate, gently grasp both handgrips to
obtain a heart rate reading. (Note: It is recommended to wear a chest strap for Heart Rate control program,
as it is more accurate. If you wear a chest strap and use hand grips at the same time for heart rate monitoring
purpose, please note the console will take the measurement of the chest strap.)
Pulse Grip Operating Tips: If you are not getting a consistent reading while using the hand pulse option, we
recommend the following suggestions:
Make sure that the palms of the hands are touching the contact area of each hand pulse grip.
Maintain an even pressure on the grips.
Do not hold the hand pulse grips too tightly.
Built in Wireless Heart Rate Receiver
Note: Chest strap transmitter does not come with this unit; contact BODYCRAFT, or your dealer for purchase.
This product is equipped with a built-in receiver for your heart rate monitoring. Any heart rate telemetry
strap that transmits at 5Khz is compatible. To get an accurate reading using these devices, you will need to
be within three feet of the console, and a minimum of four feet from others using a heart rate monitoring
device.
(Note: The transmitter may fluctuate erratically if you are too close to other heart rate monitoring equipment
or there is other electronics near by, such as TV, Radio...)
While using heart rate control modes, the computer monitors the exact measurement of your pulse. Heart
rate frequency is displayed while the computer continually compares heart rate to the preprogrammed
personal data. The computer adjusts the wattage to maintain heart rate at the preprogrammed level.
How to Wear Your Sensor/ Transmitter (Chest Strap)
1. Buckle one end of the chest strap onto the transmitter.
2. Adjust the band length so that the fit is snug, but not too tight.
15
COMPUTER OPERATION

3. Buckle the other end of the chest strap onto the transmitter.
4. Center the transmitter on your chest below the pectoral muscle (breasts).
5. Stretch the transmitter away from your chest and moisten the conductive electrode strips located
next to the buckles with water.
(Note: The transmitter is on automatically when being worn. It is off when it is not connected to your body.
However, as moisture may activate the transmitter, thoroughly dry the transmitter to prolong battery life.)
Erratic Heart Rate Readings:
Erratic readings on the receiver can be caused by electromagnetic disturbances. If the heart rate readings
appear to be abnormal, check that your product is not within range of other strong electromagnetic signals.
Common sources are televisions, computers, cars, cell phones, TV antennas and high voltage power lines
(both above and below ground). Please note: Static electricity in clothing or a flapping shirt can cause
electrical interference, so some items of clothing, i.e. man-made fibers, can also be the cause. Please try
wetting the t-shirt in the area where the transmitter is.
If the battery of the transmitter is running low, the transmission range decreases and may cause errors similar
to the ones listed above in this document.
Heart rate is an important key to your exercise
Medical research has shown us that there is an amount of exercise, which is enough to condition the cardio
respiratory system and the muscles of the body. This amount of exercise is between 60% and 85% of your
maximum heart rate measured during a training session. This range allows enough exercise to achieve fitness,
but not an excessive amount to cause injury. Your heart rate is an excellent indicator of the amount of stress
placed on the cardiovascular system.
If exercise intensity is too low or too high, no gains will be made in fitness. If the intensity is too low, the
stress levels are ineffective. If the intensity is too high, injury or fatigue may set your exercise program back
as you try to recover. Your target heart rate, the intensity needed to improve cardiovascular fitness, depends
primarily on your age and not your state of fitness. It is calculated as a percentage of your maximum heart
rate, estimated as 220 minus your age. It is most effective to train at your target heart rate between 60% and
85% of your maximum heart rate.
Get a smart start on exercising.
Anyone over the age of 35, as well as younger persons whom are overweight, should check with his/her
physician before beginning any type of exercise program. People who have diabetes or high blood pressure,
a family history of heart disease, high cholesterol or have lead a sedentary lifestyle should protect themselves
with a medical check-up and a stress test, preferably administered during exercise by a healthcare
professional.
Always stretch before your workout to loosen muscles, and afterwards to cool down.
The first few minutes of your workout should be devoted to warming up muscles before a vigorous
workout, and building your heart rate slowly.
After your aerobic workout of about 24-32 minutes, spend 10 minutes gradually reducing your heart
rate with a lower resistance level.
Remember, to start slow, with intensity low, until you build endurance and strength. And always consult your
physician before beginning any exercise program.
16
COMPUTER OPERATION

R200 WARRANTY
VALID FOR USA AND CANADA ONLY
(Please consult with your local distributor for warranty info specific to your region).
BODYCRAFT warrants its products to be free of defects in materials and workmanship for the time stated below to
the original purchaser.
REGISTER your product at www.bodycraft.com or call our customer service department at 800-990-
5556.
This warranty applies to Residential and Light Commercial use only.
Residential Warranty: Lifetime Frame, [3] Year(s) Parts, [3] Year(s) Wear Items and [1] Year(s) Labor.
Light Commercial Warranty: [10] Year(s) Frame, [1] Years Parts, 90 Days Wear Items and 90 Days Labor.
This warranty is valid only in accordance with the following conditions:
Ÿ The warranty begins on the original purchase date at retail and ends when the original owner disposes of it, either
through sale, gift, or otherwise. This warranty is not transferable and is only valid to the original purchaser.
Ÿ This warranty is available only for purchases made within and the original purchaser currently residing in the USA and
Canada. Please consult with your local distributor for warranty info specific to your region.
Ÿ The product must have been registered within 30 days of the original purchase date or supply proof of purchase to
validate warranty (original sales invoice).
Ÿ This warranty does not cover damage resulting from accident, misuse, water, tampering, unreasonable use,
unauthorized repairs, improper repairs, alterations or normal wear and tear.
This warranty excludes the following:
1. The warranty does not cover normal maintenance or labor charges unless labor terms are listed above.
2. Normal cosmetic wear on parts such as paint, seat coverings, walk belts, pedal straps, wheels, foot rails, labels and
logos.
3. Consumables such as batteries and heart rate belts that do not have a replaceable battery.
4. Eprom/Software version upgrades unless determined as necessary.
5. Any accessories not included in the original packaging.
If the item exhibits such a defect, BODYCRAFT will, at its option, repair or replace it without cost for parts.
Shipping and handling charges may apply. (BODYCRAFT may require return of the part(s) or photographic
evidence of the damaged part(s) prior to replacement). Serial number may be required.Parts repaired or
replaced will be warranted for the remainder of the original warranty period only.
*This warranty is in lieu of all warranties, expressed or implied, and/or all other obligations or liabilities on our part and we neither assume
nor authorize any person to assume for us any other obligation or liability in connection with the sale of your BodyCraft product. Under no
circumstances shall we be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special,
indirect, incidental, secondary or consequential damage of any nature whatsoever arising out of the use or inability to use the BodyCraft
product.
17
