Bodyworx E708 Premier Series Operation and maintenance manual

E708 BodyworX Deluxe Elliptical (Rear Drive)

Safety Instructions
•
To ensure the best safety of the exerciser, regularly check it on
damages and worn parts.
• If you pass on this exerciser to another person or if you allow
another person to use it, make sure that that person is familiar
with the content and instructions in these instructions.
• Only one person should use the exerciser at a time.
• Before the first use and regularly make sure that all screws, bolts
and other joints are properly tightened and firmly seated.
• Before you start your work-out, remove all sharp-edged objects
around the exerciser.
• Only use the exercise for your work-out if it works flawlessly.
• Any broken, worn or defective part must immediately be
replaced and/or the exerciser must no longer be used until it has
been properly maintained and repaired.
• Parents and other supervisory persons should be aware of their
responsibility, due to situations which may arise for which the
exerciser has not been designed and which may occur due to
children’s natural play instinct and interest in experimenting.
• If you do allow children to use this exerciser, be sure to take into
consideration and assess their mental and physical condition
and development, and above all their temperament. Children
should use the exerciser only under adult supervision and be
instructed on the correct and proper use of the exerciser. The
exerciser is not a toy.
• Make sure there is sufficient free space around the exerciser
when you set it up.
• To avoid possible accidents, do not allow children to approach
the exerciser without supervision, since they may use it in a way
for which it is not intended due to their natural play instinct and
interest in experimenting.
• Please note that an improper and excessive work-out may be
harmful to your health.
• Please note that levers amd other adjustment mechanisms are
not projecting into the area of movement during the work-out.
•When setting up the exerciser, please make sure that the
exerciser is standing in a stable way and that any possible
unevenness of the floor is evened out.
•Always wear appropriate clothing and shoes which are
suitable for your work-out on the exerciser. The clothes must
be designed in a way so that they will not get caught in any
part of the exerciser during the work-out due to their form (for
example, length). Be sure to wear appropriate shoes which
are suitable for the work-out, firmly support the feet and which
are provided with a non-slip sole.
Be sure to consult a physician before you start any exercise
program. He may give you proper hints and advice with respect
to the individual intensity of stress for you
•your work-out and sensible eating habits.

• Be sure to set up the exerciser in a dry and even place and
always protect it from humidity. If you wish to protect the place
particularly against pressure points, contamination, etc.,
it is recommended to put a suitable, non-slip mat under the exercise
• The general rule is that exercisers and training devices are no
toys. Therefore, they must only be used by properly informed
or instructed persons.
•Stop your work-out immediately in case of dizziness, nausea, chest pain
or any other physical symptoms. In case of doubt, consult your physician
immediately.
•Children, disabled and hadicapped persons should use the exercise only
under supervision and in presence of another person who may give
support and useful instructions.
•Be sure that your body parts and those of other persons are never close
to any moving parts of the exerciser during its use.
•When adjusting the adjustable parts, make sure they are adjusted
properly and note the marked, maximum adjusting position, for example
of the saddle support, respectively.
•Do not work out immediately after meals!

Exploded drawing:
71
43
5L
3
75
74 63 11
21L 1
73 77
64
91
67
90
72L 72R 54 80 65
81 6 9
797 66 7
40
48 82 51
76
53 55
66
9
7
98
98

Checking list:
1
X1
10
2
19
64 77
M8*1.25*90L D22*D8.5*1.5T D15.4*D8.2*2T
M8*1.25*15L M8*1.25*20L
D14*D6.5*0.8T
367
9
8
20 73
78
X1
X1
X1
X1X1
X1
X1
X1
X4
X2X4X4
X14 X10
X4
X1X1
M6*1*45L X4
X1
49
M8*1.25*95L
14
X2
M8*1.25*100L
17
18 M8*1.25*8T X2
X2
ST4*15L
90 X291 X2
M5*0.8*10L
21L&21R
72L&72R
67&68
X1
93&95
101
X2
M5*0.8*15L
94

Part list:
Part No. Description Q’ty Part No. Description Q’ty
1 Main frame 1 53 Foam (HDR) D30*5T*680L 2
2 Front stabilizer 1 54 Foam (HDR) D23*5T*530L 2
3 Square neck bolt M8*1.25*90L 2 55 Mushroom cap D1 1/4”*45L 2
4 Adjustable foot cap 2 56 Spring D2.6*D15*82L 1
5L Left foot cap 1 57 Tension cable D1.5*640L 1
5R Right foot cap 1 58 Bolt M6*1.0*15L 16
6 Curved washer D22*D8.5*1.5T 14 59 Bolt M6*1.0*10L 1
7 Spring washer D15.4*D8.2*2T 16 60 Flat washer D21*D8.5*1.5T 4
8 Domed nut M8*1.25*15L 4 61 Crank axle 1
9 Allen bolt M8*1.25*20L 9 62 Round magnetic 1
10 Handlebar post 1 63 Screw ST3.5*1.27*15L 8
11 Supporting tube for pedal 2 64 Computer B31232 1
12 Supporting tube for Movable
handlebar 2 65 Handle pulse 2
13 Bearing #99502ZZ 8 Handle pulse cable 500L 2
14 Allen bolt M8*1.25*95L 2 66 Flat washer D25*D8.5*2T 5
15 Round cap 2 67 Rear computer bracket 1
16 Idle wheel 1 68 Front computer bracket 1
17 Allen bolt M8*1.25*100L 2 69 Front pedal axle 2
18 Nylon nut M8*1.25*8T 2 70 Fixed plate for idle wheel 1
19 Rear stabilizer 1 71 Movable handlebar axle 1
20 Square neck bolt M6*1*45L 4 72L Left fixed handlebar 1
21L Left pedal 1 72R Right fixed handlebar 1
21R Right pedal 1 73 Flat washer D14*D6.5*0.8T 4
22 Adjustable round wheel 2 74 Cover (Left) 2
23 Upper cover (Left) 2 75 Cover (Right) 2
24 Anti-loose nut M10*1.25*10T 2 76 Bolt M5*0.8*10L 4
25 Motor 1 77 Club knob 4
26 C-ring S-40 (1.95T) 2 78 Adaptor 1
27 Electric cable 900L 1 79 Screw ST4.2*1.4*20L 4
28 Sensor cable 950L 1 80 Screw ST4*15 2
29 Upper computer cable 950L 1 81 Inner tube 1
30 Lower computer cable 650L 1 82 Nylon nut M6*1*6T 1
31 Axle cover 2 83 Allen bolt M8*1.25*25L 1
32 Round cap 2 84 C-ring S-16 (1T) 2
33 Crank 2 85 Bolt M6*65L 1
34 Screw ST4*1.41*20L 7 86 Nut M6*1*6T 1
35 Multi-groove belt 1 87 Nylon washer D6*D19*1.5T 1
36L Left chain cover 1 88 Fixed bracket for magnetic 1
36R Right chain cover 1 89 Nut M8*1.25*8T 1
37 Fly wheel 1 90 Screw M5*0.8*10L 2
38 Upper cover (Right) 2 91 Screw ST4*1.41*15L 2+8
39 Side cover 2 92 Waved washer D27*D21*0.3T 1
40 Bolt M8*1.25*20 4 93 Bottle 1
41 Screw ST4.2*20L 8 94 Bolt M5*0.8*15L 2
42 Round chain cover 2 95 Bottle holder 1
43 Bearing #2203-2RS 2 96 Bearing #2203-2RS 2
44 Bolt M8*52L 1 97 C-ring S-40 (1.8T) 2
45 Nylon nut M8*1.25*8T 2 98 Flat washer D23*D17*1.2T 4
46 Plastic flat washer
D50*D10*1.0T 2 99 Screw cap 2
47 Waved washer D21*D16.2*0.3T 1 100 Chest belt 1
48 Flat washer D13*D6.5*1.0T 1 101 Knob 2
49 Handlebar post cover 1 102 Inner tube 2
50 C-ring S-15 (1T) 1 103 Fixing ring 2
51 Spring D1.0*55L 1 104 Front cover (inside) 2
52L Left movable handlebar 1 105 Front cover (outside) 2
52R Right movable handlebar 1

Assembly drawing:
Step 1
STEP-1
(x2)
AM8*1.25*90L
D22*D8.5*1.5T
D15.4*D8.2*2T
M8*1.25*15L
(x2)
BM8*1.25*95L
D22*D8.5*1.5T
D15.4*D8.2*2T
3
19 14
1
M8*1.25*15L
D22*D8.5*1.5T
1) Assemble the front stabilizer (2) to the main frame (1) by the square neck bolt (3), the curved
washer (6), the spring washer (7) and the domed nut (8).
2) Assemble the rear stabilizer (19) to the main frame (1) by the curved washer (6), the spring
washer (7), the domed nut (8) and theAllen bolt (14).
3) The height of the adjustable foot cap (4) on the rear stabilizer could be adjusted up and down.

Step 2
11 77 73 21L
21R
20
1) Assemble the pedals (21L&21R) to the supporting tube for pedals (11) by the flat washer (73),
the square neck bolt (20) and the club knob (77).
2) The user could adjust the pedals in 3 different positions.

Step 3
52L
55 52R
49
10
9
7
29
12
101
1) Assemble the handlebar post cover (49) to the handlebar post (10) shown as fig. a.
2) Connect the upper computer cable (29) with the lower computer cable (30) shown as fig. b.
3) Assemble the handlebar post (10) to the main frame (1) by the curved washer (6), the spring
washer (7) and the Allen bolt (9) shown as fig. c.
4) Fix the movable handlebars (52L & 52R) that are pre-assembled to the handlebar post (10) to
the supporting tube for movable handlebar (12) by the knob (101) shown as fig. d.

Step 4
STEP-4
(x2)
E
M8*1.25*8T
D22*D8.5*1.5T
D15.4*D8.2*2T
M8*1.25*100L
72L
7
72R
D22*D8.5*1.5T
Assemble the fixed handle bar (72L&72R) to the handlebar post (10) by the curved washer (6),
the spring washer (7), the Allen bolt (17) and the Nylon nut (18).

Step 5
M5*10L
(x4)
F
STEP-5
29
64
65
76
78
1) Assemble the upper computer cable (29) and the handle pulse cable (65) to the computer (64).
2) Assemble the computer (64) to the handlebar post (10) by the bolt (76).
3) Assemble the adaptor (78) and turn on the computer (64).

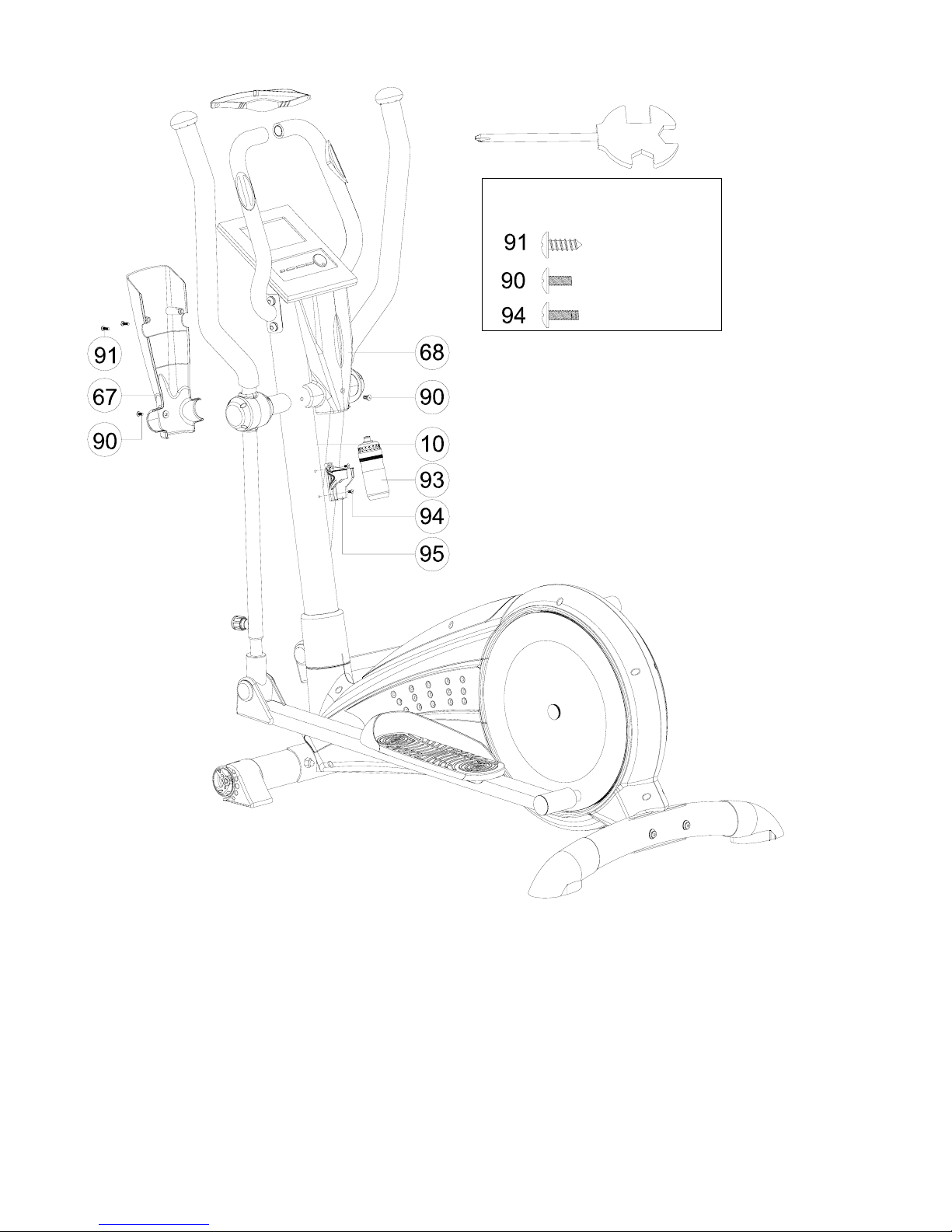

Step 6
STEP-6
(x2)
M5*0.8*10L
ST4*15L
(x2)
G
(x2)
M5*0.8*15L
1) Assemble the front computer bracket (68) and the rear computer bracket (67) to the handlebar
post (10) by the screw (90) and the screw (91).
2) Assemble the bottle holder (95) to the handlebar post (10) by the bolt (94).
3) Assemble the bottle (93) to the bottle holder (95).

Computer B31232:
The things you should know before exercise
A. Input Power
Plug in the adaptor to the equipment then the computer will produce a beep sound and turn on the computer at the
Manual mode.
B. Program select and setting value
1. Use the UP or DOWN keys to select program mode and then press ENTER to confirm your exercise mode.
2. At the Manual mode, the computer will use the UP or DOWN keys to set up your exercise TIME, DISTANCE,
CALORIES, PULSE.
3. Press the START/STOP key to start exercise.
4. When you reach the target, the computer will produce beep sounds and then stop.
5. If you set up more than one target and you would like to reach next target, press START/STOP key to keep on
exercise.
Functions and Features:
1. DISTANCE: Displays the accumulative distance traveled during each workout up to a maximum of 99.9KM/MILE.
2. RPM: Your pedal cadence.
3. WATT: The amount of mechanical power the computer is receiving from your exercise.
4. SPEED: Displays your workout speed value in KM/MILE per hour.
5. CALORIES: Your computer will estimate the cumulative calories burned at any given time during your workout.
6. PULSE: Your computer displays your pulse rate in beats per minute during your workout.
7. AGE: Your computer is age-programmable from 10 to 99 years. If you do not set an age, this function will always
default to age 35.
8. TARGET HEART RATE (TARGET PULSE): The heart rate you should maintain is called your Target Hear Rate in
beats per minute.
9. PULSE RECOVERY: During the START stage, leave the hands holding on grips or leave the chest transmitter
attached and then press “PULSE RECOVERY” key, all function displays will stop except “TIME”. Time starts
counting from 00:60 - 00:59 - - to 00:00. As soon as 00:00 is reached, the computer will show your heart rate
recovery status with the grade F1.0 to F6.0.
1.0 means OUTSTANDING
1.0＜F＜2.0 means EXCELLENT
2.0≦F≦2.9 means GOOD
3.0≦F≦3.9 means FAIR
4.0≦F≦5.9 means BELOW AVERAGE
6.0 means POOR
Note:If no pulse signal input then the computer will show “P” on the PULSE window. If the computer shows “ERR”
on the message window, please re-press the PULSE RECOVERY key and please make sure your hands are
keeping well on the grips or the chest transmitter is attached well.
Key function:
There are 6 button keys and the function description as follows:
1. START/STOP key: a. Quick Start function: Allows you to start the computer without selecting a program. Manual
workout only. Time automatically begins to count up from zero
b. During the exercise mode, press the key to STOP exercise.
c. During the stop mode, press the key to START exercise.
2. UP key: a. Turn the toggle wheel to increase the resistance during exercise mode.
b. During the setting mode, turn the toggle wheel to increase the value of Time, Distance, Calories, Age
and select Gender and Program.
3. DOWN key: a. Press the key to decrease the resistance during exercise mode.
b. During the setting mode, press the key to decrease the value of Time, Distance, Calories, Age and
select Gender and Program.
4. ENTER key: a. During the setting mode, press the key to accept the current data entry.
b. At the stop mode, by holding this key for over two seconds the user can reset all values to zero or
default value.
c. During setting the Clock, press this key can accept the setting hour and setting minute.
5. BODY FAT key: Press the key to input your HEIGHT, WEIGHT,GENDER and AGE then to measure your body fat
ratio,
6. PULSE RECOVERY key: Press thekey to activate heart rate recovery function.

Program Introduction & Operation:
Manual Program: Manual
P1 is a manual program. User can start exercise by pressing START/STOP key. The default resistance level is 5. Users
may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time
or a number of calories or a certain distance.
Operations:
1. Use UP/DOWN keys to select the MANUAL (P1) program.
2. Press the ENTER key to enter MANUAL program.
3. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm
your desired TIME.
4. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to
confirm your desired DISTANCE.
5. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key
to confirm your desired CALORIES.
6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to
confirm your desired Pulse.
7. Press the START/STOP key to begin exercise.
Preset Program: Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Random, Plateau, Fartlek,
Precipice Program
PROGRAM 2 to PROGRAM 13 is the preset programs. Users can exercise with different level of loading in different
intervals as the profiles show. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys
during the workout) with a period of time or a number of calories or a certain distance.
Operations:
1. Use UP/DOWN keys to select one of the above programs from P2 to P13.
2. Press the ENTER key to enter your workout program.
3. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to
confirm your desired TIME.
4. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key
to confirm your desired DISTANCE.
5 The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER
key to confirm your desired CALORIES.
6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to
confirm your desired Pulse.
7 Press the START/STOP key to begin exercise.
User Setting Program: User 1, User 2, User 3 and User 4
Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE,
CALORIES and the resistance level in 10 columns. The values and profiles will be stored in the memory after setup.
Users may also change the ongoing loading in each column by UP/DOWN keys, and they will not change the
resistance level stored in the memory.
Operations:
1. Use UP/DOWN keys to select the USER program from P14 to P17.
2. Press the ENTER key to enter your workout program.
3. The column 1 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to
confirm your first column of exercise profile. The default level is load 1.
4. The column 2 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to
confirm your second column of exercise profile.
5. Follow the above description 5 and 6 to finish your personal exercise profiles. Press ENTER to confirm your desired
exercise profile.
6. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to
confirm your desired TIME.
7. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key
to confirm your desired DISTANCE.
8. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER
key to confirm your desired CALORIES.
9. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to
confirm your desired Pulse.
10. Press the START/STOP key to begin exercise.
Heart Rate Control Program: 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C.
Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target Heart Rate Control
program.
Program 18 is the 55% Max H.R.C. - - Target H.R. = (220 – AGE) x 55%
Program 19 is the 65% Max H.R.C. - - Target H.R. = (220 – AGE) x 65%

Program 20 is the 75% Max H.R.C. - - Target H.R. = (220 – AGE) x 75%
Program 21 is the 85% Max H.R.C. - - Target H.R. = (220 – AGE) x 85%
Program 22 is the Target H.R.C. - - Workout by your target heart rate value.
Users can exercise according to your desired Heart Rate program by setting your AGE, TIME, DISTANCE, CALORIES
or TARGET PULSE. In these programs, the computer will adjust the resistance level according to the heart rate
detected. For example, the resistance level may increase every 20 seconds while the heart rate detected is lower than
the TARGET H.R and then the computer will increase the resistance 。Also the resistance level may decrease every
20 seconds while the heart rate detected is higher than the TARGET H.R.C As a result, the user’s heart rate will be
adjusted to close the TARGET H.R. between the range of TARGET H.R. +5 and TARGET H.R. -5 and then the
computer will keep resistance level.
Operations:
1. Use UP/DOWN keys to select one of the heart rate control program from P18 to P22.
2. Press the ENTER key to enter your workout program
3. The AGE will flash at P18 to P21 programs and you can press UP or DOWN keys to set yourAGE. The default age is
35.
4. At program 22, the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE
between 80 to 180. The default TARGET PULSE is 120.
5. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm
your desired TIME.
6. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to
confirm your desired DISTANCE.
7. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key
to confirm your desired CALORIES.
8. Press the START/STOP key to begin exercise.
Watt Control Program: Watt Control
Program 23 is a Speed Independent Program. Press ENTER key to set up the values of TARGET WATT, TIME,
DISTANCE and CALORIES. For example, the level of resistance may increase while the speed is too slow. Also the
level of resistance may decrease while the speed is too fast. As a result, the calculated value of WATT will close to
the value of TARGET WATT setup by users.
Operations:
1. Use UP or DOWN key to select the WATT CONTROL (P23) program.
2. Press ENTER key to enter your workout program.
3. The TIME will flash and you can press UP or DOWN key to set your exercise TIME. Press ENTER key to confirm
your desired TIME.
4. The DISTANCE will flash and you can press UP or DOWN key to set your target DISTANCE. Press ENTER key to
confirm your desired DISTANCE.
5. The WATT will flash and you can press UP or DOWN key to set your target WATT value. Press ENTER key to
confirm your target WATT. The default WATT value is 100.
6. The CALORIES will flash and you can press UP or DOWN key to set your exercise CALORIES. Press ENTER key to
confirm your desired CALORIES.
7. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to
confirm your desired Pulse.
8. Press the START/STOP key to begin exercise.
NOTE:
1. WATT = TORQUE (KGM) * RPM * 1.03
2. In this program, the WATT value will keep constant value. It means that if you peddle quickly, the resistance level will
decrease and if you peddle slowly, the resistance level will increase. Always try to keep you in the same watt value.
Body Fat Program: Body Fat
Program 24 is a special program design to calculate users’ body fat ratio and to offer a specific loading profile for users.
There are 3 body types divided according to the FAT% calculated.
Type1: BODY FAT% > 27
Type2: 27 ≧BODY FAT% ≧20
Type3: BODY FAT % < 20
The computer will show the test results of FAT PERCENT, BMI and BMR.
Operations:
1. Use UP/DOWN keys to select the BODY FAT (P24) program.
2. Press the ENTER key to enter your workout program.
3. The HEIGHT will flash and you can press UP or DOWN keys to set your HEIGHT. Press ENTER key to confirm your
HEIGHT. The default HEIGHT is 170cm or 5’07” (5feet 7 inches).
4. The WEIGHT will flash and you can press UP or DOWN keys to set your WEIGHT. Press ENTER key to confirm your
WEIGHT. The default WEIGHT is 70kgs or 155lbs.
5. The GENDER will flash and you can press UP or DOWN keys to select your sex. Number 1 means man and
number 0 means female. Press ENTER key to confirm your Gender. The default sex is 1 (MAN).

6. The AGE will flash and you can press UP or DOWN keys to set your AGE. Press ENTER key to confirm your AGE.
The default AGE is 35.
7. Press the START/STOP key to begin body fat measurement. If the window show E on the window, please make sure
your hands are attached well on the grips or the chest belt is touch well on your body. Then press the START/STOP key
again to begin body fat measurement.
8. After finished your measurement, the computer will show the values of BMR, BMI and FAT PERCENT on the LCD
display. Furthermore, the computer will show your own exercise profile for your body type.
9. Press START/STOP key to begin exercise.
Operation guide:
1. Sleep Mode:
The computer will enter the sleep mode when there is no signal input and no keys be pressed after 4 minutes.
You can press any key to wake up the computer.
2. BMI (Body Mass Index): BMI is a measure of body fat based on height and weight that applies to both adult men
and women.
3. BMR (Basal Metabolic Rate): Your Basal Metabolic Rate (BMR) shows the number of calories your body needs
to operate. This doesn’t account for any activity, it’s simply the energy needed to sustain a heartbeat, breathing
and normal body temperature. It measures the body at rest, not sleep, at room temperature.
Error Message:
E1 (ERROR 1):
Normal state: During workout, when the monitor did not get the count signal from the gear motor more than 4
seconds and check under successive 3 times then the monitor will show E1.
Power on state: The gear motor will return to zero automatically, when the signal of motor cannot be detected for
more than 4 seconds then the gear motor’s driver will be cut off immediately and show the E1 on
the LCD display. All the other digital and function mark are blank, and the output signals are cut off
also.
E2 (ERROR 2): When the monitor read the memory data, if the I.D. code is not correct or the memory IC damages then
the monitor will show E2 immediately at power on.
E3 (ERROR 3): After 4 seconds by start mode, the computer detects the faulty motor did not leave the zero point then
the monitor displays “E3”.
Technical data of the current adapter
1. Available for Input: 230V/50Hz or 60Hz Output: 6VAC/0.5A
2. Available for Input: 110V/50Hz or 60Hz Output: 6V AC/0.5A
LCD Workout Graphics
PROGRAM 1 (MANUAL)：PROGRAM2(STEPS)：
PROGRAM 3 (HILL)：PROGRAM 4 (ROLLING)：
PROGRAM 5 (VALLEY)：PROGRAM6(FATBURN)：

PROGRAM 7 (RAMP)：PROGRAM 8 (MOUNTAIN)：
PROGRAM 9 (INTERVALS)：PROGRAM 10 (RANDOM)：
PROGRAM 11 (PLATEAU)：PROGRAM12 (FARTLEK)：
PROGRAM 13 (PRECIPICE)：
PROGRAM14 (USER-1PROFILE) PROGRAM 15 (USER-2PROFILE)
PROGRAM16 (USER-3PROFILE) PROGRAM 17 (USER-4PROFILE)
PROGRAM 18 (55% H.R.C)：PROGRAM 19 (65% H.R.C)：

PROGRAM 20 (75% H.R.C)：PROGRAM 21 (85% H.R.C)：
PROGRAM 22 (target H.R.C)：PROGRAM 23 (WATT)：
PROGRAM 24 (BODY FAT )：
Remark :
USER 1 – 4, HRC 55% - 85% , THRC , WATT CONTROL --- AFTER START TO CHANGE PROFILE AS BELOW.
