Bodyworx EX8 User manual

Elliptical
1
Retain this owner’s manual for future reference
Read and follow all instructions in this owner’s manual
Version A
Owner’s Manual
BODYWORX
BODY WORX
Model No: EX8

This quality product is designed, manufactured, tested and certified for enhanced Fitness
Training.
Dear Customer,
We want to thank you for having chosen a PROGRAMMABLE ELLIPTICALTRAINER. Wish you a lot of
fun and success during training.
Please note and follow the enclosed safety and assembly instructions carefully.
If you have questions, please do not hesitate to contact us.
Table of Content:
1. Safety Instructions ............................... P. 2
2. Hardware Package .............................. P. 3
3. Assembly Instructions .......................... P. 4
4. Computer Instructions .......................... P. 7
5. Training Instructions ............................ P. 17
6. Training Pulse Rate ............................. P. 18
7. Parts List ............................................. P. 19
8. Exploded Drawing ............................... P. 21
Safety Instructions
GB
Before you start training on your PROGRAMMABLE ELLIPTICAL TRAINER, please read the instructions carefully.
Be sure to keep the instructions for information, in case of repair and for spare part delivery.
X8 is made for home use only and tested up to a
max.body weight of 150 kg.
Follow the steps of the assembly instructions
carefully.
Use only original parts as delivered.
For assembly, use only suitable tools and asks for
assistance if necessary.
Place the trainer on an even, non-slippery surface.
Because of possible corrosion, the usage of the
elliptical trainer in moist areas is not recommended.
Check before the first training and every 1-2 months
that all connecting elements are tight fitting and are
in the correct condition.
Replace defective components immediately and/or
keep the equipment out of use until repair.
For repairs, use only original spare parts.
In case of repair, please ask your dealer for advice.
Avoid the use of aggressive detergents when
cleaning the trainer.
Ensure that training starts only after correct
assembly and inspection of the item.
For all adjustable parts, be aware of the maximum
positions to which they can be adjusted/tightened
to.
The home trainer is designed for adults. Please
ensure that children use it only under the
supervision of an adult.
Ensure that those present are aware of possible
hazards, e.g. movable parts during training.
Consult your physician before starting with any
exercise programme. He can advise on the kind of
training and which impact is suitable.
Warning: incorrect/excessive training can cause
health injuries.
Please follow the advice for correct training as
detailed in training instructions.
The load/work level can be adjusted by PRESSING
the UP/DOWN BUTTON on computer.
- 2 -

Hardware Package
GB
- 3 -

Assembly Instructions
GB
Step 1
1. Fasten front stabilizer (2) & rear stabilizer (3) to main
frame (1) with 4 carriage bolts (50), 4 washers (51) &
4 cap nuts (55) from the underside of stabilizers.
Step 2
1. Unscrew 2 bolts (52), 2 bolts (91), 2 nuts (69) & 4
washers (92) from handlebar post (4).
2. Connect upper computer cable (12) with lower
computer cable (13) securely
3. Put handlebar post (4) into main frame (1). Fix it
with 2 bolts (52), 2 bolts (91), 2 nuts (69) & 4
washers (92) tightly.
Step 3
GB GB
1. Place fixing post (5) to metal parts (under computer
bracket) onto handlebar post (4) and secure with 1
bolt (85) at each side tightly.
2. Connect upper hand pulse sensor wire (17) with
lower hand pulse sensor wire (18) at both sides.
Hide the connection into fix post (5).
3. Cover end of fixing post (5) with plastic cover
set (upper and lower) (30) at each side and then
secure with 1 bolt (57) (upside and underside) at
each side firmly.
Step 4
GB
GB
1. Plug upper computer cable (12) to jack at back of
computer (11). Plug lower hand pulse sensor wire(18)
to cable at back of computer (11).
2. Attach computer (11) onto bracket at top of handlebar
post (4) and secure with 4 bolts (58) firmly.
- 4 -

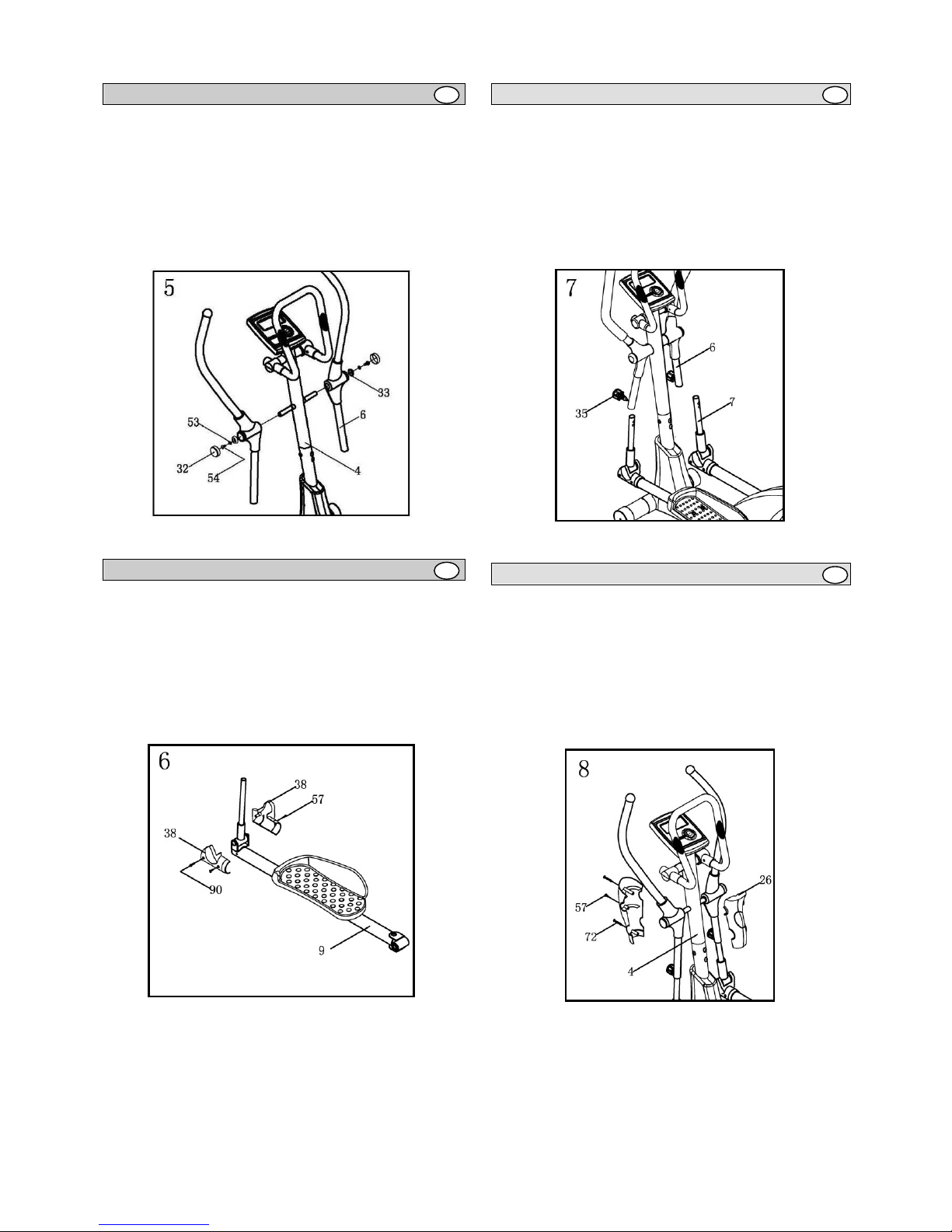

Step 5
1. Attach right upper swing bar (6) to axle of handlebar
post (4) and secure with 1 cap (33), 1 washer (53), 1
bolt (54) & 1 cover (32) in order.
2. Do the same to the left upper swing bar (6).
Step 6
1. Cover pedal bar (9) with plastic cover (38) each
side, and then screw it with 2 screws (57) & 1
bolt (90) tightly.
Step 7
GB GB
1. Loosen and pull spring-loading knob (35) on upper
right swing bar (6). Attach right upper swing bar (6)
to right lower swing bar (7). Select the desired
height and fasten spring-loading knob (35) again.
2. Do the same to the left swing bar (6+7).
GB
Step 8
GB
1. Attach plastic cover (26) (front & rear) onto
handlebar post (4). Secure with 2 screws (72) and
1 bolt (57) securely.
- 5 -

Step 9
1. Place bottle holder (98) to handlebar post(4) and fix
it with 2 bolts (100) tightly.
2. Put water bottle (99) into bottle holder (98).
Step 10
1. Attach end of right pedal bar (9) with wave
washer (70) to the axle of disc (10) on chain cover
and secure with 1 bolt (54) & washer (71) tightly.
2. Do the same to end of left pedal bar (9).
Step 11
GB GB
1. Cover end of left pedal bar (9) with plastic cover
set (upper and lower) (39) and secure each with 1
bolt (57) firmly.
2. Do the same to the end of right pedal bar (9).
1. Connect adaptor (87) with DC wire (14) at back of
main frame (1).
2. Now, your machine is ready for using.
Step 12
GB GB
- 6 -

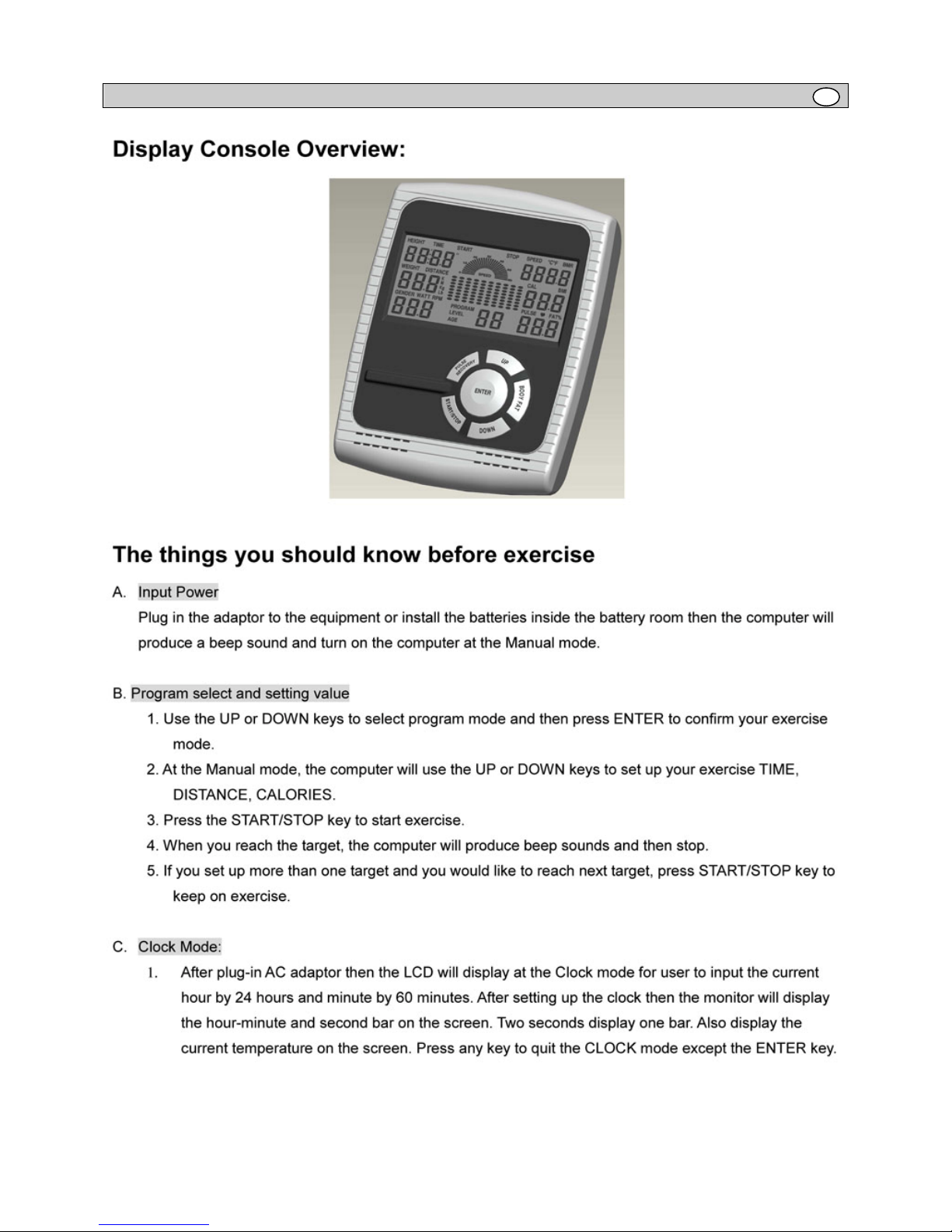

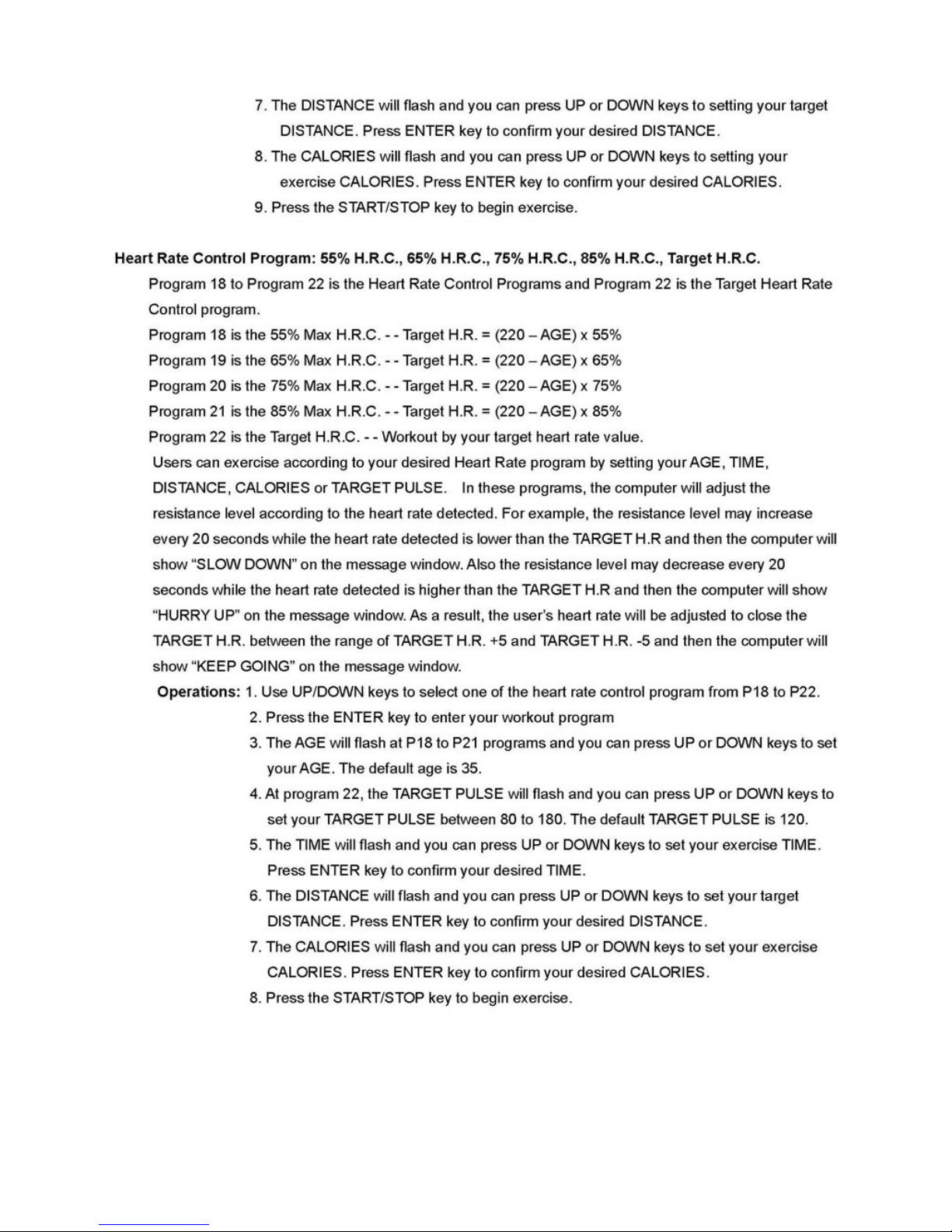

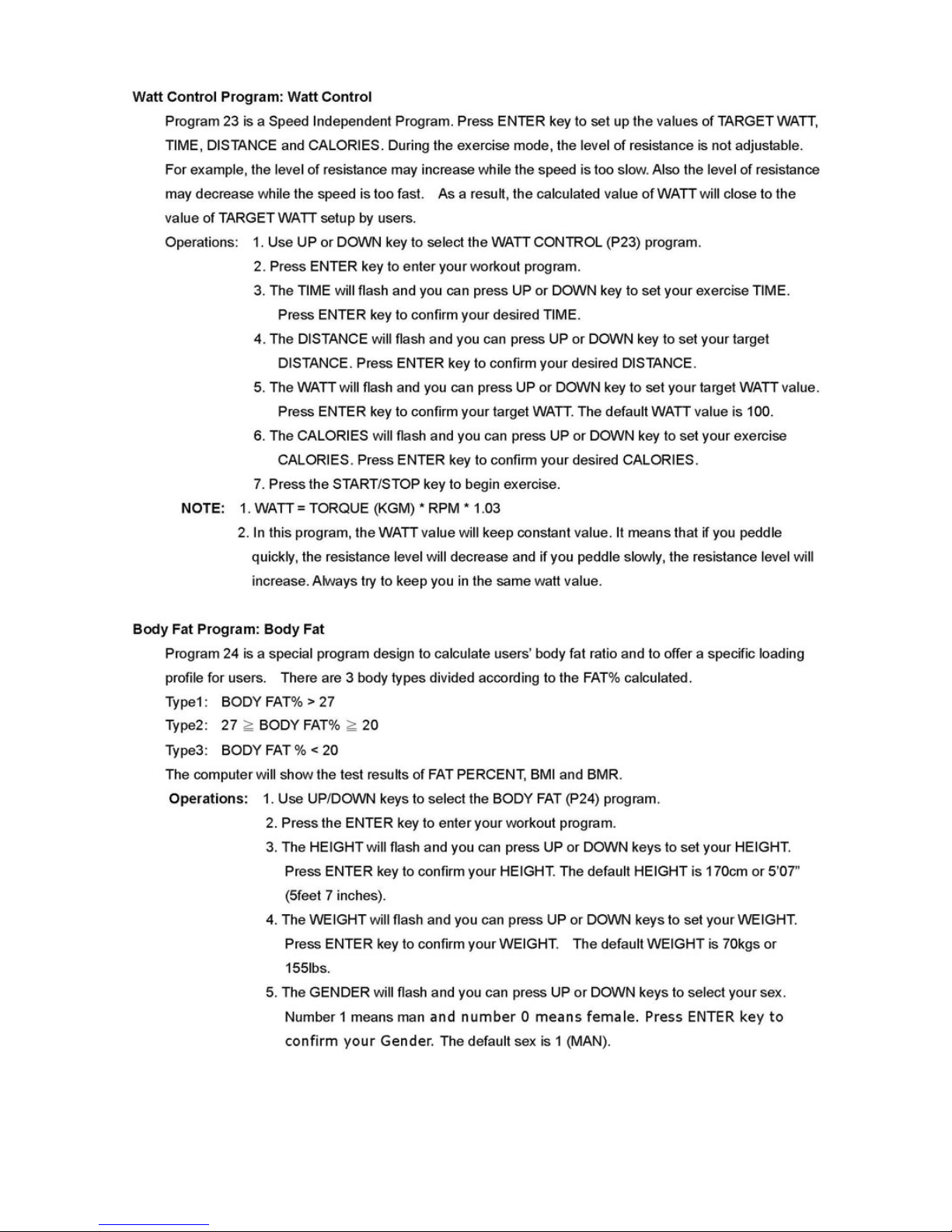

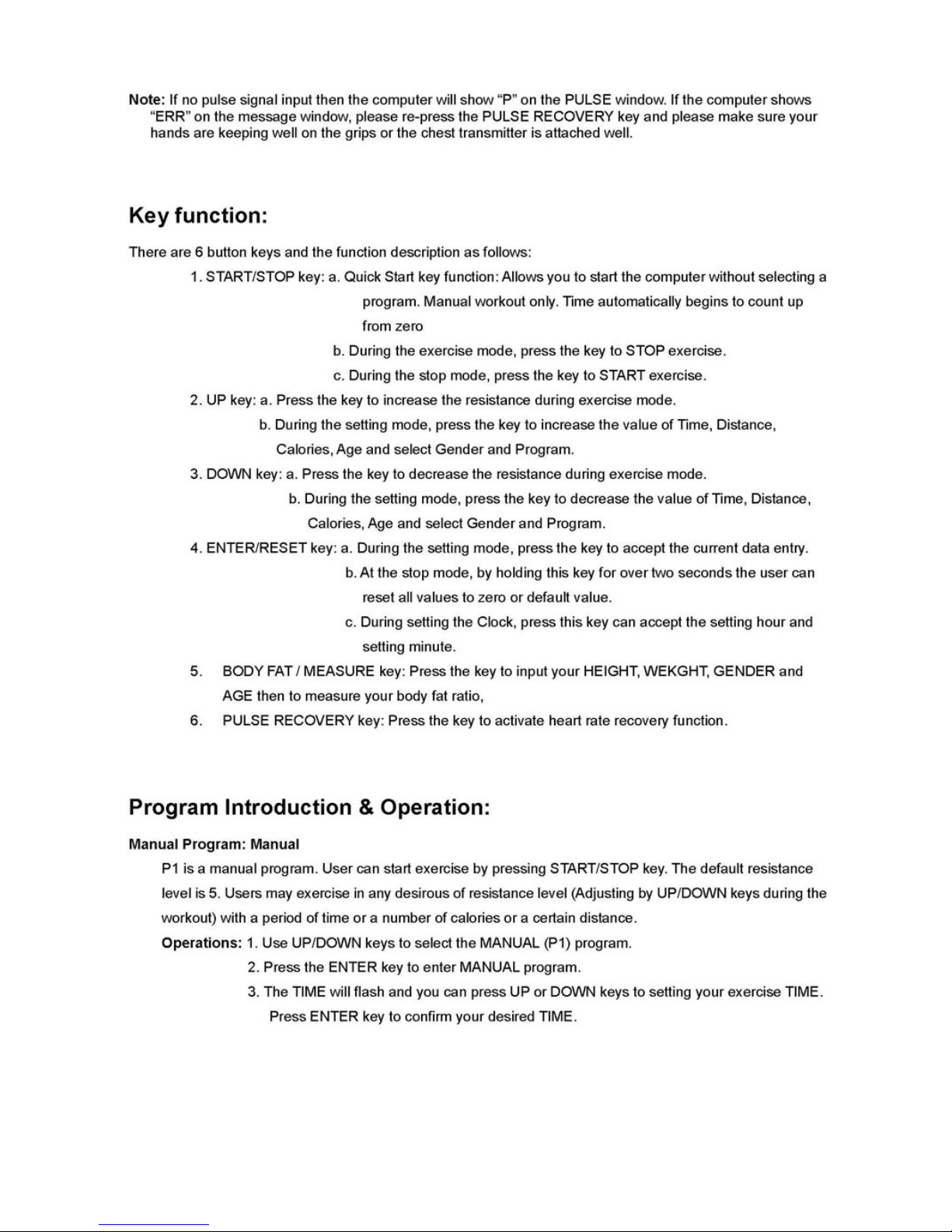

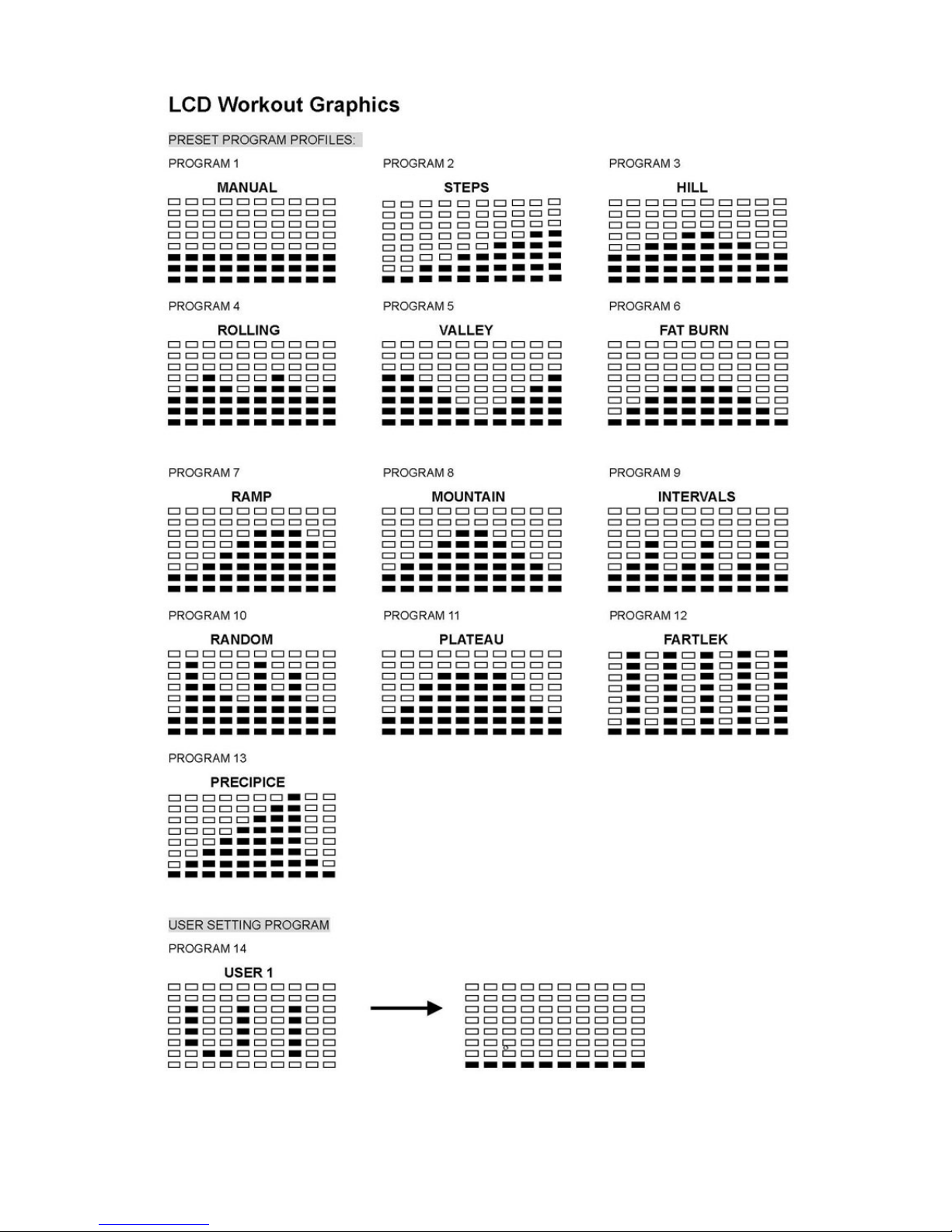

Computer Instructions
GB
- 7 -

- 8 -

- 9 -

- 10 -

- 11 -

- 12 -

- 13 -

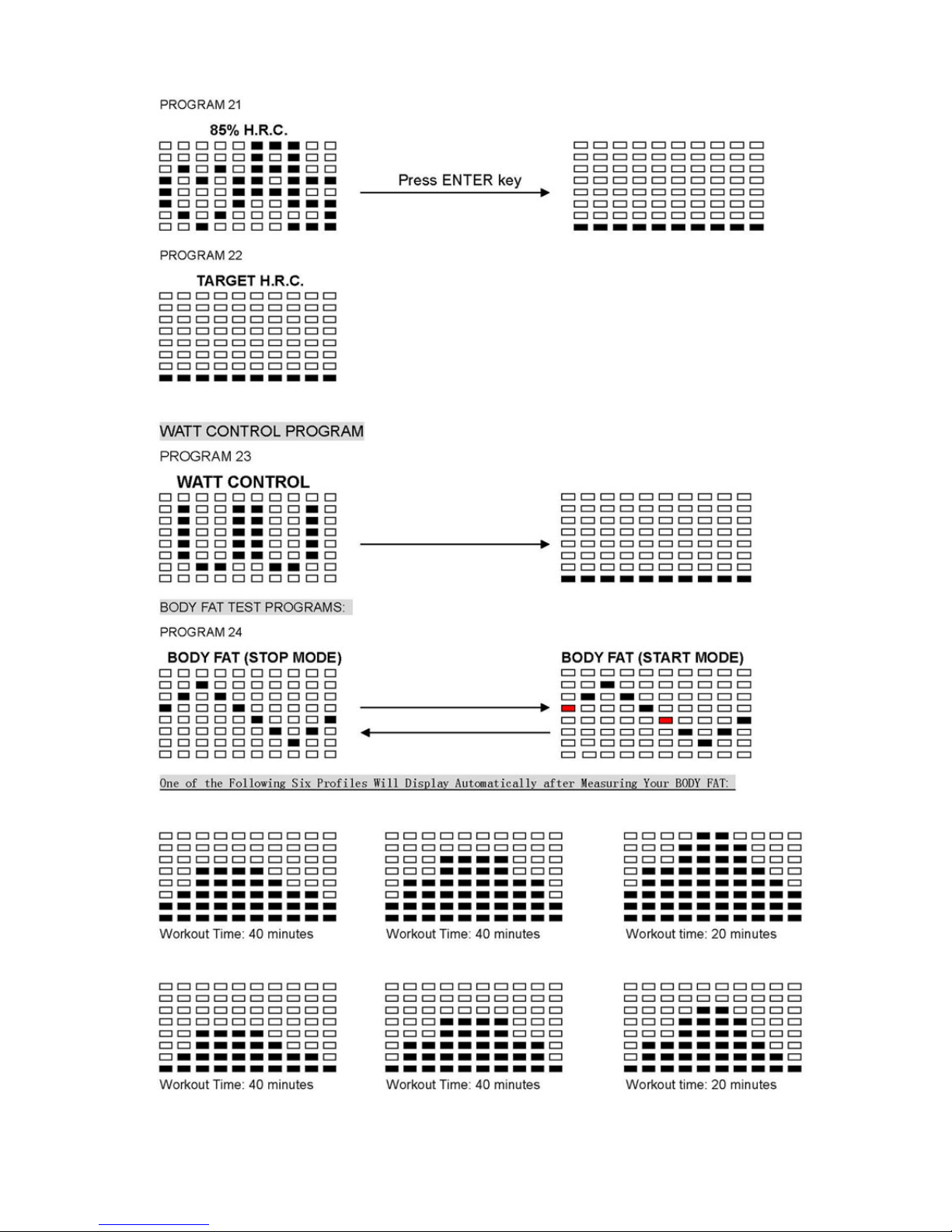

- 14 -

- 15 -

- 16 -

Training Instructions
GB
With increasing improvement of fitness, the training
intensity should be increased to 70% - 85% of your
maximum pulse rate.
To achieve a considerable improvement of your
physical resistance and your health, some aspects of
how to find the most efficient amount of training should
be followed: Increasing the resistance, a higher frequency or longer
training periods can do this.
If you have not been physically active for a longer period
of time and also to avoid health risks, you shouldconsult
your general physician before starting to exercise.
Training Organization
Warm-up:
Intensity Before every your training, you should warm-up for 5-10
minutes.
To achieve maximum results, the right intensity has to
be chosen.
The heart rate is used as guideline. Training session:
As a rule of thumb the following formula is commonly
used: During the actual training, a rate of 70% -85% of the
maximum pulse rate should be chosen.
Maximum pulse rate = 220 - Age The time-length of your training session can be
calculated with the following rule of thumb:
While exercising, the pulse rate should always be
between 60% - 85% of the maximum pulse rate.
For your personal training rates, please see the
attached pulse rate chart on page 18. •daily training session: approx. 10 min. per unit
•2-3 x per week: approx. 30 min. per unit
•1-2 x per week: approx. 60 min. per unit
When starting to exercise, you should keep your rate at
60% of your maximum pulse rate in the first couple of
weeks.
Cool down:
To introduce an effective cool-down of muscles and
metabolism, the intensity should be drastically
decreased during the last 5 – 10 minutes.
With increasing improvement of fitness, the pulse rate
should be slowly increased to 85% of your maximum
pulse rate. Stretching is also helpful for the prevention of muscle
aches.
Fat burning
Success
The body starts to burn fat at approx. 60% of the
maximum pulse rate. Even after a short period of regular exercises, you will
notice that you constantly have to increase the
resistance to reach your optimum pulse rate.
To reach an optimum at burning rate, it is advisable to
keep the pulse rate between 60% – 70% of the
maximum pulse rate. The units will be continuously easier and you will feel a
lot fitter during your normal day.
The optimum training amount consists of three workouts
per week 30 minutes each.
For this achievement, you should motivate yourself to
exercise regularly.
Example: Choose fixed hours for your training session and do not
start training too aggressively.
You are 52 years of age and would like to start
exercising.
Maximum pulse rate = 220 - 52(age) = 168 pulse/min An old quote amongst sportsmen says:
Minimum pulse rate = 168 x 0.6 = 101 pulse/min “The most difficult thing about training is to start it.”
Highest pulse rate = 168 x 0.7 = 117 pulse/min
Wish you have a lot of fun and success with your trainer,
During the first week, it is advisable to start with a pulse
rate of 101. Afterwards, increase it to 117.
- 17 -

Training Pulse Rate
GB
The HEART RATE CHART is only for the customer reference.
- 18 -

Parts List
No. Description
Q’ty
1 Main frame 1
2 Front stabilizer 1
3 Rear stabilizer 1
4 Handlebar post 1
5 Fixing post 1
6 Swing bar – upper (right and left) 1
7 Swing bar – lower (right and left) 1
8 U-plate (for pedal bar) 2
9 Pedal bar (left and right) 1
10 Cross bar – (left and right ) 1
11 Computer 1
12 Computer cable (upper) 1
13 Computer cable (lower) 1
14 DC wire 1
15 Sensor wire 1
16 Hand pulse sensor 2
17 Upper hand pulse sensor wire 1
18 Lower hand pulse sensor wire 2
19 Tension control cable 1
20 Front stabilizer cap 2
21 Rear stabilizer cap 2
22 Pedal (right and left) 1
23 Main chain cover (right and left) (pair) 1
24 Disk 2
25 Decorator 2
26 Plastic cover (for handlebar post) (pair) 1
27 Ring (for front post) 1
28 Plastic cover (for front post) (pair) 1
29 End cap (for upper swing bar) 2
30 Plastic cover (for fix post) (set) 2
31 Plastic cover (for swing bar) (set) 2
32 Cover (for swing bar) 2
33 Cap (for swing bar) 2
34 Fastener (for swing bar) 4
35 Spring –loading knob 2
36 Fastener (for lower swing bar) 2
37 Plastic cover (for lower swing bar) (set) 2
38 Plastic cover (between swing bar & pedal
bar)(set) 2
39 Plastic cover (for pedal bar)(set) 2
40 Belt wheel 1
41 Protector (for flywheel) 2
42 Motor 1
43 Foam grips (for fix post) 1
44 Foam grips (for swing bar) 2
45 Flywheel 1
46 Steel bearing (for crank) 2
No. Description Q’ty
47 Fastener (for pedal bar) 4
48 Fastener (for lower swing bar) 4
49 Magnet 1
50 Carriage bolt (for stabilizer) 4
51 Washer (for stabilizer) 4
52 Bolt (for handlebar post) 2
53 Washer (for swing bar) 2
54 Bolt (for swing bar & U-plate) 4
55 Cap nut (for stabilizer) 4
56 Screw (for hand pulse sensor) 2
57 Bolt (for plastic cover #30,38,39,26&motor) 17
58 Bolt (for computer) 4
59 Screw (for plastic cover #31) 4
60 Screw (for plastic cover #37) 4
61 Carriage bolt (for pedal ) 4
62 Carriage bolt (for pedal) 4
63 Washer (for pedal) 12
64 Nut (for pedal) 4
65 Carriage bolt (for pedal bar) 2
66 Nut (for pedal bar & idle wheel) 3
67 Washer (for pedal bar& flywheel) 4
68 Carriage bolt (for u-plate) 2
69 Nut (for u-plate & handlebar post) 4
70 Wave washer (for u-plate) 2
71 Washer (for u-plate) 2
72 Screw (for main chain cover & plastic cover
#26 & 28) 12
73 Screw (for main chain cover & plastic cover
#28 & 31) 10
74 Belt adjustor (set) 2
75 Plastic sleeve (for belt wheel) 1
76 Washer (for flywheel) 2
77 Washer (for belt wheel) 1
78 Nut (for cross bar) 2
79 Screw (for cross bar) 8
80 Washer (for belt wheel) 2
81 C –ring 1
82 Washer (for belt wheel) 2
83 Bolt (for sensor holder) 1
84 Nut (for flywheel) 2
85 Bolt (for fix post) 2
86 Washer (for U-plate) 4
87 Adaptor 1
88 Allen key wrench 1
89 Sensor holder 1
90 Screw (for plastic cover #38) 2
91 Bolt (for handlebar post) 2
GB
- 19 -
