Taurus FS10.5 Smart User manual

TFFS105.01.02
Taurus FS10.5 Smart
TF-FS10.5-SMART
max. 181 kg
L 140 | B 97 | H 178
~ 60 Min.
150 kg
CM
Assembly and Operating Instructions

FS10.5 Smart
2

FS10.5 Smart
3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Assembly 13
3 OPERATING INSTRUCTIONS 25
3.1 Console Display 25
3.2 Training programmes 26
3.2.1 Quick Start 26
3.2.2 Target programmes 26
3.2.3 Pre-set programmes 27
3.2.4 User-dened programmes 27
3.2.5 Heart rate-oriented programmes 28
3.3 Fitness Test 29
3.4 Virtual running tracks 30
3.5 Updates 31
3.6 Media 32
3.7 Bluetooth and tness apps 33
4 STORAGE AND TRANSPORT 34
4.1 General Instructions 34
4.2 Transportation Wheels 34
5 TROUBLESHOOTING, CARE AND MAINTENANCE 35
5.1 General Instructions 35
5.2 Faults and Fault Diagnosis 35
5.3 Maintenance and Inspection Calendar 36
6 DISPOSAL 36
7 RECOMMENDED ACCESSORIES 37

FS10.5 Smart
4
8 ORDERING SPARE PARTS 38
8.1 Serial Number and Model Name 38
8.2 Parts List 39
8.3 Exploded Drawing 42
9 WARRANTY 45
10 CONTACT 47

FS10.5 Smart
5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2008 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
This tness equipment is suitable for home use, semi-professional use and commercial or
professional use. The semi-professional sector includes, for example, institutional facilities such
as hospitals, schools, hotels and associations. Professional use refers to commercial use, e.g. in a
tness studio.

FS10.5 Smart
6
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

FS10.5 Smart
7
1 GENERAL INFORMATION
1.1 Technical Data
TFT display of
+ speed in km/h
+ training time in min
+ training distance in km
+ cadence (rotations per minute)
+ calories burnt in kcal
+ heart rate (when using the hand sensors or a chest strap)
+ Watt
Resistance system: electronic magnetic induction brake system/
generator brake
Resistance levels: 20
Watt: 40 - 300 Watt
Total number of training programmes: 15
Quick start: 1
Pre-set programmes: 3
Target programmes: 3
User-dened programmes: 1
Heart rate-oriented programmes: 3
Virtual programmes: 4
Balance mass: 10 kg
Transmission ratio: 1:12
Power: Generator with mains operation
Stride length: 11 - 91.4 cm
Weight and dimensions:
Article weight (gross, including packaging): 168 kg
Article weight (net, without packaging): 150 kg
Packaging dimensions (L x W x H): approximately 84 cm x 76 cm x 148 cm
Set up dimensions (L x W x H): approximately 140 cm x 97 cm x 178 cm
Maximum user weight: 181 kg/399 lbs

FS10.5 Smart
8
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

FS10.5 Smart
9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed from the mains socket to
prevent improper use by third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. Until
repair, the equipment must not be used.
࣑ATTENTION
+ The equipment requires a mains connection of 220-230V with 50Hz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of "16A, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

FS10.5 Smart
10
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

Base Frame (91) &
Leveler (44)
Stationary Handrail (67, 68) &
Basic Leveler (78)
Inner Handrail
Cover (64, 65)
Outer Handrail Cover (63)
Base Cover (90) Pedal Support Arm (86, 87)
Swing Arm Cover
(80)
Pedal (84) & Non-Slip Pad
(83)
Console (100) &
Console Bottom Cover
(102)
Fixed Handlebar (99) Upper Handlebar
(72, 73)
Front & Back Upper
Handlebar Cover (162, 163)
Main Frame (28)
Adaptor (169
) & Power Cord
(168)
Upper Handlebar
Cover (70)
Screw Cap (79)
FS10.5 Smart
11
2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

FS10.5 Smart
12

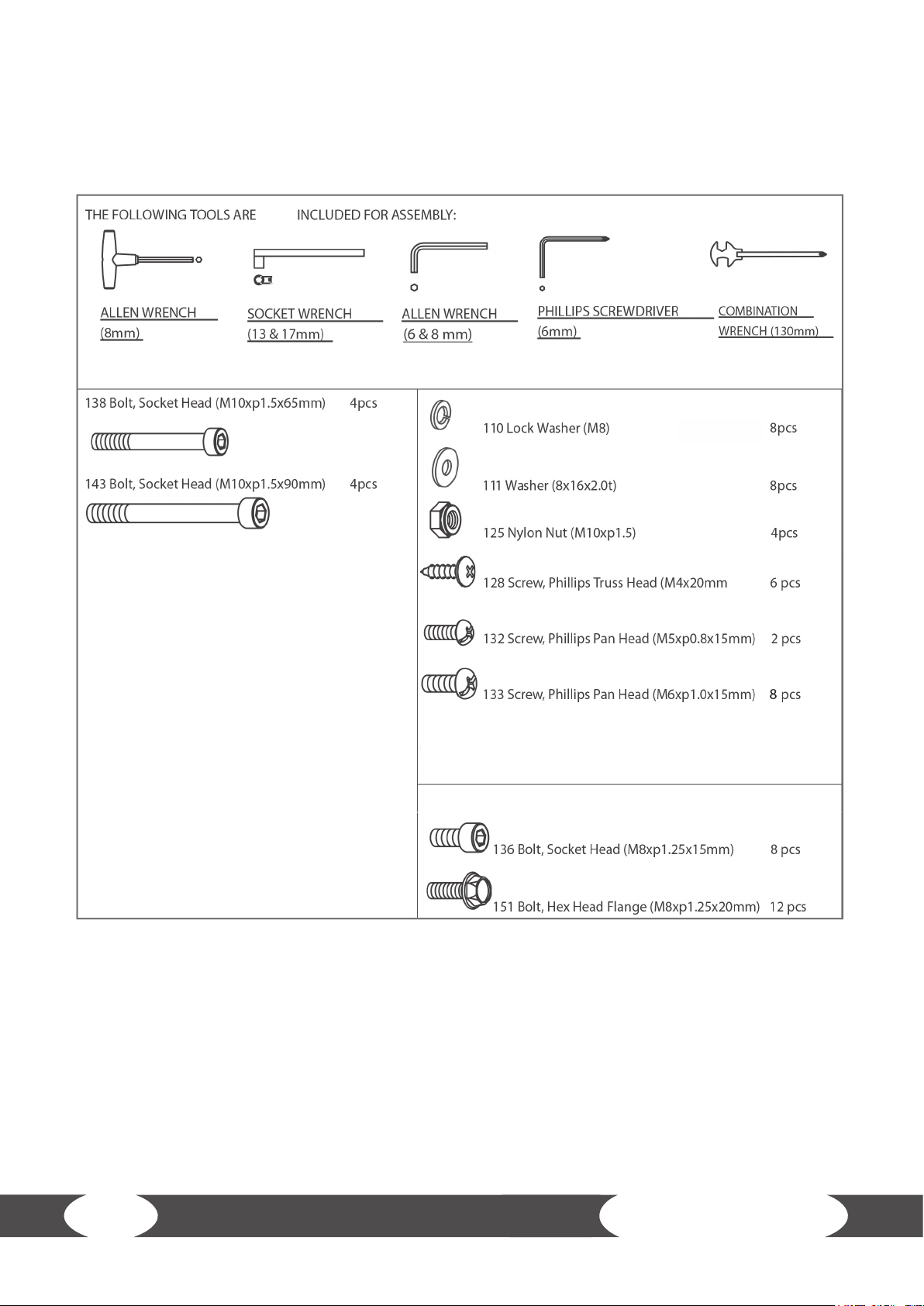

Tools and screw sets

FS10.5 Smart
13
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.

FS10.5 Smart
14

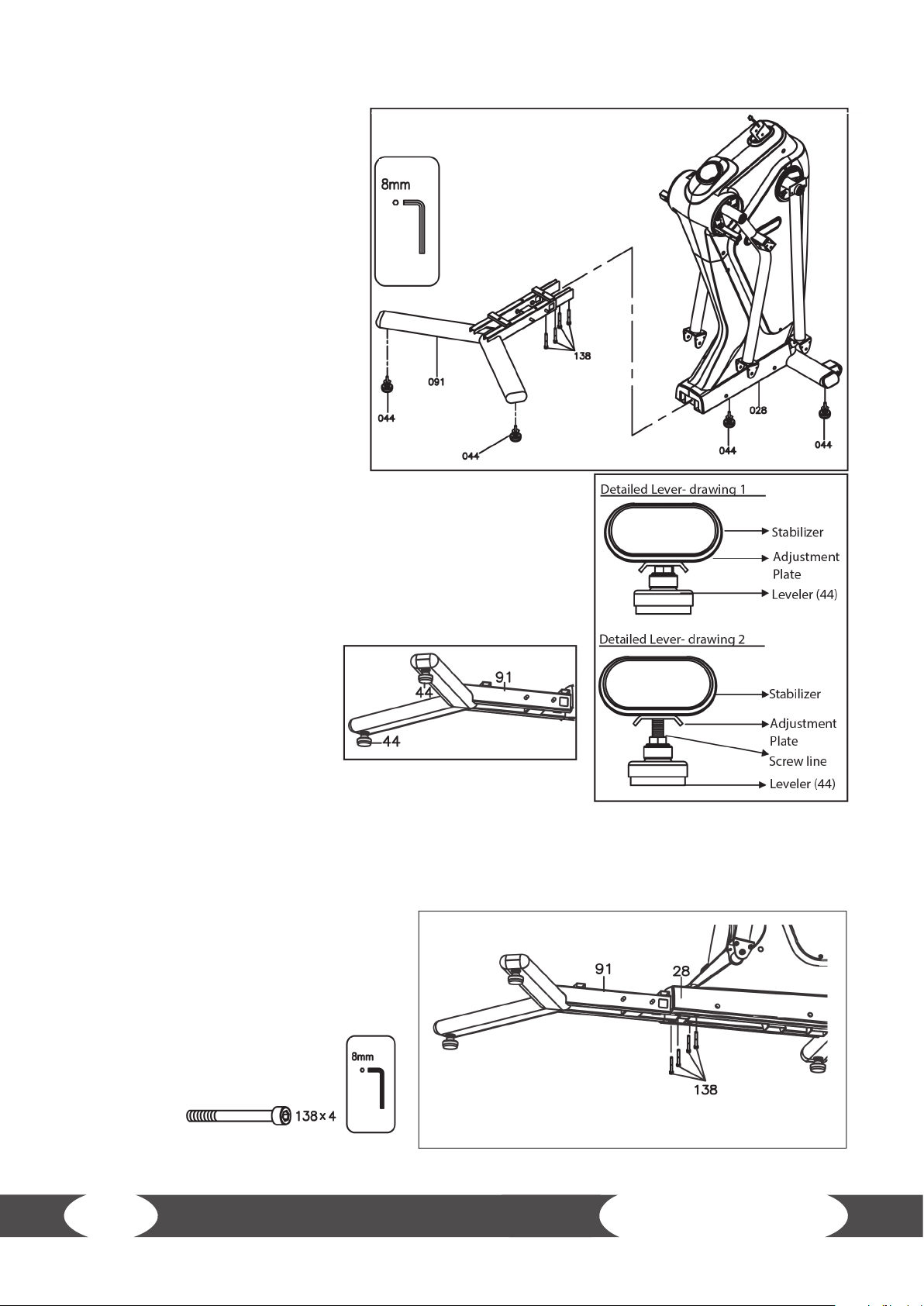

Step 1:
1. Attach the two levelers (44)
to the main frame‘s (28)
front stabilizer (where the
transportation wheels are
located).
2. Ensure that the screws‘
threads disappear in the front
stabilizer (detailed lever-
drawing 1).
LNOTICE
Please make sure that the
elliptical cross trainer stands
rmly and safely on the oor.
If this is not the case, loosen
the levelers (44) again and
adjust them accordingly. It is
important that the adjustment plate is locked underneath
the stabilizer (detailed lever-drawing 2).
3. Attach another pair of levelers (44) underneath the base
frame (91).
Step 2:
Fix the base frame (91) to the main frame
(28) with four socket head bolts (138).

1. & 2.
3. 4.
FS10.5 Smart
15
Step 3:
LNOTICE
The inner handrail
covers (64, 65) are
marked with an
R (right) and an L
(left).
1. Slide the right inner
handrail cover
(65) onto the right
stationary handrail
(68).
2. Repeat
this step
on the left
side.
Step 4:
1. Remove the bolts (141) and nuts (125)
(see g. a.).
2. Remove the bolts (137, 150 & 37) and
nuts (123) (see g. b.).
Step 5:
1. Place the upper end of the right stationary handrail (68) on the
main frame (28).
2. Place the lower end of the right stationary handrail
(68) on the base frame (91).
3. Please make sure that the drill holes of the right
stationary handrail (68) align with the threads of
the base frame (91).
4. Now gently push the upper end of the right
stationary handrail (68) towards the main frame
(28).
5. Repeat these steps on the left side.

1.
2.
3.
a.
b. c.
FS10.5 Smart
16
Step 6:
LNOTICE
Do not tighten the following
screws and bolts until you are
instructed to do so.
1. Place the two socket head bolts
(136), the two lock washers (110)
and the two washers (111).
2. Place the bolts (137, 150, 37) and
the two nylon nuts (123).
3. Place one of the previously
removed screws (141) and two
nylon nuts (125).
Step 7:
1. Now tighten all the bolts and screws
according to the following order: a, b and
c.
2. Repeat these steps on the left side.

FS10.5 Smart
17
Step 8:
Attach the two levelers (78) underneath the
stationary handrails (67, 68).
LNOTICE
In case the levelers are not even, please
refer to step 1. For further assistance,
please refer to the two detailed lever-
drawings on this page.
Step 9:
1. Slide the right inner handrail cover (65) up to the right back swing arm (82).
LNOTICE
The cover has a little recess.
Make sure that that both the
stationary handrail (68) and
the right back swing arm
(82) are covered.
2. Attach the cover with two
screws (133).
3. Attach the outer handrail
cover (63) with three screws
(128).
4. Repeat these steps on the
left side.

FS10.5 Smart
18
Step 10:
LNOTICE
The four screws (132) on the
front swing arms (76, 77) are
pre-assembled.
1. Remove the four screws (132).
2. Attach the upper handlebar
covers (70) with the previously
removed screws (132).
Step 11:
LNOTICE
The screws (139)
on the base frame
(91) are pre-
assembled.
1. Remove the two
screws (139).
2. Fix the base cover
(90) to the base
frame (91) with
the previously
removed screws
(139).
3. Now attach the
two screw caps
(79).

FS10.5 Smart
19
Step 12:
LNOTICE
The pedal support arms (86, 87)
are marked with an R (right) and
and L (left).
1. Fix the right pedal support arm
(86) to the right front and back
swing arm (77, 82) with two
bolts (143) and two nylon nuts
(125)
2. Repeat this step on the left side.
Step 13:
LNOTICE
The screws (132) on the right
front and back swing arm (77, 82)
are pre-assembled.
1. Remove the eight screws (132).
2. Fix the swing arm covers (80) to
the right front and back swing
arm (77, 82) with the previously
removed screws (132).
3. Now attach the eight screw caps
(79).
4. Repeat these steps on the left
side.

FS10.5 Smart
20
Step 14:
LNOTICE
The bolts (136) and washers (112) on the pedal support arms (86, 87) are pre-assembled.
1. Remove the eight bolts (136) and washers (112).
2. Fixtherightpedal(84)totherightpedalsupportarm(87)withfouroftheeightpreviouslyremoved
bolts (136) and washers (112).
3. Now attach one non-slip pad (83) on the right pedal (84).
4. Repeat these steps on the left side.
